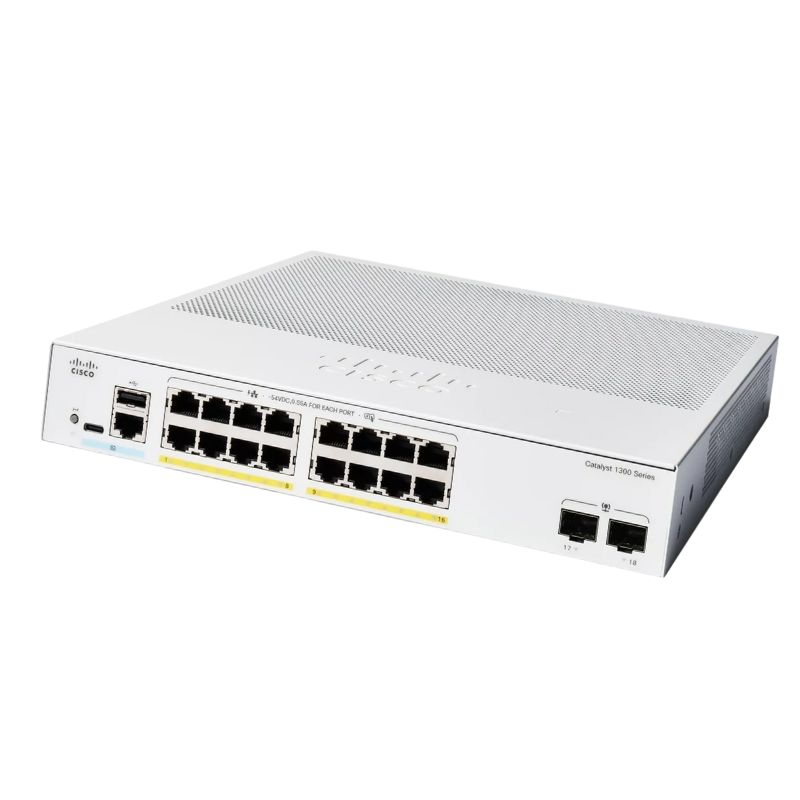

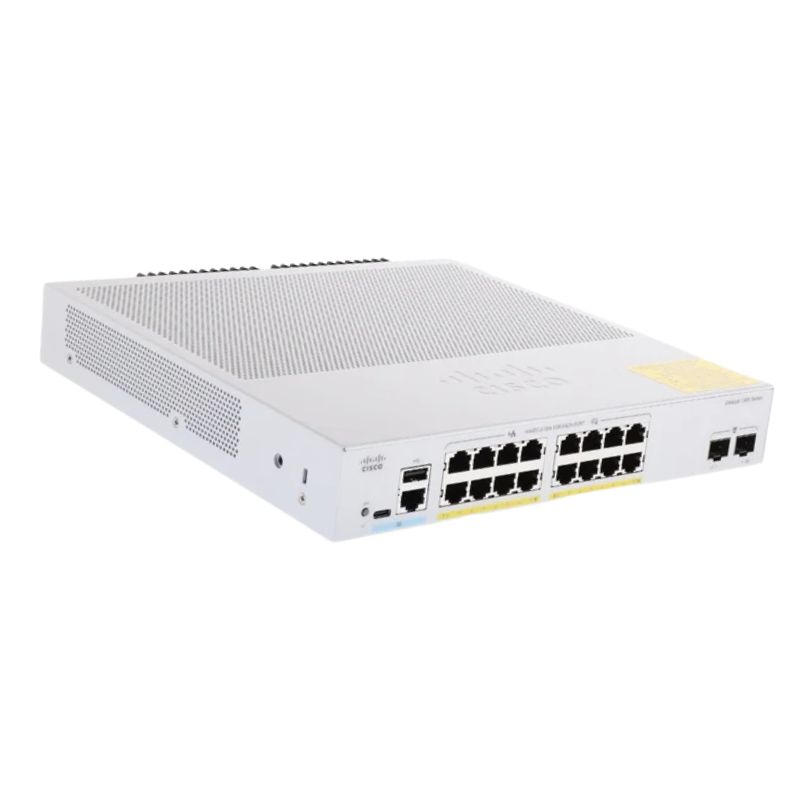

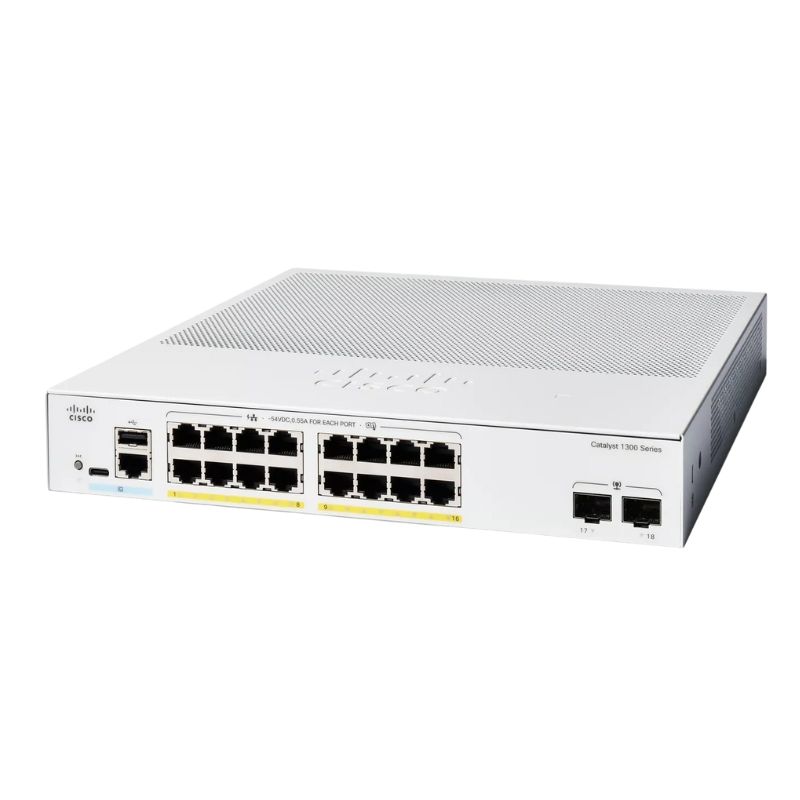

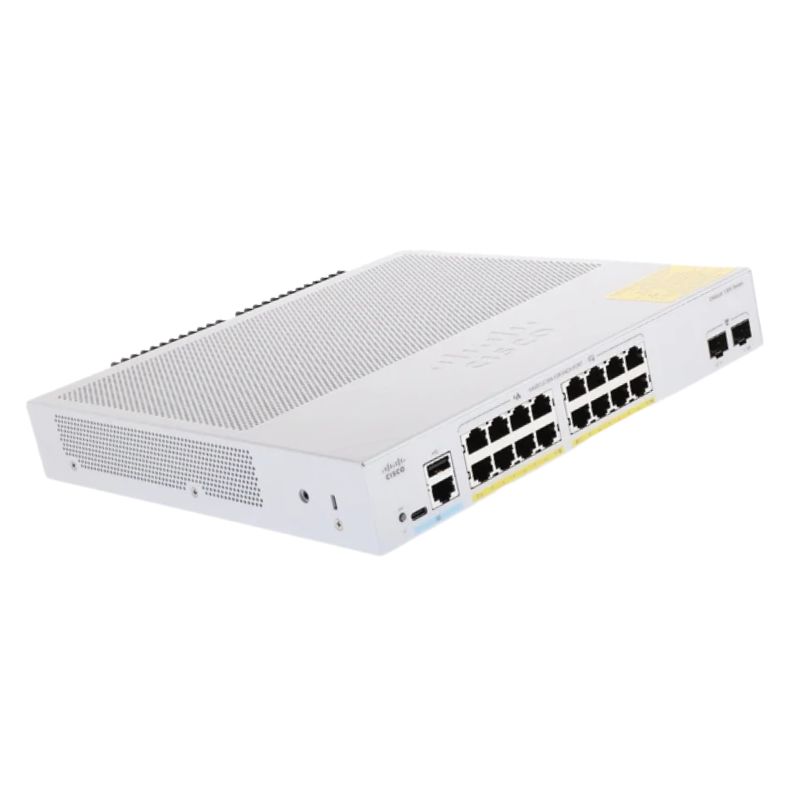

Cisco C1300-16FP-2G Catalyst 16 Ports Managed Switch.

Cisco C1300-16FP-2G Specifications

Product Details

• Product Name: Cat 1300 16-Port GE Full PoE
• Product Type: Ethernet Switch
• Manuf Part#: C1300-16FP-2G
• Manageable: Yes

Connectivity Features

• Ethernet Technology: Gigabit Ethernet
• Media Type Supported: Optical Fiber, Twisted Pair
• Total Number of Network Ports: 16
• PoE (RJ-45) Port: Yes
• Total Number of Expansion Slots: 2.0
• Expansion Slot Type: SFP

Physical Attributes

• Form Factor: Rack-mountable
• Power Consumption: 279.80 W
• Power Source: Power Supply AC
• Compatible Rack Unit: 1U
• Number of Power Supplies Installed: 1
• Height: 1.7"
• Width: 10.6"
• Depth: 12.1"

Performance Specifications

• Layer Supported: 3
• Networking Standards: IEEE 802.1x, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.11ac, IEEE 802.1Q, IEEE 802.1ab

Expansion and Connectivity Options

• Modular: Yes
• Uplink Port: Yes
• Shared SFP Slot: Yes
• Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE+, 2 x Gigabit Ethernet Expansion Slot
• PoE Budget: 240 W

Electrical Specifications

• Network Technology: 10/100/1000Base-T, 1000Base-X
• Product Line: Catalyst
• Input Voltage: 120 V AC, 230 V AC
• Frequency: 50 Hz, 60 Hz

Cisco C1300-16FP-2G Catalyst 16 Ports Gig PoE+ 2 Exp 2 SFP Managed Network Switch

Overview of Cisco C1300-16FP-2G

The Cisco C1300-16FP-2G Catalyst 16 Ports Gig PoE+ 2 Exp 2 SFP Managed Network Switch is designed to deliver reliable, high-performance network management in both small and large enterprise environments. With its robust features and flexibility, this managed switch provides businesses with the ability to efficiently manage their network infrastructure while ensuring optimal performance. Whether deployed in an office setting or integrated into a more complex network, the Cisco C1300-16FP-2G offers versatile solutions to meet the demands of modern networking needs.

Key Features of Cisco C1300-16FP-2G

Gigabit Ethernet Ports

The Cisco C1300-16FP-2G offers 16 Gigabit Ethernet ports, providing high-speed data transfer rates ideal for businesses looking to upgrade their network. These ports ensure faster connectivity for devices such as computers, servers, and IP phones, significantly improving overall network efficiency.

Power over Ethernet Plus (PoE+) Capability

Power over Ethernet Plus (PoE+) support allows the Cisco C1300-16FP-2G to deliver power and data to connected devices simultaneously. With a total PoE power budget, businesses can power wireless access points, IP cameras, and other compatible devices without the need for additional power sources, streamlining installation and reducing costs.

Expandable Capabilities

One of the key advantages of the Cisco C1300-16FP-2G is its expandability. With the option to add two expansion modules, businesses can easily scale their network by adding additional ports or increasing connectivity options with SFP modules for fiber optics. This adaptability makes the switch future-proof for growing network demands.

Management and Security Features

Comprehensive Network Management

The Cisco C1300-16FP-2G provides advanced management features such as VLAN support, QoS (Quality of Service), and traffic prioritization. These tools enable administrators to efficiently manage network traffic, ensuring that critical applications receive the necessary bandwidth for optimal performance.

Enhanced Security Measures

Security is paramount for any managed switch, and the Cisco C1300-16FP-2G offers robust features like 802.1X authentication, MAC address filtering, and access control lists (ACLs). These features safeguard sensitive data and prevent unauthorized access to the network, providing peace of mind for IT administrators.

Performance and Scalability

High-Performance Switching

With a powerful switching architecture, the Cisco C1300-16FP-2G handles heavy traffic loads efficiently. The switch supports wire-speed Gigabit Ethernet performance, ensuring that data is processed and transmitted without delay, even during peak usage periods.

Scalability for Growing Networks

As businesses grow, their networking needs evolve. The Cisco C1300-16FP-2G offers a scalable solution with its expandability options and support for advanced network features, making it an ideal choice for organizations planning long-term growth.

Versatile Deployment Options

Flexible Installation

Whether rack-mounted or desktop deployed, the Cisco C1300-16FP-2G adapts to various deployment scenarios. Its flexible design ensures that businesses can easily integrate the switch into existing infrastructure without significant alterations.

High Availability and Reliability

The Cisco C1300-16FP-2G is built to offer high availability with features like redundant power supplies and support for failover protocols. This ensures minimal downtime, making it an ideal solution for critical business environments that demand continuous network operation.

Additional Technical Specifications

Power Supply and Thermal Management

Designed with advanced power management and thermal efficiency, the Cisco C1300-16FP-2G ensures that operations remain stable even in high-demand situations. Its smart fan control system dynamically adjusts cooling to maintain optimal performance while minimizing noise.

Environmental Compliance

The switch meets environmental standards, including energy efficiency and sustainability, aligning with modern business practices aimed at reducing their carbon footprint. Businesses can confidently use the Cisco C1300-16FP-2G knowing they are making eco-friendly choices.
