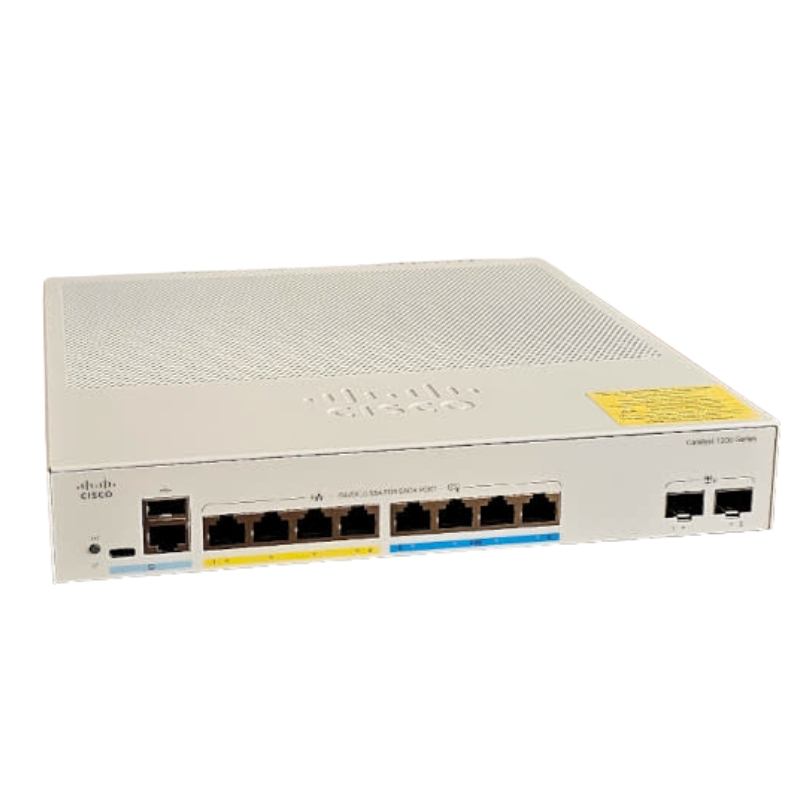

C1300-8MGP-2X Cisco L3 Managed 8X 10 Gigabit Ethernet Sfp+ Rack Mountable Switch.

Cisco C1300-8MGP-2X: A Detailed Technical Examination

The Cisco C1300-8MGP-2X is a 12-port, Layer 3 Lite managed switch that stands out for its versatile port configuration and advanced feature set. It is built to provide flexible and scalable 10GbE connectivity where it's needed most.

Core Hardware Architecture & Performance

At its heart, the C1300-8MGP-2X is powered by a high-performance ASIC, delivering wire-speed switching and routing across all ports. With a substantial switching capacity and packet forwarding rate, it ensures zero packet loss and minimal latency even under full load, making it ideal for real-time applications like VoIP, video conferencing, and virtualized environments.

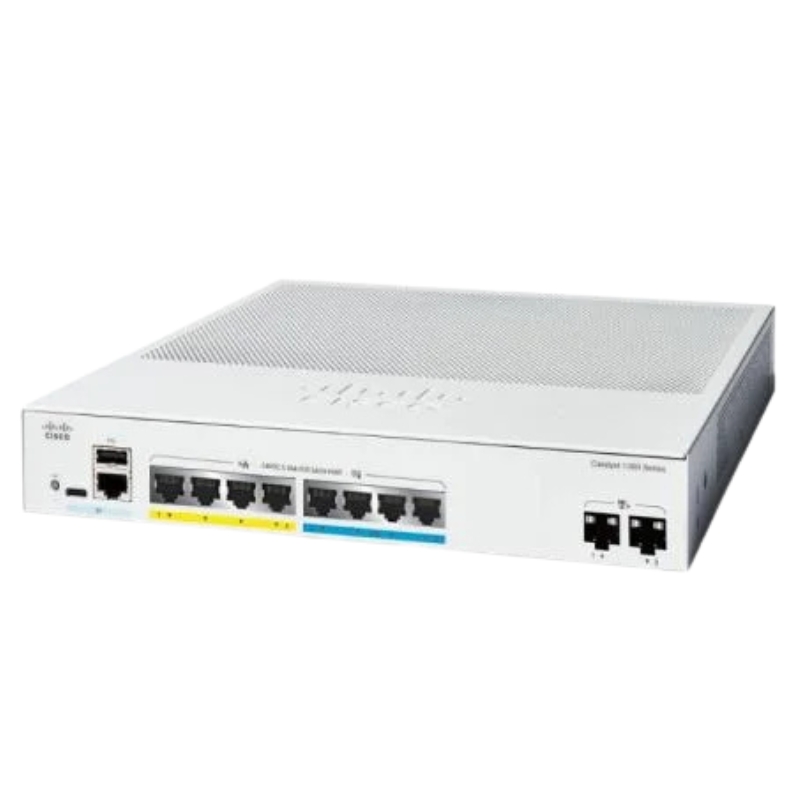

Port Configuration & Flexibility

The switch's design philosophy centers on flexible connectivity to meet diverse deployment scenarios.

8 x Multi-Gigabit Ethernet Ports (MGP)

These eight RJ45 ports are the workhorses of the switch, supporting Multi-Gigabit technology (100M/1G/2.5G/5G/10G Base-T). This auto-sensing capability is crucial for connecting to a wide array of devices—from legacy 1GbE equipment to modern 2.5GbE and 5GbE Wi-Fi 6/6E access points and high-speed desktops—without requiring adapter modules.

2 x 10 Gigabit SFP+ Ports

The two dedicated SFP+ ports provide fiber-optic connectivity options for long-distance, high-bandwidth uplinks to core switches or aggregation points. They support a vast range of Cisco SFP+ modules for 10GbE over single-mode or multi-mode fiber, enabling connections over distances from hundreds of meters to tens of kilometers.

2 x Combo Ports (SFP/RJ45)

The inclusion of two combo ports (SFP/RJ45) offers additional flexibility. Each combo pair allows the administrator to choose either a 1GbE copper connection (via RJ45) or a 1GbE fiber connection (via SFP module), but not simultaneously. This is ideal for providing alternative uplink paths or connecting to different media types based on distance and infrastructure requirements.

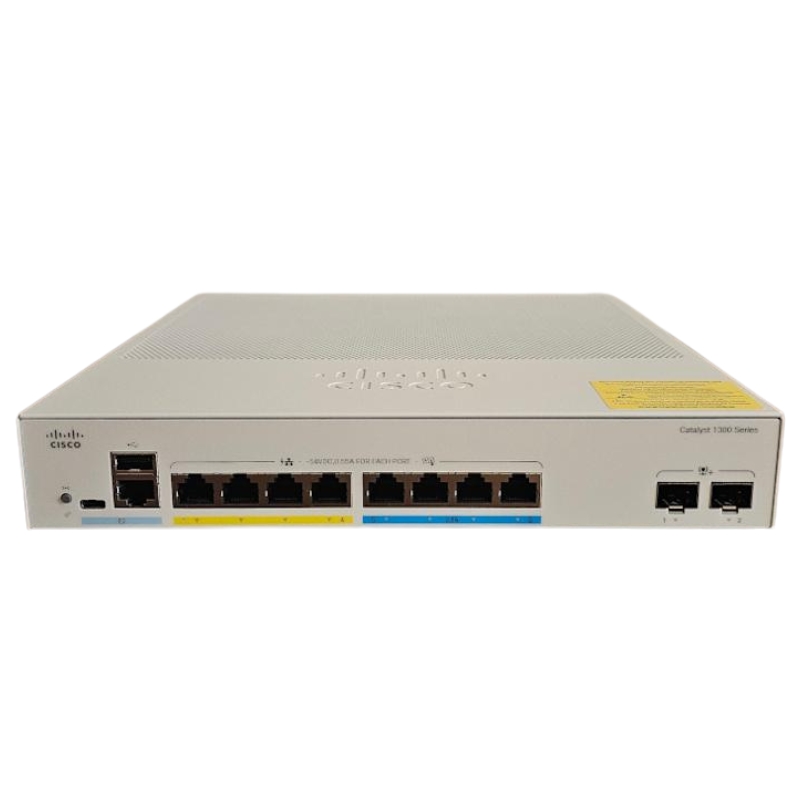

Rack-Mountable & Compact Design

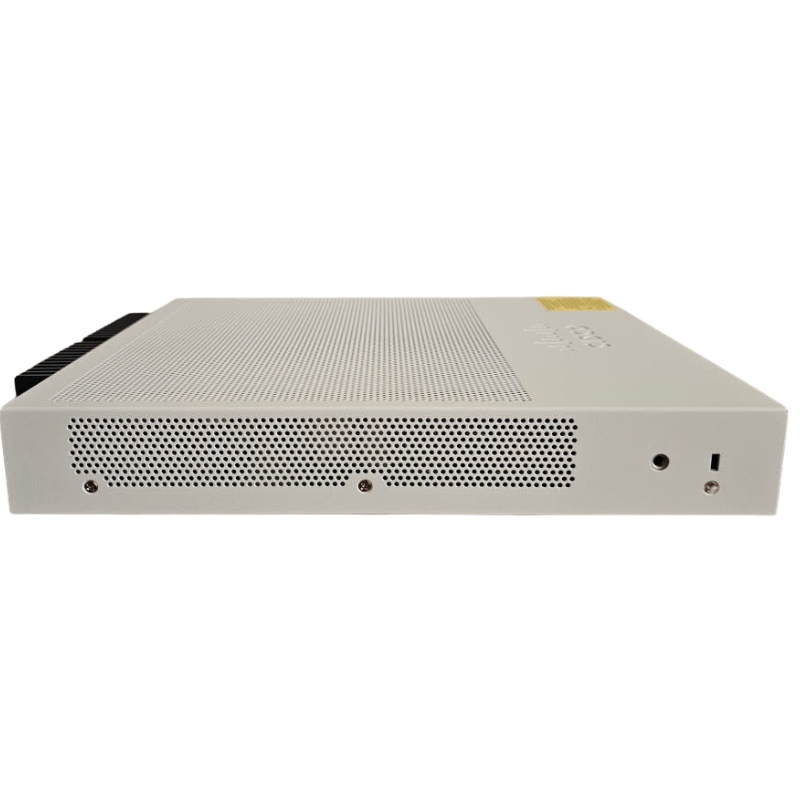

Housed in a standard 1RU (Rack Unit) metal chassis, the switch is built for deployment in standard 19-inch server rooms, wiring closets, or network racks. Its compact design conserves valuable rack space while providing enterprise-level features. The robust construction ensures optimal thermal management with side-to-side airflow, suitable for densely packed racks.

Comprehensive Layer 3 Lite Routing & Intelligence

Moving beyond basic Layer 2 switching, the C1300-8MGP-2X's Layer 3 Lite capabilities enable efficient inter-VLAN routing and advanced traffic management within a single device, eliminating the need for an external router for internal network segmentation.

Static Routing & RIP

The switch supports static IP routing for simple, predictable routing tables. For more dynamic small to medium networks, it implements RIP (Routing Information Protocol) v1 and v2, allowing it to automatically learn and update routing information from neighboring Layer 3 devices, improving network resilience and simplifying configuration.

Advanced IP Features

It includes DHCP (Dynamic Host Configuration Protocol) services, functioning as a DHCP server, client, or relay agent. This centralizes IP address management across subnets. Support for ACLs (Access Control Lists) based on IP addresses, MAC addresses, and TCP/UDP ports provides granular control over traffic flow between VLANs and networks, enhancing security and policy enforcement.

Robust Security & Network Management Suite

In today's threat landscape, a switch must be a proactive security device. The C1300-8MGP-2X incorporates a multi-layered security approach to protect the network infrastructure and data.

Access Control & Authentication

The switch supports IEEE 802.1X port-based network access control (NAC), which authenticates users or devices before granting network access. It can function as an authenticator, working with a RADIUS server. This is complemented by MAC-based authentication and a comprehensive guest VLAN feature for securing BYOD (Bring Your Own Device) policies.

Network Threat Mitigation

Features like DHCP snooping prevent rogue DHCP server attacks, while IP Source Guard blocks IP address spoofing. DoS (Denial of Service) protection mechanisms help safeguard the switch's CPU from malicious traffic floods, ensuring control plane stability.

Advanced QoS, High Availability & Reliability

To ensure consistent performance for critical applications and maintain business continuity, the switch is equipped with sophisticated traffic prioritization and redundancy features.

Quality of Service (QoS) Architecture

The switch employs a robust QoS model to classify, prioritize, and manage network traffic. It supports DSCP (Differentiated Services Code Point) and IEEE 802.1p Class of Service (CoS) for traffic classification at Layers 3 and 2, respectively.

Traffic Prioritization Mechanisms

Through features like weighted tail drop (WTD) and strict priority queuing, the switch can guarantee bandwidth for latency-sensitive applications like voice and video, ensuring clear calls and smooth video streams even during periods of network congestion. This is essential for converged networks carrying data, voice, and video on a single infrastructure.

High Availability Features

Maximizing network uptime is a core design principle. The switch supports IEEE 802.1s/w Multiple Spanning Tree Protocol (MSTP) and Rapid Spanning Tree Protocol (RSTP) to create loop-free, redundant network topologies that provide sub-second convergence in case of a link failure.

Link Aggregation & Resiliency

Link Aggregation Control Protocol (LACP - IEEE 802.3ad) allows the bundling of multiple physical ports into a single logical EtherChannel group. This increases uplink bandwidth, provides load balancing, and offers inherent link redundancy—if one port in the group fails, traffic is automatically redistributed to the remaining active ports without disruption.

Primary Use Cases & Application Environments

The Cisco C1300-8MGP-2X is uniquely positioned to solve specific network challenges across various verticals.

Small to Medium Business (SMB) Core / Aggregation

For growing SMBs, this switch serves as a powerful core switch, interconnecting departmental switches, servers, and network storage. Its Layer 3 routing enables secure segmentation of finance, HR, and general user traffic while providing high-speed connectivity to the data center and internet edge.

High-Density Wi-Fi 6/6E & 10GbE Access Layer

In educational campuses, hospitality venues, or modern offices deploying Wi-Fi 6/6E access points (which often have 2.5GbE or 5GbE uplinks), the Multi-Gigabit ports provide the necessary backhaul capacity without overspending on full 10GbE ports. The 10GbE SFP+ ports then aggregate this traffic to the network core.

Bandwidth-Intensive Creative & Technical Workgroups

In media production, engineering, or scientific environments where workstations handle large files (e.g., 4K/8K video, CAD models, genomic data), the switch provides direct 10GbE or 5GbE connectivity to each desktop, drastically reducing file transfer and rendering times and improving collaboration through high-speed access to shared network storage (NAS/SAN).

Cost-Effective Server Farm / Edge Data Center Connectivity

For small server clusters, virtualization hosts, or edge computing nodes, the switch offers a low-latency, high-throughput switching fabric. The combination of copper and fiber ports allows for flexible connectivity to servers with 10GbE NICs and storage arrays, making it an ideal top-of-rack (ToR) solution.

Key Considerations & Category Comparison

When evaluating switches in this category, several factors distinguish the Cisco C1300-8MGP-2X from both lower-tier and higher-end alternatives.

Layer 3 Lite vs. Full Layer 3

It's crucial to understand that "Layer 3 Lite" typically supports static routing and basic dynamic protocols (like RIP). For networks requiring advanced dynamic routing protocols such as OSPF or BGP, a full Layer 3 switch would be necessary. The C1300-8MGP-2X is perfectly suited for inter-VLAN routing and simple network segmentation.

Multi-Gigabit vs. Standard 10GbE-Only

The inclusion of Multi-Gigabit (2.5G/5G) RJ45 ports is a significant advantage over switches with only 1GbE or fixed 10GbE ports. It offers a smooth migration path and protects investments in newer access point and desktop technology that utilizes these intermediate speeds.

Managed vs. Unmanaged/Smart Switches

This is a fully managed switch, offering deep programmability, security, and monitoring. It is a step above "smart" or web-managed switches, which offer limited configuration options, and far beyond unmanaged switches, which provide zero configuration, security, or visibility.

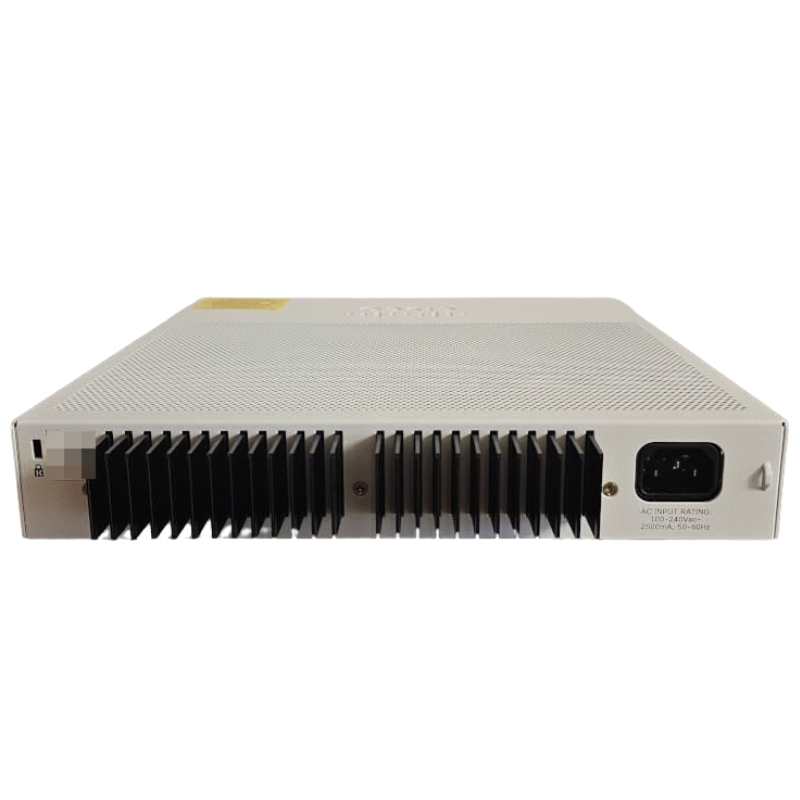

Form Factor & Power

As a rack-mountable device, it is intended for permanent infrastructure. Desktop or wall-mount switches might be considered for smaller deployments. Additionally, it is typically powered by a standard AC power supply; for environments requiring power redundancy, units with dual, hot-swappable power supplies would be a consideration further up the product line.

Essential Technical Glossary for This Category

Understanding these terms is key to grasping the capabilities of the Cisco C1300-8MGP-2X and similar switches.

Layer 3 Switch

A network switch that can perform routing functions based on IP addresses in addition to Layer 2 switching based on MAC addresses. It enables communication between different IP subnets (VLANs) without an external router.

SFP+ (Enhanced Small Form-Factor Pluggable)

A compact, hot-pluggable transceiver module used for both telecommunication and data communications applications. SFP+ supports data rates up to 16 Gbps and is commonly used for 10 Gigabit Ethernet connections over fiber optic or copper cabling.

Multi-Gigabit Ethernet

An Ethernet standard (IEEE 802.3bz) that allows for speeds of 2.5 Gbps and 5 Gbps over traditional Category 5e/6 cabling, providing an upgrade path between 1GbE and 10GbE without requiring a full re-cabling infrastructure.

VLAN (Virtual Local Area Network)

A logical segmentation of a physical network into multiple broadcast domains. VLANs improve security, performance, and manageability by isolating traffic groups (e.g., departments, device types) from each other.

QoS (Quality of Service)

A suite of technologies used to manage bandwidth, minimize delay, jitter, and packet loss for critical applications by prioritizing network traffic.
