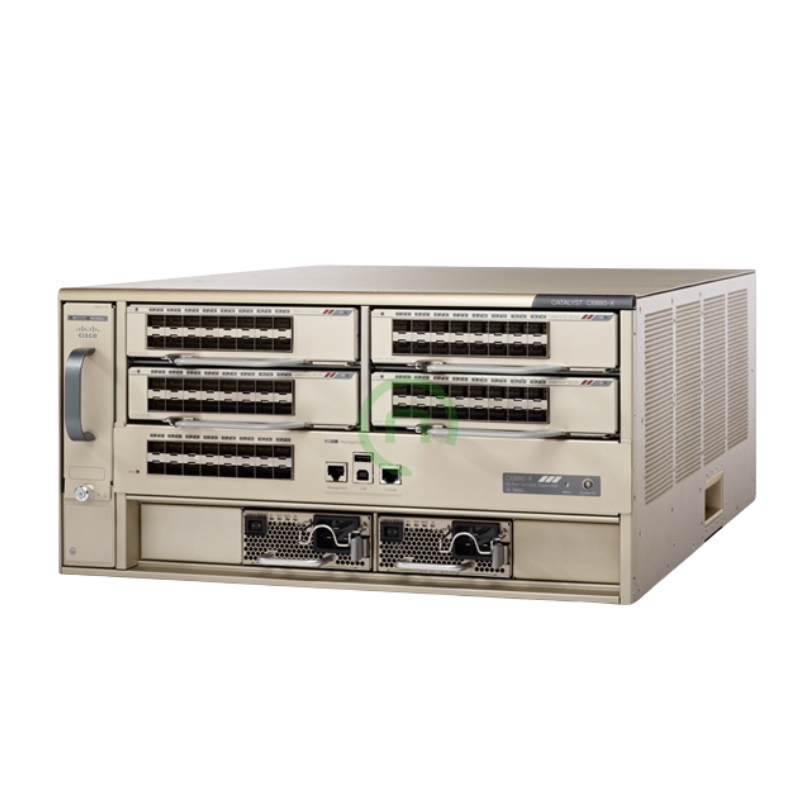

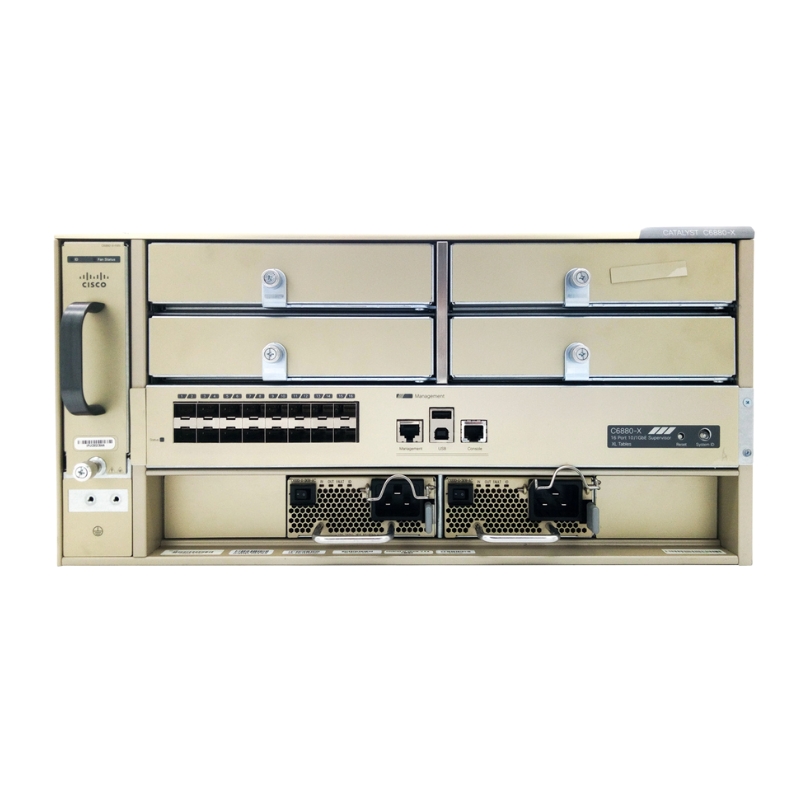

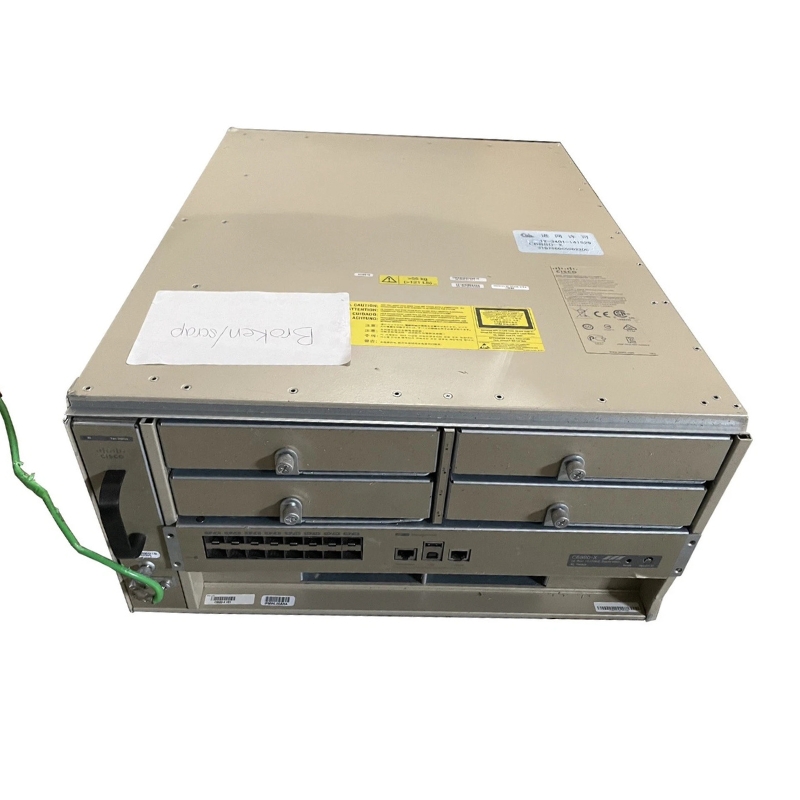

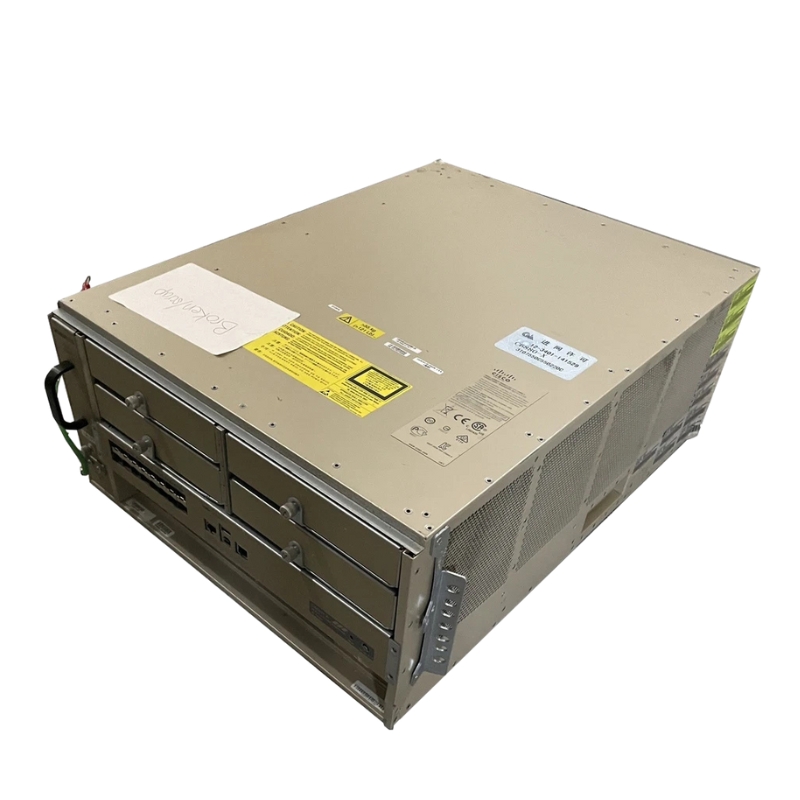

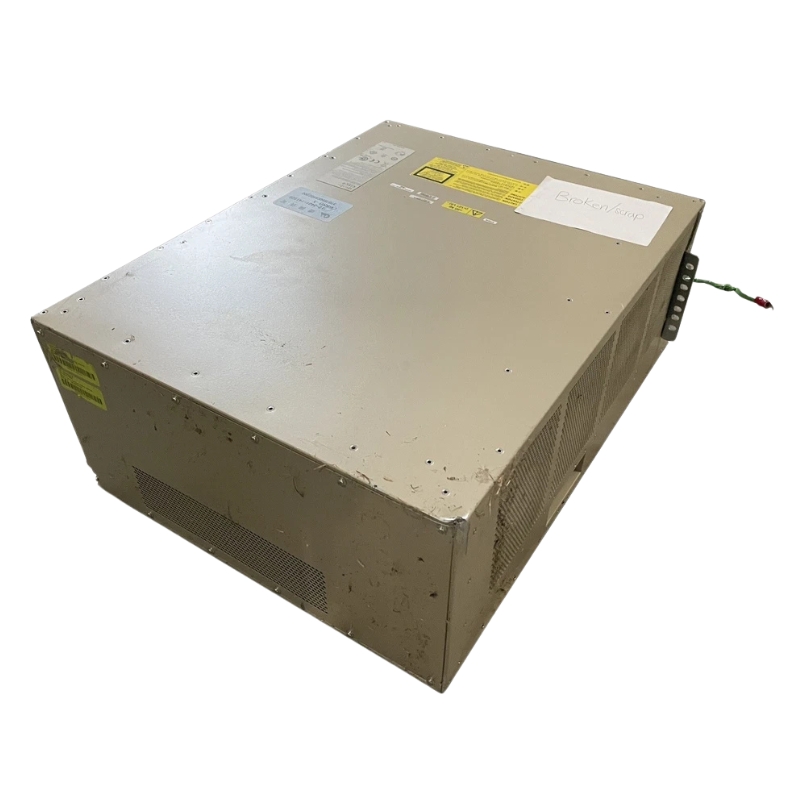

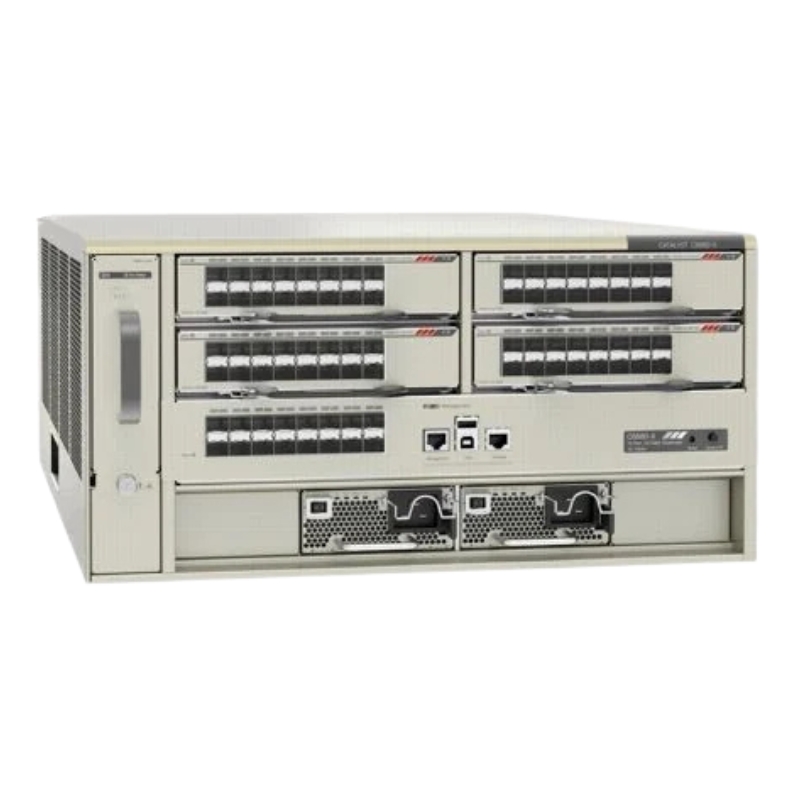

Cisco C6880-X-LE Layer 3 Chassis Ethernet Switch

Cisco C6880-X-LE Catalyst Switch Chassis

Product Details

• Manufacturer: Cisco
• Part Number: C6880-X-LE
• Product Line: Catalyst
• Product Series: 6880-X
• Product Type: Switch Chassis

Interface and Expansion Details

• Interface Type: Catalyst 6880-X-Chassis
• Ports: 16 x 1 Gigabit / 10 Gigabit SFP+
• Token Ring Ports: None
• LRE Ports: None
• Bypass: Not Available
• Management Port: Yes
• USB Ports: Yes

Expansion Slots

• Total Expansion Slots: 20
• Slot Type: SFP+
• Number of SFP+ Slots: 16

Performance and Technology

• Ethernet Technology: 10 Gigabit Ethernet
• Network Technology: 10GBase-X
• Form Factor: Rack-mountable and Desktop

Layer and Features

• Layer Supported: Layer 3
• Features:
  • NAT Support
  • MPLS Support
  • IGMP Snooping
  • High Availability
  • Access Control List (ACL) Support
  • Virtual Route Forwarding-Lite (VRF-Lite)
  • MLD Snooping
  • NetFlow

Environmental and Power Specifications

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 104 °F
• Operating Humidity Range: 5 – 90% (non-condensing)
• Minimum Storage Temperature: -4 °F
• Maximum Storage Temperature: 149 °F
• Storage Humidity Range: 5 – 95% (non-condensing)

Power Specifications

• Power Device: Internal Power Supply – Hot-Plug
• Installed Power Supplies: 0 (installed) / 2 (max)
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)

Compliance and Standards

• NEBS Level 3
• FCC Class A Certified
• EN 60950
• IEC 60950
• EN55024
• EN55022 Class A
• UL 60950
• EN50082-1
• EN 61000-6-1
• AS/NZS 60950
• GR-1089-CORE
• CAN/CSA C22.2 No. 60950
• VCCI Class A
• ETS 300 386

Features

High-performance

The Cisco C6880-X-LE Layer 3 Chassis Ethernet Switch is designed to deliver exceptional performance, making it an ideal choice for high-demanding network environments. With its advanced hardware capabilities and intelligent software, this switch ensures seamless and efficient data transfer, enabling businesses to handle large volumes of traffic without any bottlenecks or latency issues.

By leveraging cutting-edge technology and innovative design, the C6880-X-LE offers impressive throughput and forwarding capacity, allowing organizations to maximize their network performance and achieve high-speed data processing. Whether it's handling bandwidth-intensive applications, supporting video streaming, or facilitating real-time collaboration, this switch delivers the speed and reliability required for today's digital landscape.

Scalable

Scalability is a critical aspect of any network infrastructure, and the Cisco C6880-X-LE excels in this area. With its modular design and flexible architecture, this switch provides businesses with the ability to scale their networks effortlessly as their needs evolve and grow.

The C6880-X-LE supports a range of expansion modules, allowing organizations to add additional ports or features as required. This scalability ensures that businesses can easily accommodate new devices, users, or applications without the need for significant infrastructure changes or disruptions.

Furthermore, the switch's scalable design allows for future-proofing the network investment. As technology advances and bandwidth requirements increase, the C6880-X-LE can adapt and support emerging technologies without requiring a complete overhaul of the entire network infrastructure.

Reliable

Reliability is paramount in any networking environment, and the Cisco C6880-X-LE is built to provide uninterrupted connectivity and dependable performance. With redundant components and failover mechanisms, this switch ensures high availability and minimizes the risk of downtime or service disruptions.

The C6880-X-LE features redundant power supplies, guaranteeing power continuity even in the event of a power supply failure. This redundant power architecture eliminates single points of failure and enhances the overall reliability of the network infrastructure.

In addition, the switch incorporates advanced quality of service (QoS) mechanisms that prioritize critical traffic and ensure consistent performance for latency-sensitive applications. With QoS capabilities, businesses can rely on the C6880-X-LE to deliver reliable and predictable network performance, even during peak usage periods.

Supports Advanced Routing Protocols

The Cisco C6880-X-LE is equipped with advanced routing capabilities, making it an excellent choice for organizations that require complex routing configurations or need to support multiple routing protocols.

With support for protocols such as OSPF (Open Shortest Path First), BGP (Border Gateway Protocol), and EIGRP (Enhanced Interior Gateway Routing Protocol), the C6880-X-LE enables businesses to create robust and efficient networks that can handle diverse routing requirements.

These advanced routing protocols allow for dynamic routing, automatic path selection, and fast convergence, ensuring optimal routing decisions and efficient traffic flow throughout the network. Whether it's interconnecting multiple sites, implementing redundancy, or enabling policy-based routing, the C6880-X-LE's routing capabilities provide organizations with the flexibility and control they need to optimize their network infrastructure.

Redundant Power Supplies

The redundant power supply feature offered by the Cisco C6880-X-LE adds an additional layer of reliability to the network infrastructure. With dual power supply units (PSUs), this switch ensures uninterrupted power availability even if one of the power supplies fails.

In the event of a power supply failure, the C6880-X-LE automatically switches to the redundant power supply without any disruption to the network operation. This redundancy safeguards against power-related issues and minimizes the risk of downtime or service interruptions, enhancing the overall reliability and continuity of the network.

Benefits and Importance

The high-performance, scalability, reliability, and support for advanced routing protocols, along with redundant power supplies, offer numerous benefits and are of utmost importance for users:

Improved Productivity

The high-performance capabilities of the C6880-X-LE ensure that businesses can operate at maximum efficiency. With its ability to handle large volumes of traffic without bottlenecks or latency issues, users can experience seamless data transfer and faster application response times. This translates into improved productivity as employees can access critical resources and collaborate in real-time without any network-related delays.

Future-Proofing

The scalability of the C6880-X-LE enables organizations to future-proof their network infrastructure. By easily adding expansion modules or upgrading ports, businesses can accommodate evolving technology requirements and seamlessly integrate new devices or applications. This scalability ensures that the switch can adapt to changing business needs and technological advancements, protecting the network investment for years to come.

Business Continuity

The reliability features of the C6880-X-LE play a crucial role in ensuring business continuity. The redundant power supplies eliminate single points of failure, reducing the risk of power-related outages. Additionally, the advanced QoS mechanisms prioritize critical traffic, ensuring consistent performance for latency-sensitive applications. By minimizing downtime and maintaining a stable network environment, organizations can avoid costly disruptions and maintain uninterrupted operations.

Enhanced Network Control

The advanced routing protocols supported by the C6880-X-LE provide organizations with enhanced control over their network infrastructure. By leveraging protocols like OSPF, BGP, and EIGRP, businesses can optimize the routing decisions, establish efficient paths, and implement complex routing configurations. This level of control enables organizations to design networks that align with their specific requirements, ensuring optimal performance and efficient traffic flow.

Reduced Risk

The redundant power supplies offered by the C6880-X-LE mitigate the risk of power-related failures. By automatically switching to the redundant power supply in case of a failure, organizations can maintain network availability and minimize the impact of potential disruptions. This redundancy reduces the risk of downtime and its associated costs, providing peace of mind to businesses relying on uninterrupted network connectivity.

In conclusion, the Cisco C6880-X-LE Layer 3 Chassis Ethernet Switch's high-performance, scalability, reliability, support for advanced routing protocols, and redundant power supplies offer significant benefits to users. It empowers businesses with improved productivity, future-proofing capabilities, enhanced network control, reduced risk, and uninterrupted operations. With its advanced features and robust design, the C6880-X-LE is an excellent choice for organizations seeking a powerful and reliable switch to meet their networking needs.
