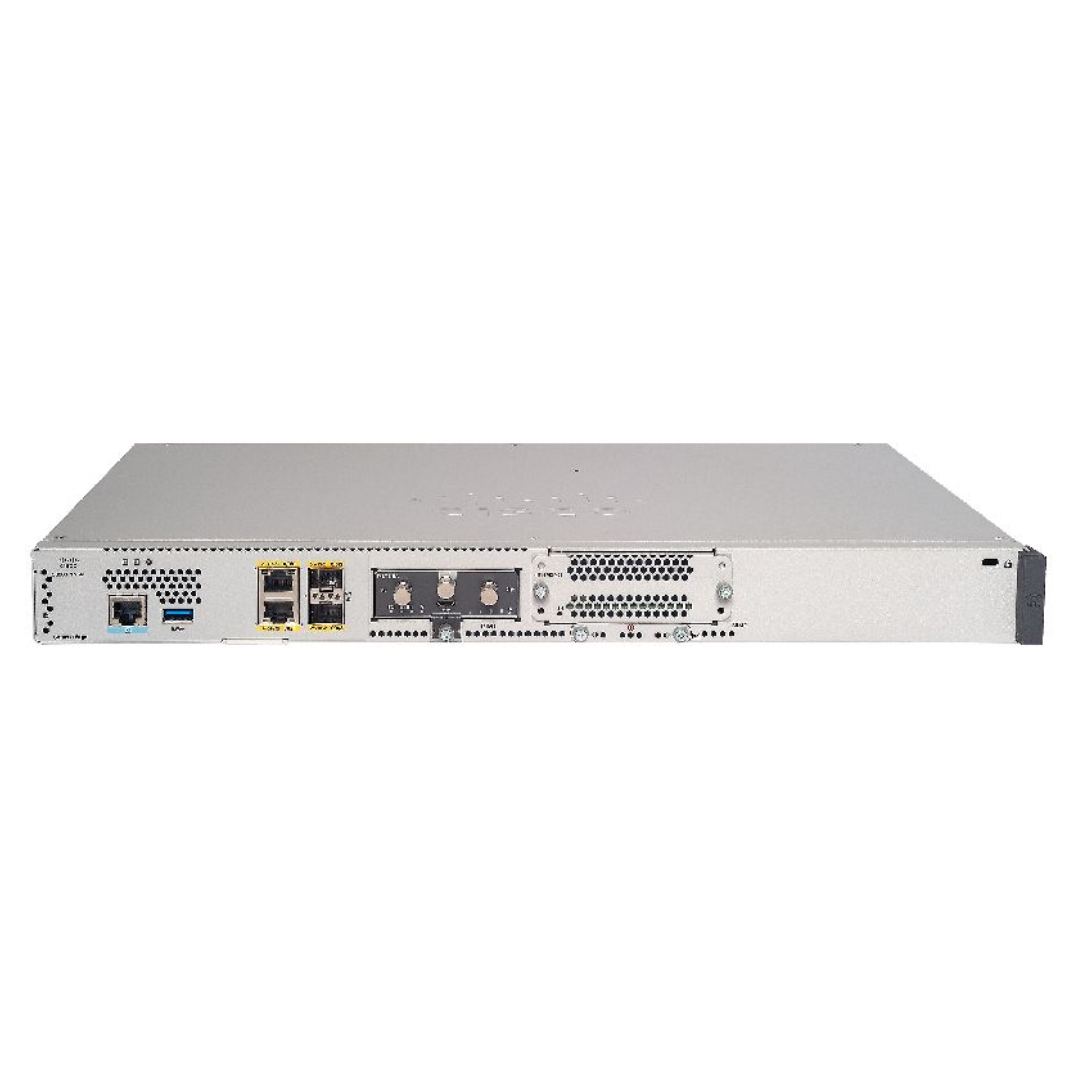

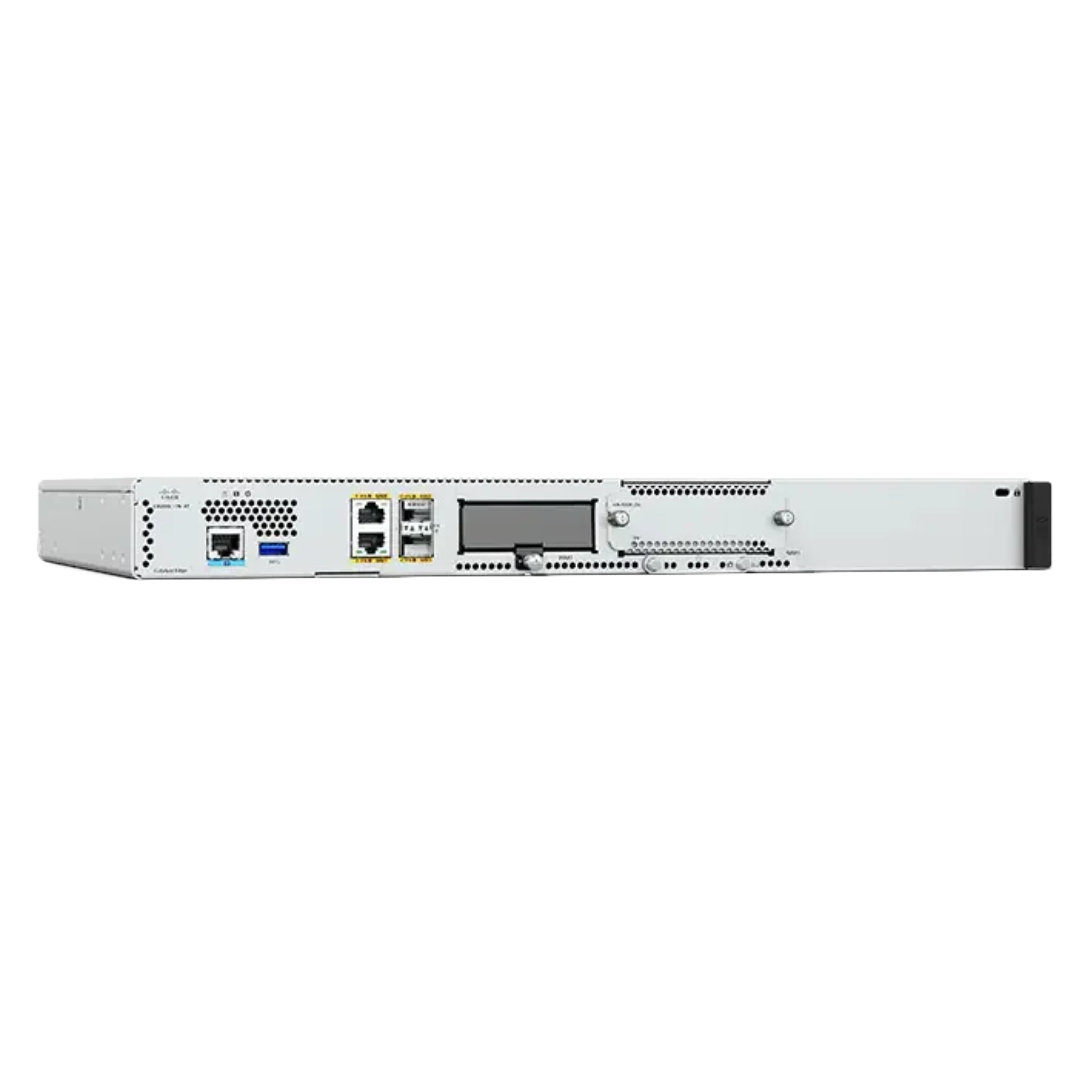

Cisco C8200-1N-4T 4 Ports Router Gigabit Ethernet

Product Overview

The Cisco C8200-1N-4T is a robust Ethernet router engineered by Cisco, tailored for high-demand network environments. This model is noted for its scalability and performance capabilities.

Basic Details

• Manufacturer: Cisco
• Model Number: C8200-1N-4T
• Device Type: Ethernet Router

Physical Attributes

• Enclosure: Rack-mountable - 1U
• Connectivity: Wired

Performance and Capacity

Data Throughput

• IPsec Throughput: 1 Gbps (1400-byte, Clear Text)
• SD-WAN IPsec Throughput: 900 Mbps (IMIX, Clear Text)
• IPv4 Forwarding Throughput: 6 Gbps (1400-byte Packet Size)

Capacity Metrics

• SD-WAN Overlay Tunnels: 4000
• IPsec SVTI Tunnels: 4000
• IPv4 Access Control Entries (ACEs): 72,000
• IPv4 Routes: 1,600,000
• IPv6 Routes: 1,500,000
• Queues: 16,000
• NAT Sessions: 1,200,000
• Firewall Sessions: 512,000
• Virtual Routing and Forwarding (VRF) Entries: 4000

Networking and Protocols

Supported Protocols

• Network/Transport Protocols: RSVP, NTP, IPsec, PPPoE, DHCP, DNS, L2TPv3, RTCP
• Routing Protocols: OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, Policy-based Routing (PBR), MPLS, BFD
• Remote Management Protocols: SNMP, SCP, OMP

Encryption and Authentication

• Encryption Algorithms: DES, Triple DES, MD5, IKE, TLS, SHA-1, PKI, 128-bit AES, SHA-2, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 256-bit AES-GCM, 256-bit AES-CBC, 512-bit SHA, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, HMAC
• Authentication Methods: Secure Shell (SSH), RADIUS

Advanced Features

Operational Support

• NAT and PAT Support
• Syslog and URL Filtering
• Class-based Weighted Fair Queuing (CBWFQ)
• Weighted Random Early Detection (WRED)
• Access Control List (ACL) Support
• Quality of Service (QoS)
• DHCP Server and Client
• Bidirectional Forwarding Detection (BFD)
• Forward Error Correction (FEC)
• Class of Service (CoS)
• Application Visibility and Control (AVC)
• Source-specific Multicast (SSM)
• Authentication, Authorization, and Accounting (AAA)
• Hierarchical Quality of Service (QoS)
• Encapsulated Remote Span (ERSPAN)
• Embedded Event Manager (EEM)
• Protocol Independent Multicast (PIM)
• Ethernet Virtual Connections (EVC)
• Cisco IOS IP Service-Level Agreements (IPSLA)
• Network-Based Application Recognition (NBAR)
• Datagram Transport Layer Security (DTLS)
• Point-to-Point Protocol (PPP)
• High-Level Data Link Control (HDLC)
• Multilink Point-to-Point Protocol (MLPPP)
• Multilink Frame Relay (MLFR)
• Application-Aware Routing (AAR)
• Interactive Voice Response (IVR)
• Service Advertisement Framework (SAF)
• Secure Unique Device Identification (SUDI)

Compliance and Standards

Regulatory Standards

• IEEE Standards: 802.1Q, 802.3ah, 802.1ag
• European Standards: EN 61000-3-2, EN 55024, EN 61000-6-1
• Australian/New Zealand Standards: AS/NZS 60950-1, AS/NZS CISPR 32 Class A
• North American Standards: FCC CFR47 Part 15 A, ICES-003 Class A
• International Standards: IEC 60950-1, IEC 61000-4 Series, ISO/IEC 17025

Hardware Specifications

Processor and Memory

• Processor: Intel
• RAM: 8 GB (installed) / 32 GB (maximum)
• Flash Memory: 8 GB
• Hard Drive: 16 GB

IP Telephony

Supported VOIP Protocols

• SRTP

Expansion and Connectivity

Interfaces and Slots

• WAN Interfaces: 4 x Ethernet 1000
• Expansion Slots: 1 x NIM (free), 1 x PIM (free)
• Installed Modules: 0 (installed) / 2 (maximum)

Power Requirements

Power Supply

• Power Device: Internal Power Supply - 100 Watt
• Installed Quantity: 1 (maximum)
• Voltage Required: AC 120/230 V (50/60 Hz)

Ports

The Cisco C8200-1N-4T Router is equipped with an impressive array of ports, with a particular emphasis on its 4 ports. These ports play a crucial role in enabling connectivity and facilitating communication between various devices and networks. In this section, we will explore the benefits and importance of these ports for users.

Enhanced Connectivity

With its 4 ports, the Cisco C8200-1N-4T Router ensures enhanced connectivity options for users. These ports allow for the connection of multiple devices simultaneously, enabling efficient and seamless data transfer. Whether you need to connect your computer, printer, gaming console, or other devices, the router's ports provide the flexibility to accommodate a wide range of connectivity needs.

Increased Bandwidth

One of the significant advantages of having 4 ports is the increased bandwidth it offers. Each port acts as an individual pathway for data transmission, allowing for higher data transfer rates. This is particularly beneficial for users who engage in bandwidth-intensive activities such as streaming high-definition videos, online gaming, or downloading large files. The additional ports ensure that each connected device receives a dedicated pathway, minimizing congestion and maintaining optimal performance.

Network Expansion

Another advantage of the Cisco C8200-1N-4T Router's 4 ports is the ability to expand your network effortlessly. These ports offer the flexibility to connect additional switches or hubs to extend the reach of your network. Whether you need to add more devices to your existing network or establish connections in different areas of your home or office, the router's ports provide the necessary infrastructure to support network expansion.

Versatile Applications

The 4 ports on the Cisco C8200-1N-4T Router open up a world of versatile applications for users. You can utilize these ports to connect a wide range of devices, including computers, printers, IP cameras, network storage devices, and more. This versatility empowers users to create customized network setups tailored to their specific requirements. Whether you are a home user looking to connect multiple IoT devices or a small business owner seeking to establish a reliable and secure network infrastructure, the router's ports offer limitless possibilities.

Seamless Multitasking

The 4 ports on the Cisco C8200-1N-4T Router enable seamless multitasking for users. With multiple devices connected simultaneously, you can effortlessly switch between tasks without experiencing any lag or performance issues. For instance, you can stream a movie on your smart TV while downloading files on your computer and printing documents on your networked printer – all without compromising the performance of any connected device. This level of seamless multitasking enhances productivity and ensures a smooth user experience.

Interfaces

In addition to its impressive port configuration, the Cisco C8200-1N-4T Router features 2 Gigabit Ethernet interfaces. These interfaces offer numerous benefits and are of great importance for users seeking high-speed connectivity and efficient data transfer. Let's delve into the advantages of these interfaces in more detail.

Superior Speed

The 2 Gigabit Ethernet interfaces on the Cisco C8200-1N-4T Router provide superior speed capabilities compared to standard Ethernet connections. With Gigabit Ethernet, users can enjoy data transfer rates of up to 1000 Mbps, which is ten times faster than traditional Fast Ethernet connections. This high-speed connectivity ensures quick access to online resources, faster file transfers, and smoother streaming experiences.

Enhanced Performance

The Gigabit Ethernet interfaces significantly enhance the overall performance of the router. By providing faster data transmission capabilities, these interfaces minimize latency and ensure responsive communication between devices. Whether you are engaging in online gaming, video conferencing, or other real-time applications, the enhanced performance of the Gigabit Ethernet interfaces eliminates lag and delivers a seamless user experience.

Future-Proofing

As technology continues to advance, the demand for high-speed internet connectivity grows. The inclusion of 2 Gigabit Ethernet interfaces in the Cisco C8200-1N-4T Router ensures future-proofing for users. These interfaces support the latest networking standards and can accommodate higher bandwidth requirements as technology evolves. By investing in a router with Gigabit Ethernet interfaces, users can ensure their network infrastructure remains compatible with future advancements and avoids becoming obsolete.

Efficient Network Management

The 2 Gigabit Ethernet interfaces offer efficient network management capabilities for users. With these interfaces, you can easily prioritize specific devices or applications, ensuring that critical tasks receive maximum bandwidth while non-essential activities are appropriately limited. This level of control allows for optimized network performance and seamless utilization of available resources.

Seamless Integration

The Gigabit Ethernet interfaces on the Cisco C8200-1N-4T Router seamlessly integrate with existing network infrastructure. Whether you have older devices utilizing Fast Ethernet or newer devices supporting Gigabit Ethernet, the router's interfaces ensure compatibility and efficient communication between devices. This seamless integration eliminates the need for additional adapters or upgrades, saving users both time and money.

In conclusion, the Cisco C8200-1N-4T Router's 4 ports and 2 Gigabit Ethernet interfaces provide users with enhanced connectivity, increased bandwidth, network expansion capabilities, versatile applications, seamless multitasking, superior speed, enhanced performance, future-proofing, efficient network management, and seamless integration. These features make the router a powerful networking solution suitable for both home and small business environments.
