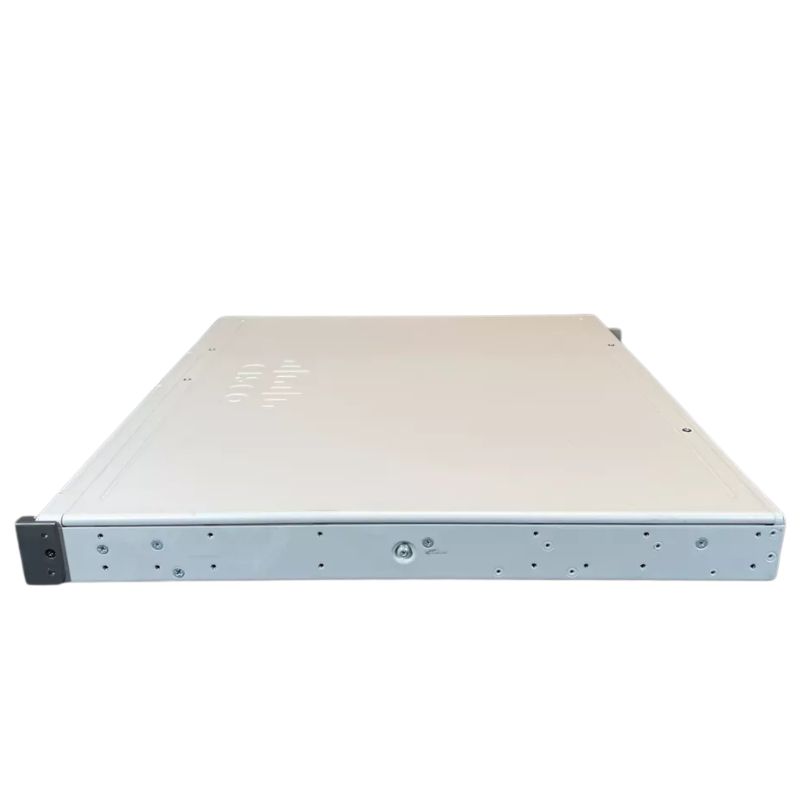

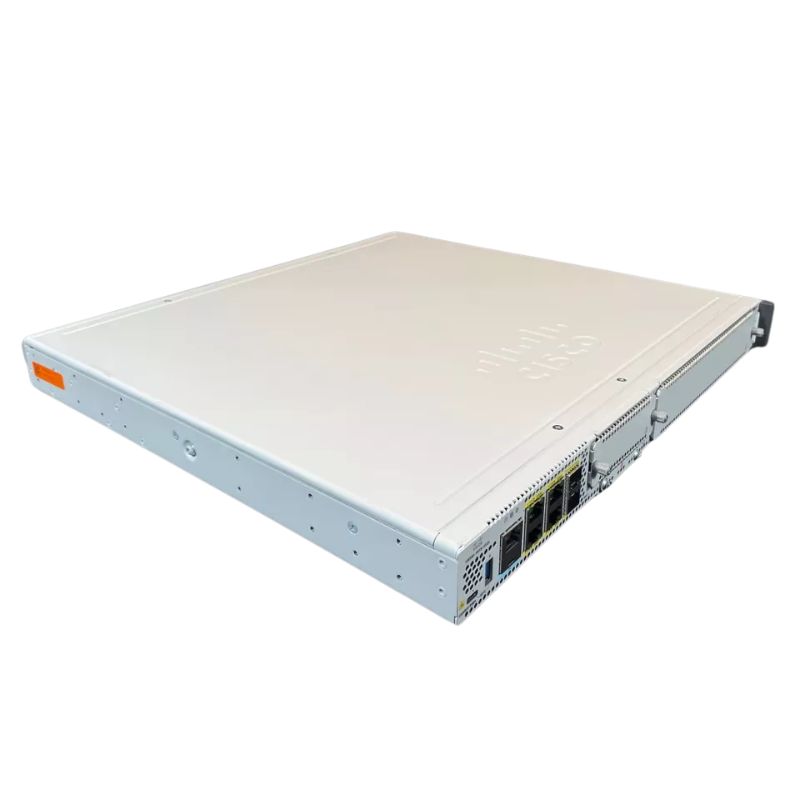

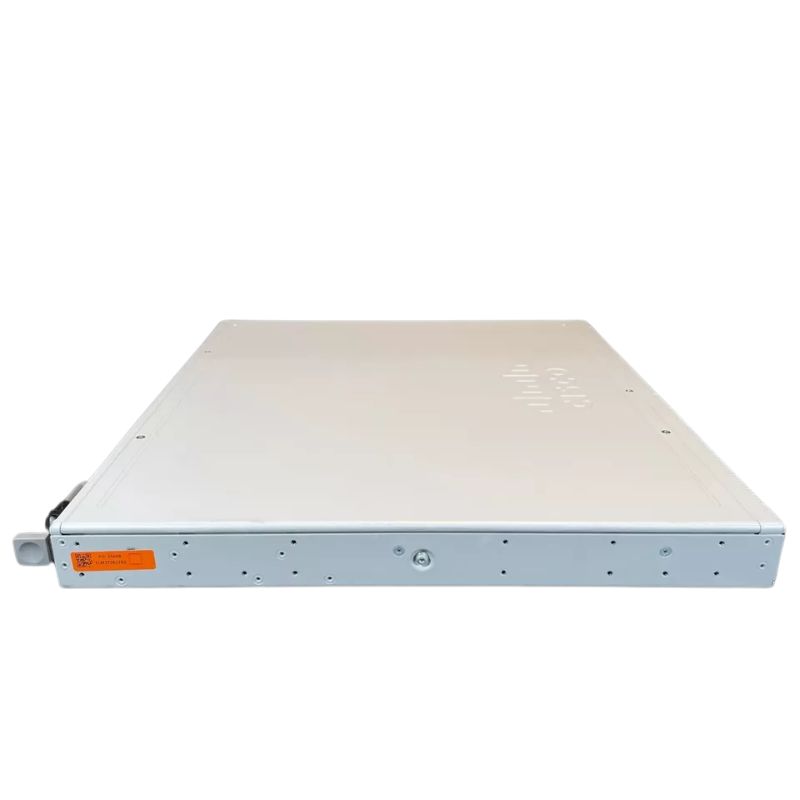

Cisco C8300-1N1S-6T Catalyst 6 Ports Router Gigabit Ethernet

Overview of Cisco C8300-1N1S-6T Ethernet Router

General Specifications

• Manufacturer: Cisco
• Model Number: C8300-1N1S-6T
• Product Type: Ethernet Router

Device Characteristics

• Enclosure: Rack-mountable - 1U
• Connectivity: Wired
• Data Link Protocol: Gigabit Ethernet

Performance Metrics

• VPN Throughput (IMIX IPsec): 5 Gbps
• VPN Throughput (1400B IPsec): 1.9 Gbps
• IPv4 Forwarding Throughput (1400-byte Packet Size): 19.7 Gbps

Capacity Details

• Maximum Overlay Tunnels: 6000
• Access Control Lists (ACLs): 4000
• Access Control Entries (ACEs) per System (IPv4): 72000
• IPv4 Routes: 1,600,000
• IPv6 Routes: 1,500,000
• Queues: 16,000
• NAT Sessions: 1,200,000
• Firewall Sessions: 512,000
• Virtual Routing and Forwarding (VRF) Entries: 4000

Protocols and Features

• Network/Transport Protocols: RSVP, NTP, IPsec, PPPoE, DHCP, DNS, L2TPv3, RTCP
• Routing Protocols: OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, Policy-based Routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD)
• Remote Management Protocols: SNMP, SCP, OMP

Encryption and Authentication

• Encryption Algorithms: DES, Triple DES, MD5, IKE, TLS, SHA-1, PKI, 128-bit AES, SHA-2, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 256-bit AES-GCM, 256-bit AES-CBC, 512-bit SHA, ESP, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, HMAC
• Authentication Methods: Secure Shell (SSH), RADIUS

Key Features and Support

• NAT Support: Yes
• PAT Support: Yes
• Syslog Support: Yes
• URL Filtering: Yes
• Class-Based Weighted Fair Queuing (CBWFQ): Yes
• Weighted Random Early Detection (WRED): Yes
• Access Control List (ACL) Support: Yes
• Quality of Service (QoS): Yes
• DHCP Server: Yes
• Bidirectional Forwarding Detection (BFD): Yes
• DHCP Client: Yes
• Forward Error Correction (FEC): Yes
• Class of Service (CoS): Yes
• Call Admission Control (CAC): Yes
• Flexible NetFlow (FNF): Yes
• Application Visibility and Control (AVC): Yes
• Source-Specific Multicast (SSM): Yes
• Authentication, Authorization, and Accounting (AAA): Yes
• Hierarchical Quality of Service (QoS): Yes
• Encapsulated Remote SPAN (ERSPAN): Yes
• Embedded Event Manager (EEM): Yes
• Protocol Independent Multicast (PIM): Yes
• Ethernet Virtual Connections (EVC): Yes
• Cisco IOS IP Service-Level Agreements (IPSLA): Yes
• Network-Based Application Recognition (NBAR): Yes
• Datagram Transport Layer Security (DTLS): Yes
• Point-to-Point Protocol (PPP): Yes
• High-Level Data Link Control (HDLC): Yes
• Multilink Point-to-Point Protocol (MLPPP): Yes
• Multilink Frame Relay (MLFR): Yes
• Application Aware Routing (AAR): Yes
• Interactive Voice Response (IVR): Yes
• Service Advertisement Framework (SAF): Yes

Compliance and Standards

• Standards Compliance: IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, CISPR 32 Class A, EN 55035, IEC/EN 60825, CAN/CSA C22.2 No. 60950-1

Hardware Specifications

• Processor: Intel
• RAM: 8 GB
• Flash Memory: 8 GB
• Hard Drive: 16 GB

IP Telephony

• VOIP Protocols: SRTP

Expansion and Connectivity

• Interfaces: WAN/LAN: 6 x Ethernet 1000, USB: 1 x
• Expansion Slots: 1 (total) / 1 (free) x Service Module (SM), 1 (total) / 1 (free) x NIM
• Installed Modules (Max): 0 (installed) / 2 (max)

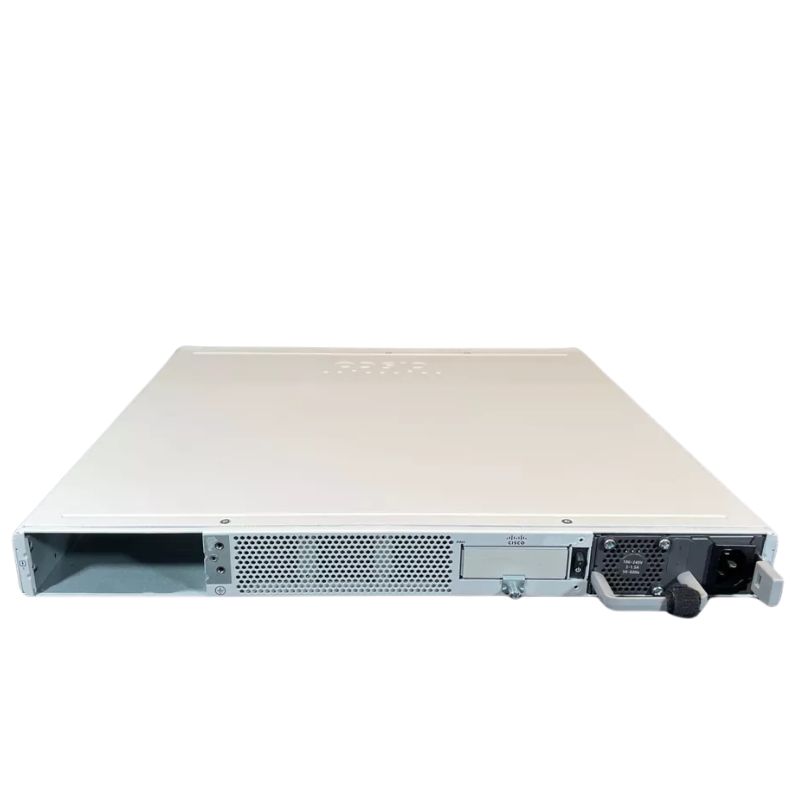

Power Specifications

• Power Device: Internal Power Supply
• Installed Quantity: 1 (max)

Ports

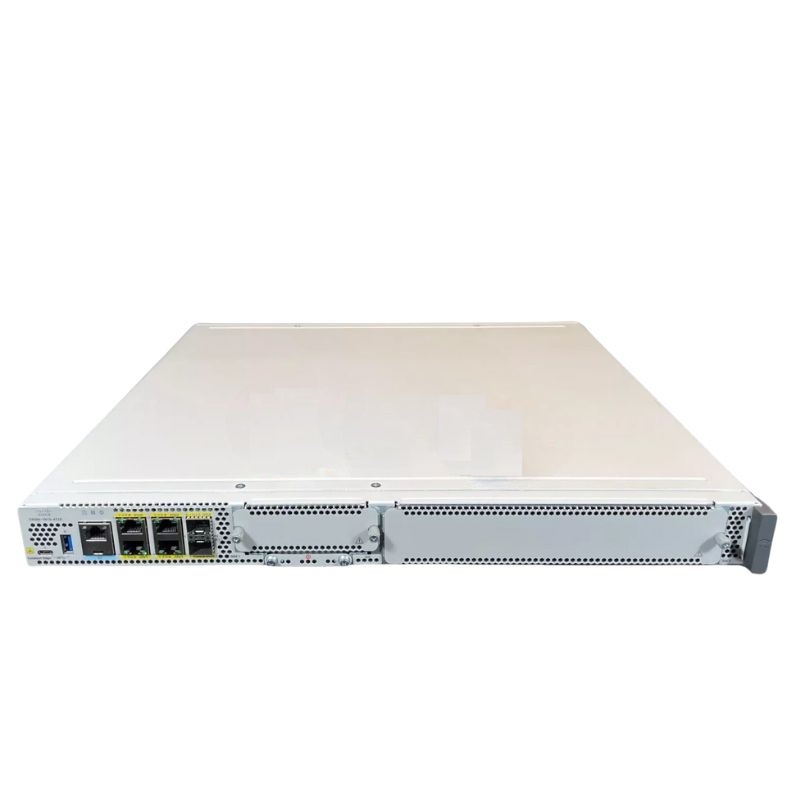

The Cisco C8300-1N1S-6T Router is equipped with 6 ports, making it an ideal choice for businesses that require a high level of connectivity and network versatility. These ports offer a wide range of benefits and play a crucial role in enhancing the overall performance and efficiency of the router.

Increased Connectivity Options

With 6 ports, this router allows users to connect multiple devices simultaneously, such as computers, printers, servers, and other networking equipment. This feature is particularly advantageous for businesses with a large number of employees or those that rely heavily on network-intensive applications. The increased connectivity options enable efficient data transfer and seamless communication between devices, ultimately leading to improved productivity and streamlined operations.

Flexibility in Network Configuration

The Cisco C8300-1N1S-6T Router's 6 ports provide users with the flexibility to configure their network setup according to their specific requirements. Whether you need to create different VLANs (Virtual Local Area Networks), separate guest and internal networks, or establish dedicated connections for specific devices, the abundance of ports ensures that you have the necessary flexibility to design a network that suits your unique needs. This flexibility simplifies network management and ensures optimal performance across various applications and devices.

Enhanced Network Performance

The availability of 6 ports significantly enhances the overall network performance by distributing the network load evenly across multiple devices. This prevents bandwidth congestion and minimizes latency issues, ensuring smooth data transmission and seamless access to critical resources. Whether your business relies on bandwidth-intensive tasks such as video conferencing, cloud-based applications, or large file transfers, the Cisco C8300-1N1S-6T Router's 6 ports can handle the demands of your network without compromising on performance.

Improved Redundancy and Failover

Redundancy is a crucial aspect of any network infrastructure, as it ensures uninterrupted connectivity and minimizes the risk of downtime. The 6 ports in this router allow for redundancy and failover configurations, where multiple connections are established to provide backup in case of a primary link failure. This feature is particularly important for businesses that rely heavily on continuous network availability, such as e-commerce platforms, financial institutions, or healthcare organizations. With multiple ports available, the router can seamlessly switch to an alternate connection, ensuring uninterrupted access to critical resources and services.

Efficient Load Balancing

Load balancing is essential for distributing network traffic evenly across multiple connections, maximizing bandwidth utilization, and preventing bottlenecks. The 6 ports available on the Cisco C8300-1N1S-6T Router enable efficient load balancing by allowing you to configure and distribute network traffic across multiple paths. This ensures that no single port becomes overloaded, optimizing performance and maintaining a consistent user experience even during peak usage periods.

Scalability and Future-Proofing

The 6 ports on this router offer scalability and future-proofing capabilities for growing businesses. As your organization expands and your network requirements evolve, having additional ports readily available allows you to easily accommodate new devices and connections without the need for significant infrastructure changes. This scalability ensures that your investment in the Cisco C8300-1N1S-6T Router remains valuable for years to come, providing a reliable foundation for your network's growth.

Interface

The Cisco C8300-1N1S-6T Router features Gigabit Ethernet interfaces, which are known for their speed, reliability, and compatibility with various networking devices. This interface option offers numerous benefits that are essential for businesses aiming to achieve high-performance networking capabilities.

High-Speed Data Transfer

Gigabit Ethernet interfaces provide significantly faster data transfer rates compared to traditional Fast Ethernet connections. With speeds of up to 1000 Mbps, these interfaces can handle large amounts of data with ease, making them ideal for bandwidth-intensive applications such as video streaming, large file transfers, and data backups. The high-speed data transfer capability ensures that your network operates efficiently, minimizing wait times and enabling quick access to critical resources.

Improved Network Reliability

The Gigabit Ethernet interface offers enhanced network reliability by providing stable and consistent connections. The higher data transfer speeds reduce the chances of bottlenecks and congestion, ensuring that your network operates smoothly even during peak usage periods. This reliability is particularly important for businesses that rely on real-time data exchange, such as VoIP (Voice over Internet Protocol) communication or video conferencing. The stable connections provided by Gigabit Ethernet interfaces result in clear audio and video quality, allowing for uninterrupted communication and collaboration.

Compatibility with Existing Infrastructure

The Gigabit Ethernet interface is compatible with existing Ethernet infrastructure, making it easy to integrate the Cisco C8300-1N1S-6T Router into your current network setup. This compatibility eliminates the need for extensive network reconfiguration or investment in new infrastructure, saving both time and resources. Whether you are upgrading your existing network or deploying a new one, the Gigabit Ethernet interface ensures seamless integration and compatibility with a wide range of networking devices.

Future-Proofing

Investing in a router with Gigabit Ethernet interfaces ensures future-proofing for your network infrastructure. As technology continues to advance, more devices and applications require higher bandwidth capabilities. By choosing a router with Gigabit Ethernet interfaces, you can accommodate these future demands without the need for additional upgrades or replacements. This future-proofing capability saves costs in the long run and ensures that your network remains capable of handling the evolving needs of your business.

Efficient Network Segmentation

Gigabit Ethernet interfaces enable efficient network segmentation, allowing you to create separate VLANs and isolate traffic for improved security and performance. This feature is especially useful in environments where different departments or user groups require their dedicated networks. By utilizing the Gigabit Ethernet interface's capabilities, you can easily segment your network without sacrificing speed or reliability. This segmentation enhances network security, simplifies management, and ensures that critical resources are accessible only to authorized users.

Optimized Network Performance

The Gigabit Ethernet interface optimizes network performance by providing faster response times and reducing latency. The high-speed data transfer capabilities minimize delays in data transmission, resulting in improved application response times and a seamless user experience. Whether you are running latency-sensitive applications, accessing cloud-based services, or utilizing real-time communication tools, the Gigabit Ethernet interface ensures that your network operates at peak performance, maximizing productivity and efficiency.

In conclusion, the Cisco C8300-1N1S-6T Router's 6 ports and Gigabit Ethernet interface offer a range of benefits that significantly enhance network connectivity, performance, and scalability. The 6 ports provide increased connectivity options, flexibility in network configuration, enhanced performance through load balancing and redundancy, and future-proofing capabilities. The Gigabit Ethernet interface delivers high-speed data transfer, improved network reliability, compatibility with existing infrastructure, future-proofing for evolving needs, efficient network segmentation, and optimized performance. These features make the Cisco C8300-1N1S-6T Router an ideal choice for businesses seeking a reliable and high-performance networking solution.
