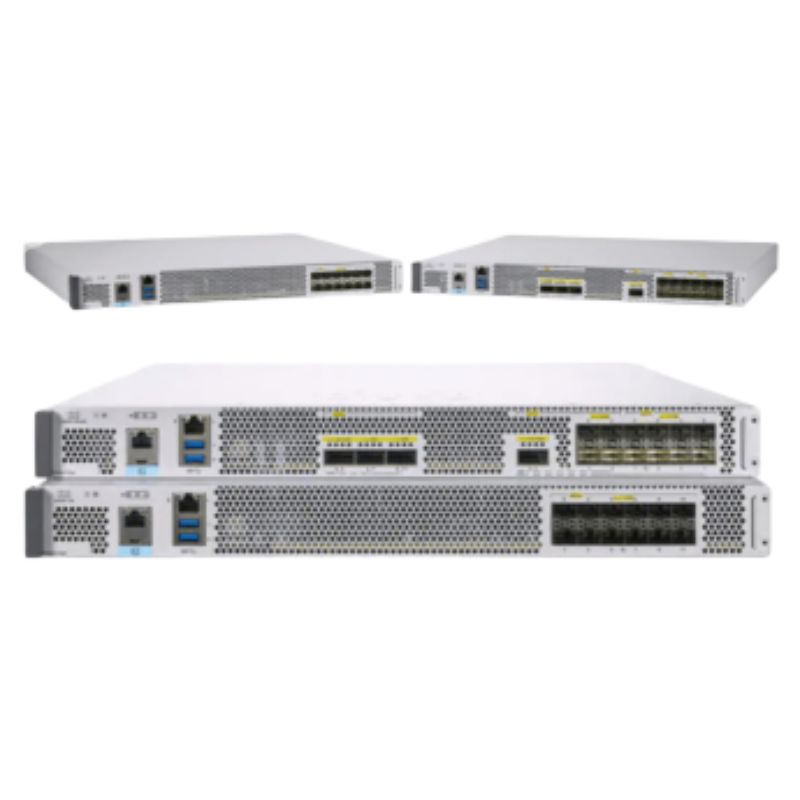

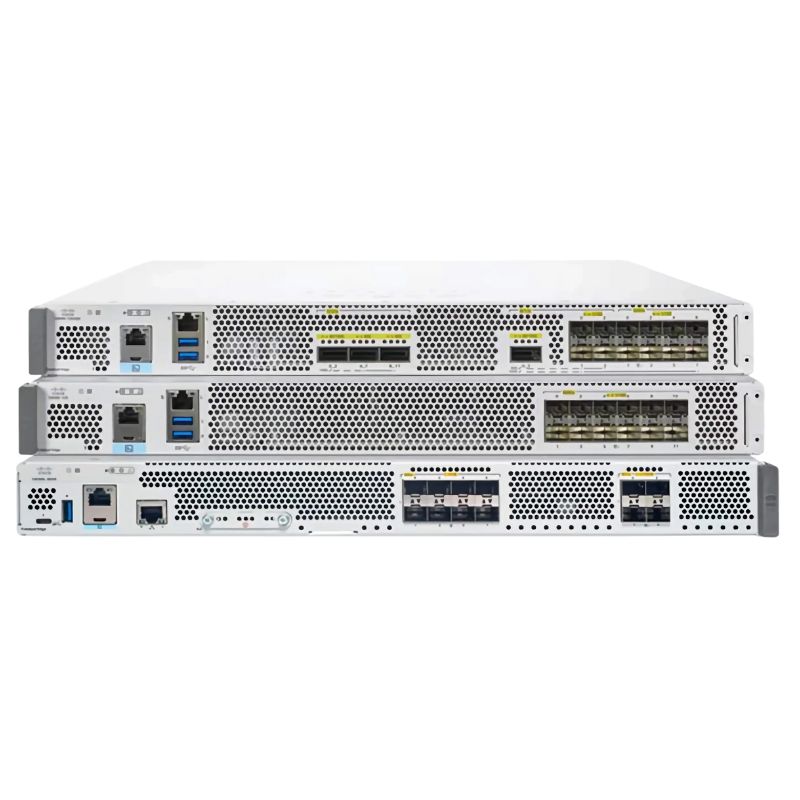

Cisco Catalyst C8500-12X 10GbE Network Switches, 12 Ports, Rack Mountable

Cisco Catalyst 8500 Series 12-port SFP+ Specifications

Port Density and Performance

• Port Density: 12-port 1/10GE configuration
• Maximum 1GE Ports: Up to 12
• Maximum 10GE Ports: Up to 12
• Maximum 40GE Ports: Not supported
• Maximum 100GE Ports: Not supported

SD-WAN and IPsec Throughput

• SD-WAN IPsec Throughput (1400 Bytes, clear text): Up to 51 Gbps
• SD-WAN IPsec Throughput (IMIX*, clear text): Up to 22.6 Gbps
• SD-WAN Overlay Tunnels Scale: Capable of supporting up to 8000 tunnels
• IPsec Throughput (1400 Bytes, clear text): Up to 84 Gbps
• IPv4 Forwarding Throughput (1400 Bytes): Up to 118 Gbps

Routing and Security

• Number of IPsec SVTI Tunnels: 4000 tunnels
• Number of Access Control Lists (ACLs) per System: 4000
• IPv4 ACEs per System: 47,000 ACEs
• Number of IPv4 Routes: 4 million (with 16GB default memory)
• Number of IPv6 Routes: 4 million (with 16GB default memory)
• Firewall Sessions Supported: Up to 6 million
• Virtual Routing and Forwarding (VRF) Instances: Supports up to 8000 VRFs

Advanced Network Features

• Number of Queues: 256,000
• Network Address Translation (NAT) Sessions: 12 million sessions
• SD-WAN Overlay Scalability: 8000 tunnels

Mechanical and Power Specifications

Dimensions and Rack Compatibility

• Height x Width x Depth: 1.73 in. x 17.50 in. x 18.46 in.
• Rack Units: 1RU for efficient rack mounting

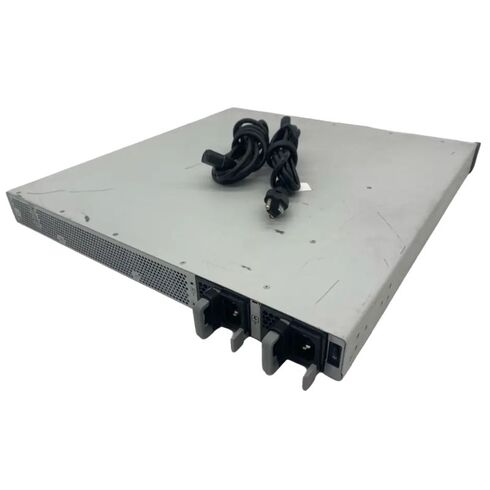

Power Input Options

• AC Input Voltage Range: 85 to 264 VAC
• DC Input Voltage Range: -40 to 72V; 48V nominal

Temperature Tolerance

• Operating Temperature Range: 32 to 104°F (0 to 40°C)
• Storage Temperature Range: -40 to 150°F (-40 to 70°C)

Global Reach and Customer Trust

Key Statistics

• Operating in over 200 countries
• Trusted by more than 18,000 customers worldwide
• $20 million in available inventory
• Offering discounts between 50% and 98% off global list prices
• 100% Safe Online Shopping Guarantee

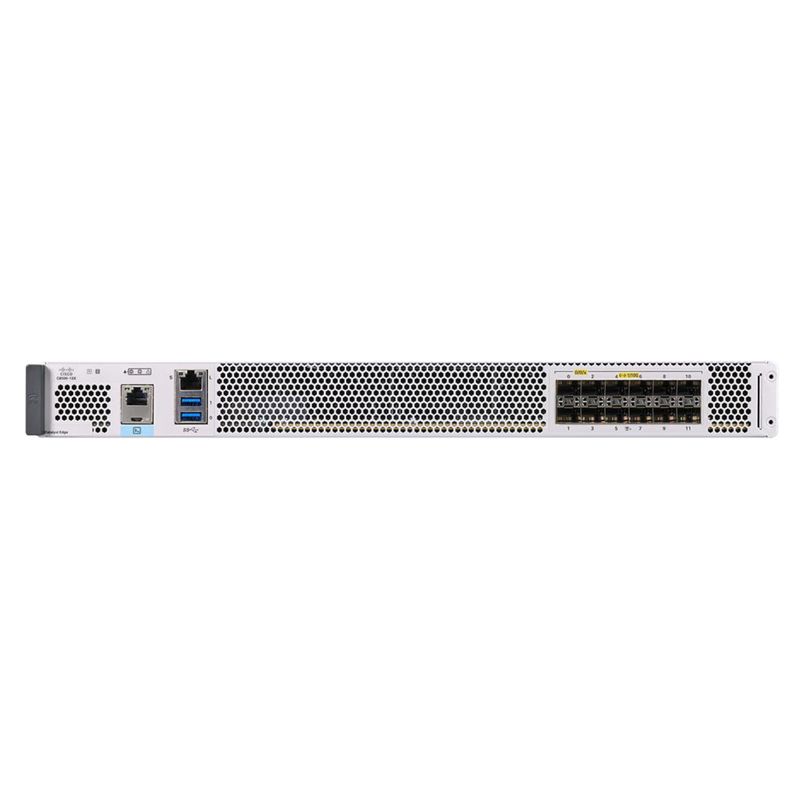

Ports

The Cisco C8500-12X Network Switches are equipped with 12 ports, making them suitable for small to medium-sized networks. These ports provide users with the ability to connect multiple devices to their network, including computers, printers, servers, and other networking equipment.

Increased Connectivity

One of the key benefits of having 12 ports on the Cisco C8500-12X Network Switches is the increased connectivity it offers. With more ports available, users can easily expand their network and connect more devices without the need for additional switches or hubs. This allows for a more streamlined and efficient network setup.

Flexibility in Network Design

Having 12 ports also provides users with greater flexibility in designing their network. They have the freedom to connect devices directly to the switch, eliminating the need for excessive cabling and reducing potential points of failure. This flexibility is especially beneficial for businesses that require a scalable network infrastructure that can easily accommodate future growth.

Improved Network Performance

By distributing devices across multiple ports, the Cisco C8500-12X Network Switches help to improve network performance. With fewer devices connected to each port, there is less congestion and a lower likelihood of bottlenecks. This ensures that data can flow smoothly and efficiently across the network, resulting in faster transfer speeds and reduced latency.

Data Transfer Rate

The Cisco C8500-12X Network Switches offer a high data transfer rate of 10GbE (10 Gigabit Ethernet). This feature is essential for users who require fast and reliable data transmission within their network infrastructure.

Enhanced Speed and Bandwidth

With a data transfer rate of 10GbE, users can experience significantly enhanced speed and bandwidth capabilities. This is particularly important for businesses that deal with large amounts of data, such as those in the media, technology, or research industries. The high data transfer rate allows for quick access to files, faster backups, and seamless streaming of high-definition content.

Improved Productivity

The increased speed and bandwidth provided by the 10GbE data transfer rate can greatly improve productivity within a network environment. Users can transfer files and collaborate on projects more quickly, reducing waiting times and increasing overall efficiency. This is particularly beneficial for businesses that rely heavily on data-intensive applications or real-time communication.

Future-Proof Networking

Investing in a network switch with a 10GbE data transfer rate ensures that users are well-prepared for future networking demands. As technology continues to advance and data requirements grow, having a high-speed network infrastructure becomes increasingly important. The Cisco C8500-12X Network Switches' 10GbE capability ensures that users can handle the demands of tomorrow's applications without the need for costly upgrades or replacements.

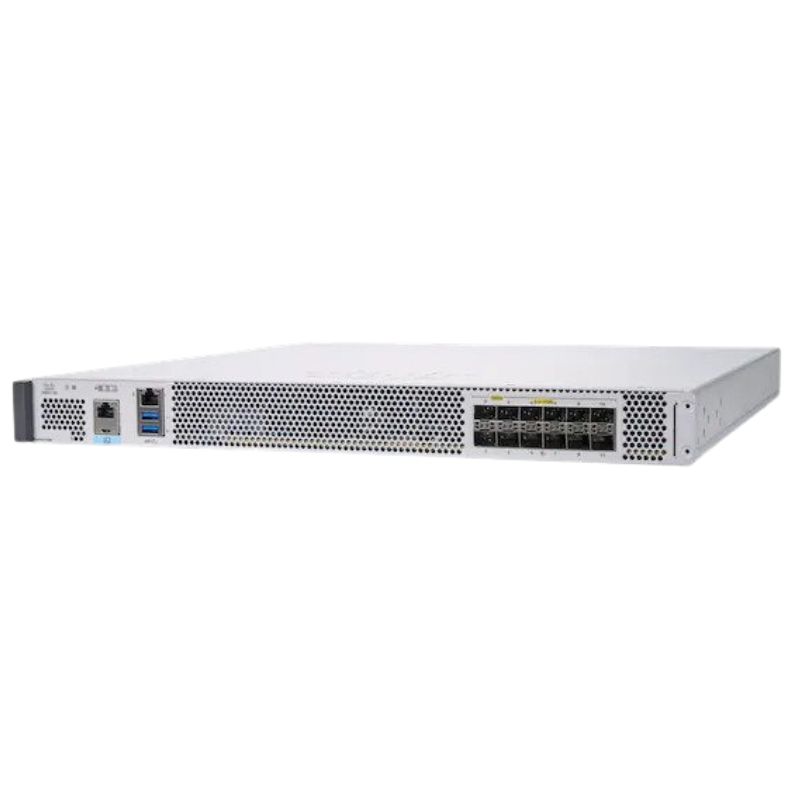

Mounting Option

The Cisco C8500-12X Network Switches are rack mountable, offering users a convenient and space-saving solution for their network setup.

Space Efficiency

Rack mountable switches are designed to be mounted in standard server racks, saving valuable floor or desk space. By vertically stacking the switches in a rack, users can optimize their workspace and keep their networking equipment organized and easily accessible.

Improved Cooling and Cable Management

When switches are rack mounted, they benefit from improved cooling due to enhanced airflow within the rack. This helps to prevent overheating and ensures that the switches operate at optimal performance levels. Additionally, rack mountable switches allow for better cable management, as cables can be neatly organized and secured within the rack's cable management system. This reduces cable clutter and makes it easier to troubleshoot or make changes to the network setup.

Scalability and Expandability

Rack mountable switches offer scalability and expandability options for growing networks. With a rack-mounted setup, users can easily add or remove switches as needed, without disrupting the entire network infrastructure. This allows for a more flexible and adaptable network design that can evolve with the changing needs of the business.

In conclusion, the Cisco C8500-12X Network Switches provide users with several important features that enhance their network connectivity and performance. With 12 ports, users can enjoy increased connectivity, flexibility in network design, and improved network performance. The 10GbE data transfer rate offers enhanced speed, bandwidth, and productivity while ensuring future-proof networking capabilities. The rack mountable option provides space efficiency, improved cooling, cable management, and scalability. Overall, these features make the Cisco C8500-12X Network Switches an excellent choice for users seeking a reliable and efficient network solution.
