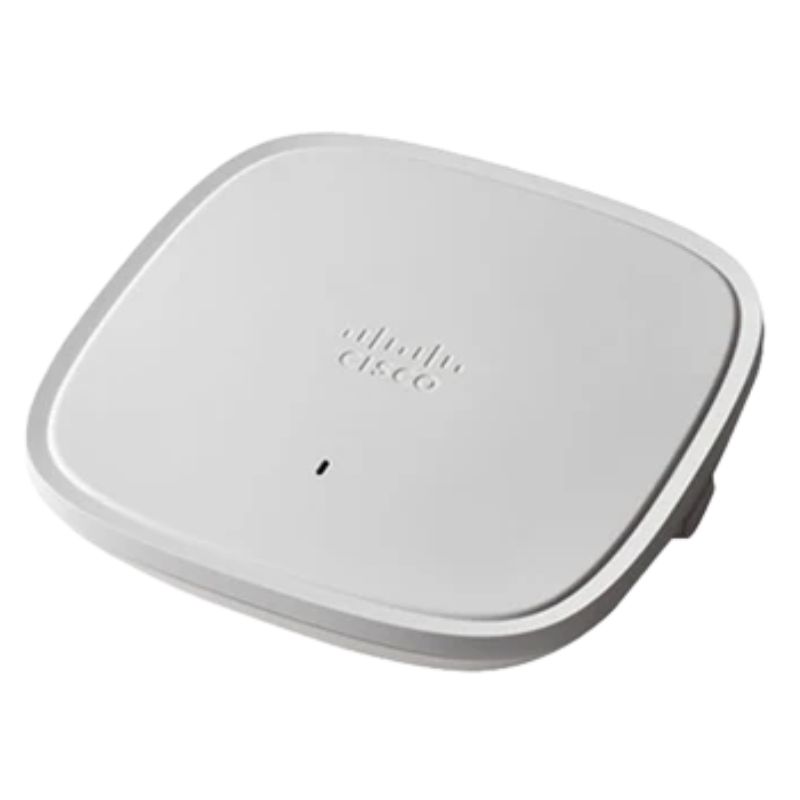

C9115AXI-EWC-B Cisco Catalyst 9115axi 5.38 Gbps Wireless Access Point

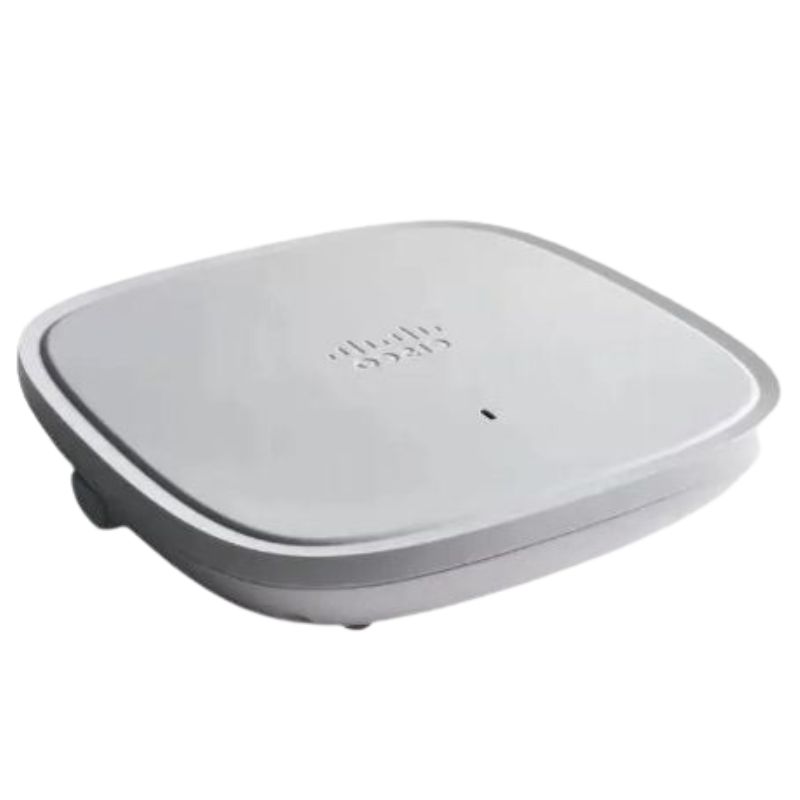

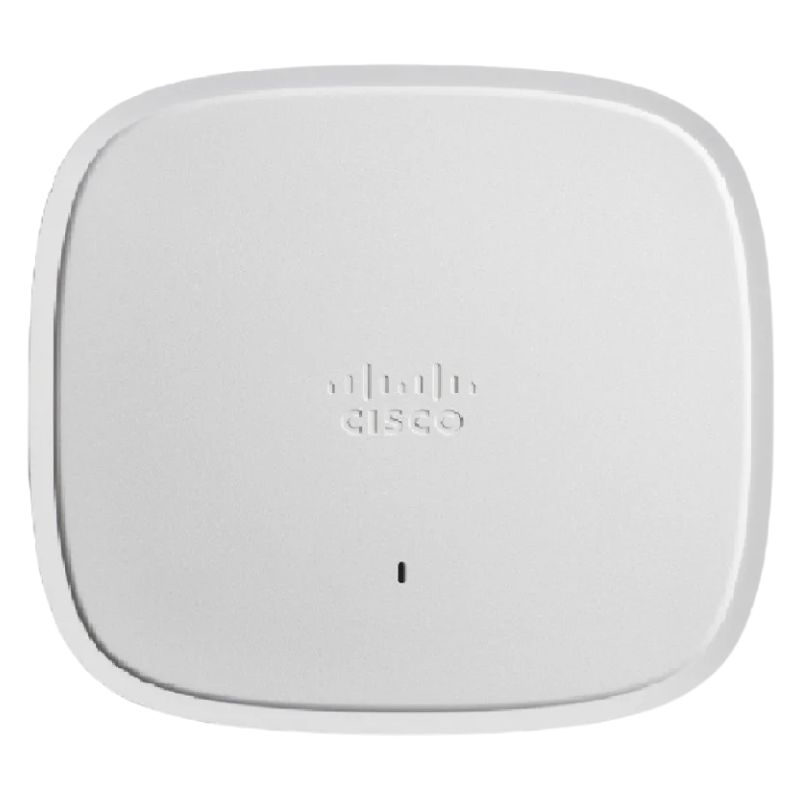

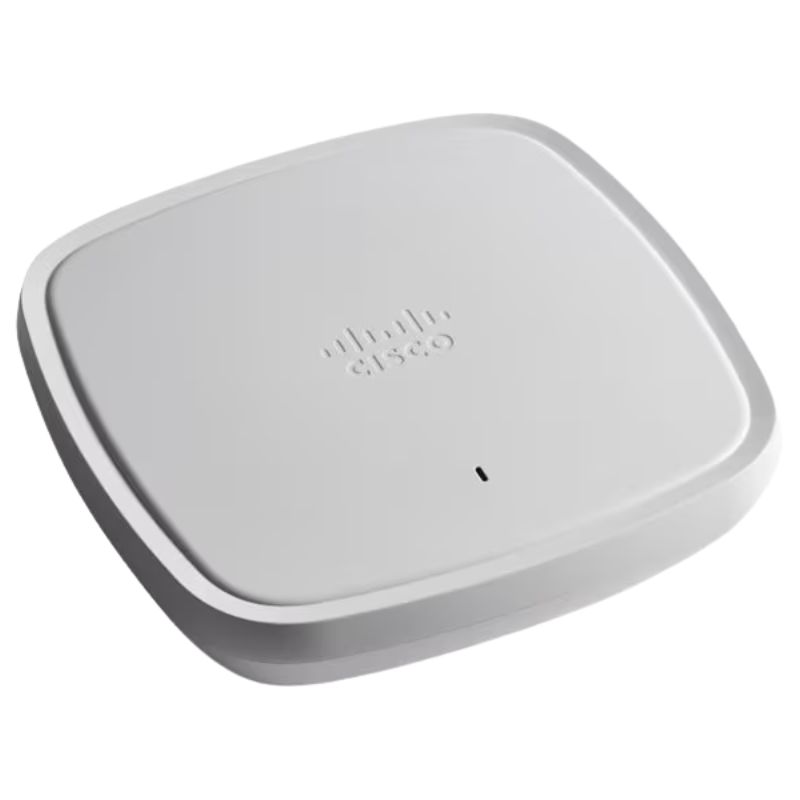

Cisco Catalyst 9115axi Wireless Access Point

The Cisco C9115AXI-EWC-B Catalyst 9115AXI is a high-performance wireless access point designed for enterprise-grade connectivity. Supporting 802.11ax Wi-Fi 6 technology, it delivers up to 5.38 Gbit/s transmission speeds across dual frequency bands (2.40 GHz and 5 GHz). With MIMO and beamforming capabilities, plus Bluetooth 5 integration, this device ensures reliable networking for modern digital infrastructures.

General Information

• Manufacturer: Cisco
• Part Number: C9115AXI-EWC-B
• Device Type: Wireless Access Point

Technical Specifications

• 802.11ax Wi-Fi 6
• Bluetooth 5.0
• Dual Band (2.40 GHz and 5 GHz)
• Ethernet Technology: 2.5 Gigabit Ethernet

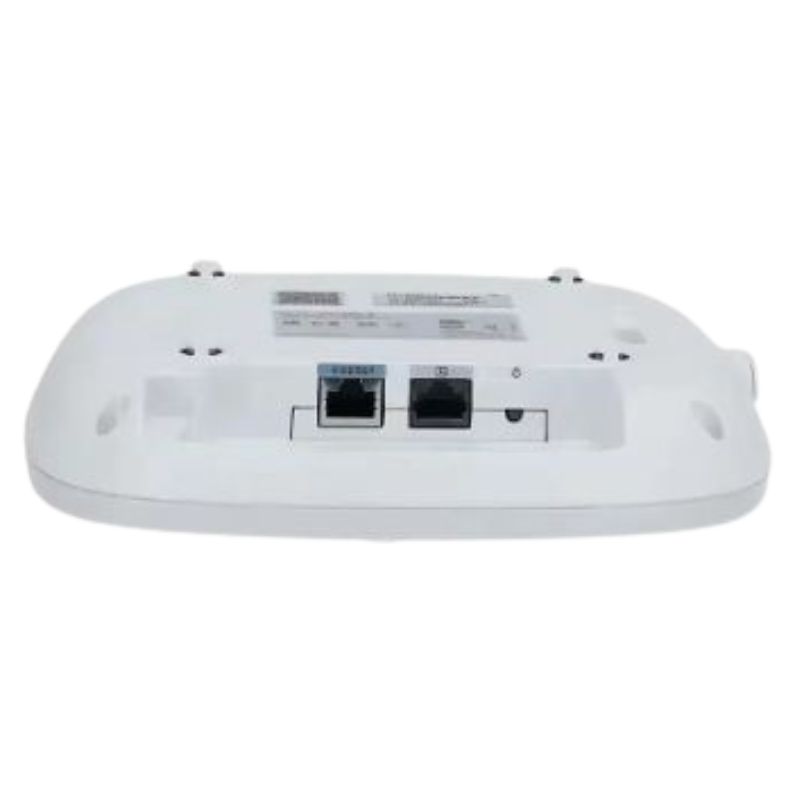

• 1 x RJ-45 Network Port
• PoE PD Port Supported
• USB Port Available
• Dedicated Management Port

Performance

• Wireless transmission speed: 5.38 Gbit/s
• MIMO Technology for multi-user efficiency
• Beamforming Technology for enhanced signal strength

Physical Characteristics

• Height: 1.5"
• Width: 8"
• Depth: 8"
• Weight: Approx. 1.98 lb

Advanced Features

• 2.40 GHz frequency for extended coverage
• 5 GHz frequency for high-speed data transfer

Smart Technologies

• MIMO for simultaneous multi-device communication
• Beamforming for optimized signal direction

Enterprise Benefits

• Reliable performance for business environments
• Future-ready with Wi-Fi 6 certification
• Supports IoT integration with Bluetooth 5

Miscellaneous Information

• Country of Origin: Mexico
• Environmentally Friendly: Yes
• WEEE Directive Compliant

Cisco C9115AXI-EWC-B 5.38GBPS Wireless Access Overview

The CISCO C9115AXI-EWC-B Catalyst 9115AXI is a high-performance enterprise-grade wireless access point designed for next-generation digital workplaces that demand ultra-fast connectivity, dense device support, and intelligent network optimization. Built on the Wi-Fi 6 (802.11ax) standard, this access point delivers a combined throughput of up to 5.38 Gbit/s, enabling seamless performance for bandwidth-intensive applications, cloud computing environments, video conferencing, and IoT ecosystems. As part of the Catalyst 9100 series developed by"Cisco networking and enterprise infrastructure", this model integrates cutting-edge wireless innovation with embedded wireless controller capabilities through Embedded Wireless Controller (EWC) functionality.

Wi-Fi 6 Architecture and Performance

The Wi-Fi 6 standard implemented in the Cisco C9115AXI-EWC-B is engineered to redefine wireless performance in enterprise environments. Unlike previous Wi-Fi generations, 802.11ax introduces advanced modulation techniques, including OFDMA (Orthogonal Frequency Division Multiple Access), which enhances spectral efficiency and allows multiple clients to transmit data simultaneously over shared channels. This improves throughput consistency even in congested network environments such as office buildings, educational institutions, hospitals, and smart factories.

High-Capacity Throughput and Low Latency Design

With an aggregate data rate reaching up to 5.38 Gbit/s, the access point supports high-demand workloads such as 4K and 8K video streaming, real-time analytics, virtual desktop infrastructure, and cloud-based collaboration tools. The reduced latency architecture ensures minimal delay in packet transmission, making it suitable for mission-critical enterprise applications that require instant responsiveness.

Enhanced Spectral Efficiency and Channel Optimization

The access point dynamically manages spectrum allocation across both 2.4 GHz and 5 GHz bands. This intelligent optimization reduces interference and enhances throughput stability. The system leverages BSS Coloring, Target Wake Time (TWT), and spatial reuse technologies to improve battery life for connected devices and reduce unnecessary network congestion.

Dual-Band Operation and Coverage Optimization

2.4 GHz Band Utilization

The 2.4 GHz band provides extended coverage and improved penetration through walls and obstacles, making it ideal for legacy devices and IoT sensors. In enterprise deployments, this band ensures consistent connectivity in large office spaces, warehouses, and multi-floor buildings where signal reach is a critical requirement.

5 GHz Band High-Speed Performance

The 5 GHz band offers significantly higher throughput and reduced interference compared to 2.4 GHz. This band is optimized for high-bandwidth applications such as video conferencing, cloud computing, and large file transfers. The dual-band configuration ensures balanced load distribution between frequency spectrums for optimal performance.

Seamless Band Steering Technology

The access point intelligently directs compatible devices to the most efficient frequency band based on network conditions, device capability, and traffic load. This ensures consistent performance across all connected endpoints while minimizing congestion and packet loss.

MU-MIMO and Multi-Device Connectivity Optimization

Simultaneous Client Communication

The integration of MU-MIMO technology allows the Cisco C9115AXI-EWC-B to communicate with multiple devices simultaneously rather than sequentially. This significantly improves network efficiency in environments where hundreds of devices may be connected at the same time.

Improved Network Efficiency in Dense Environments

In enterprise campuses, airports, and educational institutions, device density can severely impact wireless performance. MU-MIMO combined with OFDMA ensures that each device receives sufficient bandwidth allocation without affecting the performance of others, creating a balanced and scalable wireless ecosystem.

Reduced Latency and Improved User Experience

By minimizing contention between devices, MU-MIMO reduces latency spikes and improves real-time communication performance. This is particularly beneficial for VoIP applications, video streaming, and cloud-based collaboration tools.

Embedded Wireless Controller (EWC) Functionality

Controller-Free Network Management

The Embedded Wireless Controller feature allows the Cisco C9115AXI-EWC-B to function as both an access point and a wireless controller, eliminating the need for separate hardware controllers in small to medium-scale deployments. This reduces infrastructure costs while maintaining enterprise-grade network management capabilities.

Centralized Configuration and Policy Enforcement

EWC enables centralized configuration of multiple access points within the same network environment. Administrators can manage SSIDs, security policies, VLAN segmentation, and QoS configurations from a single interface, ensuring consistency and simplifying network administration.

Scalability for Growing Network Demands

The embedded controller architecture supports seamless scalability, allowing organizations to expand their wireless infrastructure without major hardware upgrades. Additional access points can be integrated into the existing network fabric with minimal configuration effort.

Enterprise-Grade Security Framework

Advanced Encryption Standards

Security is a core component of the Cisco C9115AXI-EWC-B design. It supports WPA3 encryption, ensuring robust protection against unauthorized access and brute-force attacks. Enhanced encryption protocols safeguard sensitive enterprise data across wireless transmissions.

Secure Device Authentication Mechanisms

The access point supports multiple authentication methods including 802.1X, RADIUS integration, and certificate-based authentication. These mechanisms ensure that only authorized devices can access the network infrastructure, significantly reducing the risk of intrusion.

Threat Detection and Mitigation Capabilities

Integrated security intelligence helps detect anomalous behavior patterns, rogue access points, and potential intrusion attempts. These features enable proactive network defense and reduce vulnerability exposure in enterprise environments.

2.5 Gigabit Ethernet and Wired Backhaul Integration

High-Speed Wired Connectivity

The inclusion of a 2.5 Gigabit Ethernet port ensures that the wireless performance is not bottlenecked by traditional Gigabit uplinks. This enables full utilization of Wi-Fi 6 speeds and supports high-throughput applications across the network.

Network Infrastructure Compatibility

The Ethernet interface ensures compatibility with modern switching infrastructure and supports Power over Ethernet (PoE) for simplified installation. This reduces cable complexity and enhances deployment flexibility in enterprise environments.

Optimized Backhaul Performance

The wired backhaul ensures stable data transmission between access points and core network systems, reducing latency and improving reliability in mission-critical applications.

Bluetooth 5 Integration for IoT and Location Services

Low-Energy Device Connectivity

Bluetooth 5 integration enables efficient communication with IoT devices, sensors, and mobile endpoints. The low-energy design ensures minimal power consumption while maintaining consistent connectivity.

Indoor Positioning and Asset Tracking

The access point can be utilized for location-based services such as indoor navigation, asset tracking, and proximity detection. This is particularly valuable in healthcare facilities, retail environments, and large enterprise campuses.

IoT Ecosystem Enablement

With increasing adoption of IoT devices in enterprise environments, Bluetooth 5 support allows seamless integration of smart devices, improving automation and operational efficiency.

Deployment Flexibility and Installation Scenarios

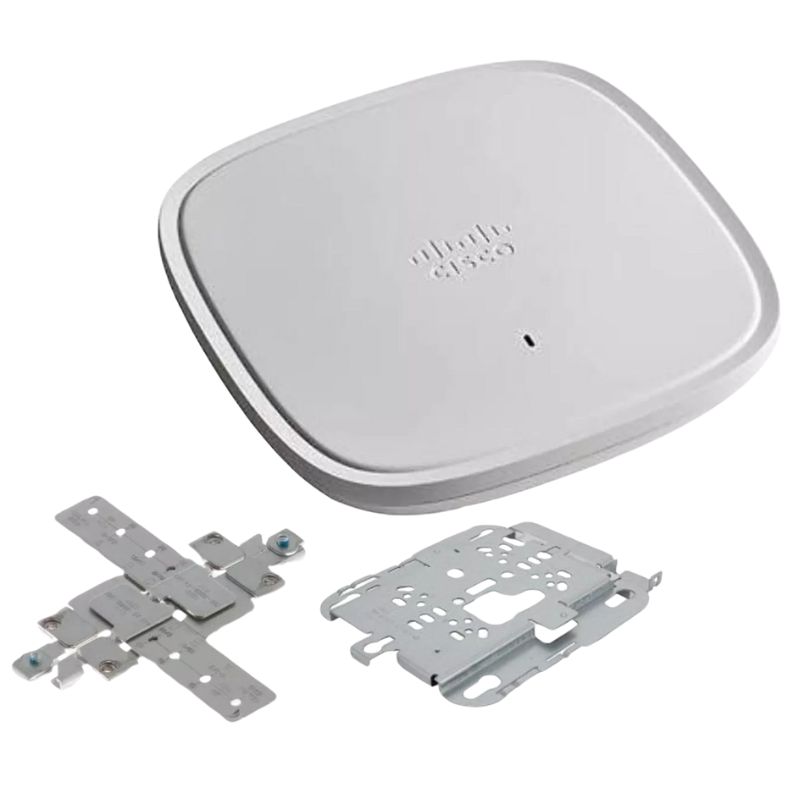

Ceiling and Wall Mount Configurations

The Cisco C9115AXI-EWC-B is designed for flexible installation, supporting ceiling and wall mounting options. This ensures optimal signal distribution and coverage in diverse architectural layouts.

High-Density Environment Optimization

In environments such as stadiums, universities, and conference centers, the access point maintains stable performance even under extreme device density conditions. Advanced radio resource management ensures efficient spectrum usage.

Smart Building Integration

The access point integrates seamlessly with smart building infrastructure, supporting automation systems, environmental monitoring, and intelligent energy management solutions.

Network Management and Cloud Integration Capabilities

Centralized Monitoring Systems

Network administrators can monitor performance metrics, bandwidth utilization, and device connectivity status in real time. This allows for proactive maintenance and rapid troubleshooting.

Cloud-Based Network Visibility

Integration with cloud networking platforms enables remote management and monitoring of distributed network environments, ensuring operational continuity across multiple locations.

Policy-Based Automation

Automated policy enforcement ensures consistent configuration across all network nodes, reducing administrative overhead and minimizing configuration errors.

Performance Optimization in Enterprise Environments

Adaptive Radio Management

The access point continuously evaluates environmental conditions and adjusts radio settings to optimize performance. This includes dynamic channel selection, power adjustment, and interference mitigation.

Load Balancing Across Clients

Traffic distribution algorithms ensure that network load is evenly distributed across connected devices, preventing congestion and maintaining consistent throughput.

Quality of Service Prioritization

QoS mechanisms prioritize critical applications such as voice and video traffic, ensuring uninterrupted communication even during peak network usage.

Enterprise Application Scenarios and Use Case Integration

Corporate Office Environments

In corporate settings, the access point supports unified communications, cloud-based productivity tools, and secure enterprise resource access. Employees benefit from stable and high-speed connectivity across all departments.

Education and Research Institutions

Universities and research facilities benefit from high-density device support, enabling seamless digital learning experiences, online collaboration, and research data transfer.

Healthcare and Hospital Networks

Hospitals require reliable wireless connectivity for patient monitoring systems, medical imaging transfer, and communication systems. The Cisco C9115AXI-EWC-B ensures uninterrupted connectivity for critical healthcare applications.

Industrial and Manufacturing Facilities

In industrial environments, the access point supports automation systems, robotics, and real-time monitoring solutions, enabling Industry 4.0 transformation.
