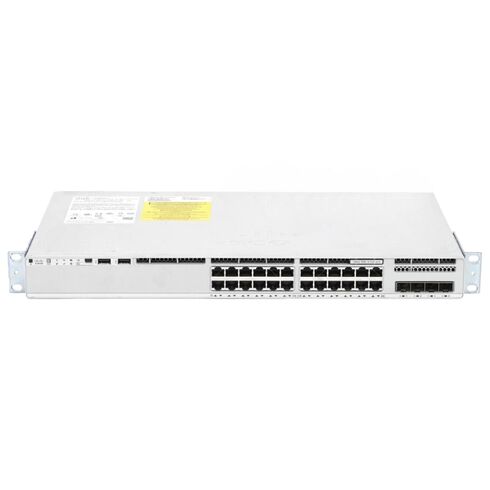

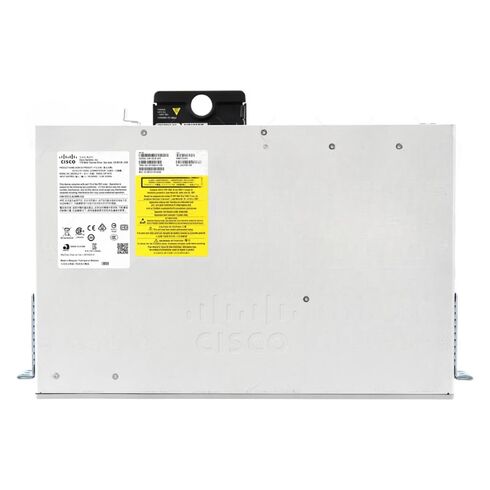

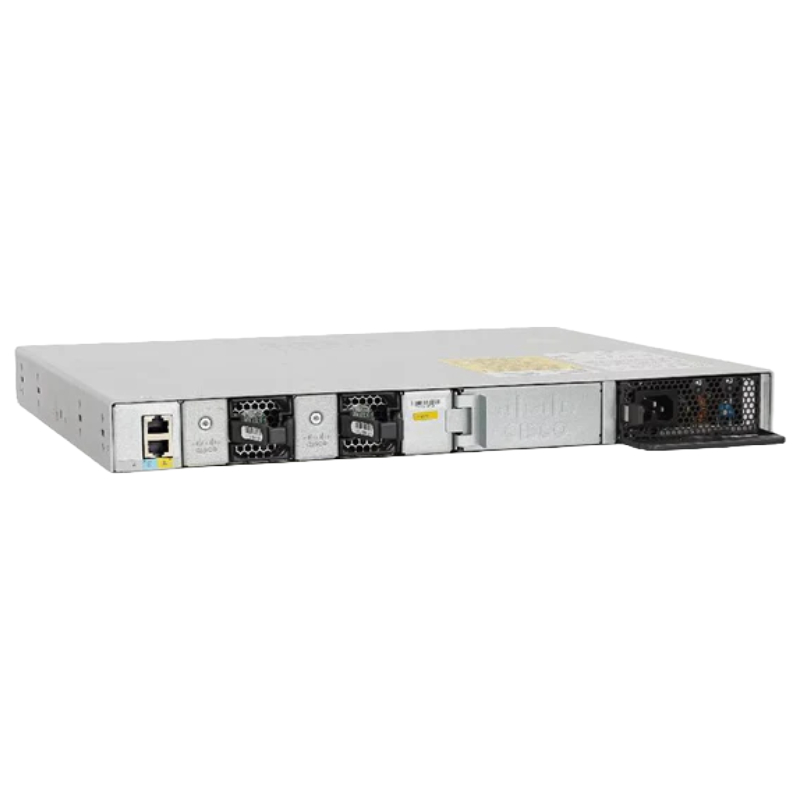

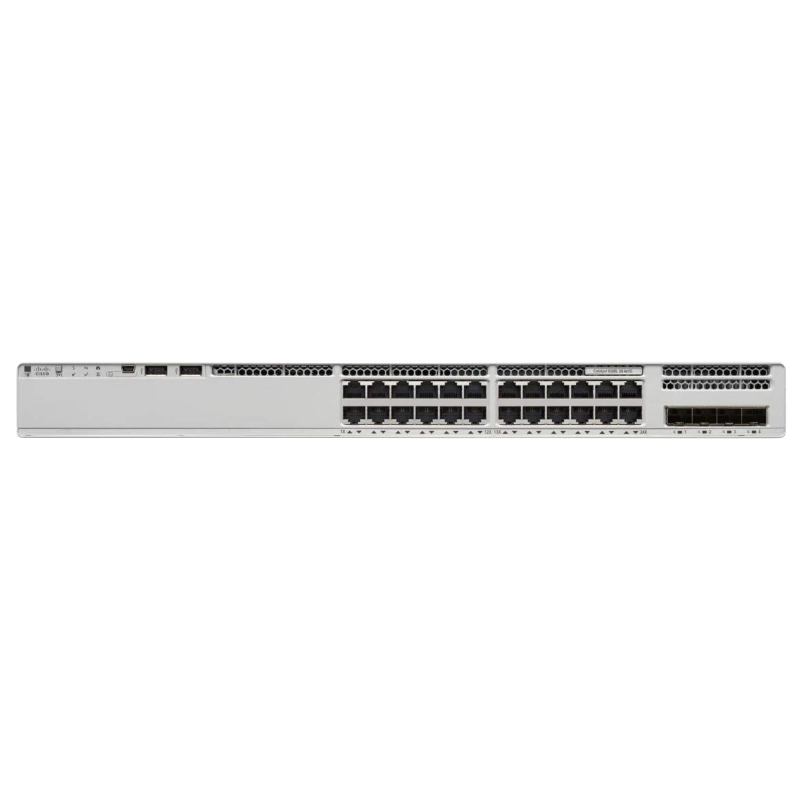

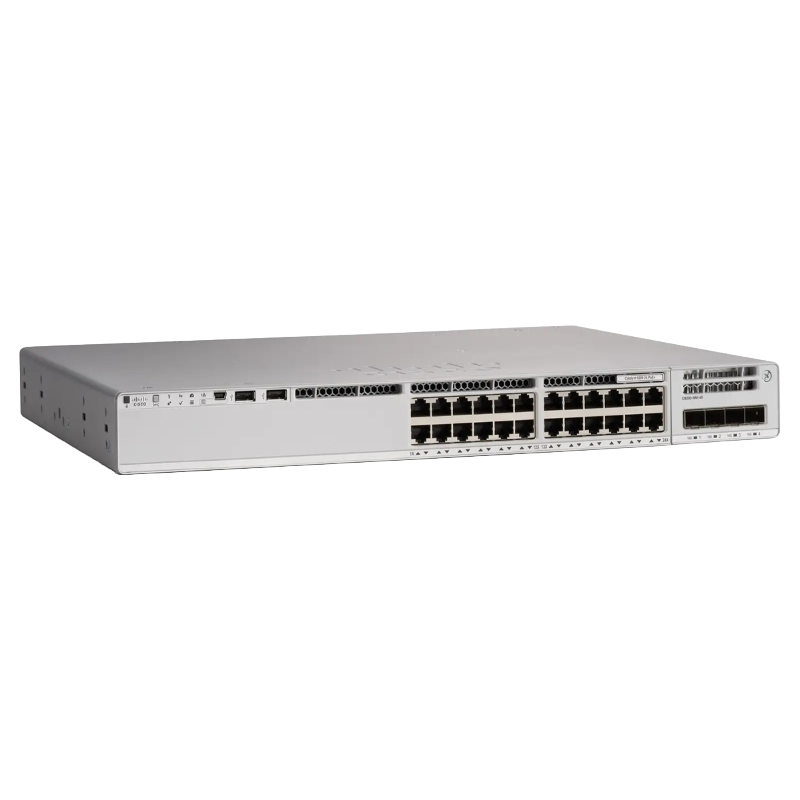

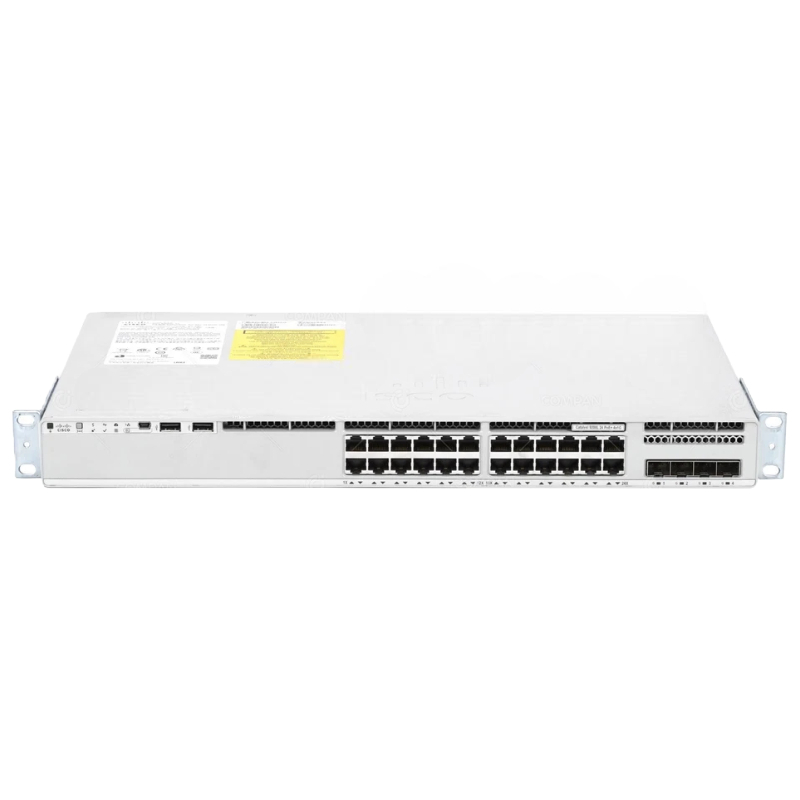

C9200-24PXG-A Cisco Catalyst 9200 24-Port Layer3 Ethernet Switch

Cisco C9200-24PXG-A Catalyst 9200 Network Advantage Switch Overview

The Cisco C9200-24PXG-A Catalyst 9200 series switch is designed for modern enterprises requiring secure, high-performance, and reliable Layer 3 managed switching. With a combination of multi-gigabit ports, advanced routing capabilities, and strong PoE+ support, it delivers outstanding scalability and efficiency for growing businesses and mission-critical networks.

Main Product Details

• Manufacturer: Cisco
• Part Number / SKU: C9200-24PXG-A
• Device Type: Managed L3 Stackable Switch
• Form Factor: Rack-mountable design for enterprise data centers
• Total Ports: 24

Port Configuration and Connectivity

Engineered for flexibility, this switch supports both multi-gigabit and standard Gigabit Ethernet ports to handle a variety of workloads.

• 8 × 100/1000/2.5G/5G/10GBASE-T RJ-45 interfaces
• 16 × 10/100/1000 RJ-45 with PoE+ capability
• 1 × Network stack device interface
• 1 × Management (LAN) RJ-45 port
• 1 × Console RJ-45 for administrative access

Power and PoE+ Capabilities

Delivering reliable power to connected devices, this model ensures strong PoE+ support for high-demand applications such as IP phones, security cameras, and wireless access points.

• PoE+ power budget: 370W
• Internal power supply: Hot-pluggable
• Redundancy support: Optional dual power supplies
• AC Input: 100–240 V, 50/60 Hz

Performance and Throughput

Designed for demanding workloads, the Cisco C9200-24PXG-A ensures excellent throughput, stacking performance, and fast data transfer across connected devices.

• Switching Capacity: 272 Gbps
• Switching Capacity with Stacking: 352 Gbps
• Stacking Bandwidth: 80 Gbps
• Forwarding Rate: 214.28 Mpps

Scalability and Capacity

With broad network capacity and extensive support for VLANs, ACLs, and multicast, this switch is capable of supporting growing enterprise environments.

• IPv4 Routes: 11,000
• IPv4 Routing Entries: 3,000
• IPv6 Routing Entries: 1,500
• VLAN Support: 1,024
• SVIs Supported: 512
• ACL Scale Entries: 1,500
• FNf Entries: 16,000
• Multicast Scale: 1,000
• QoS Hardware Queues per Port: 8
• Packet Buffer: 6 MB
• MAC Address Table Size: 16,000 entries
• Jumbo Frame Support: Up to 9,198 bytes

Advanced Routing and Protocol Support

This model includes a comprehensive set of Layer 3 routing protocols and redundancy features to ensure high availability and optimized network traffic handling.

• Supported Routing: OSPF, EIGRP, IS-IS, RIP, RIPng, OSPFv3
• Redundancy Protocols: HSRP, VRRP
• Multicast: PIM-SM, PIM-SSM, MSDP
• Policy-based Routing (PBR) for traffic control
• MSTP for spanning tree scalability

Security and Encryption

Strong security features protect sensitive data and ensure encrypted communication across the network.

• 128-bit AES encryption
• MACsec support for secure data links
• ARP and STP protection
• SGT caching and CoPP for enhanced security policies

Management and Remote Access

Simplified network management is enabled through multiple remote access protocols, giving administrators complete control and visibility.

• SNMP v1, v2c, and v3
• RMON 1 and 2 monitoring
• CLI, NetConf, RESTConf
• Support for IPv4 and IPv6 management
• YANG data modeling

Innovative Features

• Energy Efficient Ethernet for power savings
• VXLAN and LISP for network virtualization
• QoS with DSCP, CoS, and priority queuing
• Flexible NetFlow (FnF) for traffic analysis
• Cisco StackWise-80 technology for stack management
• Support for SPAN, RSPAN, and EEM automation

Hardware Specifications

Built with enterprise-grade hardware, this switch balances memory, processing power, and reliability.

• RAM: 2 GB
• Flash Memory: 4 GB
• Expansion Options: Modular power supply and stacking interface

Industry Standards and Compliance

The Cisco C9200-24PXG-A meets a wide range of industry standards, ensuring seamless integration and interoperability with existing infrastructure.

• IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3af, 802.3at, 802.3bz
• IEEE 802.1d, 802.1q, 802.1p, 802.1w, 802.1s
• IEEE 802.1x for authentication
• IEEE 802.3x for flow control
• IEEE 802.3ad (LACP) for link aggregation
• IEEE 802.1ab (LLDP) for device discovery

Ports

The Cisco C9200-24PXG-A Ethernet Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high level of connectivity. These ports offer numerous benefits and play a critical role in ensuring efficient communication and data transfer within a network.

Increased Connectivity

With 24 ports, this switch enables users to connect multiple devices simultaneously. Whether it's computers, servers, printers, or IP phones, the abundance of ports ensures that there are enough connections available to cater to the needs of a growing network. This is particularly important for businesses that have numerous departments or require extensive interconnectivity.

Flexibility and Scalability

The 24 ports on the Cisco C9200-24PXG-A Ethernet Switch provide flexibility and scalability for network expansion. As businesses grow and their networking requirements increase, additional devices can be easily connected to the switch without any hassle. The ability to scale the network infrastructure without significant disruptions is crucial for accommodating future growth and adapting to changing business needs.

Improved Productivity

Having 24 ports on the switch ensures that each device can have its dedicated connection, minimizing network congestion and bottlenecks. This leads to improved productivity as users experience faster data transfer speeds and reduced latency. Users can seamlessly access network resources, collaborate with colleagues, and perform their tasks efficiently without any interruption caused by limited connectivity options.

Layer

The Cisco C9200-24PXG-A Ethernet Switch boasts Layer3 functionality, which offers advanced capabilities for network routing and communication. This feature brings several benefits and is crucial for businesses seeking comprehensive networking solutions.

Enhanced Network Performance

Layer3 switches enable efficient routing of network traffic by making intelligent decisions based on IP addresses and other criteria. The Cisco C9200-24PXG-A Ethernet Switch, with its Layer3 capabilities, can analyze and route traffic more effectively, resulting in improved network performance. By minimizing congestion and optimizing data flow, businesses can enjoy a faster and more reliable network connection.

Improved Security

Layer3 switches often include advanced security features such as access control lists (ACLs) and firewall capabilities. These security measures allow administrators to define granular rules for data access and protect the network from unauthorized access or malicious activities. With the Layer3 functionality of the Cisco C9200-24PXG-A Ethernet Switch, businesses can implement robust security policies to safeguard their sensitive data and prevent potential breaches.

Inter-VLAN Routing

Layer3 switches facilitate inter-VLAN routing, which is essential for segregating network traffic and optimizing performance. By creating separate VLANs for different departments or user groups, businesses can better manage bandwidth allocation and prioritize critical applications. With the Cisco C9200-24PXG-A Ethernet Switch's Layer3 capabilities, organizations can achieve efficient inter-VLAN routing, ensuring that network resources are utilized optimally.

Power Over Ethernet

The Cisco C9200-24PXG-A Ethernet Switch supports Power Over Ethernet (PoE), offering significant convenience and flexibility for powering network devices. This feature provides numerous benefits for users, particularly in settings where power outlets may be limited or difficult to access.

Simplified Installation

With PoE support, the Cisco C9200-24PXG-A Ethernet Switch eliminates the need for separate power adapters for connected devices such as IP phones, wireless access points, or IP cameras. This simplifies the installation process by reducing cable clutter and minimizing the number of power outlets required. Users can conveniently connect their devices to the switch using a single Ethernet cable for both data transfer and power supply.

Cost Savings

By utilizing PoE, businesses can save on the cost of purchasing and deploying additional power infrastructure. The Cisco C9200-24PXG-A Ethernet Switch's PoE capabilities eliminate the need for separate electrical wiring to power network devices, reducing installation and maintenance expenses. Moreover, PoE enables flexible device placement, allowing businesses to avoid costly rewiring or modifications when relocating devices within the network.

Reliable Power Delivery

The PoE feature of the Cisco C9200-24PXG-A Ethernet Switch ensures consistent and reliable power delivery to connected devices. It supports IEEE standards for PoE, including PoE+ (802.3at) and Universal PoE (UPOE), which provide sufficient power to run a wide range of devices. This reliability is particularly crucial for devices that require a stable power supply, such as IP cameras for surveillance or VoIP phones for uninterrupted communication.

Power Capacity

The Cisco C9200-24PXG-A Ethernet Switch offers a remarkable power capacity of 370W, making it suitable for environments with demanding power requirements. This feature provides several benefits and ensures that all connected devices receive sufficient power for optimal performance.

High-Powered Devices

The 370W power capacity of the Cisco C9200-24PXG-A Ethernet Switch enables it to support high-powered devices that require more energy to operate effectively. This includes devices such as pan-tilt-zoom (PTZ) cameras, access points with multiple radios, or network switches with Power Over Ethernet Plus (PoE+) capabilities. The switch's robust power capacity ensures that these power-hungry devices receive the necessary power without compromising their performance.

Future-Proofing

By providing a generous power capacity, the Cisco C9200-24PXG-A Ethernet Switch future-proofs the network infrastructure. As technology evolves and devices become more power-intensive, businesses can rest assured that their switch can handle the increasing power demands. This scalability ensures that the network remains functional and capable of supporting emerging technologies without requiring immediate upgrades or replacements.

Redundancy and Resilience

The Cisco C9200-24PXG-A Ethernet Switch's power capacity of 370W allows for redundancy and resilience in the network. With ample power available, businesses can implement redundant power supplies or backup power sources to ensure uninterrupted operation in case of a power outage or failure. This redundancy enhances the reliability and availability of critical network services, minimizing downtime and maximizing productivity.
