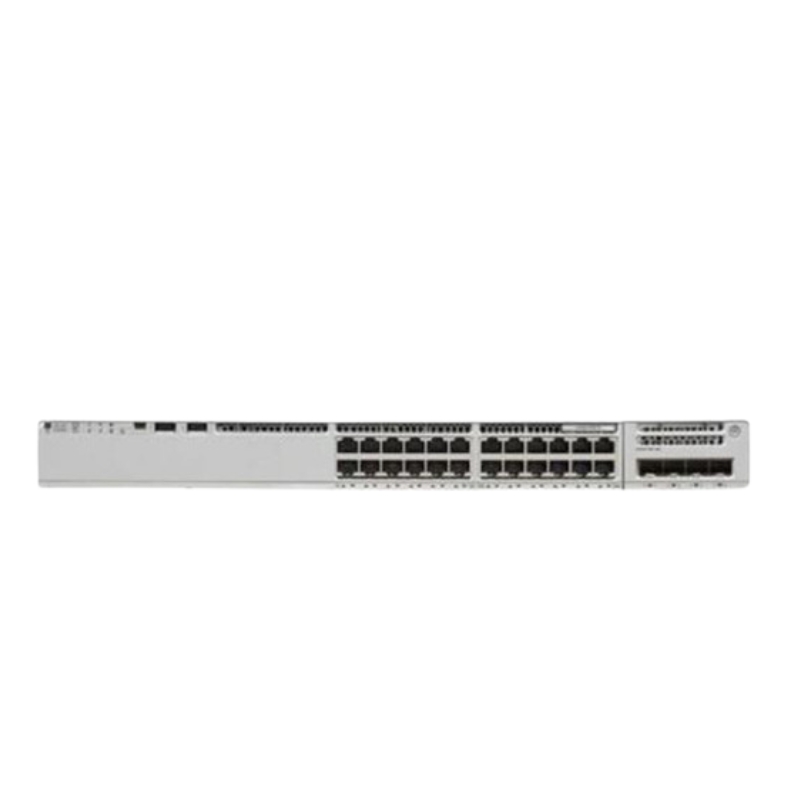

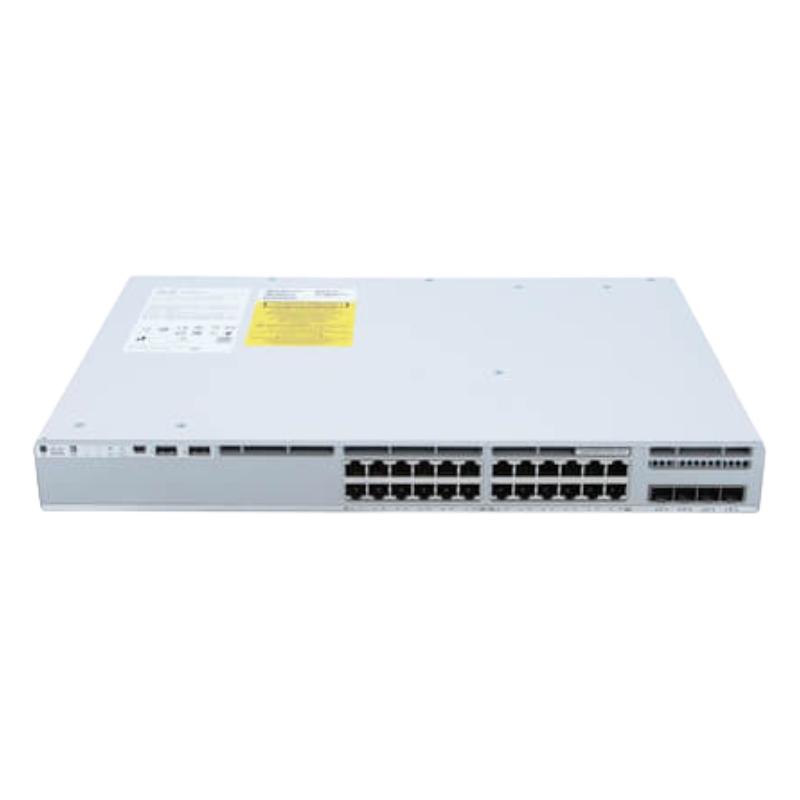

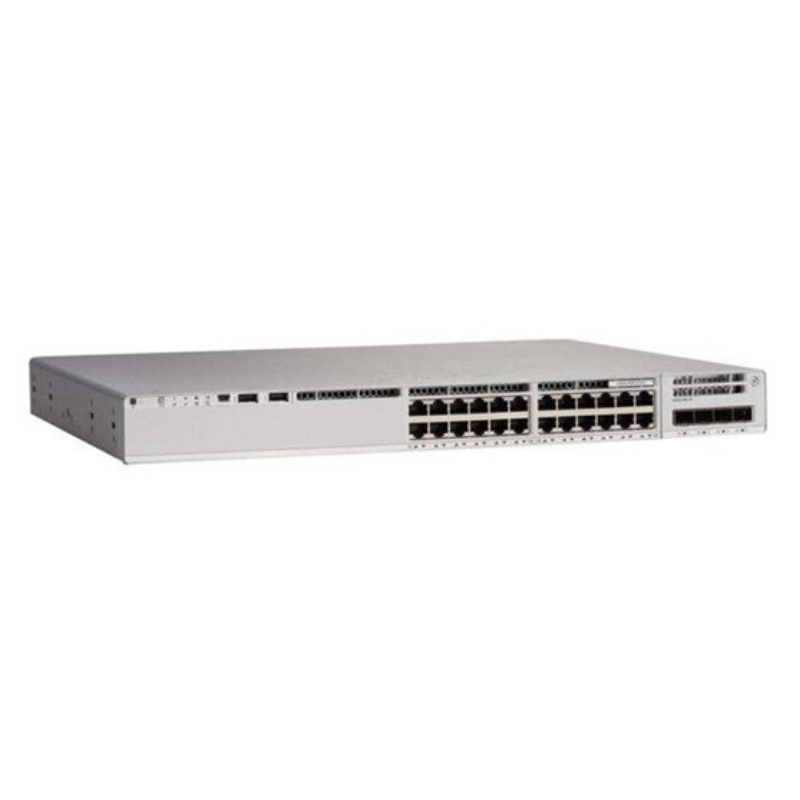

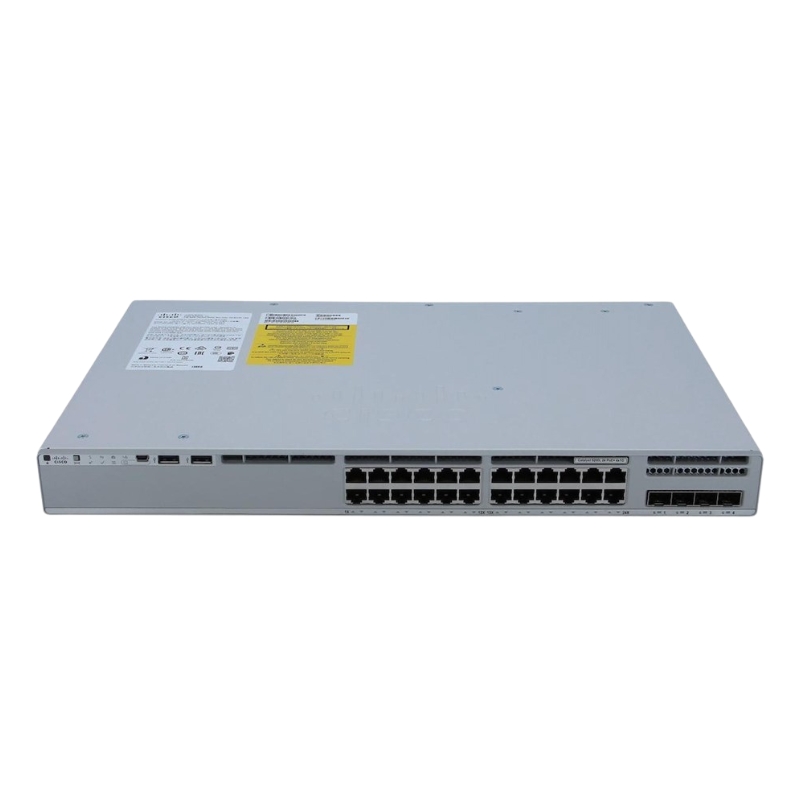

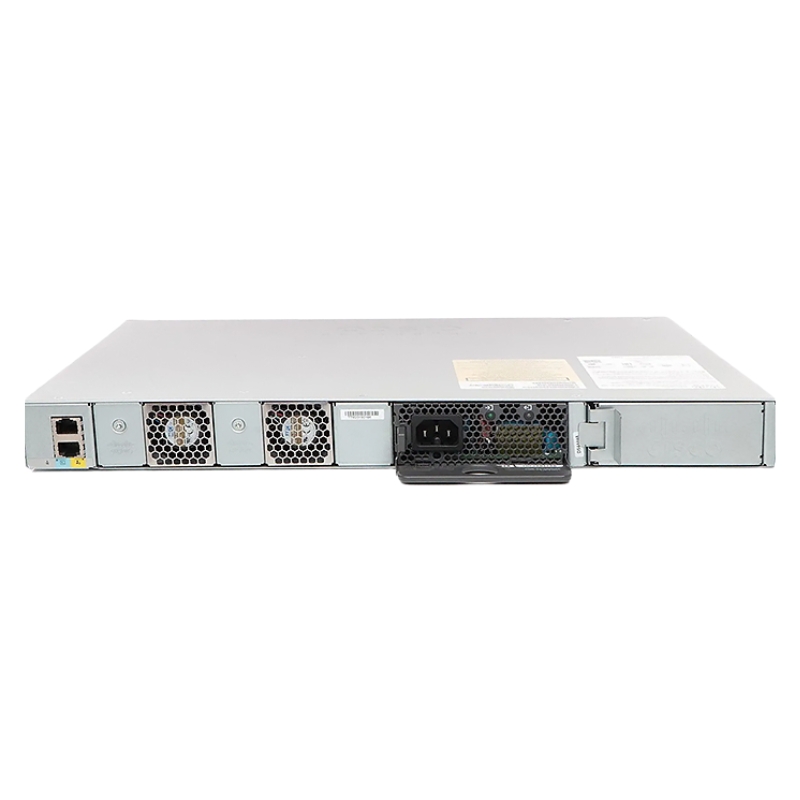

C9200L-24PXG-2Y-E Cisco Catalyst 9200L Switch, Network Essentials, 24 Ports

Overview of Cisco Catalyst 9200L-24PXG-2Y-E Switch

The Cisco Catalyst 9200L Series delivers advanced Layer 3 switching capabilities combined with robust Power over Ethernet (PoE+) support, making it an ideal solution for modern enterprise networks. Designed for flexibility and high performance, this switch ensures seamless connectivity and network efficiency.

General Specification

• Manufacturer: Cisco Systems, Inc.
• Model Number: C9200L-24PXG-2Y-E
• Product Line: Catalyst
• Product Series: 9200
• Product Type: Ethernet Switch

Technical Information

• Total Network Ports: 24 ports, accommodating a wide variety of devices
• PoE+ Support: 16 Gigabit Ethernet ports capable of delivering power to connected devices
• Standard Ethernet Ports: 8 additional ports for flexible network expansion
• Uplink Connectivity: 2 x 25 Gigabit Ethernet SFP uplink ports for high-throughput aggregation
• Stacking Options: Supported for simplified network scaling

Advanced Media and Performance Capabilities

• Supported Media: Twisted pair cabling for reliable Ethernet connections
• Ethernet Standards: Includes Gigabit Ethernet and 25 Gigabit Ethernet for faster network performance
• Networking Protocols: Fully compatible with 10/100/1000Base-T and 25GBase-T standards

Layer 3 Routing and Management

• Layer Support: Layer 3 routing functionality enables efficient inter-VLAN routing
• Manageability: Fully manageable, allowing detailed configuration and monitoring of network operations

Power and Redundancy

• Power Source: Standard internal power supply
• Redundant Power Options: Supports redundant power supply to maintain uninterrupted operation

Physical Attributes and Deployment

• Height: 1.7 inches, optimized for standard rack deployment
• Width: 17.5 inches, ensuring compatibility with most server racks
• Depth: 13.8 inches, balancing footprint and internal airflow
• Weight: Approximately 12 pounds, lightweight yet sturdy

Key Advantages of Cisco Catalyst 9200L

• Robust Layer 3 switching performance for modern enterprise networks
• Power over Ethernet support for connected devices like access points and IP phones
• High-speed uplinks with 25G SFP ports for faster data transmission
• Stackable design for scalable network expansion
• Reliable hardware with support for redundant power configurations

Ideal Applications

• High-performance office networks with multiple connected devices
• Campus environments requiring reliable inter-VLAN routing
• Environments needing efficient PoE+ support for IP endpoints
• Scalable network solutions capable of future expansion

Outline of Cisco C9200L-24PXG-2Y-E Catalyst 9200L Switch

The Cisco C9200L-24PXG-2Y-E Catalyst 9200L Switch represents a high-performance, reliable, and versatile solution for modern network infrastructures. Designed for medium to large enterprise environments, this Network Essentials switch delivers robust management capabilities, enhanced security features, and advanced performance optimizations. With 24 fully managed ports, the Catalyst 9200L ensures seamless connectivity and efficient traffic handling across enterprise networks. Engineered to support Cisco’s software-driven network approach, it provides scalability, flexibility, and energy efficiency that modern organizations demand.

Performance and Port Capabilities

The Cisco Catalyst 9200L-24PXG-2Y-E comes with 24 ports capable of delivering high-speed connectivity for a diverse range of devices. Each port supports Power over Ethernet Plus (PoE+), allowing seamless integration with IP phones, wireless access points, and other networked devices without requiring separate power sources. The switch’s throughput ensures low-latency data transfer, reducing network congestion and enabling efficient bandwidth utilization. Advanced hardware architecture guarantees consistent performance, even under heavy network loads, making it ideal for enterprise environments with demanding data traffic requirements.

Managed Switch Functionality

This 24-port switch is fully managed, offering administrators extensive control over network operations. Features such as VLAN segmentation, Quality of Service (QoS), port mirroring, and link aggregation allow network managers to optimize traffic flow and maintain a stable, secure network environment. The Catalyst 9200L’s software capabilities extend to network automation and monitoring, reducing manual configuration tasks while enhancing reliability. With comprehensive management interfaces, including web-based GUIs and command-line options, network teams can deploy, configure, and troubleshoot the switch efficiently.

Network Essentials Features

The Network Essentials licensing of the Cisco C9200L-24PXG-2Y-E enables access to core Layer 2 and basic Layer 3 functionality, providing essential networking capabilities for enterprise deployments. This includes static and dynamic routing, basic IPv4 and IPv6 support, and essential security protocols. The switch also supports access control lists (ACLs), enabling administrators to implement network segmentation and secure sensitive data traffic. Network Essentials ensures that organizations can meet operational requirements without the complexity or cost of full enterprise licenses while maintaining high levels of performance and reliability.

Scalability and Future-Proofing

The Catalyst 9200L series is designed with scalability in mind. Enterprises can deploy multiple switches and integrate them seamlessly into existing network architectures, supporting stacking capabilities that increase port density and simplify network management. The modular design and support for software updates ensure that the switch remains compatible with emerging technologies, allowing organizations to extend the lifecycle of their network infrastructure. This forward-looking approach reduces total cost of ownership while preparing the network for future expansion and evolving connectivity demands.

Advanced Security Features

Security is a critical component of modern enterprise networks, and the Cisco C9200L-24PXG-2Y-E addresses this need through comprehensive protection mechanisms. The switch includes support for 802.1X network access control, allowing administrators to authenticate devices before granting network access. Enhanced encryption capabilities safeguard sensitive data in transit, while integrated security policies help prevent unauthorized access and mitigate threats. Features such as Dynamic ARP Inspection (DAI) and DHCP snooping provide additional layers of protection against common network attacks, ensuring a secure and resilient environment for business-critical operations.

Power over Ethernet and Energy Efficiency

The PoE+ capabilities of the Cisco Catalyst 9200L-24PXG-2Y-E enable centralized power delivery to connected devices, eliminating the need for individual power supplies and reducing cabling complexity. This feature supports a wide range of networked devices, including IP cameras, VoIP phones, and wireless access points, simplifying deployment and maintenance. Additionally, Cisco’s energy-efficient design reduces power consumption, contributing to lower operational costs and supporting environmentally sustainable practices. Intelligent power management ensures that energy is allocated efficiently, providing optimal performance without unnecessary consumption.

Stacking and Redundancy

For organizations seeking high availability and simplified management, the Catalyst 9200L supports Cisco StackWise-160 technology. This allows multiple switches to operate as a single logical unit, improving redundancy and providing seamless failover in case of individual switch failure. Network administrators can manage stacked switches as one entity, streamlining configuration, monitoring, and troubleshooting tasks. Stacking enhances scalability, enabling networks to grow without adding complexity, and ensures uninterrupted service for critical enterprise applications.

Software Features and Automation

The switch includes Cisco IOS XE software, which provides robust networking functionality and support for automation tools. Network administrators can leverage programmable interfaces, including REST APIs and NETCONF/YANG, to automate repetitive tasks, enforce consistent policies, and simplify complex configurations. Cisco DNA Center integration further enables policy-based automation, allowing IT teams to deploy changes across the network with minimal human intervention. This reduces operational overhead and enhances network reliability, enabling IT departments to focus on strategic initiatives rather than routine maintenance.

Deployment Scenarios

The Cisco C9200L-24PXG-2Y-E Catalyst 9200L Switch is suitable for a wide range of deployment scenarios, from enterprise campus networks to branch office environments. In campus networks, the switch can serve as an access layer device, connecting endpoints and providing secure, high-speed connectivity. Its PoE+ functionality supports wireless access points and IP phones, enabling converged network services. In branch office deployments, the switch ensures reliable connectivity, centralized management, and integration with remote network infrastructure. Its compact form factor and low power requirements make it an ideal solution for space-constrained environments.

Education and Healthcare Applications

Educational institutions and healthcare organizations can benefit from the Catalyst 9200L’s performance, reliability, and security features. In educational environments, the switch supports digital classrooms, student devices, and campus-wide Wi-Fi deployments. Its VLAN and QoS capabilities allow administrators to prioritize bandwidth for critical applications, ensuring smooth and responsive connectivity. In healthcare settings, the switch enables secure and reliable connections for medical devices, electronic health record systems, and telemedicine applications. Compliance with regulatory standards and robust security measures ensure data integrity and patient safety.

Enterprise and SMB Networks

For small and medium-sized businesses, the Cisco Catalyst 9200L provides enterprise-grade capabilities at an accessible price point. Its ease of deployment, centralized management, and high performance make it suitable for growing organizations that require scalable networking solutions. Network Essentials licensing ensures that businesses can implement foundational networking functions without unnecessary complexity, while still benefiting from advanced features like PoE+, stacking, and integrated security. This combination of affordability, scalability, and performance makes the 9200L series an excellent choice for SMBs seeking a reliable networking backbone.

Technical Specifications

Hardware Specifications

The Cisco C9200L-24PXG-2Y-E features 24 fixed ports, each supporting Gigabit Ethernet speeds and PoE+. It offers a forwarding capacity capable of handling high-volume traffic, ensuring low latency and consistent performance. The switch supports stacking with other Catalyst 9200L units, providing a unified management interface for multiple devices. Its compact and fan-optimized design ensures efficient airflow and reliable cooling, even in dense rack environments. Redundant power supply options further enhance reliability, ensuring continuous operation in mission-critical deployments.

Software and Protocol Support

The Catalyst 9200L supports a wide range of Layer 2 and basic Layer 3 protocols, including VLAN, Spanning Tree Protocol (STP), Routing Information Protocol (RIP), and static routing. Security protocols such as 802.1X, ACLs, and Secure Shell (SSH) ensure safe and controlled network access. The switch also supports advanced network management protocols like Simple Network Management Protocol (SNMP) for monitoring and automation purposes. Regular software updates from Cisco provide new features, performance improvements, and security enhancements, keeping the network infrastructure current and secure.

Reliability and Support

Cisco offers comprehensive support options for the Catalyst 9200L series, including technical assistance, software updates, and hardware replacement programs. Organizations can rely on Cisco’s world-class support services to minimize downtime and ensure network continuity. The switch’s robust design, redundant power options, and proven performance track record contribute to high reliability in critical enterprise environments. Support contracts and extended warranties provide peace of mind, allowing IT teams to focus on operational efficiency rather than hardware maintenance concerns.
