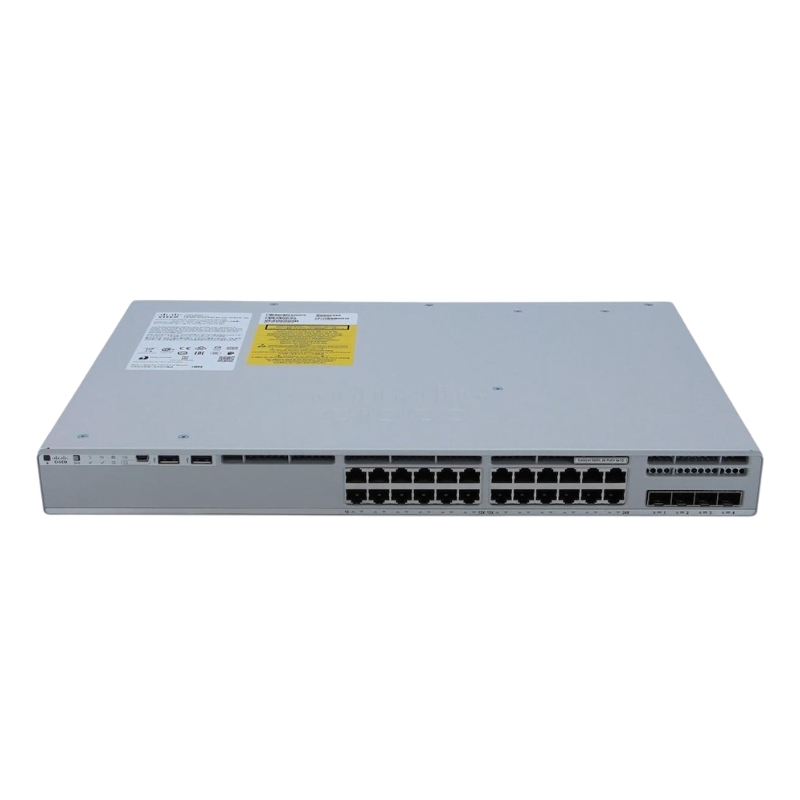

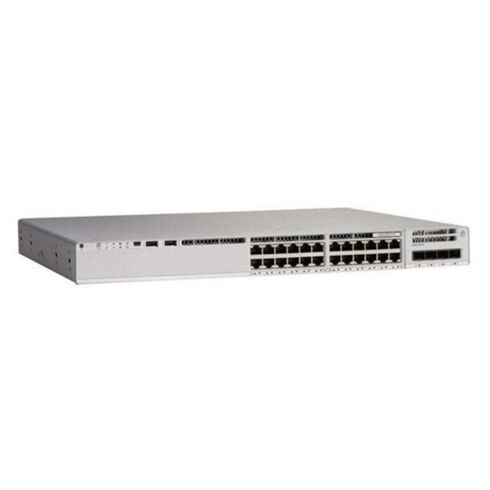

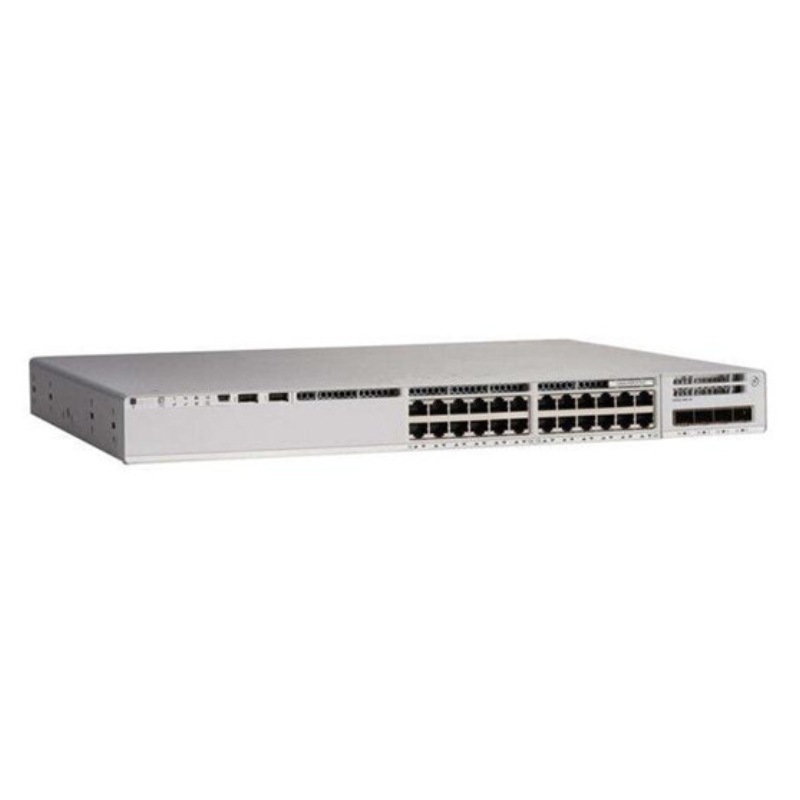

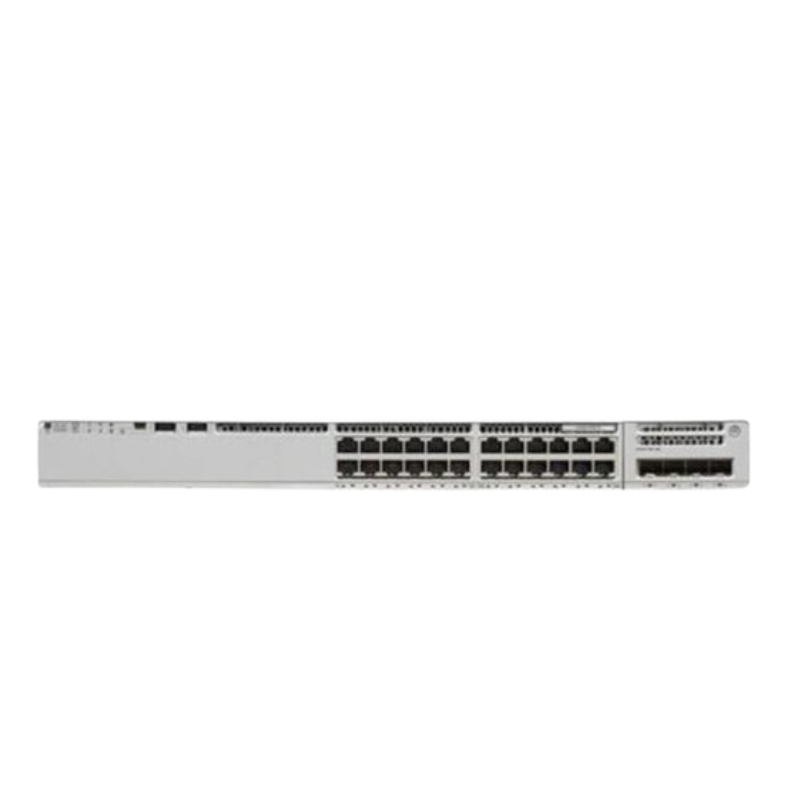

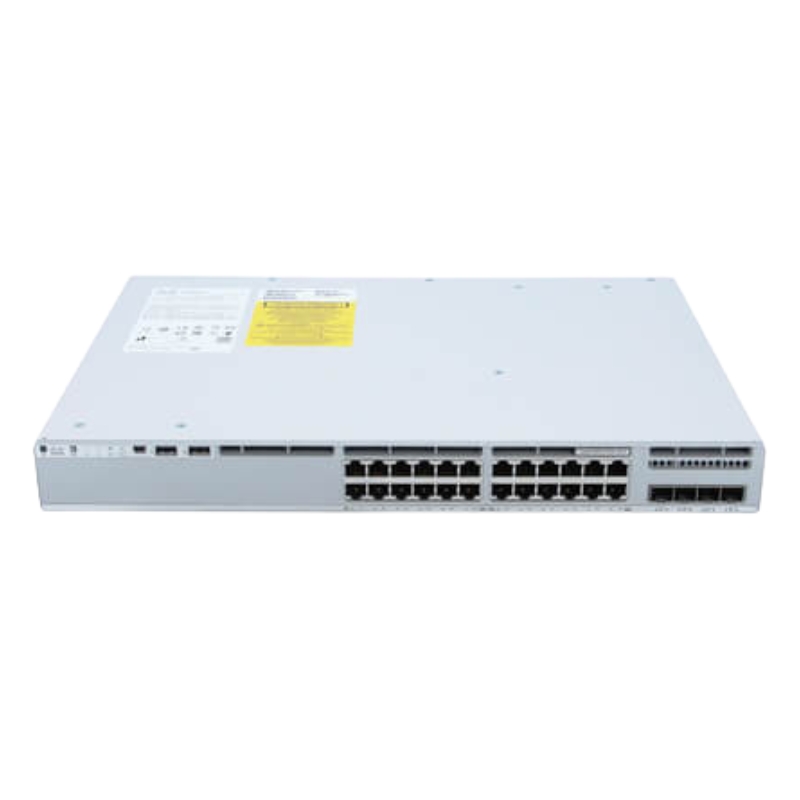

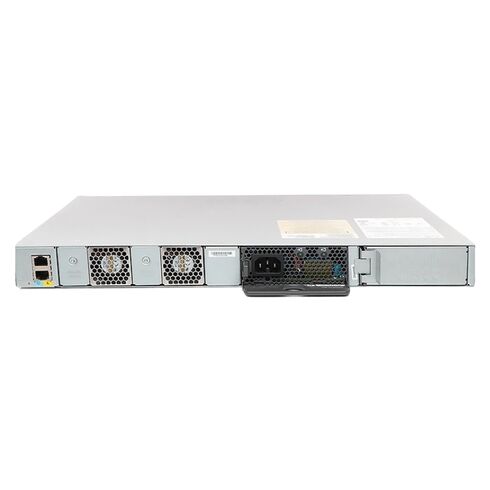

C9200L-24PXG-4X-E Cisco Catalyst 9200L Switch, Network Essentials

Overview of Cisco Stackable Layer 3 Ethernet switch

The Cisco Catalyst C9200L-24PXG-4X-E is a high-performance, stackable Layer 3 Ethernet switch designed for modern enterprise networks. Combining robust management features with versatile connectivity, this 24-port switch ensures reliable network operation and optimal data flow across your infrastructure.

General Specifications

• Manufacturer: Cisco
• Part Number: C9200L-24PXG-4X-E
• Product Type: Managed Layer 3 Switch

Core Specifications and Connectivity

• Switch Type: Managed Layer 3, fully stackable for enhanced scalability.
• Enclosure: Compact rack-mountable design suitable for data centers and server rooms.
• Port Configuration: 24 full PoE+ ports, including 8 multi-gigabit (up to 10G) and 16 gigabit ports (up to 1G).
• Uplink Capability: 4 fixed uplink ports supporting 1G/10G speeds for seamless network expansion.
• Interfaces: Optimized for a mix of 8xmgig, 16x1G, and 4x10G connections, enabling diverse device support.

Power and Efficiency

• Power Supply: High-efficiency 600W unit included.
• Voltage Range: Supports 100–240V AC, 50–60 Hz for global deployment.
• PoE+ Support: Delivers reliable power to connected devices, such as IP phones, cameras, and access points, minimizing additional cabling.

Routing and Protocol Capabilities

• IPv4 and IPv6 routing for dual-stack network environments
• Advanced routing options including OSPFv3 and EIGRP for IPv6
• Dynamic host configuration and network monitoring using DHCP, SNMP, and Syslog

Enhanced Network Management

• Centralized remote management to reduce operational complexity
• Stackable architecture allowing multiple units to operate as a single logical switch
• Support for network automation and policy enforcement to maintain high uptime

Key Benefits for Enterprise Deployment

• Seamlessly expand your network with stackable switches
• Multi-gigabit ports accommodate increasing bandwidth demands
• High-speed uplinks ensure minimal latency for critical applications
• PoE+ capabilities power essential network devices without extra adapters
• Energy-efficient design reduces operational costs while maintaining full performance

Advanced Security and Monitoring

• Supports SNMP, Syslog, and DHCP for real-time network insights
• Integrated Layer 3 features enhance traffic management and security
• IPv6-ready for future-proof network expansion

Outline of Cisco C9200L-24PXG-4X-E Catalyst 9200L Switch

The Cisco C9200L-24PXG-4X-E Catalyst 9200L Switch is a robust, high-performance network solution designed for modern enterprise environments. As part of the Cisco Catalyst 9200 Series, this switch provides enhanced security, reliability, and scalability for network infrastructures. With 24 Ethernet ports and 4 uplink ports, the C9200L-24PXG-4X-E ensures seamless connectivity and optimized data flow, making it ideal for mid-sized to large enterprise networks. Its Network Essentials license equips IT professionals with the necessary tools to manage day-to-day network operations efficiently while maintaining high availability and performance standards.

Comprehensive Network Connectivity

The 24-port configuration of the Cisco C9200L-24PXG-4X-E allows for extensive device interconnection across enterprise environments. Each port supports Power over Ethernet Plus (PoE+), which simplifies the deployment of IP devices, including phones, cameras, and access points. This integration reduces the need for additional power sources and allows organizations to achieve a cleaner and more manageable network infrastructure. The four uplink ports provide high-speed 10G connections, ensuring that data transfer between network cores and distribution layers remains fast and reliable, supporting mission-critical applications and services.

Advanced Switching Capabilities

The Catalyst 9200L Series introduces advanced switching features designed to optimize network performance. It supports Layer 2 and Layer 3 functionalities, enabling seamless routing, VLAN segmentation, and enhanced network traffic management. Intelligent switching capabilities allow the device to automatically detect, prioritize, and forward traffic, which minimizes latency and maximizes bandwidth efficiency. This makes the Cisco C9200L-24PXG-4X-E suitable for organizations with high data throughput requirements and mixed network traffic patterns.

Network Essentials Licensing Features

Equipped with the Network Essentials license, the Cisco C9200L-24PXG-4X-E offers a comprehensive set of features tailored for essential network operations. These include basic routing, security policies, and automated management functions that simplify network configuration and monitoring. The license ensures that organizations can maintain secure network environments while reducing manual intervention, making network administration more efficient. IT teams can leverage features such as simplified Quality of Service (QoS), port-level access control, and automatic updates to maintain consistent performance and security across the network.

High Availability and Redundancy

Reliability is a cornerstone of the Cisco Catalyst 9200L series. The C9200L-24PXG-4X-E is engineered with hardware redundancy, resilient software architecture, and support for stackable configurations. With Cisco StackWise-160 technology, multiple switches can be interconnected to operate as a single logical unit, offering simplified management and uninterrupted service in case of individual switch failures. This redundancy ensures that critical enterprise applications remain online and reduces the risk of network downtime, which is crucial for businesses that rely heavily on continuous connectivity.

Enhanced Security and Compliance

Security is a top priority for modern enterprises, and the Cisco C9200L-24PXG-4X-E incorporates multiple layers of protection to safeguard network traffic. It supports advanced authentication protocols, role-based access control, and secure device onboarding, ensuring that only authorized devices can access the network. The switch also integrates with Cisco Identity Services Engine (ISE) for centralized policy management and monitoring. With automated threat detection and mitigation features, organizations can proactively manage security risks, maintain compliance with industry standards, and protect sensitive data from potential breaches.

Scalability and Future-Proofing

Designed with scalability in mind, the Cisco Catalyst 9200L Series can grow with the evolving needs of an organization. The modular architecture allows network administrators to add new devices or expand port capacity without disrupting existing operations. Support for high-bandwidth uplinks and advanced Layer 3 features ensures the network can accommodate increasing traffic volumes, cloud applications, and emerging technologies. This future-proof design reduces the need for frequent hardware replacements and provides a cost-effective path for network expansion.

Energy Efficiency and Sustainability

The Cisco C9200L-24PXG-4X-E is optimized for energy-efficient operation, contributing to lower operational costs and environmental sustainability. The switch utilizes intelligent power management features, such as Cisco EnergyWise technology, which monitors and controls energy consumption at the port level. Power over Ethernet (PoE+) further reduces the need for separate power supplies for connected devices, minimizing energy waste. These features allow organizations to maintain high-performance network infrastructure while aligning with green initiatives and energy efficiency goals.

Application Performance Optimization

High-performance applications require robust network support, and the Catalyst 9200L switch is designed to deliver just that. Intelligent traffic prioritization ensures that critical applications receive the bandwidth and low-latency connectivity they need, while less time-sensitive traffic is efficiently managed. This is particularly valuable for voice, video, and real-time collaboration applications, which are highly sensitive to network performance fluctuations. With these capabilities, organizations can maintain consistent application performance, improve user experience, and support digital transformation initiatives.

Integration with Cisco Ecosystem

As part of the Cisco ecosystem, the C9200L-24PXG-4X-E integrates seamlessly with a wide range of Cisco products and services. This includes wireless access points, security appliances, and cloud-based management solutions, allowing for a holistic approach to network design and operation. Integration with Cisco Meraki and other management platforms provides visibility and control over the entire network infrastructure, enabling organizations to make data-driven decisions and optimize network performance across all locations.

Deployment Scenarios and Use Cases

The Cisco C9200L-24PXG-4X-E Catalyst 9200L switch is versatile and can be deployed in various enterprise scenarios. It is suitable for branch offices, campus networks, data centers, and hybrid cloud environments. Its PoE+ capabilities make it ideal for powering devices like IP cameras, wireless access points, and VoIP phones, simplifying network design and reducing infrastructure costs. Enterprises can deploy these switches to create segmented, high-performance networks that meet both current operational demands and future scalability requirements.

Reliability

For organizations where network downtime is not an option, the Catalyst 9200L delivers consistent and reliable performance. Redundant power supplies, advanced monitoring, and resilient design ensure continuous operation even under challenging conditions. The switch’s robust hardware and software architecture are built to withstand high traffic loads and maintain network stability, providing a dependable backbone for enterprise IT infrastructure.

Optimized for Unified Communications

The C9200L-24PXG-4X-E switch is well-suited for unified communications environments. Its PoE+ support allows for direct powering of IP telephony systems, video conferencing equipment, and collaboration devices, ensuring uninterrupted connectivity and consistent quality of service. This makes it an ideal choice for organizations adopting unified communication solutions to improve collaboration and productivity across departments and remote locations.
