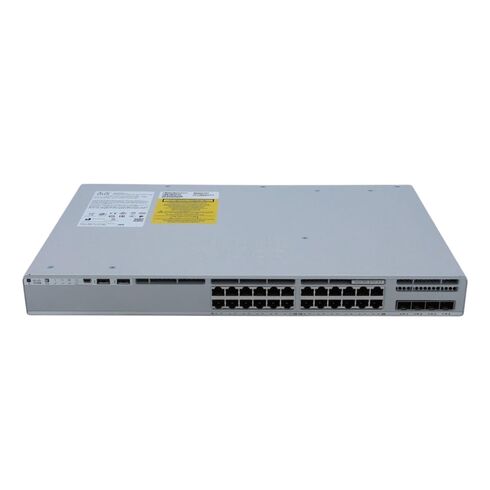

C9200L-24PXG-4XA Cisco Catalyst 9200L Network Advantage 24 Ports Switch.

Overview of Cisco C9200L-24PXG-4XA Catalyst Switch

Discover the power and flexibility of the Cisco Catalyst 9200L series with the C9200L-24PXG-4XA model. This managed network switch delivers robust performance with 24 ports and a broad array of features designed for demanding enterprise environments.

Main Specification

• Manufacturer: Cisco
• Part Number: C9200L-24PXG-4XA
• Product Type: Switch

Technical Details

• Model Number: C9200L-24PXG-4XA
• Ports: 24 ports including Gigabit Ethernet and 10Gb SFP+ uplink options
• Rack-Mountable: Yes
• Power over Ethernet: PoE+ with a total power budget of 370W
• Stackable: Supports stacking up to 8 units

Performance Specifications

• Switching Capacity: 272 Gbps, 352 Gbps with stacking
• Forwarding Rate: 214.28 Mpps
• Stacking Bandwidth: 80 Gbps

Routing and Network Management

• OSPF, RIP, IS-IS, EIGRP
• HSRP, VRRP, PIM-SM, EIGRP for IPv6
• Policy-Based Routing (PBR), RIPng, and more

Virtualization and Scalability

• VLANs Supported: 1024
• Maximum IPv4 Routes: 11,000
• IPv6 Routing Table Entries: 1,500
• Switched Virtual Interfaces (SVIs): 512

Advanced Features

• QoS (Quality of Service) for traffic prioritization
• VLAN, MACsec, and VXLAN support for enhanced security and network segmentation
• Support for Cisco StackWise-80 technology for superior stack performance
• Comprehensive management protocols: SNMP, CLI, NETCONF, RESTCONF, YANG
• Power Redundancy Option

Compliance and Standards

• Compliant with IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3x, and others
• TAA Compliant for federal procurement

Power Specifications

• Input Voltage: AC 100-240V (50 - 60 Hz)
• Power Redundancy: Optional for enhanced reliability

Outline of Cisco Catalyst 9200L Series Managed Switch

The Cisco C9200L-24PXG-4XA Catalyst 9200L is a high-performance, rack-mountable managed switch designed to deliver exceptional network reliability, scalability, and security for modern enterprise environments. As part of Cisco’s renowned Catalyst 9200L series, this switch provides advanced Layer 2 and Layer 3 features, allowing organizations to optimize network performance while maintaining robust security standards. The 24-port configuration offers flexible connectivity options, ideal for growing networks that require both high throughput and efficient power management.

Advanced Network Management Capabilities

The Catalyst 9200L series emphasizes advanced network management through Cisco’s Network Advantage software package. This provides administrators with comprehensive visibility, automation, and troubleshooting tools, ensuring seamless network operations. The switch supports Cisco DNA Center integration, allowing for simplified network design, policy enforcement, and monitoring from a centralized platform. By leveraging automation and analytics, network teams can reduce operational complexity and enhance overall productivity.

Layer 2 and Layer 3 Functionality

With robust Layer 2 switching capabilities, the C9200L-24PXG-4XA supports features such as VLAN segmentation, spanning tree protocol enhancements, and high-speed Ethernet switching. Additionally, Layer 3 routing capabilities, including OSPF, EIGRP, and static routing, ensure efficient inter-VLAN communication and seamless connectivity across enterprise networks. These advanced routing features allow businesses to build scalable, resilient network architectures that can adapt to changing requirements without compromising performance.

Enhanced Security Features

Security is a fundamental aspect of the Cisco Catalyst 9200L series. The switch integrates comprehensive security mechanisms including 802.1X authentication, port security, dynamic ARP inspection, and access control lists (ACLs). These features protect network resources against unauthorized access and malicious activity while providing granular control over data traffic. Furthermore, the switch supports MACsec encryption, ensuring end-to-end data protection across connected devices and enhancing compliance with industry security standards.

Power over Ethernet (PoE) Capabilities

The Cisco C9200L-24PXG-4XA offers advanced Power over Ethernet capabilities, providing efficient power delivery to connected devices such as IP phones, wireless access points, and surveillance cameras. With full PoE+ support across its 24 ports, the switch simplifies network deployment by eliminating the need for additional power sources for connected devices. The PoE management features also allow administrators to monitor and allocate power dynamically, ensuring optimal performance and energy efficiency.

Scalability and High Availability

Scalability is a core advantage of the Catalyst 9200L series. The switch supports stackable configurations, enabling multiple switches to operate as a single logical unit. This stacking capability simplifies management while providing redundancy and high availability for critical network applications. Additionally, dual redundant power supplies and field-replaceable components minimize downtime, ensuring continuous network operation in demanding enterprise environments.

Performance and Reliability

The Cisco C9200L-24PXG-4XA is engineered for high-performance networking, featuring advanced hardware components that deliver wire-speed forwarding and low-latency switching. Its architecture supports high-bandwidth applications such as video conferencing, cloud computing, and large-scale data transfers without performance degradation. Reliability is further enhanced through features like Cisco StackWise-160 technology, which enables resilient stacking and provides rapid failover in case of hardware failure.

Energy Efficiency and Environmental Sustainability

Cisco emphasizes environmental responsibility with the Catalyst 9200L series. The switch incorporates energy-efficient design principles, including intelligent power allocation, low-power components, and dynamic cooling mechanisms. These features not only reduce operational costs but also support organizational sustainability goals. By minimizing energy consumption without compromising performance, the switch delivers a greener, more cost-effective solution for modern network deployments.

Deployment Flexibility

The Cisco C9200L-24PXG-4XA supports flexible deployment scenarios, suitable for campus networks, branch offices, and enterprise data centers. Its compact rack-mountable design fits standard 19-inch racks while maintaining high port density and throughput. The switch also offers multiple uplink options, including 10G SFP+ ports, allowing for seamless integration into existing network topologies. Deployment is further simplified through Cisco’s Zero-Touch Provisioning (ZTP), which reduces configuration time and accelerates network rollout.

Integrated Software Features

The Catalyst 9200L series includes the Network Advantage software package, which delivers comprehensive Layer 2 and Layer 3 features, policy-based automation, and advanced security capabilities. The software suite provides continuous updates and access to the latest features through Cisco’s Software-Defined Access (SD-Access) framework. Organizations can take advantage of advanced analytics, policy enforcement, and automation to ensure efficient and secure network operations.

Reliable Connectivity for Modern Applications

The Cisco C9200L-24PXG-4XA is designed to handle the demands of modern enterprise applications, including cloud computing, VoIP, and streaming services. Its high-performance switching capabilities ensure minimal latency and consistent throughput, critical for real-time communications and large-scale data processing. By providing reliable connectivity, the switch enhances user experience, supports business continuity, and enables organizations to maximize the potential of their IT infrastructure.

Optimized for Campus and Enterprise Networks

The Catalyst 9200L-24PXG-4XA is particularly suited for campus and enterprise networks where high performance, security, and scalability are essential. Its combination of advanced routing, PoE capabilities, and stackable architecture makes it an ideal choice for connecting end-user devices, access points, and edge network equipment. The switch ensures smooth network operation while providing the flexibility needed to accommodate future expansion and evolving technology requirements.
