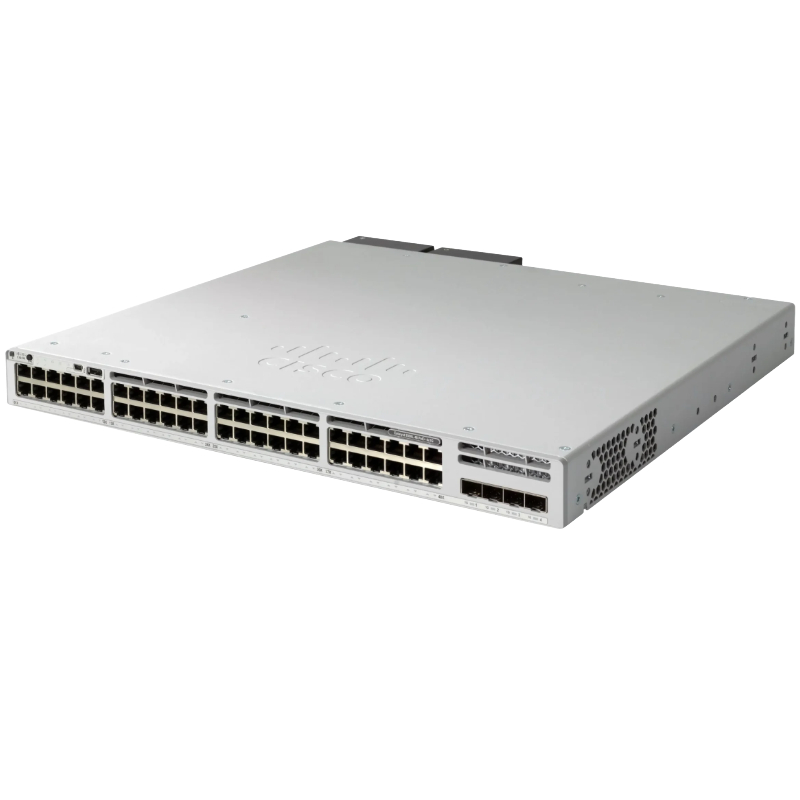

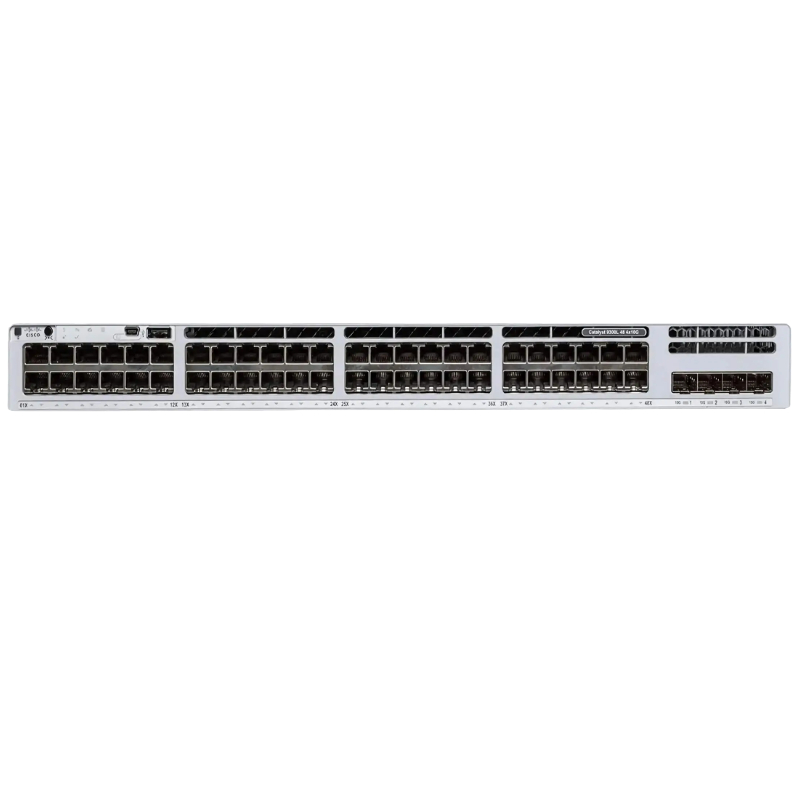

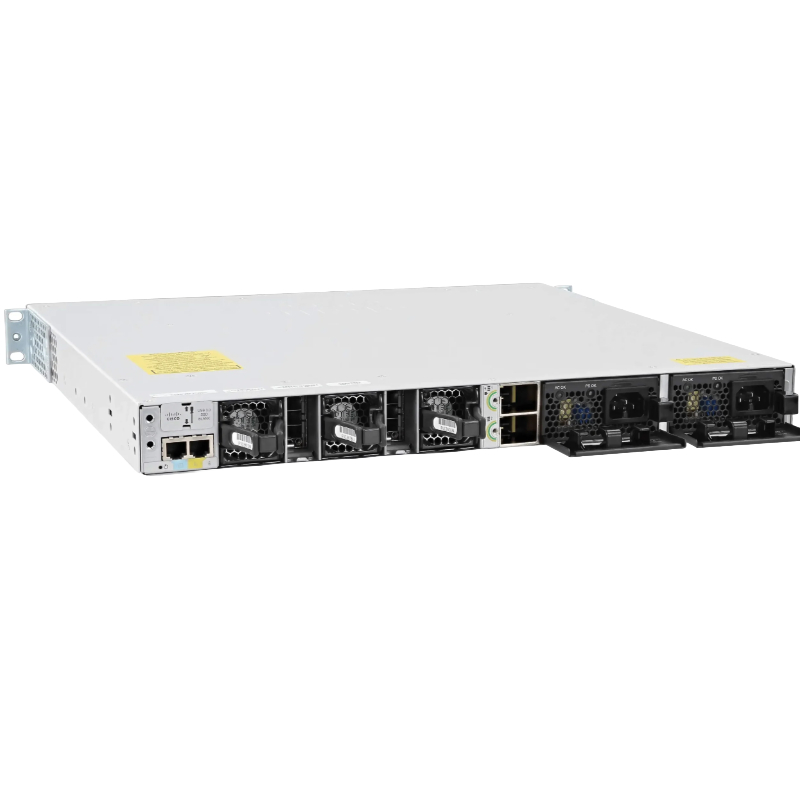

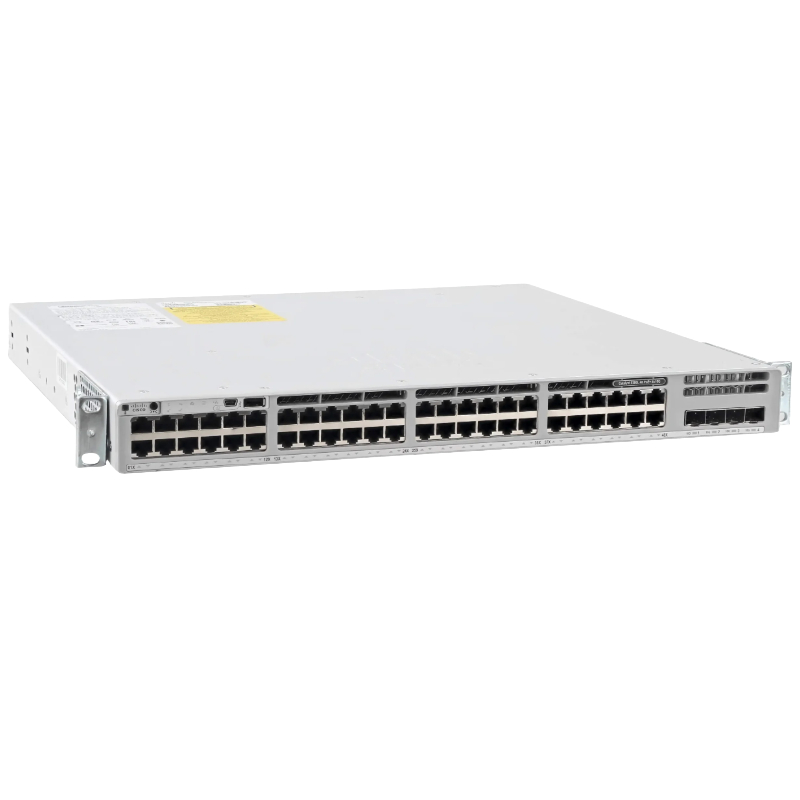

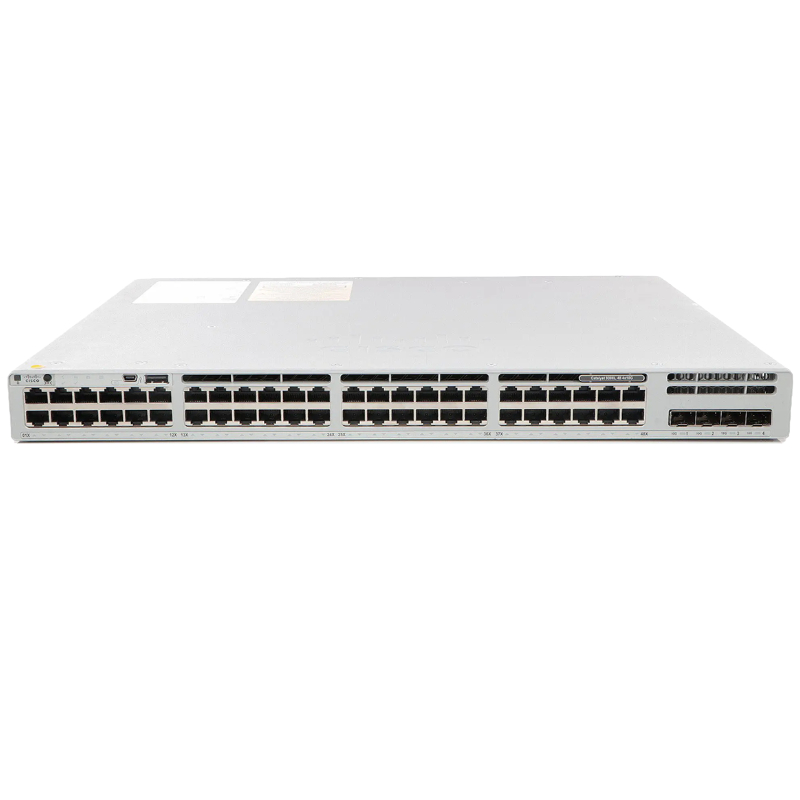

Cisco C9300L-48PF-4G-E Catalyst 9300L Network Essentials L3 Managed Switch.

C9300L-48PF-4G-E
Hover on image to enlarge

Brief Overview of C9300L-48PF-4G-E

Cisco C9300L-48PF-4G-E Catalyst 9300L Network Essentials L3 Managed 48 X 10/100/1000 (PoE+) 1 Gigabit Ethernet SFP+ Rack-mountable Switch. Factory-Sealed New in Original Box (FSB) with 6-Month Replacement Warranty

QR Code of Cisco C9300L-48PF-4G-E Catalyst 9300L Network Essentials L3 Managed Switch.
$4,745.25
$3,515.00
You save: $1,230.25 (26%)
Ask a question
Price in points: 3515 points
+ −
Quote
SKU/MPNC9300L-48PF-4G-EAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerCisco Manufacturer WarrantyNone Product/Item ConditionFactory-Sealed New Retail in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • — For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Technical Overview of Cisco Catalyst 9300L-48PF-4G-E

Device Information

  • Model: Cisco Catalyst 9300L - Network Essentials
  • Manufacturer: Cisco
  • Part Number: C9300L-48PF-4G-E
  • Product Category: Managed Switch
  • Form Factor: Rack-mountable

Product Characteristics

  • Device Type: 48-Port Layer 3 Managed Switch with Stacking Capability
  • Power over Ethernet (PoE) Support: PoE+ with a total PoE budget of 890W
  • Enclosure: Designed for rack installation
  • Ethernet Port Configuration: 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit SFP+

Switching and Performance Specifications

  • Switching Capacity (Stacked): 496 Gbps
  • Switching Capacity (Standalone): 176 Gbps
  • Forwarding Rate: 130.95 Mpps (Million Packets per Second), 369.05 Mpps (Stacked)

Routing and IP Capabilities

  • IPv4 Routes: Supports up to 32,000 routes
  • IPv6 Routes: Supports up to 16,000 routes
  • Multicast Scale: Up to 8,000 entries
  • VLAN Support: 4094 VLANs
  • Switched Virtual Interfaces (SVIs): Up to 1,000

Advanced Routing Protocols

  • OSPF, BGP-4, RIP (v1, v2, ng), IS-IS
  • VRRP, HSRP, EIGRP, EIGRP for IPv6, OSPFv3
  • Policy-based Routing (PBR), MPLS, MSTP

Remote Management Protocols

  • SNMP v1, v2c, v3
  • CLI, NETCONF, RESTCONF
  • RMON (1 & 2)

Supported Features and Protocols

  • Access Control Lists (ACL), Quality of Service (QoS), Rapid PVST+
  • Support for Energy-Efficient Ethernet, VLAN Routing (VRF), PTP, and FHS
  • MACsec, PXE, CoS, DSCP, and SPAN support
  • 802.1x Authentication, ZTP, Blue Beacon LED, CoAP, and secure boot
  • Advanced technologies like LISP, CoPP, FNF, and PIM-SM

Standards Compliance

  • IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, and many more
  • Wi-Fi CERTIFIED 6, IEEE 802.1w, 802.1ae

Power and Redundancy

  • Power Supply: AC 120/230 V, 50 - 60 Hz
  • Power Redundancy: Available as an optional feature

Physical Dimensions and Weight

  • Dimensions: 17.5" (W) x 1.7" (H) x 19.2" (D)
  • Weight: 15.5 lbs

Cisco C9300L-48PF-4G-E Catalyst 9300L: High-Performance Networking Solution

The Cisco C9300L-48PF-4G-E Catalyst 9300L is a state-of-the-art Layer 3 managed switch, offering unparalleled network efficiency, security, and scalability. Designed for enterprise networks, this model includes 48 PoE+ enabled 10/100/1000 Ethernet ports and four 1 Gigabit Ethernet SFP+ uplinks, making it an ideal choice for businesses requiring robust connectivity and seamless performance.

Key Features of Cisco C9300L-48PF-4G-E

  • Layer 3 Managed Switch: Advanced routing capabilities for enhanced network control.
  • 48 PoE+ Ports: Supports Power over Ethernet Plus (PoE+), delivering power to connected devices.
  • 4 x 1 Gigabit Ethernet SFP+ Uplinks: Ensures high-speed connectivity and network expansion.
  • Rack-Mountable Design: Space-efficient integration into existing network infrastructures.
  • Network Essentials License: Includes essential networking features for optimized performance.

Advanced Networking Capabilities

Layer 3 Functionality

The Cisco C9300L-48PF-4G-E supports advanced Layer 3 routing protocols, including OSPF, EIGRP, and BGP, allowing seamless data transmission across networks. This feature is crucial for enterprises managing complex network environments.

Power over Ethernet Plus (PoE+)

With PoE+ support, this switch delivers up to 30W of power per port, enabling efficient connectivity for devices such as IP cameras, VoIP phones, and wireless access points. This reduces dependency on additional power supplies and streamlines network deployment.

1 Gigabit Ethernet SFP+ Uplinks

The inclusion of four 1GbE SFP+ uplinks provides flexible, high-speed network connectivity, supporting seamless integration with existing network architectures.

Security and Compliance Features

Network Essentials License

The Network Essentials License ensures robust security and operational efficiency, offering features such as Secure Shell (SSH), Dynamic ARP Inspection (DAI), and Access Control Lists (ACLs).

Advanced Threat Protection

Enterprises benefit from enhanced security mechanisms, including Cisco TrustSec and MACsec encryption, safeguarding network integrity.

Scalability and Performance

Stacking Capabilities

The switch supports stacking architecture, ensuring high availability and redundancy while simplifying network management.

Energy-Efficient Design

Designed for energy efficiency, the switch incorporates Cisco’s EnergyWise technology, reducing power consumption without compromising performance.

Deployment and Use Cases

Enterprise Networking

The Cisco C9300L-48PF-4G-E is perfect for enterprise-level applications, including campus networks, branch offices, and corporate data centers.

IoT and Smart Office Solutions

Its PoE+ capabilities make it a preferred choice for IoT devices and smart office solutions, ensuring seamless integration and connectivity.

Features
Manufacturer Warranty:
None
Product/Item Condition:
Factory-Sealed New Retail in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
