C9407R-96U-BNDL-E Cisco Catalyst 9400 Series Rack-mountable Switch.

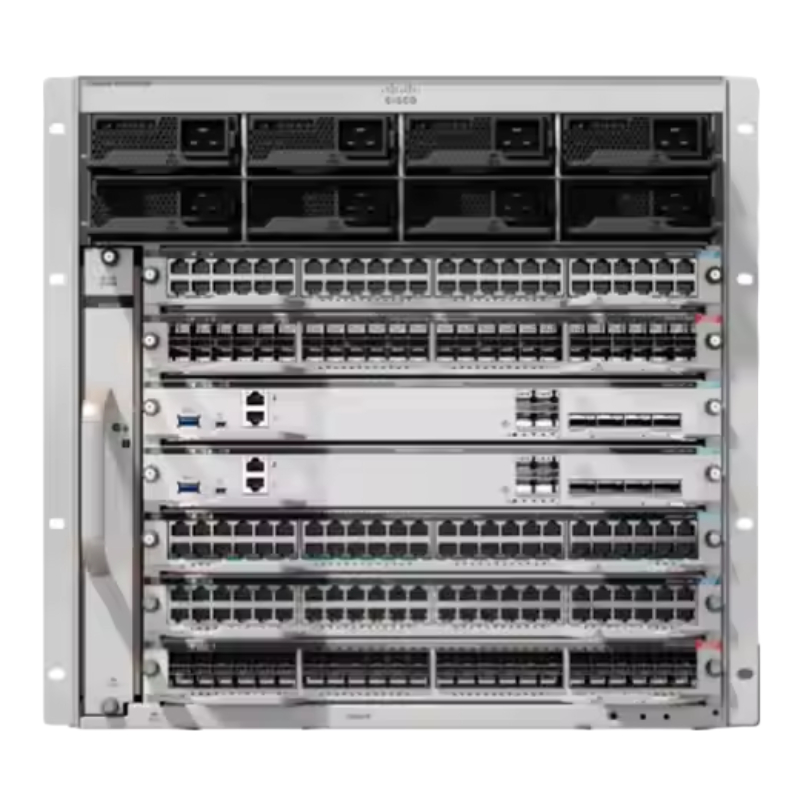

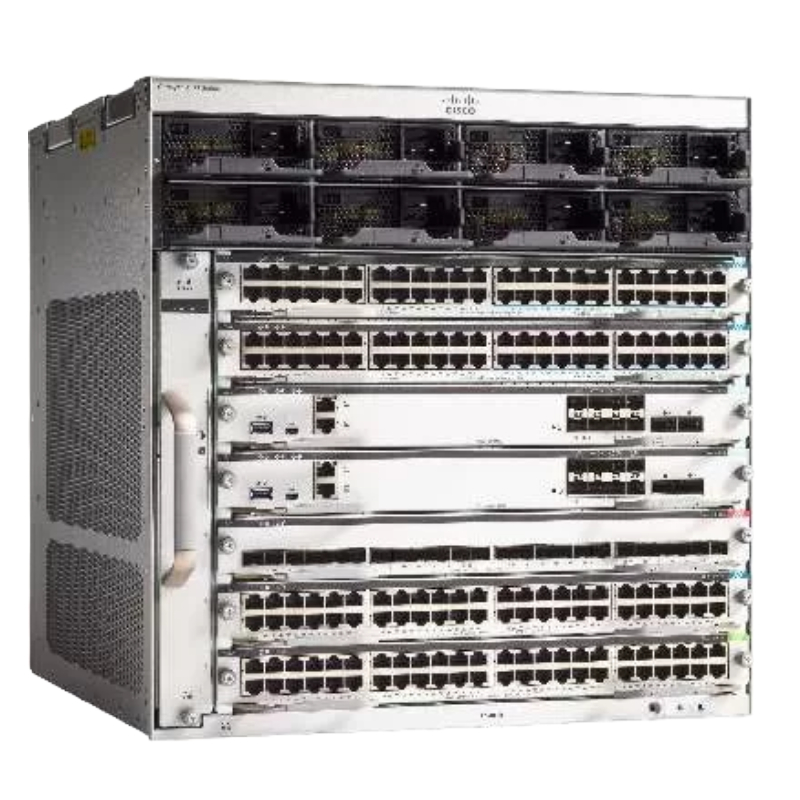

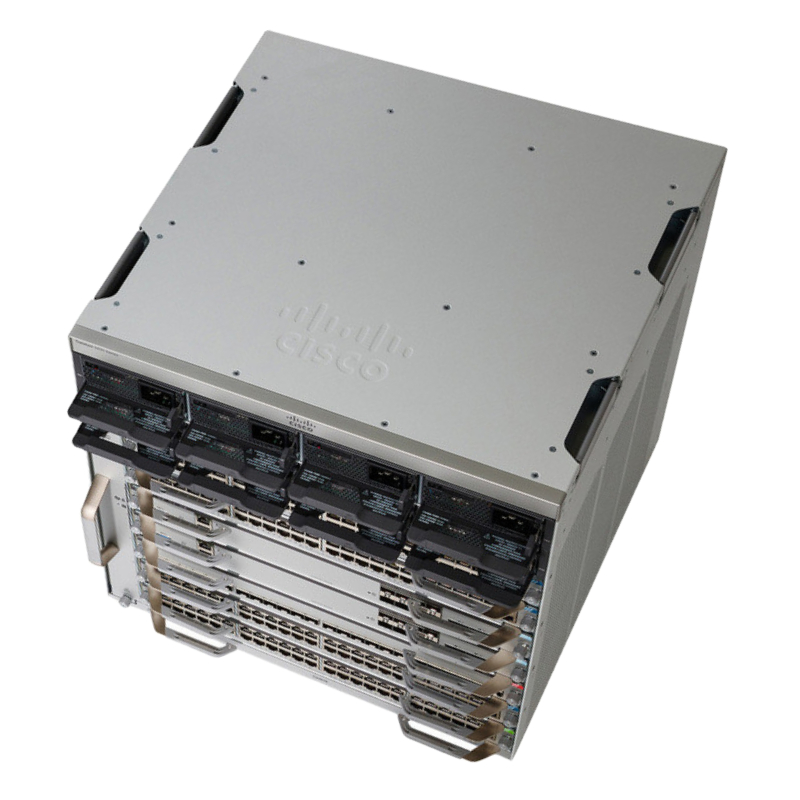

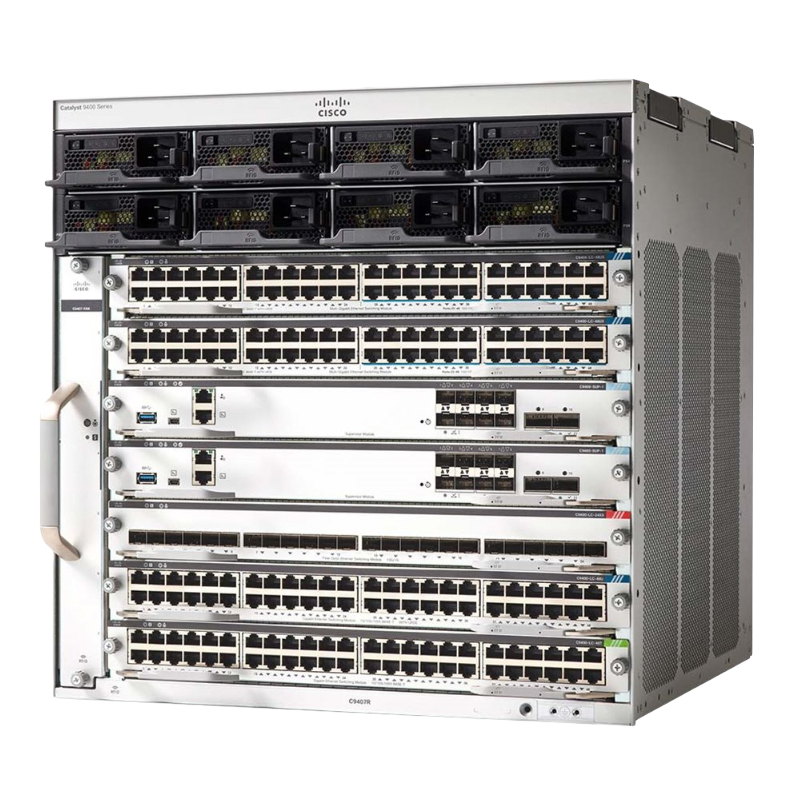

Cisco C9407R-96U-BNDL-E Catalyst 9400 Series Switch Chassis

The Cisco C9407R-96U-BNDL-E is a high-performance, 7-slot modular switch chassis designed for enterprise-grade networks. This rack-mountable solution supports advanced Layer 3 networking features and provides a flexible, scalable foundation for growing organizations. With comprehensive manageability and redundant power options, it ensures uninterrupted operations and optimal performance.

Manufacturer and Product Details

• Manufacturer: Cisco
• Model Number: C9407R-96U-BNDL-E
• Product Type: Modular Switch Chassis
• Rack-Mountable: Yes
• Manageable: Fully manageable with Cisco IOS Software

Key Features of Expansion Slots

• Total Expansion Slots: 7
• Slot Type: Line card slots for modular flexibility
• Hot-swappable capability to maintain uptime during upgrades

Ethernet and Network Technology

• Ethernet Technology: Gigabit Ethernet
• Network Standards: 10/100/1000Base-T connectivity
• Supports Layer 3 routing protocols for advanced network control

Layer Capabilities

• Supports Layer 3 routing protocols
• Advanced traffic management and segmentation
• Compatible with Cisco DNA Center for centralized network management

Manageability and Protocols

• Fully manageable through Cisco IOS Software
• Supports SNMP, NetFlow, and other network monitoring protocols
• CLI, web-based GUI, and Cisco DNA Center support

Power Specifications

• Primary Power Source: Internal Power Supply
• Redundant Power Supply: Supported for high availability
• Energy-efficient design to reduce operating costs

Cisco C9407R-96U-BNDL-E Catalyst 9400 Series

The Cisco C9407R-96U-BNDL-E is part of the highly versatile Catalyst 9400 Series, designed to deliver enterprise-grade performance, scalability, and security. As a 7-slot chassis, this modular switch supports a wide range of expansion modules and uplink options, making it ideal for large-scale campus and data center networks. The switch provides advanced Layer 3 capabilities, ensuring efficient routing, traffic management, and seamless connectivity across complex network topologies.

High-performance Modular Architecture

The modular design of the Cisco Catalyst 9400 Series enables organizations to deploy high-capacity network infrastructures while maintaining flexibility for future upgrades. The 7-slot chassis accommodates multiple line cards, supervisor engines, and power supply modules. This architecture ensures redundancy and high availability, critical for mission-critical environments. The system is engineered for horizontal and vertical scalability, allowing IT teams to expand port density or increase throughput without replacing the entire chassis.

Advanced Layer 3 Capabilities

With Layer 3 switching and routing features, the C9407R-96U-BNDL-E delivers sophisticated traffic management and optimized network performance. Features such as OSPF, EIGRP, and BGP provide dynamic routing capabilities, while support for IPv4 and IPv6 ensures compatibility with modern network infrastructures. The switch also enables advanced multicast routing, policy-based routing, and access control lists, empowering administrators to implement secure and efficient routing policies across the network.

Enterprise-class Security Integration

Security is a core strength of the Catalyst 9400 Series. The C9407R-96U-BNDL-E incorporates Cisco’s comprehensive suite of security features, including encrypted communications, advanced threat detection, and identity-based access control. The switch integrates seamlessly with Cisco TrustSec, providing role-based access policies to protect sensitive data and prevent unauthorized network access. Additionally, the platform supports software-defined segmentation and dynamic threat mitigation, ensuring a secure networking environment for enterprise applications.

Scalability and Redundancy Features

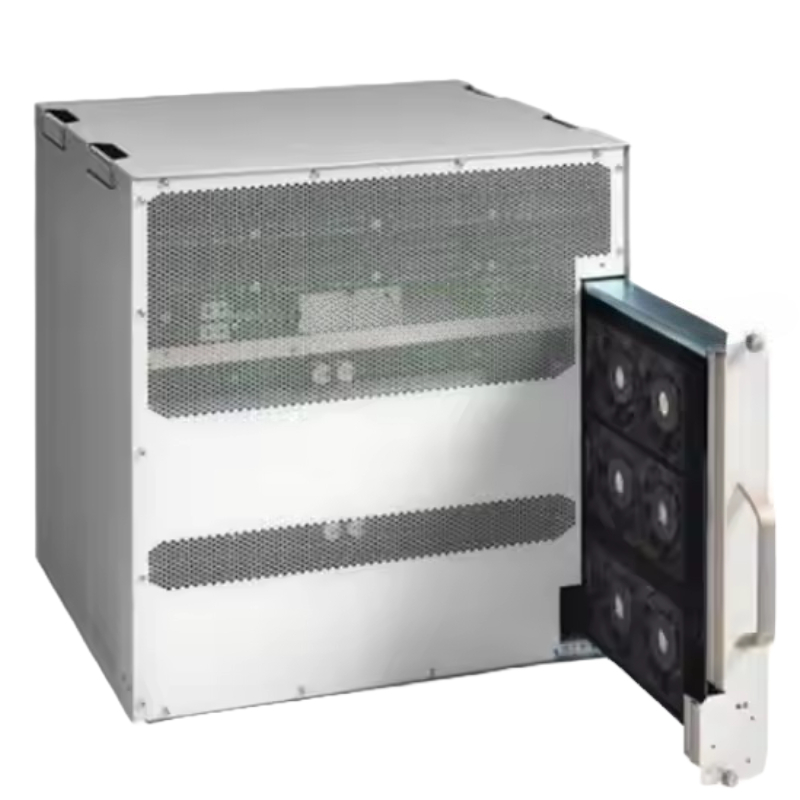

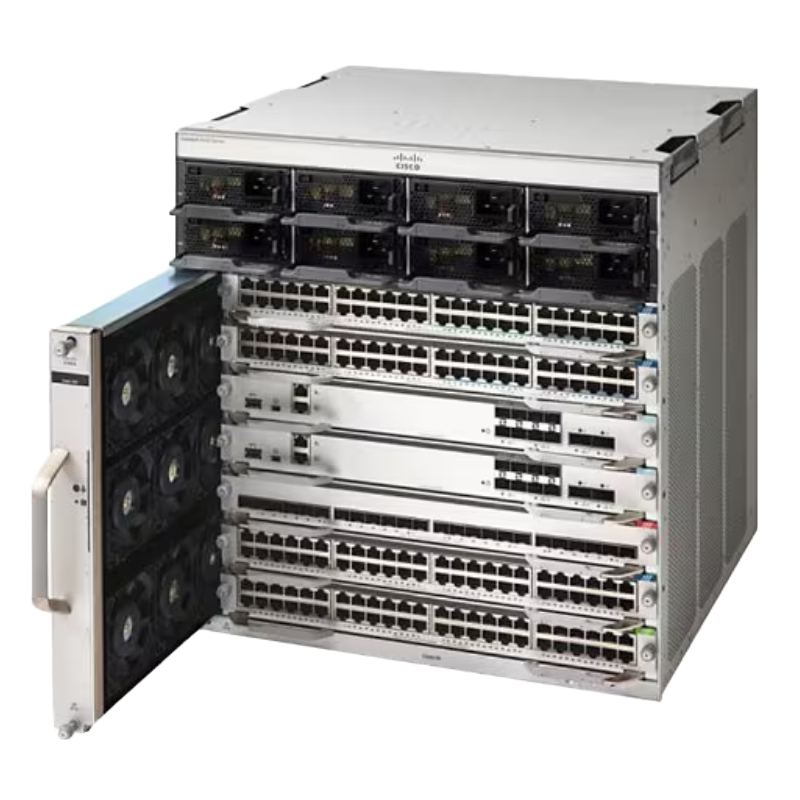

The 7-slot modular chassis of the C9407R-96U-BNDL-E is engineered to meet the demands of growing enterprise networks. Redundant supervisor engines, power supplies, and fan trays provide high availability and reduce downtime risks. Each slot supports line cards with up to 96 ports, enabling dense connectivity for high-performance environments. The chassis architecture allows IT teams to mix and match line cards to create customized configurations tailored to organizational needs.

Intelligent Network Management

Network administrators benefit from the Cisco DNA Center integration, which simplifies network provisioning, monitoring, and troubleshooting. The switch supports advanced telemetry, real-time analytics, and automated policy enforcement, providing comprehensive visibility into network performance and health. Cisco’s embedded management tools allow administrators to detect anomalies, optimize traffic flows, and maintain consistent application experiences across the campus or data center infrastructure.

Flexible Uplink and Connectivity Options

The Catalyst 9400 Series offers diverse uplink options to support high-speed connections and backbone network integration. With support for 10G, 25G, 40G, and even 100G uplinks, the C9407R-96U-BNDL-E provides exceptional bandwidth for demanding applications such as virtualization, cloud computing, and video collaboration. The modular uplink architecture allows administrators to deploy high-speed connectivity incrementally, optimizing capital expenditures while scaling the network efficiently.

Energy Efficiency and Operational Cost Savings

Cisco has designed the Catalyst 9400 Series to maximize energy efficiency while maintaining performance. The C9407R-96U-BNDL-E employs advanced cooling systems and intelligent power management, reducing energy consumption and lowering operational costs. Energy Efficient Ethernet (EEE) and optimized chassis fan systems contribute to greener network operations. Organizations can deploy large-scale network infrastructures with minimal environmental impact without sacrificing throughput or reliability.

Enhanced Quality of Service (QoS)

Maintaining high performance for mission-critical applications is simplified with the Catalyst 9400’s comprehensive QoS capabilities. The switch provides granular traffic prioritization, congestion management, and bandwidth allocation to ensure voice, video, and data applications operate smoothly. Administrators can define traffic classes, assign priorities, and monitor network performance metrics in real time. This ensures seamless experiences for users while supporting the evolving demands of enterprise workloads.

Comprehensive Multilayer Switching

The Cisco C9407R-96U-BNDL-E supports multilayer switching for both Layer 2 and Layer 3 deployments. Layer 2 features include VLAN segmentation, spanning tree protocol enhancements, and link aggregation, providing reliable and resilient local area network operations. Layer 3 capabilities enable dynamic routing, policy-based routing, and multicast management, facilitating efficient communication across large, geographically distributed enterprise networks. The switch ensures seamless integration between core, distribution, and access layers.

Integration with Cisco Digital Network Architecture

The C9407R-96U-BNDL-E is fully compatible with Cisco’s Digital Network Architecture (DNA), enabling a software-driven approach to network management. DNA automation, analytics, and assurance tools allow administrators to monitor network health, detect performance anomalies, and automate configuration tasks. Integration with Cisco’s Application Visibility and Control (AVC) further enhances application performance monitoring, allowing enterprises to ensure consistent user experiences and service quality.

High Availability and Service Continuity

Redundancy mechanisms embedded in the Catalyst 9400 Series minimize network downtime and maintain business continuity. Features such as dual supervisor engines, redundant power supplies, and non-stop forwarding with stateful switchover (NSF/SSO) ensure uninterrupted network operations. These capabilities make the C9407R-96U-BNDL-E suitable for environments requiring continuous connectivity, including financial institutions, healthcare networks, and mission-critical enterprise campuses.

Support for Virtualization and Cloud Applications

The Catalyst 9400 Series is optimized for modern data center and campus environments, including virtualized and cloud-centric applications. The C9407R-96U-BNDL-E supports high-density server connectivity, network segmentation, and policy-based traffic steering. By providing high throughput, low latency, and secure connectivity, this switch enables enterprises to deploy private clouds, hybrid cloud architectures, and software-defined networking environments efficiently.

Flexible Deployment Options

The Cisco C9407R-96U-BNDL-E can be deployed in a variety of enterprise and data center environments. Its rack-mountable 7-slot chassis form factor is suitable for high-density wiring closets, campus aggregation, and core network installations. The modular design allows administrators to tailor configurations based on port requirements, uplink speed, and redundancy needs. Organizations can deploy this switch as a core or distribution layer device, supporting long-term scalability and network modernization initiatives.

Long-term Investment Protection

Investing in the Catalyst 9400 Series provides organizations with a future-proof platform for enterprise networking. The modular architecture, flexible uplinks, and software-defined features allow seamless adaptation to evolving business needs. Cisco’s continuous software updates, feature enhancements, and extensive support ecosystem ensure that the C9407R-96U-BNDL-E remains relevant for years, delivering both operational efficiency and a high return on investment.

Seamless Integration with Existing Cisco Ecosystem

Enterprises benefit from the C9407R-96U-BNDL-E’s compatibility with other Cisco solutions, including Nexus switches, Cisco Meraki devices, and Cisco Wireless Access Points. Integration with existing network monitoring, security, and management tools ensures unified operations and consistent policies across all network segments. The Catalyst 9400 Series leverages the broader Cisco ecosystem to provide cohesive, end-to-end network solutions that simplify management while enhancing security and performance.

Optimized for High-Density Environments

The 7-slot chassis supports high-density deployment scenarios with up to 96 ports per line card, facilitating connectivity for large numbers of end devices. Enterprises can accommodate growing device counts, IoT deployments, and high-bandwidth applications without compromising performance. This density ensures efficient use of rack space and reduces the complexity of cabling and network expansion.
