Cisco Catalyst IE3400 8-Port Managed Network Switch - IE-3400H-8T-E

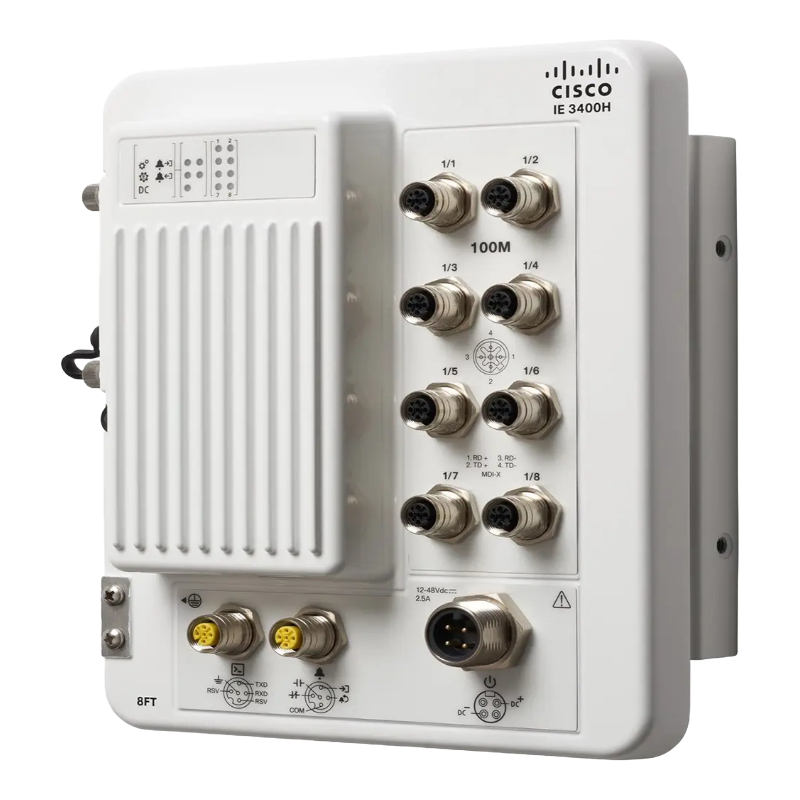

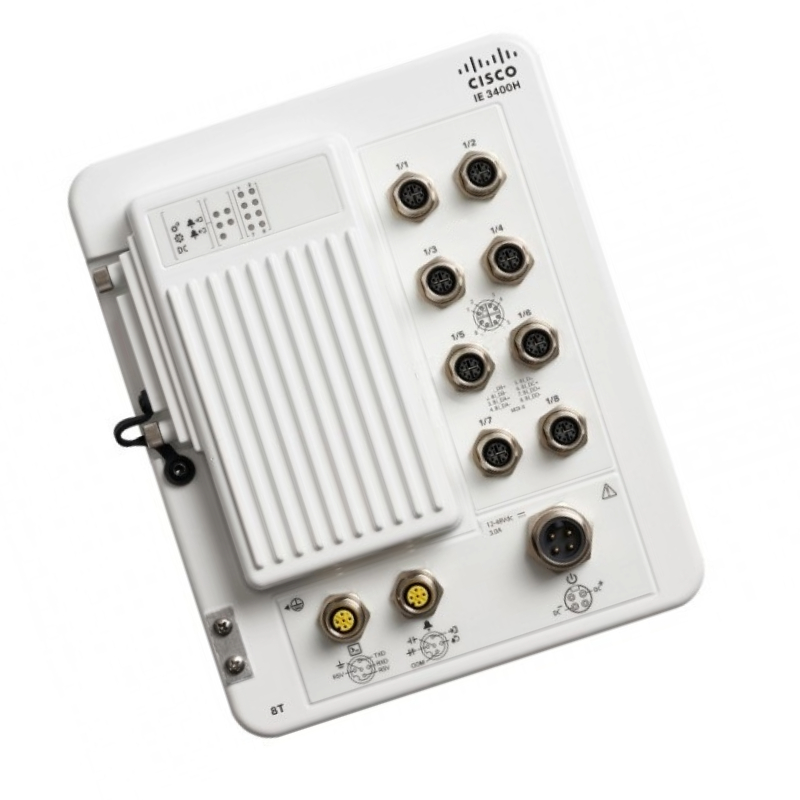

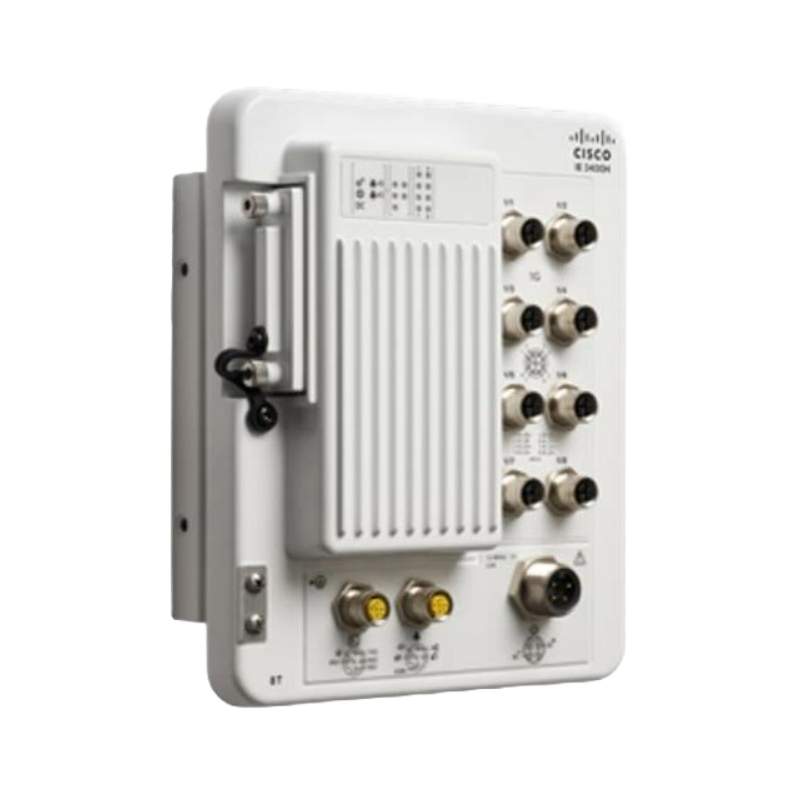

IE-3400H-8T-E 8-Port Managed Switch Overview

The IE-3400H-8T-E is a powerful 8-port, managed switch that offers advanced networking features, ideal for both industrial and commercial environments. Built for reliability and efficiency, this switch provides secure and seamless connectivity while being wall-mountable for flexible installations.

Device Type and Port Configuration

• Device Type: Managed switch with 8 ports
• Port Types: 8 x 10/100/1000 Gigabit Ethernet

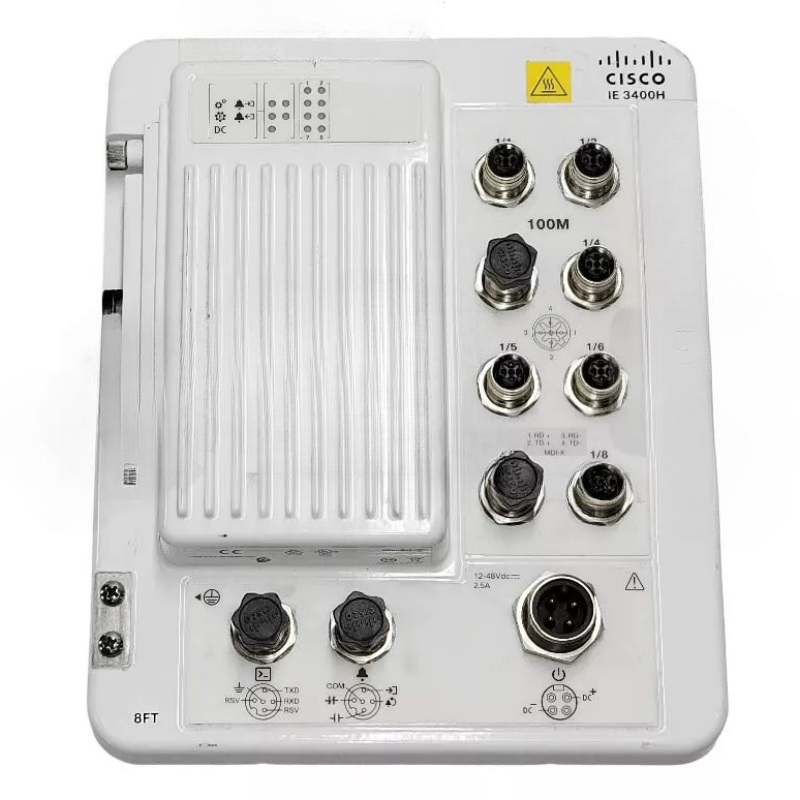

• Enclosure: Wall-mountable design for easy installation

Network Performance and Capacity

• Queue Management: Supports up to 8 queues for optimized traffic handling
• IGMP Groups: 1000 IGMP groups for efficient multicast management
• VLANs: Handles up to 256 VLANs with advanced configuration options
• STP Instances: Capable of supporting 128 Spanning Tree Protocol (STP) instances
• Access Control Lists: 1500 ACL entries for robust network security
• MAC Address Table: 8K entries ensure efficient device handling

Routing and Remote Management Protocols

• Supported Routing Protocols: IGMPv2, IGMPv3, MSTP, RSTP, STP
• Remote Management: SNMP 1, SNMP 2, SNMP 3, RMON, Telnet, HTTP, TFTP, SSH, SCP, NTP

Security and Encryption

• Encryption: 256-bit AES for high-level data protection
• Authentication: Secure Shell (SSH), RADIUS, and TACACS+ supported for secure access control

Advanced Network Features

• Quality of Service (QoS): Prioritize traffic to ensure optimal performance for critical applications
• DHCP Support: Includes DHCP snooping, DHCP server, and DHCP relay capabilities
• Spanning Tree Protocol (STP): PVST+ and MSTP supported for network loop prevention
• ARP Support: Includes ARP snooping and dynamic ARP inspection (DAI)
• IPv6 and IPv4 Support: Future-proof your network with support for both IPv4 and IPv6 protocols
• Unicast, Multicast, and Broadcast Storm Control: Advanced storm control mechanisms for network traffic management

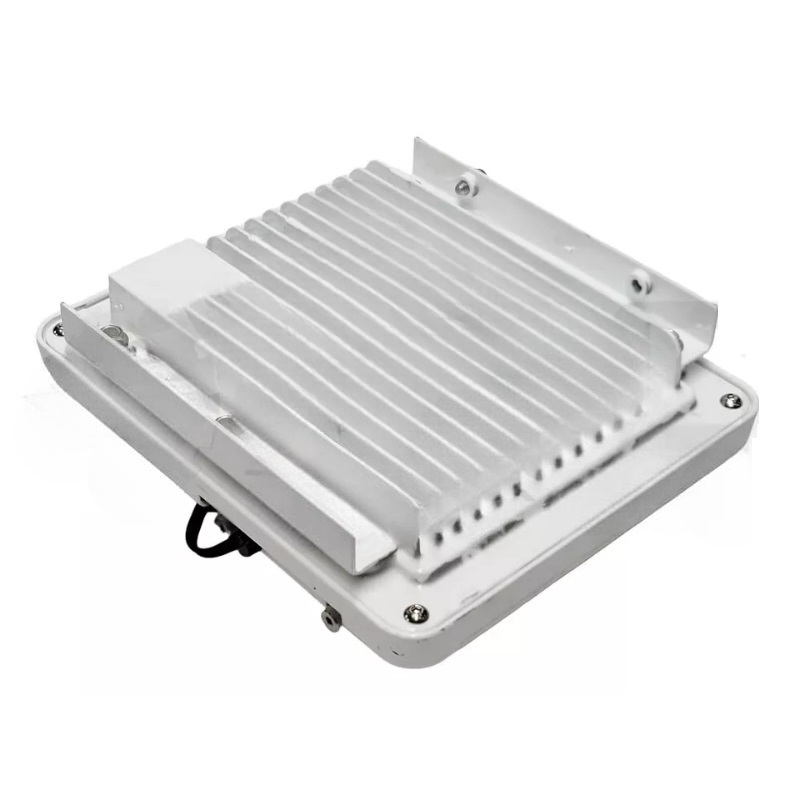

Energy Efficiency and Fanless Design

• Power Consumption: 32.2 watts operational power consumption
• Fanless Operation: Silent and energy-efficient design suitable for noise-sensitive environments

Expansion and Connectivity Options

• Interfaces: 8 x Gigabit LAN (4-pin), 1 x Console port, 2 x Alarm connections
• Expansion Slots: 1 x SD memory card slot for flexible storage expansion

Built-In Device Support

• Integrated SD Card Reader: Provides enhanced storage and configuration options
• RAM and Flash Memory: 4GB RAM and 1.5GB flash memory for fast and reliable data handling

Compliance with Industry Standards

• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2

Power Requirements and Power Management

• Internal Power Supply: Ensures stable and reliable operation with DC voltage support of 9.6-60V
• Electric Current: Requires 3.2A for efficient operation

Specialized Protocols and Features

• Smartport Technology: Simplifies deployment with predefined configurations for network devices
• Resilient Ethernet Protocol (REP): Enhances network resilience with fast recovery times
• BPDU Guard: Protects network loops and misconfigurations
• Precision Time Protocol (PTP): Ensures time synchronization across your network with IEEE 1588 support

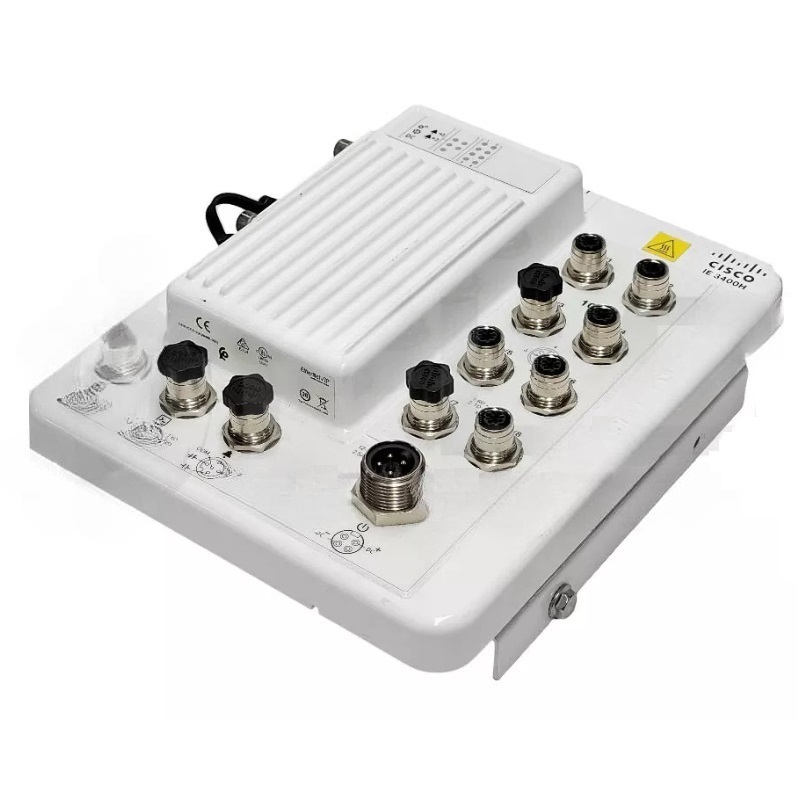

Ports

The Cisco IE-3400H-8T-E Managed Network Switch is equipped with 8 high-performance Ethernet ports, making it a valuable asset for any network infrastructure. These ports offer numerous benefits and play a vital role in ensuring the smooth operation and efficient functioning of the network.

Increased Connectivity

The 8 ports on the Cisco IE-3400H-8T-E provide users with a substantial increase in connectivity options. With more ports available, users can connect multiple devices simultaneously, including computers, servers, printers, IP phones, and other network-enabled devices. This enhanced connectivity allows for seamless communication and data transfer across the network, improving overall productivity and efficiency.

Faster Data Transfer

Each of the 8 ports on the Cisco IE-3400H-8T-E supports Gigabit Ethernet, enabling high-speed data transfer rates of up to 1 Gbps. This advanced technology ensures swift transmission of large files, high-resolution multimedia content, and data-intensive applications. Whether it's transferring large datasets or streaming high-definition videos, the Gigabit Ethernet ports guarantee a seamless experience without any lag or delays.

Improved Network Performance

The presence of 8 ports on this managed network switch significantly enhances network performance. By distributing the network load across multiple ports, the switch effectively reduces congestion and minimizes bottlenecks. This results in improved network speed, reduced latency, and increased overall efficiency. Users can rely on the Cisco IE-3400H-8T-E to handle heavy network traffic without compromising performance.

Flexibility and Scalability

The 8 ports offer flexibility and scalability to accommodate future growth and changing requirements. As businesses expand or network needs evolve, having additional ports simplifies the process of adding new devices to the network. With these extra ports, users can easily integrate new equipment without the need for expensive upgrades or hardware replacements. This scalability ensures that the Cisco IE-3400H-8T-E can adapt to the changing demands of a dynamic network environment.

Enhanced Network Security

Security is a paramount concern for any network. The Cisco IE-3400H-8T-E's 8 ports contribute to enhanced network security by allowing for the implementation of various security measures. With more ports available, users can segregate network traffic into different VLANs (Virtual Local Area Networks). This isolation prevents unauthorized access and protects sensitive data from potential threats. Additionally, the switch supports advanced security features such as Access Control Lists (ACLs) and port security, further fortifying the network against unauthorized access and potential attacks.

Redundancy and High Availability

Having 8 ports on the Cisco IE-3400H-8T-E also enables redundancy and high availability in the network infrastructure. Redundancy is crucial for maintaining uninterrupted network connectivity in case of port failures or hardware malfunctions. Users can configure redundant links between devices, ensuring that if one port fails, traffic is automatically redirected through an alternate path. This redundancy feature minimizes downtime and ensures continuous network operation.

Furthermore, the availability of multiple ports enables load balancing, where network traffic is evenly distributed across different ports. This load balancing enhances network performance by preventing bottlenecks and maximizing available bandwidth. Users can establish link aggregation groups or EtherChannels to combine multiple ports into a single logical link, providing increased bandwidth and fault tolerance.

In conclusion, the Cisco IE-3400H-8T-E Managed Network Switch's 8 ports offer significant benefits to users. The increased connectivity options allow for seamless communication and data transfer, while the Gigabit Ethernet support ensures fast and efficient transmission. With improved network performance, flexibility, scalability, enhanced security measures, and redundancy features, this switch is a reliable and powerful solution for any network infrastructure.
