IE-3400H-16FT-A Cisco Catalyst IE3400 Switch

Cisco Catalyst IE-3400H-16FT-A Industrial Ethernet Switch

The Cisco IE-3400H-16FT-A Catalyst switch is engineered for demanding industrial environments, delivering reliable Layer 2 switching with advanced network intelligence. Designed for wall-mounted installations, this managed Fast Ethernet switch supports secure, scalable, and deterministic connectivity across automation, transportation, and utility networks.

Product Identification and General Details

• Brand: Cisco
• Series: Catalyst IE3400
• Model / SKU: IE-3400H-16FT-A
• Device Category: Managed Network Switch
• Total Ethernet Ports: 16
• Form Factor: Wall-mountable industrial enclosure

Port Configuration and Switching Capabilities

Fast Ethernet Interface Design

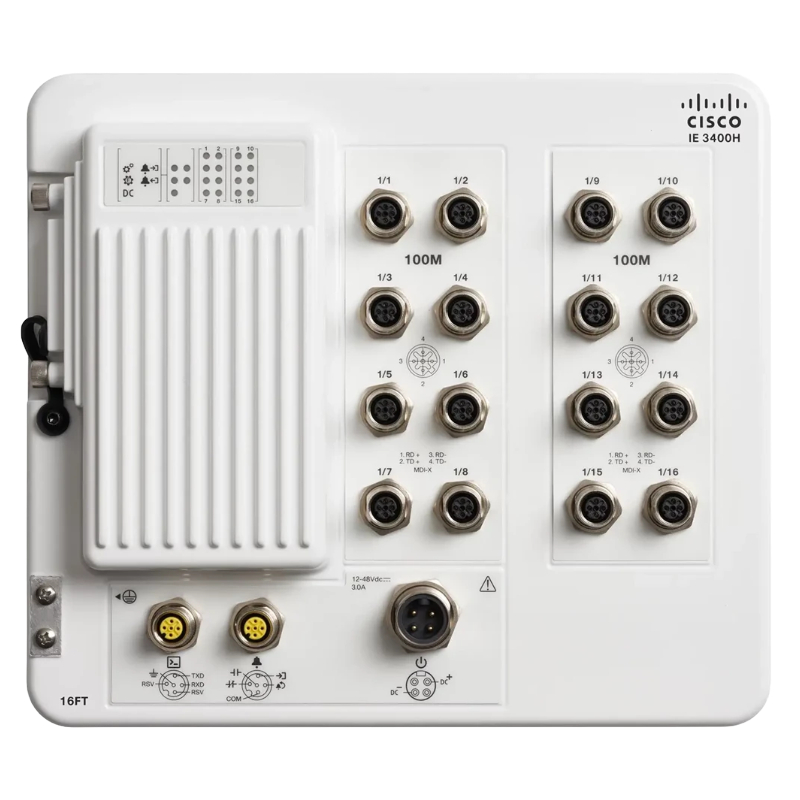

• Sixteen 10/100 Fast Ethernet ports with M12 connectors
• Optimized for vibration-resistant and harsh-condition deployments
• Industrial-grade port layout for machine-to-machine communication

Switching Capacity and Network Scaling

• MAC address table supporting up to 8K entries
• VLAN capacity of 256 unique VLAN IDs
• Up to 1,000 supported IGMP groups
• Eight hardware queues for traffic prioritization
• Support for 128 spanning tree instances

Advanced Management and Control Features

Remote Management Protocols

• SNMP versions 1, 2c, and 3 for centralized monitoring
• Secure access through SSH and SCP
• Web-based management via HTTP
• Telnet, TFTP, RMON, and NTP support

Authentication and Network Security

• 256-bit AES encryption for secure data handling
• Access control using RADIUS and TACACS+
• Port-based security with IEEE 802.1X authentication
• IP Source Guard and Dynamic ARP Inspection
• Comprehensive ACL support for traffic filtering

Industrial Networking and Layer 2 Protocol Support

Routing and Multicast Technologies

• IGMP v1, v2, and v3 for multicast traffic optimization
• IGMP Snooping, Filtering, Querier, and Storm Control
• Support for IPv4 and IPv6 networks

Spanning Tree and Redundancy Mechanisms

• STP, RSTP, and MSTP compatibility
• Per-VLAN Spanning Tree Plus (PVST+)
• BPDU Guard and Uni-Directional Link Detection (UDLD)
• Resilient Ethernet Protocol (REP) for fast recovery

Quality of Service and Traffic Optimization

Traffic Prioritization and Control

• Advanced Quality of Service (QoS) capabilities
• DiffServ support for latency-sensitive applications
• Voice VLAN and Guest VLAN configuration
• Broadcast, multicast, and unicast storm suppression

Monitoring and Diagnostics

• Syslog integration for event tracking
• Remote SPAN (RSPAN) for traffic analysis
• Management Information Base (MIB) support
• Dying Gasp alerts for power-loss notifications

Hardware Resources and Internal Components

Memory and Storage

• 4 GB system RAM for enhanced processing
• 1.5 GB onboard flash memory
• Integrated SD card reader for expandable storage

Expansion and Connectivity Options

• One SD memory card slot available
• Dedicated console port for local configuration
• Dual alarm interfaces for industrial monitoring systems

Power Design and Environmental Suitability

Power Specifications

• Powered via external power adapter (sold separately)
• Single power input supported
• Fanless architecture for silent and maintenance-free operation

Compliance and Industry Standards

• IEEE 802.3, 802.3u, 802.3ab, and 802.3z Ethernet standards
• IEEE 802.1Q VLAN tagging and 802.1P traffic prioritization
• IEEE 802.1D, 802.1W, and 802.1S spanning tree standards
• IEEE 1588v2 Precision Time Protocol support
• IEEE 802.1AB LLDP and 802.3AD LACP compatibility

Industrial Ethernet Switching for Mission-Critical Environments

The Cisco IE-3400H-16FT-A Catalyst IE3400 Network Advantage 16-Port Managed Wall Mountable Switch represents a specialized category of industrial-grade Ethernet switches designed to deliver reliable, deterministic, and secure network connectivity in harsh operational environments. This category focuses on ruggedized switching platforms that support industrial automation, smart infrastructure, transportation systems, utilities, oil and gas facilities, and manufacturing floors where temperature extremes, vibration, dust, and electrical noise are common. Unlike traditional enterprise switches, industrial Ethernet switches emphasize long lifecycle availability, advanced redundancy, precise traffic control, and hardened physical construction while still delivering enterprise-class management and security features.

Positioning Within the Cisco Industrial Ethernet Portfolio

Within the broader Cisco Industrial Ethernet family, the IE-3400H series occupies a strategic position that bridges compact industrial access switching and advanced Layer 2 and Layer 3 networking capabilities. The IE-3400H-16FT-A model specifically targets deployments requiring multiple Fast Ethernet ports with robust management, flexible mounting, and Network Advantage software features. This category caters to organizations that need industrial resilience without sacrificing scalability, policy enforcement, or integration with enterprise IT networks.

Industrial Design Philosophy and Rugged Construction

Industrial Ethernet switches in this category are engineered with a design philosophy centered on durability and operational continuity. The Cisco IE-3400H-16FT-A is built to withstand extended temperature ranges and mechanical stress while maintaining consistent performance. The wall-mountable form factor reflects the category’s focus on space efficiency and flexible installation in control cabinets, roadside enclosures, factory walls, and remote substations. This rugged construction supports long-term reliability in environments where downtime can result in safety risks or significant financial losses.

Environmental Tolerance and Operational Stability

A defining attribute of this category is environmental tolerance. Industrial switches such as the IE-3400H-16FT-A are designed to operate reliably across wide temperature ranges and under conditions of high humidity or electrical interference. This makes them suitable for outdoor and semi-outdoor deployments, industrial plants, and transportation infrastructure where climate control is limited or nonexistent. The category emphasizes stable operation over many years, aligning with industrial project timelines that often exceed typical enterprise refresh cycles.

Managed Switching Capabilities and Network Advantage Features

The category of managed industrial Ethernet switches is characterized by comprehensive configuration, monitoring, and troubleshooting capabilities. The Cisco IE-3400H-16FT-A leverages Cisco’s Network Advantage software licensing, which expands the feature set beyond basic connectivity to include advanced routing, security, and automation capabilities. This positions the category as a foundation for converged IT and OT networks.

Advanced Layer 2 and Layer 3 Functionality

Industrial switches in this category support advanced Layer 2 switching features such as VLAN segmentation, quality of service prioritization, and loop prevention mechanisms. Additionally, Layer 3 capabilities enable inter-VLAN routing and dynamic routing protocols, allowing industrial networks to scale and integrate seamlessly with enterprise backbones. The IE-3400H-16FT-A exemplifies this category by offering sophisticated traffic management that ensures time-sensitive industrial protocols receive priority over less critical data.

Quality of Service for Industrial Applications

Quality of Service is a critical element within this category, as industrial applications often rely on real-time data transmission. Managed industrial switches are designed to classify, queue, and prioritize traffic based on application requirements. This ensures that control signals, sensor data, and safety communications are delivered with minimal latency and jitter, even during periods of network congestion. The category emphasizes deterministic performance as a core requirement.

Support for Industrial Protocols and Convergence

The category supports the convergence of multiple industrial protocols onto a single Ethernet infrastructure. Industrial Ethernet switches like the Cisco IE-3400H-16FT-A are commonly deployed in environments where protocols such as Modbus, PROFINET, EtherNet/IP, and IEC standards coexist with IP-based applications. This convergence reduces infrastructure complexity while improving visibility and control across industrial operations.

Security Architecture for Industrial Networks

Security is a central concern within the industrial Ethernet switch category, as operational technology networks are increasingly targeted by cyber threats. The Cisco IE-3400H-16FT-A and similar devices incorporate layered security mechanisms that align with both IT security best practices and industrial safety requirements.

Embedded Security Features and Policy Enforcement

Managed industrial switches in this category provide embedded security features such as port-based authentication, access control lists, and secure management interfaces. These capabilities allow organizations to enforce strict policies at the network edge, preventing unauthorized devices from connecting to critical industrial systems. The category emphasizes defense-in-depth strategies that protect both data integrity and operational continuity.

Network Segmentation and Threat Containment

Network segmentation is a foundational principle within this category. By supporting multiple VLANs and routing instances, industrial switches enable logical separation of production zones, safety systems, and enterprise connectivity. This segmentation helps contain potential threats and limits the impact of security incidents. The IE-3400H-16FT-A exemplifies this approach by supporting granular segmentation without compromising performance.

Secure Integration with Enterprise and Cloud Systems

As industrial environments increasingly integrate with enterprise analytics and cloud-based platforms, the category emphasizes secure interoperability. Industrial Ethernet switches provide secure tunneling, encryption support, and compatibility with centralized security management frameworks. This enables organizations to extend visibility and control from the factory floor to centralized IT systems while maintaining strict security boundaries.

Scalability and Network Architecture Flexibility

The category of industrial managed switches addresses the need for scalable architectures that can evolve with operational requirements. The Cisco IE-3400H-16FT-A supports modular network design principles, enabling incremental expansion and adaptation without major infrastructure overhauls.

Hierarchical and Ring-Based Topologies

Industrial networks often rely on hierarchical or ring-based topologies to ensure resilience and ease of management. Switches in this category support rapid convergence and redundancy protocols that minimize downtime during link failures. This makes them suitable for linear production lines, distributed facilities, and transportation corridors where network availability is critical.

High Availability and Redundancy Mechanisms

High availability is a defining characteristic of this category. Industrial Ethernet switches incorporate features that enable fast failover and continuous operation, ensuring that critical systems remain connected even during component failures. The IE-3400H-16FT-A aligns with this category focus by supporting redundancy mechanisms that reduce recovery times and enhance operational reliability.

Future-Proofing Industrial Deployments

Long-term viability is a key consideration within this category. Industrial switches are designed to support evolving standards, software updates, and new applications over extended lifecycles. This future-proofing approach helps organizations protect their investments and adapt to emerging technologies such as Industrial Internet of Things and advanced automation systems.

Mounting Options and Physical Deployment Considerations

Physical deployment flexibility is a significant factor in the industrial Ethernet switch category. The Cisco IE-3400H-16FT-A is designed for wall mounting, reflecting the category’s emphasis on adaptable installation methods that suit diverse industrial environments.

Wall-Mountable Form Factor Advantages

Wall-mountable industrial switches provide efficient use of space and simplified installation in control rooms, cabinets, and field enclosures. This category prioritizes compact designs that reduce footprint while maintaining accessibility for maintenance and upgrades. The wall-mountable configuration supports both new installations and retrofits in existing facilities.

Cabling and Port Accessibility

Ease of cabling and port access is critical in industrial deployments. Switches in this category are designed to facilitate organized cable management and clear port labeling, reducing installation time and minimizing the risk of errors. This design consideration supports faster troubleshooting and ongoing maintenance.

Integration into Industrial Control Systems

Industrial Ethernet switches are often integrated into larger control systems that include programmable logic controllers, human-machine interfaces, and supervisory systems. The category emphasizes compatibility with these components, ensuring seamless communication and centralized management across the entire industrial network.
