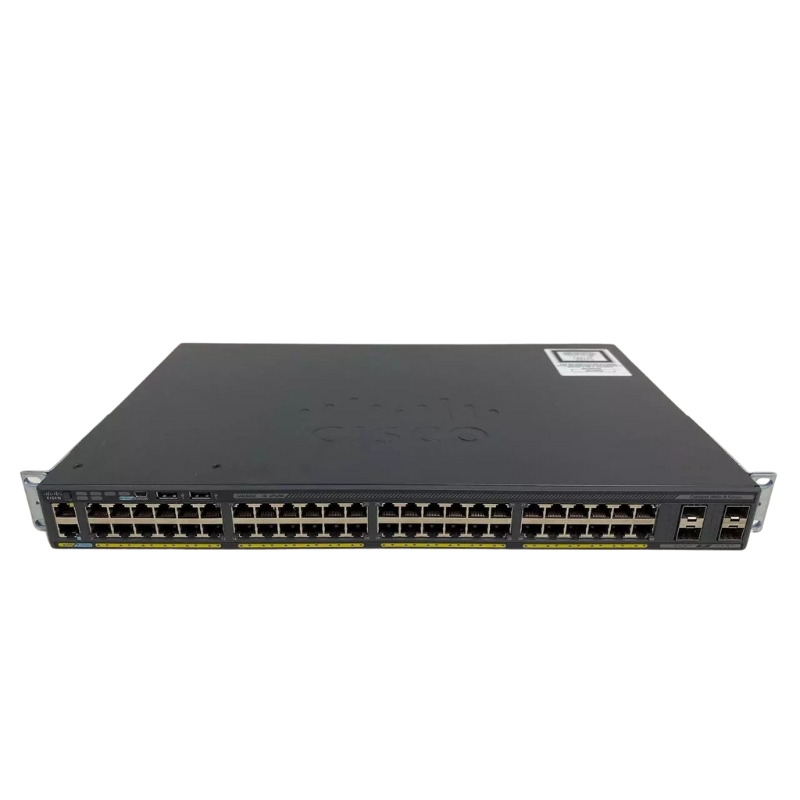

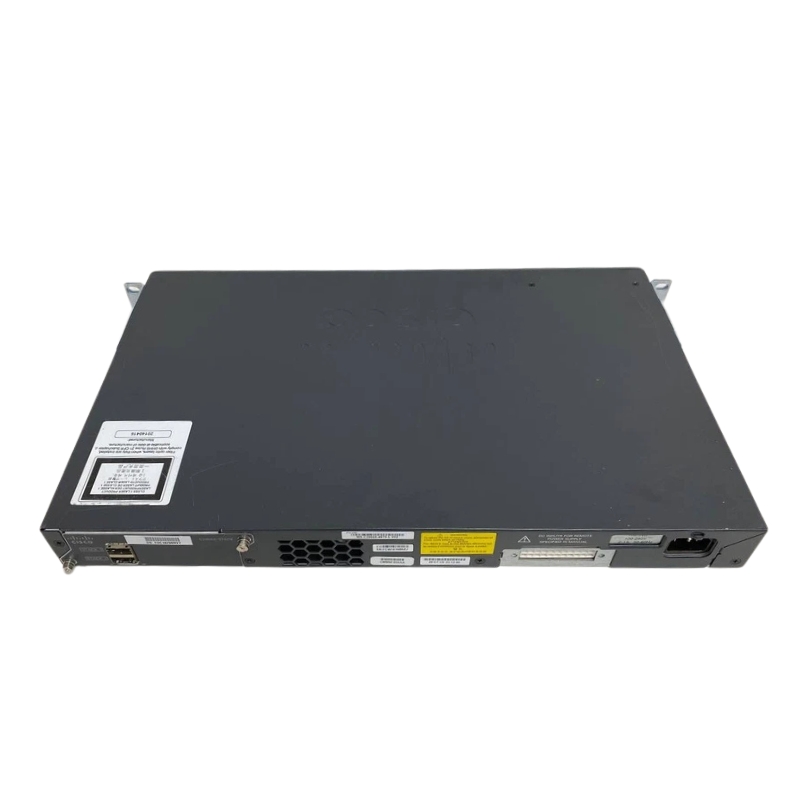

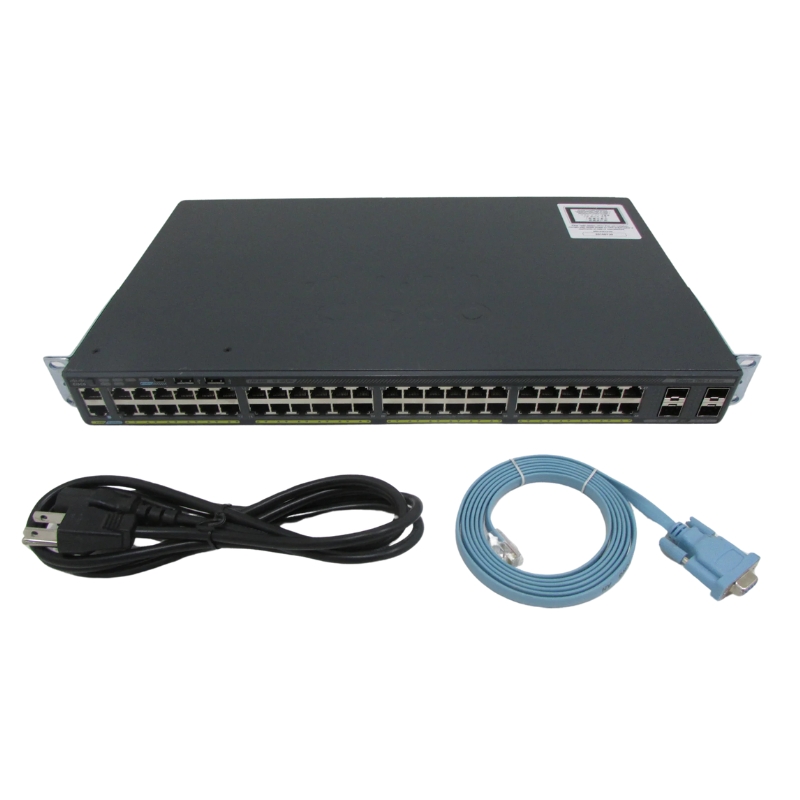

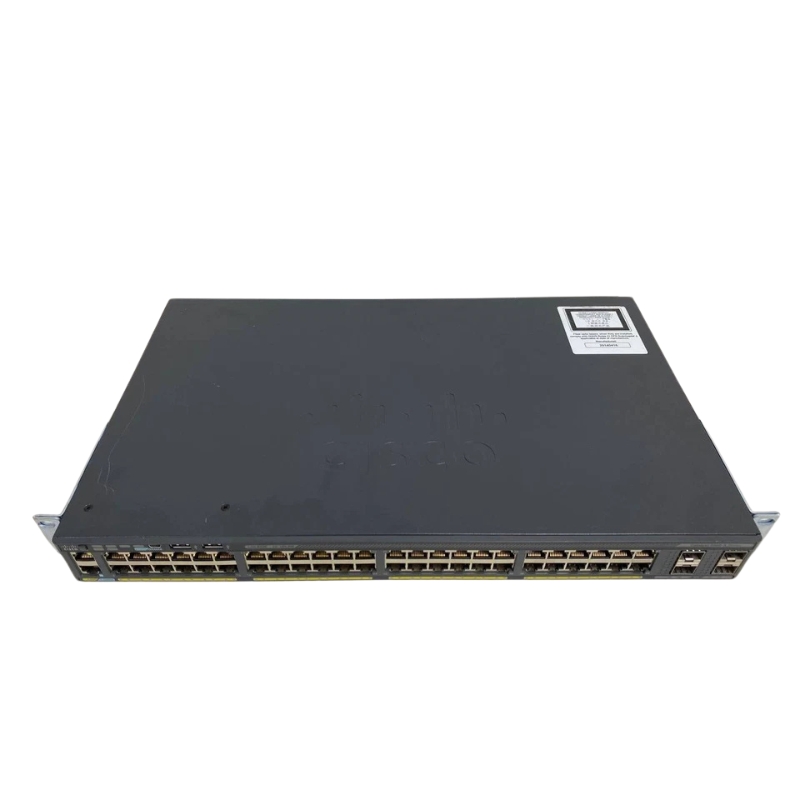

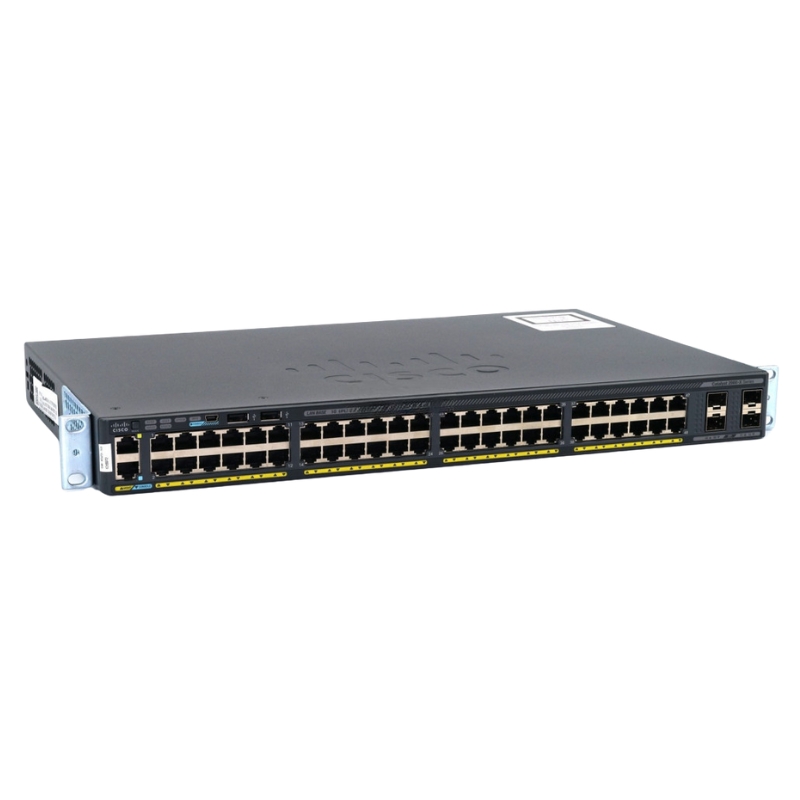

Cisco Catalyst WS-C2960X-48TS-LL Layer2 Switch - 48-Ports

Ports

The Cisco WS-C2960X-48TS-LL Layer2 Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require a high-capacity network infrastructure. These ports allow for seamless connectivity and data transfer between multiple devices, enabling efficient communication and collaboration among employees.

Switch Overview of WS-C2960X-48TS-LL

Device Type and Form Factor

• Type: Managed Switch
• Ports: 48 x 10/100/1000 Mbps Ethernet + 2 x Gigabit SFP
• Form Factor: Desktop or Rack-mountable (1U)
• Stackable Design for Flexibility

Performance Specifications

Switching Capacity and Forwarding Rate

• Switching Capacity: 100 Gbps
• Forwarding Rate (64-byte Packet Size): 104.2 Mpps

Network Capacity

• Virtual Interfaces (VLANs): Up to 64
• Jumbo Frame Support: 9216 Bytes

Management and Protocol Support

• Remote Management Protocols:
  • SNMP v1, v2c, v3
  • RMON 1, RMON 2
  • Telnet
  • HTTP
  • TFTP
  • SSH
  • CLI

Key Features and Capabilities

Switching and Network Support

• Layer 2 Switching
• DHCP Support
• Auto-negotiation
• ARP Support
• Trunking
• VLAN Support
• Auto-uplink (Auto MDI/MDI-X)
• IPv6 Support
• Rapid Spanning Tree Protocol (RSTP) Support
• Multiple Spanning Tree Protocol (MSTP) Support
• Dynamic Trunking Protocol (DTP) Support
• Port Aggregation Protocol (PAgP) Support
• Trivial File Transfer Protocol (TFTP) Support
• Access Control List (ACL) Support
• RADIUS Support
• Jumbo Frames Support
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• Cisco EnergyWise Technology
• Unicast Reverse Path Forwarding (URPF)
• Uni-directional Link Detection (UDLD)
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• IPv4 Support
• Shaped Round Robin (SRR)

Increased Connectivity

With 48 ports, this switch provides businesses with the ability to connect a large number of devices to the network. Whether it's computers, printers, servers, or other network-enabled devices, users can easily connect them to the switch and ensure smooth data transmission. This is particularly beneficial for growing businesses or organizations with extensive networking needs.

Flexibility in Network Expansion

The abundance of ports in this Cisco switch offers users the flexibility to expand their network infrastructure as their requirements grow. The 48 ports allow for easy integration of new devices or the addition of more connections without the need for additional hardware. This scalability is vital for businesses that anticipate future growth or those that need to adapt quickly to changing networking demands.

Reduced Cable Clutter

Having 48 ports in a single switch reduces cable clutter and simplifies network management. Instead of having multiple switches with fewer ports, this layer 2 switch consolidates the connections into a single device. This not only improves the aesthetics of the workspace but also enhances cable management, making it easier for network administrators to troubleshoot and maintain the system.

Management

One of the key features of the Cisco WS-C2960X-48TS-LL Layer2 Switch is its manageability. This switch provides users with advanced management capabilities that allow for efficient control and monitoring of the network infrastructure.

Centralized Control

With its manageable features, this Cisco switch enables centralized control over the entire network. Administrators can easily configure and manage the switch settings, such as VLANs, Quality of Service (QoS) policies, and security protocols, from a central location. This not only simplifies the management process but also ensures consistent configurations across the network, enhancing security and performance.

Enhanced Security

The manageability of this switch plays a crucial role in network security. Administrators can implement robust security measures, such as access control lists (ACLs), port security, and MAC address filtering, to protect the network from unauthorized access and potential threats. Additionally, features like Secure Shell (SSH) and Secure Sockets Layer (SSL) encryption provide secure remote management capabilities, allowing administrators to securely access the switch from anywhere.

Effective Monitoring and Troubleshooting

The manageability features of this Cisco switch enable comprehensive monitoring and troubleshooting capabilities. Network administrators can monitor network traffic, detect bottlenecks or anomalies, and take appropriate actions to optimize performance. Additionally, detailed logging and reporting capabilities help administrators identify and resolve issues quickly, minimizing downtime and ensuring smooth operation of the network.

In conclusion, the Cisco WS-C2960X-48TS-LL Layer2 Switch with its 48 ports offers businesses enhanced connectivity, scalability, and simplified network management. The abundance of ports allows for easy expansion of the network infrastructure while reducing cable clutter. The manageability features provide centralized control, enhanced security, and effective monitoring and troubleshooting capabilities. With these features, this Cisco switch is an excellent choice for businesses seeking a reliable and efficient network solution.
