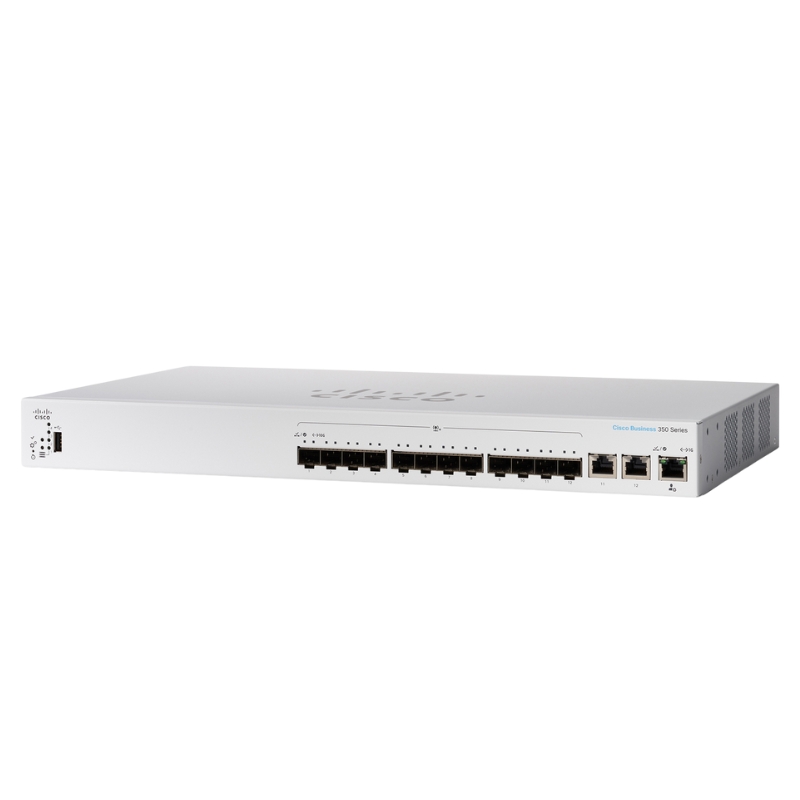

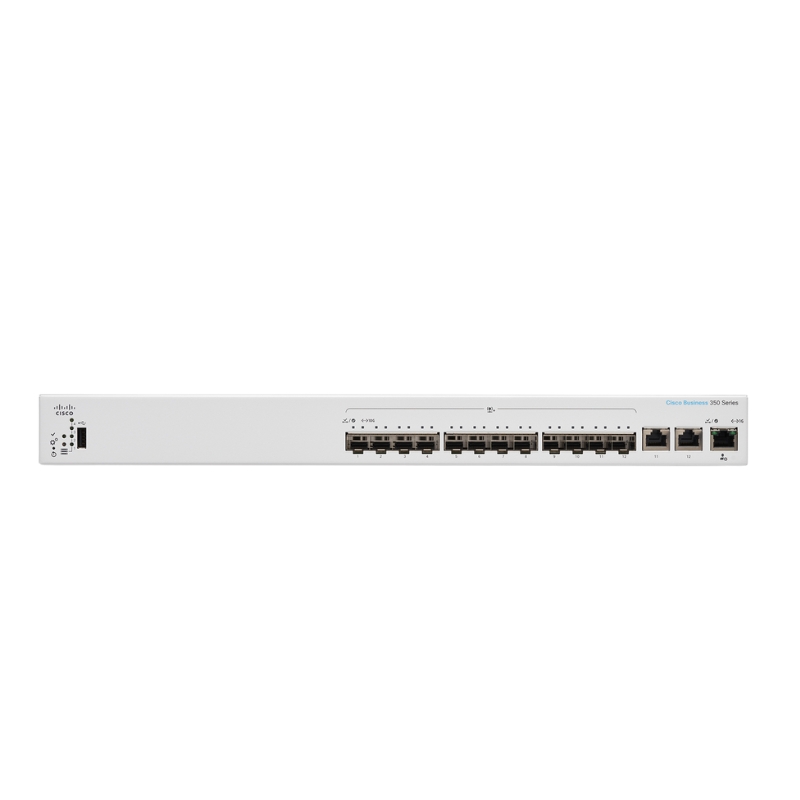

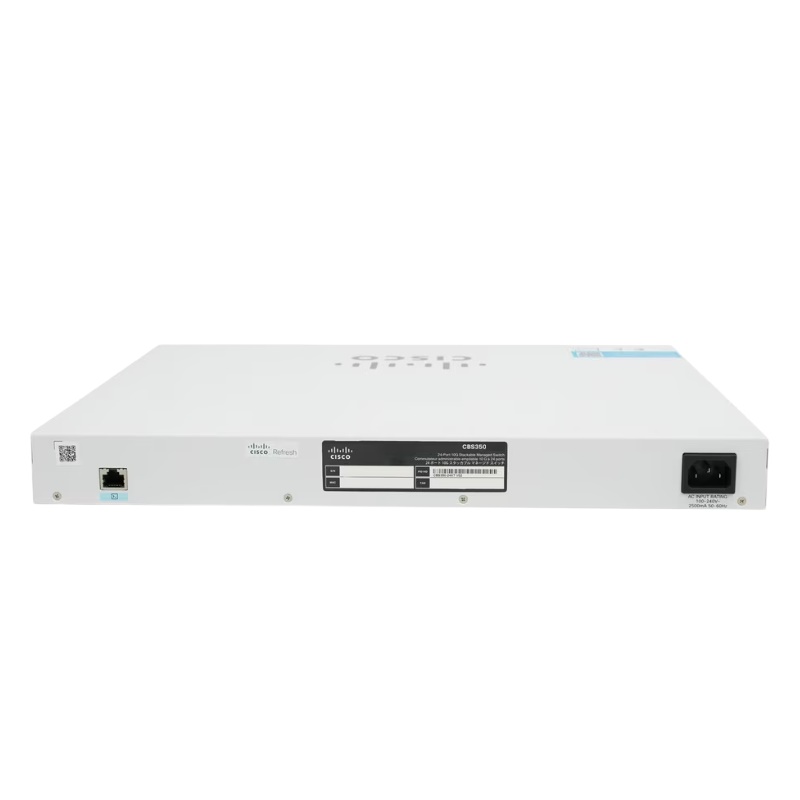

CBS350-12XS Cisco Business 350-12XS 12 Ports Managed Switch

Cisco Managed Switching for High-Speed Business Networks

The Cisco CBS350-12XS Business 350 Series managed switch is designed to deliver reliable 10 Gigabit Ethernet connectivity for modern enterprise, SMB, and branch office environments. Built with enterprise-class hardware, intelligent Layer 3 capabilities, and extensive security controls, this rack-mountable switch ensures scalable performance, simplified management, and long-term network stability.

General Product Specifications

• Manufacturer: Cisco
• Model Number: CBS350-12XS
• Device Category: Managed Layer 3 Ethernet Switch
• Form Factor: Rack-mountable, stackable design
• Total Ports: 12 High-speed 10GbE interfaces

Port and Connectivity Options

• 10 x 10 Gigabit SFP+ fiber ports
• 2 x Combo 10 Gigabit SFP+ / RJ-45 copper ports
• Dedicated Gigabit Ethernet management interface
• RJ-45 console port for local administration
• USB Type-A port for configuration and firmware updates

Switching and Forwarding Performance

• Switching capacity up to 240 Gbps
• Forwarding rate of 178.56 Mpps with 64-byte packets
• Optimized packet handling for low-latency transmission

Supported Routing and Multicast Protocols

• Static IPv4 and IPv6 routing
• Policy-Based Routing (PBR)
• IGMP, IGMPv2, and IGMPv3
• MLD and MLDv2 for IPv6 multicast
• CIDR-based routing control

Spanning Tree and Loop Prevention

• STP, RSTP, MSTP support
• PVST+ and Rapid PVST+
• BPDU Guard and STP Root Guard
• Loopback detection and UDLD

VLAN and Network Capacity

• Up to 4,094 VLANs supported
• 126 Rapid PVST+ instances
• 8 MSTP instances
• 16K MAC address table entries
• 3 MB packet buffer capacity

Quality of Service and Traffic Prioritization

• DiffServ and DSCP classification
• Weighted Round Robin (WRR)
• Type of Service (ToS) handling
• Flow control for congestion management

Authentication and Encryption Technologies

• 802.1X port-based authentication
• RADIUS and TACACS+ support
• Secure Shell (SSH, SSHv2)
• SSL-encrypted management sessions

Threat Detection and Prevention Features

• DoS attack mitigation
• Dynamic ARP Inspection (DAI)
• IP Source Guard
• DHCP Snooping and DHCP Relay
• Broadcast, multicast, and unknown unicast storm control

Supported Management Protocols

• Web-based GUI via HTTPS
• Command Line Interface (CLI)
• SNMP v1, v2c, and v3
• RMON for traffic analysis
• Syslog and SNTP support

Smart Network Automation Features

• Smartport Technology for simplified deployment
• Auto configuration via DHCP and BOOTP
• Dual image support for resilient upgrades
• Firmware upgradeable architecture

Internal Hardware Specifications

• 800 MHz ARM-based processor
• 512 MB system memory
• 256 MB flash storage
• Jumbo frame support up to 2 KB

Status Indicators and Diagnostics

• System status LEDs
• Link, activity, and speed indicators per port
• Integrated cable diagnostics and test utilities

Stacking and Expansion Capabilities

• Supports up to 4 switches per stack
• Centralized configuration and monitoring
• Enhanced redundancy and uptime

Power and Electrical Specifications

• Internal power supply unit
• AC input range: 100–240V
• Frequency: 50/60 Hz
• IEEE 802.3az Energy Efficient Ethernet support

Supported IEEE Standards

• IEEE 802.1Q, 802.1P, 802.1X
• IEEE 802.3, 802.3u, 802.3ab, 802.3z
• IEEE 802.3ae, 802.3an, 802.3ad
• IEEE 802.1D, 802.1W, 802.1S
• IEEE 802.3x Flow Control

Cisco CBS350-12XS Business Managed Switch Category

The Cisco CBS350-12XS Business 350 Series represents a specialized category of compact, high-performance managed Ethernet switches engineered for modern enterprise access and aggregation environments. This category focuses on advanced Layer 2 and Layer 3 switching capabilities combined with dense 10 Gigabit Ethernet connectivity in a rack-mountable form factor. Designed to serve growing small to medium-sized businesses as well as branch offices and distributed networks, the CBS350-12XS category addresses the increasing demand for high bandwidth, low latency, and secure wired network infrastructure.

Within this category, switches are optimized for data-intensive workloads, uplink aggregation, virtualization traffic, and high-speed server connectivity. The Cisco CBS350-12XS model stands out by offering twelve 10G SFP+ ports, enabling organizations to deploy fiber-based network architectures that support long-distance transmission and scalable throughput. This category bridges the gap between entry-level smart switches and enterprise core platforms by delivering advanced management, routing intelligence, and enterprise-grade reliability without excessive complexity.

Design Philosophy and Rack-Mountable Form Factor

The rack-mountable design is a defining characteristic of the Cisco CBS350-12XS managed switch category. These switches are engineered to integrate seamlessly into standard 19-inch equipment racks commonly used in data centers, wiring closets, and enterprise server rooms. The compact 1U profile allows efficient use of rack space while maintaining optimal airflow for thermal stability during continuous operation.

This category emphasizes professional deployment scenarios where structured cabling, fiber patch panels, and centralized management are essential. The robust metal chassis construction ensures durability, electromagnetic shielding, and long-term reliability in demanding environments. The rack-mount orientation also supports organized cable management, simplifying maintenance and reducing operational downtime.

High-Density 10 Gigabit Ethernet Architecture

The Cisco CBS350-12XS category is defined by its focus on high-density 10 Gigabit Ethernet connectivity. Each switch in this segment provides twelve SFP+ ports capable of delivering ultra-fast data transfer rates suitable for bandwidth-intensive applications. This architecture supports modern workloads such as cloud access, high-definition video streaming, large file transfers, and virtualization traffic.

By leveraging fiber-based SFP+ interfaces, this category enables extended transmission distances, reduced signal interference, and improved network stability compared to traditional copper connections. The flexibility of SFP+ modules allows organizations to choose appropriate transceivers based on distance, media type, and deployment requirements, making the category adaptable to diverse network topologies.

Scalability and Network Expansion

Scalability is a core principle of the Cisco CBS350-12XS managed switch category. The availability of multiple 10G ports supports horizontal and vertical network expansion without requiring immediate upgrades to core infrastructure. These switches can function as aggregation points connecting access switches, servers, and storage devices, or as high-speed distribution nodes in multi-tier network designs.

The category supports seamless expansion through features such as link aggregation and high-capacity uplinks, allowing organizations to increase bandwidth incrementally as network demands grow. This scalability ensures long-term investment protection and reduces the need for frequent hardware replacements.

Advanced Managed Switching Capabilities

The Cisco CBS350-12XS category is positioned within the fully managed switch segment, offering comprehensive control over network behavior and performance. These switches provide advanced configuration options through intuitive web-based interfaces, command-line access, and centralized management platforms. This level of control enables IT administrators to tailor network operations to specific business requirements.

Managed switching features in this category include advanced VLAN segmentation, traffic prioritization, and intelligent forwarding mechanisms. These capabilities help optimize network efficiency, enhance security, and ensure consistent application performance across the entire infrastructure.

Layer 2 Switching Intelligence

Layer 2 capabilities form the foundation of the Cisco CBS350-12XS category. These switches support extensive VLAN configurations that allow logical segmentation of network traffic. By isolating departments, applications, or user groups, organizations can improve security and reduce unnecessary broadcast traffic.

Additional Layer 2 intelligence includes support for spanning tree protocols, loop prevention mechanisms, and MAC address management. These features ensure network stability, prevent accidental topology loops, and maintain reliable connectivity even in complex environments.

Layer 3 Static Routing Support

The inclusion of Layer 3 static routing elevates the Cisco CBS350-12XS category beyond basic switching. This functionality allows switches to perform inter-VLAN routing directly, reducing reliance on external routers and minimizing network latency. Static routing capabilities are particularly valuable in branch offices and small enterprise networks where simplicity and performance are equally important.

By enabling local routing decisions, this category improves traffic efficiency and supports scalable network segmentation strategies. The result is a streamlined architecture that delivers faster data delivery and simplified network design.

Enterprise-Grade Security Architecture

Security is a critical component of the Cisco CBS350-12XS managed switch category. These switches are designed to protect network infrastructure, sensitive data, and connected devices from unauthorized access and internal threats. The category integrates multiple layers of security features that align with modern enterprise security standards.

From port-level access controls to advanced authentication mechanisms, this category ensures that only trusted users and devices can access network resources. These security capabilities are essential for businesses operating in regulated industries or handling confidential information.

Access Control and Authentication

The Cisco CBS350-12XS category supports robust access control mechanisms that allow administrators to define precise network access policies. Port-based authentication and user validation features ensure that devices must be authorized before gaining connectivity. This reduces the risk of unauthorized access and enhances overall network security posture.

Authentication integration with centralized identity services enables consistent policy enforcement across the network. This approach simplifies administration while maintaining strong security controls.

Traffic Monitoring and Threat Mitigation

Traffic monitoring capabilities are integral to the Cisco CBS350-12XS category. These switches provide visibility into network activity, enabling administrators to identify unusual patterns and potential threats. By monitoring traffic flows and enforcing rate limits, the category helps mitigate risks such as denial-of-service attacks and network congestion.

Proactive monitoring enhances network reliability and ensures that critical applications maintain priority access to available bandwidth.

Performance Optimization and Quality of Service

The Cisco CBS350-12XS managed switch category is engineered for consistent high performance under demanding conditions. Advanced Quality of Service mechanisms allow administrators to prioritize latency-sensitive traffic such as voice, video, and real-time collaboration tools. This ensures smooth user experiences even during peak network utilization.

High switching capacity and low latency forwarding are fundamental characteristics of this category. The architecture is optimized to handle simultaneous high-speed connections without bottlenecks, making it suitable for environments with intensive data flows.

Traffic Prioritization and Bandwidth Management

Traffic prioritization features enable granular control over how network resources are allocated. Administrators can define policies that assign higher priority to mission-critical applications while maintaining fair access for general traffic. This capability is essential for maintaining service quality in converged networks.

Bandwidth management tools further enhance performance by preventing any single application or user from monopolizing available capacity. This balanced approach ensures predictable network behavior and improved overall efficiency.

Reliability and Business Continuity

The Cisco CBS350-12XS category is built to deliver reliable operation and minimize network downtime. Enterprise-grade components and rigorous testing ensure long-term stability and consistent performance. These switches are designed for continuous operation in professional environments where network availability is critical.

Redundancy features such as link aggregation and resilient switching protocols contribute to high availability. In the event of a link failure, traffic can be automatically rerouted, maintaining connectivity and supporting uninterrupted business operations.

Operational Efficiency and Maintenance

Ease of maintenance is a key consideration within this category. Centralized management tools simplify configuration, monitoring, and firmware updates across multiple devices. This reduces administrative overhead and ensures that network infrastructure remains up to date with the latest enhancements and security improvements.

Diagnostic features and system logging provide valuable insights into network health, enabling faster troubleshooting and proactive issue resolution.

Energy Efficiency and Sustainable Networking

The Cisco CBS350-12XS managed switch category incorporates energy-efficient design principles that align with modern sustainability goals. Intelligent power management features help reduce energy consumption during periods of low network activity. This approach lowers operational costs while minimizing environmental impact.

Efficient thermal design and optimized hardware components contribute to reduced power usage without compromising performance. These attributes make the category suitable for organizations seeking to balance performance requirements with sustainability objectives.

Integration with Business Network Ecosystems

The Cisco CBS350-12XS category is designed for seamless integration into broader business network ecosystems. Compatibility with existing Cisco networking solutions allows organizations to create cohesive, end-to-end infrastructures that are easy to manage and scale. These switches can operate as part of hybrid environments that include cloud services, on-premises resources, and remote locations.

Support for standardized networking protocols ensures interoperability with third-party devices and applications. This flexibility enables organizations to build customized network architectures that meet specific operational needs.
