CBS350-24NGP-4X Cisco Busines 24 Ports Ethernet Switch

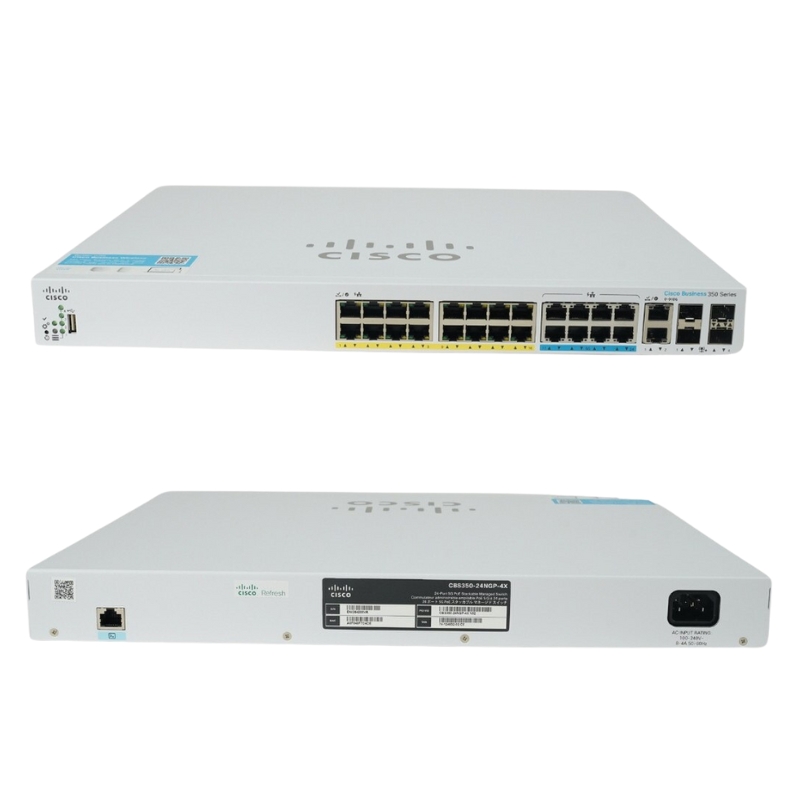

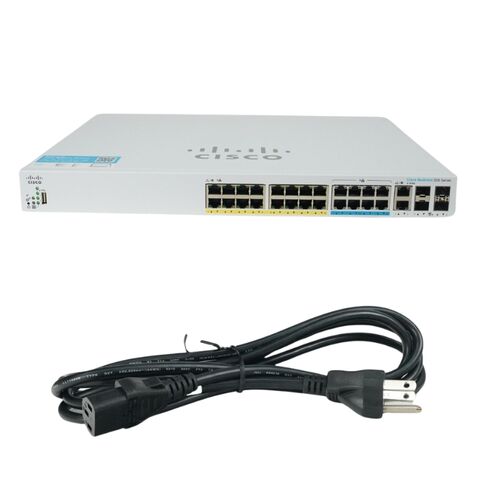

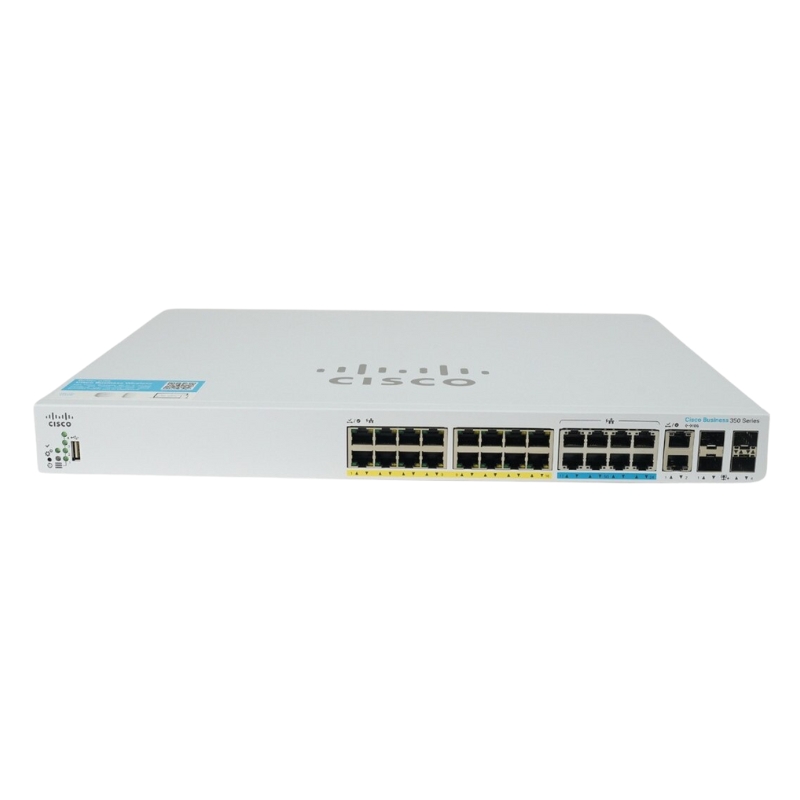

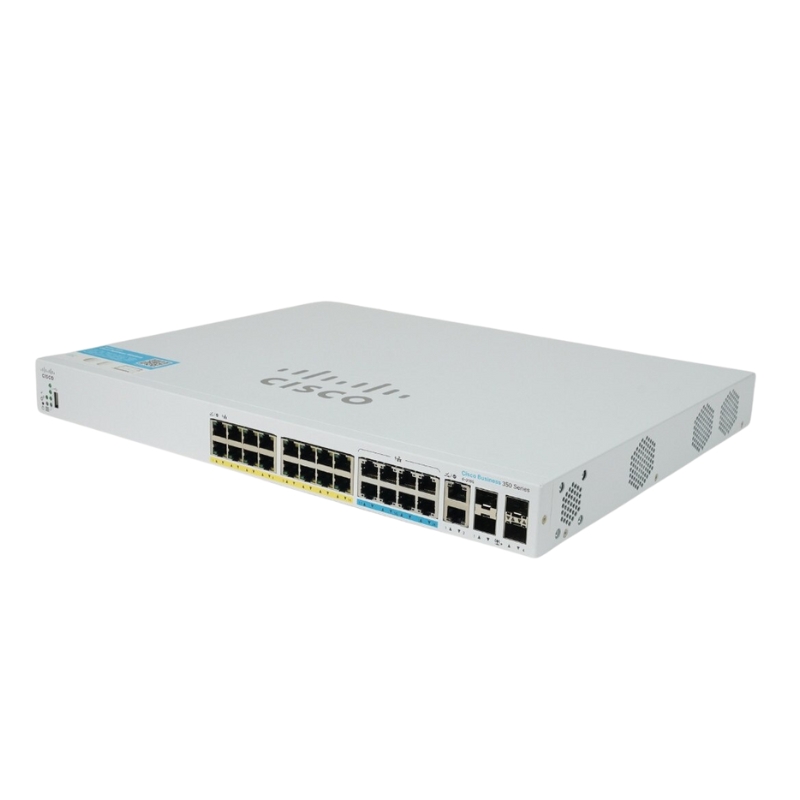

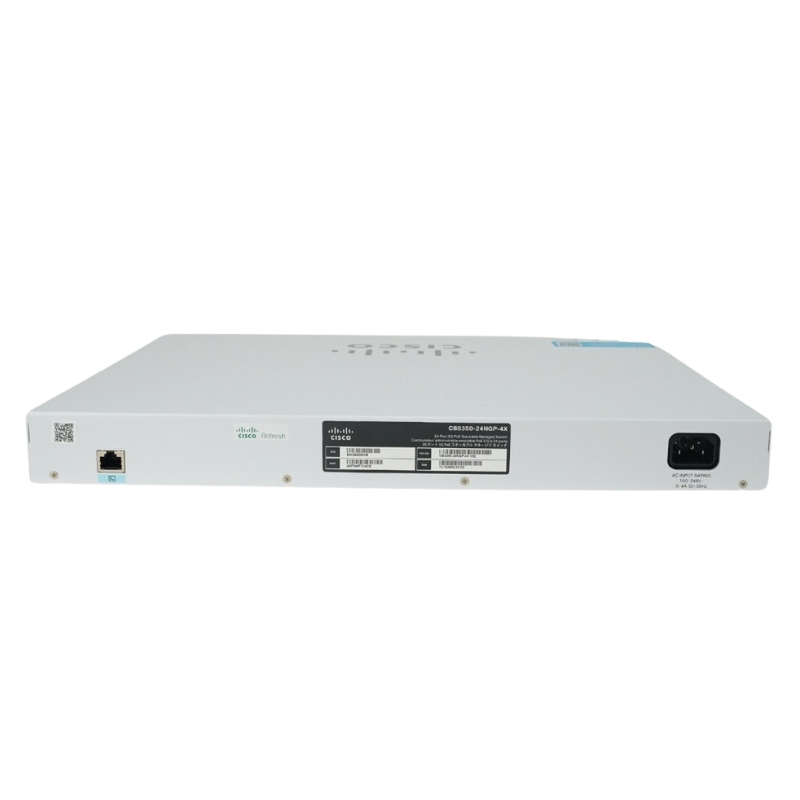

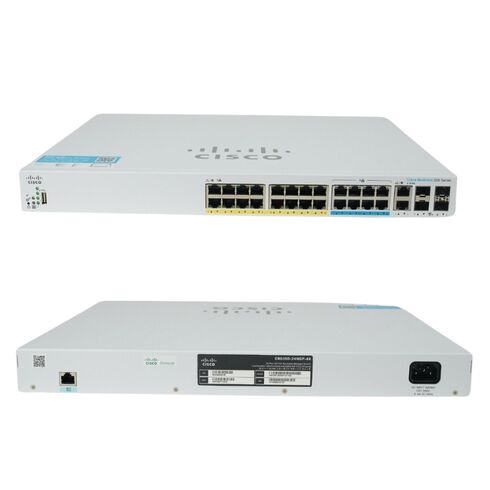

Cisco CBS350-24NGP-4X Managed Switch

The Cisco CBS350-24NGP-4X from the 350 Series is a high-performance Layer 3 managed switch designed for modern enterprise networks. It offers flexible connectivity, robust Power over Ethernet (PoE) capabilities, and advanced management features suitable for small to medium-sized businesses and large network deployments.

General Specifications

• Manufacturer: Cisco
• Part Number: CBS350-24NGP-4X
• Device Type: 24-Port L3 Managed Stackable Switch
• Enclosure: Rack-mountable
• Ethernet Subtype: 5 Gigabit

Port and Connectivity

• 16 x 10/100/1000 Mbps RJ-45 ports with PoE+
• 8 x 100/1000/2.5G/5G RJ-45 ports with PoE++
• 2 x Combo 10G SFP+/RJ-45 ports
• 2 x 10G SFP+ uplink ports
• 1 x USB Type-A port for expansion and storage
• 1 x RJ-45 Console port

PoE Capabilities

• PoE Standard: PoE+ (IEEE 802.3at)
• Total PoE Budget: 375 W
• Supports high-power devices such as IP cameras, VoIP phones, and wireless access points

Performance and Capacity

• Switching Capacity: 192 Gbps
• Forwarding Performance (64-byte packet size): 142.85 Mpps
• VLAN Support: Up to 4094 VLANs
• ACL Rules: 1024 entries
• Buffer Capacity: 3 MB
• MAC Address Table Size: 16k entries
• Jumbo Frame Support: Up to 2 KB
• Maximum Units in a Stack: 4

Advanced Layer 3 Routing

• Static IPv4 and IPv6 Routing
• Policy-Based Routing (PBR)
• IGMPv2/v3 and MLDv2 for multicast management
• Rapid PVST+, STP, RSTP, and MSTP
• CIDR support for scalable networks

Remote Management and Security

• SNMPv1/2c/3, RMON, Telnet
• HTTP/HTTPS, SSH, SCP, TFTP, ICMP
• RADIUS and TACACS+ authentication
• SSL encryption for secure communications

Switch Features and Functionalities

• Flow Control and BootP support
• ARP and VLAN management
• Syslog support and DOS attack prevention
• DiffServ QoS, broadcast/multicast storm control
• DHCP server, DHCP snooping, and IP source guard
• Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard
• LACP and link aggregation support
• LLDP, LLDP-MED, and SmartPort technology
• Private VLAN Edge (PVE) and Secure Core Technology (SCT)
• Rapid PVST+, duplicate address detection, and loopback prevention

Compliance and Standards

• IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3an
• IEEE 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x
• IEEE 802.3af, 802.3at, 802.3x, 802.3ad (LACP)

Hardware Specifications

• Processor: ARM 800 MHz
• RAM: 512 MB
• Flash Memory: 256 MB
• Status Indicators: Link, Activity, Speed

Expansion and Connectivity Options

• 16 x 10/100/1000 Base-T RJ-45 PoE++
• 8 x 100/1000/2.5G/5G RJ-45 (60 W)
• 4 x 10GBASE-X SFP+ uplinks
• 2 x 10GBASE-T RJ-45 uplinks
• 1 x USB Type-A, 1 x RJ-45 Console

Power and Energy Requirements

• Internal power supply with AC 100-240V, 50/60 Hz
• Supports high-efficiency PoE delivery across all ports

Cisco CBS350-24NGP-4X 350 Series Management Switch

The Cisco CBS350-24NGP-4X switch, part of the advanced 350 Series, offers high-performance Layer 3 management for medium to large-scale enterprise networks. Engineered to deliver robust connectivity, this switch combines 16 PoE+ enabled Gigabit Ethernet ports with high-speed 10 Gigabit uplinks through SFP+ modules, ensuring seamless integration of network devices and applications. Its design emphasizes reliability, scalability, and simplified network management, making it ideal for businesses requiring advanced networking solutions that can handle heavy traffic loads and support future expansion.

Dynamic Routing and Network Segmentation

The CBS350-24NGP-4X incorporates full Layer 3 routing functionality, including support for static routing, RIP, OSPF, and inter-VLAN routing. These features allow businesses to segment their network efficiently, optimizing data flow between different departments or workgroups while maintaining high performance and minimal latency. The switch’s ability to handle multiple routing protocols ensures interoperability with existing network infrastructures and simplifies complex network topologies.

Optimized Traffic Management

With advanced QoS (Quality of Service) features, the CBS350-24NGP-4X prioritizes critical network traffic to ensure smooth performance for voice, video, and data applications. Traffic shaping and congestion management capabilities minimize packet loss and latency, supporting seamless VoIP and video conferencing experiences. Layer 3 multicast routing support further enhances the switch’s ability to efficiently distribute streaming content or broadcast services across multiple network segments.

Inter-VLAN Routing and Subnet Segmentation

The switch supports inter-VLAN routing, enabling the creation of multiple logical networks within the same physical infrastructure. Subnet segmentation improves network security by isolating sensitive data, while efficient routing ensures rapid communication between VLANs without compromising performance. This feature is especially valuable in environments where multiple departments require independent network segments but still need reliable connectivity between them.

16 Gigabit PoE+ Ports for Flexible Device Integration

The CBS350-24NGP-4X comes equipped with 16 10/100/1000 Mbps PoE+ ports, capable of delivering sufficient power for a wide range of devices, including IP phones, wireless access points, and surveillance cameras. With the ability to provide up to 30W per port, these PoE+ ports eliminate the need for separate power supplies, reducing clutter and installation complexity. This integration of data and power over a single cable simplifies deployment and maintenance, particularly in enterprise environments where multiple powered devices are deployed.

10 Gigabit SFP+ Uplinks for Backbone Efficiency

Two 10 Gigabit SFP+ uplink ports and four additional SFP+/RJ-45 combo ports allow the CBS350-24NGP-4X to serve as a high-speed backbone switch, connecting multiple network segments or aggregating traffic from smaller access switches. This high-speed uplink capability supports bandwidth-intensive applications such as data center interconnects, high-definition video streaming, and cloud-based services. With SFP+ module support, organizations can easily adapt to fiber or copper connections, providing maximum deployment flexibility.

Seamless Scalability and Future-Proofing

The switch’s combination of high-speed uplinks and PoE+ ports ensures that businesses can scale their networks efficiently without requiring major infrastructure changes. Adding new access switches, wireless APs, or IP cameras is straightforward, and the modular nature of SFP+ uplinks provides the ability to upgrade bandwidth capacity as network demands grow. Cisco’s 350 Series switches are designed for longevity, supporting evolving networking standards and offering firmware updates to enhance functionality over time.

Advanced Threat Protection

Security is a key aspect of the CBS350-24NGP-4X, which includes features like access control lists (ACLs), port security, and DHCP snooping to prevent unauthorized access and mitigate potential threats. The switch also supports dynamic ARP inspection and IP-MAC binding, providing protection against spoofing attacks and unauthorized device connections. Combined with Cisco’s Identity Services Engine integration, administrators can enforce network access policies with high precision.

Segmentation and Policy Enforcement

VLAN-based segmentation allows network administrators to separate traffic types for security and efficiency. Policies can be applied to different user groups, departments, or application types to ensure that sensitive data is only accessible to authorized personnel. This capability reduces the risk of lateral movement in the network and provides administrators with granular control over traffic flow and user permissions.

Secure Management and Access Control

The CBS350-24NGP-4X supports multiple secure management protocols, including HTTPS, SSH, SNMPv3, and RADIUS/TACACS+ authentication. These protocols protect configuration access and monitor switch activity for compliance and auditing purposes. Role-based access control (RBAC) ensures that administrators can delegate specific management tasks without compromising overall network security, making the switch suitable for both small IT teams and larger enterprise operations.

High Availability Features

The switch is designed for uninterrupted network availability, featuring support for Spanning Tree Protocol (STP), Rapid STP (RSTP), and Multiple STP (MSTP) to prevent loops and ensure rapid convergence in case of link failures. Link aggregation (LACP) allows multiple physical ports to be combined for higher throughput and redundancy, providing fault tolerance and minimizing downtime. These features are essential for mission-critical networks where consistent connectivity is a priority.

Energy Efficiency and Sustainability

Cisco CBS350 switches incorporate Energy Efficient Ethernet (EEE) technology to reduce power consumption during periods of low network activity. Intelligent power management for PoE+ devices ensures that energy usage is optimized without compromising performance. This energy-conscious design helps organizations lower operational costs while contributing to sustainable networking practices.

Resilient Firmware and Hardware Design

With a robust hardware platform and redundant firmware options, the CBS350-24NGP-4X ensures network reliability even in demanding conditions. Automatic failover capabilities and recovery options reduce the risk of network interruptions caused by software errors or hardware faults. Cisco’s extensive testing and rigorous quality standards provide additional assurance of consistent, long-term performance.

Cisco Network Assistant and Web GUI

The switch is compatible with Cisco Network Assistant and provides an intuitive web-based GUI for simplified configuration and monitoring. Administrators can easily manage VLANs, QoS policies, routing protocols, and PoE allocation from a centralized interface. Real-time network statistics, traffic analysis, and event notifications enhance visibility and allow proactive troubleshooting.

Integration with Cisco DNA Center

For larger deployments, the CBS350-24NGP-4X can integrate with Cisco DNA Center, offering centralized automation, monitoring, and policy-based management across the entire network infrastructure. This integration streamlines operations, reduces human error, and accelerates network provisioning, enabling IT teams to focus on strategic tasks rather than routine maintenance.

Comprehensive Diagnostics and Alerts

The switch provides built-in diagnostic tools such as cable testing, port mirroring, and event logging. Alerts can be configured to notify administrators of potential issues, allowing timely intervention before minor problems escalate. This proactive approach reduces downtime, ensures consistent network performance, and supports compliance with service-level agreements (SLAs).

Enterprise and Campus Networks

The CBS350-24NGP-4X is suitable for enterprise and campus environments requiring high-speed connectivity, reliable PoE+ support, and advanced Layer 3 routing. It can function as a core aggregation switch or as an access layer switch connecting multiple departments, providing the flexibility to support diverse network architectures and applications.

Small to Medium Businesses

For small to medium-sized businesses, the switch offers a cost-effective solution without compromising enterprise-grade features. Its simplified management, energy-efficient design, and robust PoE+ capabilities enable businesses to deploy IP phones, access points, and security cameras efficiently while maintaining high performance and network security.

Data Centers and High-Bandwidth Applications

The combination of 10 Gigabit uplinks and high port density allows the CBS350-24NGP-4X to support data center edge deployments, virtualization environments, and bandwidth-intensive applications. Organizations can benefit from fast data transfer rates, minimal latency, and scalability, ensuring that network performance keeps pace with growing digital demands.

Technical Specifications and Compatibility

Hardware Features

The switch includes 16 Gigabit PoE+ ports, 4 SFP+/RJ-45 combo ports, and 2 dedicated 10 Gigabit SFP+ uplinks. Its rack-mountable 1U form factor and compact design make it suitable for standard data center racks and office network closets. Fan-assisted cooling ensures optimal operation in varying temperatures, while robust metal housing provides durability and long-term reliability.

Software Features

Running Cisco IOS software, the CBS350-24NGP-4X supports Layer 3 routing, VLANs, QoS, security policies, and advanced management features. Firmware updates are readily available to enhance functionality, address security vulnerabilities, and maintain compatibility with evolving network standards. The switch’s software stack is designed to simplify deployment, reduce operational complexity, and maximize uptime.

Interoperability

The CBS350-24NGP-4X is fully compatible with other Cisco switches and third-party networking equipment, ensuring seamless integration into existing infrastructures. Support for standard protocols such as IEEE 802.1Q VLANs, IEEE 802.3ad link aggregation, and Spanning Tree Protocol ensures interoperability and network stability. This flexibility allows organizations to build hybrid network environments that balance performance, cost, and scalability.
