CBS350-24XTS Cisco 12-Ports Managed Switch

Cisco CBS350-24XTS Business 350 Series Managed Switch

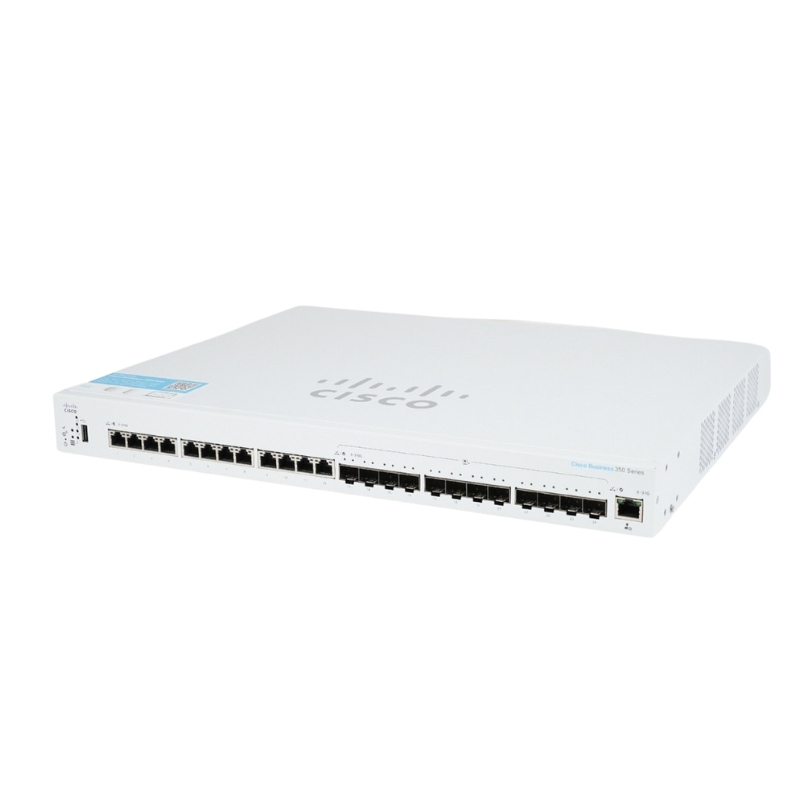

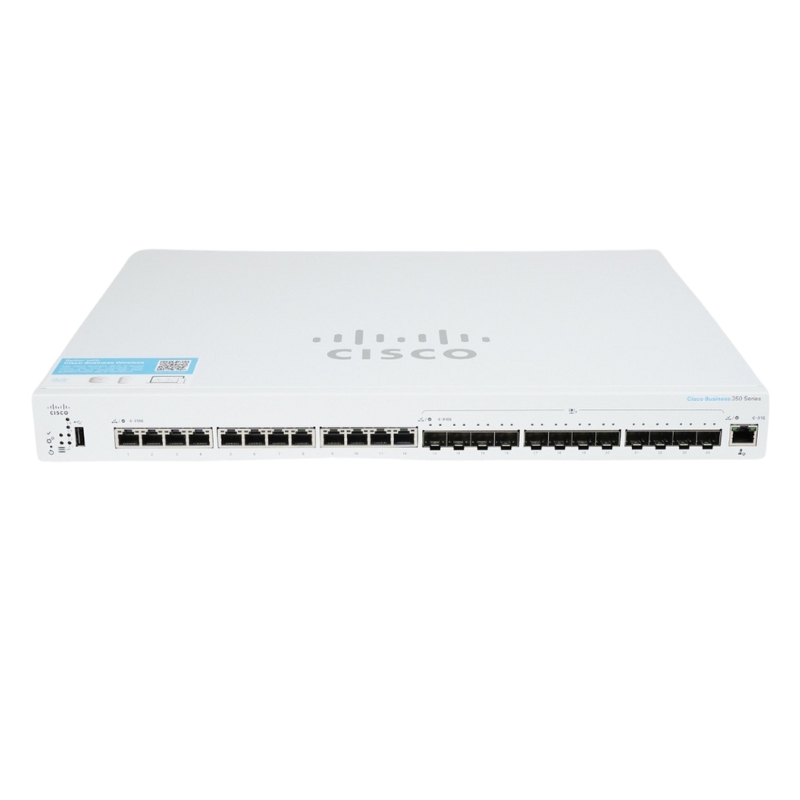

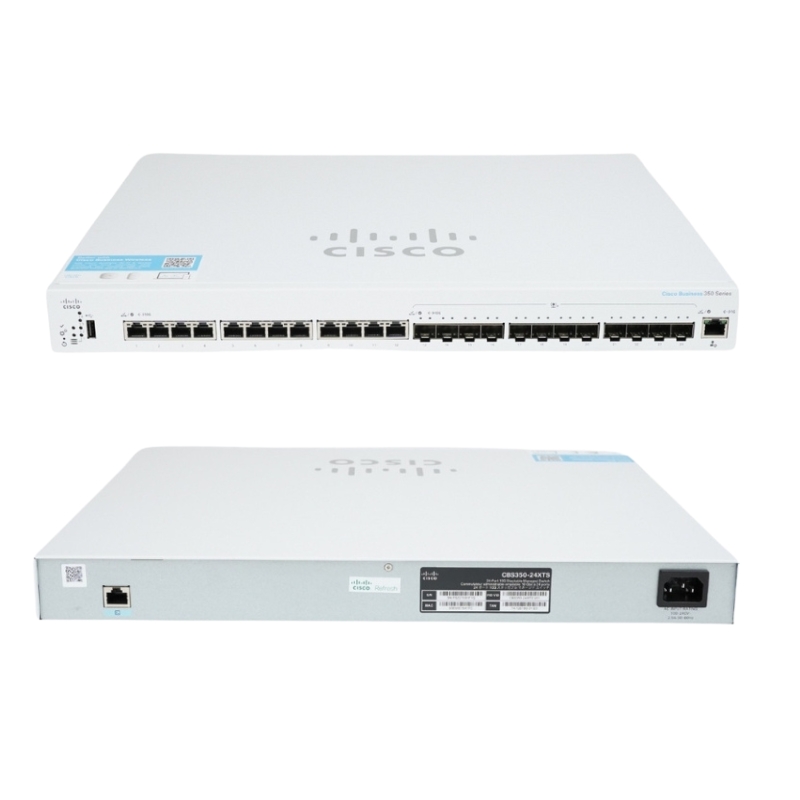

The Cisco CBS350-24XTS is a high-performance, rack-mountable Layer 3 managed switch, designed for modern business networks. Combining advanced 10GBase-T and SFP+ connectivity, this switch delivers seamless performance for demanding network environments. Ideal for enterprise-grade applications, it provides a reliable and secure network infrastructure.

General Information

• Manufacturer: Cisco
• Part Number: CBS350-24XTS
• Product Type: Managed Layer 3 Switch
• Rack-Mountable: Yes, 1U form factor
• Total Ports: 24 (12 x 10GBase-T + 12 x SFP+)

Technical Specifications

• Total Ports: 24 (12 x 10GBase-T + 12 x SFP+)
• Port Speed: Up to 10 Gbps per port
• Uplink Options: SFP+ for high-speed fiber connections

Switch Architecture

• Switch Type: Rack-mountable managed switch
• Layer 3 Functionality: Supports static routing, dynamic routing protocols, and VLAN routing
• Performance: High throughput and low latency for critical applications

Management Capabilities

• Web-based GUI for intuitive configuration
• Command-line interface (CLI) for granular control
• SNMP support for monitoring and automation
• VLAN and QoS configuration for optimized traffic management

Security Features

• Port security to prevent unauthorized access
• Access Control Lists (ACLs) for traffic filtering
• DHCP snooping and IP source guard for network integrity

Flexibility

• 1U rack-mountable form factor for standard server racks
• Compact design to save physical space in data centers
• Flexible port configuration for mixed copper and fiber environments

Scalability

• Supports stacking for simplified network expansion
• Future-proof design with high-capacity 10G and SFP+ connectivity
• Ideal for converged networks including VoIP, video, and data traffic

High Availability

• Redundant power supply support
• Advanced Layer 3 routing for uninterrupted network traffic
• Hardware-accelerated switching for low latency

Cisco CBS350-24XTS Business 350 Series

The Cisco CBS350-24XTS is a high-performance Layer 3 managed network switch designed for modern enterprise environments. This business-grade switch provides 12 x 10GBase-T ports and 12 x SFP+ ports, enabling seamless integration of high-speed copper and fiber connections. Optimized for small to medium-sized businesses, the CBS350-24XTS supports advanced features including full Layer 3 routing, VLAN segmentation, QoS prioritization, and comprehensive security protocols, making it an ideal choice for organizations that demand both performance and reliability.

Advanced Layer 3 Switching Capabilities

As a Layer 3 switch, the Cisco CBS350-24XTS allows enterprises to implement complex routing protocols directly within the switch hardware. It supports static routing, RIP, OSPF, and inter-VLAN routing, providing flexible traffic management for both internal networks and WAN connections. This capability reduces the dependency on dedicated routers, simplifies network architecture, and enhances overall throughput, especially in high-demand environments with large volumes of data traffic.

Inter-VLAN Routing and Network Segmentation

The CBS350-24XTS supports advanced VLAN configurations, enabling businesses to logically segment their networks for improved security and traffic management. Each VLAN can be assigned specific Quality of Service (QoS) policies, allowing critical applications like VoIP, video conferencing, and cloud services to receive prioritized bandwidth. This ensures low latency and uninterrupted performance for time-sensitive applications while maintaining optimal network efficiency for general data traffic.

Optimized Multicast and Broadcast Handling

This switch includes robust multicast routing and IGMP snooping capabilities, which efficiently manage multicast traffic such as IPTV streams or real-time data feeds. By minimizing unnecessary broadcast traffic, the CBS350-24XTS enhances network stability, reduces congestion, and improves overall performance, making it suitable for environments with high-density endpoint deployment.

Comprehensive Connectivity Options

With 12 high-speed 10GBase-T ports and 12 SFP+ slots, the CBS350-24XTS delivers unmatched connectivity for both copper and fiber networks. The dual interface types provide flexibility for future network upgrades, whether integrating high-speed servers, storage systems, or core backbone connections. SFP+ ports support 10 Gigabit uplinks, while 10GBase-T ports facilitate existing copper infrastructure, eliminating the need for costly rewiring while ensuring high-speed access across the network.

Stacking and Network Scalability

The Cisco CBS350-24XTS supports intelligent stacking features, enabling multiple switches to operate as a single logical unit. This capability simplifies management, reduces configuration complexity, and allows network administrators to scale the network seamlessly as business needs grow. By combining multiple switches into a unified stack, organizations can expand port capacity without sacrificing performance, ensuring that the network remains flexible and future-ready.

Redundant Power and High Availability

The switch includes support for dual power supplies and advanced redundancy features, ensuring continuous operation even during maintenance or power disruptions. High availability is further enhanced with features like Spanning Tree Protocol (STP) and Rapid STP (RSTP), which prevent network loops and enable fast failover for critical business applications. These capabilities are particularly valuable in enterprise environments where downtime can result in significant operational losses.

Security and Compliance Features

Security is a fundamental aspect of the CBS350-24XTS design. It offers robust access control through 802.1X authentication, port security, and role-based access management, ensuring that only authorized devices can connect to the network. Advanced encryption options such as Secure Sockets Layer (SSL) and Secure Shell (SSH) protect administrative access and configuration data. Additionally, the switch supports Access Control Lists (ACLs) to control traffic flow and prevent unauthorized access to sensitive information.

Enhanced Threat Protection and Monitoring

The CBS350-24XTS includes built-in security monitoring and anomaly detection capabilities. Network administrators can track unusual traffic patterns, detect potential threats, and implement automated responses to mitigate security risks. These features allow businesses to maintain compliance with industry regulations while safeguarding critical corporate data from external and internal threats.

Integration with Cisco Management Tools

The switch integrates seamlessly with Cisco’s management ecosystem, including Cisco Business Dashboard and Cisco Network Assistant. These tools provide centralized monitoring, simplified configuration, and detailed performance analytics. Network administrators can quickly identify bottlenecks, optimize resource allocation, and generate comprehensive reports, streamlining daily operations and improving overall network efficiency.

Performance and Reliability

Engineered for high-performance networking, the CBS350-24XTS offers non-blocking architecture with wire-speed forwarding. This ensures that all ports can transmit data simultaneously without degradation in speed or reliability. The switch also supports advanced QoS mechanisms, allowing critical applications to receive dedicated bandwidth while minimizing latency for real-time communications. With this combination of high-speed performance and reliability, businesses can ensure smooth operation of mission-critical applications.

Energy Efficiency and Environmental Considerations

The CBS350-24XTS is designed with energy efficiency in mind. It includes Energy Efficient Ethernet (EEE) features, which reduce power consumption during periods of low activity. The switch also operates within a wide temperature range and adheres to international environmental standards, providing a sustainable and cost-effective networking solution for modern enterprises.

Advanced Troubleshooting and Diagnostics

Built-in diagnostic tools help administrators quickly identify and resolve network issues. Features such as cable diagnostics, loop detection, and real-time performance monitoring allow for proactive maintenance and faster troubleshooting. These capabilities reduce downtime, improve operational efficiency, and ensure that the network remains reliable even under heavy workloads.

Use Cases and Deployment Scenarios

The CBS350-24XTS is ideal for a wide range of deployment scenarios. In enterprise offices, it supports high-density workstations, VoIP phones, and video conferencing systems. In data centers, it provides high-speed server connectivity and fiber uplinks for storage area networks. Its Layer 3 capabilities also make it suitable for branch offices requiring secure inter-VLAN routing and WAN connectivity. Educational institutions, healthcare facilities, and government organizations benefit from the switch’s combination of performance, security, and manageability.

Small and Medium-Sized Business Networks

For small and medium-sized businesses, the CBS350-24XTS delivers enterprise-grade features at a manageable cost. Its ease of deployment, combined with intuitive management tools, enables IT teams to configure, monitor, and optimize the network with minimal effort. VLANs, QoS, and security settings can be customized to meet specific business requirements, supporting both day-to-day operations and future growth.

Enterprise Campus Networks

In larger campus networks, the CBS350-24XTS serves as a reliable access or distribution layer switch. Its stacking capabilities and high port density allow it to support thousands of connected devices, while Layer 3 routing enables efficient traffic distribution between different buildings or network segments. The switch’s compatibility with Cisco’s management platforms further simplifies the administration of complex multi-switch environments.

Firmware Updates and Network Optimization

Frequent firmware updates improve network performance, enhance security features, and introduce new functionalities. Administrators can deploy these updates seamlessly without disrupting ongoing operations. Combined with automated monitoring and alerting, the CBS350-24XTS ensures continuous network optimization and reliability over time.

Documentation and Knowledge Resources

Cisco offers extensive documentation for the CBS350-24XTS, including configuration guides, deployment best practices, and troubleshooting manuals. These resources empower IT teams to maximize the switch’s capabilities and quickly resolve any challenges that arise. Access to community forums, technical articles, and video tutorials further enhances the knowledge base, allowing organizations to fully leverage the switch’s advanced features.

Technical Specifications

The CBS350-24XTS combines high port density, advanced Layer 3 capabilities, and versatile uplink options in a compact 1U rack-mountable form factor. It offers a non-blocking architecture with high throughput, low latency, and support for advanced QoS and multicast management. Security features include 802.1X authentication, ACLs, and encrypted management access. With dual power supply support, stacking capabilities, and energy-efficient design, this switch provides an all-in-one solution for demanding enterprise environments.
