Cisco CS-KIT-EQ-K9 Webex Room Kit

Cisco CS-KIT-EQ-K9 Webex Room Kit Eq Overview

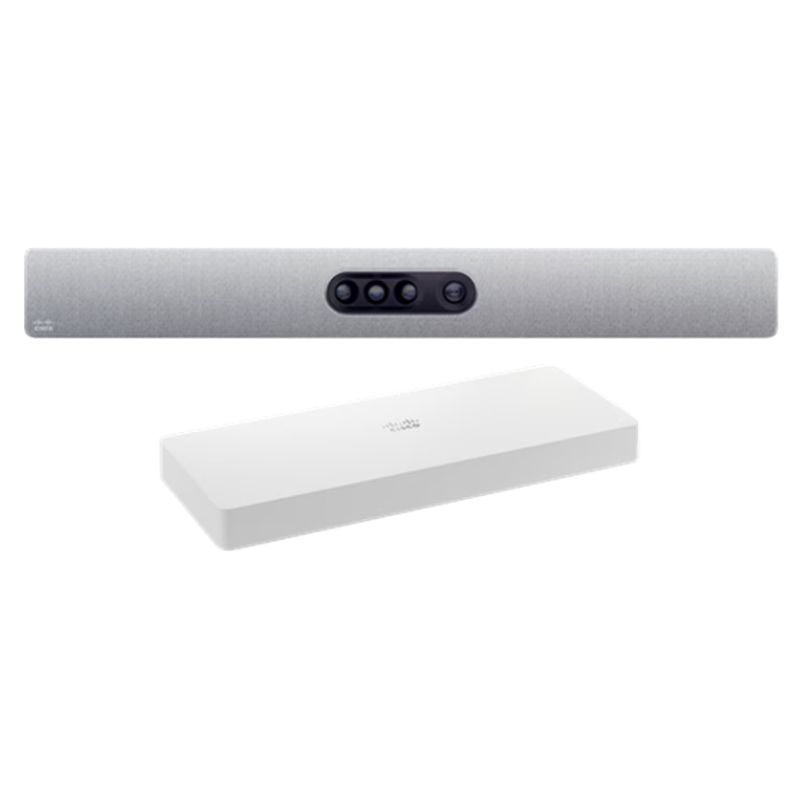

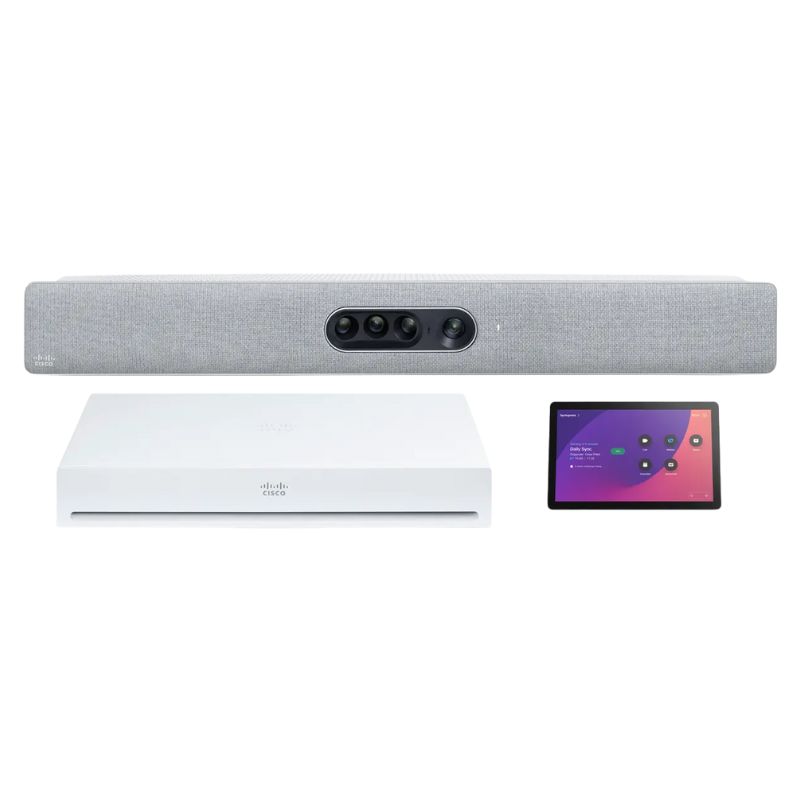

The Cisco CS-KIT-EQ-K9 is a professional-grade video conferencing kit designed to elevate collaboration experiences. Featuring the Cisco Webex Quad Camera and Webex Codec Eq, this solution ensures high-definition video and crystal-clear audio for meetings of any scale. Certified for Microsoft Teams Rooms, it seamlessly integrates into enterprise environments while delivering cutting-edge communication capabilities.

Key Features and Specifications

• Manufacturer: Cisco
• Part Number / SKU: CS-KIT-EQ-K9
• Device Type: Video Conferencing Kit
• Kit Components: Cisco Webex Codec Eq, Cisco Webex Quad Camera
• VoIP Protocols: H.323, SIP
• Voice Codecs: G.711, G.722, G.722.1, G.729, AAC-LD, Opus
• Video Codecs: H.264, H.265, H.263
• Quality of Service: IEEE 802.1q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
• IP Address Assignment: DHCP
• Network Security: IEEE 802.1x, H.235 v3
• Network Protocols: HTTP, HTTPS, DNS, NTP
• Enclosure Color: First Light

Video and Camera Capabilities

• Camera Type: External digital color video camera
• Interface: HDMI
• Capture Resolution: 5056 x 3888, 1920 x 1080
• Video Modes: 5K/60p
• Digital Zoom: 5x

Audio Performance

• Microphone: Integrated 8-microphone array
• Speaker Output: Built-in speakers
• Frequency Response: 100 – 20,000 Hz

Networking and Connectivity

• Connectivity: Wired and wireless options
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a/b/g/n/ac
• Network Protocol Support: NTP, DHCP, DNS
• Advanced Features: Cisco Expressway, Wireless Screen Sharing, QoS, URI Dialing, CAPF, LSC, MIC, 2x2 MIMO, Kensington Security Slot
• Standards Compliance: IEEE 802.1q, IEEE 802.1p, IEEE 802.1x, X.509, IEEE 802.3bt

Expansion and Interface Options

• 1 × USB-C (24-pin)
• 3 × HDMI Input (19-pin Type A)
• 3 × HDMI Output (19-pin Type A)
• 1 × Audio Output – Mini-phone stereo 3.5 mm
• 1 × Audio Output – RCA
• 4 × SuperSpeed USB 3.0 Type-A
• 1 × USB Micro-B (5-pin)
• 1 × Ethernet RJ-45 (10/100/1000)
• 4 × PoE++ Ethernet RJ-45 (10/100/1000)

Modem and Protocol Support

• Digital Signaling: H.460.18, H.460.19, H.323, BFCP, SIP
• Data Compression: H.264, H.263, G.711, G.722, G.722.1, G.729
• Additional Features: DTMF decoding

Power and Installation

• Power Adapter: External AC 100–240 V, 50/60 Hz
• Included Accessories: Wall mount, network cable, mounting kit

Software Certification and Compliance

• Certified for Microsoft Teams Rooms
• Compliance Standards: EDID compatible, CEC 2.0, RoHS, WEEE, FCC Part 15 B/C/E, NRTL

Why Choose Cisco CS-KIT-EQ-K9

• Exceptional video quality up to 5K/60p resolution with advanced digital zoom
• High-fidelity audio with integrated 8-microphone array and wide frequency response
• Seamless network integration with wireless and wired options plus QoS support
• Certified for Microsoft Teams Rooms, ensuring enterprise-grade collaboration
• Flexible expansion and connectivity for USB, HDMI, and Ethernet interfaces

Ideal For

• Boardrooms and large meeting spaces requiring high-quality video and audio
• Hybrid work environments leveraging Microsoft Teams Rooms or Cisco Webex
• Organizations seeking secure and standards-compliant video conferencing solutions

Cisco CS-KIT-EQ-K9 Webex Room Kit EQ: Advanced Video Conferencing Solution

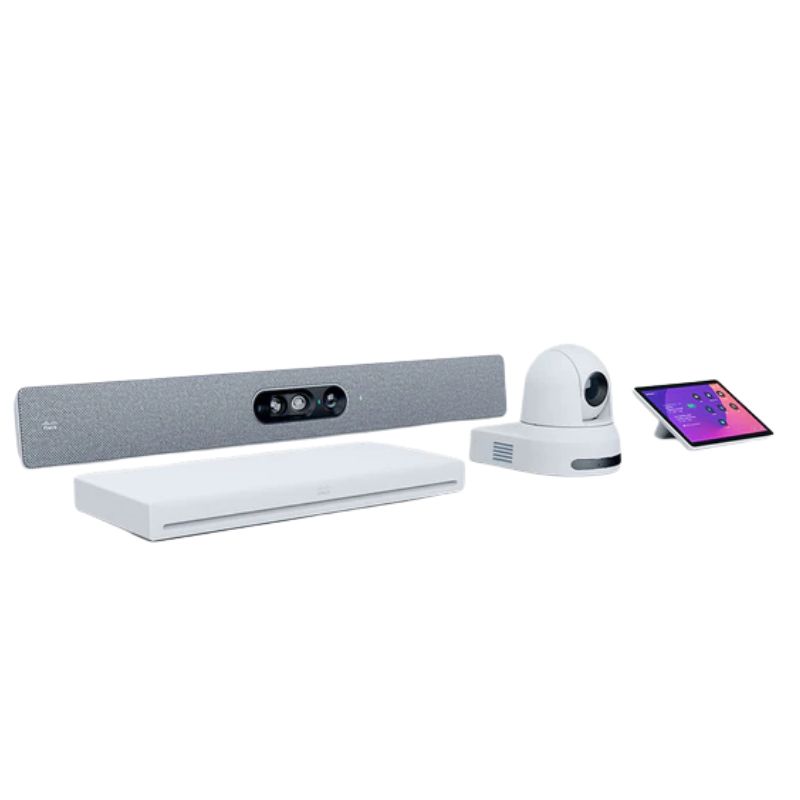

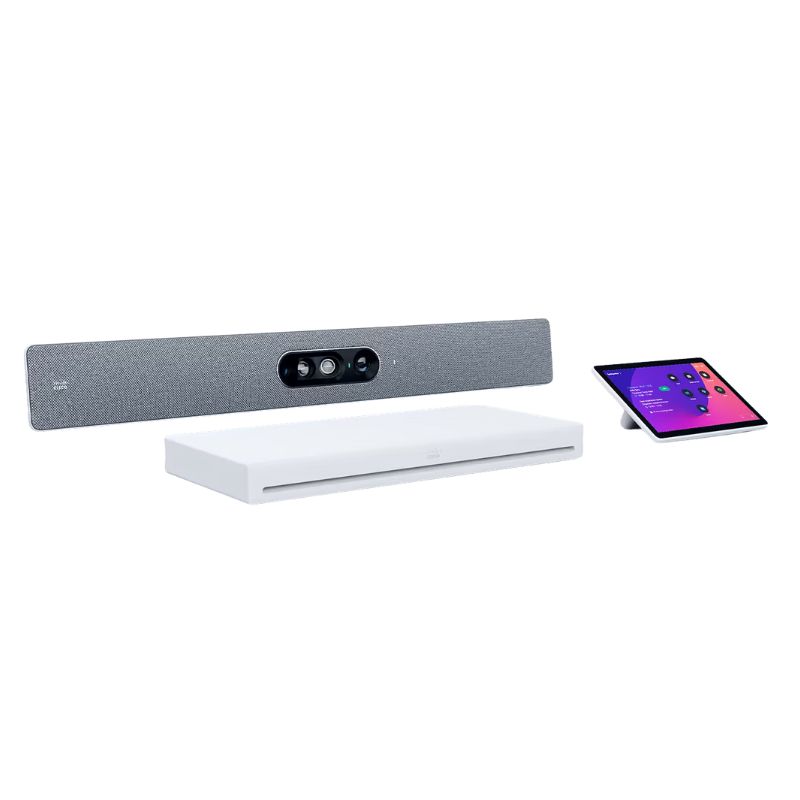

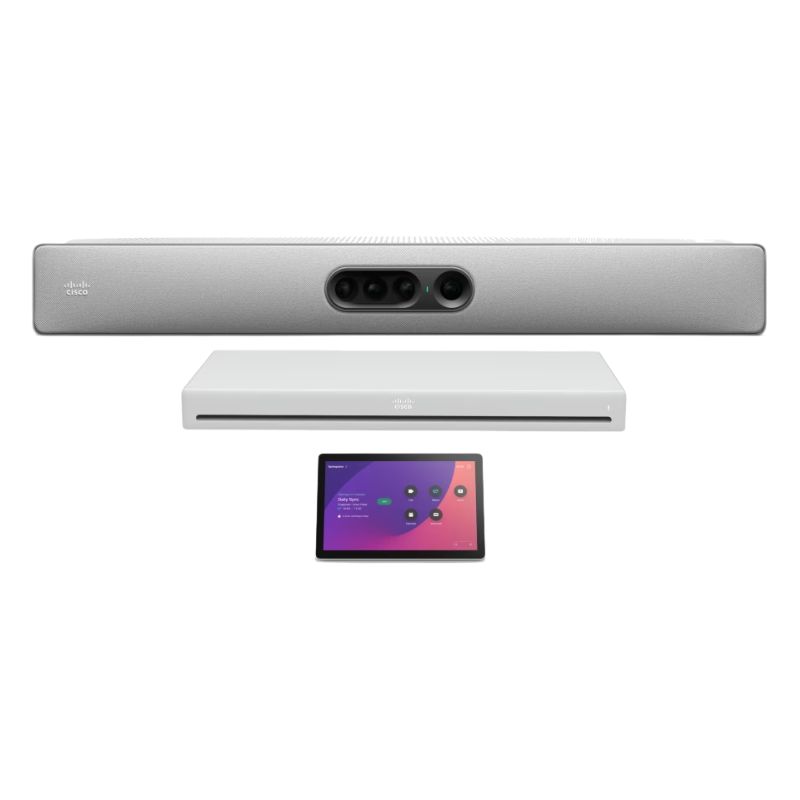

The Cisco CS-KIT-EQ-K9 Webex Room Kit EQ is a comprehensive video conferencing solution designed to elevate collaboration experiences in medium to large meeting spaces. This kit integrates cutting-edge hardware and software, including the Cisco Webex Quad Camera, Cisco Webex Codec EQ, and a suite of intelligent peripherals, to deliver seamless and inclusive meetings across various platforms.

Key Components of the Cisco CS-KIT-EQ-K9

Cisco Webex Codec EQ

The heart of the Room Kit EQ, the Cisco Webex Codec EQ, is an AI-powered computing engine that ensures high-performance video processing and seamless integration with multiple conferencing platforms. It supports single-cable BYOD (Bring Your Own Device) connectivity, allowing users to connect their laptops or mobile devices effortlessly. The Codec EQ is designed for flexibility, supporting up to three external displays and a range of audio and video inputs and outputs, making it suitable for diverse room configurations and sizes.

Cisco Webex Quad Camera

The Cisco Webex Quad Camera is a multi-lens video bar that enhances the visual experience by providing optimized framing and intelligent speaker tracking. It features a main wide-angle lens and three telephoto lenses, delivering ultra-high-definition video with advanced focus capabilities. The camera's AI-driven features, such as People Focus and Frames, ensure that all participants are clearly visible and well-framed, promoting equitable participation in meetings.

Intelligent Peripherals

Complementing the Codec EQ and Quad Camera, the Room Kit EQ includes intelligent peripherals like the Cisco Room Navigator and Cisco Table Microphone Pro. The Room Navigator is a touch-enabled console that simplifies meeting controls, room booking, and environmental sensing. The Table Microphone Pro offers high-quality audio capture with beamforming technology, ensuring clear voice pickup from all participants around the table.

Seamless Platform Integration

Certified for Microsoft Teams Rooms

The Cisco Room Kit EQ is certified for Microsoft Teams Rooms, providing a native Teams experience on certified Cisco collaboration devices. This certification ensures seamless integration with Microsoft Teams, allowing users to join meetings with a single tap and access Teams features directly from the Room Navigator. The integration also supports advanced features like smart meeting join, calendar synchronization, and device management through the Microsoft Teams Admin Center.

Cross-Platform Compatibility

Beyond Microsoft Teams, the Room Kit EQ offers interoperability with other major conferencing platforms, including Webex, Zoom, and Google Meet. This cross-platform compatibility ensures that organizations can maintain flexibility in their collaboration tools while benefiting from the advanced features of the Room Kit EQ. The system's open standards support enables smooth integration with existing IT infrastructures and third-party applications.

Advanced Audio and Video Features

AI-Powered Video Processing

The Room Kit EQ leverages AI to enhance video conferencing experiences. Features like speaker tracking, group framing, and People Focus dynamically adjust the camera's view to highlight active speakers and ensure all participants are visible. These intelligent video features contribute to more engaging and productive meetings by providing a more natural and immersive experience.

High-Quality Audio

Audio clarity is paramount in video conferencing, and the Room Kit EQ addresses this with its advanced audio technologies. The system includes full-duplex audio powered by built-in loudspeakers and external speaker connectivity. Noise removal features help eliminate background distractions, ensuring that remote participants hear every word clearly. The integration of multiple microphones and speakers creates an immersive audio environment, enhancing the overall meeting experience.

Flexible Room Configurations

Triple Display Support

The Room Kit EQ supports up to three external displays, allowing for flexible room configurations and enhanced visual presentations. This capability is particularly beneficial in large meeting spaces, auditoriums, and training rooms, where displaying multiple content sources simultaneously can improve information delivery and participant engagement.

Modular Peripheral Options

To accommodate various room sizes and layouts, the Room Kit EQ offers modular peripheral options. Users can choose from a range of microphones, speakers, and cameras to tailor the system to their specific needs. This modularity ensures that organizations can scale their video conferencing solutions as their requirements evolve, providing a future-proof investment.

Intelligent Room Automation

Presence Detection and Environmental Sensing

The Room Kit EQ includes smart sensors that detect room occupancy and environmental conditions. These sensors provide real-time metrics for workspace optimization and in-office well-being, such as temperature, humidity, and light levels. This data can be used to adjust room settings automatically, ensuring a comfortable and productive meeting environment.

Integration with Cisco Control Hub

For centralized management, the Room Kit EQ integrates with Cisco Control Hub, providing administrators with tools for device provisioning, monitoring, and analytics. This integration simplifies the deployment and maintenance of the system, offering insights into device performance, usage patterns, and room occupancy. The Control Hub also supports firmware updates and configuration changes, streamlining IT operations.

Deployment and Support

Easy Installation

The Room Kit EQ is designed for straightforward installation, with clear guidelines and support materials available. Cisco provides comprehensive documentation, including installation guides and technical notes, to assist IT teams in setting up the system efficiently. The modular design of the kit allows for flexible deployment in various room sizes and configurations.

Comprehensive Support Services

Cisco offers a range of support services for the Room Kit EQ, including technical assistance, software updates, and hardware warranties. Customers can access support through Cisco's online portals, where they can find troubleshooting resources, community forums, and contact information for customer service. Cisco's commitment to customer satisfaction ensures that organizations receive the necessary support to maximize the value of their investment.

Conclusion

The Cisco CS-KIT-EQ-K9 Webex Room Kit EQ is a state-of-the-art video conferencing solution that combines advanced hardware, intelligent software, and seamless platform integration to deliver exceptional collaboration experiences. Its AI-powered features, high-quality audio and video capabilities, and flexible room configurations make it an ideal choice for organizations seeking to enhance their meeting environments. Whether deployed in boardrooms, training rooms, or large conference spaces, the Room Kit EQ provides a scalable and future-proof solution for modern hybrid workforces.
