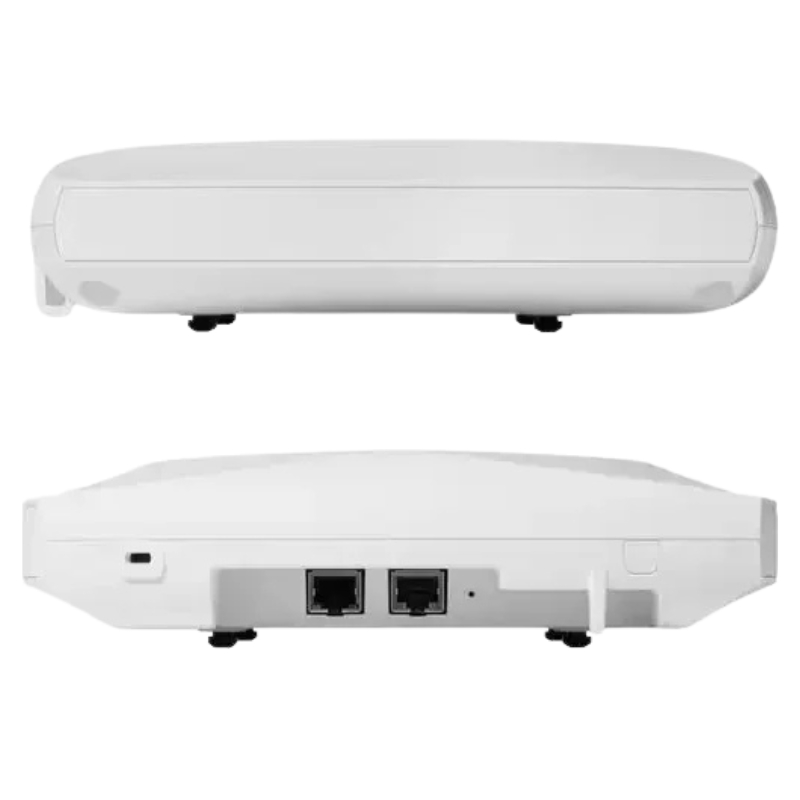

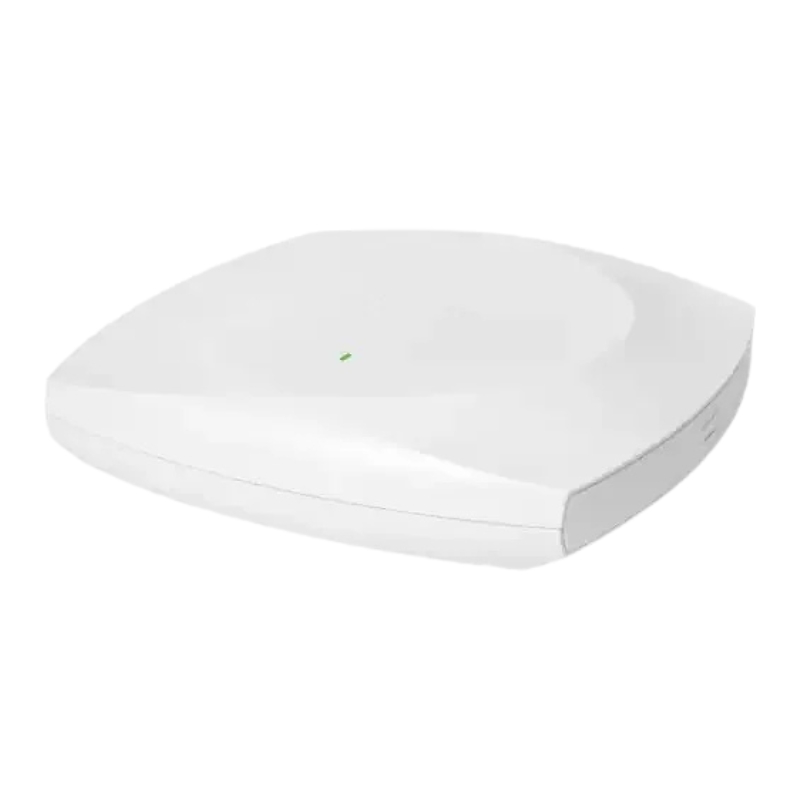

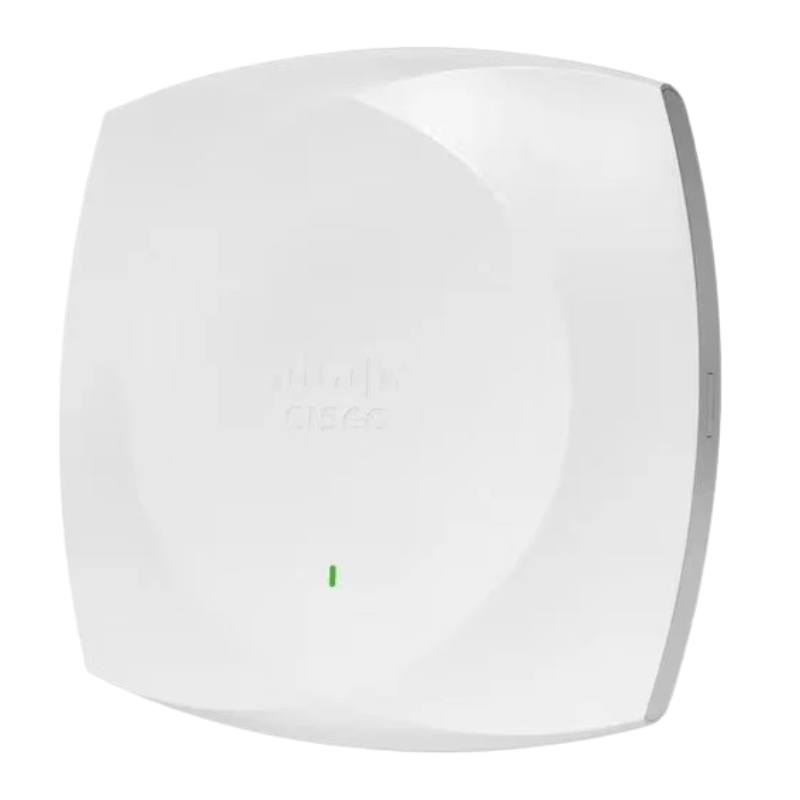

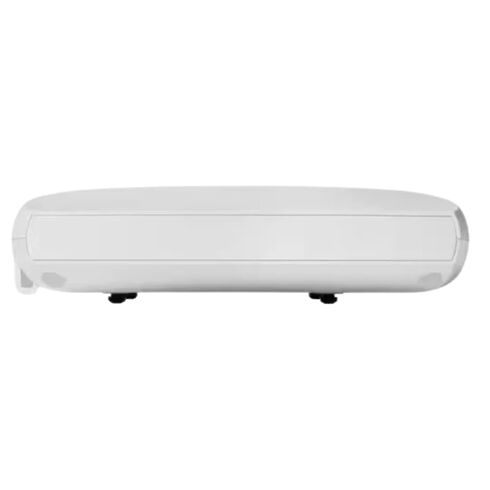

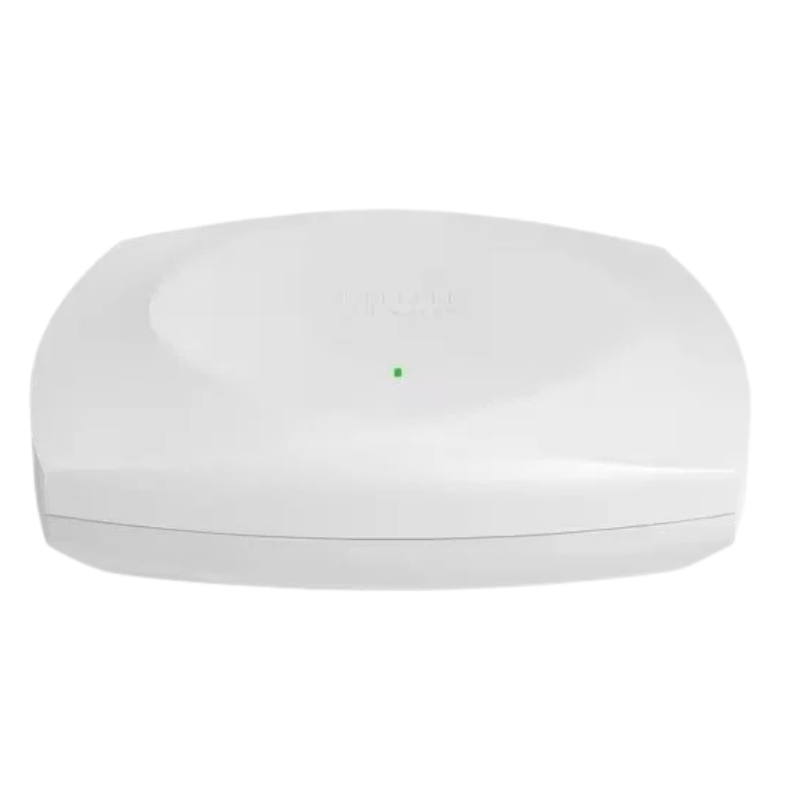

CW9176I-RTG Cisco Tri Band Wi-Fi 7 Wireless Access Point

Product Overview: Cisco CW9176I-RTG Wireless Access Point

The Cisco CW9176I-RTG is a next-generation Tri-Band Wi-Fi 7 wireless access point designed for high-density enterprise environments. Built with advanced IEEE 802.11 standards and ultra-fast 10 Gigabit Ethernet connectivity, this indoor access point delivers exceptional speed, reliability, and security for modern networks.

General Information

• Manufacturer: Cisco
• Manufacturer Part Number: CW9176I-RTG
• Product Type: Wireless Access Point
• Product Name: CW9176I Wireless Access Point

Advanced Wireless Technology

Tri-Band Wi-Fi 7 Performance

Engineered with Tri-Band wireless support, the Cisco CW9176I-RTG operates across multiple frequencies to minimize congestion and maximize throughput. With a total wireless data rate of up to 23 Gbit/s, it ensures seamless connectivity for bandwidth-intensive applications.

Supported Frequency Bands

• 2.40 GHz band for knowing compatibility
• 5 GHz band for balanced performance
• 6 GHz band for ultra-low latency and high capacity

Wireless LAN Standards

• IEEE 802.11a / b / g
• IEEE 802.11n / ac
• IEEE 802.11ax (Wi-Fi 6)
• IEEE 802.11be (Wi-Fi 7)
• Additional support: d, h, i standards

Enhanced Network Efficiency

MIMO and Beamforming Capabilities

This enterprise-grade access point integrates Multi-User MIMO technology and intelligent beamforming to direct signals precisely toward connected devices. These features improve coverage, boost capacity, and deliver stable wireless performance in busy indoor spaces.

• Multi-User MIMO support
• Advanced beamforming technology
• Optimized for indoor deployment

Security and Encryption Features

Enterprise-Level Wireless Protection

The Cisco CW9176I-RTG provides robust data protection with a wide range of modern encryption and authentication protocols, ensuring secure wireless access for business-critical environments.

Supported Encryption Standards

• WPA3 and WPA2 security
• EAP-TLS, EAP-TTLS, EAP-FAST
• PEAPv0 and PEAPv1
• MSCHAPv2 and EAP-GTC
• AES 128-bit and AES 256-bit encryption
• AES-CCMP and AES-GCMP
• EAP-SIM and EAP-PEAP

Data Encryption

Full data encryption is enabled to safeguard wireless transmissions and protect sensitive information.

Connectivity and Interface Options

High-Speed Ethernet and Ports

Designed for flexible deployment, this Cisco wireless access point supports multiple Ethernet speeds, including ultra-fast 10 Gigabit Ethernet, ensuring seamless integration into modern network infrastructures.

Supported Ethernet Technologies

• Fast Ethernet
• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet
• 10 Gigabit Ethernet

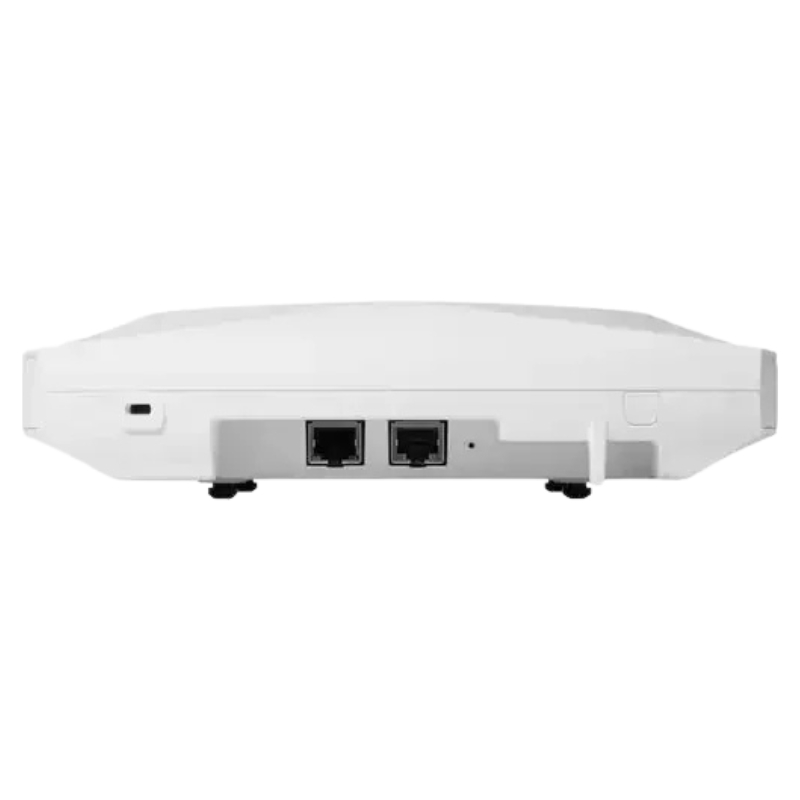

Ports and Interfaces

• 1 × RJ-45 network port
• USB 2.0 interface
• Dedicated management port
• PoE PD port for simplified power delivery

Unpacking the Wi-Fi 7 (802.11be) Standard

Wi-Fi 7, ratified as the IEEE 802.11be standard, is the seventh generation of Wi-Fi, built explicitly for Extremely High Throughput (EHT). The Cisco CW9176I-RTG is a full implementation of this standard, incorporating its core technological leaps to solve the latency, congestion, and capacity limitations of previous generations.

Core Wi-Fi 7 Technologies Implemented

The AP's performance is driven by a suite of synchronized technologies that work in concert.

320 MHz Channel Bandwidth & 6 GHz Spectrum Utilization

By doubling the maximum channel width from Wi-Fi 6E's 160 MHz to a staggering 320 MHz in the 6 GHz band (where available by regulation), the CW9176I-RTG creates a virtual "super-highway" for data. This expansive bandwidth is pivotal for supporting multiple simultaneous high-fidelity streams, such as numerous 8K video conferences, large-scale AR/VR deployments, and instantaneous massive data transfers, without contention or degradation in quality.

Multi-Link Operation (MLO): A Game-Changer in Reliability

Perhaps the most transformative feature of Wi-Fi 7, MLO allows the access point to aggregate and utilize links across multiple frequency bands (2.4 GHz, 5 GHz, and 6 GHz) simultaneously for a single client device. The CW9176I-RTG employs intelligent MLO strategies:

Aggregation MLO: Combines channels for higher throughput, ideal for bandwidth-hungry applications.
Switching MLO: Seamlessly switches a client to a better available band to avoid interference, ensuring consistent low latency.
Redundant MLO: Transmits duplicate data packets across links, providing ultra-reliable connections for mission-critical operations.

Higher-Order 4096-QAM Modulation

Building upon Wi-Fi 6's 1024-QAM, 4096 Quadrature Amplitude Modulation (QAM) packs 20% more data into every transmission symbol. This "4K QAM" requires a very strong signal-to-noise ratio, which the CW9176I-RTG's advanced radios are designed to achieve, effectively increasing spectral efficiency and peak data rates for clients in close to medium proximity.

Multi-Resource Unit (MRU) & Puncturing

Traditional channel access can be inefficient when a portion of a wide channel is occupied by interference (e.g., a legacy radar signal). The CW9176I-RTG uses preamble puncturing to dynamically "punch through" this interference, allowing it to use the remaining, clean portions of the channel (MRUs) rather than abandoning the entire wide channel. This results in significantly higher spectral efficiency and consistent performance even in congested RF environments.

In-Depth Hardware Architecture & Performance Specifications

The Cisco CW9176I-RTG's hardware is meticulously crafted to unleash the potential of Wi-Fi 7, built for scalability and relentless operation.

Tri-Band Radio Configuration and Throughput

This AP features three independent, concurrently operating radios that define its "Tri-Band" designation:

Radio 1 (6 GHz): Dedicated Wi-Fi 7 radio supporting up to 4 spatial streams and 320 MHz channels. Serves as the primary high-performance band for modern Wi-Fi 7 and Wi-Fi 6E clients.
Radio 2 (5 GHz): High-performance dual-mode radio supporting Wi-Fi 7/6/5 clients with up to 4 spatial streams and 160 MHz channels. Essential for supporting legacy high-throughput devices.
Radio 3 (2.4 GHz): Optimized for IoT and legacy device support, providing robust coverage and connectivity for sensors, older devices, and applications where range is paramount over speed.

The aggregate theoretical data rate exceeds 10 Gbps, making the integrated 10 Gigabit Ethernet uplink a necessity, not a luxury, to prevent a network bottleneck.

The Critical Role of the 10 Gigabit Ethernet Uplink

A wireless access point is only as fast as its connection to the wired network. The CW9176I-RTG's multi-gigabit 10GBASE-T Ethernet port ensures that the immense wireless capacity generated by the tri-band Wi-Fi 7 radios can be faithfully backhauled to the network core. This eliminates the uplink congestion that can plague high-density deployments with standard 1 GbE or even 2.5 GbE ports, ensuring true multi-gigabit wireless performance is delivered end-to-end.

Advanced Antenna Design and IoT Readiness

Featuring an integrated, optimized antenna array, the AP provides robust omnidirectional coverage. Furthermore, it includes dedicated Bluetooth Low Energy (BLE) and Zigbee radios, positioning it as a unified connectivity hub. This allows the AP to manage not just Wi-Fi clients but also a vast ecosystem of location services, asset tags, building sensors, and IoT devices from a single, centrally managed infrastructure point.

Deployment Models: Catalyst vs. Meraki

The "CW" prefix in CW9176I-RTG indicates its membership in the Cisco Catalyst Wi-Fi family, which is a key distinction for network architects.

Cisco Catalyst (CW9176I-RTG): For Maximum Control and Integration

Deployed as part of a Cisco Catalyst Center (formerly DNA Center) network, this AP offers:

Deep Integration with Cisco IOS XE: Full programmability and feature parity with the Catalyst switching ecosystem.
Catalyst Center Management: Intent-based networking, AI/ML-driven assurance, and seamless policy across wired and wireless domains.
On-Premises or Cloud-Managed: Flexibility in deployment model to meet specific IT and security policies.

Comparison to Meraki MR Series

While the Meraki MR57 is a similar Wi-Fi 7 tri-band AP from Cisco, the key difference lies in the management paradigm. The Meraki model is exclusively cloud-managed via the Meraki dashboard, renowned for its simplicity and visibility. The Catalyst CW9176I-RTG is designed for organizations that require deep integration with an on-premises Cisco infrastructure, granular control via CLI or APIs, and those operating in environments where cloud management may not be feasible.

Target Applications and Use Cases

The capabilities of the CW9176I-RTG translate into tangible benefits for specific high-stakes environments.

High-Density Venues: Stadiums, Auditoriums, and Conference Centers

In venues where thousands of users simultaneously demand high bandwidth, MLO and 320 MHz channels manage client load intelligently. Puncturing ensures performance remains stable even with unpredictable interference, providing attendees with a seamless experience for streaming, social media, and cashless transactions.

Enterprise Offices and Financial Trading Floors

For latency-sensitive applications like high-frequency trading, video-based collaboration, and large financial data transfers, the deterministic low latency provided by MLO and the raw throughput of the AP are critical. It enables a truly wireless office without compromising on performance or reliability.

Healthcare and Telemedicine

The combination of reliable MLO for critical medical device connectivity, high throughput for medical imaging transfer, and integrated IoT for asset tracking and patient monitoring makes this AP a cornerstone of modern digital hospital infrastructure.

Education and Research Institutions

Supports campus-wide connectivity, from lecture hall density to high-performance computing for research labs transferring massive datasets wirelessly. 4K-QAM benefits close-proximity devices in classrooms and labs.

Security and Network Intelligence

Performance is matched by a comprehensive security posture embedded within the AP and the Catalyst ecosystem.

Integrated Threat Defense and Encryption

The AP supports the latest WPA3 encryption protocols and can integrate with Cisco Identity Services Engine (ISE) for granular policy enforcement, dynamic segmentation, and compliance. It provides visibility and mitigation for threats at the access layer.
