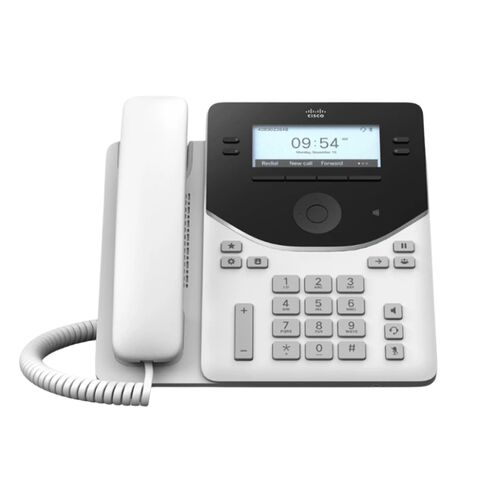

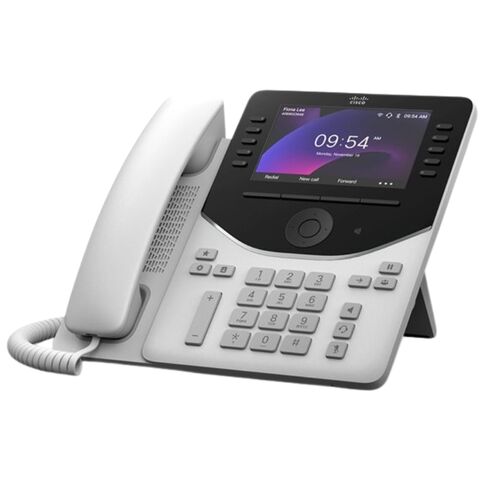

DP-9841-L-K9 Cisco TPM 2.0, Gigabit Ethernet IP Phone

Core Technology and Architecture

The Cisco DP-9841-L-K9 is engineered from the ground up for performance and resilience. Its architecture is a blend of premium hardware components and intelligent software, all orchestrated by Cisco's robust Cisco IOS Software. This foundation ensures seamless integration into existing Cisco Unified Communications Manager (CUCM) environments and delivers enterprise-grade features that go far beyond basic dial-tone service.

Processing Power and Performance

At its heart, the phone is powered by a high-performance processor and dedicated digital signal processors (DSPs). This hardware synergy enables the device to handle multiple concurrent tasks effortlessly—from running XML applications and encrypting media streams to supporting wideband audio codecs without any degradation in call quality or system responsiveness. The powerful internals ensure that even the most demanding features, such as video through the built-in USB port or complex call routing, operate smoothly.

Memory and Storage Specifications

The device is equipped with ample flash memory and RAM. This not only facilitates faster boot times and snappy menu navigation but also allows for the storage of personal directories, call logs, and essential configuration files directly on the device. The generous memory allocation is crucial for supporting future firmware upgrades and feature enhancements from Cisco, ensuring the phone's longevity and adaptability.

The Pillars of the DP-9841-L-K9: Key Feature Deep Dive

The superiority of the Cisco DP-9841-L-K9 is built upon three foundational pillars: Uncompromising Security, Network Performance, and Audio Fidelity. Each pillar incorporates cutting-edge technology to address specific enterprise challenges.

Pillar 1: Uncompromising Security with TPM 2.0

In an era of sophisticated cyber threats, securing voice communications is paramount. The Cisco DP-9841-L-K9 integrates a dedicated Trusted Platform Module (TPM) 2.0 chip, a hardware-based security cornerstone.

What is TPM 2.0 and Why It Matters

The TPM 2.0 is a secure cryptoprocessor that serves as a hardware root of trust. It provides a tamper-resistant environment for generating, storing, and managing cryptographic keys. Unlike software-based security, which is vulnerable to remote attacks, the TPM is a physical component designed to resist physical and logical tampering.

Security Functions Enabled by the TPM

Secure Boot: Ensures the phone boots only with authentic, unaltered Cisco firmware, preventing malware from loading during startup.
Device Identity and Authentication: The TPM provides a unique, non-cloneable identity for the phone, making spoofing extremely difficult and strengthening network access control.
Encrypted Media and Signaling: It securely stores the keys used for encrypting SIP signaling (TLS) and media streams (SRTP), ensuring end-to-end call confidentiality and integrity.
File System Encryption: Sensitive configuration and user data stored on the phone can be encrypted, protecting information if the device is physically compromised.

Pillar 2: Robust Network Connectivity: Gigabit Ethernet and PoE

Network performance is critical for voice quality and feature support. This phone is equipped with a sophisticated network interface featuring two auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports.

Dual-Port Architecture and Benefits

The dual-port design includes an internal Ethernet switch. The Network port (UP-LINK) connects to your LAN switch, while the PC port (DOWN-LINK) can connect a desktop computer. This setup:

Eliminates the need for a separate network cable for the PC, reducing cable clutter.Allows the phone to act as a trusted network access point, enabling network policies to be applied based on the phone's authenticated identity.

Power over Ethernet (PoE) Compliance

The phone is fully compliant with IEEE 802.3af PoE (Class 3) and can also support the higher power 802.3at PoE+ standard. This means it can receive both data and electrical power over a single Ethernet cable from a compatible PoE switch or injector. The benefits are substantial:

Simplified Deployment: No need for power outlets at every desk, allowing for flexible placement and cleaner office aesthetics.
Centralized Power Management: Enables remote power cycling and provides centralized backup power (via a UPS on the network switch) for continued communication during local power outages.
Cost Reduction: Reduces installation costs associated with electrical wiring.

Pillar 3: Superior Audio and User Experience

The ultimate purpose of a phone is crystal-clear communication. The DP-9841-L-K9 is designed to deliver an exceptional acoustic experience for both the user and the person on the other end of the call.

High-Fidelity Audio Codecs

The phone supports a wide array of audio codecs, including G.711, G.722, G.729, and Opus. The support for G.722 and Opus is particularly noteworthy, as these are wideband codecs that transmit a broader frequency range than traditional telephony. This results in HD Voice quality—conversations sound more natural, with greater clarity and the ability to distinguish between similar-sounding consonants, reducing listener fatigue and misunderstanding.

Acoustic Design and Components

Cisco has invested heavily in the acoustic engineering of this device. It features a high-quality, wideband-capable handset and built-in speakerphone (hands-free speaker) that are optimized to suppress background noise and echo. Advanced algorithms for Acoustic Echo Cancellation (AEC) and Background Noise Reduction ensure that call participants are heard clearly, even in moderately noisy environments like busy offices.

Physical Design and Interface

The Cisco DP-9841-L-K9 boasts a professional, durable design built for intensive daily use. Its layout is intuitive, prioritizing user efficiency.

Display and Touch Interface

The phone features a large, high-resolution, grayscale display that provides excellent visibility even in varied lighting conditions. While primarily navigated via dedicated buttons and a navigation cluster, its intuitive interface allows users to quickly access call histories, corporate directories, speed dials, and configured features. The display is crucial for showing call information, presence status, and softkeys that dynamically change based on context.

Button Layout and Programmable Line Keys

The device comes equipped with multiple programmable line/speed-dial buttons. These can be configured as:

Line Keys: For direct access to multiple phone lines or extensions.
Speed Dial Keys: For one-touch dialing to important contacts.
Feature Keys: For activating functions like call forward, transfer, conferencing, or voicemail access.

This programmability, managed through CUCM, tailors the phone to the specific workflow of the user, whether they are a receptionist managing dozens of calls or an executive needing quick access to key team members.

Integration and Ecosystem Compatibility

The true power of the Cisco DP-9841-L-K9 is realized when it is deployed as part of a holistic Cisco collaboration ecosystem.

Cisco Unified Communications Manager (CUCM)

As a native Cisco endpoint, the phone is fully certified and optimized for use with CUCM. It supports all advanced CUCM features, including:

Extension Mobility: Users can log into any compatible phone and have their personal profile (line appearances, speed dials, services) follow them.
Device Mobility: Automatically reconfigures network settings when the phone is moved to a different subnet.
Integrated Security Features: Easy configuration of TLS and SRTP via the CUCM administration interface.
Centralized Firmware Management: Seamless, mass deployment of firmware updates from the CUCM server.

Application Integration

Beyond core telephony, the phone supports integration with various applications:

USB Peripheral Support: The USB port can connect a camera for video calls (when supported by CUCM) or a Bluetooth dongle for wireless headset connectivity.
XML Services: The phone can run lightweight XML applications, allowing it to display custom corporate information (weather, stock tickers, news feeds) or interact with web-based tools.
