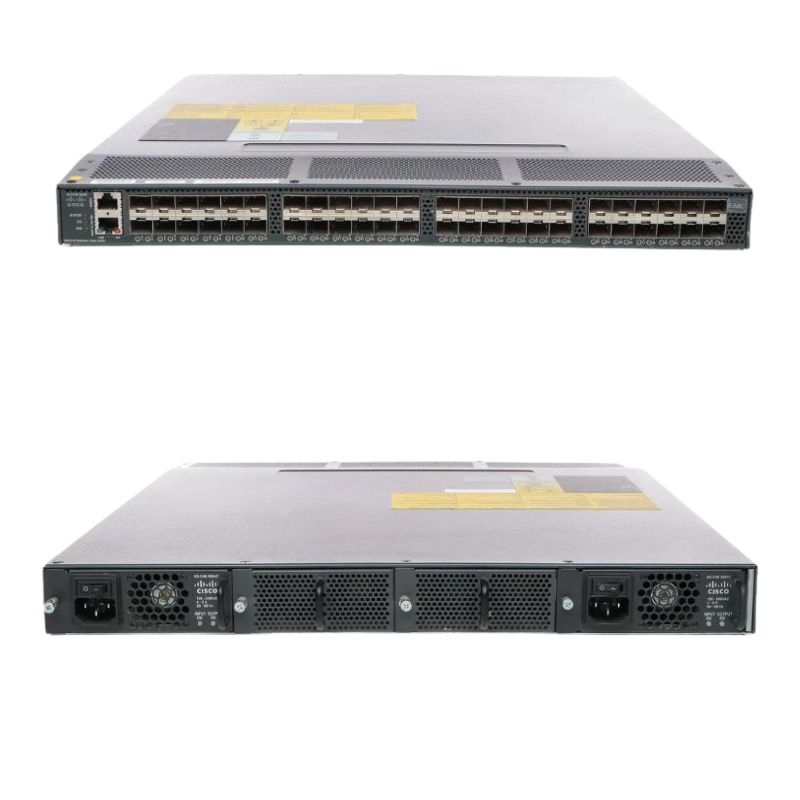

Cisco DS-C9148D-8G16P-K9 Fibre Channel Switch

Overview of Cisco DS-C9148D-8G16P-K9 Fibre Channel Switch

The Cisco MDS 9148 is part of the MDS 9100 series, delivering reliable, scalable, and high-performance Fibre Channel switching capabilities. Specifically designed to meet the needs of data centers, it offers flexible deployment options for SAN environments.

Manufacturer Details

• Manufacturer: Cisco
• Part Number: DS-C9148D-8G16P-K9
• Series: MDS 9100
• Model: MDS 9148

Key Features of the MDS 9148 Fibre Channel Switch

• Supports up to 16 Fibre Channel ports, making it suitable for growing storage environments.
• Multi-protocol support with F_Port, FL_Port, and E_Port functionalities.
• Seamless integration into SAN infrastructures with various port types for high flexibility.

Performance & Connectivity

• Delivers a data transfer rate of 8 Gbps for fast, reliable data throughput.
• Offers F_Port, FL_Port, and E_Port, ensuring connectivity across various network setups.

Advanced Management Capabilities

• Comprehensive management tools including CLI, SNMP, and SMI-S for easy system configuration and monitoring.
• Out-of-band management options are available via 10/100/1000 Ethernet port and EIA/TIA-232 serial console port.
• In-band management over Fibre Channel over IP (FCIP) for enhanced control.

Enhanced Security Features

• Includes robust security protocols such as SSHv2 and SNMPv3 to protect sensitive data.
• Role-based access control (RBAC) using RADIUS or TACACS+ authentication, ensuring strict access policies.
• VSAN-based roles to further secure multi-tenant environments.

Power Efficiency and Reliability

• Equipped with redundant power supply, ensuring high availability and system uptime.
• Designed to meet the power demands of modern data centers without compromising performance.

Flexible Integration Options

• Out-of-band and in-band access methods ensure you can choose the best management strategy for your network.
• Fully manageable using industry-standard protocols, making it easy to deploy and operate within existing infrastructures.

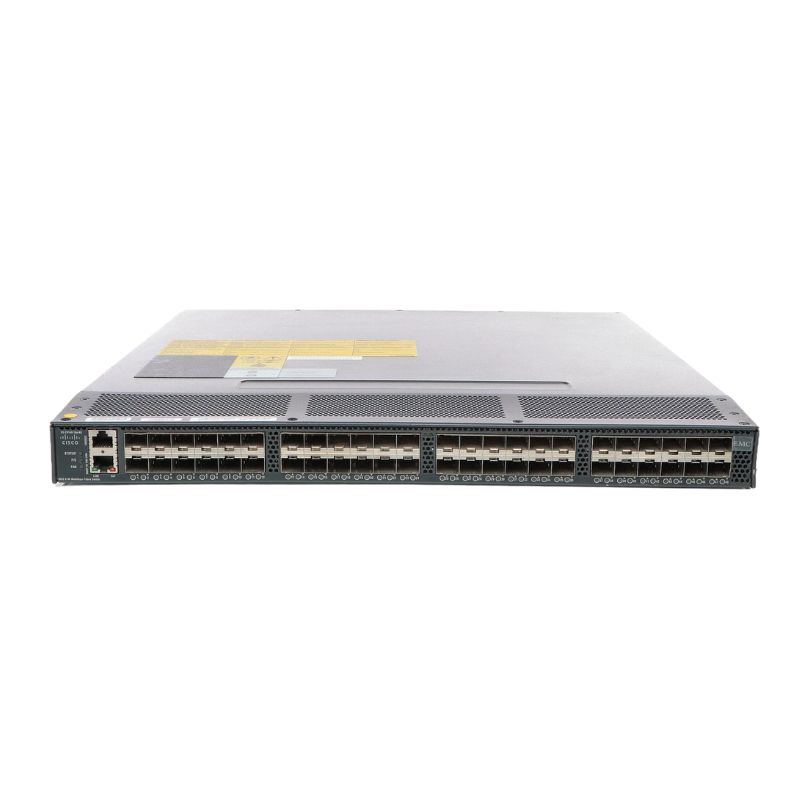

Ports

The Cisco DS-C9148D-8G16P-K9 Fibre Channel Switch is equipped with a total of 48 ports, making it an ideal choice for organizations that require a high-density switch. With this switch, users can connect multiple devices, such as servers and storage systems, to the network, enabling efficient data transfer and communication.

Increased Flexibility

The 48 ports on the Cisco DS-C9148D-8G16P-K9 provide users with enhanced flexibility. They can easily connect a wide range of devices to the switch, including servers, storage systems, and other networking equipment. This allows for seamless integration of different components within the network infrastructure, enabling efficient data transfer and resource sharing.

Scalability

The abundance of ports on this Fibre Channel switch ensures scalability for growing organizations. As businesses expand and their network demands increase, the Cisco DS-C9148D-8G16P-K9 can accommodate additional devices without the need for investing in additional switches or infrastructure. This scalability feature saves both time and money for organizations.

Improved Network Performance

Having 48 ports on the Cisco DS-C9148D-8G16P-K9 switch ensures optimal network performance. Each port can handle high-speed data transmission, allowing for smooth and efficient communication between devices. The increased number of ports also reduces congestion on the network, ensuring uninterrupted data flow and minimizing latency.

Speed

The Cisco DS-C9148D-8G16P-K9 Fibre Channel Switch offers a maximum speed of 8Gbps. This impressive speed enables fast and reliable data transfer between connected devices. Whether it's transferring large files or streaming high-definition media, this switch ensures that data is transmitted at lightning-fast speeds.

Enhanced Productivity

The 8Gbps speed of the Cisco DS-C9148D-8G16P-K9 switch significantly improves productivity for businesses. Users can quickly access and transfer files, reducing waiting times and enhancing workflow efficiency. This speed is particularly beneficial for organizations that deal with large volumes of data regularly, such as media production companies or scientific research facilities.

Reduced Downtime

The high-speed capability of this Fibre Channel switch helps minimize downtime in the network. With faster data transfer rates, tasks that require substantial bandwidth can be completed quickly, reducing the time needed for data-intensive processes. This ensures that critical operations and applications run smoothly without interruptions, enhancing overall network reliability.

Future-Proofing

The 8Gbps speed offered by the Cisco DS-C9148D-8G16P-K9 switch ensures compatibility with future technologies and advancements. As the demand for faster data transfer speeds continues to grow, this switch will be able to accommodate higher bandwidth requirements, allowing organizations to future-proof their network infrastructure.

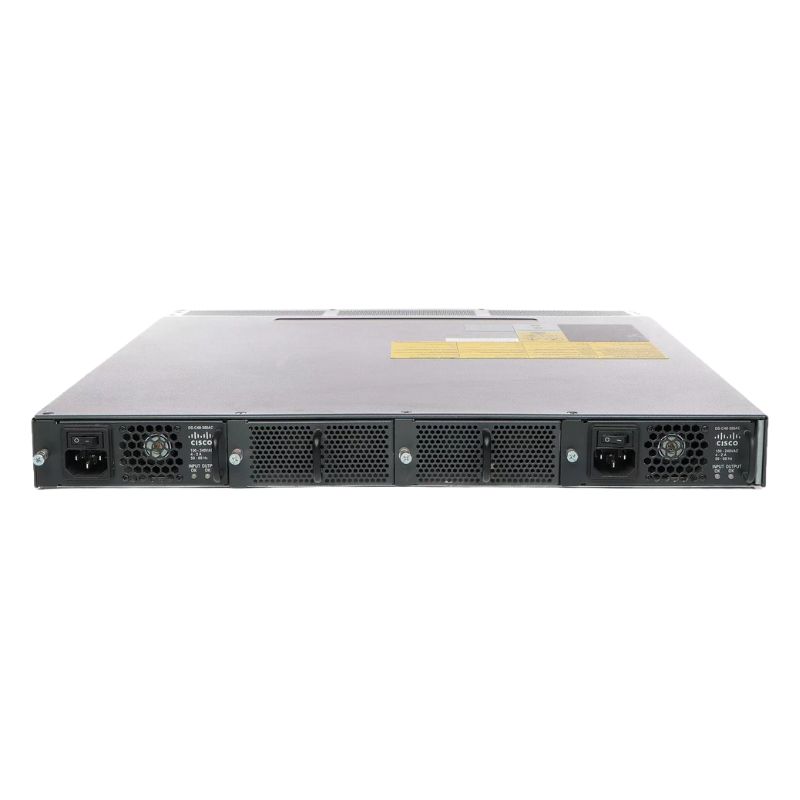

Power

The Cisco DS-C9148D-8G16P-K9 Fibre Channel Switch features 16 power ports, making it a suitable choice for organizations with multiple devices that require power connectivity. This power capability ensures that devices can be efficiently powered and operated within the network infrastructure.

Simplified Power Management

With 16 power ports, the Cisco DS-C9148D-8G16P-K9 switch simplifies power management for organizations. Users can connect a variety of devices to the switch, including servers, storage systems, and other networking equipment, without the need for additional power sources or complicated wiring. This streamlined power management process saves time and effort for IT administrators.

Centralized Power Distribution

The 16 power ports on this Fibre Channel switch enable centralized power distribution. Users can connect multiple devices to the switch, which acts as a central power hub. This eliminates the need for individual power sources for each device, reducing clutter and simplifying cable management. Centralized power distribution also enhances safety by minimizing the risk of electrical hazards.

Redundancy and Resilience

The power redundancy provided by the Cisco DS-C9148D-8G16P-K9 switch ensures continuous operation even in the event of a power failure. With 16 power ports, organizations can implement redundant power supplies to ensure uninterrupted power supply to critical devices. This redundancy feature enhances network resilience and minimizes downtime due to power-related issues.

Management Interface

The Cisco DS-C9148D-8G16P-K9 Fibre Channel Switch offers multiple management interfaces, including CLI (Command Line Interface), SNMP (Simple Network Management Protocol), and Web GUI (Graphical User Interface). This comprehensive range of management options allows users to efficiently monitor and control the switch, ensuring optimal network performance.

Flexibility in Configuration

The CLI, SNMP, and Web GUI interfaces provide users with flexibility in configuring and managing the Cisco DS-C9148D-8G16P-K9 switch. The CLI interface allows advanced users to leverage command-line instructions for granular control over switch settings. SNMP enables centralized management through network management systems, offering a holistic view of the network infrastructure. The Web GUI provides a user-friendly interface for easy configuration and monitoring, making it accessible to users with varying levels of technical expertise.

Efficient Troubleshooting

The availability of multiple management interfaces simplifies troubleshooting processes for IT administrators. Whether it's diagnosing network issues or identifying potential bottlenecks, these interfaces offer different approaches to monitor and analyze switch performance. With detailed information and control options, administrators can quickly identify and resolve network problems, minimizing downtime and ensuring smooth network operation.

Remote Management

The CLI, SNMP, and Web GUI interfaces enable remote management of the Cisco DS-C9148D-8G16P-K9 switch. IT administrators can access and manage the switch from any location with network connectivity, eliminating the need for physical presence. Remote management capabilities enhance efficiency by allowing administrators to quickly respond to network issues or perform necessary configuration changes without delay.

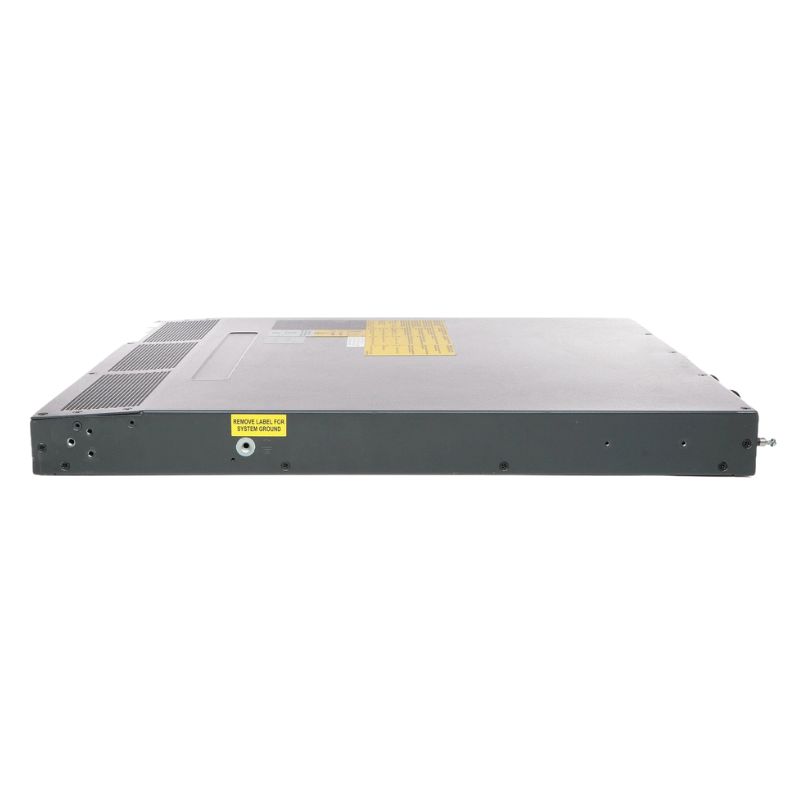

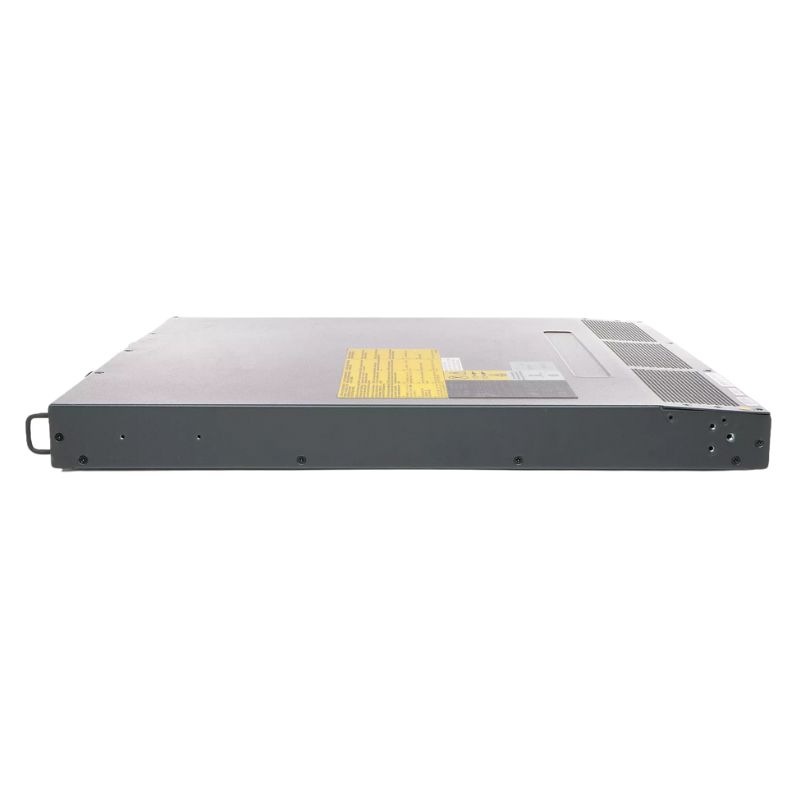

Form Factor

The Cisco DS-C9148D-8G16P-K9 Fibre Channel Switch features a 1U rack-mountable form factor. This compact design allows for efficient space utilization in data centers or network closets, making it an ideal choice for organizations with limited space.

Space Optimization

The 1U form factor of the Cisco DS-C9148D-8G16P-K9 switch optimizes space utilization in data centers or network closets. With its compact design, this switch can be easily mounted in a standard 19-inch rack, minimizing the footprint required for installation. This space-saving feature is particularly beneficial for organizations that need to maximize their available space or have limited rack capacity.

Ease of Installation

The 1U rack-mountable design simplifies the installation process for IT administrators. The switch can be conveniently mounted in a rack without the need for additional brackets or complex assembly procedures. This ease of installation reduces deployment time and effort, allowing organizations to quickly integrate the switch into their existing infrastructure.

Improved Airflow and Cooling

The 1U form factor promotes efficient airflow and cooling within the rack. The compact design allows for better airflow management, preventing heat buildup and ensuring optimal operating temperatures for the switch and other devices in the rack. Improved airflow and cooling capabilities enhance the overall reliability and longevity of the network infrastructure.

Features

The Cisco DS-C9148D-8G16P-K9 Fibre Channel Switch offers a range of advanced features, including port-channel support, Quality of Service (QoS), Virtual SANs (VSANs), and Fabric Shortest Path First (FSPF). These features contribute to the switch's performance, reliability, and security, making it a versatile solution for various networking requirements.

Port-channel Support

Port-channel support allows users to aggregate multiple physical ports into a single logical interface. This feature enhances bandwidth capacity and load-balancing capabilities within the network. By combining multiple ports, organizations can achieve higher throughput and redundancy while simplifying network configuration and management.

Quality of Service (QoS)

The Quality of Service feature prioritizes network traffic based on predefined policies, ensuring that critical applications receive the necessary bandwidth and latency requirements. QoS enables organizations to optimize network performance by allocating resources appropriately, guaranteeing a consistent level of service for mission-critical applications. This feature is particularly important for organizations that rely on real-time applications or require strict performance guarantees.

Virtual SANs (VSANs)

Virtual SANs allow organizations to create logical partitions within the physical switch infrastructure. This segregation enhances security and optimizes resource utilization by isolating traffic between different departments or user groups. VSANs enable efficient management of storage resources while maintaining data integrity and confidentiality.

Fabric Shortest Path First (FSPF)

Fabric Shortest Path First is a routing protocol specifically designed for Fibre Channel networks. FSPF selects the most efficient paths for data transmission within the fabric, optimizing performance and reducing latency. By dynamically calculating the shortest path, FSPF ensures quick and reliable delivery of data across the network, enhancing overall network efficiency and reliability.
