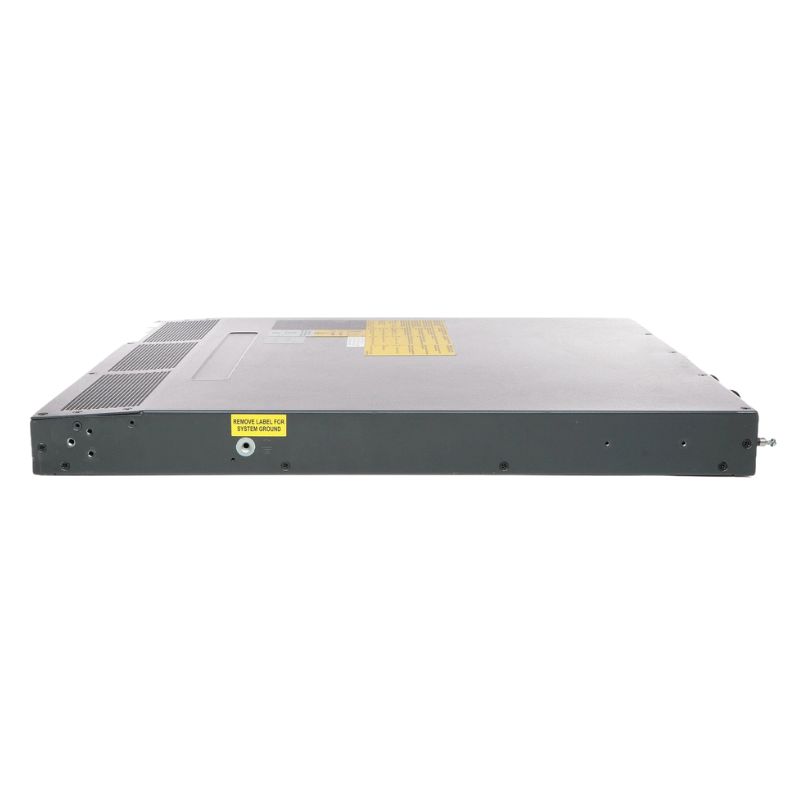

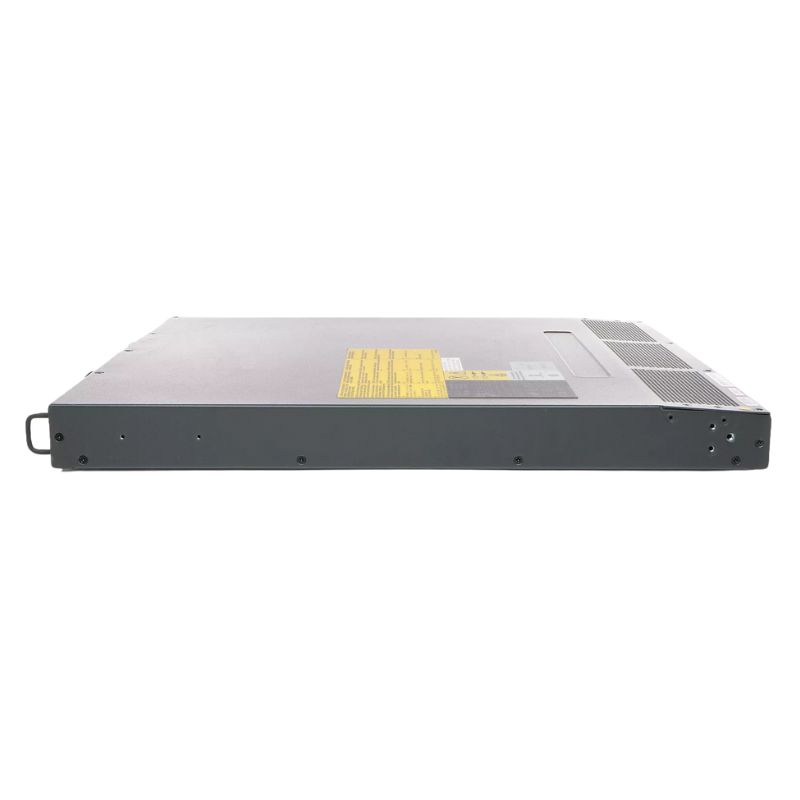

Cisco DS-C9148D-8G32P-K9 32 Ports Multi-Layer Fabric Channel Managed Switch

Cisco DS-C9148D-8G32P-K9 Multi-Layer Fabric Channel Managed Switch Overview

The Cisco DS-C9148D-8G32P-K9 delivers dependable Fibre Channel performance with 32 dedicated 8Gb ports, designed for intensive data center workflows. Its compact 1U structure, strong protocol compatibility, and extensive management features make it suitable for scalable SAN environments.

Key Product Highlights

• Manufacturer: Cisco
• Part Number / SKU: DS-C9148D-8G32P-K9
• Product Category: Multi-Layer Fibre Channel Switch
• Port Count: 32 high-speed 8Gb FC interfaces

Technical Capabilities and Architecture

Engineered for reliability, this switch supports a wide spectrum of Fibre Channel standards, advanced security layers, and intelligent fabric services to optimize throughput and minimize latency.

Hardware Format and Build

• Compact 1U desktop enclosure ideal for dense rack environments
• 32 × 8Gb Fibre Channel connections ensuring seamless data transmission
• Maximum transfer distance of 2821 feet for flexible deployment

Supported Fibre Channel Standards

Broad compatibility with numerous FC revisions enhances cross-platform interoperability:

• FC-AL, FC-AL-2, FC-BB, FC-DA, FC-FLA, FC-FS, FC-GS, FC-GS-3, FC-GS-4
• FC-IP, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3
• FC-SW-2, FC-SW-3, FC-TAPE, FC-VI, FC-SP, FCP-4, FC-BB-2
• FCP, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4
• FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5

Management and Security Tools

Enhanced control mechanisms allow administrators to tailor and monitor traffic seamlessly:

• Remote Management: RMON, SNMPv3, SSH-2
• Security Protocols: AES encryption, RADIUS, TACACS+, SSHv2, DH-CHAP authentication
• Operational Enhancements: Hot-swap modules, auto-sensing, trunking, ISL support
• Advanced Fabric Features: Syslog, ACL handling, QoS prioritization, LUN zoning
• Status Indicators: Power, port activity, system status

Connectivity and Expansion Options

The switch provides an assortment of management and Fibre Channel ports for flexible integration.

Interface Breakdown

• 1 × 1000BASE-T RJ-45 (management)
• 1 × RJ-45 console interface

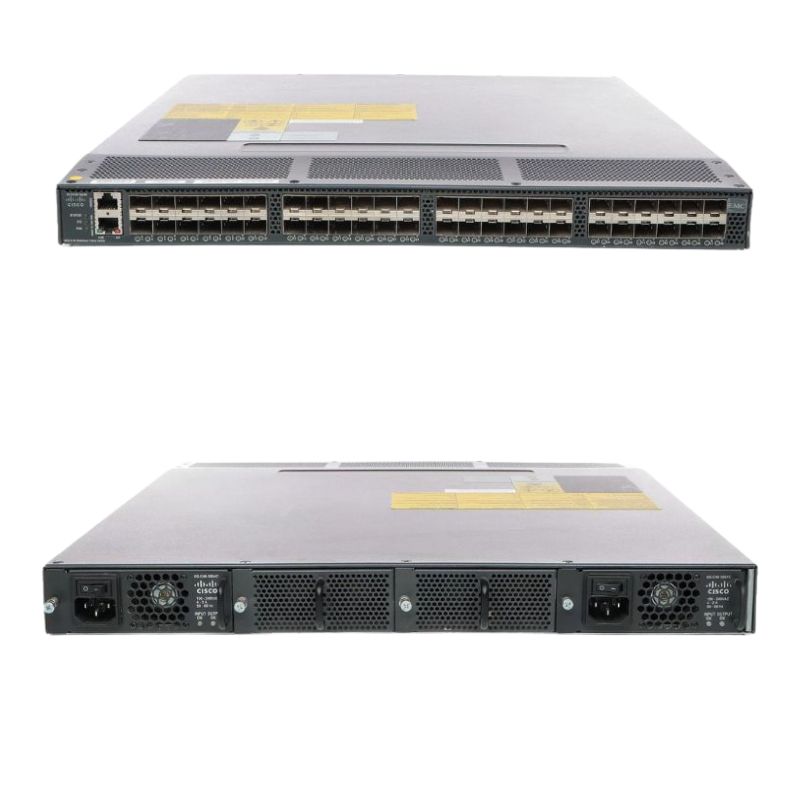

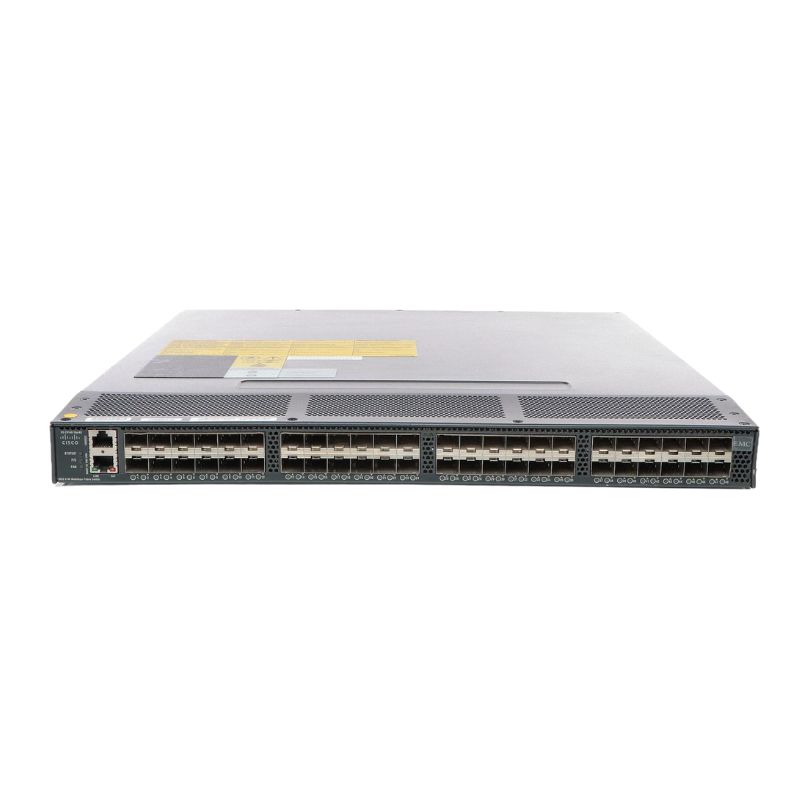

• 32 × 8Gb Fibre Channel (SW) LC × 2

Scalability Advantages

• Supports multi-fabric environments
• Engineered for SAN consolidation and stable high-volume traffic
• Designed to adapt to future storage expansion needs

Power Performance and Reliability

High-efficiency power configurations ensure continuous operation with minimal downtime.

Energy and Power Setup

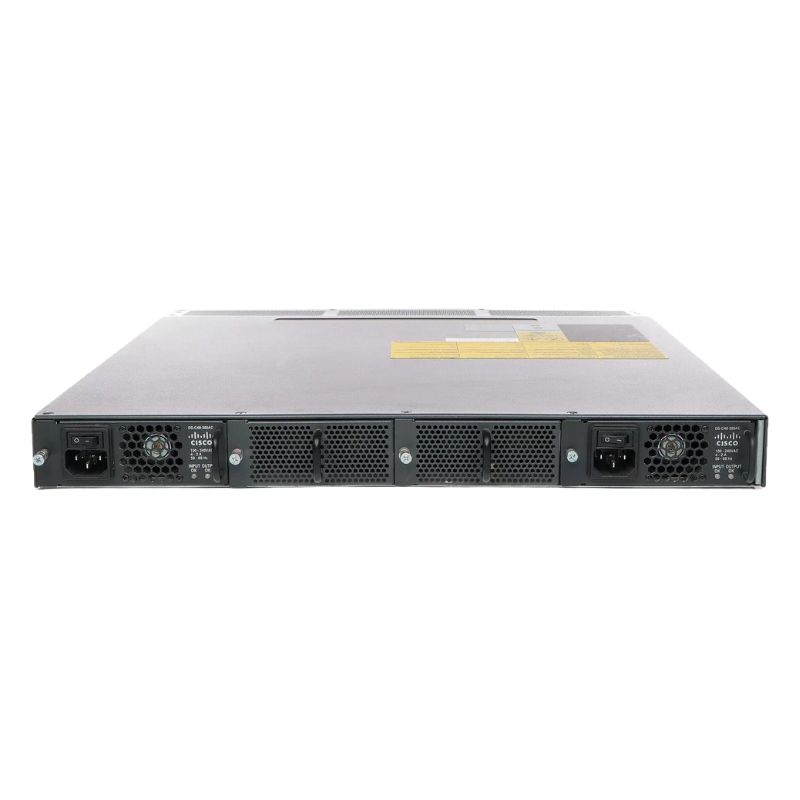

• Internal power modules: Hot-plug design
• Quantity installed: 2 (supports up to 2)
• Power redundancy: 1+1 scheme for uninterrupted service
• Voltage: AC 120/230V, 50/60Hz
• Operational consumption: Approx. 300W

Operational Stability

• Reduced risk of downtime through redundant PSU design
• Optimized cooling for sustained high-performance workloads
• Ideal for enterprises requiring consistent fabric throughput

Cisco DS-C9148D-8G32P-K9 Multi-Layer FC Switch 32 Ports

The Cisco DS-C9148D-8G32P-K9 Multi-Layer Fabric Channel Managed Switch 32 Ports category represents a family of high-performance storage networking switches designed for mission-critical environments where predictable latency, deterministic throughput, and enterprise-grade resiliency are non-negotiable. This category focuses on switches built to support converged storage area networks and data center fabrics, offering 32 dedicated ports engineered to simplify SAN topologies while delivering advanced traffic management, robust diagnostics, and comprehensive management interfaces. Content in this category emphasizes the DS-C9148D-8G32P-K9 as a platform for modern storage architectures, showing how it integrates into enterprise fabric strategies, streamlines operations, and enables scale-out growth without sacrificing control or security.

Architecture and Design Principles of the DS-C9148D-8G32P-K9 Series

The design philosophy behind this multi-layer fabric channel managed switch centers on modularity, deterministic performance, and operational simplicity. The switch is engineered with a layered fabric approach that separates control, management, and data planes to optimize forwarding performance and maintain predictable latency under variable load. The physical layout and port mapping are tuned for dense storage topologies: 32 front-facing ports that support a mix of host and storage node connectivity patterns commonly found in enterprise SAN deployments. Thermal design and power delivery follow enterprise reliability standards to ensure continuous operations in data center racks where airflow, power redundancy, and rack density are critical considerations.

Chassis, Port Density, and Physical Considerations

The 1U or compact form factor of the DS-C9148D-8G32P-K9 category balances port density and rack space economy. Rack-mount options allow integration into existing cabinet layouts with standard rails and cable management practices. Front-accessible ports facilitate quick troubleshooting and hot-swap replacement in mixed vendor environments. Attention to airflow direction and front-to-back cooling ensures compatibility with data center cooling strategies, while power supply redundancy options and efficient power consumption profiles reduce operational costs and improve availability for continuous workloads.

Switch Fabric and Internal Data Paths

At the core of the DS-C9148D-8G32P-K9 family is a deterministic switch fabric engineered to handle storage traffic patterns with minimal jitter. Internal queues and scheduling policies prioritize storage frames and minimize head-of-line blocking, which is essential for latency-sensitive applications such as high-performance databases, virtualization platforms, and transactional storage systems. The multi-layer fabrics incorporate hardware acceleration for common storage protocols, enabling line-rate switching and advanced features without introducing CPU bottlenecks.

Performance Characteristics and Throughput Optimization

Performance expectations for switches in this category include sustained throughput across all 32 ports, low microsecond-class latency, and consistent frame delivery under peak transactional loads. The DS-C9148D-8G32P-K9 portfolio frequently supports adaptive buffering strategies, port-level bandwidth management, and flow control mechanisms that preserve host-to-storage determinism. Administrators can fine-tune quality of service parameters to ensure that synthetic workloads, backup windows, and dev/test traffic do not impair production application performance. These capabilities make the category suitable for mixed workload environments where throughput predictability and storage response time directly impact business outcomes.

Latency, Jitter, and Deterministic Forwarding

Enterprise-grade SAN fabrics require tight control over latency and jitter. Switch models in this category implement microsecond-level forwarding paths and hardware-based arbitration to minimize variability. Deterministic forwarding ensures that I/O completion times are consistent, which is necessary for latency-sensitive applications such as online transaction processing and real-time analytics. Built-in telemetry and per-port performance counters provide the visibility required to measure latency and adjust policies proactively.

Scalability and Non-Disruptive Expansion

Scalability is a central attribute of the DS-C9148D-8G32P-K9 category. The architecture supports non-disruptive expansion by allowing incremental addition of switches without requiring wholesale topology redesign. Fabric zoning and intelligent name services simplify device onboarding, while features like virtual SANs and segmentation enable the growth of logical fabrics in step with organizational needs. Because storage environments often expand episodically, the ability to scale port capacity and aggregate multiple switches into a coherent fabric is critical for long-term utility and investment protection.

Programmability and API-Driven Operations

As data centers move towards software-defined operations, switches in the DS-C9148D-8G32P-K9 category offer RESTful APIs and scripting hooks that integrate with configuration management tools. These programmatic interfaces support bulk operations, audit trails, and role-based access controls. The APIs facilitate configuration as code practices, which improve repeatability and enable rapid, auditable changes across multiple switch instances. Integration with automation frameworks reduces the time spent on manual configuration and helps teams maintain consistent policy enforcement across environments.

Real-Time Telemetry and Diagnostics

Visibility into fabric health is provided through rich telemetry feeds and diagnostic utilities. Real-time metrics include per-port error rates, utilization, queue depths, and latency histograms. Advanced diagnostics enable root-cause analysis by correlating events across fabric elements and preserving packet-level logs for forensic review. These capabilities shorten resolution times for performance anomalies and provide historical trend data that informs capacity planning and maintenance windows.

Security, Isolation, and Compliance Features

Security is integral to the DS-C9148D-8G32P-K9 category. Fabric-level isolation mechanisms, authentication for management access, and secure firmware validation guard against unauthorized changes. Role-based access controls and granular administrative privileges reduce the risk of configuration error or insider threats. For regulated environments, audit logging and secure transport for management protocols support compliance initiatives. Hardware-based protections against malformed frames and port-level security features help maintain data integrity and confidentiality within the storage fabric.

Fabric Segmentation and Access Controls

Logical segmentation allows multiple tenants or application domains to share the same physical fabric without cross-talk. The switch family supports zoning constructs and access control lists that restrict which initiators can reach which targets. These controls are essential in multi-tenant data centers, service provider networks, or organizations that segregate test and production SANs. Properly implemented segmentation reduces blast radius and helps teams enforce strict security postures aligned with organizational policies.

Secure Management and Firmware Assurance

Secure management channels, including support for encrypted protocols and certificate-based authentication, protect configuration workflows. Firmware image signing and secure boot features ensure that only validated code runs on the switch, reducing the attack surface for firmware-level vulnerabilities. Regular security updates and a robust update mechanism are essential components for maintaining a secure operational state over the lifetime of the switch.

Use Cases and Deployment Scenarios

Switches in this category are deployed in a variety of high-value scenarios: enterprise SAN backbones, hyper-converged infrastructure fabrics, dedicated storage clusters, and service provider multi-tenant fabrics. They are particularly well-suited for environments that require low-latency access to block storage, deterministic behavior under peak loads, and high availability for 24x7 operations. Typical applications include large-scale virtualization environments, database farms, backup and replication networks, and high-performance computing clusters where storage I/O performance is a gating factor for application responsiveness.

Enterprise Data Centers and Mission-Critical Applications

In enterprise data centers where uptime and predictable performance are essential, these switches provide the foundational SAN connectivity. Their deterministic forwarding and robust management capabilities enable administrators to maintain service-level objectives for critical applications. Integration with storage arrays and host bus adapters from leading vendors makes them a versatile choice for heterogenous environments that require interoperability and coherent management across different storage platforms.

Cloud and Service Provider Environments

Service providers and private cloud operators benefit from the multi-tenant isolation and automated provisioning features in this category. Support for high-density port aggregation and dynamic zoning enables providers to allocate storage resources to tenants efficiently while maintaining performance isolation. Billing and metering integrations are possible through telemetry exports, helping operators create SLA-backed storage services with transparent performance reporting.

Technical Specifications and Key Capabilities

Core technical aspects of the DS-C9148D-8G32P-K9 switch family include the number of front-panel ports, supported protocol speeds, buffer capacity per port, supported zoning modes, management interfaces, and available redundancy features. Additional capabilities typically include support for advanced diagnostics, secure boot and firmware signing, per-port telemetry, and hardware-accelerated switching for storage protocols. When planning deployments, technical teams should validate interoperability matrices, certify supported host bus adapters and array controllers, and ensure that management and orchestration tools are compatible with existing workflows.

Interoperability and Ecosystem Support

Robust interoperability with ecosystem partners is a critical consideration for enterprise SANs. The DS-C9148D-8G32P-K9 series is designed to interoperate with major storage array vendors, HBA manufacturers, and orchestration platforms. Verification of compatibility matrices and recommended firmware versions should be a part of any deployment checklist. Close collaboration with vendor technical support during initial rollouts and performance validation can help avoid integration pitfalls and ensure that the fabric behaves as expected under production conditions.

Maintenance, Support, and Service Models

Support and maintenance offerings for these switches typically include vendor-backed hardware warranties, optional extended support contracts, and tiered technical assistance plans. Service models that include proactive monitoring, scheduled firmware management, and rapid replacement options reduce operational risk and allow internal teams to focus on higher-value tasks. When procuring equipment, organizations should evaluate support SLAs, parts availability, and the geographic coverage of vendor support services to match operational requirements.
