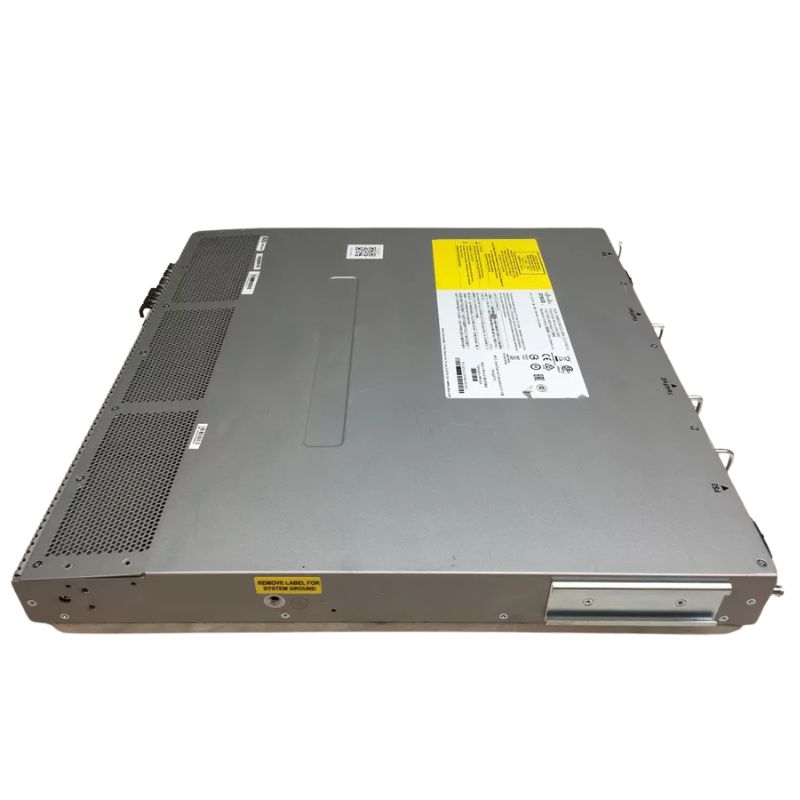

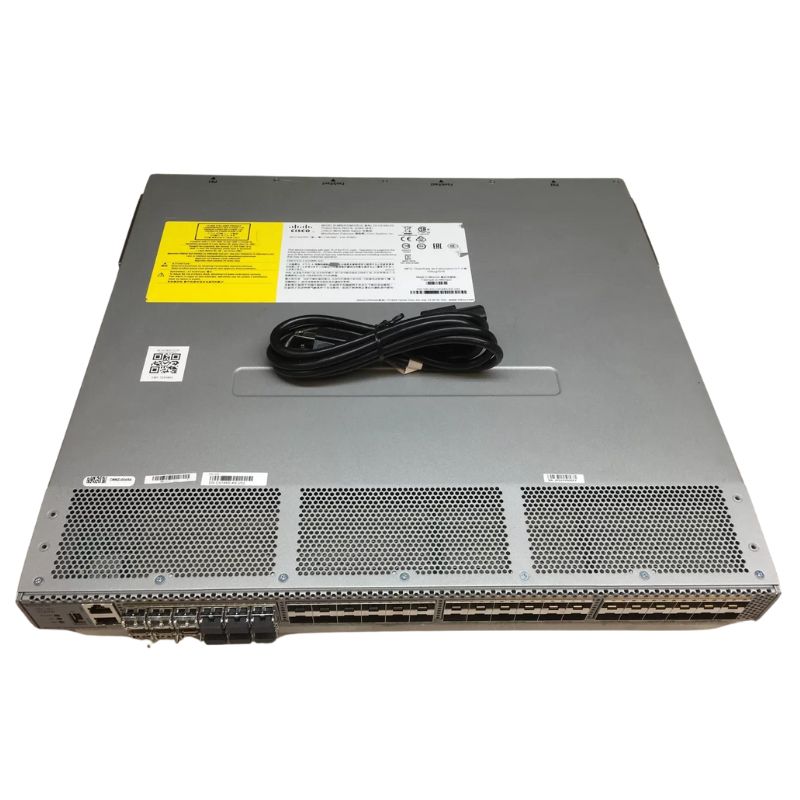

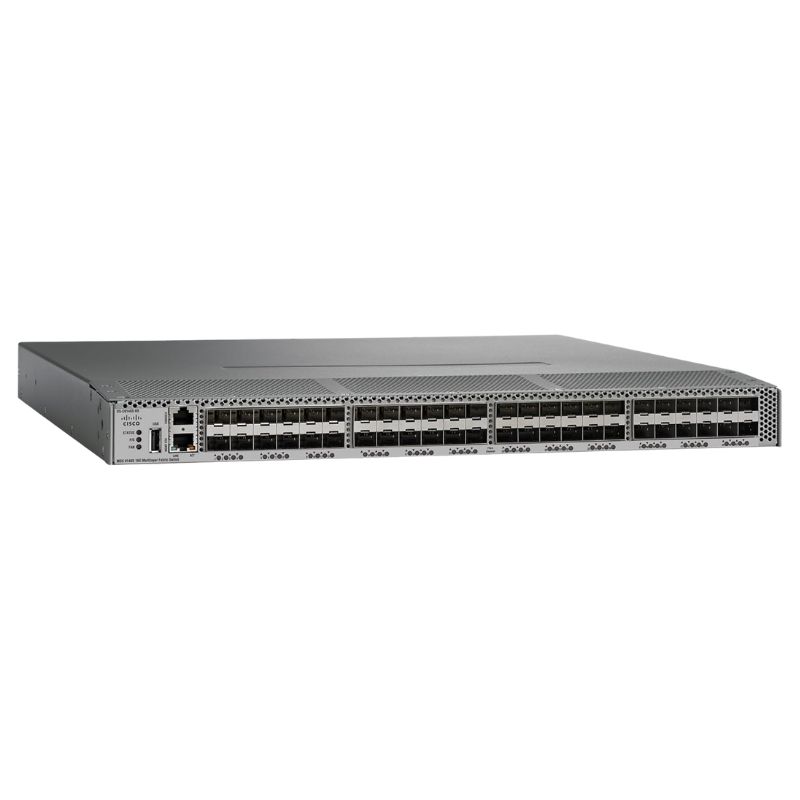

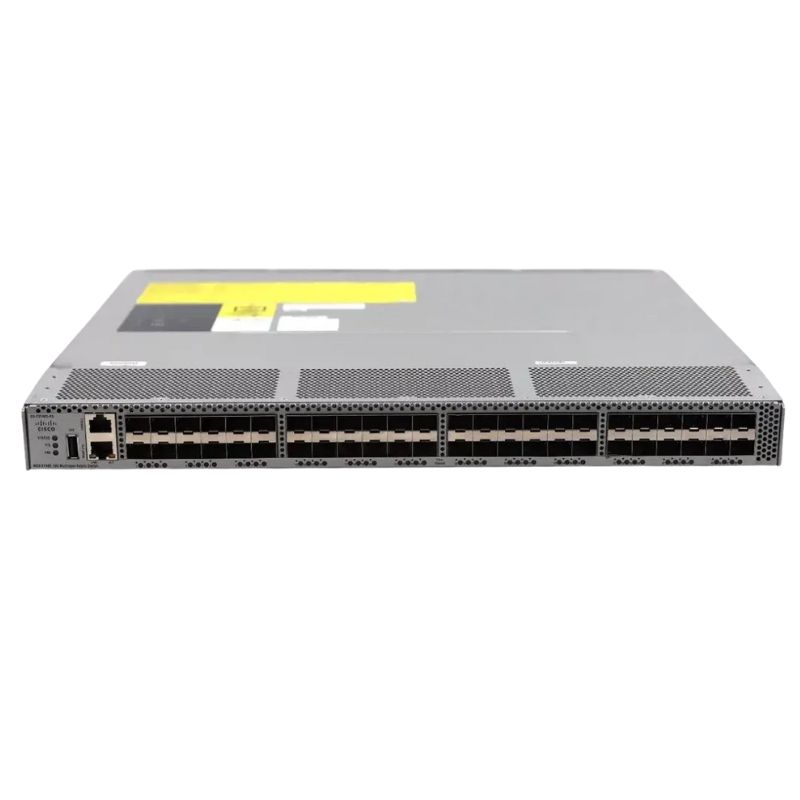

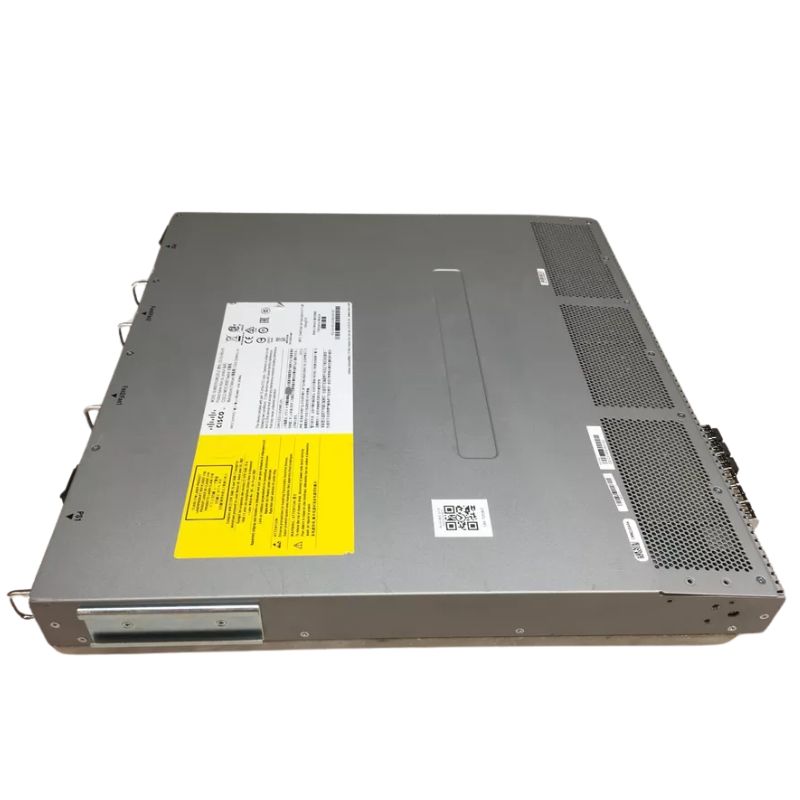

Cisco DS-C9148S-12PK9 48-Port SFP+ Fabric Switch

Main Specifications

• Brand: Cisco
• Part Number: DS-C9148S-12PK9
• Product Type: Managed Switch with 48 ports
• Form Factor: 1U Rack-mountable

Networking Capabilities

• Data Transfer Rate: 16 Gbps
• Network Subtype: Fibre Channel
• Total Ports: 48
• Port Type: RJ-45 Ethernet (LAN)
• Fibre Channel Ports: 12 x 16Gb SFP+

Supported Fibre Channel Protocols

• Extensive Fibre Channel Protocol Support, including FC-DA, FC-FLA, FC-FS, FC-GS-3, and FC-GS-4
• Compatible with FC-MI, FC-PH, FC-PI, FC-PLDA, FC-SW-2, FC-SP, FC-BB-5, FC-FS-2, FCP-2, and more

Advanced Management Features

• Remote Management Protocols: RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI
• Encryption Standard: AES for data security
• Authentication: RADIUS, TACACS+, LDAP, Active Directory, SSH2

Performance and Efficiency Enhancements

• Auto-sensing device functionality
• Inter-Switch Link (ISL) and Virtual Router Redundancy Protocol (VRRP) support
• Role-based access control with support for Access Control Lists (ACL)
• Remote Switch Port Analyzer (RSPAN) for effective monitoring
• Quality of Service (QoS) and airflow-optimized design

Connectivity and Expansion

• Management Ports: 1 x 1000Base-T RJ-45, 1 x Serial RJ-45 (RS-232), 1 x USB Type A
• Ports on Demand: 12 x 16Gb Fibre Channel SFP+, expandable to 36 additional 16Gb SFP+ ports

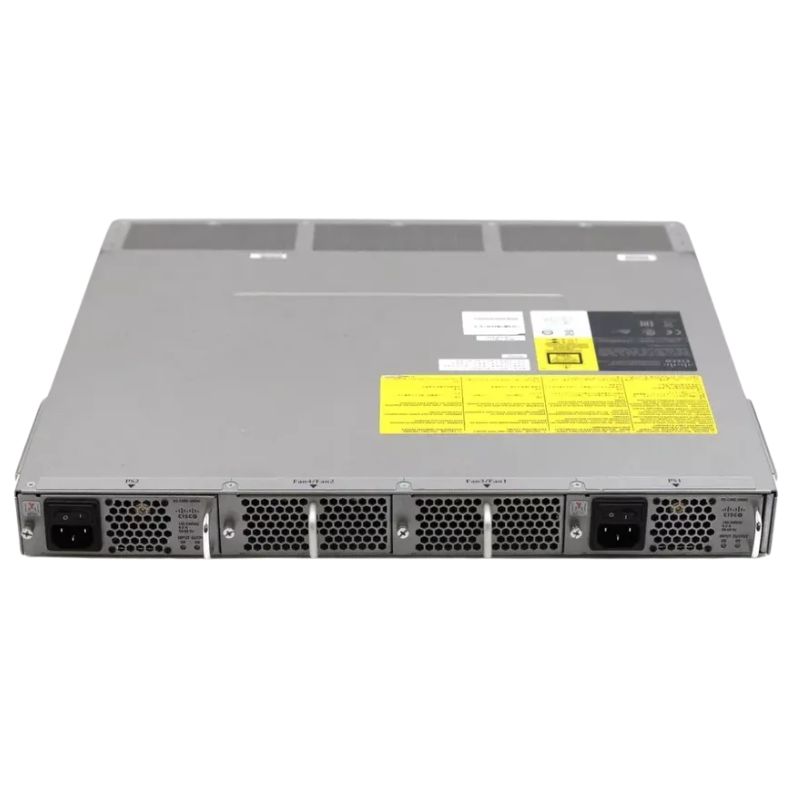

Power and Redundancy

• Power Supply: Hot-plug internal power units
• Quantity Installed: 2 (with redundancy in 1+1 configuration)
• Power Output: 300W, requiring AC 120/230V at 50/60Hz

Software and Compliance

• Pre-installed Software: Cisco Data Center Network Manager (DCNM) SAN Advanced Edition
• Licenses Included: Cisco MDS 9000 Family Enterprise Package
• Certifications: CISPR 22 Class A, EN 60950, UL 60950, FCC CFR21 Part 1040, FIPS 140-2

Ports

The Cisco DS-C9148S-12PK9 Fabric Switch is equipped with an impressive 48 ports, making it an ideal choice for organizations that require a high-density switch solution. These ports offer numerous benefits and play a crucial role in ensuring seamless connectivity and efficient network performance.

Enhanced Connectivity

Having 48 ports allows users to connect a larger number of devices to the switch, enabling seamless communication and data transfer within the network. This is particularly advantageous for businesses that require a large number of network endpoints, such as data centers or enterprise networks. With a higher port count, organizations can easily accommodate the increasing demand for connectivity without compromising on performance.

Scalability

The abundance of ports in the Cisco DS-C9148S-12PK9 Fabric Switch ensures scalability, giving organizations the flexibility to expand their network infrastructure as their needs grow. Whether it's adding new devices or accommodating more users, having additional ports simplifies the process and eliminates the need for investing in additional switches or complex network configurations.

Improved Network Performance

Each port on the Cisco DS-C9148S-12PK9 Fabric Switch supports high-speed data transfer rates, ensuring that network performance remains optimal even during times of heavy usage. With 48 ports, the switch can handle substantial amounts of traffic without any compromise in speed or latency. This is especially crucial in environments where bandwidth-intensive applications or large file transfers are common.

Redundancy and Failover

The 48 ports on this fabric switch provide redundancy and failover capabilities, allowing for increased network reliability. With multiple ports available, organizations can implement link aggregation techniques such as EtherChannel or Port Trunking. This ensures that if one port fails or experiences issues, traffic is automatically rerouted through the remaining functioning ports, minimizing downtime and maintaining uninterrupted network connectivity.

Flexibility in Network Design

The Cisco DS-C9148S-12PK9 Fabric Switch's 48 ports offer flexibility in network design. System administrators can easily create VLANs (Virtual Local Area Networks) to segment their network, improving security and network performance. Additionally, the switch supports advanced features like Quality of Service (QoS), allowing users to prioritize certain types of traffic, and ensuring critical applications receive the necessary bandwidth.

Cost-Efficiency

Investing in a switch with 48 ports eliminates the need for purchasing multiple smaller switches, resulting in cost savings. Consolidating network devices into a single switch simplifies management and reduces power consumption, resulting in lower operational costs over time.

Future-Proofing

The 48 ports on the Cisco DS-C9148S-12PK9 Fabric Switch provide organizations with future-proofing capabilities. As technology evolves and network demands increase, having additional ports ensures that the switch can accommodate new devices or services without requiring an immediate upgrade.

Summary

In summary, the 48 ports on the Cisco DS-C9148S-12PK9 Fabric Switch offer enhanced connectivity, scalability, improved network performance, redundancy, failover capabilities, flexibility in network design, cost-efficiency, and future-proofing. These benefits make it an ideal choice for organizations that require a reliable and high-performance switch solution.

Interface

The Cisco DS-C9148S-12PK9 Fabric Switch features SFP+ (Small Form-Factor Pluggable Plus) interfaces, which bring several advantages to users in terms of connectivity and versatility. The SFP+ interface offers high-speed data transfer rates and the ability to support various types of optical or copper transceivers, making it a valuable feature for modern networks.

High-Speed Data Transfer

The SFP+ interface on the Cisco DS-C9148S-12PK9 Fabric Switch supports data transfer rates of up to 10 Gbps per port. This high-speed connectivity ensures fast and efficient transmission of data, enabling organizations to handle bandwidth-intensive applications, multimedia streaming, and large file transfers without any bottlenecks.

Versatility

The SFP+ interface provides flexibility and versatility for network administrators. By supporting a wide range of optical or copper transceivers, users can choose the most suitable media type for their specific networking needs. This allows for seamless integration with various equipment and infrastructure, including different types of switches, routers, and servers.

Easy Network Expansion

The SFP+ interface simplifies network expansion by allowing users to add or replace transceivers as required. Instead of investing in entirely new switches or modules, organizations can leverage the SFP+ interface to quickly and cost-effectively scale their network infrastructure. This flexibility is particularly beneficial for growing businesses or those with changing networking requirements.

Longer Distance Connections

With the SFP+ interface, the Cisco DS-C9148S-12PK9 Fabric Switch extends the reach of network connections. By utilizing appropriate optical transceivers, users can establish connections over longer distances, which is essential for organizations spread across multiple floors, buildings, or even geographical locations. This capability eliminates the need for additional networking equipment or costly infrastructure upgrades.

Hot-Swappable Design

The SFP+ interface incorporates a hot-swappable design, allowing users to insert or remove transceivers without powering down the switch or disrupting network operations. This feature simplifies maintenance tasks, reduces downtime, and enhances overall network availability. It also provides flexibility in adapting to changing network requirements or troubleshooting connectivity issues efficiently.

Summary

In summary, the SFP+ interface on the Cisco DS-C9148S-12PK9 Fabric Switch offers high-speed data transfer, versatility, easy network expansion, longer distance connections, and a hot-swappable design. These features make it an excellent choice for organizations seeking a reliable and flexible switch solution that can adapt to their evolving networking needs.

Manageable

The Cisco DS-C9148S-12PK9 Fabric Switch is designed to be highly manageable, providing users with extensive control and monitoring capabilities. With a management interface accessible through various means, organizations can easily configure, monitor, and troubleshoot their network infrastructure.

User-Friendly Management Interface

The Cisco DS-C9148S-12PK9 Fabric Switch features a user-friendly management interface that simplifies the configuration and administration tasks. The intuitive web-based interface allows network administrators to make changes to the switch settings, set up VLANs, monitor performance, and troubleshoot issues without requiring in-depth technical knowledge. This ease of use ensures efficient management and reduces the learning curve for IT personnel.

Remote Management

The switch can be managed remotely using various protocols such as SNMP (Simple Network Management Protocol) or SSH (Secure Shell). This capability enables system administrators to monitor the switch's status, receive alerts, and perform necessary configurations from any location with network connectivity. Remote management enhances operational efficiency by eliminating the need for physical access to the switch and enables quick response to network issues.

Comprehensive Monitoring

The Cisco DS-C9148S-12PK9 Fabric Switch provides comprehensive monitoring capabilities, allowing administrators to keep a close eye on the network's performance. Real-time monitoring tools provide visibility into traffic patterns, bandwidth utilization, error rates, and other critical metrics. By monitoring these parameters, organizations can proactively identify and address potential bottlenecks or performance issues, ensuring optimal network performance.

Advanced Security Features

The manageable nature of the Cisco DS-C9148S-12PK9 Fabric Switch enables administrators to implement advanced security measures to protect the network infrastructure. The switch supports features such as Access Control Lists (ACLs), which allow administrators to control traffic flow based on specified criteria, enhancing network security. Additionally, administrators can configure authentication protocols such as 802.1X and RADIUS to ensure that only authorized devices can access the network.

Performance Optimization

The switch's manageable nature enables administrators to optimize network performance by implementing Quality of Service (QoS) policies. QoS allows network administrators to prioritize specific types of traffic, ensuring critical applications receive the necessary bandwidth and minimizing latency for time-sensitive data. This capability is particularly important in environments where real-time applications or voice and video communications are crucial.

Summary

In summary, the manageability of the Cisco DS-C9148S-12PK9 Fabric Switch offers a user-friendly management interface, remote management capabilities, comprehensive monitoring tools, advanced security features, and performance optimization through QoS policies. These features empower organizations with efficient control over their network infrastructure, enabling them to maximize performance, enhance security, and streamline management processes.
