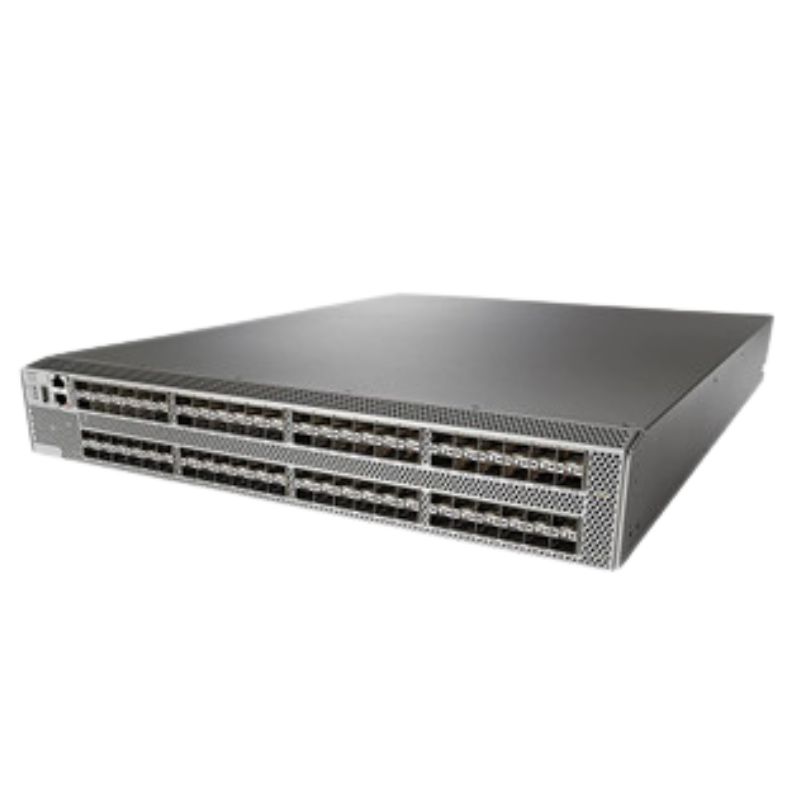

DS-C9396S-48IK9 Cisco MDS 9396s 16G FC Switch.

Cisco DS-C9396S-48IK9 MDS 9396S Overview

The Cisco DS-C9396S-48IK9 MDS 9396S is a high-performance, cost-effective 16Gbps Fibre Channel (FC) switch designed for mission-critical enterprise storage networks. Featuring 48 active ports in a compact 2U form factor, this switch is ideal for small to large-scale data centers that demand scalability, reliability, and seamless integration with existing SAN infrastructure. The port-side intake airflow design enhances thermal management, making it well-suited for modern data center cooling configurations.

High Port Density for Growing SAN Environments

With 48 active ports, the DS-C9396S-48IK9 offers exceptional port density, allowing organizations to scale their SAN environments with minimal hardware investment. Each port supports line-rate 16-Gbps Fibre Channel, ensuring high throughput and low latency for data-intensive applications. This high-density configuration supports diverse storage devices, from disk arrays to tape libraries and hybrid cloud architectures.

Support for Virtualization and Cloud Environments

The Cisco MDS 9396S switch is optimized for modern virtualization and cloud deployments. It supports advanced features such as VSANs (Virtual SANs), NPIV (N_Port ID Virtualization), and intelligent zoning, which allow for granular traffic segmentation and improved SAN security. These capabilities make it easy to manage multi-tenant environments, ensuring that performance and security are not compromised as your network scales.

NPIV and NPV Mode Benefits

With NPIV support, multiple virtual machines (VMs) can share a single physical HBA port while maintaining unique identities. This simplifies SAN management and enhances resource allocation. In N-Port Virtualization (NPV) mode, the switch functions as a pass-through device, simplifying SAN fabrics and reducing the number of domain IDs, thereby improving overall manageability and scalability.

Enterprise-Class Performance and Reliability

The DS-C9396S-48IK9 delivers enterprise-grade performance through hardware acceleration, high-speed ASICs, and low-latency architecture. Redundant hot-swappable power supplies and fan modules ensure high availability, while diagnostic tools such as Cisco Fabric Analyzer provide real-time network visibility and troubleshooting. The switch also features built-in diagnostics to proactively identify issues before they impact operations.

Scalable Fabric Architecture

This switch supports scalable fabric architecture, enabling seamless integration with other Cisco MDS switches and third-party equipment. With 16-Gbps line-rate support and backward compatibility with 8-Gbps and 4-Gbps devices, it ensures a smooth transition during network upgrades. This scalability is vital for enterprises that need to accommodate expanding workloads without costly downtime or forklift upgrades.

Redundancy and High Availability

Hot-swappable components and redundant power supplies ensure that the Cisco DS-C9396S-48IK9 maintains continuous operation even during maintenance or failure events. This design minimizes the risk of network outages and enhances the reliability of business-critical applications.

Advanced Management and Monitoring Capabilities

Managing the DS-C9396S-48IK9 is simplified through Cisco’s intuitive management tools, including Cisco Data Center Network Manager (DCNM). DCNM provides centralized visibility into the entire SAN environment, streamlining configuration, monitoring, and troubleshooting tasks. The switch also supports Secure Shell (SSH), SNMP, and RESTful APIs for integration with third-party management solutions.

Comprehensive Diagnostic Tools

The MDS 9396S switch includes extensive diagnostic and troubleshooting tools. The built-in Cisco Fabric Analyzer helps identify and resolve issues rapidly, while tools like SCSI flow statistics and port tracking enhance performance tuning and root cause analysis. These capabilities are essential for maintaining optimal SAN health and performance.

Flexible Management Interfaces

Administrators can manage the switch via multiple interfaces, including CLI, DCNM, and web-based GUIs. The flexible options accommodate different administrative preferences and experience levels, allowing for efficient and user-friendly management.

Enhanced Security Features

The Cisco DS-C9396S-48IK9 MDS 9396S integrates a robust suite of security features to protect sensitive storage environments. These include role-based access control (RBAC), hardware-based zoning, port security, and switch authentication. Secure Boot and digitally signed firmware further ensure the integrity of the switch operating environment.

Zoning and Access Control

Intelligent zoning mechanisms such as Smart Zoning and hardware-enforced zoning enable precise control over device communication. Zoning not only improves performance but also limits potential attack surfaces by restricting device visibility.

Secure Fabric Services

The MDS 9396S supports Cisco TrustSec for storage networks, enabling secure device identity and policy enforcement. Integration with AAA (Authentication, Authorization, and Accounting) services ensures that only authorized personnel can configure or access the switch.

Energy Efficiency and Data Center Optimization

The port-side intake airflow design of the DS-C9396S-48IK9 enhances thermal efficiency by aligning with front-to-back cooling strategies in modern data centers. The switch also features power-optimized components and energy-efficient transceivers that reduce operational costs without compromising performance.

Compact Form Factor for Rack Efficiency

The 2U rack-mount design saves valuable rack space, allowing more equipment per rack unit. This compact footprint is ideal for space-constrained environments where high-density deployment is crucial.

Reduced Power Consumption

By leveraging low-power ASICs and intelligent power management, the MDS 9396S minimizes energy consumption while maintaining top-tier performance. This contributes to lower total cost of ownership and supports green IT initiatives.

Compatibility and Interoperability

The Cisco DS-C9396S-48IK9 is designed for seamless interoperability with existing Fibre Channel infrastructure, including devices from other vendors. It supports a broad range of Fibre Channel standards and protocols, making it a versatile choice for heterogeneous SAN environments.

Backwards Compatibility

Full backward compatibility with 8-Gbps and 4-Gbps devices ensures that legacy equipment remains supported during infrastructure upgrades. This allows for gradual transitions, reducing capital expenditure and minimizing operational disruption.

Open Standards Support

The switch adheres to industry-standard protocols such as FC-SW, FC-GS, and FCP, ensuring that it integrates smoothly into multi-vendor environments. Support for standards-based management tools simplifies deployment and ongoing administration.

Deployment Scenarios and Use Cases

The DS-C9396S-48IK9 is suitable for a variety of deployment scenarios, from small business SANs to large-scale enterprise environments. Its scalability and feature set make it an ideal core or edge switch in tiered storage architectures.

Enterprise Data Centers

In large data centers, the switch serves as a core component of the SAN fabric, supporting mission-critical workloads, high IOPS applications, and large-scale virtualization environments. Its reliability and performance ensure continuous data availability.

Small to Medium-Sized Businesses

SMBs benefit from the switch’s affordability, ease of use, and future-proof scalability. As storage demands grow, businesses can scale port capacity and features without replacing existing infrastructure.

Disaster Recovery and Backup

The switch is also ideal for disaster recovery environments where data replication, remote backup, and failover capabilities are essential. Its high-speed Fibre Channel performance ensures rapid data transport and minimal recovery time objectives (RTOs).

Hardware and Physical Specifications

Physically, the Cisco DS-C9396S-48IK9 measures 2U in height and includes 48 active SFP+ ports, supporting shortwave and longwave transceivers. Redundant power supplies and fans are hot-swappable, and LED indicators offer real-time status updates for each port and system component.

Airflow and Thermal Design

The port-side intake airflow design supports effective thermal dissipation in hot-aisle/cold-aisle configurations. This ensures optimal switch operation even in high-density deployments, reducing the risk of overheating and hardware failure.

Environmental Operating Range

The switch operates reliably in a wide temperature range, making it suitable for deployment in diverse environmental conditions. Its durable chassis and high MTBF rating underscore its suitability for continuous 24/7 operation.
