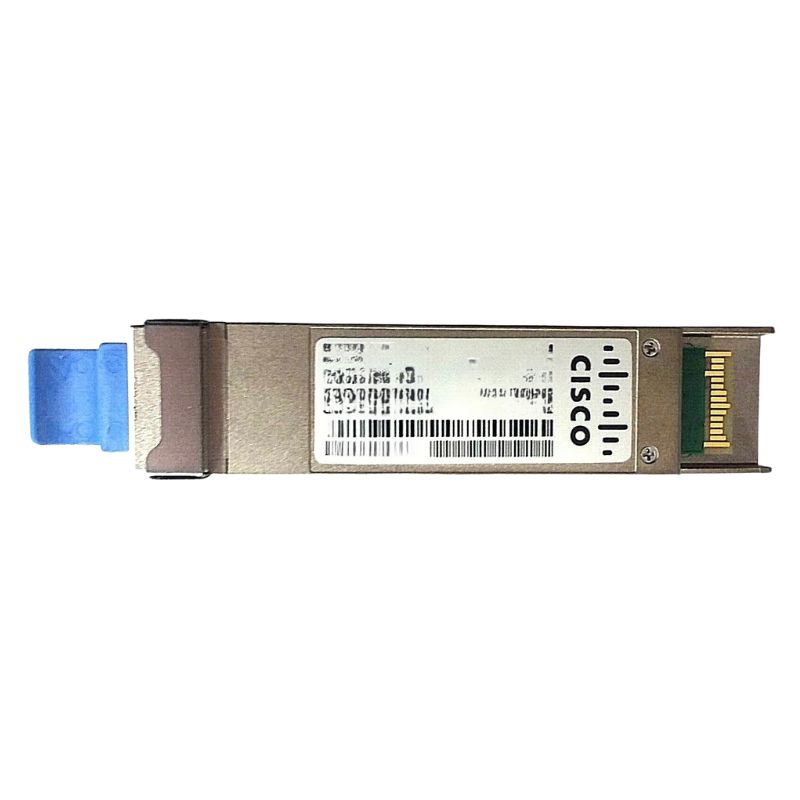

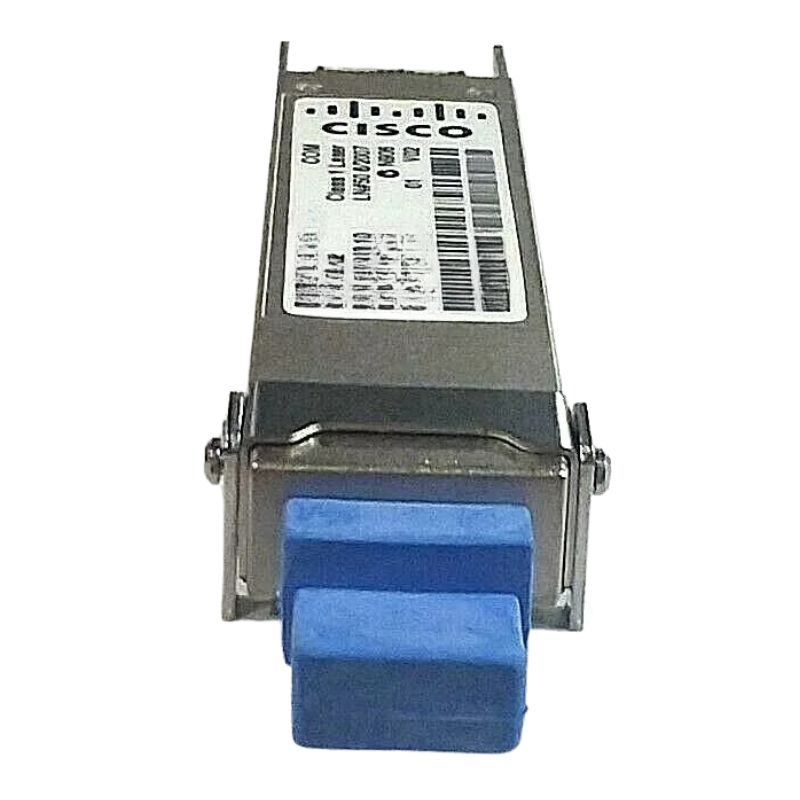

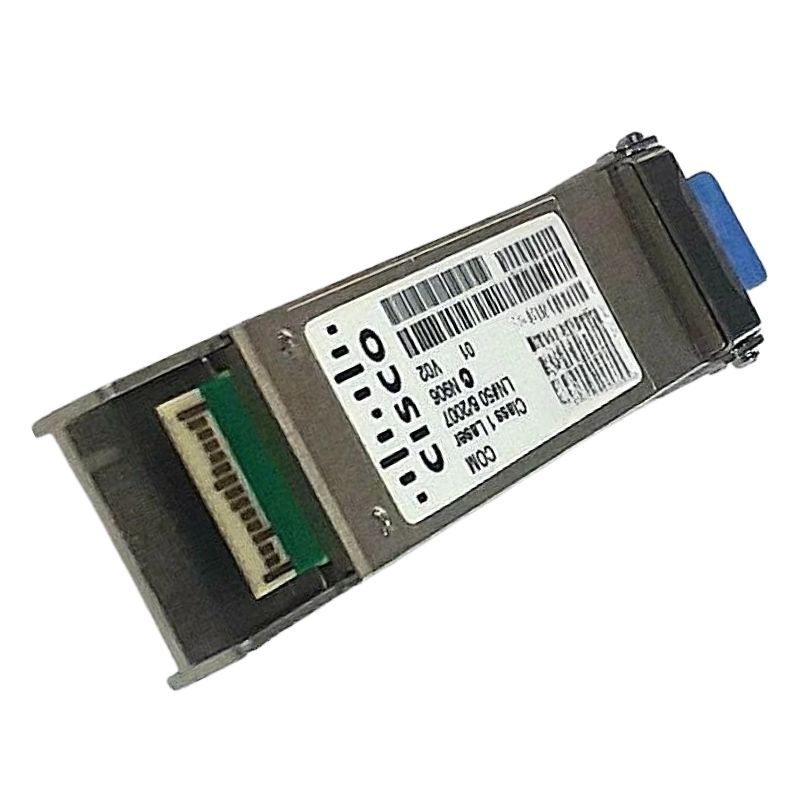

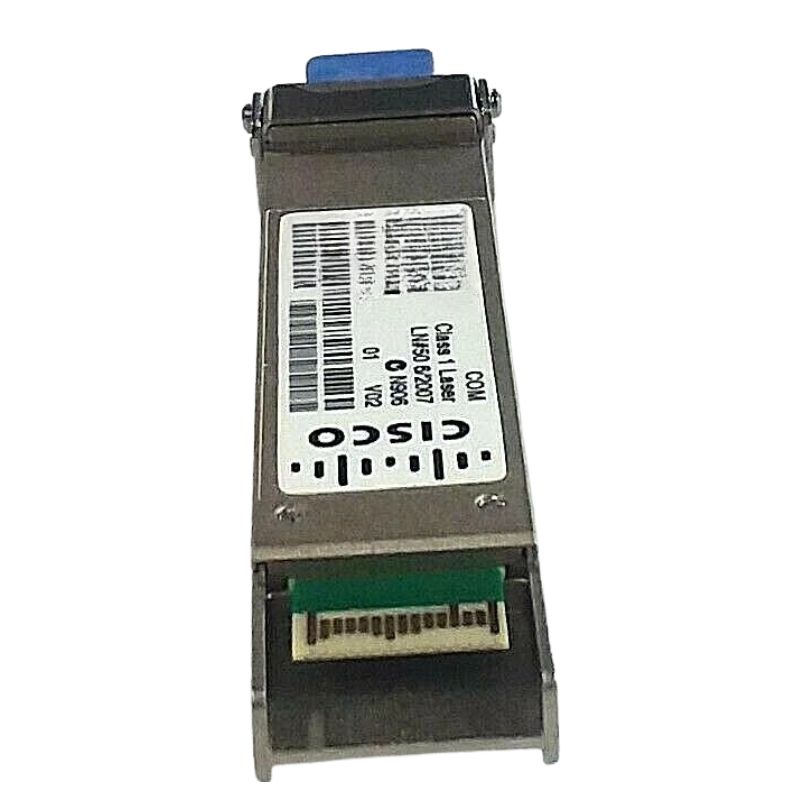

DWDM-SFP10G3033 Cisco 10Gbps 10GBase-DWDM Transceiver Module

Overview of Cisco 10GBPS DWDM SFP+ Transceiver Module

The Cisco DWDM-SFP10G3033 SFP+ transceiver module is a high-performance optical networking component designed to support 10Gbps data transmission across long-distance single-mode fiber links. Built for Dense Wavelength Division Multiplexing (DWDM) systems, this module enables efficient utilization of fiber infrastructure by transmitting data on tightly controlled optical wavelengths, specifically optimized at 1530.33nm. It is widely deployed in metro networks, enterprise backbone systems, and carrier-grade optical transport environments where stability, reach, and spectral efficiency are critical.

With an impressive transmission reach of up to 80 kilometers, this module provides a reliable solution for extending high-speed Ethernet services across campuses, cities, and distributed data center architectures. Its duplex LC interface ensures stable bidirectional communication while maintaining signal integrity over long-haul optical fiber routes.

General Specification

• Brand: Cisco
• Manufacturer Part Number: DWDM-SFP10G3033
• Product Category: SFP+ DWDM optical transceiver
• Designed for professional optical networking environments

Optimized for 10GBase-DWDM Optical Transport

• Supports high-capacity 10Gbps Ethernet optical transport
• Designed for DWDM channel spacing and wavelength precision
• Enhances long-distance fiber utilization efficiency
• Compatible with carrier-grade optical transport systems

Optical Performance and Transmission Capabilities

• Transmission distance support up to 80km
• Operates at 1530.33nm DWDM wavelength
• Single-mode fiber optimized for low attenuation
• Enhanced optical signal stability for enterprise-grade reliability

Interface Design and Physical Connectivity

• 1 x LC duplex optical interface
• Hot-pluggable SFP+ form factor design
• Secure fiber alignment for reduced signal degradation
• Supports bidirectional optical communication

Technical Architecture

• Small Form-factor Pluggable Plus (SFP+) design
• Hot-swappable for uninterrupted service continuity
• Compatible with DWDM optical network infrastructures
• Optimized for high-density port deployments

Application Scenarios and Deployment Use Cases

• Metro Ethernet and regional backbone connectivity
• Data center interconnect (DCI) deployments
• Telecom carrier optical transport systems
• Enterprise campus backbone expansion

Scalable Optical Infrastructure Without Physical Expansion

• Efficient spectrum utilization in optical networks
• Reduced infrastructure expansion costs
• High scalability for growing bandwidth demands
• Improved network architecture flexibility

Performance Reliability and Operational Stability

• Stable 10Gbps throughput performance
• Low latency optical transmission characteristics
• High resilience in dense network environments
• Reliable performance in extended operational cycles

Seamless Deployment Across Optical Switching Platforms

• Compatible with SFP+ enabled networking devices
• Supports DWDM optical transport systems
• Flexible deployment in mixed network environments
• Ideal for upgrading legacy fiber infrastructure

Reduced Infrastructure Complexity

• Reduces dependency on additional fiber cabling
• Enhances network scalability without physical expansion
• Supports high-density wavelength allocation
• Optimizes long-term infrastructure investment

Outline of Cisco DWDM-SFP10G3033 10GB SFP+ Transceiver

Role of Dense Wavelength Division Multiplexing in Modern 10Gbps Optical Networks

The Cisco DWDM-SFP10G3033 10Gbps 10GBase-DWDM Single-Mode Fiber SFP+ transceiver module represents a highly specialized optical component engineered for long-reach, high-capacity, carrier-grade networking environments. Within Dense Wavelength Division Multiplexing (DWDM) architectures, this module operates as a precision-tuned optical interface that enables multiple optical signals to be transmitted simultaneously over a single strand of single-mode fiber. By leveraging a tightly controlled wavelength of 1530.33nm, this transceiver contributes to maximizing fiber utilization while supporting stable, low-latency, and high-throughput data transmission across distances of up to 80 kilometers.

DWDM-based systems are widely deployed in metropolitan area networks, inter-city backbone infrastructures, and enterprise-scale optical transport layers. The integration of the Cisco DWDM-SFP10G3033 into such environments allows network engineers to extend 10Gbps Ethernet services without requiring regeneration equipment at intermediate points, significantly reducing operational costs and improving architectural efficiency.

Importance of Fixed Wavelength Precision at 1530.33nm

The precise operating wavelength of 1530.33nm places this module within a carefully defined DWDM ITU grid channel. This level of wavelength specificity ensures minimal signal overlap, enabling dense channel spacing and optimal spectral efficiency. The stability of the laser source is critical in preventing drift that could interfere with adjacent channels in a DWDM multiplexer or demultiplexer system.

This precision also ensures compatibility with optical add-drop multiplexers (OADMs) and reconfigurable optical add-drop multiplexers (ROADMs), which are essential components in modern optical transport networks. The stable wavelength output ensures consistent signal integrity even in dynamically reconfigured optical paths.

Architectural Design and Engineering of Cisco DWDM-SFP10G3033 Transceiver Modules

Small Form-Factor Pluggable Plus (SFP+) Mechanical and Electrical Characteristics

The Cisco DWDM-SFP10G3033 is designed in the SFP+ form factor, which provides a compact, hot-swappable interface optimized for high-density networking equipment. This modular design allows seamless installation into compatible Cisco switches, routers, and optical transport platforms without service interruption.

The electrical interface of the module supports a 10Gbps serial data stream, aligning with 10G Ethernet standards. Internally, the transceiver performs optical-electrical and electrical-optical conversion with high efficiency, ensuring minimal latency and reduced power consumption compared to earlier optical technologies.

Hot-Swappable Integration and Operational Continuity

One of the defining attributes of SFP+ transceivers is hot-swappability, allowing administrators to insert or remove modules while the host device remains operational. This capability is essential in mission-critical environments where downtime must be minimized. The Cisco DWDM-SFP10G3033 supports this functionality while maintaining strict optical safety and signal stabilization protocols during initialization and removal events.

Duplex LC Connector Interface Standardization

The module utilizes a duplex LC connector interface, a widely adopted standard in high-speed optical networking. The duplex configuration enables simultaneous transmission and reception of optical signals through separate fiber strands within a single cable assembly. This design ensures full-duplex communication at 10Gbps without degradation in signal clarity.

The LC connector’s compact size contributes to higher port density on networking equipment panels, enabling scalable deployment in constrained rack environments such as data centers and central office facilities.

Long-Distance Transmission Capabilities up to 80 Kilometers

Single-Mode Fiber Optimization for Extended Reach

The Cisco DWDM-SFP10G3033 is optimized for single-mode fiber (SMF), which is specifically designed for long-distance optical transmission. Single-mode fiber features a narrow core that allows light to travel in a single propagation mode, significantly reducing modal dispersion and enabling clearer signal transmission over extended distances.

With a reach capability of up to 80 kilometers, this transceiver is suitable for regional network interconnections, metropolitan aggregation layers, and enterprise campus interconnectivity. The module maintains consistent signal integrity over long distances due to its high-quality laser source and advanced modulation techniques.

Signal Attenuation Management and Optical Budget Considerations

Long-distance optical transmission requires careful management of attenuation and dispersion. The Cisco DWDM-SFP10G3033 is designed with a robust optical budget that accommodates fiber loss, connector loss, and passive DWDM component insertion losses. This ensures reliable signal reception at the far end of the link without requiring frequent optical amplification in well-engineered deployments.

Compatibility with Optical Amplifiers and Regeneration Systems

In extended optical networks exceeding standard loss thresholds, the module can be integrated with Erbium-Doped Fiber Amplifiers (EDFAs) and optical regeneration systems. These components further extend transmission capabilities while preserving signal integrity across multiple network segments.

DWDM Channel Integration and Multi-Lambda Network Scalability

High-Density Optical Transport Through Wavelength Multiplexing

DWDM technology enables multiple optical channels to coexist on a single fiber by assigning each signal a unique wavelength. The Cisco DWDM-SFP10G3033 operates on a precise wavelength that allows it to function as a discrete channel within a larger DWDM grid.

This capability significantly increases fiber utilization efficiency, enabling network operators to scale bandwidth without deploying additional physical fiber infrastructure. As demand for high-capacity data transmission continues to grow, DWDM-based solutions provide a cost-effective and scalable backbone.

Integration with Optical Multiplexers and Demultiplexers

The module is fully compatible with DWDM multiplexing equipment, which combines multiple wavelengths into a single optical fiber and separates them at the receiving end. This integration enables seamless multi-channel transmission across a unified infrastructure, supporting complex network topologies.

Role in Reconfigurable Optical Networks

In modern optical transport systems, reconfigurable optical add-drop multiplexers (ROADMs) allow dynamic wavelength routing. The Cisco DWDM-SFP10G3033 can be used in such environments to provide flexible bandwidth allocation, allowing network operators to reroute traffic in real time based on demand, congestion, or failure conditions.

Performance Characteristics and Signal Integrity Optimization

10Gbps Ethernet Compliance and Data Throughput Stability

The module supports 10 Gigabit Ethernet standards, ensuring compatibility with high-speed switching and routing equipment. Its design ensures stable throughput performance under varying environmental and network load conditions.

The optical transmitter and receiver components are engineered for low bit error rates (BER), which is critical in maintaining data integrity across long-distance DWDM links. This reliability makes the module suitable for enterprise backbones, service provider networks, and data center interconnect applications.

Low Latency Optical Conversion Process

The optical-electrical conversion process within the module is optimized for minimal latency. This ensures that data packets are transmitted with negligible delay, which is essential for latency-sensitive applications such as financial trading systems, cloud computing interconnects, and real-time communication services.

Thermal Stability and Environmental Resilience

The Cisco DWDM-SFP10G3033 is designed to operate within a wide range of environmental conditions. Thermal stability is crucial in maintaining wavelength accuracy and signal strength, especially in dense optical deployments where temperature fluctuations can impact performance.

Advanced internal components ensure that performance remains consistent even in high-density chassis environments where heat accumulation is a concern.

Deployment Scenarios and Network Architecture Applications

Metropolitan Area Network (MAN) Infrastructure Integration

In metropolitan area networks, the module is frequently deployed to connect multiple data centers, enterprise campuses, and service provider hubs. Its long-reach capability reduces the need for intermediate signal regeneration, simplifying network architecture and reducing operational costs.

Enterprise Data Center Interconnectivity

Large enterprises utilize the Cisco DWDM-SFP10G3033 to connect geographically distributed data centers. This enables high-speed replication, disaster recovery synchronization, and workload distribution across multiple sites.

Carrier and Service Provider Backbone Networks

Telecommunications providers rely on DWDM systems to transport massive volumes of data across regional and national backbones. The module plays a critical role in ensuring scalable bandwidth provisioning and efficient fiber utilization in these environments.

Network Compatibility and Equipment Ecosystem Integration

Cisco Platform Interoperability and Optical Line System Compatibility

The Cisco DWDM-SFP10G3033 is engineered for compatibility with a wide range of Cisco networking platforms that support SFP+ optical interfaces. This includes switches, routers, and optical transport systems designed for enterprise and carrier-grade deployments.

The module’s standardized electrical and optical interfaces ensure seamless integration into existing infrastructures without requiring major hardware modifications.

Multi-Vendor Optical Network Considerations

While optimized for Cisco ecosystems, the module can often function within multi-vendor DWDM environments, provided that wavelength alignment and optical budget requirements are met. This flexibility supports hybrid network architectures commonly found in large-scale deployments.

Interoperability with Legacy and Modern Fiber Infrastructure

The transceiver is capable of operating alongside both legacy optical systems and modern high-capacity DWDM frameworks. This ensures a smooth transition path for organizations upgrading their optical transport infrastructure without complete system replacement.
