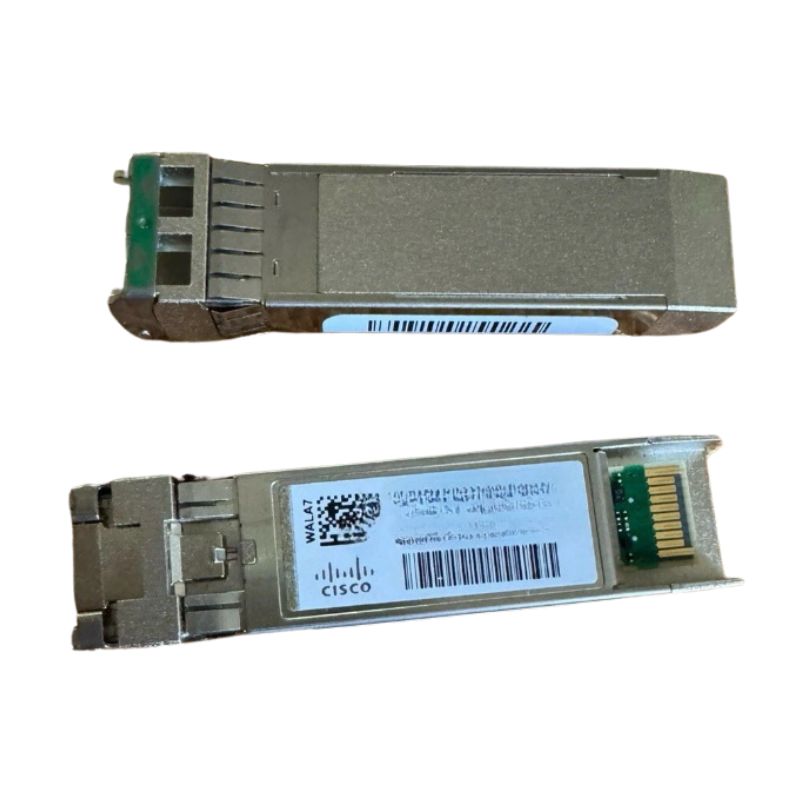

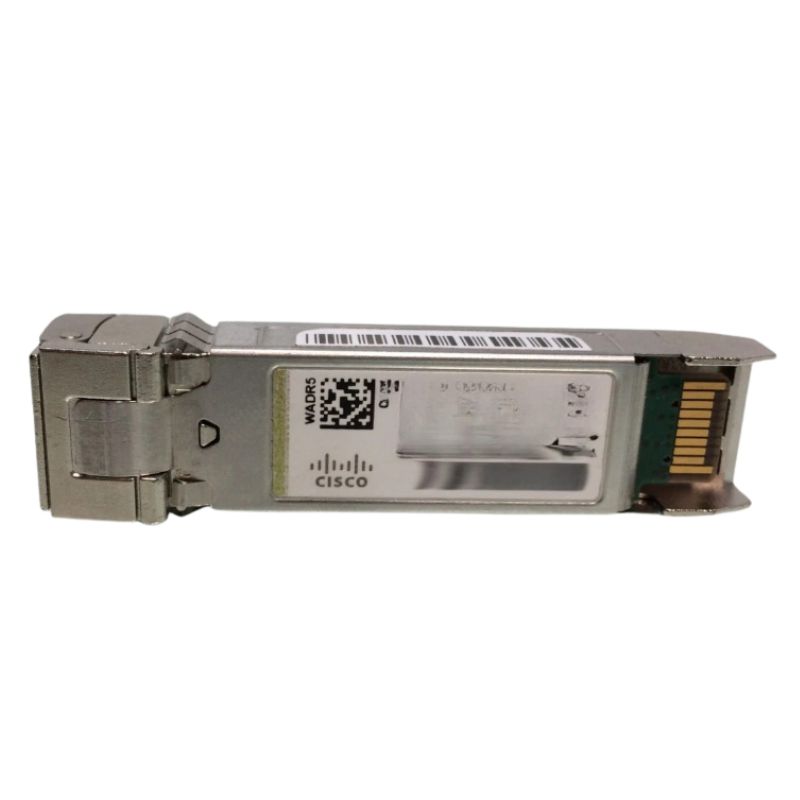

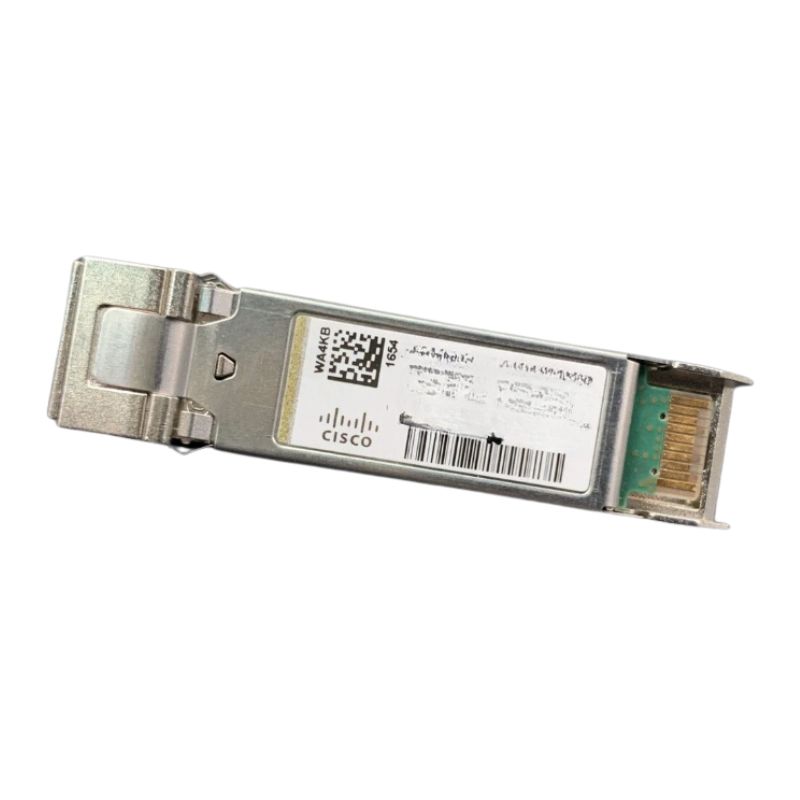

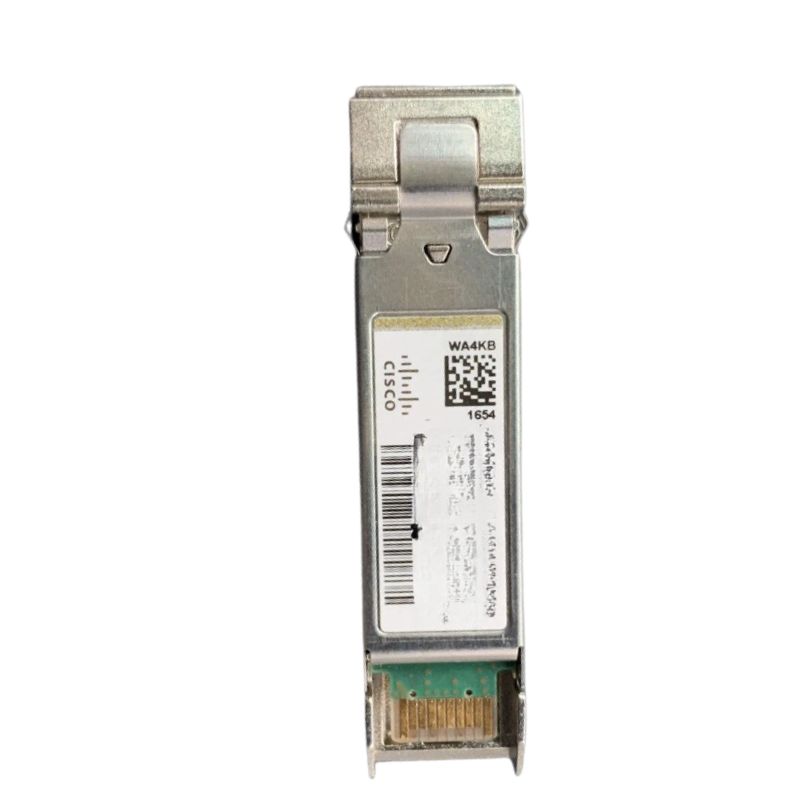

DWDM-SFP10G6061 Cisco 10Gbps 10GBase-DWDM SFP+ Transceiver Module

Overview of the Cisco DWDM-SFP10G6061 Transceiver Module

The Cisco DWDM-SFP10G6061 is a precision-engineered optical transceiver module designed for high-capacity data transmission across long-distance fiber networks. Built to support 10 Gigabit Ethernet connectivity, this SFP+ form factor module integrates DWDM technology to enable efficient wavelength-specific communication over single-mode fiber infrastructure.

General Information

• Manufacturer: Cisco
• Part Number: DWDM-SFP10G6061
• Product Type: SFP+ Optical Transceiver Module

Technical Information

• Data Rate: 10Gbps (10 Gigabit Ethernet support)
• Form Factor: SFP+ compact pluggable module
• Connector Type: Duplex LC optical interface
• Operating Wavelength: 1560.61nm precise DWDM channel
• Transmission Distance: Up to 80 kilometers over single-mode fiber

Typical Deployment Scenarios

• Metropolitan Area Networks (MANs)
• Wide Area Network (WAN) backbone links
• Data center interconnect (DCI) infrastructures
• Telecommunication carrier-grade optical systems
• High-capacity enterprise aggregation layers

Key Efficiency Advantages

• Reduced power consumption for extended operational lifespan
• Stable thermal behavior in high-density switches
• Improved reliability under continuous network loads
• Enhanced signal consistency in variable environments

Physical Design Benefits

• Hot-swappable module design for easy deployment
• Space-saving compact structure for dense installations
• Standardized interface for broad equipment compatibility
• Durable construction for long-term operational stability

Distance Performance Advantages

• Supports long-haul backbone connectivity
• Reduces need for intermediate signal regeneration
• Enables cost-efficient wide-area deployments
• Maintains signal integrity over extended fiber spans

Operational Stability Features

• Robust optical signal modulation design
• Resistance to environmental fluctuations
• Long service lifecycle for enterprise deployments
• Minimal maintenance requirements after installation

Integration Benefits

• Streamlined deployment in Cisco switches and routers
• Reduced configuration complexity
• Enhanced network performance consistency
• Improved operational efficiency in managed networks

Cisco DWDM-SFP10G6061 10GBPS SFP+ Transceiver Module

The Cisco DWDM-SFP10G6061 10Gbps 10GBase-DWDM SFP+ transceiver module represents a high-performance optical networking component engineered for dense wavelength division multiplexing (DWDM) environments where long-distance, high-capacity data transmission is required over single-mode fiber infrastructure. This module is designed to deliver reliable 10 Gigabit Ethernet connectivity across extended distances up to 80km while operating at a precise fixed wavelength of 1560.61nm, making it suitable for carrier-grade metropolitan networks, intercity backbone links, and enterprise-scale optical transport systems. Its duplex LC connector interface ensures standardized fiber termination and compatibility with widely deployed optical cabling systems in modern telecom and data center environments.

Principles of Dense Wavelength Division Multiplexing

Dense Wavelength Division Multiplexing (DWDM) is a core optical transport technology that enables multiple independent optical signals to be transmitted simultaneously over a single optical fiber by using different wavelengths (or channels) of laser light. The Cisco DWDM-SFP10G6061 module operates within this framework by occupying a precise wavelength slot of 1560.61nm, ensuring it can coexist with multiple adjacent channels without interference. This spectral precision allows network operators to scale bandwidth significantly without deploying additional fiber infrastructure, which is especially critical in metropolitan and long-haul environments where fiber installation costs are extremely high.

Channel Isolation and Spectral Efficiency

The effectiveness of DWDM systems depends heavily on channel isolation and spectral efficiency. Each optical channel must maintain strict wavelength stability to avoid overlap and crosstalk. The 10GBase-DWDM architecture ensures that each SFP+ module is precisely tuned to a designated frequency grid. The DWDM-SFP10G6061 is engineered with tight wavelength control mechanisms that maintain long-term stability under varying thermal and operational conditions. This enables seamless multiplexing of dozens of 10G channels over a single fiber pair while maintaining signal integrity.

SFP+ Form Factor and Transceiver Architecture

Compact Hot-Pluggable Design

The SFP+ form factor is a widely adopted industry standard for high-speed optical and electrical transceivers. The Cisco DWDM-SFP10G6061 adheres to this compact design philosophy, enabling hot-swappable installation into compatible networking equipment without interrupting system operations. This allows network administrators to scale or maintain optical links efficiently, reducing downtime and improving operational flexibility in mission-critical environments.

Internal Optical Subsystems

Inside the module, advanced optical components such as distributed feedback (DFB) lasers, photodiodes, and signal conditioning circuits work together to ensure stable signal transmission and reception. The transmitter section converts electrical 10Gbps signals into tightly controlled optical wavelengths, while the receiver section performs high-sensitivity detection of incoming light signals, even after long-distance attenuation across 80 kilometers of fiber. The integration of these components within a compact SFP+ enclosure ensures high reliability and minimal signal degradation.

1560.61nm DWDM Wavelength

Precision Wavelength Allocation

Operating at 1560.61nm places the DWDM-SFP10G6061 within the C-band spectrum, which is the most widely used wavelength range for long-distance optical communication due to its low attenuation and compatibility with erbium-doped fiber amplifiers (EDFAs). The precise wavelength allocation ensures that each module can be paired with other DWDM channels without spectral overlap, enabling dense channel stacking for maximum fiber utilization.

Thermal Stability and Wavelength Drift Control

One of the critical engineering challenges in DWDM systems is maintaining wavelength stability under temperature fluctuations. The Cisco DWDM-SFP10G6061 incorporates temperature-compensated laser control circuits that minimize wavelength drift. This ensures that the module maintains its 1560.61nm center frequency across a wide operating temperature range, preserving channel alignment and preventing degradation in multiplexed environments.

80km Long-Distance Transmission Capabilities

Optical Power Budget Optimization

The module is designed to support transmission distances up to 80 kilometers over single-mode fiber (SMF), achieved through optimized optical power output and high receiver sensitivity. The optical budget is carefully balanced to compensate for fiber attenuation, connector losses, and dispersion effects. This enables stable, error-free transmission over long-haul links without the need for frequent signal regeneration.

Metro and Regional Network Suitability

80km reach capability positions the DWDM-SFP10G6061 as an ideal solution for metropolitan area networks (MANs) and regional backbone infrastructure. It allows service providers to connect data centers, central offices, and aggregation nodes across cities or large campuses with minimal latency and high throughput, supporting bandwidth-intensive applications such as cloud computing, video distribution, and enterprise interconnectivity.

Single-Mode Fiber Compatibility and Optical Performance

Low Attenuation Transmission Medium

Single-mode fiber is essential for long-distance optical transmission due to its low attenuation characteristics and minimal modal dispersion. The DWDM-SFP10G6061 is optimized for standard SMF infrastructure, ensuring maximum performance across G.652 and G.655 fiber types commonly deployed in telecom networks. This compatibility ensures broad interoperability across legacy and modern optical infrastructures.

Signal Integrity Over Distance

Maintaining signal integrity over 80km requires precise control of chromatic dispersion and nonlinear effects. The module’s laser source and receiver sensitivity are engineered to mitigate these distortions, ensuring that the 10Gbps data stream remains intact across long spans of fiber. This is essential for maintaining low bit error rates (BER) in carrier-grade environments.

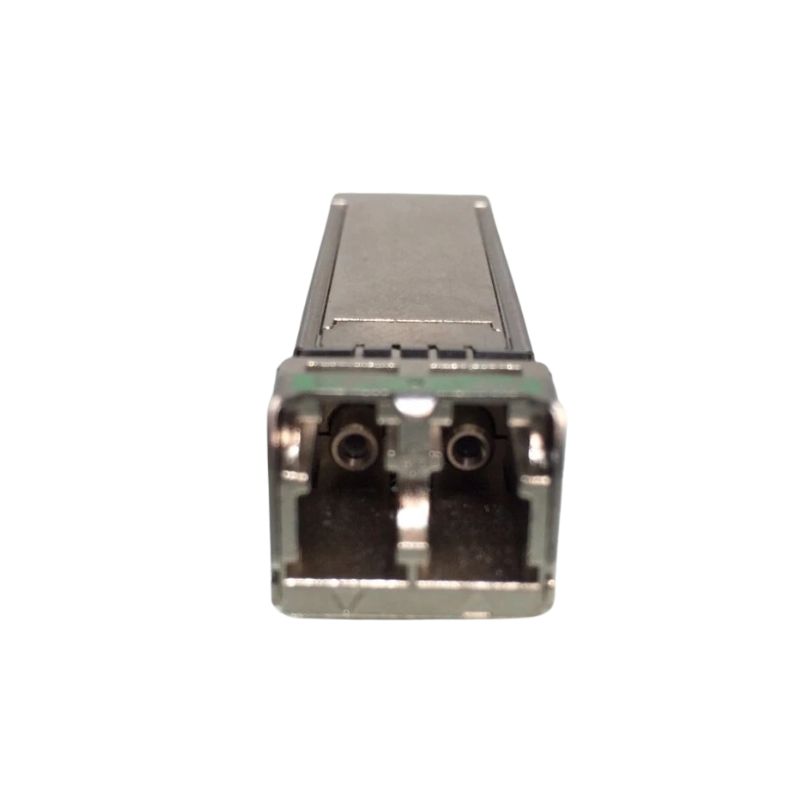

Duplex LC Connector Interface Standardization

Physical Connectivity Design

The duplex LC connector interface is a standardized optical connector system widely used in high-density networking environments. It allows simultaneous bidirectional communication over two fiber strands—one for transmitting and one for receiving. The compact form factor of LC connectors supports high port density in switches, routers, and optical transport equipment.

Insertion Loss and Return Loss Optimization

The optical performance of the LC interface is critical for minimizing insertion loss and return loss. The DWDM-SFP10G6061 is engineered to maintain strict optical tolerances, ensuring minimal signal degradation at connector points. This contributes directly to improved system reliability and overall link performance in dense optical networks.

10GBase-DWDM Ethernet Transmission Standards

High-Speed Ethernet Over Optical Infrastructure

The 10GBase-DWDM standard enables 10 Gigabit Ethernet transmission over DWDM optical infrastructure, combining high-speed data transfer with wavelength multiplexing capabilities. This allows organizations to scale bandwidth without additional fiber deployment, leveraging existing optical infrastructure for significantly higher capacity utilization.

Protocol Transparency

The DWDM-SFP10G6061 operates in a protocol-transparent manner, supporting various Ethernet and IP-based traffic types without requiring protocol conversion. This ensures seamless integration into existing network architectures, including data center interconnects, service provider backbones, and enterprise WAN extensions.

Network Integration and System Compatibility

Switch and Router Interoperability

The module is designed for compatibility with a wide range of optical networking equipment, particularly Cisco-compatible switches and routers supporting SFP+ interfaces. This ensures flexible deployment across heterogeneous network environments while maintaining consistent performance standards.

DWDM Multiplexer and Demultiplexer Integration

In DWDM systems, the module works in conjunction with optical multiplexers and demultiplexers (MUX/DEMUX) that combine multiple wavelengths onto a single fiber or separate them at the receiving end. The precise wavelength stability of the DWDM-SFP10G6061 ensures seamless integration into these systems without channel interference or signal overlap.

Deployment Scenarios and Network Use Cases

Metropolitan Area Networks

In metropolitan networks, the module supports high-capacity interconnectivity between distributed infrastructure nodes, enabling efficient data transport across urban environments. Its 80km reach makes it suitable for city-wide optical rings and backbone connections.

Data Center Interconnect Applications

The DWDM-SFP10G6061 is widely used in data center interconnect (DCI) deployments where large volumes of data must be transferred between geographically separated facilities. Its high bandwidth and wavelength precision ensure low-latency, high-throughput communication between cloud infrastructure nodes.

Carrier-Grade Backbone Networks

Telecommunication providers rely on DWDM systems for backbone network infrastructure. This module plays a critical role in enabling scalable, multi-channel optical transport systems capable of handling massive data traffic loads across long distances.

Performance Optimization and Network Scaling

Channel Expansion in DWDM Systems

The DWDM-SFP10G6061 supports scalable network expansion by enabling additional wavelength channels within existing fiber infrastructure. This allows operators to increase capacity without physical fiber augmentation.

Latency and Throughput Efficiency

Due to its optical nature and high-speed 10Gbps transmission rate, the module provides extremely low latency communication, making it suitable for time-sensitive applications such as financial trading networks and real-time data processing systems.
