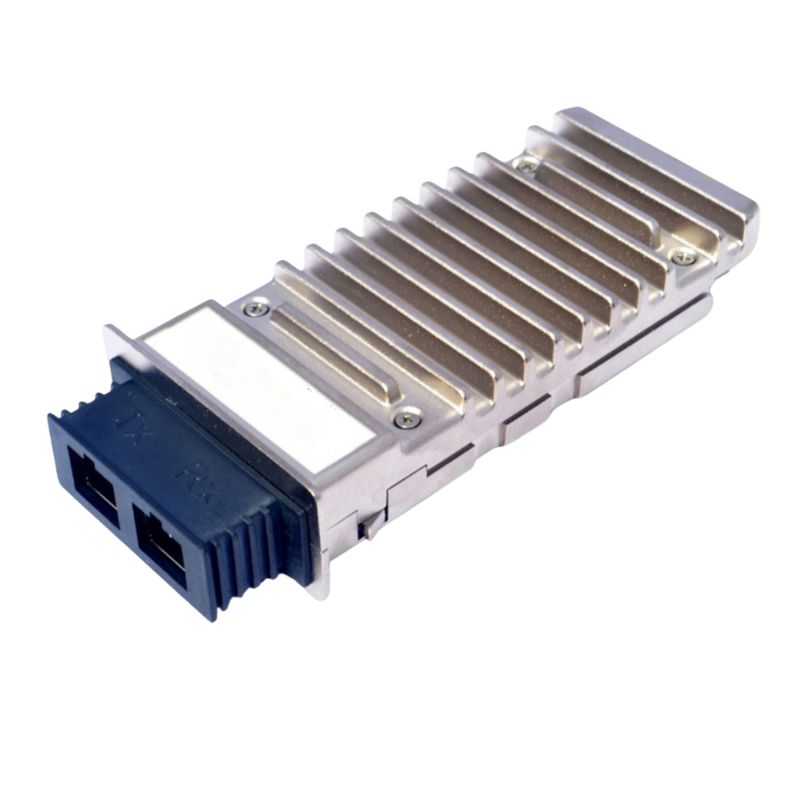

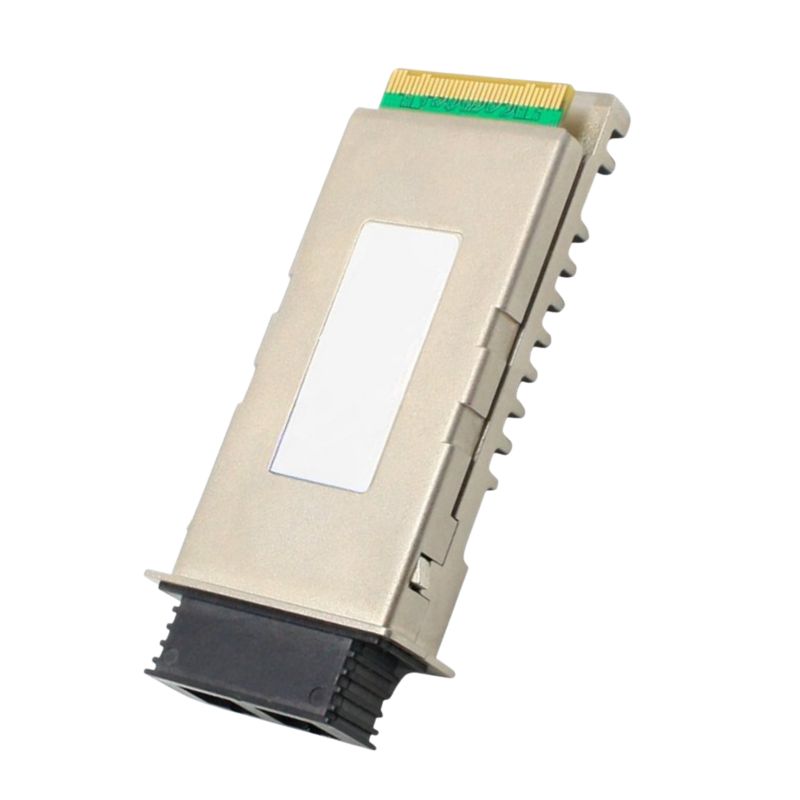

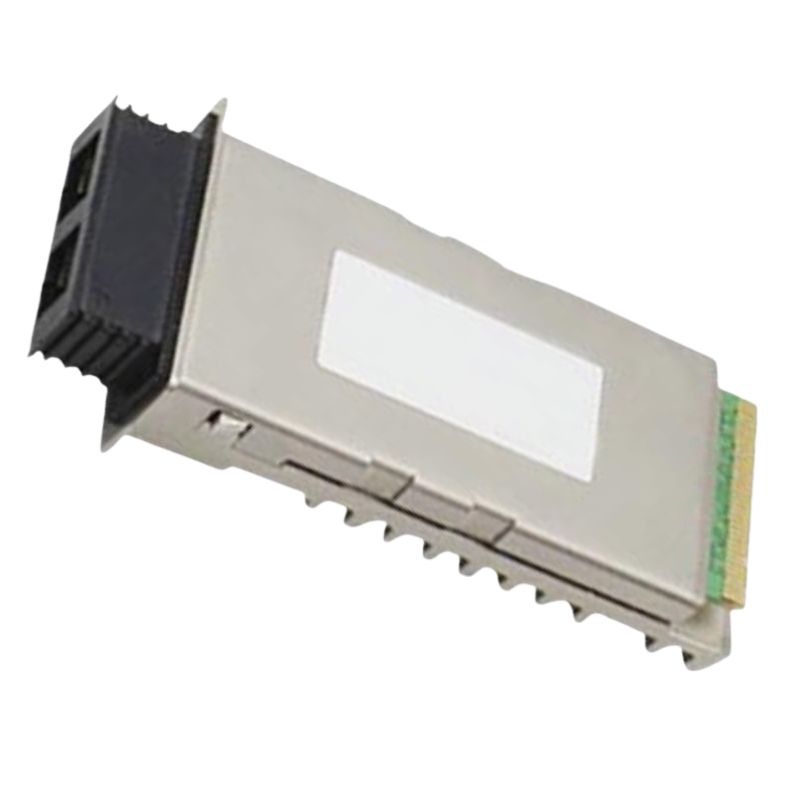

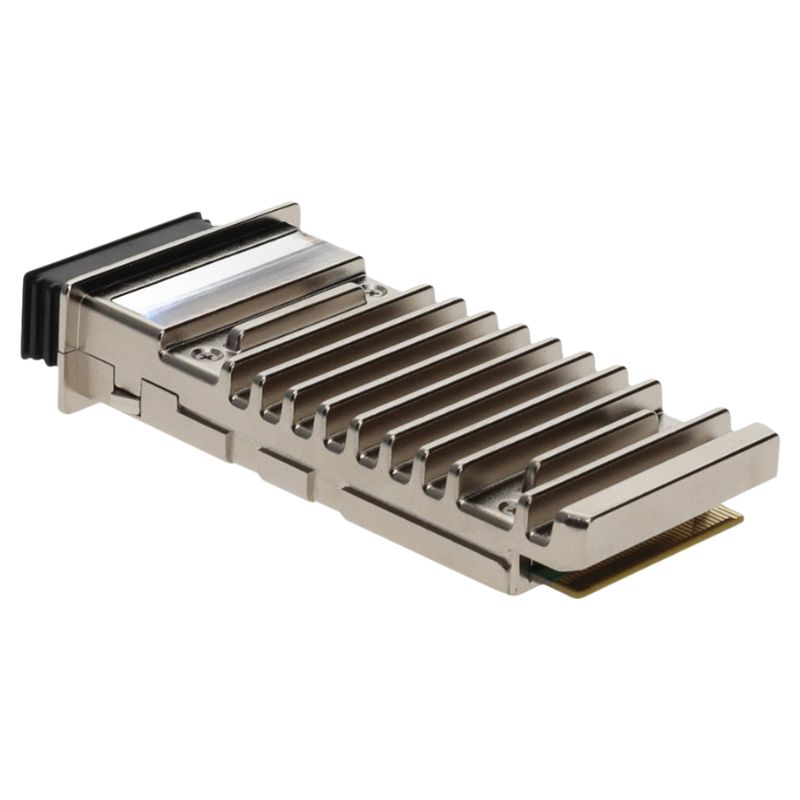

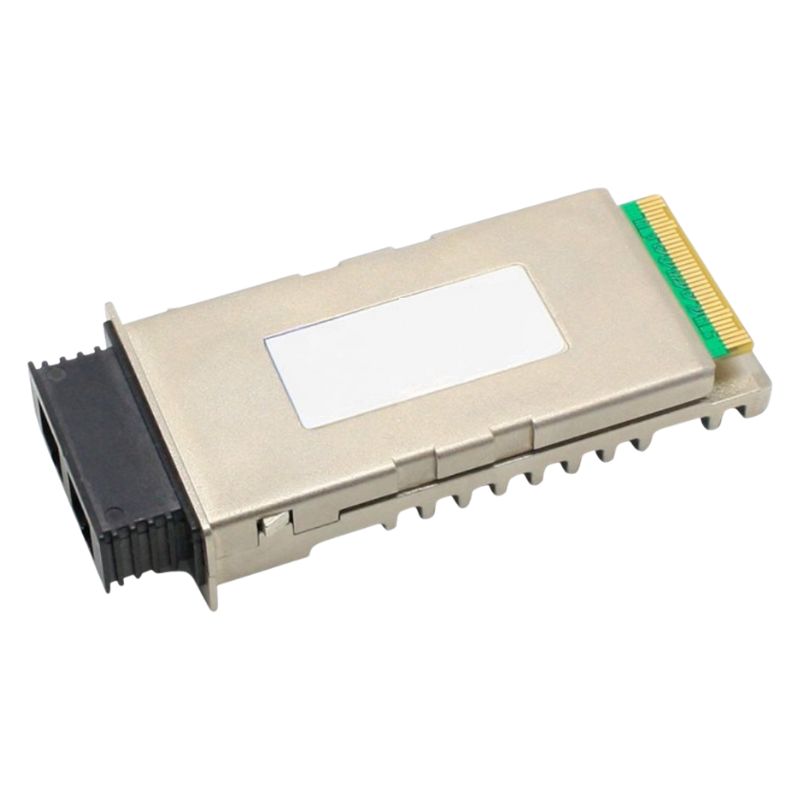

DWDM-X2-52.52 Cisco 10GBPS 10GBase-DWDM Transceiver Module

The Cisco DWDM-X2-52.52 is a high-performance 10GBPS 10GBase-DWDM transceiver module designed to deliver exceptional data transmission over long distances. With a single-mode fiber capability of up to 80km and a precise wavelength of 1552.52nm, this module ensures reliable and efficient communication.

General Specifications

• Manufacturer: Cisco
• Model Number: DWDM-X2-52.52
• Product Type: Optical Transceiver Module

Technical Highlights

• Form Factor: X2 transceiver type
• Transmission Speed: 10 Gigabits per second
• Fiber Mode: Single-mode fiber (SMF)
• Reach Capability: Up to 80 kilometers
• Operating Wavelength: 1552.52 nm
• Connector Format: Duplex SC interface

Compatibility and Expansion

• Works with Cisco 16-Port 10 Gigabit Ethernet Module with DFC3C
• Compatible with Cisco Catalyst 3560E and 3750E Series switches
• Integrates with Cisco Nexus 8-Port 10 Gigabit Ethernet Module
• Supports Cisco Virtual Switching Supervisor Engine 720
• Designed for Cisco 4500 Series Supervisor Engine V-10GE

Interface Connectivity

• 1 x Ethernet 10GBase-DWDM SC/PC single-mode (X2)
• Slot Compatibility: 1 x X2 expansion slot

Long-Distance Communication

• Ensures stable transmission over extended distances
• Optimized for high-speed fiber-optic networking
• Reliable data transfer across metropolitan and enterprise backbones

Key Advantages

• Hot-pluggable design for simplified installation
• Supports dense wavelength division multiplexing (DWDM) applications
• Minimizes signal loss for consistent performance

Application Scenarios

• Ideal for data center interconnects
• Enhances backbone network capacity
• Suitable for telecom-grade long-haul optical deployments

Cisco DWDM-X2-52.52 10GBPS Transceiver Module

The Cisco DWDM-X2-52.52 10Gbps 10GBase-DWDM Single-Mode Fiber transceiver module represents a highly specialized optical networking component engineered for dense wavelength division multiplexing (DWDM) environments. Designed to deliver reliable 10 Gigabit Ethernet connectivity over long-distance optical fiber links, this X2 form-factor module is optimized for carrier-grade, enterprise backbone, and metropolitan area network (MAN) deployments where extended reach and wavelength precision are critical. Operating at a precise 1552.52nm wavelength, it is part of a carefully engineered DWDM wavelength grid that enables multiple high-speed channels to coexist over a single fiber pair without interference.

This transceiver module is widely deployed in high-performance optical transport systems where bandwidth scalability, signal integrity, and long-distance transmission efficiency are essential. With support for up to 80km transmission over single-mode fiber (SMF), the module is designed for network infrastructures requiring stable, low-latency, and high-throughput communication between geographically dispersed sites. The integration of SC duplex connectors ensures compatibility with legacy and enterprise-grade fiber termination systems, making it suitable for both upgrades and new deployments.

Dense Wavelength Division Multiplexing Architecture

Dense Wavelength Division Multiplexing (DWDM) is a core optical transmission technology that allows multiple data streams to be transmitted simultaneously over a single optical fiber by assigning each stream a unique wavelength. The Cisco DWDM-X2-52.52 module operates within this framework, utilizing a tightly controlled wavelength of 1552.52nm, which corresponds to a specific ITU-T grid channel. This precise wavelength allocation ensures minimal cross-channel interference and enables high-capacity fiber utilization in backbone networks.

In DWDM systems, channel spacing is extremely narrow, often measured in 0.8nm or less, which requires transceiver modules to maintain exceptional wavelength stability. The DWDM-X2-52.52 achieves this stability through advanced laser technology and temperature-controlled internal components that regulate emission consistency across varying environmental conditions.

1552.52nm Wavelength Channel Significance

The 1552.52nm wavelength falls within the C-band spectrum, which is widely used in long-haul optical communication due to its low attenuation and compatibility with optical amplifiers such as Erbium-Doped Fiber Amplifiers (EDFAs). This wavelength is carefully selected to balance signal strength and transmission distance, making it ideal for 80km reach without significant signal degradation.

By utilizing this precise DWDM channel, network operators can integrate the module into multi-channel optical systems where dozens of wavelengths are multiplexed across a single fiber pair. This significantly increases the overall capacity of the optical infrastructure without requiring additional fiber deployment, reducing operational costs and physical expansion requirements.

10GBase-DWDM Performance Characteristics

10Gbps Ethernet Throughput Capability

The module supports 10 Gigabit Ethernet (10GbE) transmission rates, making it suitable for high-bandwidth applications such as data center interconnects, enterprise core networks, and telecom backbone systems. At 10Gbps, the module ensures efficient handling of large data volumes including cloud traffic, virtualization workloads, and real-time data streaming applications.

The 10GBase-DWDM standard combines Ethernet signaling with DWDM optical transport principles, enabling seamless integration between packet-based networks and wavelength-division multiplexed optical layers. This hybrid functionality ensures that modern IP-based infrastructures can leverage optical transport efficiency without compromising compatibility.

Signal Integrity and Low Latency Transmission

The transceiver is engineered to maintain low bit error rates (BER) even across extended distances up to 80km. This is achieved through advanced optical modulation techniques and highly stable laser emission systems. The module is optimized for minimal latency, making it suitable for latency-sensitive applications such as financial trading networks, real-time cloud services, and synchronized distributed computing environments.

Signal integrity is further enhanced through built-in dispersion management compatibility, allowing the module to operate effectively in fiber routes that may exhibit chromatic dispersion over long distances. This ensures consistent performance even in complex optical topologies.

X2 Form Factor Design and Hardware Integration

Standardized X2 Module Architecture

The X2 form factor is a standardized pluggable transceiver design used in high-speed networking equipment. It provides a robust and scalable interface for 10GbE optical connectivity while maintaining mechanical durability and thermal efficiency. The Cisco DWDM-X2-52.52 module fits into X2-compatible switches and routers, ensuring seamless hardware integration in existing network infrastructures.

The physical design of the X2 module includes a hot-pluggable interface that allows installation and removal without powering down network equipment. This capability is essential in enterprise and carrier environments where uptime is critical and maintenance windows are limited.

Power Efficiency

Efficient thermal management is a key aspect of the X2 module design. The Cisco DWDM-X2-52.52 is engineered to operate within strict thermal limits, ensuring stable performance under continuous high-bandwidth operation. The module dissipates heat efficiently through its metal housing and is optimized for airflow patterns within networking chassis systems.

Power consumption is carefully controlled to reduce operational costs in large-scale deployments. By balancing optical output power with energy efficiency, the module contributes to sustainable network operations while maintaining high-performance transmission standards.

80km Long-Distance Transmission Capability

Single-Mode Fiber Optimization

The Cisco DWDM-X2-52.52 is specifically designed for single-mode fiber (SMF), which is the preferred medium for long-distance optical communication. SMF allows light to travel in a single propagation mode, significantly reducing modal dispersion and enabling high-quality signal transmission over extended distances.

With an 80km reach capability, this module is suitable for metropolitan area networks, inter-city connections, and long-haul enterprise links. It eliminates the need for intermediate signal regeneration in many scenarios, reducing infrastructure complexity and maintenance requirements.

Optical Amplification Compatibility

The module is fully compatible with optical amplification systems such as EDFAs, which are commonly used in DWDM networks to extend transmission distances beyond the native reach of optical transceivers. This compatibility ensures that the module can be integrated into scalable optical transport architectures that span hundreds of kilometers when combined with amplification and regeneration equipment.

SC Duplex Connector Interface

Connector Standardization and Reliability

The SC duplex connector interface used in the Cisco DWDM-X2-52.52 module is a widely adopted optical connector standard known for its durability and stable optical performance. The push-pull locking mechanism ensures secure fiber attachment, minimizing signal loss due to connector misalignment or vibration.

This connector type is commonly used in enterprise and telecom environments, ensuring broad compatibility with existing fiber optic cabling infrastructure. The duplex configuration allows simultaneous bidirectional communication, supporting full-duplex Ethernet transmission at 10Gbps.

Insertion Loss and Reflectance Optimization

The optical interface is engineered to minimize insertion loss and back reflection, both of which are critical parameters in high-performance DWDM systems. Low insertion loss ensures maximum signal strength retention across the optical path, while reduced reflectance prevents interference and signal degradation.

DWDM Network Architecture Integration

Metropolitan Area Network Deployment

In metropolitan area networks, the DWDM-X2-52.52 module plays a crucial role in connecting distributed network nodes across cities. Its 80km range aligns well with typical metro fiber spans, allowing service providers to deliver high-speed connectivity between data centers, central offices, and aggregation points.

The module supports dense channel deployment, enabling network operators to scale capacity without laying additional fiber infrastructure. This makes it highly cost-effective for urban network expansion.

Enterprise Backbone Connectivity

Large enterprises utilize DWDM technology to connect campus networks, branch offices, and data centers. The Cisco DWDM-X2-52.52 provides a reliable backbone connectivity solution that ensures consistent performance across mission-critical systems, including cloud storage, virtualization clusters, and internal communication platforms.

Optical Signal Processing and Transmission Stability

Laser Source Stability and Modulation

The module employs a precision-controlled laser source tuned specifically to the 1552.52nm DWDM channel. This ensures minimal wavelength drift and stable optical output across varying environmental conditions such as temperature fluctuations and mechanical stress.

Advanced modulation techniques enable efficient encoding of 10Gbps data streams into optical signals, ensuring high fidelity transmission with minimal error rates. This is essential for maintaining network reliability in high-density DWDM environments.

Chromatic Dispersion Handling

Chromatic dispersion is a key challenge in long-distance fiber optic communication, as different wavelengths of light travel at slightly different speeds within the fiber medium. The Cisco DWDM-X2-52.52 module is engineered to operate within dispersion-managed optical networks, ensuring signal clarity even across 80km spans.

Scalability in Modern Optical Networks

Multi-Channel DWDM Expansion

The Cisco DWDM-X2-52.52 module is part of a larger ecosystem of DWDM wavelengths that enable scalable optical networking. By deploying multiple modules at different wavelengths, network operators can significantly increase fiber capacity without physical infrastructure expansion.

This scalability is essential in modern data-driven environments where bandwidth demand continues to grow exponentially due to cloud computing, video streaming, and IoT applications.

Future-Proof Optical Infrastructure

The adoption of standardized DWDM wavelengths ensures long-term compatibility with evolving optical transport technologies. The DWDM-X2-52.52 module supports network evolution strategies where incremental upgrades can be implemented without replacing entire fiber systems.
