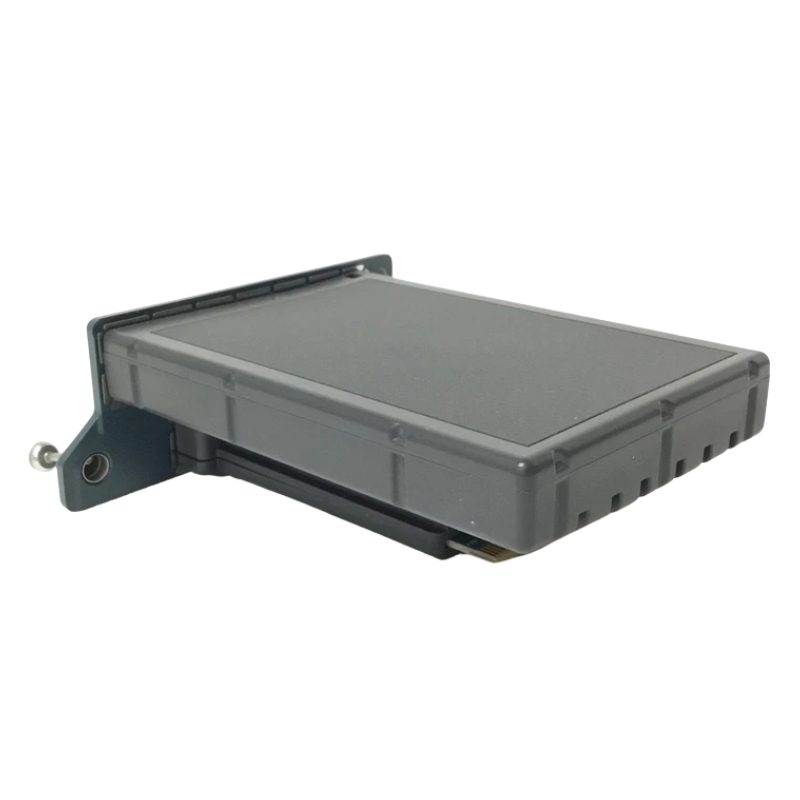

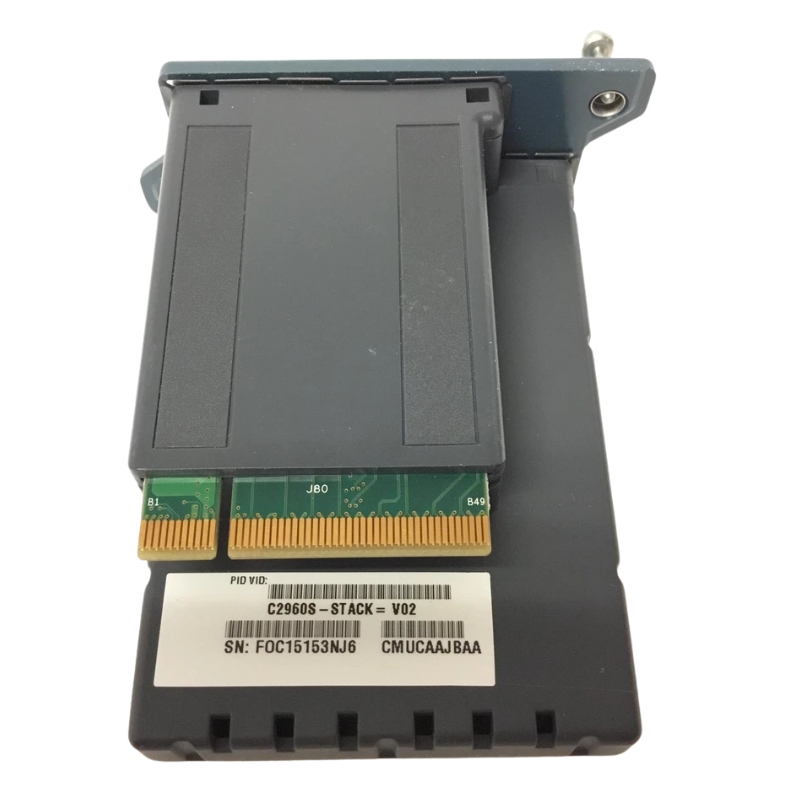

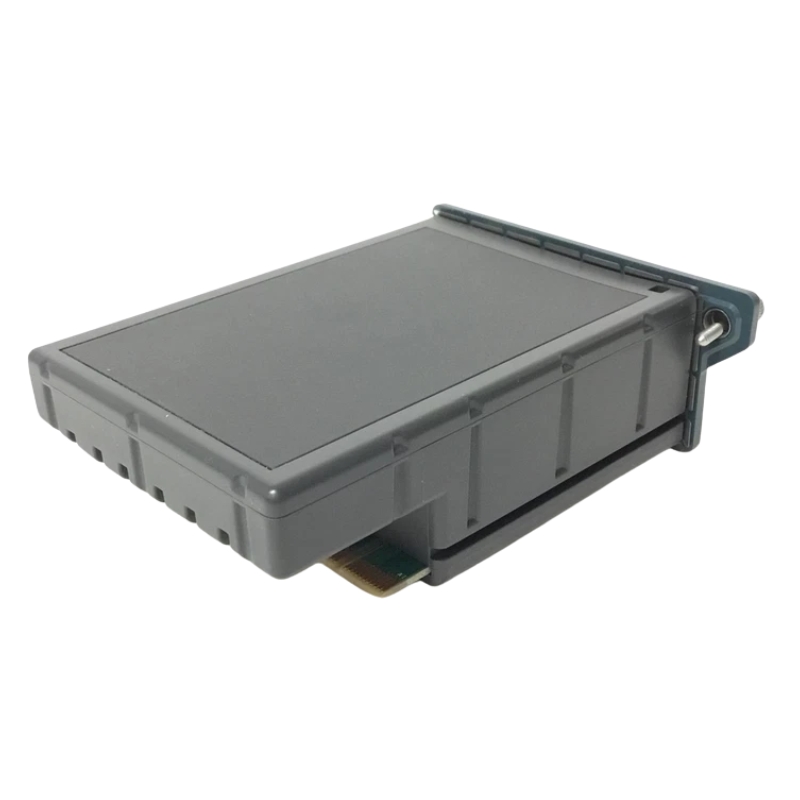

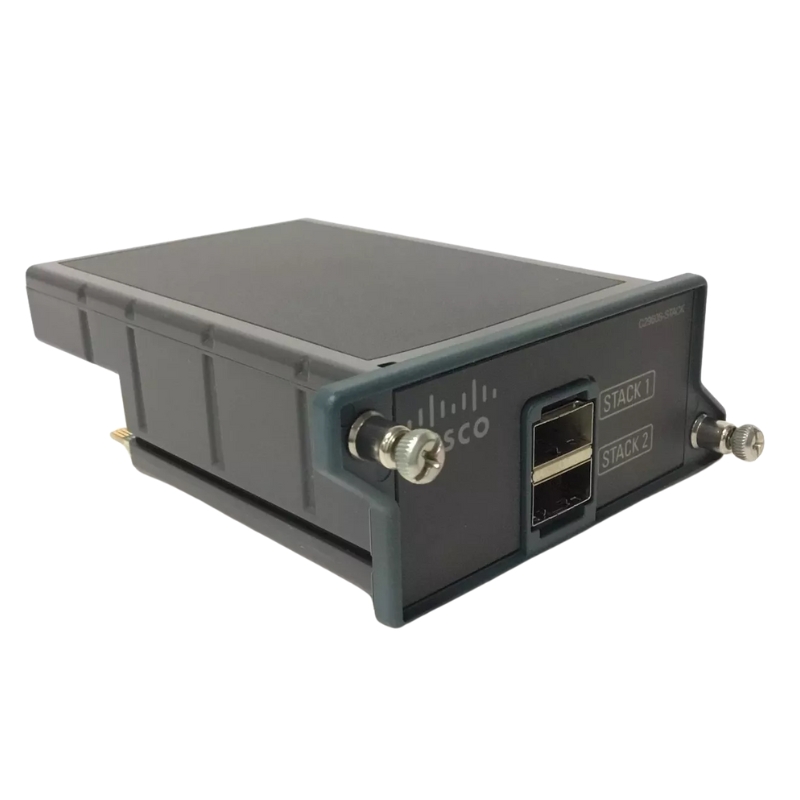

C2960S-STACK Cisco Catalyst 2960S Flexstack Stacking Module 2x Stack Ports

Outline of Cisco Advanced FlexStack Stacking  Module

The Cisco FlexStack stacking module is engineered to deliver a high-performance, resilient stacking environment for Catalyst 2960-S switches. By enabling multiple physical switches to operate as a unified system, this module enhances scalability, simplifies management, and improves traffic efficiency across enterprise and campus networks. FlexStack technology focuses on bandwidth aggregation, redundancy, and seamless data transfer between stack members.

Main Information

• Manufacturer: Cisco
• Part Number: C2960S-STACK
• Product Type: Stacking Module

Technical Specifications

• Application: Stacking Module for network devices
• Form Factor: Hot-swappable for ease of use
• Cables Included: 1 external stacking cable, 1.6 feet in length
• Connectivity Technology: Wired connections
• Data Transfer Rate: 10 Gbps
• Features: Full duplex communication

Expansion and Connectivity Options

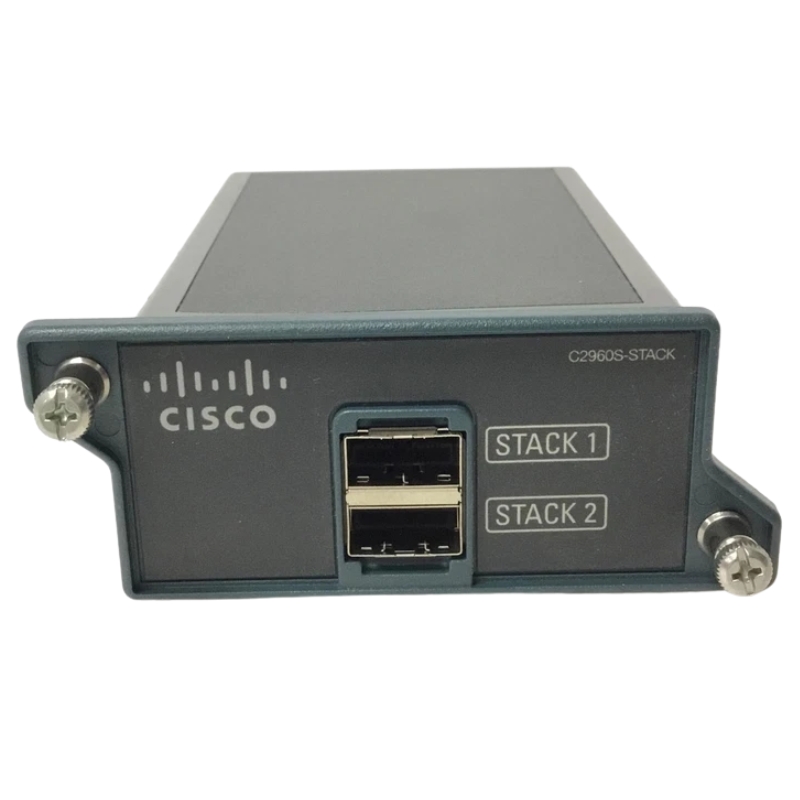

• Stack Ports: 2
• Expansion Slot: 1

High-Speed Full-Duplex Stack Connectivity

• Full-duplex communication per FlexStack connection
• Two stack ports available on each supported switch
• Optimized for low latency and consistent throughput

Single Management Plane

• Centralized configuration and monitoring
• Consistent policy enforcement across all members
• Simplified troubleshooting and maintenance

Reliable Data Delivery Across Members

• Sequential packet movement between stack units
• Stable performance under mixed traffic loads
• Efficient use of stack bandwidth resources

Module Form Factor and Connectivity

• Plug-in module design for quick deployment
• Wired stacking technology for consistent performance
• Dedicated expansion slot compatibility

Key Benefits for Modern Networks

• Enhanced scalability without architectural changes
• Improved bandwidth utilization across stack members
• Reduced administrative overhead through logical switching

 Overview of C2960S-STACK FlexStack Stacking Module

The Cisco C2960S-STACK FlexStack stacking module is a dedicated expansion component designed specifically for Cisco Catalyst 2960-S Series switches. This category focuses on modules equipped with two Stack ports that enable multiple switches to operate as a unified, scalable switching system. By integrating FlexStack technology, these modules allow network administrators to combine several physical switches into a single logical entity, simplifying management, enhancing resilience, and improving overall network efficiency. The design aligns with enterprise-grade networking requirements, supporting consistent performance and seamless expansion in both campus and branch deployments.

The FlexStack stacking module is engineered to integrate directly into compatible Catalyst 2960-S switches, enabling stack interconnectivity without the need for external appliances or complex cabling solutions. Once installed, the module facilitates high-speed communication between stack members, allowing traffic forwarding decisions, configuration synchronization, and system-level intelligence to be shared across all connected units. This category emphasizes reliability, performance continuity, and operational simplicity for organizations that demand consistent uptime and predictable network behavior.

FlexStack Technology Architecture and Design

Stacking Fabric and Internal Communication

The architecture of the Cisco C2960S-STACK FlexStack module centers around a dedicated stacking fabric that operates independently of regular Ethernet ports. This design ensures that inter-switch communication within the stack does not consume valuable data ports or affect user traffic throughput. The stacking fabric enables bidirectional data flow between stack members, maintaining synchronized forwarding tables and configuration states across the entire stack.

By separating stack traffic from standard network traffic, FlexStack technology supports deterministic performance even during periods of high utilization. Control plane information such as routing decisions, spanning-tree updates, and management instructions are distributed efficiently, ensuring that the stack behaves as a single coherent switch rather than a collection of independent devices.

Dual Stack Port Configuration

The two Stack ports provided by the Cisco C2960S-STACK module enable flexible topologies, including ring and chain configurations. Dual-port design allows administrators to create redundant paths between switches, improving fault tolerance and minimizing the risk of stack partitioning. In a ring topology, each switch connects to two neighbors, forming a closed loop that maintains connectivity even if one link fails.

This dual-port approach enhances stack resiliency and ensures continuous operation during maintenance or unexpected link interruptions. The ports are optimized for high-speed stack communication, supporting consistent performance across all stack members regardless of physical position within the topology.

Compatibility with Cisco Catalyst 2960-S Series

Supported Switch Models

The Cisco C2960S-STACK FlexStack module is purpose-built for the Catalyst 2960-S Series, ensuring tight hardware and software integration. This compatibility guarantees that all stacking features function as intended, with full support for Cisco IOS capabilities available on the host switches. Integration at the hardware level allows for seamless recognition of the module during boot, simplifying deployment and reducing configuration overhead.

Compatibility within the 2960-S family ensures uniform behavior across stack members, allowing network administrators to standardize deployments and minimize variation in operational procedures. This consistency is particularly valuable in environments with multiple access-layer switches deployed across different locations.

Software Integration and IOS Support

FlexStack modules leverage Cisco IOS software to manage stack operations, including member identification, master election, and configuration propagation. Once installed, the module is automatically detected by the switch, and stacking commands become available within the IOS interface. This software-level integration allows administrators to manage the entire stack using familiar CLI or network management tools.

IOS support ensures that features such as quality of service policies, security configurations, and VLAN definitions are applied uniformly across all stack members. This centralized control model reduces the risk of configuration drift and simplifies ongoing maintenance.

Performance Characteristics and Scalability

High-Speed Stack Bandwidth

The Cisco C2960S-STACK FlexStack module provides dedicated bandwidth for stack communication, enabling rapid data exchange between switches. This high-speed connectivity ensures that forwarding decisions and control plane updates occur with minimal latency, maintaining optimal network performance even as the stack grows.

Dedicated stack bandwidth supports consistent throughput across all ports in the stack, allowing users to experience uniform performance regardless of which physical switch they connect to. This characteristic is particularly important in access-layer deployments where predictable response times are essential for user productivity.

Scalable Network Expansion

One of the defining advantages of FlexStack technology is its ability to scale network capacity without increasing management complexity. By adding additional Catalyst 2960-S switches equipped with FlexStack modules, organizations can expand port density and network reach while maintaining a single logical management domain.

This scalability supports incremental growth, enabling businesses to align network expansion with evolving requirements. The stacking model eliminates the need for additional standalone management interfaces, reducing administrative overhead and simplifying network monitoring.

Resiliency and High Availability Features

Stack Master Election and Redundancy

Within a FlexStack-enabled environment, one switch assumes the role of stack master, managing control plane functions for the entire stack. The Cisco C2960S-STACK module supports automatic master election based on predefined criteria, ensuring deterministic leadership selection. In the event of a master failure, a standby switch seamlessly assumes control, minimizing disruption.

This redundancy mechanism enhances network availability and ensures continuous operation even during hardware faults or maintenance events. The rapid failover process helps maintain consistent network services for connected devices.

Fault Tolerance and Link Protection

Dual Stack ports allow for redundant interconnections between stack members, reducing the risk of single points of failure. If one stack link experiences an interruption, traffic is automatically rerouted through the alternate path, preserving stack integrity.

This fault-tolerant design ensures that the stack remains operational under a wide range of conditions, supporting mission-critical applications and minimizing downtime in enterprise environments.

Deployment Scenarios and Use Cases

Enterprise Access Layer Networks

The Cisco C2960S-STACK FlexStack module is well-suited for enterprise access-layer deployments where multiple switches are required to support end-user connectivity. By stacking switches, administrators can present a unified network edge that simplifies configuration, monitoring, and troubleshooting.

This approach reduces the complexity associated with managing numerous standalone devices and ensures consistent policy enforcement across all access ports.

Branch Office and Distributed Environments

In branch office scenarios, FlexStack modules enable compact, scalable switching solutions that can grow with organizational needs. Stacked switches can be managed remotely as a single entity, reducing the need for on-site technical expertise.

This centralized management capability is particularly valuable for distributed enterprises seeking to maintain consistent network standards across multiple locations.

Operational Efficiency and Cost Benefits

Reduced Management Overhead

By consolidating multiple switches into a single logical entity, the Cisco C2960S-STACK FlexStack module significantly reduces management overhead. Administrators can perform updates, backups, and monitoring tasks more efficiently, freeing resources for strategic initiatives.

This operational efficiency translates into lower ongoing support costs and improved return on investment for network infrastructure.

Optimized Hardware Utilization

FlexStack technology allows organizations to maximize the value of their Catalyst 2960-S switches by enabling scalable expansion without additional management hardware. This optimized utilization supports cost-effective growth and aligns with long-term network planning strategies.

The ability to add capacity incrementally ensures that investments are aligned with actual demand, reducing unnecessary expenditures.
