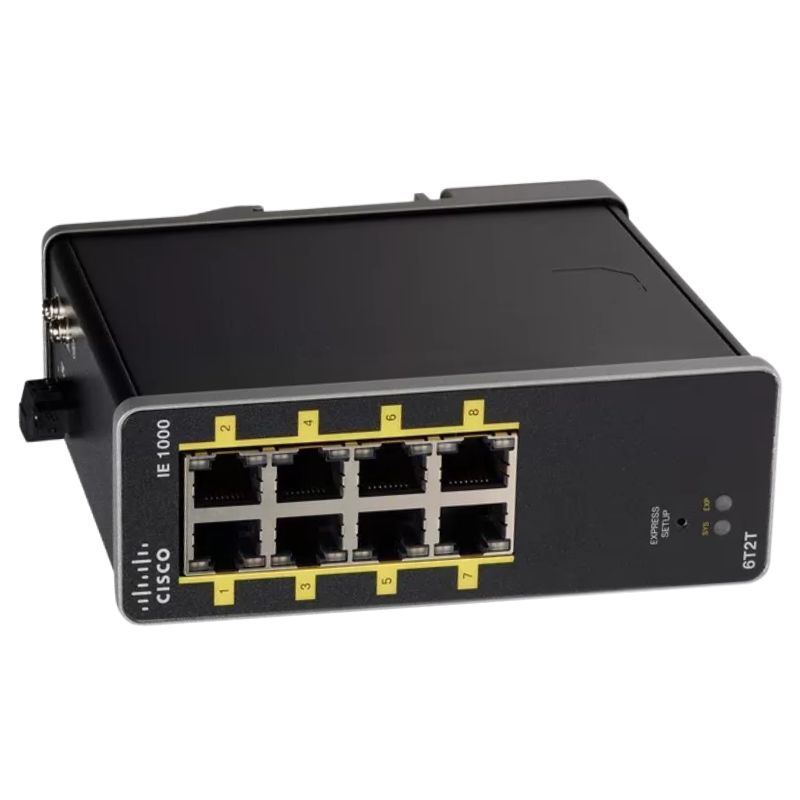

IE-1000-6T2T-LM Cisco 8 Ports Ethernet Switch

Cisco IE-1000-6T2T-LM 8-Port Ethernet Switch Overview

The Cisco IE-1000-6T2T-LM is a robust managed switch designed for industrial environments. Offering a compact DIN-rail mountable design, this 8-port fast Ethernet switch ensures reliable connectivity and advanced management features suitable for both industrial and enterprise networks.

Key Specifications

• Manufacturer: Cisco
• Model/Part Number: IE-1000-6T2T-LM
• Product Type: Managed Ethernet Switch
• Port Configuration: 2 uplink ports (10/100 Mbps) + 6 downlink ports (10/100 Mbps)

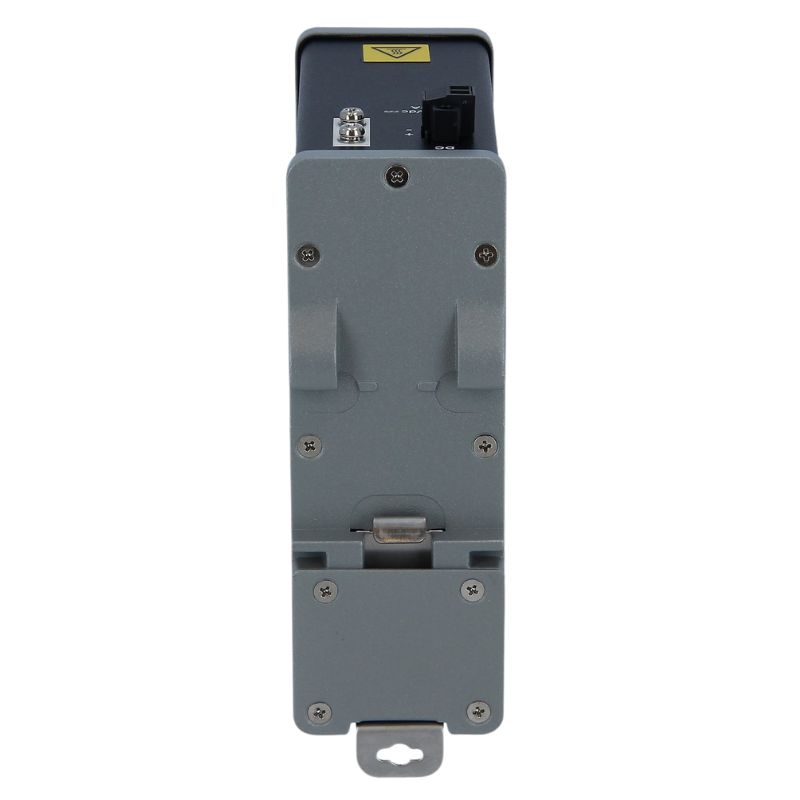

• Mounting: DIN-rail compatible enclosure

Performance & Features

• Supports full duplex for seamless data transmission
• Compliant with advanced spanning tree protocols (STP, MSTP)
• Enhanced DHCP capabilities: DHCP server, DHCP snooping, and static IP support
• Advanced network management: SNMP v2/v3, RMON, HTTP, SSH
• Security features include port security, RADIUS authentication, and secure shell (SSH)
• Supports IGMP snooping and routing protocols (IGMPv2)
• Quality of Service (QoS) features: CoS, DiffServ Code Point (DSCP)

Technical Standards & Compliance

• IEEE 802.3 (Ethernet), 802.3u (Fast Ethernet), 802.3z (Gigabit over fiber)
• IEEE 802.1d (STP), 802.1w (RSTP), 802.1s (MSTP)
• IEEE 802.1p (Traffic prioritization), 802.1q (VLAN tagging)
• IEEE 802.3x (Flow control), 802.3ad (LACP), 802.1ab (LLDP)

Memory & Storage

• RAM: 128 MB
• Flash Memory: 160 MB

Connectivity & Interfaces

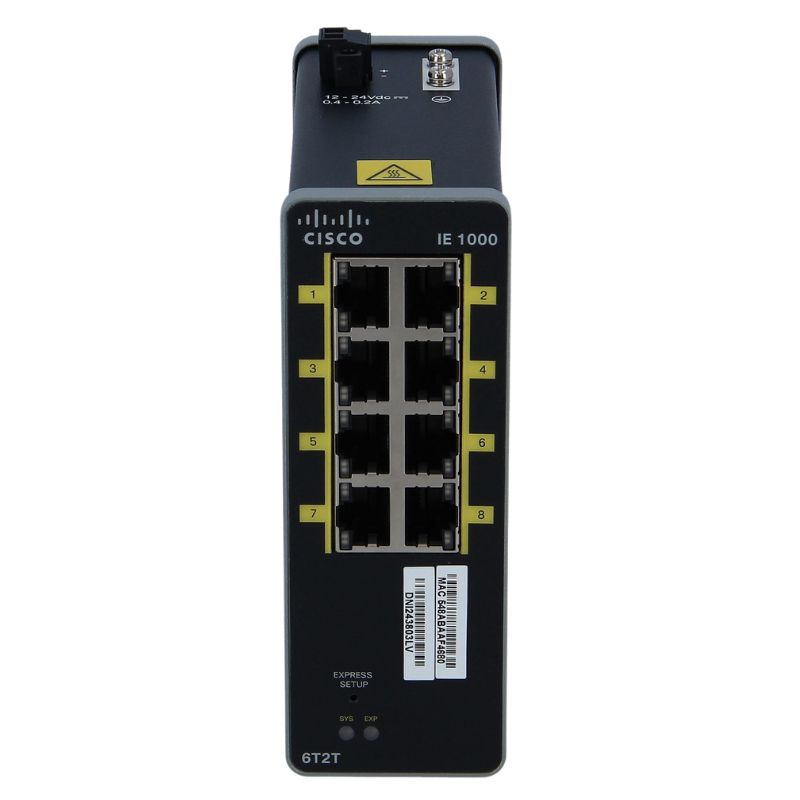

• 8 x RJ-45 100Base-TX Ethernet ports
• Supports both uplink and downlink connections

Power Requirements

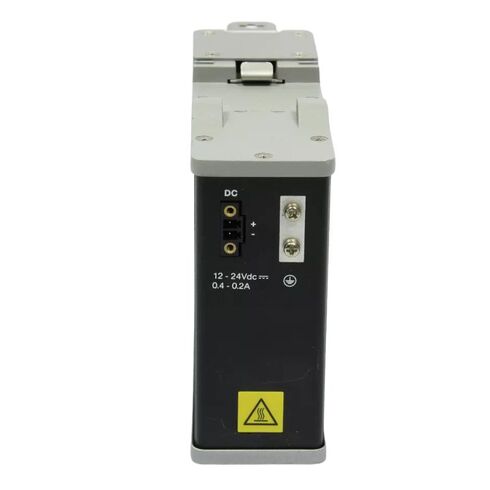

• Input Voltage: DC 12–24 V
• Operational Power Consumption: 5.3 W

Cisco IE-1000-6T2T-LM Industrial Ethernet Switch Category

The Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch belongs to the industrial Ethernet switching category designed for rugged, mission-critical networking environments. This category focuses on compact, durable, and reliable switches that deliver consistent Ethernet connectivity in harsh industrial conditions such as manufacturing plants, transportation systems, energy utilities, oil and gas facilities, and outdoor installations. Industrial Ethernet switches in this segment are engineered to operate reliably under extreme temperatures, electrical noise, vibration, and moisture while maintaining secure and deterministic network performance. The Cisco IE-1000 series represents an entry-level yet enterprise-grade industrial networking solution that bridges the gap between operational technology and information technology infrastructures.

The Cisco IE-1000-6T2T-LM model specifically addresses industrial access-layer networking requirements where simplicity, reliability, and long-term availability are essential. This category emphasizes unmanaged and lightly managed switches that reduce operational complexity while still offering the resilience and performance expected from Cisco industrial networking solutions. The category is ideal for deployments that require stable Ethernet connectivity without the overhead of complex configuration, making it suitable for distributed industrial networks and remote installations.

Industrial Ethernet Switching for Operational Technology Networks

Industrial Ethernet switches within this category are purpose-built to support operational technology networks that demand continuous uptime and predictable communication. Unlike traditional enterprise switches, industrial switches are optimized for industrial protocols, deterministic traffic handling, and long lifecycle support. The Cisco IE-1000-6T2T-LM fits squarely into this category by providing robust Ethernet switching capabilities while maintaining ease of deployment and maintenance.

Operational technology environments often involve programmable logic controllers, human-machine interfaces, sensors, actuators, and industrial computers that require reliable Ethernet connectivity. This category ensures that these devices can communicate efficiently across the network, enabling real-time monitoring, automation, and control. The Cisco IE-1000 series supports these use cases by offering consistent throughput, low latency, and hardware designed to withstand industrial stressors.

Role of Compact Industrial Switches in Edge Deployments

Compact industrial Ethernet switches play a critical role in edge deployments where space is limited and environmental conditions are challenging. The category that includes the Cisco IE-1000-6T2T-LM focuses on small form factor devices that can be mounted in control cabinets, enclosures, or directly on DIN rails. These switches are commonly deployed at the network edge to connect field devices to aggregation switches or industrial routers.

Edge deployments often require switches that can operate autonomously with minimal configuration. The Cisco IE-1000-6T2T-LM category emphasizes plug-and-play operation, allowing industrial engineers and technicians to deploy networking equipment quickly without specialized IT expertise. This approach reduces installation time and lowers the total cost of ownership while maintaining network reliability.

DIN Rail Mounting and Space-Efficient Design Considerations

The industrial Ethernet switch category prioritizes flexible mounting options, particularly DIN rail mounting, which is standard in industrial control panels. The Cisco IE-1000-6T2T-LM is designed to integrate seamlessly into existing industrial cabinets without requiring additional rack space. This design consideration is essential for retrofitting legacy systems or expanding existing networks in constrained environments.

Space-efficient design also contributes to improved airflow and thermal management within control enclosures. By minimizing physical footprint while maximizing port density, this category ensures that industrial networks can scale without introducing excessive heat or requiring major infrastructure changes.

Network Reliability and Environmental Resilience

Reliability is a defining characteristic of the industrial Ethernet switch category. Devices like the Cisco IE-1000-6T2T-LM are engineered to maintain stable operation under continuous load and adverse environmental conditions. This category emphasizes hardware components rated for extended temperature ranges, resistance to electromagnetic interference, and protection against power fluctuations.

Industrial environments often expose networking equipment to dust, humidity, vibration, and electrical noise generated by heavy machinery. The Cisco IE-1000 series category addresses these challenges through robust enclosure design and industrial-grade components. This resilience ensures uninterrupted network communication, which is critical for industrial automation, safety systems, and process control applications.

Extended Temperature Operation for Harsh Environments

One of the key attributes of this category is support for extended operating temperature ranges. The Cisco IE-1000-6T2T-LM is designed to function reliably in environments where temperatures may fluctuate significantly throughout the day or across seasons. This capability is essential for outdoor installations, unconditioned factory floors, and remote substations.

Extended temperature operation reduces the need for additional cooling or climate control equipment, lowering infrastructure costs and simplifying deployment. This category is particularly valuable for industrial operators seeking to deploy Ethernet networks in locations where traditional enterprise switches would fail or require costly environmental controls.

Electromagnetic Compatibility and Noise Immunity

Electromagnetic interference is a common challenge in industrial settings, where motors, welding equipment, and high-voltage systems generate electrical noise. The industrial Ethernet switch category includes devices engineered with enhanced electromagnetic compatibility to ensure reliable data transmission in noisy environments. The Cisco IE-1000-6T2T-LM aligns with this category by providing stable Ethernet performance even in the presence of interference.

Noise immunity contributes to reduced packet loss, fewer network disruptions, and improved overall system stability. This is especially important for industrial protocols and control systems that rely on consistent communication to maintain safety and operational efficiency.

Power Stability and Industrial Power Input Design

Industrial Ethernet switches often operate on non-standard power sources and must tolerate voltage fluctuations. The category encompassing the Cisco IE-1000-6T2T-LM includes designs that support industrial power inputs and protect against power surges and drops. This ensures continuous operation even in facilities with unstable power conditions.

Power stability features help prevent unexpected shutdowns and hardware damage, contributing to longer service life and reduced maintenance requirements. This focus on power resilience is a key differentiator between industrial and commercial Ethernet switch categories.

Ethernet Port Configuration and Network Scalability

The Cisco IE-1000-6T2T-LM belongs to a category defined by flexible Ethernet port configurations tailored to industrial connectivity needs. This category supports multiple Ethernet ports to connect a variety of devices, including controllers, sensors, cameras, and industrial computers. Port density and configuration are optimized to balance compact design with practical connectivity requirements.

Scalability is an important consideration within this category, as industrial networks often expand incrementally. The Cisco IE-1000 series enables straightforward network growth by allowing additional devices to be connected without extensive reconfiguration. This scalability supports evolving industrial processes and future technology adoption.

Access Layer Connectivity for Industrial Devices

Industrial Ethernet switches in this category primarily serve as access-layer devices, providing direct connectivity to field equipment. The Cisco IE-1000-6T2T-LM is designed to aggregate connections from multiple endpoints and forward traffic to higher-level network components. This role is essential for building hierarchical industrial network architectures.

By supporting standard Ethernet connectivity, this category ensures compatibility with a wide range of industrial and commercial devices. This interoperability simplifies integration and reduces vendor lock-in, enabling industrial operators to select best-of-breed equipment for their applications.

Support for Real-Time and Deterministic Traffic

Industrial applications often require predictable network behavior to support real-time control and monitoring. The industrial Ethernet switch category addresses this requirement by prioritizing stable switching performance and low latency. The Cisco IE-1000-6T2T-LM contributes to this category by delivering consistent throughput for time-sensitive data flows.

Deterministic traffic handling is particularly important for automation systems where delays or packet loss can impact process quality or safety. This category ensures that Ethernet networks can meet the stringent requirements of industrial control applications.

Integration with Industrial Network Topologies

The Cisco IE-1000-6T2T-LM category supports common industrial network topologies, including star and linear configurations. These topologies are widely used in factory automation and infrastructure deployments due to their simplicity and reliability. The category’s design philosophy emphasizes straightforward integration into existing network architectures.

Support for standard Ethernet cabling and connectors further enhances integration capabilities, enabling seamless connection to legacy systems and modern industrial equipment alike.
