IE-1000-6T2T-LM Cisco Ethernet Switch, 8 Ports

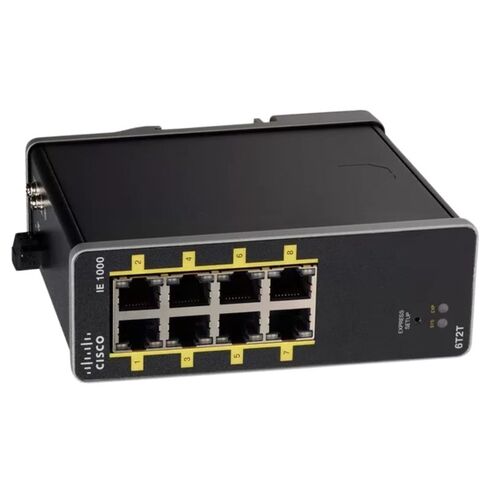

Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch Overview

The Cisco IE-1000-6T2T-LM is a robust managed Ethernet switch designed for industrial environments, offering reliable connectivity and advanced network features. Ideal for mission-critical applications, this switch ensures seamless integration and optimal network performance.

Key Product Details

• Manufacturer: Cisco
• Model / SKU: IE-1000-6T2T-LM
• Device Type: Managed Switch
• Port Count: 8 Ports (6 Downlink, 2 Uplink)
• Mounting: DIN Rail Compatible
• Connection Speed: Fast Ethernet (10/100 Mbps)

Technical Specifications

Device Configuration

• Managed 8-Port Switch
• Supports Full Duplex Mode for efficient data transfer
• Static IP Mode for stable network assignment
• Advanced Spanning Tree Protocol (STP & MSTP) compatibility

Networking & Protocols

• Routing: IGMPv2 and IGMP support for multicast management
• Remote Management: SNMPv2, SNMPv3, RMON, HTTP, SSH
• Authentication: Secure Shell (SSH), RADIUS
• Enhanced Features: DHCP Support, BootP, IGMP Snooping, Syslog, LLDP, Port Security, Class of Service (CoS), DiffServ Code Point (DSCP)
• Standards Compliance: IEEE 802.3, 802.3u, 802.3z, 802.1d, 802.1q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1s, 802.1ab (LLDP)

Memory & Storage

• RAM: 128 MB
• Flash Memory: 160 MB

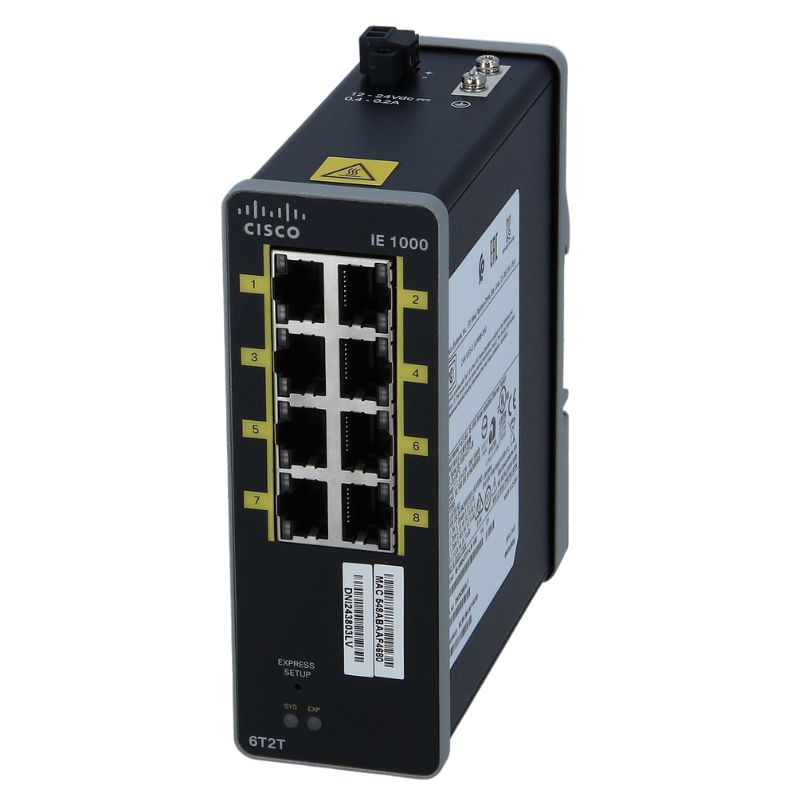

Ports & Connectivity

• 8 RJ-45 Ethernet ports (100BASE-TX)
• 2 Uplink Ports (10/100 Mbps)
• 6 Downlink Ports (10/100 Mbps)

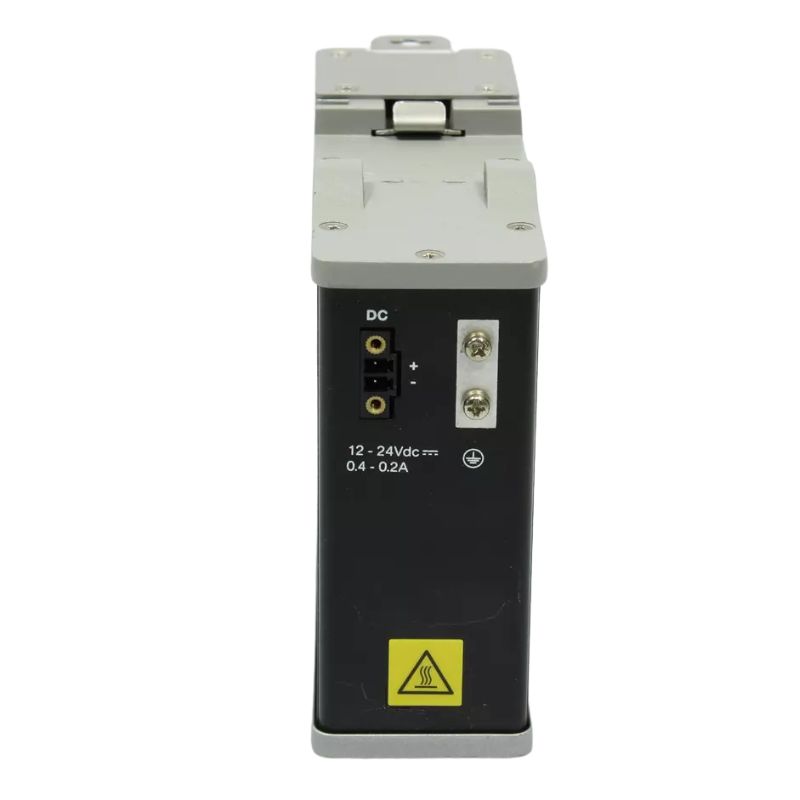

Power Requirements

• Input Voltage: DC 12–24 V
• Operational Power Consumption: 5.3 W

Additional Features

• DHCP Snooping & DHCP Server Capabilities
• Bridge Protocol Data Unit (BPDU) Filtering
• Internet Control Message Protocol (ICMP) Support
• Management Information Base (MIB) Integration

Industrial Ethernet Switching for Mission-Critical Networks

The Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch belongs to a specialized category of industrial Ethernet switches engineered to deliver reliable, deterministic, and secure network connectivity in harsh and demanding environments. This category focuses on ruggedized switching solutions designed for industrial automation, manufacturing floors, transportation systems, energy utilities, oil and gas facilities, and other mission-critical operational technology networks where uptime, stability, and long-term durability are essential. Unlike conventional enterprise switches that prioritize office or data center deployments, industrial Ethernet switches emphasize resilience against temperature extremes, electrical noise, vibration, humidity, and extended lifecycle requirements.

The Cisco IE-1000 series represents an entry-level industrial switching platform that balances cost efficiency with essential Layer 2 switching capabilities, making it ideal for industrial edge deployments. The IE-1000-6T2T-LM model, with its eight Ethernet ports, provides a flexible foundation for connecting programmable logic controllers, human-machine interfaces, sensors, actuators, industrial PCs, and other Ethernet-enabled devices. This category is specifically optimized to support converged IT and OT networks, allowing industrial organizations to integrate operational data with enterprise systems while maintaining strict reliability and security standards.

Design Philosophy of Industrial Ethernet Switches

Industrial Ethernet switches are designed with a fundamentally different philosophy compared to standard commercial networking equipment. The Cisco IE-1000-6T2T-LM exemplifies this design approach by prioritizing simplicity, robustness, and longevity. In industrial environments, network devices must often operate continuously for years without interruption, and maintenance windows are limited or costly. This category of switches is therefore built to minimize points of failure, simplify configuration, and ensure predictable performance under continuous load.

The compact and fanless hardware architecture commonly found in this category reduces mechanical wear and eliminates moving parts that could fail over time. Passive cooling designs allow the switch to operate silently while resisting dust ingress and vibration. The Cisco IE-1000-6T2T-LM, as part of this category, is designed to be DIN-rail mountable, enabling straightforward installation inside industrial control cabinets and enclosures. This mounting flexibility supports dense deployments where space efficiency and cable management are critical.

Ruggedized Hardware for Harsh Conditions

One of the defining characteristics of industrial Ethernet switch categories is their ability to operate in extreme environmental conditions. The Cisco IE-1000-6T2T-LM is engineered to support extended temperature ranges, making it suitable for environments where traditional networking equipment would fail. Industrial sites often experience significant temperature fluctuations due to outdoor exposure, heavy machinery, or limited climate control, and this category of switches is built to remain stable under such conditions.

Electrical noise and electromagnetic interference are also common challenges in industrial facilities. Industrial Ethernet switches are designed with enhanced shielding, grounding, and surge protection to ensure signal integrity and prevent network disruptions caused by electrical interference. This level of robustness allows the Cisco IE-1000-6T2T-LM category to maintain consistent network performance even in proximity to motors, transformers, and high-voltage equipment.

Extended Lifecycle and Product Availability

Industrial automation systems are often deployed for long operational lifespans, sometimes spanning a decade or more. As a result, industrial Ethernet switch categories emphasize long-term product availability and stable hardware platforms. The Cisco IE-1000-6T2T-LM is positioned within a product family designed to remain available and supported for extended periods, reducing the risk of forced upgrades or compatibility issues in established industrial systems.

This extended lifecycle approach is particularly valuable for industries such as manufacturing, energy, and transportation, where system redesigns can be costly and disruptive. By choosing switches within this category, organizations can standardize on a networking platform that aligns with their long-term operational strategies.

Port Configuration and Connectivity Capabilities

The Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch category is defined by its balanced port configuration, which provides both flexibility and scalability for industrial edge deployments. The combination of multiple Ethernet ports allows organizations to connect a diverse range of industrial devices while maintaining efficient network segmentation and traffic management. This category supports copper-based Ethernet connectivity, which remains prevalent in industrial environments due to its robustness and compatibility with existing infrastructure.

Industrial Ethernet switches in this category are often deployed at the network edge, serving as aggregation points for field devices. The Cisco IE-1000-6T2T-LM enables direct connectivity for controllers, sensors, cameras, and monitoring systems, reducing the need for additional networking hardware. This streamlined approach simplifies network architecture and reduces potential points of failure.

Support for Industrial Protocols and Traffic Patterns

Industrial networks often rely on specialized communication protocols and deterministic traffic patterns that differ from traditional IT networks. The Cisco IE-1000-6T2T-LM category is designed to support industrial Ethernet protocols commonly used in automation and control systems. These protocols require low latency, predictable delivery, and high reliability to ensure proper system operation.

By supporting quality of service mechanisms and efficient Layer 2 switching, this category of switches ensures that time-sensitive industrial traffic is prioritized appropriately. This capability is essential for applications such as real-time control, motion systems, and safety monitoring, where delays or packet loss could have serious consequences.

Scalable Network Expansion at the Edge

As industrial operations evolve, network requirements often expand to accommodate new equipment, sensors, and data collection systems. The Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch category provides a scalable foundation that supports incremental growth without requiring a complete network redesign. Additional switches can be deployed alongside existing units, enabling modular expansion that aligns with operational needs.

This scalability is particularly valuable in distributed industrial environments, such as factories with multiple production lines or remote substations in utility networks. The ability to deploy standardized edge switches simplifies network management and ensures consistent performance across the entire infrastructure.

Layer 2 Switching Features for Industrial Networks

The Cisco IE-1000-6T2T-LM belongs to a category of industrial Ethernet switches that focus on essential Layer 2 switching functionality. Layer 2 capabilities are often sufficient for many industrial applications, where simplicity, reliability, and ease of management take precedence over advanced routing features. This category is optimized to deliver stable Ethernet connectivity while minimizing configuration complexity.

Layer 2 switching enables efficient forwarding of Ethernet frames based on MAC addresses, supporting high-performance communication between connected devices. In industrial environments, where network topologies are often relatively static, Layer 2 switching provides a dependable and predictable networking foundation. The Cisco IE-1000-6T2T-LM category emphasizes this stability, making it well suited for control networks and automation systems.

Network Segmentation and Traffic Control

Even within a Layer 2 switching category, network segmentation plays an important role in maintaining performance and security. Industrial Ethernet switches like the Cisco IE-1000-6T2T-LM support logical separation of traffic, enabling organizations to isolate different types of industrial communications. This approach reduces broadcast traffic and minimizes the risk of network congestion.

Traffic control mechanisms within this category help ensure that critical industrial communications are not disrupted by less important data flows. By maintaining predictable traffic behavior, the switch supports consistent system performance and helps prevent unexpected downtime.

Simplicity of Configuration and Deployment

Industrial Ethernet switch categories prioritize ease of deployment, particularly for environments where IT expertise may be limited or where rapid installation is required. The Cisco IE-1000-6T2T-LM is designed to be straightforward to configure, allowing industrial engineers and technicians to deploy and manage the network without extensive training.

This simplicity reduces the risk of configuration errors that could impact system reliability. In many industrial settings, minimizing complexity is essential to maintaining operational continuity and ensuring that network infrastructure supports, rather than hinders, production processes.

Security Considerations in Industrial Ethernet Switching

Security is a critical concern in modern industrial networks, as increased connectivity exposes operational systems to potential cyber threats. The Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch category incorporates foundational security features designed to protect industrial assets while maintaining operational efficiency. Industrial Ethernet switches in this category are built to support secure network segmentation and controlled access, reducing the attack surface within industrial environments.

By providing essential security controls at the network edge, this category helps organizations enforce security policies closer to connected devices. This approach is particularly important in industrial settings, where legacy equipment and proprietary protocols may lack built-in security mechanisms.

Protection Against Unauthorized Access

Industrial Ethernet switches like the Cisco IE-1000-6T2T-LM are designed to support controlled access to network resources. By limiting which devices can connect and communicate, this category helps prevent unauthorized access that could disrupt operations or compromise sensitive data. These security measures are implemented in a way that aligns with the deterministic requirements of industrial systems.

Edge-level security provided by this category complements broader industrial cybersecurity strategies, enabling layered defense without introducing excessive complexity. This balance between security and simplicity is a defining characteristic of industrial Ethernet switch categories.

Supporting Secure IT and OT Convergence

As industrial organizations increasingly integrate IT and OT networks, the need for secure convergence becomes more important. The Cisco IE-1000-6T2T-LM category supports this convergence by providing a reliable and secure bridge between industrial devices and enterprise systems. By enabling secure data flow from the factory floor to analytics platforms and management systems, this category supports digital transformation initiatives without compromising operational integrity.

This capability allows organizations to gain deeper insights into production processes, equipment performance, and operational efficiency while maintaining strong security boundaries within the industrial network.

Applications and Use Cases Across Industries

The Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch category is versatile and adaptable, making it suitable for a wide range of industrial applications. In manufacturing environments, this category is commonly used to connect production line equipment, robotic systems, and quality control devices. The reliability and deterministic performance of industrial Ethernet switches ensure that automation systems operate smoothly and consistently.

In energy and utilities, industrial Ethernet switches play a critical role in connecting substations, monitoring equipment, and control systems. The rugged design and extended temperature support of the Cisco IE-1000-6T2T-LM category make it well suited for outdoor or remote installations where environmental conditions can be challenging.

Transportation and Infrastructure Deployments

Transportation systems, including rail networks, traffic management systems, and intelligent transportation infrastructure, rely on industrial Ethernet switches for reliable communication. The Cisco IE-1000-6T2T-LM category supports these applications by providing stable connectivity in environments subject to vibration, temperature variation, and electrical noise.

By enabling real-time data exchange between sensors, controllers, and management systems, this category supports improved safety, efficiency, and operational visibility across transportation networks.

Smart Cities and Industrial IoT Integration

The growth of smart city initiatives and industrial IoT deployments has increased demand for reliable edge networking solutions. The Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch category provides a dependable platform for connecting distributed sensors, cameras, and monitoring devices. This connectivity supports data-driven decision-making and enhances operational efficiency across urban and industrial environments.

By serving as a stable edge switch, this category enables scalable IoT deployments while maintaining the reliability and security required for critical infrastructure.

Operational Efficiency and Network Reliability

Operational efficiency is a key driver behind the adoption of industrial Ethernet switch categories. The Cisco IE-1000-6T2T-LM is designed to deliver consistent network performance with minimal maintenance requirements. Its rugged construction and fanless design reduce the likelihood of hardware failures, contributing to higher overall system availability.

Network reliability is especially important in industrial environments, where downtime can result in significant financial losses or safety risks. By providing stable and predictable Ethernet connectivity, this category helps ensure that industrial processes run continuously and efficiently.

Reduced Maintenance and Total Cost of Ownership

Industrial Ethernet switches are designed to minimize maintenance demands over their operational lifespan. The Cisco IE-1000-6T2T-LM category supports this goal by offering a durable hardware platform that requires minimal intervention. Reduced maintenance translates into lower operational costs and less disruption to production activities.

The long-term reliability of this category also contributes to a lower total cost of ownership, making it an attractive choice for organizations seeking cost-effective industrial networking solutions.

Consistent Performance in Continuous Operations

Many industrial applications operate continuously, with little tolerance for network interruptions. The Cisco IE-1000-6T2T-LM 8 Ports Ethernet Switch category is engineered to maintain consistent performance under continuous load, supporting round-the-clock operations without degradation. This reliability is essential for industries such as manufacturing, energy, and transportation, where continuous operation is the norm.

By delivering dependable Ethernet switching at the industrial edge, this category plays a critical role in supporting modern industrial operations and enabling efficient, data-driven processes.
