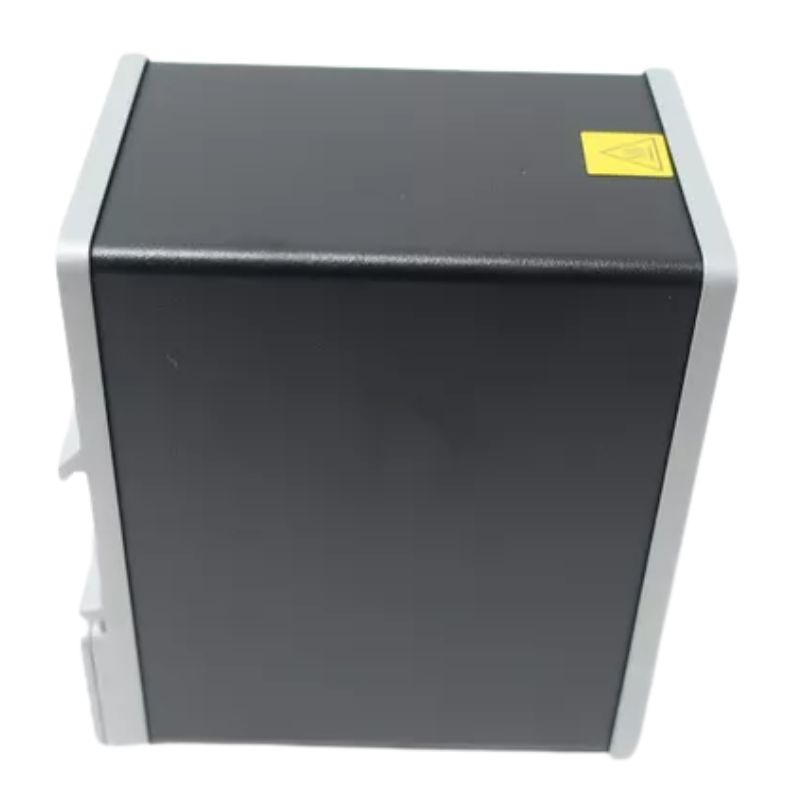

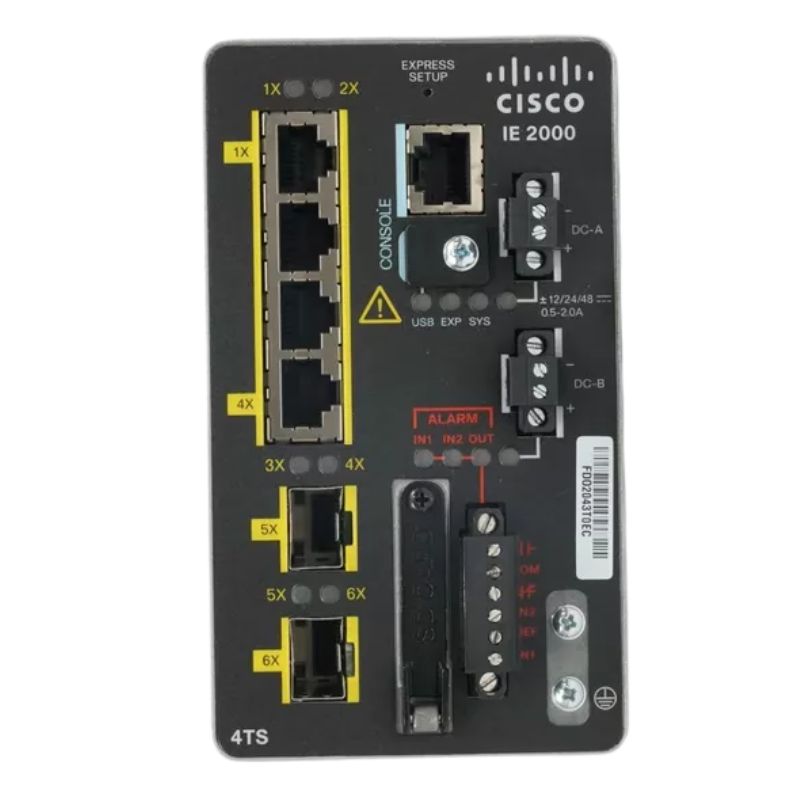

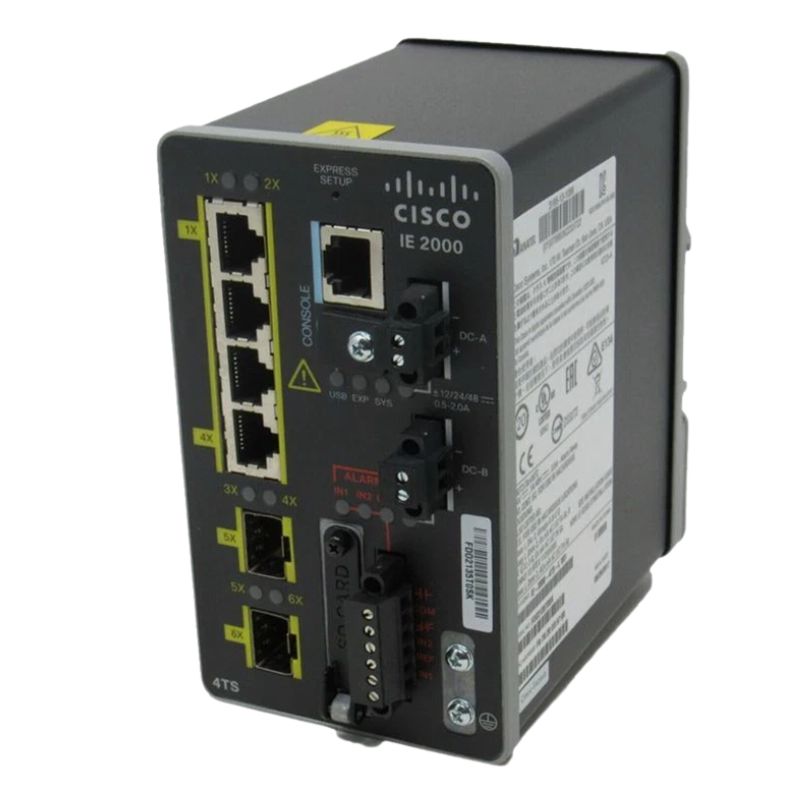

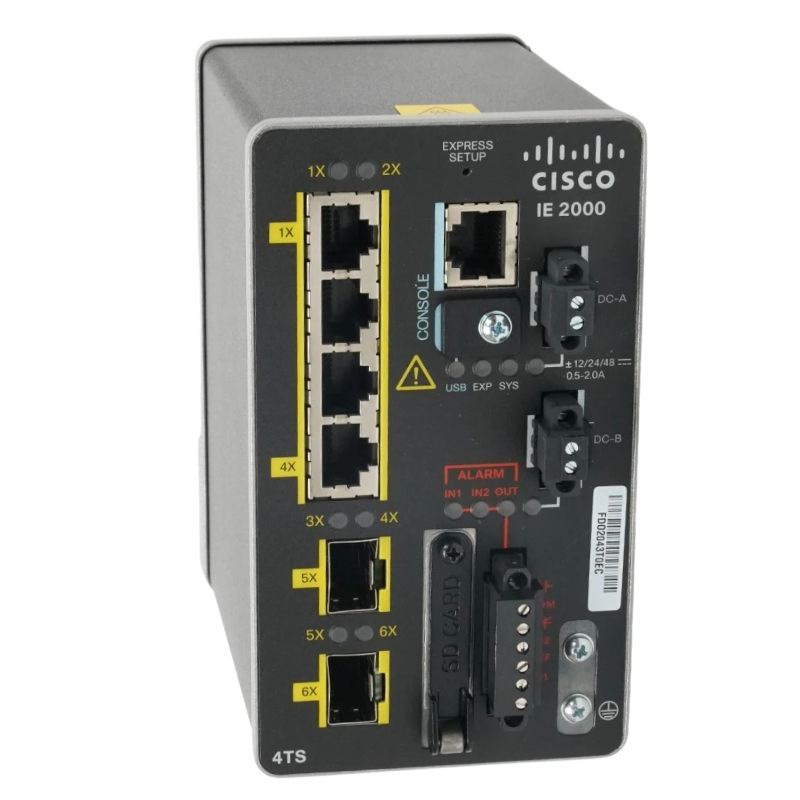

Cisco IE-2000-4TS-B Ethernet Switch, Manageable 2000 Series
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Same product also available in:
SKU/MPN | Warranty | Price | Condition | You save |
---|---|---|---|---|
IE-2000-4TS-B | Six-Month (180 Days) | $261.00 | Excellent Refurbished | You save: $587.48 (69%) |
IE-2000-4TS-B | Six-Month (180 Days) | $578.00 | Factory-Sealed New Retail in Original Box (FSB) | You save: $325.15 (36%) |
Product Overview
Manufacturer Details
- Brand: Cisco
- Model Number: IE-2000-4TS-B
- Series: IE-2000
- Type: Ethernet Switch
Network Interfaces
Port Specifications
- Total Ethernet Ports: 4
- Uplink Port Available: Yes
- Management Port Present: Yes
- USB Support: Yes
- RJ-45 Network Ports: 4
Layer Support
- Operates on Layer 2
Management Features
This switch supports multiple management protocols:
- Telnet
- HTTPS
- SNMP
- CNA
- VLAN
Performance Specifications
Media Types and Standards
- Supported Media: Twisted Pair
- Cable Standard: Category 5
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000BASE-T
Expansion Capabilities
Expansion Slots
- Total Expansion Slots: 2
- Type of Expansion Slot: SFP
- Shared SFP Slot: Yes
- SFP Slots Available: 2
Memory Specifications
Memory Details
- Standard Memory: 256 MB
- Memory Technology: DRAM
- Flash Memory Capacity: 64 MB
- Supported Memory Card: Secure Digital (SD) Card
Power Supply Information
Power Specifications
- Power over Ethernet (PoE) Port: No
- Input Voltage: 60 V DC
- Power Source: External Power Supply
- Redundant Power Supply Option: Yes
Series: Cisco IE-2000-4TS-B Industrial Ethernet Switch
The Cisco IE-2000-4TS-B is part of the renowned Cisco IE 2000 Series, which is known for its exceptional performance and reliability in industrial environments. With the '2000' designation, this switch stands out as a high-quality solution specifically designed to meet the demanding requirements of industrial applications. In this section, we will explore the benefits and importance of the '2000' series feature for users.
Enhanced Durability and Resilience
Industrial environments can be harsh and unforgiving, posing significant challenges to networking equipment. The Cisco IE-2000-4TS-B, as part of the '2000' series, is built to withstand these challenges with its rugged design. It is equipped with industrial-grade components that ensure reliable operation even in extreme temperatures, vibrations, and electromagnetic interference.

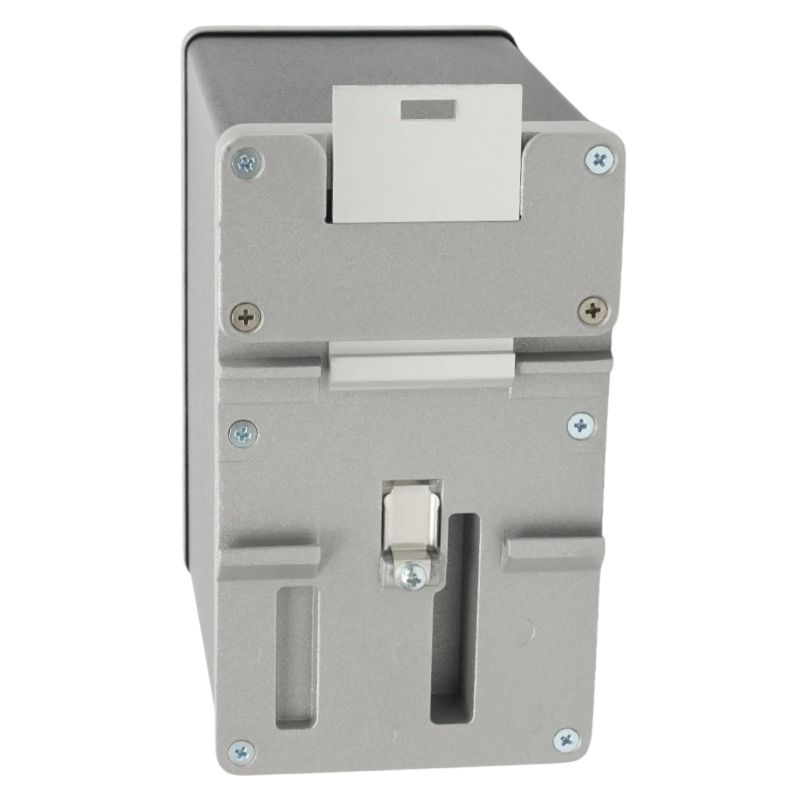

This robustness extends to its mechanical design as well. The switch comes in a compact form factor with DIN rail mounting capability, allowing for easy installation in space-constrained industrial cabinets or enclosures. Its sturdy construction ensures protection against accidental damage and ensures uninterrupted connectivity even in demanding industrial settings.
Extended Temperature Range
One of the key advantages of the '2000' series is its ability to operate within a wide temperature range. The Cisco IE-2000-4TS-B can function reliably in temperatures ranging from -40°C to +75°C (-40°F to 167°F). This extended temperature range makes it suitable for deployments in outdoor environments or areas subject to extreme temperature variations.
By withstanding such temperature extremes, the switch eliminates the need for additional cooling equipment or climate-controlled enclosures, resulting in cost savings for users. Moreover, it ensures uninterrupted operation in challenging industrial environments where temperature differentials are common.
High Immunity to Electromagnetic Interference
Industrial environments often have high levels of electromagnetic interference (EMI) due to the presence of heavy machinery and power equipment. The Cisco IE-2000-4TS-B is designed to minimize the impact of EMI on network performance, ensuring reliable and consistent connectivity.
The switch's components are carefully selected and shielded to provide high immunity against electromagnetic interference. This shielding prevents disruptions caused by EMI sources and helps maintain a stable network connection, even in the presence of powerful electrical equipment.
Vibration and Shock Resistance
In industrial settings, equipment vibrations and shocks are common occurrences that can jeopardize the reliability of network devices. The Cisco IE-2000-4TS-B is engineered to withstand these disturbances, ensuring uninterrupted operation in demanding environments.
The switch has been rigorously tested for vibration resistance, conforming to IEC 60068-2-6 standards. It can withstand vibrations up to 5G at frequencies ranging from 10 to 150 Hz. Additionally, it meets IEC 60068-2-27 standards for shock resistance, withstanding shocks up to 25G for 11 ms duration.
This exceptional resistance to vibrations and shocks makes the Cisco IE-2000-4TS-B an ideal choice for deployment in industrial facilities where machinery and equipment generate substantial vibrations or shocks.
Manageable: Cisco IE-2000-4TS-B Industrial Ethernet Switch
The manageability of network devices is crucial for efficient monitoring, control, and troubleshooting. The Cisco IE-2000-4TS-B, as part of the '1' series, offers extensive manageability features that simplify network administration and enhance overall performance. In this section, we will delve into the benefits and importance of the '1' manageable feature for users.
Easy Configuration and Administration
The Cisco IE-2000-4TS-B is equipped with a user-friendly web interface that simplifies the initial configuration and ongoing administration tasks. Users can easily access and configure the switch's settings through a standard web browser, eliminating the need for specialized software or command-line interfaces.
The intuitive web interface provides a comprehensive set of configuration options, allowing users to customize the switch's behavior according to their specific requirements. This flexibility ensures seamless integration into existing network infrastructures and enables efficient management of industrial networks.
Centralized Network Management
As part of the '1' series, the Cisco IE-2000-4TS-B supports Cisco Industrial Network Director (IND), a powerful management tool designed specifically for industrial networks. IND enables centralized network management, providing a unified view of all connected devices and simplifying network monitoring and troubleshooting.
With IND, administrators can easily monitor the health and performance of the switch, identify potential issues, and take proactive measures to ensure uninterrupted operation. The centralized management approach streamlines network administration tasks, reduces downtime, and improves overall network efficiency.
Advanced Security Features
Network security is of paramount importance in industrial environments, where sensitive data and critical infrastructure are at risk. The Cisco IE-2000-4TS-B offers a range of advanced security features that protect against unauthorized access and potential threats.
The switch supports various security protocols such as 802.1X authentication, port security, and Access Control Lists (ACLs) to ensure that only authorized devices can connect to the network. It also includes features like Secure Shell (SSH) and Secure Sockets Layer (SSL) encryption for secure remote management.
Furthermore, the switch integrates with Cisco TrustSec®, a comprehensive security solution that provides identity-based access control and policy enforcement throughout the network. This robust security framework helps safeguard critical assets and ensures compliance with industry regulations.
Enhanced Diagnostics and Troubleshooting
To maintain optimal network performance, it is crucial to quickly identify and resolve any issues that may arise. The Cisco IE-2000-4TS-B simplifies diagnostics and troubleshooting with its comprehensive set of monitoring and troubleshooting tools.
The switch supports features like Simple Network Management Protocol (SNMP), Remote Monitoring (RMON), and Syslog, allowing administrators to monitor network performance, track device status, and receive real-time alerts in the event of anomalies. These capabilities enable proactive management and timely resolution of network issues, minimizing downtime and ensuring uninterrupted operations.
Quality of Service (QoS) Optimization
In industrial environments, where critical applications coexist with non-essential traffic, efficient QoS management is essential. The Cisco IE-2000-4TS-B offers advanced QoS capabilities that prioritize critical traffic, ensuring consistent performance for mission-critical applications.
Administrators can define QoS policies based on traffic types, assigning different levels of priority to ensure that time-sensitive data, such as control signals or real-time video feeds, receive preferential treatment. This optimization minimizes latency and packet loss, guaranteeing reliable communication and reducing the risk of disruptions in industrial processes.
In conclusion, the Cisco IE-2000-4TS-B Industrial Ethernet Switch, as part of the '2000' and '1' series features, delivers exceptional durability, manageability, and performance for industrial applications. Its '2000' series feature ensures enhanced resilience and reliability in demanding environments, while the '1' manageable feature provides extensive configuration options, centralized management capabilities, advanced security measures, and efficient troubleshooting tools. By choosing the Cisco IE-2000-4TS-B, users can confidently deploy a reliable and manageable networking solution tailored to meet the specific requirements of industrial environments.
