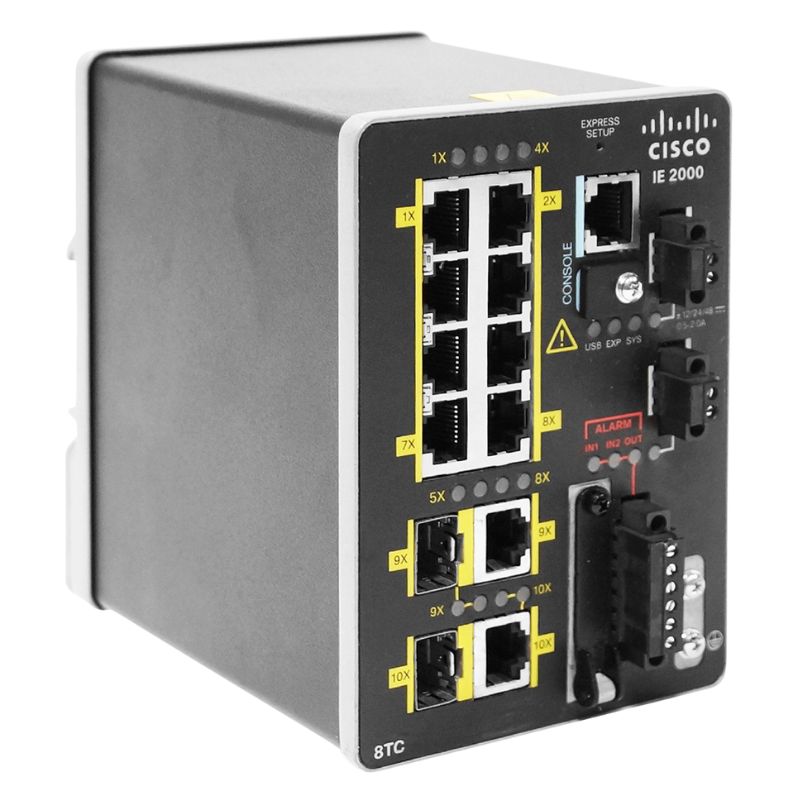

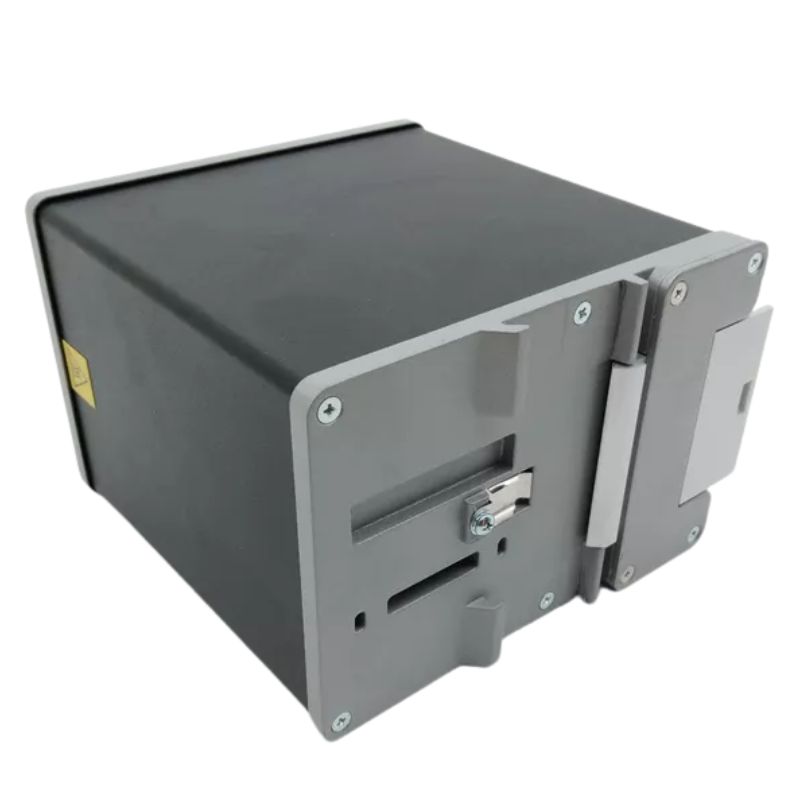

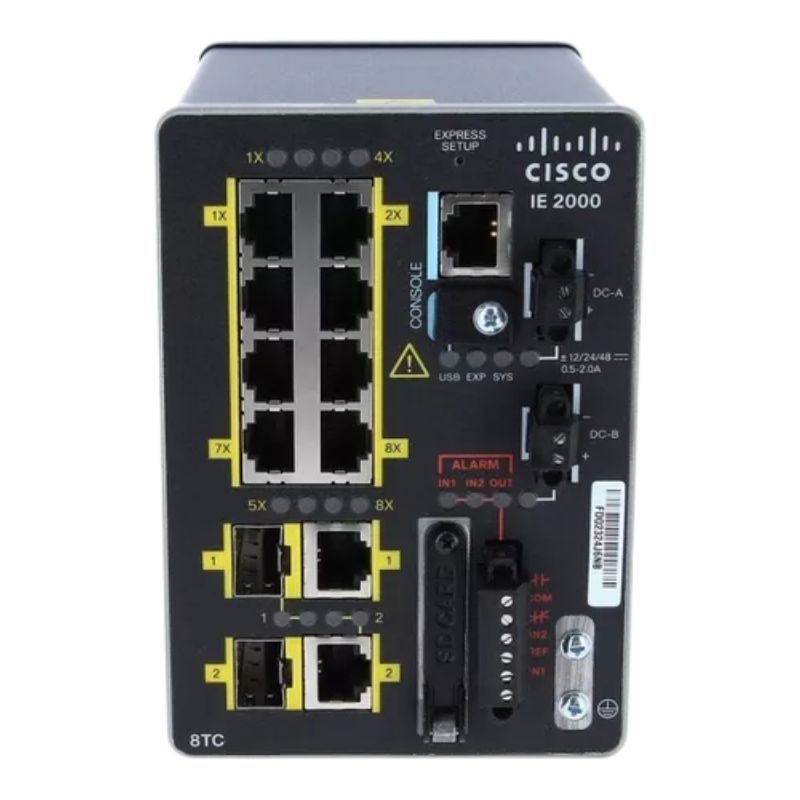

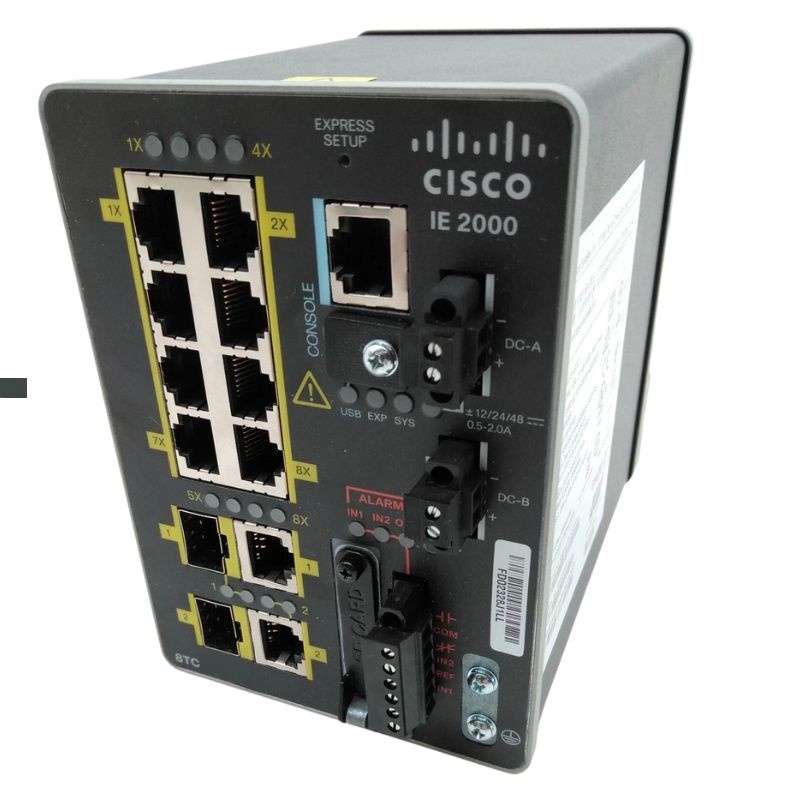

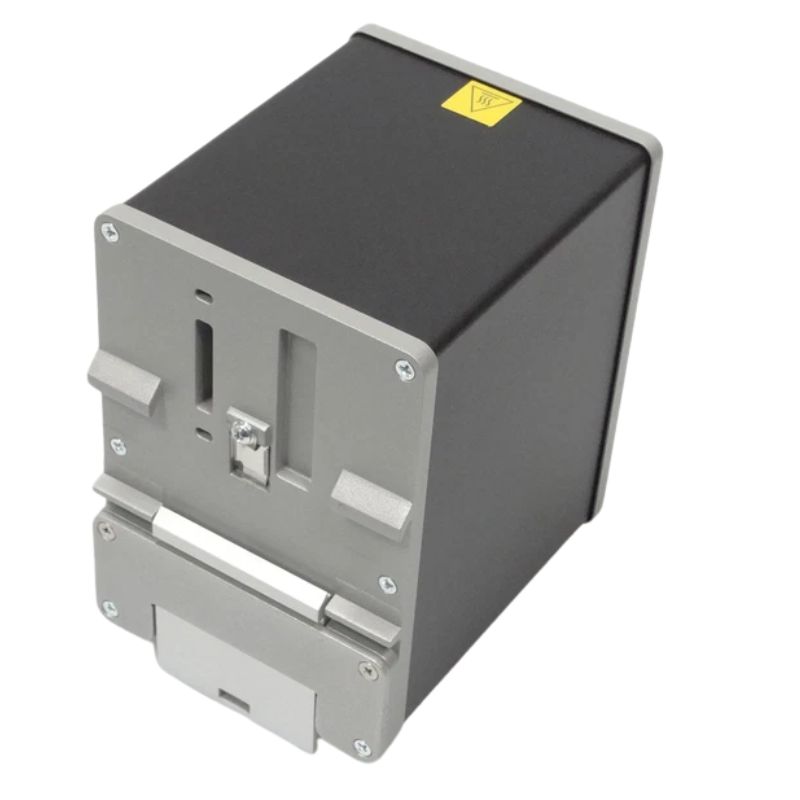

Cisco IE-2000-8TC-L Managed Switch

Ports

The Cisco IE-2000-8TC-L Managed Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses that require a compact and efficient network solution. These ports offer numerous benefits and play a crucial role in ensuring seamless connectivity and data transfer within the network.

Cisco IE-2000-8TC-L Overview

Manufacturer and Model

• Brand: Cisco
• Model Number: IE-2000-8TC-L
• Product Series: IE-2000

Product Type

• Type: Ethernet Switch
• Number of Ports: 8 Ports Switch

Ports and Connectivity

Network Ports

• Total Network Ports: 10
• Network (RJ-45) Ports: 10
• Uplink Port: Yes
• Token Ring Port: No
• LRE Port: No
• USB Port: Yes
• Stack Port: No

Expansion and Slots

• Total Expansion Slots: 2
• Expansion Slot Type: SFP
• Shared SFP Slot: Yes
• SD Memory Card Slot: 1 (total) / 1 (available)

Media and Performance Specifications

Supported Media Types

• Media Type: Twisted Pair

Ethernet Technology

• Technology: Fast Ethernet, Gigabit Ethernet
• Network Technology: 10/100/1000Base-T, 10/100Base-TX

Networking Features

Virtual Interfaces

• VLANs Supported: 255
• MAC Address Table Size: 8K entries

Protocols and Management

• Routing Protocol: IGMP
• Remote Management Protocols: SNMP v3, SSH
• Authentication Methods: Secure Shell (SSH), RADIUS, TACACS+
• Standards Compliance: IEEE 802.1x

Features and Functionality

Supported Features

• Dynamic Host Configuration Protocol (DHCP) support
• Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) support
• Quality of Service (QoS) capabilities
• Port Security

Management and Memory

Management Capabilities

• Manageable: Yes
• Management Methods: Telnet, SNMP, Web-Based Management, HTTPS, LMS, SNMP v3
• QoS Support: Yes

Memory Specifications

• Standard Memory: 256 MB DRAM
• Flash Memory: 64 MB
• Supported Memory Card: SD

Reliability and Power

Reliability Metrics

• Mean Time Between Failures (MTBF): 374,052 Hours

Power Requirements

• Power over Ethernet (PoE) Port: No
• Power Source: Power Supply
• Redundant Power Supply: Supported

Environmental Specifications

Operating Conditions

• Humidity Range: 5 – 95% (non-condensing)
• Minimum Storage Temperature: -40 °F
• Maximum Storage Temperature: 185 °F

Certifications and Compliance

• Safety Certifications: UL/CSA 60950-1, EN 60950-1, CB to IEC 60950-1, NOM to NOM-019-SCF1, CE
• EMC Compliance: FCC 47 CFR Part 15 Class A, EN 55022A Class A, VCCI Class A, AS/NZS CISPR 22 Class A, ICES 003 Class A
• Industry Standards: UL 508, CSA C22.2 No. 142, EN 61131-2
• Environmental Certification: RoHS

Increased Flexibility

With 8 ports, the Cisco IE-2000-8TC-L allows for greater flexibility in network design and setup. This switch provides multiple ports for connecting various devices, such as computers, printers, IP phones, and surveillance cameras. The availability of multiple ports ensures that users can easily expand their network infrastructure as their business grows or their requirements change.

Efficient Data Transfer

Each port on the Cisco IE-2000-8TC-L supports Fast Ethernet connectivity, enabling high-speed data transfer between connected devices. This is particularly important for businesses that rely heavily on real-time data streaming, video conferencing, or VoIP communication. The fast data transfer capability ensures smooth and uninterrupted communication and collaboration within the network.

Redundancy and Resilience

The 8 ports on the Cisco IE-2000-8TC-L can be configured to provide redundancy and resilience in the network. By using features such as link aggregation or spanning tree protocol, users can create redundant paths between devices to ensure uninterrupted connectivity even if one link fails. This redundancy enhances network reliability and minimizes downtime, resulting in increased productivity and customer satisfaction.

Network Segmentation

With 8 ports available, users can easily segment their network into different VLANs (Virtual Local Area Networks). VLANs allow for improved network management by isolating different departments or groups within the organization. This segmentation enhances security, as it prevents unauthorized access to sensitive data or resources. It also helps in optimizing network performance by reducing broadcast traffic and improving overall network efficiency.

Power over Ethernet (PoE) Support

Some of the ports on the Cisco IE-2000-8TC-L are Power over Ethernet (PoE) enabled. This feature allows the switch to provide power to connected devices, such as IP phones, wireless access points, or surveillance cameras, through the Ethernet cable. With PoE support, users can eliminate the need for additional power adapters and cables, simplifying installation and reducing clutter.

Management

The "Managed" feature of the Cisco IE-2000-8TC-L Managed Switch sets it apart from unmanaged switches and provides significant benefits to users in terms of network control, monitoring, and security.

Centralized Control

Being a managed switch, the Cisco IE-2000-8TC-L allows for centralized control over the network. Administrators can configure and manage the switch through a web-based interface or command line interface (CLI). This centralized management provides a comprehensive view of the network infrastructure, making it easier to monitor and control network devices, troubleshoot issues, and implement changes.

Advanced Network Monitoring

Managed switches offer advanced monitoring capabilities that allow administrators to gain insight into network performance and identify potential bottlenecks or anomalies. The Cisco IE-2000-8TC-L provides features such as port mirroring, which enables traffic monitoring on specific ports, and SNMP (Simple Network Management Protocol) support for collecting network statistics. These monitoring capabilities help in proactively identifying and resolving network issues, ensuring optimal performance.

Enhanced Security

The managed nature of the Cisco IE-2000-8TC-L adds an extra layer of security to the network. Administrators can implement security measures such as VLANs, access control lists (ACLs), and port security to restrict access to sensitive resources and prevent unauthorized devices from connecting to the network. Additionally, managed switches often support advanced security protocols like 802.1X authentication, which further strengthens network security by ensuring only authorized devices can access the network.

Quality of Service (QoS) Control

Efficiently managing network traffic is crucial for organizations that rely on real-time applications or prioritize certain types of traffic over others. The Cisco IE-2000-8TC-L allows administrators to implement Quality of Service (QoS) policies, enabling them to prioritize specific traffic types based on their importance or criticality. This ensures that essential services, such as voice or video communication, receive sufficient bandwidth and are not affected by other less critical traffic.

Layer

The Cisco IE-2000-8TC-L Managed Switch operates at Layer 2 of the OSI (Open Systems Interconnection) model. This layer-specific functionality is essential for network operations and offers several benefits to users.

Efficient Switching

Operating at Layer 2, the Cisco IE-2000-8TC-L performs switching functions efficiently. It uses MAC (Media Access Control) addresses to forward network traffic between connected devices, ensuring that data reaches its intended destination without unnecessary delays. Layer 2 switches are known for their low latency and high throughput, making them ideal for networks that require fast and reliable data transfer.

Simple Network Design

Layer 2 switches simplify network design by providing a straightforward and scalable solution. These switches typically operate within a single broadcast domain, which means all devices connected to the switch can communicate directly with each other without the need for routing. This simplicity in design reduces network complexity and facilitates easier troubleshooting and maintenance.

Support for VLANs

Layer 2 switches like the Cisco IE-2000-8TC-L support VLANs, which allow for logical segmentation of the network. VLANs provide enhanced security and performance by isolating traffic between different groups or departments within the organization. This segmentation ensures that sensitive data remains isolated from other network traffic, reducing the risk of unauthorized access and improving overall network efficiency.

Integration with Layer 3 Devices

While the Cisco IE-2000-8TC-L operates at Layer 2, it can seamlessly integrate with Layer 3 devices, such as routers or Layer 3 switches. This integration enables the switch to leverage Layer 3 routing capabilities for inter-VLAN communication or connecting to external networks. By combining Layer 2 and Layer 3 functionality, users can create a robust and scalable network infrastructure that meets their specific requirements.

Power over Ethernet (PoE)

The Cisco IE-2000-8TC-L Managed Switch offers Power over Ethernet (PoE) support on selected ports, providing significant benefits to users in terms of flexibility and cost savings.

Device Flexibility

With PoE support, the Cisco IE-2000-8TC-L allows users to connect and power various devices over a single Ethernet cable. This eliminates the need for separate power adapters and reduces cable clutter, making the installation process simpler and more organized. PoE-enabled devices that can be powered by the switch include IP phones, wireless access points, IP cameras, and even small IoT (Internet of Things) devices.

Cost Savings

By utilizing PoE technology, users can save on installation and maintenance costs. Traditional network setups often require separate power outlets near each device, leading to additional wiring and installation expenses. With PoE support on the Cisco IE-2000-8TC-L, users can eliminate the need for costly electrical work by powering devices directly through the Ethernet cable.

Flexibility in Device Placement

PoE support allows for greater flexibility in device placement within the network. Since PoE-enabled devices can be powered through the Ethernet cable, they are not limited by the proximity to a power outlet. This flexibility enables users to deploy devices in locations that may not have easy access to power, such as ceilings for wireless access points or outdoor areas for surveillance cameras.

Remote Power Management

The Cisco IE-2000-8TC-L's PoE support also enables remote power management of connected devices. Administrators can monitor and control the power status of individual ports or devices through the switch's management interface. This remote power management capability reduces the need for physical access to devices, simplifies troubleshooting, and enhances overall network manageability.
