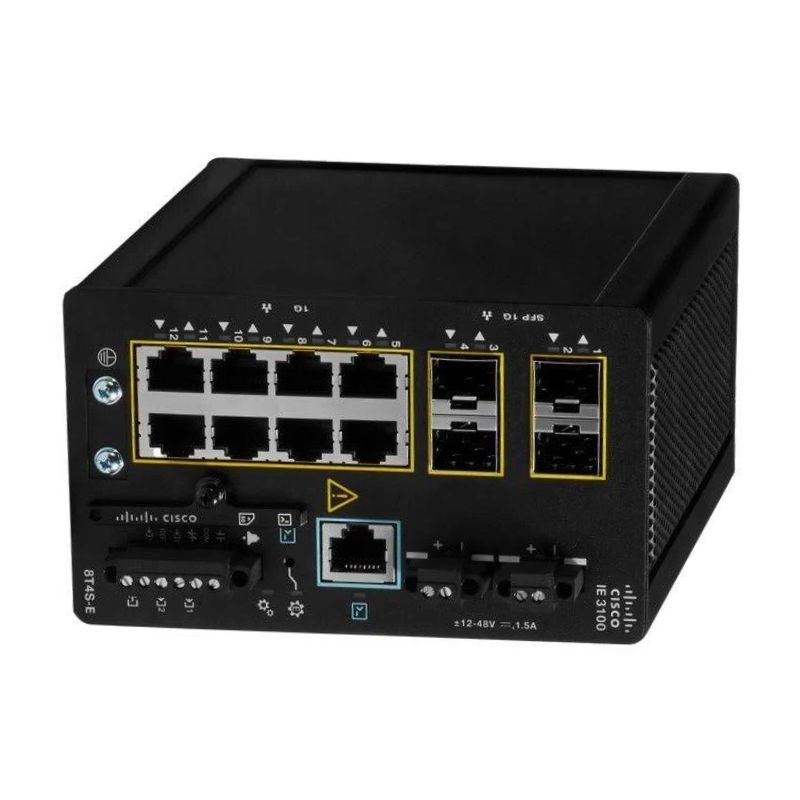

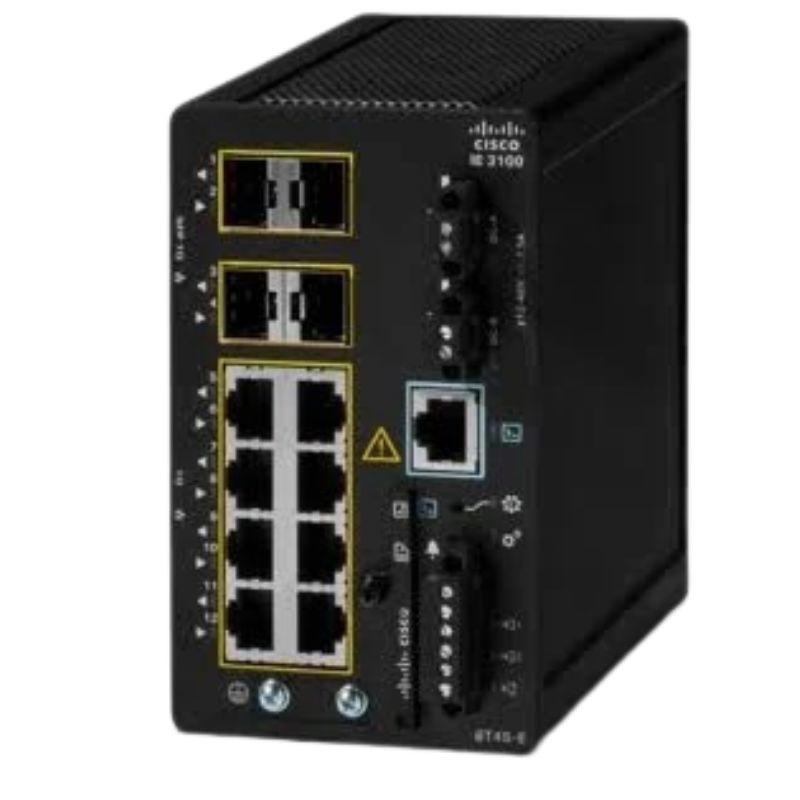

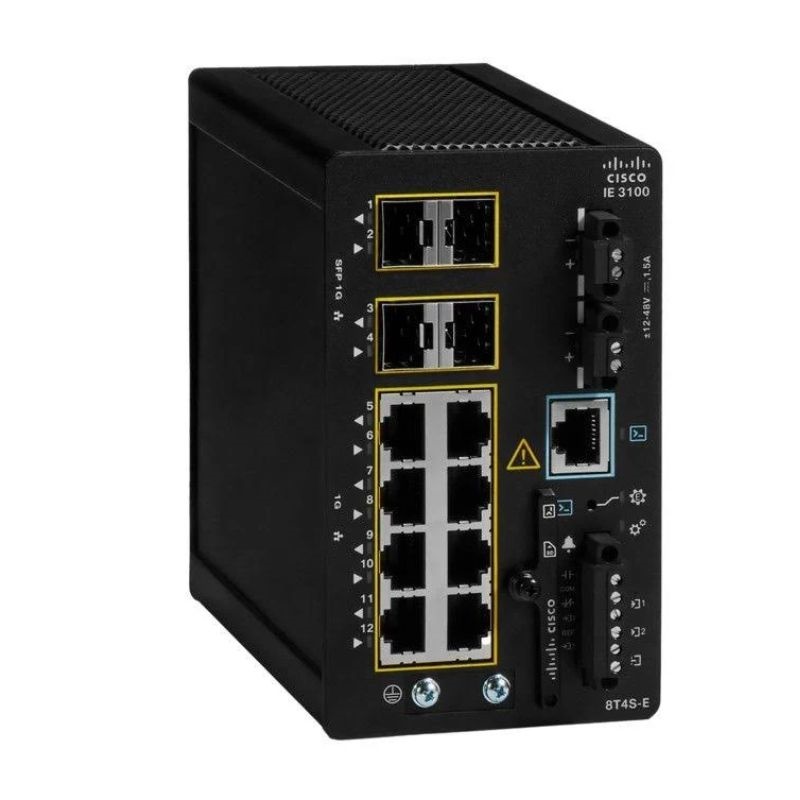

IE-3100-8T4S-E Cisco Catalyst IE3100 Rugged Series 8 Ports Layer 3 Manageable Rail Mountable Switch

Cisco Catalyst IE3100 Rugged Industrial Ethernet Switch Overview

The Cisco IE-3100-8T4S-E belongs to the Catalyst IE3100 Rugged Series, engineered for industrial-grade networking environments where reliability, stability, and performance are essential. This Layer 3 managed switch is designed to support demanding applications across manufacturing floors, transportation systems, utilities, and smart infrastructure deployments.

Core Product Details

• Brand: Cisco
• Product Family: Catalyst
• Series: IE3100 Rugged
• Model Reference: IE-3100-8T4S-E
• Device Type: Managed Industrial Ethernet Switch
• Total Port Configuration: 12 Ports

Industrial-Ready Design and Mounting

Built with a compact and durable chassis, this switch is optimized for space-constrained industrial cabinets and control panels.

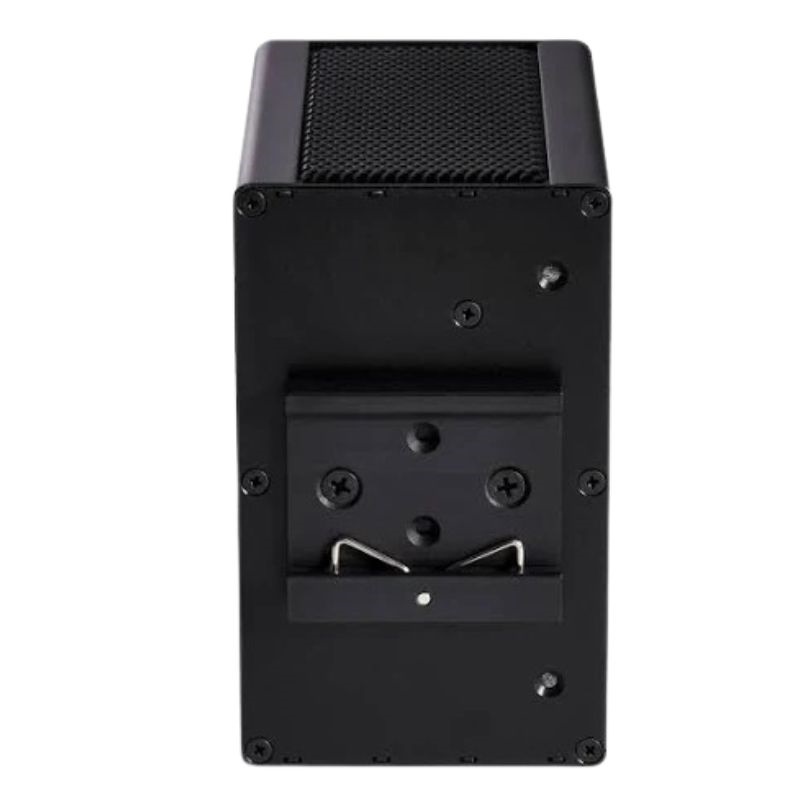

• DIN rail mountable construction
• Rugged form factor suitable for harsh operating conditions
• Designed for continuous network availability

Port Configuration and Connectivity Options

Ethernet Interfaces

The switch delivers flexible connectivity with a combination of standard Ethernet and high-speed uplink ports.

• 8 × Gigabit Ethernet RJ-45 network ports
• 4 × Gigabit Ethernet uplink ports
• Support for modular uplink expansion

SFP Expansion Capabilities

For extended network reach and fiber-based connections, SFP interfaces are integrated into the design.

• Expansion slot type: SFP
• Total SFP slots available: 4
• Ideal for optical fiber uplinks and long-distance communication

Network Management and Layer 3 Capabilities

Advanced Switching and Routing Support

As a fully manageable Layer 3 switch, this model enables intelligent traffic control and efficient data routing.

• Layer 3 networking support
• Enhanced control over VLANs and IP routing
• Optimized for scalable industrial networks

Supported IEEE Standards

Compliance with a wide range of IEEE protocols ensures interoperability and robust performance.

• IEEE 802.1Q, 802.1P, 802.1D, 802.1W, 802.1S
• IEEE 802.1X, 802.1AB
• IEEE 802.3U, 802.3Z, 802.3AB
• IEEE 802.3AD, 802.3AH
• IEEE 1588v2 Precision Time Protocol

Media Support and Performance Characteristics

Network Technologies

The switch supports high-speed Gigabit connectivity for both copper and fiber media.

• 1000Base-T Ethernet technology
• 1000Base-TX network support
• Gigabit Ethernet performance across all ports

Compatible Media Types

• Twisted pair cabling for standard Ethernet connections
• Optical fiber support for extended transmission distances

Power Specifications and Efficiency

Flexible Power Input Options

Designed for industrial power environments, the switch accommodates a broad voltage range.

• Supported input voltages: 9.6 V, 12 V, 48 V, 60 V
• Power source: External power supply

Energy Consumption

• Maximum power usage: 17.80 W
• Energy-efficient operation for continuous deployment

Industrial Networking Use Cases

• Factory automation and process control networks
• Transportation and traffic management systems
• Utility and substation communication infrastructure
• Smart city and IoT industrial deployments

Industrial Ethernet Switching for Mission-Critical Environments

The Cisco IE-3100-8T4S-E Catalyst IE3100 Rugged Series switch belongs to a specialized category of industrial Ethernet switches designed to deliver secure, deterministic, and highly resilient network connectivity in harsh operational environments. This category focuses on Layer 3 managed switches that combine enterprise-grade networking intelligence with ruggedized hardware capable of withstanding extreme temperatures, vibration, electrical noise, and physical stress. The IE3100 Rugged Series represents Cisco’s approach to converging IT and OT networks, enabling seamless communication between industrial automation systems and enterprise infrastructure without compromising reliability or security.

Industrial Ethernet switches in this category are engineered for applications where downtime is unacceptable and where network infrastructure must operate continuously under demanding conditions. The Cisco IE-3100-8T4S-E specifically addresses the needs of industries such as manufacturing, transportation, utilities, oil and gas, mining, smart cities, and intelligent transportation systems. These environments require not only robust physical construction but also advanced Layer 3 routing capabilities, comprehensive security features, and flexible mounting options such as DIN rail installation.

Ruggedized Design Philosophy of the Catalyst IE3100 Series

The rugged switch category emphasizes durability as a foundational requirement. The Cisco IE-3100-8T4S-E is built to operate reliably in extended temperature ranges and in locations exposed to dust, moisture, electromagnetic interference, and mechanical shock. This design philosophy ensures long-term stability in industrial cabinets, trackside enclosures, substations, and roadside installations. Unlike standard enterprise switches designed for climate-controlled data centers, rugged industrial switches are constructed with industrial-grade components and fanless designs that reduce points of failure.

Rail mountable industrial switches such as the IE-3100-8T4S-E enable flexible deployment in confined spaces and distributed network topologies. DIN rail mounting simplifies installation in control panels and automation cabinets, reducing deployment time and ensuring secure physical placement. The rugged enclosure design contributes to improved thermal dissipation and consistent performance in environments where airflow may be limited.

Environmental Resilience and Operational Stability

The industrial Ethernet switch category prioritizes environmental resilience to ensure consistent operation in unpredictable conditions. The Cisco IE-3100-8T4S-E is engineered to maintain network availability despite voltage fluctuations, electrical noise, and temperature extremes commonly encountered in industrial sites. This level of resilience supports continuous operation of programmable logic controllers, sensors, cameras, and industrial control systems that rely on uninterrupted network communication.

Operational stability is enhanced through industrial power input options and protection mechanisms that guard against surges and transient voltages. These characteristics are essential for maintaining deterministic network behavior, which is critical for automation processes, safety systems, and real-time monitoring applications.

Layer 3 Managed Switching Capabilities in Industrial Networks

The Cisco IE-3100-8T4S-E belongs to the Layer 3 managed industrial switch category, which extends beyond basic switching to include advanced routing and network segmentation capabilities. Layer 3 functionality enables intelligent traffic routing between VLANs and subnets directly at the switch level, reducing latency and improving overall network efficiency. In industrial networks, this capability is crucial for isolating traffic from different operational domains while maintaining controlled communication paths.

Layer 3 managed switches support scalable industrial architectures where multiple production lines, substations, or field locations must be interconnected securely. The ability to perform routing at the edge simplifies network design, reduces dependency on centralized routers, and enhances resilience by enabling localized decision-making within the network infrastructure.

Advanced Traffic Management and Network Segmentation

Industrial Layer 3 switches like the Cisco IE-3100-8T4S-E enable granular traffic management through VLANs, IP routing, and quality of service mechanisms. This allows industrial network designers to prioritize critical control traffic over less time-sensitive data, ensuring predictable performance for automation protocols and real-time monitoring systems. Network segmentation also enhances security by limiting the scope of broadcast domains and reducing the potential impact of network disruptions.

By integrating Layer 3 features into a ruggedized form factor, this category of switches supports modern industrial network architectures that align with Industry 4.0 initiatives and digital transformation strategies. The convergence of IT and OT traffic becomes more manageable and secure, enabling organizations to extract greater value from their industrial data.

Port Configuration and Connectivity Flexibility

The Cisco IE-3100-8T4S-E features a port configuration that reflects the needs of industrial environments requiring both copper and fiber connectivity. The presence of multiple Ethernet ports allows direct connection to industrial devices such as PLCs, HMIs, cameras, and sensors, while additional uplink ports enable high-speed aggregation and long-distance communication. This flexibility supports a wide range of deployment scenarios, from compact machine-level networks to large-scale distributed systems.

Industrial Ethernet switch categories emphasize modular and versatile connectivity to accommodate evolving network requirements. Fiber uplinks are particularly valuable in electrically noisy environments or where extended distances are required between network segments. The combination of copper and fiber ports in a single rugged switch simplifies network design and reduces the need for additional media converters or external devices.

Support for Scalable Industrial Topologies

The ability to integrate seamlessly into ring, star, or linear topologies is a defining characteristic of advanced industrial switches. The Cisco IE-3100-8T4S-E supports deployment in resilient network designs that minimize downtime and ensure rapid recovery from link failures. This capability is essential for industrial operations where network interruptions can lead to production losses or safety risks.

Scalable connectivity also allows organizations to expand their networks incrementally as operational demands grow. By deploying Layer 3 managed switches at strategic points, industrial networks can scale efficiently without sacrificing performance or manageability.

Security Architecture for Industrial Ethernet Networks

Security is a critical consideration in the industrial Ethernet switch category, particularly as operational networks become increasingly interconnected with enterprise IT systems and cloud platforms. The Cisco IE-3100-8T4S-E integrates comprehensive security features designed to protect industrial assets from unauthorized access, cyber threats, and accidental misconfigurations. This category emphasizes defense-in-depth strategies that align with modern industrial cybersecurity standards.

Industrial switches with advanced security capabilities enable organizations to enforce strict access controls, authenticate devices, and monitor network activity in real time. These measures are essential for safeguarding critical infrastructure and ensuring compliance with regulatory requirements across industries such as energy, transportation, and manufacturing.

Segmentation and Access Control in Harsh Environments

Network segmentation through VLANs and Layer 3 routing enhances security by isolating sensitive control systems from less critical network segments. The Cisco IE-3100-8T4S-E supports this approach by enabling fine-grained control over traffic flows within the industrial network. Access control mechanisms further restrict connectivity to authorized devices and users, reducing the attack surface and mitigating potential threats.

In environments where physical access to network equipment may be less controlled, robust security features embedded within the switch hardware and software provide an additional layer of protection. This approach ensures that industrial operations remain secure even in remote or unattended locations.

Management and Visibility in Industrial Deployments

The industrial managed switch category emphasizes ease of management and comprehensive network visibility. The Cisco IE-3100-8T4S-E is designed to integrate with centralized management platforms, enabling administrators to monitor network health, configure devices, and troubleshoot issues efficiently. Enhanced visibility into network performance supports proactive maintenance and reduces the likelihood of unexpected outages.

Industrial environments often involve geographically dispersed assets and limited on-site IT personnel. Managed switches that support remote monitoring and configuration are therefore essential for maintaining operational continuity. The IE3100 series addresses this requirement by offering advanced management capabilities tailored to industrial use cases.

Operational Efficiency Through Centralized Control

Centralized management simplifies the administration of complex industrial networks by providing a unified view of network devices and traffic patterns. This capability allows organizations to implement consistent policies, apply updates, and respond quickly to changing operational requirements. The ability to manage Layer 3 industrial switches from a central location enhances efficiency and reduces the total cost of ownership.

Improved visibility into network behavior also supports predictive maintenance strategies. By identifying potential issues before they escalate into failures, organizations can optimize uptime and extend the lifespan of their network infrastructure.

Integration with Industrial Protocols and Applications

The Cisco IE-3100-8T4S-E category supports seamless integration with industrial automation protocols and applications. Industrial Ethernet switches must accommodate a wide range of communication standards used in manufacturing, energy management, transportation control, and building automation. This compatibility ensures reliable data exchange between devices and systems that operate on different protocols and timing requirements.

As industrial operations increasingly rely on real-time data analytics and remote monitoring, the underlying network infrastructure must provide consistent performance and low latency. Layer 3 managed industrial switches enable efficient routing of data across network boundaries, supporting advanced applications such as predictive analytics, digital twins, and industrial IoT deployments.

Supporting Digital Transformation Initiatives

The industrial Ethernet switch category plays a pivotal role in enabling digital transformation across operational environments. By providing secure, resilient, and intelligent connectivity, switches like the Cisco IE-3100-8T4S-E form the foundation for modern industrial architectures. These architectures support increased automation, improved operational insight, and enhanced collaboration between IT and OT teams.

The convergence of industrial control systems and enterprise networks requires a robust networking platform that can adapt to evolving requirements. Layer 3 rugged switches provide the flexibility and performance needed to support new applications while maintaining the reliability expected in industrial settings.
