ISR4431-AXV/K9 Cisco Integrated Services Router 4431 Application Experience

Product Overview of the Cisco ISR4431-AXV/K9 Services Router

Cisco ISR4431-AXV/K9 Integrated Services Router 4431 with Voice Bundle is a high-performance rack-mountable solution designed to handle enterprise-grade networking. This router delivers flexible connectivity, advanced security features, and reliable remote management, all in a compact 1U design. Its Gigabit Ethernet WAN interfaces and scalable memory make it ideal for seamless data handling and secure communications in modern networks.

General Information

• Model Name: Cisco ISR4431-AXV/K9
• Device Type: Modular Rack-Mount Router (1U)
• Connectivity Mode: Wired Gigabit Ethernet
• WAN Interfaces: 4 high-speed GigE ports
• Aggregate Data Throughput: Up to 500 Mbps for smooth performance

Technical Specifications

• Network & Transport Protocol Support: IPSec, PPPoE, DHCP, L2TPv3
• Routing Capabilities: Dynamic and Static Routing including OSPF, BGP, EIGRP, RIP, MPLS
• IPv4 & IPv6 Multicast Routing Support
• Firewall & Security Features: Built-in firewall, IPSec VPN, DMVPN, and customizable Access Control Lists (ACL)
• Traffic Management: Quality of Service (QoS) to prioritize and optimize data flow

Scalability & Expandability

• Memory: 4GB DDR3 SDRAM, expandable up to 16GB
• Storage: 8GB flash memory, upgradeable to 32GB
• Expansion Options: 3 NIM slots for additional modules
• Ports: 4 SFP (mini-GBIC) ports and USB 2.0 connectivity for extra devices

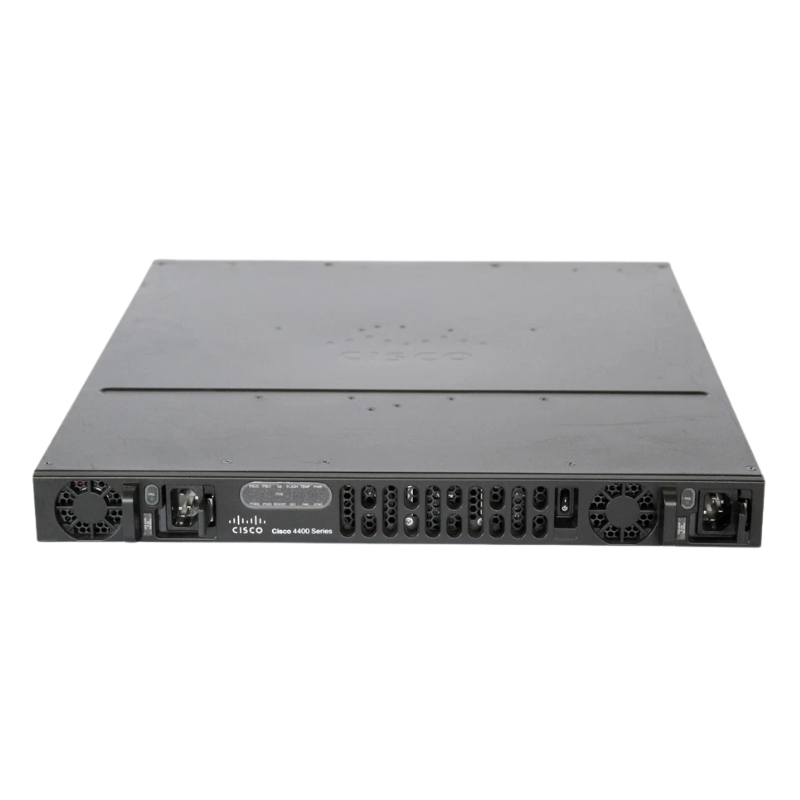

Power & Reliability

• Internal Hot-Swappable Power Supply
• Optional Redundant Power for continuous uptime
• Voltage Requirement: AC 120/230V (50/60 Hz)

Compatibility

• Compatible with standard rack-mount setups
• Works with various Cisco network modules and expansion cards
• Supports integration with IPv4 and IPv6 network environments
• Compatible with enterprise-grade security solutions and VPN protocols

The Cisco ISR4431-AXV/K9 Integrated Services Router 4431

The Cisco ISR4431-AXV/K9 Integrated Services Router 4431 is a high-performance, versatile router designed for enterprise networks, branch offices, and mission-critical communication environments. With its voice bundle capabilities, GigE WAN connectivity, and rack-mountable design, this router provides an all-in-one solution for organizations seeking reliable data, voice, and security services in a single platform. It supports advanced routing, high throughput, and robust voice integration, making it an ideal choice for modern network infrastructures.

Advanced Routing Capabilities

The Cisco ISR4431-AXV/K9 comes equipped with advanced routing protocols, including OSPF, EIGRP, BGP, and RIP, allowing seamless integration into complex enterprise networks. Its hardware acceleration ensures minimal latency and high packet forwarding rates, making it suitable for high-demand environments. Network administrators benefit from simplified routing configurations, automated path selection, and enhanced traffic prioritization.

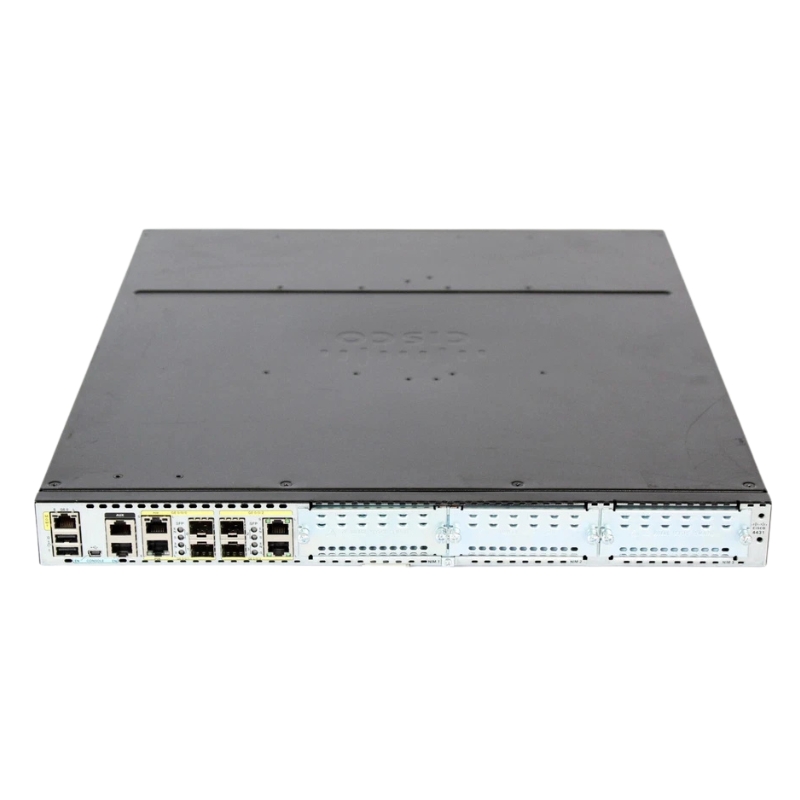

Gigabit Ethernet WAN Connectivity

With four dedicated GigE WAN ports, the ISR4431-AXV/K9 provides high-speed connectivity options for multiple external networks. Whether connecting to MPLS, Internet, or private WANs, this router ensures consistent performance and redundancy. The ports support diverse network topologies, allowing simultaneous WAN connections with load balancing, failover, and secure data transmission.

High-Performance Architecture

Powered by Cisco’s multi-core processing architecture, the ISR4431-AXV/K9 ensures fast packet processing, optimized throughput, and low latency. The router supports high-density interface modules and allows flexible scalability to accommodate growing network demands. Its modular design enables organizations to upgrade hardware without disrupting existing services.

Comprehensive Security Features

Security is a core component of the ISR4431-AXV/K9. It includes integrated firewall capabilities, VPN support, intrusion prevention, and secure segmentation of network traffic. Cisco’s IOS XE software enhances security management with centralized policies, threat detection, and automated response mechanisms. This ensures that sensitive data and critical communications remain protected against cyber threats.

Rack-Mountable

The rack-mountable form factor of the ISR4431-AXV/K9 allows seamless installation in data centers, server rooms, or network closets. Standard 19-inch rack compatibility simplifies deployment, while its compact footprint conserves space. The design also supports efficient cooling and cable management, which are critical in high-density network environments.

Standard ISR4431 Models

Standard ISR4431 routers provide core routing and WAN services without bundled voice features. These models are optimized for enterprises requiring robust data routing and high-speed WAN connectivity. They support multiple interface modules, advanced routing protocols, and flexible QoS policies, making them suitable for large-scale network deployments.

ISR4431 Voice Bundle Models

The voice bundle variants, such as the ISR4431-AXV/K9, integrate IP telephony and unified communications directly into the router. They provide enterprise-grade voice services, including call processing, voicemail integration, and secure VoIP. Ideal for branch offices or multi-site organizations, these models reduce the need for separate voice infrastructure while maintaining reliability and performance.

Use Cases

The Cisco ISR4431-AXV/K9 is ideal for branch office networks, providing secure, high-speed WAN connections to headquarters or cloud environments. Its modular design allows multiple branch offices to maintain consistent network performance while supporting centralized management and policy enforcement.

Cloud and Data Center Connectivity

The router is suitable for connecting enterprise networks to public or private clouds. Its high-speed WAN interfaces, advanced routing protocols, and VPN capabilities ensure reliable access to cloud-hosted applications and services. This makes it a preferred choice for businesses looking to enhance hybrid cloud performance and availability.

Quality of Service (QoS)

The ISR4431-AXV/K9 supports comprehensive QoS policies to prioritize critical traffic such as voice and video. Administrators can configure bandwidth allocation, traffic shaping, and congestion management, ensuring high-quality communication even under heavy network load. QoS features enhance user experience and maintain service-level agreements for enterprise applications.

Redundancy and High Availability

For organizations requiring continuous uptime, the ISR4431 series supports high availability features, including dual power supplies, hardware failover, and link redundancy. These mechanisms minimize network disruptions and ensure business continuity in case of hardware or network failures.

Integrated Security Services

Security services include next-generation firewall, encrypted VPN connections, secure routing, and intrusion prevention. The router also supports Cisco TrustSec for secure segmentation and identity-based access policies. These security capabilities protect both voice and data traffic from internal and external threats.

Deployment and Scalability

The ISR4431-AXV/K9 supports multiple interface modules, including Gigabit Ethernet, T1/E1, and voice interfaces. This flexibility allows organizations to tailor the router to specific network requirements, such as high-density WAN connections or voice integration for multiple endpoints.

Scalable Performance

Cisco designed the ISR4431 series to scale with network growth. Additional memory, processing power, and interface modules can be added as network demands increase. This ensures long-term investment protection and reduces the need for frequent hardware replacements.

Reliability and Performance

Built with enterprise-grade hardware and Cisco IOS XE software, the router delivers exceptional reliability and performance. It handles high traffic volumes, ensures low latency for critical applications, and maintains continuous voice and data services even in high-demand environments.

Future-Proof Networking

With modular design, advanced routing, and voice integration, the ISR4431-AXV/K9 offers a future-proof solution that can adapt to evolving network requirements. It supports emerging technologies, cloud integration, and expanding communication needs, ensuring long-term network viability and scalability.
