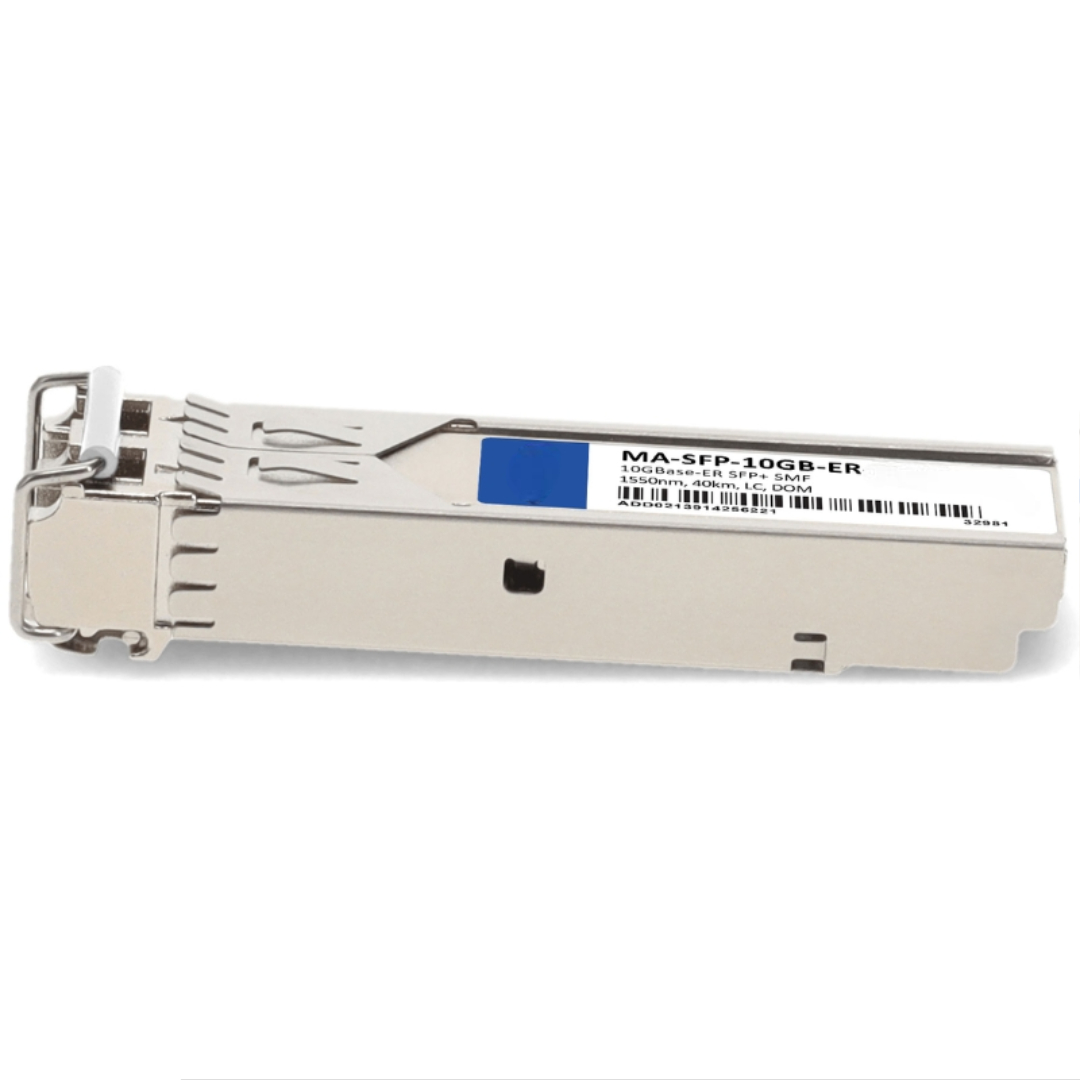

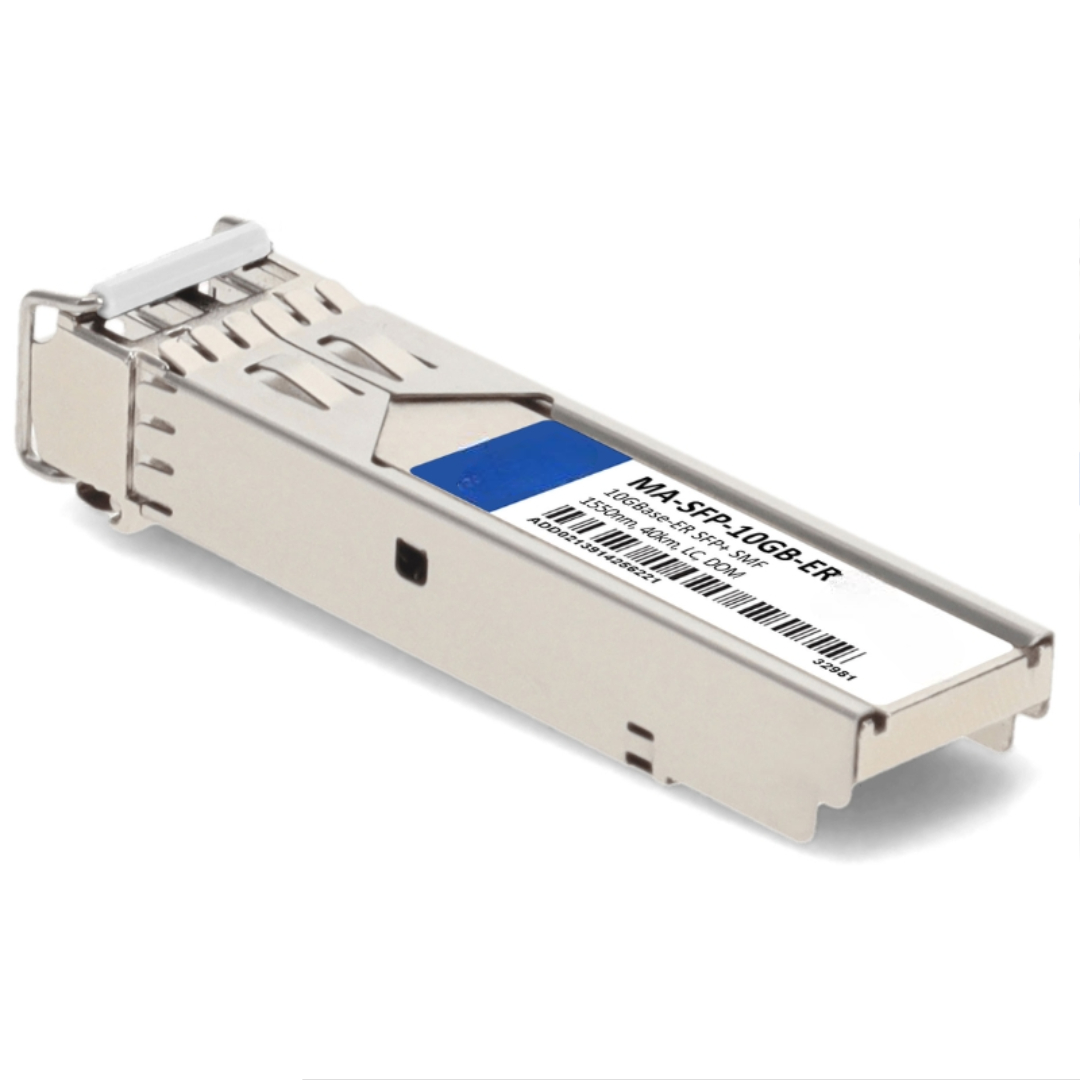

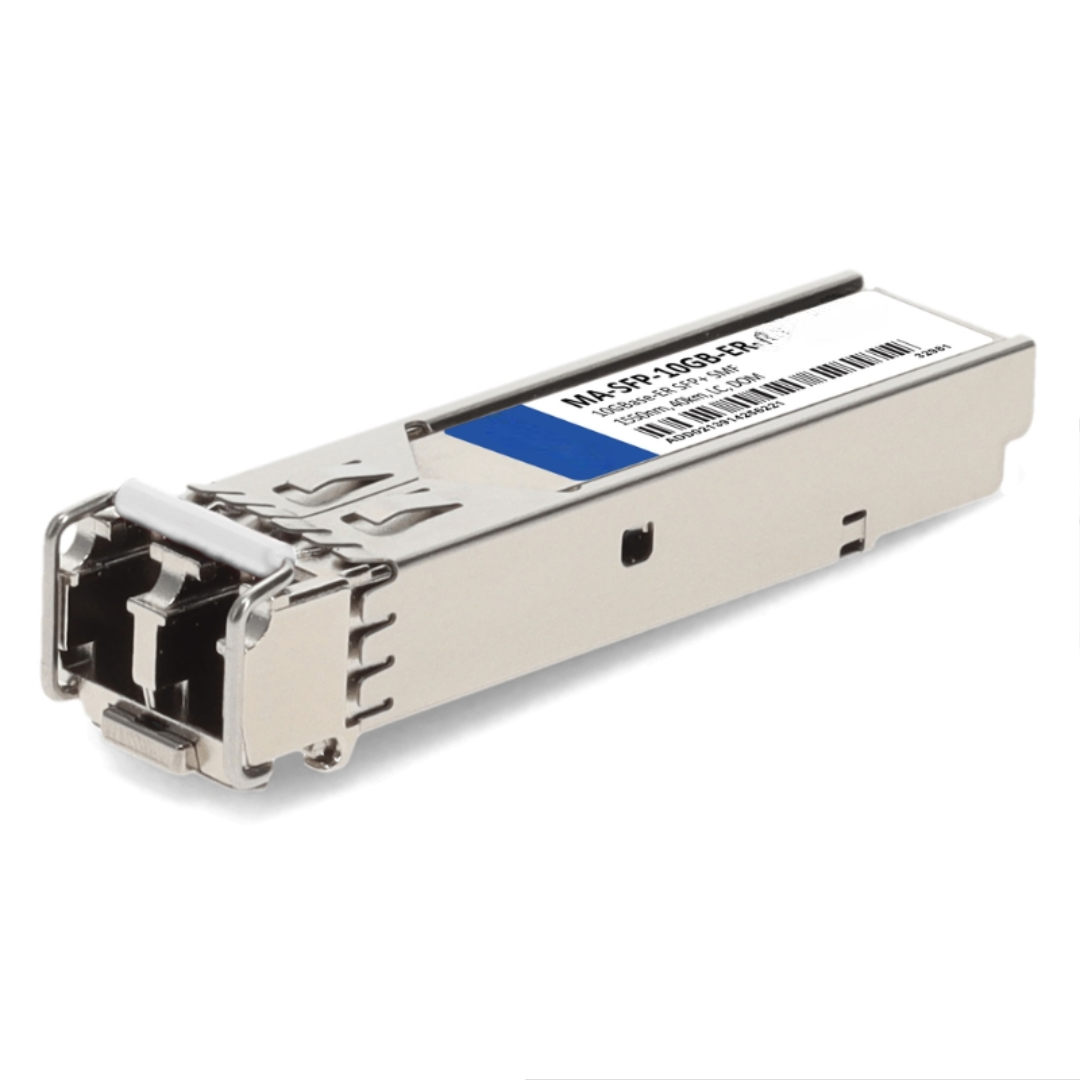

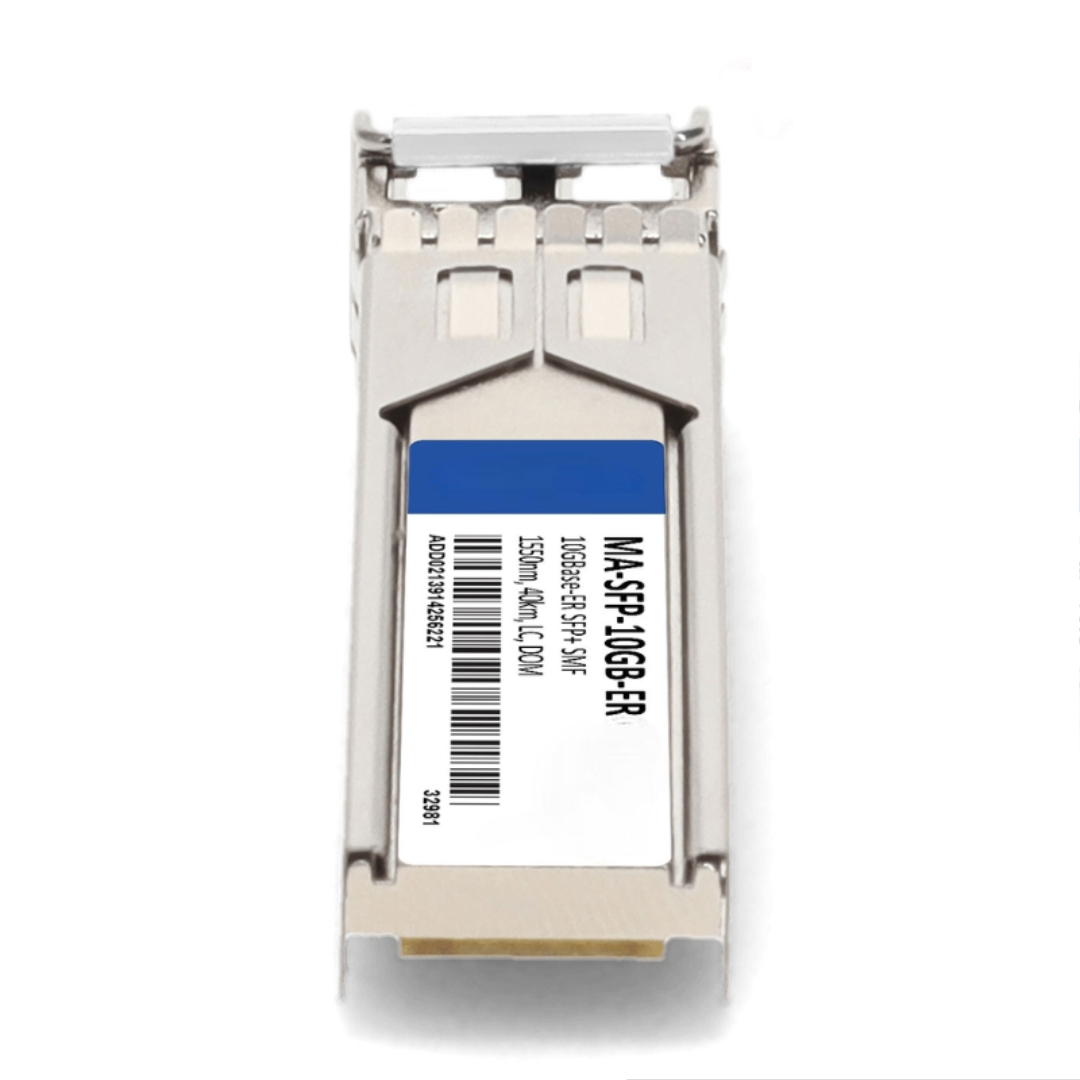

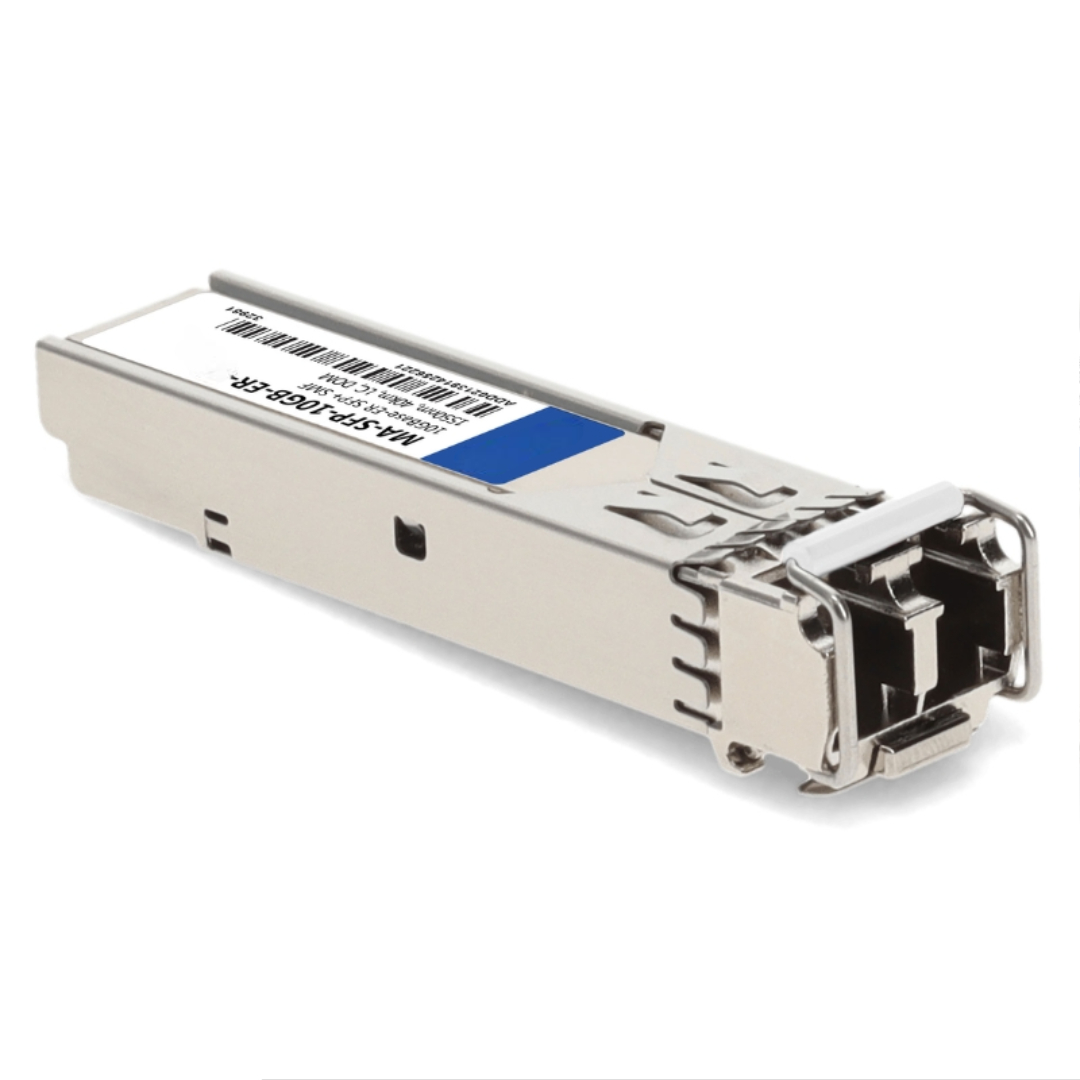

Cisco MA-SFP-10GB-ER Meraki Compatible 10GBASE-ER SFP+ Transceiver

Cisco MA-SFP-10GB-ER 10GBASE-ER SFP+ Transceiver Module

High-Performance Optical Networking Solution

The Cisco MA-SFP-10GB-ER is a robust 10 Gigabit Ethernet SFP+ transceiver designed for long-distance optical communication. Engineered for high-speed data transmission, this hot-swappable plug-in module delivers reliable performance for enterprise and data center networking environments.

Core Product Identification

• Manufacturer: Cisco
• Part Number / SKU: MA-SFP-10GB-ER
• Product Category: SFP+ Transceiver Module
• Type: 10 Gigabit Ethernet Optical Module

Technical Specifications and Capabilities

Data Transmission Performance

• Supports ultra-fast data transfer speeds up to 10 Gbps
• Optimized for high-bandwidth network infrastructures
• Reliable long-range connectivity using 10GBASE-ER standard

Supported Networking Standards

• 10 Gigabit Ethernet protocol compliance
• 10GBASE-ER optical networking technology
• Seamless integration with enterprise-grade switching systems

Design and Installation Features

Plug-and-Play SFP+ Architecture

• Hot-swappable SFP+ form factor for easy deployment
• No system downtime required during installation or replacement
• Compact design suitable for high-density networking setups

Deployment Advantages

• Streamlined installation process reduces maintenance time
• Compatible with a wide range of Cisco networking devices
• Ideal for scalable enterprise and backbone network expansion

Key Functional Highlights

Operational Benefits

• Enhanced network reliability and stability for critical applications
• Efficient long-distance optical transmission capabilities
• Designed to support modern high-speed data environments

Network Optimization Features

• Reduces latency in high-performance networking systems
• Ensures consistent 10Gbps throughput across optical links
• Supports scalable infrastructure upgrades without major hardware changes

Application Scope and Usage Scenarios

Enterprise Networking

• Data center interconnectivity
• High-speed backbone network deployments
• Enterprise LAN and WAN optimization

Telecommunications and Infrastructure

• Long-distance optical fiber communication systems
• Carrier-grade network expansion projects
• High-capacity bandwidth distribution networks

Cisco MA-SFP-10GB-ER Meraki 10GBASE-ER SFP+ Transceiver

The Cisco MA-SFP-10GB-ER Meraki Compatible 10GBASE-ER SFP+ Transceiver Module represents a high-performance optical networking component designed for long-distance 10 Gigabit Ethernet connectivity. It is widely deployed in enterprise-grade data centers, metropolitan area networks, cloud infrastructure environments, and high-throughput backbone systems where reliable, high-speed optical transmission is essential. Built to align with Cisco Meraki networking ecosystems while maintaining compatibility with standard SFP+ ports, this module delivers a balance of performance, reach, and interoperability for modern optical network deployments.

Engineered to support Extended Reach (ER) transmission standards, this transceiver is optimized for fiber links extending up to 40 kilometers over single-mode fiber (SMF). It operates at a wavelength of 1550nm, ensuring stable signal propagation across long-haul optical channels. Its compact SFP+ form factor allows seamless integration into switches, routers, firewalls, and other networking devices that support 10G optical interfaces, particularly within Cisco Meraki infrastructure environments.

Core Architecture of Cisco MA-SFP-10GB-ER Optical Transceivers

High-Speed 10GBASE-ER Optical Transmission Design

The 10GBASE-ER standard defines Ethernet transmission over extended distances using single-mode fiber with precise optical modulation. The Cisco MA-SFP-10GB-ER module adheres to these standards by utilizing a high-quality distributed feedback (DFB) laser, ensuring consistent optical signal output with minimal dispersion over long distances. This makes it particularly suitable for campus interconnects, ISP backbones, and enterprise WAN links where fiber runs exceed typical short-range limits.

Single-Mode Fiber Optimization

This transceiver is specifically designed for single-mode fiber infrastructures, which provide low attenuation and high signal integrity across extended distances. The module’s optical interface is tuned for LC duplex connectors, allowing compatibility with standardized fiber cabling systems used in professional network environments. The precision alignment of optical components ensures reduced insertion loss and improved link stability even in demanding network conditions.

Wavelength Stability and Signal Integrity

Operating at a center wavelength of 1550nm, the module ensures minimal chromatic dispersion, which is critical for maintaining signal integrity over long distances. The stable wavelength output allows consistent performance in dense optical environments where multiple fiber channels may operate in parallel.

Extended Reach Capability

With a reach capability of up to 40 kilometers, the Cisco MA-SFP-10GB-ER is engineered for wide-area connectivity. This makes it suitable for inter-building connections, metro Ethernet networks, and distributed data center architectures that require high-speed synchronization across geographically separated sites.

Compatibility and Integration with Cisco Meraki Ecosystems

Seamless Integration with Meraki Networking Devices

One of the defining characteristics of the Cisco MA-SFP-10GB-ER Meraki Compatible module is its optimized interoperability with Cisco Meraki switches and routing platforms. It is designed to be recognized by Meraki hardware systems, ensuring plug-and-play deployment without complex configuration requirements. This simplifies network expansion and reduces deployment time in enterprise environments.

Multi-Vendor Interoperability

Although optimized for Cisco Meraki environments, this SFP+ transceiver is engineered to support multi-vendor compatibility across networking devices that adhere to IEEE 802.3ae 10G Ethernet standards. This flexibility allows network architects to integrate the module into heterogeneous infrastructure environments without sacrificing performance or reliability.

Hot-Swappable Functionality

The module supports hot-swappable installation, allowing network administrators to install or replace transceivers without powering down networking equipment. This feature significantly enhances operational efficiency in production environments where uptime is critical.

Plug-and-Play Deployment Efficiency

The plug-and-play design ensures that once inserted into a compatible SFP+ port, the module is immediately recognized by the host device. This eliminates the need for manual configuration or firmware adjustments, streamlining network scalability operations.

Physical Design and Engineering Characteristics

Compact SFP+ Form Factor

The small form-factor pluggable plus (SFP+) design enables high-density port deployment in modern networking hardware. This compact architecture allows multiple transceivers to be installed side-by-side in switches and routers without compromising airflow or thermal performance.

Durable Metal Housing Construction

The Cisco MA-SFP-10GB-ER module is encased in a robust metal housing that provides electromagnetic interference (EMI) shielding. This protects internal optical components from external signal disruption and ensures consistent transmission quality even in electrically noisy data center environments.

Thermal Efficiency and Heat Dissipation

Efficient heat dissipation is achieved through optimized casing materials and internal thermal design. This ensures stable performance during continuous operation in high-load networking scenarios where multiple 10G links operate simultaneously.

Performance Advantages in High-Speed Networks

Low Latency Data Transmission

The module is engineered for ultra-low latency performance, making it suitable for applications where real-time data transmission is critical. Financial trading networks, cloud computing clusters, and virtualization environments benefit significantly from its rapid signal processing capabilities.

High Signal Reliability Over Long Distances

By utilizing advanced optical components and precision calibration, the Cisco MA-SFP-10GB-ER ensures consistent signal strength across extended fiber runs. This reduces packet loss and retransmission events, improving overall network efficiency.

Bit Error Rate Optimization

The transceiver is designed to maintain a low bit error rate (BER), which is essential for maintaining data integrity in high-speed optical communication. This ensures that transmitted packets arrive accurately and without corruption over long distances.

Deployment Scenarios and Use Cases

Enterprise Backbone Connectivity

Large enterprises utilize this module to connect distributed office buildings, campuses, and data centers. Its extended reach capability allows seamless integration between geographically separated network nodes while maintaining high bandwidth performance.

Telecommunications and ISP Networks

Internet service providers rely on 10GBASE-ER modules for backbone transmission across metropolitan fiber rings. The Cisco MA-SFP-10GB-ER supports scalable infrastructure expansion, making it ideal for growing bandwidth demands in urban network environments.

Data Center Interconnect (DCI)

In modern cloud architectures, data centers are often distributed across multiple locations. This module supports DCI applications by enabling high-speed optical links between facilities, ensuring synchronized data replication and load balancing.

Cloud Infrastructure and Virtualization Systems

Cloud service providers use these transceivers to maintain high-speed internal communication between server clusters, storage arrays, and virtual machine hosts. This enhances performance for end users accessing cloud-based services.

Fiber Optic Standards and Technical Compliance

IEEE 802.3ae Compliance

The Cisco MA-SFP-10GB-ER adheres to IEEE 802.3ae standards governing 10 Gigabit Ethernet over optical fiber. This ensures interoperability with a wide range of compliant networking equipment and guarantees predictable performance across different environments.

Optical Safety and Regulatory Standards

The module complies with industry optical safety regulations to ensure safe operation in professional environments. This includes adherence to laser safety classifications and emission control standards, making it suitable for enterprise deployment.

Digital Diagnostics Monitoring (DDM)

Integrated digital diagnostics monitoring capabilities allow real-time tracking of parameters such as optical power, temperature, and voltage. This enhances network visibility and simplifies proactive maintenance strategies.
