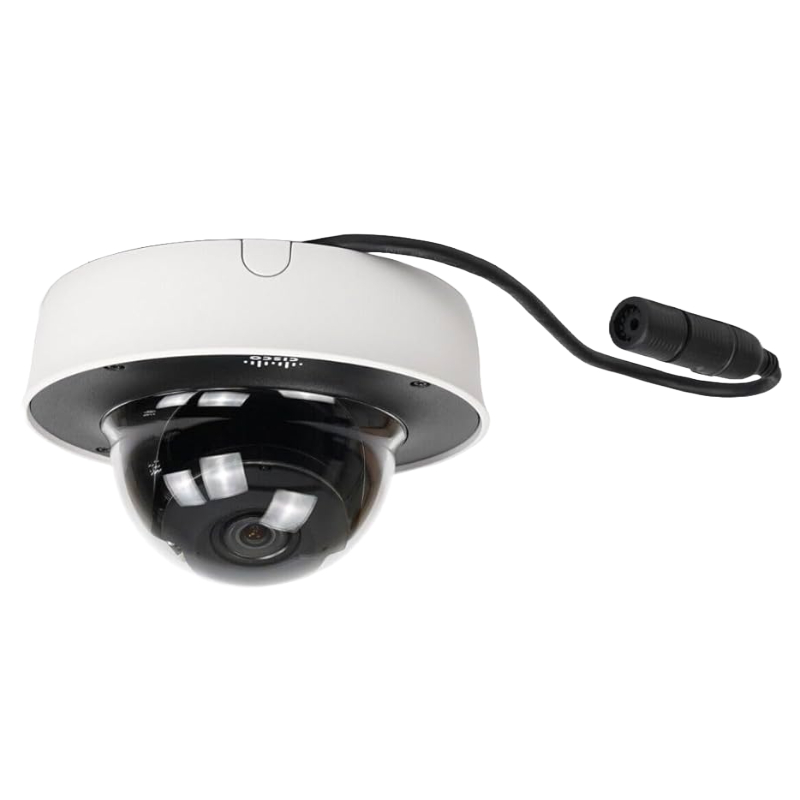

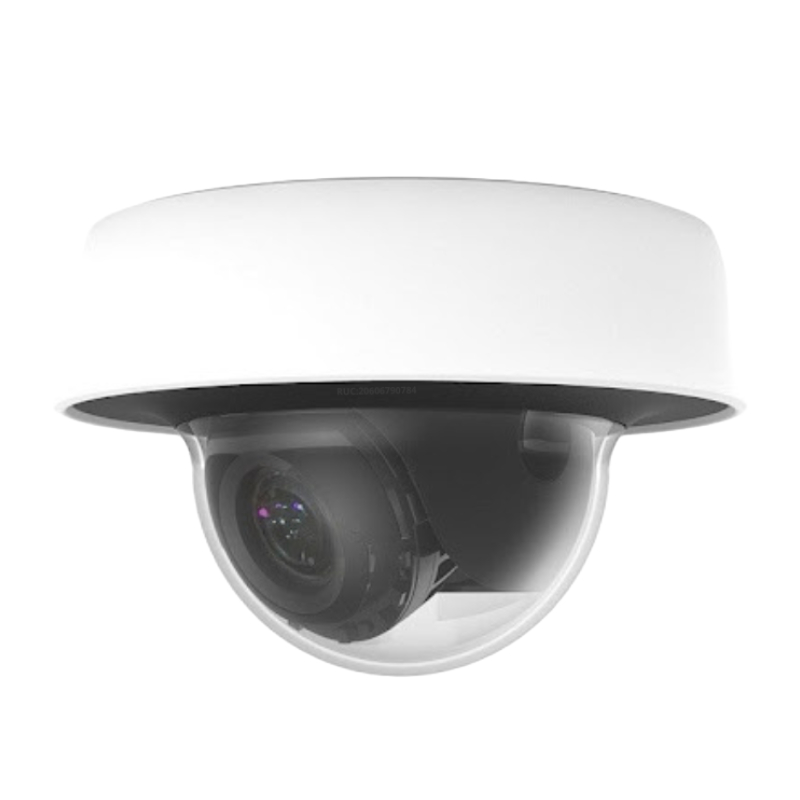

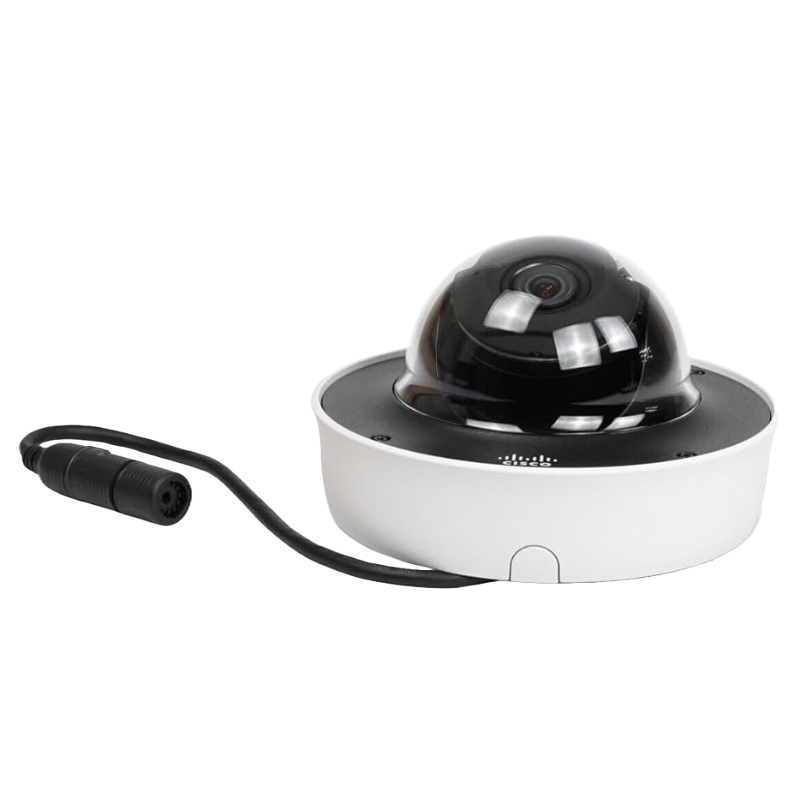

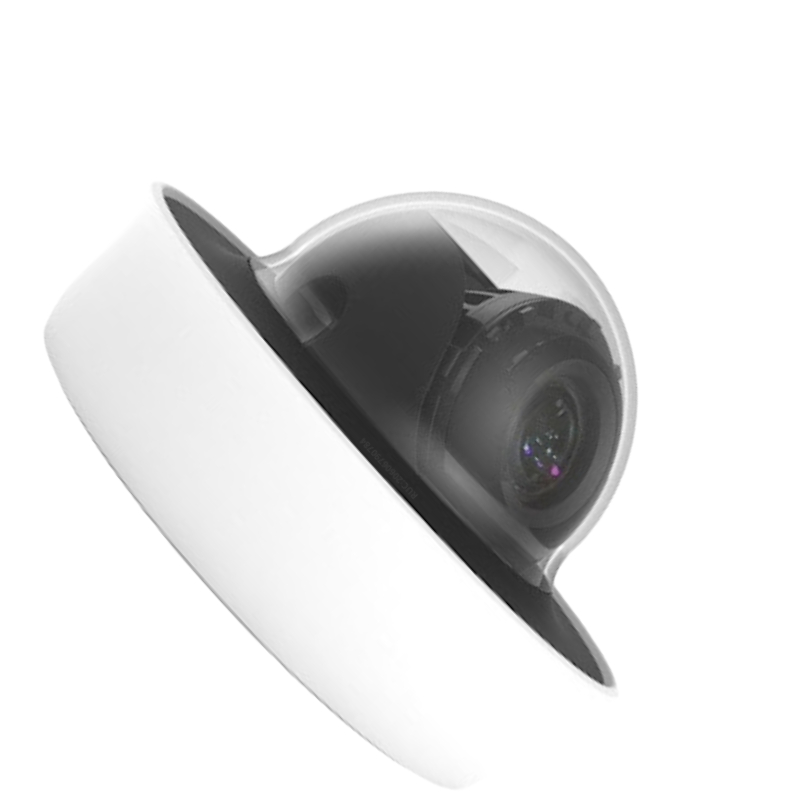

Cisco Meraki MV72-HW Outdoor HD Dome Camera Varifocal 256GBPS

Meraki MV72-HW Outdoor Cloud Managed Security Camera

Camera Features and Specifications

Imaging Capabilities

• Image Sensor: 4MP 1/3" progressive CMOS sensor offering a resolution of 2688×1520 pixels
• Storage: 256GB high endurance solid-state storage for reliable local video retention
• Lens Details: Variable focal length from 3-9mm with an adjustable aperture ranging from f/1.2 to f/2.3
• Field of View: Adjustable view with 36° – 112° Horizontal, 20° – 57° Vertical, and 42° – 138° Diagonal
• Lens Adjustment: Tilt up to 65°, rotation ±90°, and pan up to 354° for flexible positioning
• Shutter Speed: Adjustable from 1/30s to 1/32,000s for precise image capture
• Low Light Performance: Minimum illumination of 0.18 Lux in standard mode and 0.01 Lux in night mode
• Infrared Capabilities: Built-in IR illuminators with an effective range up to 30 meters (98 feet)

Video Recording and Storage

• Recording Resolution: 1080p HD video (1920×1080) with H.264 encoding, up to 20 frames per second
• Storage Technology: Cloud-augmented edge storage for local video with cloud-managed metadata
• Optimized Retention: Supports motion-based and scheduled retention settings for up to 40 days of 24/7 video
• HDR Support: High Dynamic Range for enhanced video quality in varying lighting conditions
• Streaming: Direct live streaming through native browser playback without client software
• Cloud Proxy: Automatic cloud proxy allows video streaming from anywhere with secure access

Data Security and Privacy

Encryption and Access Control

• Full Disk Encryption: AES 256-bit encryption to protect stored video data
• TLS Certificates: Automatically provisioned, publicly-signed certificates for secure video management
• Management Security: Two-factor authentication for enhanced access control

Networking and Connectivity

Network Interface and Protocols

• Ethernet Port: 1x 10/100/1000 Base-T Ethernet (RJ45) for reliable wired networking
• Wireless Capabilities: Dual-band WLAN supporting 2.4GHz and 5GHz with antenna diversity
• Supported Standards: 802.11 a/b/g/n/ac with DSCP traffic marking for optimized data flow

Wireless Specifications

• Supported Frequencies: 2.4 GHz (2.412 – 2.484 GHz) and multiple 5 GHz bands (UNII-1, UNII-2, UNII-2e, UNII-3)
• Wi-Fi Capabilities: 1×1 with one spatial stream, MU-MIMO support, and channel widths up to 80 MHz
• Modulation: Up to 256 QAM on both 2.4 GHz and 5 GHz bands for improved data rates
• Antenna Type: Integrated omni-directional antennas with 4.4 dBi gain at 2.4 GHz and 6.3 dBi gain at 5 GHz

Power and Installation

Power Requirements

• Power over Ethernet: Consumes up to 12.95W via 802.3af PoE when heater is not in use
• Heater Usage: Power draw increases to 25.5W when using 802.3at PoE

Environmental Resilience

• Operating Temperature: Designed to function in extreme conditions, ranging from -40°C to 50°C (-40°F to 122°F)

Key Features and Functionality

Meraki Cloud Integration

• Cloud Management: Fully integrates with Meraki dashboard for centralized monitoring and control
• Plug and Play: Self-configuring setup with quick deployment and intuitive operation

Intelligent Video Analytics

• Motion Indexing: Noise-optimized motion detection engine with historical search capabilities
• Motion Heat Maps: Provides visual summaries of activity patterns over time
• Object Detection: Onboard processing with machine learning for intelligent object recognition

Access Permissions and Video Export

• Granular User Control: Highly customizable permissions with SAML integration for secure user access
• Video Export: Selective export options with watermarked timestamps, ensuring secure data handling

Shared Video Wall

• Multiple Layouts: Customizable video wall layouts supporting multiple cameras for comprehensive surveillance

Security Features

Wireless Security

• Encryption Protocols: WPA, WPA2-PSK, WPA2-Enterprise with 802.1X for secure wireless communication
• Supported Security: EAP-TTLS, TKIP, and AES encryption for robust data protection

Varifocal Feature

The Meraki Cisco MV72-HW Outdoor HD Dome Camera is equipped with a highly useful and practical varifocal feature. This feature allows users to adjust the camera lens manually to obtain the optimal viewing angle for their specific surveillance needs. With the ability to adjust the focal length, users can easily zoom in or out to focus on specific areas or capture a wider view of the surroundings.

Enhanced Flexibility and Versatility

The varifocal feature provides enhanced flexibility and versatility in surveillance applications. Users can easily adapt the camera to different environments and scenarios by adjusting the focal length. Whether it's monitoring a wide outdoor area or focusing on a specific target, the varifocal lens ensures that users have complete control over their surveillance coverage.

Customizable Field of View

One of the key benefits of the varifocal feature is the ability to customize the field of view. By adjusting the focal length, users can determine the exact area they want to monitor and ensure that no important details are missed. This level of customization is particularly useful in situations where specific areas need closer inspection or when a broader overview is required.

Zooming Capabilities

The ability to zoom in or out is another advantage of the varifocal feature. Users can easily zoom in to capture fine details or zoom out to cover a larger area. This flexibility is especially beneficial when dealing with objects or individuals at varying distances from the camera. Whether it's capturing license plate numbers or identifying faces, the varifocal lens ensures clear and detailed images.

Adaptable to Changing Surveillance Needs

Surveillance needs can change over time, and the varifocal feature allows users to adapt accordingly. As security requirements evolve, users can modify the focal length to accommodate new monitoring objectives. This adaptability saves both time and money, as users don't need to invest in additional cameras or equipment to accommodate changing surveillance needs.

Improved Image Quality

The varifocal feature plays a crucial role in improving image quality. By manually adjusting the lens, users can eliminate any distortions and ensure that the captured images are sharp and clear. This is particularly important when dealing with critical surveillance applications where accurate identification and recognition are essential.

Storage Capacity

The Meraki Cisco MV72-HW Outdoor HD Dome Camera boasts an impressive storage capacity of 256GB. This ample storage space allows users to store a significant amount of video footage without the need for frequent manual deletion or external storage devices.

Extended Recording Time

The generous storage capacity of 256GB ensures extended recording time for the camera. Users can capture and retain a substantial amount of video footage, minimizing the risk of missing any important events or incidents. Whether it's monitoring a high-traffic area or keeping an eye on a property throughout the day, the large storage capacity provides peace of mind knowing that all relevant footage is securely stored.

Reduced Maintenance Efforts

With a storage capacity of 256GB, users can significantly reduce the maintenance efforts associated with managing video footage. The need for frequent manual deletion or transferring files to external storage devices is minimized, saving time and effort. This allows users to focus on other critical tasks without worrying about constantly managing storage space.

Seamless Playback and Retrieval

A large storage capacity enables seamless playback and retrieval of video footage. Users can easily access specific recordings without experiencing delays or interruptions due to limited storage space. This is particularly important during investigations or reviewing incidents, as quick access to relevant footage can make a significant difference in resolving issues efficiently.

Enhanced Security and Compliance

The ample storage capacity also contributes to enhanced security and compliance. Users can retain video footage for extended periods, ensuring that evidence of any incidents or events is preserved. This is crucial in legal or regulatory compliance scenarios where video evidence may be required. The ability to store a large amount of footage helps maintain a comprehensive and reliable surveillance system.

Future-Proof Investment

The 256GB storage capacity ensures that the Meraki Cisco MV72-HW Outdoor HD Dome Camera is a future-proof investment. As surveillance technology evolves and video resolutions increase, the need for more storage space will become apparent. By already offering a substantial storage capacity, this camera can accommodate future advancements without requiring immediate upgrades or replacements.

In conclusion, the varifocal feature of the Meraki Cisco MV72-HW Outdoor HD Dome Camera provides enhanced flexibility and versatility, allowing users to obtain the optimal viewing angle for their specific surveillance needs. The 256GB storage capacity ensures extended recording time, reduced maintenance efforts, seamless playback and retrieval, enhanced security and compliance, and a future-proof investment. These features make the Meraki Cisco MV72-HW Outdoor HD Dome Camera an excellent choice for users seeking advanced surveillance capabilities.
