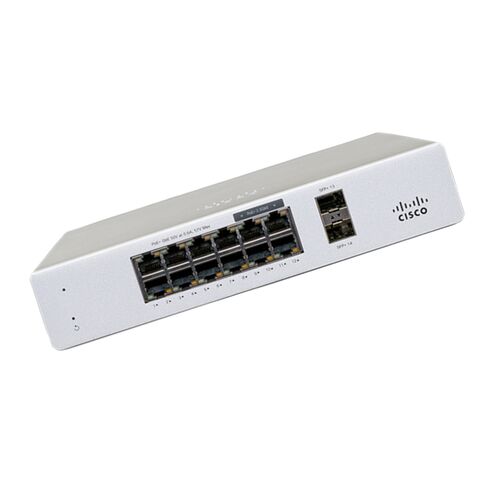

Cisco MS130-12X-HW Meraki 12-port Ethernet Switch

Key Specifications of Cisco MS130-12X-HW

Device Overview

• Product: Meraki 12-Port Managed Switch
• Manufacturer: Cisco
• Model Number: MS130-12X-HW
• Device Type: Managed Switch with 12 Ports

Design and Mounting Options

• Enclosure Type: Suitable for desktop or wall mounting
• Fanless Design: Ensures silent operation for noise-sensitive environments

Networking Capabilities

• Ethernet Subtype: Gigabit Ethernet
• Available Ports:
  • 8 x 10/100/1000BASE-T
  • 2 x 2.5GBASE-T
  • 4 x 10G Ethernet SFP+ uplinks for high-speed data transfers
• Switching Capacity: 76 Gbps ensures efficient data processing
• Non-blocking Architecture: Guarantees maximum throughput for all ports

Power over Ethernet (PoE) Features

• PoE+ Support: Enables power delivery over Ethernet cables
• PoE Budget: 240W available to power connected devices

Advanced Features

• Cloud Management: Centrally manage via the Meraki dashboard
• Remote Firmware Upgrades: Keep the switch updated without manual intervention
• Zero-Touch Provisioning (ZTP): Simplifies installation and setup
• 802.1x Authentication: Provides port-based network access control
• QoS Support: Prioritize traffic for critical applications
• DHCP Features: Snooping and relay to secure and forward DHCP traffic

Compliant Standards

• IEEE 802.1Q VLAN tagging
• IEEE 802.3af Power over Ethernet (PoE)
• IEEE 802.3at PoE+
• IEEE 802.1X network access control

Remote Management and Protocols

• Management Protocols:
  • SNMP
  • DHCP (IPv4/IPv6)
  • Syslog

Power and Electrical Requirements

• Power Supply: External power adapter
• Voltage Required: 54V DC
• Current: 5.56A
• Power Consumption in Standby: 19W

Expansion and Connectivity

• Available Interfaces:
  • 8 x 1000BASE-T RJ-45 PoE+ ports
  • 4 x 2.5GBASE-T RJ-45 PoE+ ports
  • 4 x 10GBASE-X SFP+ uplink interfaces

Status Indicators

• LED indicators for power, status, and link/activity monitoring

Cisco MS130-12X-HW Meraki 12-Port Ethernet Switch Overview

High-Performance Managed Switch for Modern Networks

The Cisco MS130-12X-HW Meraki 12-Port Ethernet Switch offers superior performance and manageability, designed to meet the evolving needs of enterprise networks. With a total of 12 ports, including a combination of Gigabit and multi-gigabit interfaces, this switch is ideal for supporting high-demand applications in modern business environments. Built for seamless integration, this managed switch offers advanced features that enhance network efficiency, security, and scalability.

Key Hardware and Physical Design Features

The MS130-12X-HW is equipped with a durable, fanless design that promotes silent operation, making it suitable for deployment in noise-sensitive environments such as offices and classrooms. Its compact enclosure supports both desktop and wall-mounted installations, providing flexible placement options. The sleek form factor is complemented by its low power consumption, ensuring energy efficiency while maintaining high performance.

Port Configuration

• 8 x 10/100/1000BASE-T Ethernet ports, offering flexible connectivity for a wide range of devices.
• 2 x 2.5GBASE-T Ethernet ports, enabling faster connection speeds for more bandwidth-intensive applications.
• 4 x 10G SFP+ uplink ports, supporting high-speed fiber connectivity for data aggregation and backhaul links.

Compact and Silent Operation

• Fanless design for silent operation, ideal for open environments where noise is a concern.
• Compact dimensions make the switch easy to integrate into existing setups without occupying too much space.
• Wall-mountable and desktop installation options for flexible deployment in various network environments.

Advanced Networking Features for Optimized Performance

High-Speed Switching with 76 Gbps Capacity

The Cisco MS130-12X-HW boasts a robust switching capacity of 76 Gbps, ensuring that data packets are processed quickly and efficiently without bottlenecks. This high-capacity switching fabric allows businesses to scale their networks and support large volumes of data traffic without compromising performance. The non-blocking architecture ensures that all ports are able to operate at full capacity simultaneously, delivering consistent data throughput for connected devices.

Non-blocking Architecture for Seamless Data Transmission

• Non-blocking architecture ensures that all ports can transmit and receive data at full capacity simultaneously, preventing any data congestion or slowdowns.
• Supports full-duplex transmission, allowing for data to be sent and received at the same time across each port.
• Designed to handle the demands of modern enterprise networks, from VoIP and video conferencing to file sharing and cloud applications.

Power over Ethernet (PoE+) Capabilities

This Meraki switch features Power over Ethernet Plus (PoE+) technology, which allows the transmission of both power and data over a single Ethernet cable. This eliminates the need for separate power sources for connected devices such as IP phones, wireless access points, and surveillance cameras, simplifying network infrastructure and reducing installation costs. The MS130-12X-HW offers a PoE budget of 240W, ensuring ample power supply for multiple connected devices.

Key PoE+ Benefits

• Delivers up to 30W of power per port, supporting a wide range of PoE-enabled devices such as VoIP phones, IP cameras, and wireless access points.
• 240W total PoE budget, allowing for multiple devices to be powered simultaneously without external power adapters.
• Reduces cabling requirements and simplifies device deployment, particularly in environments where power outlets are scarce.
• Improves network reliability by centralizing power management through the switch.

Advanced Layer 2 Management and Security Features

The Cisco MS130-12X-HW is equipped with advanced Layer 2 switching capabilities that enhance network control and security. This switch supports essential protocols like Spanning Tree Protocol (STP), Link Aggregation Control Protocol (LACP), and Virtual LANs (VLANs) to optimize network performance and segmentation. Additionally, security features such as DHCP snooping, 802.1X port-based network access control, and quality of service (QoS) ensure that your network remains secure and prioritizes critical traffic.

Layer 2 Switching Features

• Spanning Tree Protocol (STP): Prevents network loops and ensures reliable data transmission by enabling redundancy in the network.
• Link Aggregation Control Protocol (LACP): Combines multiple network links to increase bandwidth and enhance fault tolerance.
• Virtual LAN (VLAN) Support: Segments network traffic into isolated virtual networks, improving security and network performance.

Security and Traffic Management

• DHCP Snooping: Protects against rogue DHCP servers by allowing only trusted DHCP servers to send IP address assignments.
• 802.1X Authentication: Provides port-based network access control, ensuring that only authorized devices can connect to the network.
• Quality of Service (QoS): Prioritizes network traffic to ensure that time-sensitive applications such as voice and video are delivered without interruption.

Remote Management and Cloud Integration

• Cloud-Managed via Meraki Dashboard: The switch is fully managed through the Meraki cloud platform, offering centralized control, real-time monitoring, and streamlined firmware updates.
• Zero-Touch Provisioning (ZTP): Simplifies switch deployment by allowing automatic configuration upon connection to the network, reducing setup time.
• SNMP and Syslog Support: Enables integration with third-party network management tools for advanced monitoring and troubleshooting.

Comprehensive Standards Compliance and Future-Proofing

IEEE Standards and Certifications

The Cisco MS130-12X-HW complies with multiple industry standards to ensure compatibility and reliability in various network setups. Key standards supported by the switch include IEEE 802.1Q VLAN tagging for efficient traffic segmentation, IEEE 802.3af and 802.3at PoE standards for powering devices, and IEEE 802.1X for network access control. These standards guarantee that the switch will work seamlessly in a wide range of network environments while providing the flexibility to grow with future technologies.

Key Standards Supported

• IEEE 802.1Q: VLAN tagging for network traffic segmentation and isolation.
• IEEE 802.3af/at: Power over Ethernet (PoE) and PoE+ standards for delivering power to connected devices.
• IEEE 802.1X: Port-based network access control, enhancing network security by ensuring only authorized users and devices can connect.
• IEEE 802.3x: Flow control for full-duplex operation, ensuring efficient data transmission.

IPv6 Support

• Future-proof your network by enabling compatibility with IPv6, the next-generation internet protocol, ensuring long-term usability.
• Supports both IPv4 and IPv6, allowing for dual-stack implementations during network transitions.

Energy Efficiency and Environmental Impact

Energy-Efficient Design

The MS130-12X-HW is engineered with energy efficiency in mind, contributing to lower operational costs and reduced environmental impact. With low power consumption during both operation and standby, the switch ensures optimal performance while minimizing electricity usage. Cisco’s commitment to sustainability is reflected in the switch’s compliance with energy efficiency standards and practices, making it a responsible choice for businesses looking to reduce their carbon footprint.

Power Consumption and Efficiency

• Power Consumption in Standby: Only 19 watts when idle, ensuring energy savings during periods of low activity.
• External Power Adapter: The switch uses an efficient external power adapter, reducing internal heat generation and contributing to its fanless design.
• Low Voltage Operation: Operates at 54V DC, minimizing energy wastage while delivering sufficient power to connected devices.

Environmentally Conscious Operation

• Fanless operation not only reduces noise but also lowers power consumption by eliminating the need for cooling fans.
• Meets various international standards for energy efficiency, ensuring compliance with green business practices.

Use Cases and Ideal Deployment Scenarios

Small to Medium Businesses (SMBs)

The Cisco MS130-12X-HW is an excellent choice for small to medium-sized businesses that require a scalable, reliable, and secure network solution. Its compact size and silent operation make it ideal for deployment in offices, conference rooms, and customer-facing areas where noise levels need to be kept low. The combination of PoE+ and advanced network management features allows businesses to easily connect and manage a wide range of devices, from IP phones and security cameras to wireless access points, all from a central dashboard.

Education Environments

The fanless design and energy efficiency of the MS130-12X-HW make it a perfect fit for classrooms and school networks, where quiet operation and reduced energy consumption are essential. With the ability to power connected devices through PoE+, schools can reduce infrastructure complexity while ensuring reliable connectivity for students and staff. The advanced security features of the switch, including 802.1X authentication and DHCP snooping, help safeguard sensitive data and prevent unauthorized access.

Retail and Hospitality

In retail and hospitality environments, the MS130-12X-HW provides reliable, high-performance networking to support everything from point-of-sale systems to guest Wi-Fi. Its compact, wall-mountable design makes it easy to deploy in space-constrained environments, while the PoE+ capabilities simplify the installation of IP cameras, wireless access points, and digital signage. The switch’s cloud-managed platform allows IT staff to remotely monitor and troubleshoot network issues, ensuring a seamless experience for both customers and staff.

Healthcare Facilities

Healthcare environments require secure, reliable networking to support critical applications such as patient monitoring, electronic health records, and telemedicine. The Cisco MS130-12X-HW is ideal for these environments, offering advanced security features like 802.1X authentication and network segmentation through VLANs to protect sensitive patient data. The switch’s PoE+ capabilities also allow for the easy deployment of IP cameras, Wi-Fi access points, and other connected devices in patient rooms and common areas.

Conclusion

The Cisco MS130-12X-HW Meraki 12-port Ethernet Switch is a powerful, flexible, and secure solution for modern networks. It combines high-performance switching, advanced management features, and energy-efficient design in a compact, fanless form factor that is ideal for a wide range of environments, from small businesses to educational institutions and healthcare facilities. Whether you're looking to simplify device deployment with PoE+, enhance network security, or optimize performance for bandwidth-intensive applications, this Meraki switch is built to meet the needs of today’s connected world.
