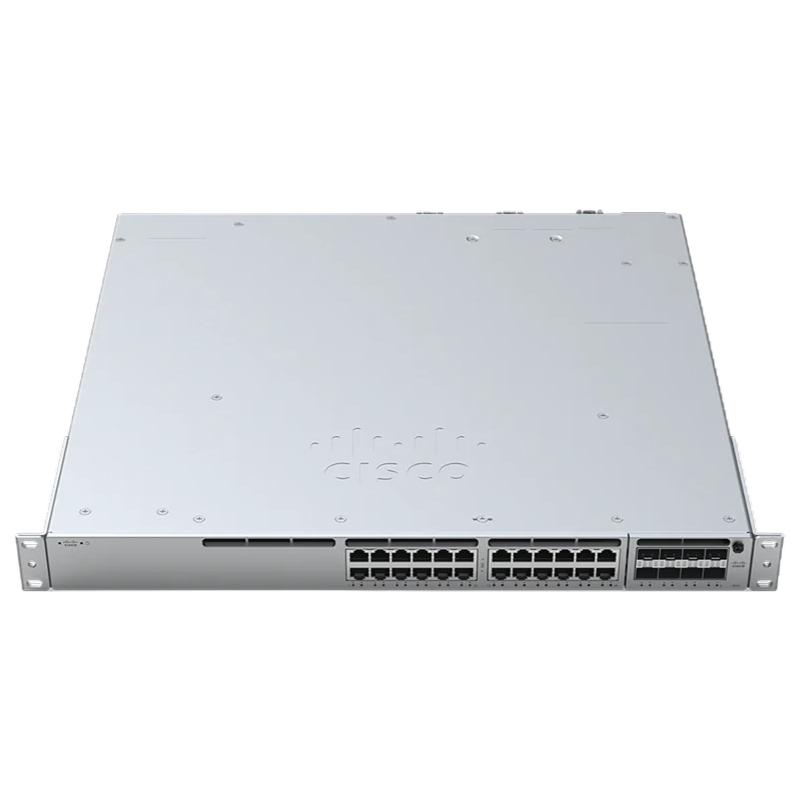

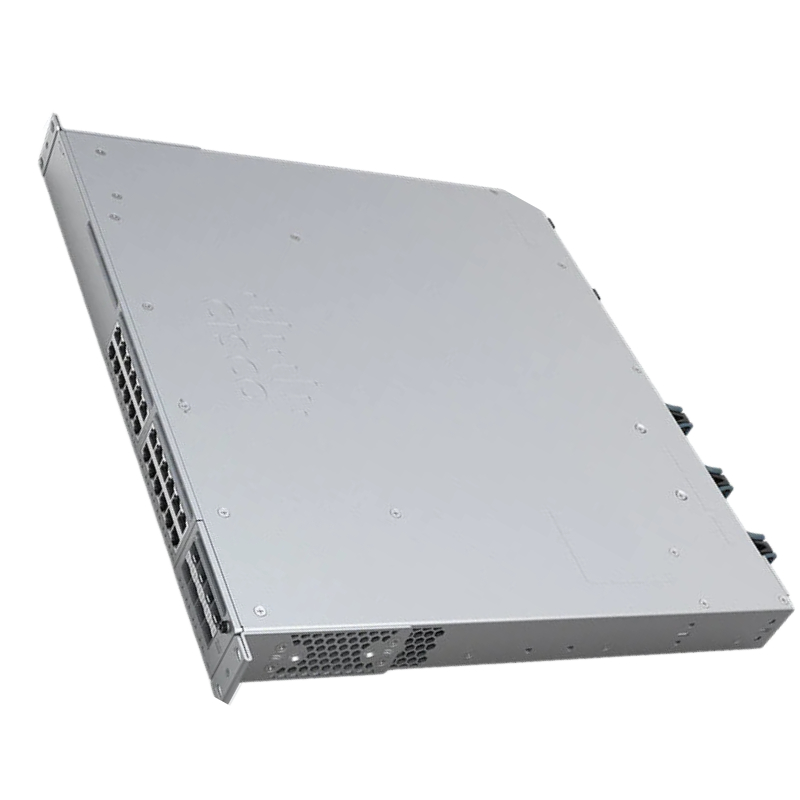

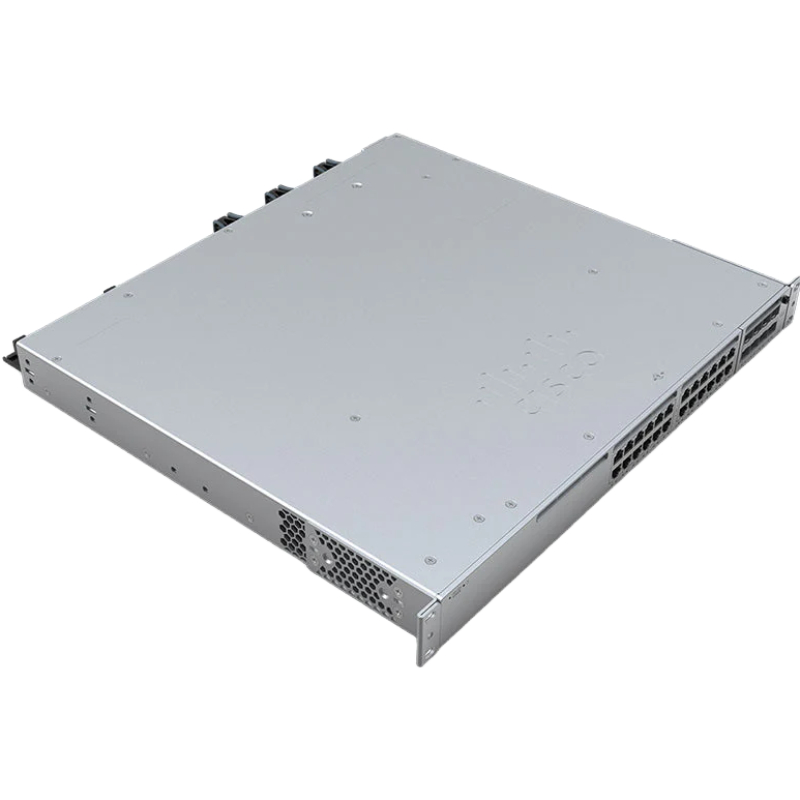

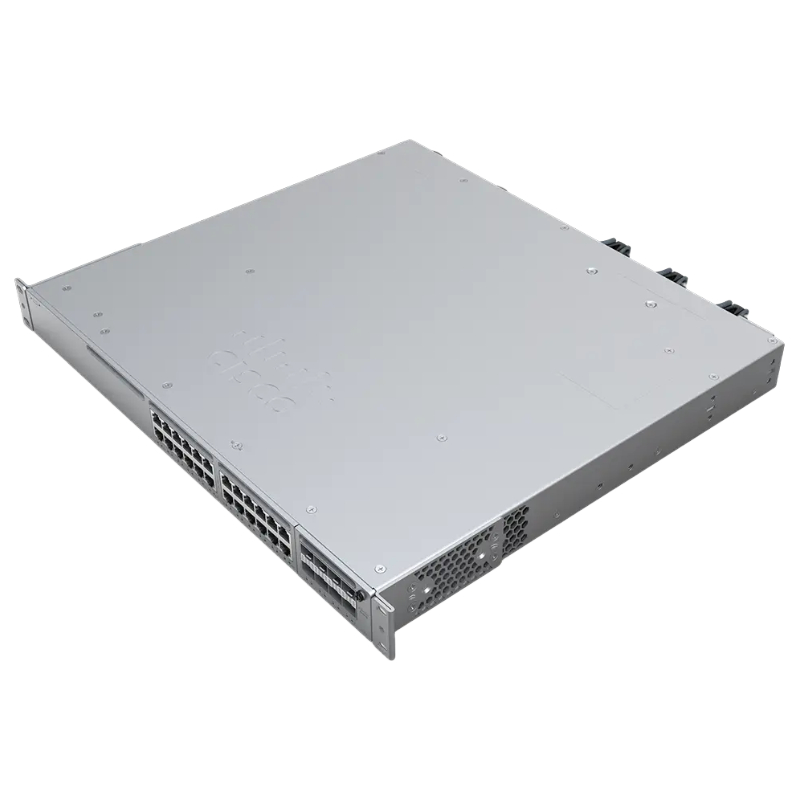

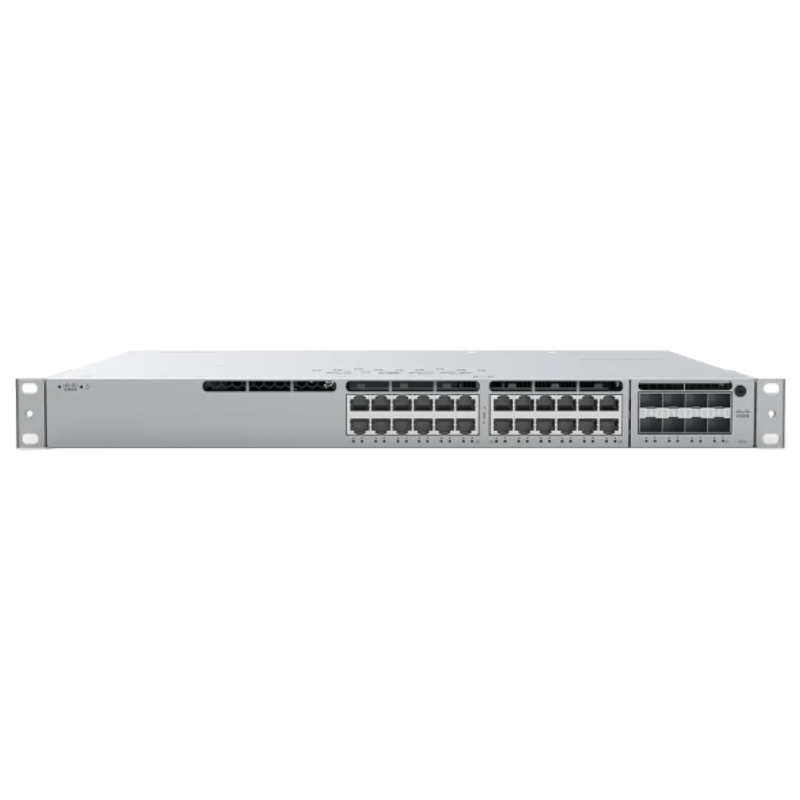

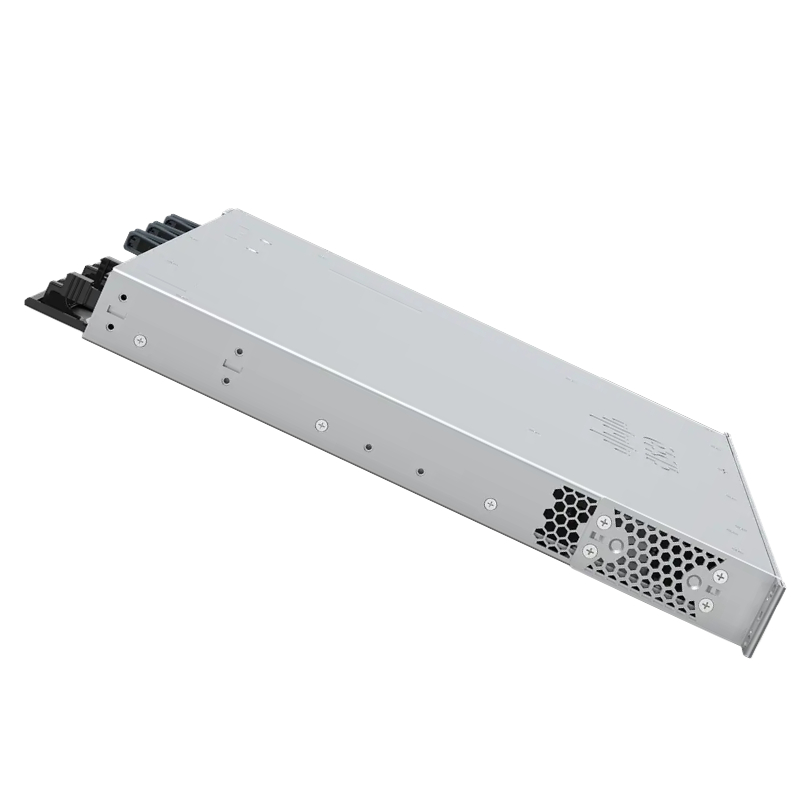

Cisco MS390-24P-HW Meraki Cloud Managed 24 Ports Switch

Overview of Cisco MS390-24P-HW Meraki Cloud Managed Switch

The Cisco MS390-24P-HW is a high-performance cloud-managed switch designed for efficient network operations. With a compact 1U rack-mountable form factor, this Layer 3 managed device offers outstanding scalability and flexibility for businesses seeking robust networking solutions.

Key Specifications of the Cisco MS390-24P-HW

• Manufacturer: Cisco
• Part Number: MS390-24P-HW
• Product Type: Network Switch
• Device Type: 24-Port L3 Managed Stackable Switch
• Enclosure: Rack-mountable (1U)
• Ethernet Ports: 24 x 10/100/1000 (PoE)
• Power Over Ethernet (PoE): Yes, 445 W budget
• Switching Capacity: 208 Gbps
• Max Stacking Bandwidth: 480 Gbps
• Forwarding Rate: 154.76 Mpps
• MAC Address Table Size: 32,000 entries
• Stackable Units: Up to 8

Advanced Routing and Remote Management

Routing Protocols

• OSPF, RSTP, Static IP Routing
• OSPFv2, VRRP

Remote Management Features

• DHCP, IPv4 & IPv6 Support
• RADIUS Authentication
• RSTP Support

Enhanced Security and Features

• Cloud Managed with Email Alerts
• Port Security and Access Control List (ACL) Support
• Port Mirroring and Broadcast Storm Control
• Root Guard, UDLD, and BPDU Guard for enhanced protection
• Quality of Service (QoS) and IGMP Snooping
• Syslog and RBAC for system administration
• Cisco StackPower Technology

Compliant Standards

• IEEE 802.1x, IEEE 802.1p, IEEE 802.1q
• IEEE 802.1s, IEEE 802.1ab (LLDP)
• IEEE 802.3ad (LACP)

Expansion and Connectivity Options

Interfaces

• 24 x 1000Base-T RJ-45 PoE ports
• 2 x Network Stack Devices
• 1 x Management Port

Expansion Slots

• 1 total expansion slot (1 free)

Power Supply and Consumption

• Internal Power Supply (Hot-plug capable)
• Power Consumption (Operational): 554.4 W
• Power Consumption (Standby): 84.1 W
• Max Supported Power Supplies: 2 (Redundant)
• Power Redundancy: Optional 1+1 scheme with additional power supply
• Voltage Required: AC 120/230 V (50-60 Hz)
• Power Provided: 715 W

Overview of Cisco MS390-24P-HW Meraki Cloud Managed Switch

The Cisco MS390-24P-HW Meraki Cloud Managed MS390-24P Switch is a high-performance, fully managed, rack-mountable switch designed for modern network infrastructures. It combines robust Layer 3 (L3) management capabilities, support for Power over Ethernet (PoE), and seamless integration with Cisco Meraki’s cloud-based network management platform. The Cisco MS390-24P is ideal for businesses and organizations seeking reliable, scalable, and secure networking solutions to support high-bandwidth applications and devices such as IP phones, surveillance cameras, and Wi-Fi access points.

Key Features and Benefits

Advanced Layer 3 Management

With Layer 3 management, the Cisco MS390-24P-HW allows advanced routing and traffic management, making it an ideal choice for larger network setups. It supports routing protocols such as OSPF and BGP, enabling seamless communication between different subnets, segments, and devices in your network. The MS390’s L3 capabilities also allow for more granular control over network traffic, ensuring enhanced performance and security.

24 Ports with Power over Ethernet (PoE)

The Cisco MS390-24P-HW is equipped with 24 ports supporting 10/100/1000 Mbps speeds, making it perfect for high-speed networking environments. Each port also supports Power over Ethernet (PoE), which can deliver up to 445 watts of power across the network, reducing the need for additional power adapters and simplifying the installation of powered devices such as IP cameras, phones, and Wi-Fi access points. This feature enhances the flexibility and efficiency of network infrastructure, particularly in environments with limited power outlets.

Cloud Management with Meraki Dashboard

One of the standout features of the Cisco MS390-24P is its seamless integration with the Meraki Dashboard. This cloud-based network management platform allows network administrators to manage, configure, and monitor their entire network from a single, centralized interface. The Meraki Dashboard offers real-time insights, automatic firmware updates, and the ability to deploy changes across multiple devices with ease. The cloud management also provides enhanced visibility and control, ensuring that IT teams can efficiently manage network resources and troubleshoot issues remotely.

Rack-Mountable Design

The Cisco MS390-24P-HW is designed to be easily mounted in a standard 19-inch server rack, making it a space-efficient and scalable solution for growing businesses. The rack-mountable design ensures that your network equipment remains organized, easily accessible, and protected in a server room or data center. The compact form factor ensures that you can maximize your available space while maintaining the performance and reliability of your network.

Why Choose Cisco MS390-24P-HW?

The Cisco MS390-24P-HW offers a combination of high-performance features, flexibility, and ease of management, making it a standout choice for organizations of all sizes. Its ability to support both PoE and Layer 3 management allows for seamless integration with a variety of devices, making it ideal for businesses that rely on voice, video, and other bandwidth-intensive applications. Additionally, the Meraki cloud management platform ensures that network administrators can manage their entire infrastructure from anywhere, at any time, without the need for specialized training.

Improved Network Efficiency

By utilizing advanced Layer 3 features and cloud management, the Cisco MS390-24P-HW helps improve network efficiency. Dynamic routing capabilities allow the switch to automatically adjust to changing network conditions, ensuring optimal performance at all times. The integration with the Meraki Dashboard also provides powerful tools for analyzing traffic patterns, detecting bottlenecks, and proactively managing potential issues before they impact network performance.

Scalable Solution for Growing Businesses

The Cisco MS390-24P-HW is designed to scale with your business. Whether you are expanding your office network, setting up a new branch, or upgrading your existing infrastructure, this switch provides the flexibility and scalability you need. With support for multiple ports, PoE capabilities, and robust management tools, you can easily expand your network without compromising performance or security.

High Availability and Reliability

The Cisco MS390-24P-HW switch is built for reliability. It is designed with redundant power supply options, ensuring continuous operation in case of a failure. Additionally, Meraki’s cloud-based management platform enables automatic firmware updates and patches, reducing the risk of security vulnerabilities and ensuring that the switch operates with the latest features and fixes.

Compatibility and Integration

Integration with Cisco Meraki Ecosystem

The Cisco MS390-24P-HW integrates seamlessly with the entire Cisco Meraki ecosystem, allowing businesses to build a unified and easily managed network. Whether it’s connecting to Meraki wireless access points, security appliances, or cameras, the MS390-24P ensures smooth interoperability and a consistent experience across all devices.

Works with Cisco’s Advanced Security Features

In addition to its robust management features, the Cisco MS390-24P-HW also works with Cisco’s advanced security capabilities, such as network segmentation, traffic encryption, and firewall protection. These features help to safeguard your network against potential threats, ensuring that your sensitive data and devices are protected from unauthorized access and malicious attacks.

Technical Specifications

Here is a detailed list of the technical specifications for the Cisco MS390-24P-HW Meraki Cloud Managed Switch:

General Specifications

• Model Number: MS390-24P-HW
• Port Configuration: 24 Ports 10/100/1000 Mbps
• PoE Power Output: 445 Watts
• Rack-Mountable: Yes
• Layer: Layer 3 Managed
• Power Supply: Redundant Power Supply Options

Performance and Capacity

• Switching Capacity: 48 Gbps
• Forwarding Rate: 35.7 Mpps
• Latency: 4.4 microseconds

Network Features

• Routing Protocols: OSPF, BGP, RIP
• VLAN Support: Yes (up to 4096 VLANs)
• Spanning Tree Protocol: IEEE 802.1w, 802.1s
• Quality of Service (QoS): Yes

Security Features

• Access Control Lists (ACLs): Yes
• Port Security: Yes
• Dynamic Host Configuration Protocol (DHCP) Snooping: Yes
• 802.1X Authentication: Yes

Applications of the Cisco MS390-24P-HW

The Cisco MS390-24P-HW is highly versatile and can be deployed in various use cases:

Enterprise Networks

For businesses with high-performance requirements, the MS390-24P-HW provides a reliable solution for enterprise networks. Its robust Layer 3 management and PoE capabilities make it ideal for powering a wide range of networked devices, ensuring consistent and high-speed connections across the organization.

Education and Campus Networks

In educational institutions, the MS390-24P-HW supports large-scale deployments of networked devices, including IP phones, security cameras, and wireless access points. The ease of cloud-based management ensures that IT teams can monitor and configure the network remotely, minimizing downtime and administrative effort.

Branch Office Connectivity

Branch offices often require reliable networking solutions that integrate with their corporate headquarters. The Cisco MS390-24P-HW is an ideal choice for extending corporate networks to branch offices, offering secure and efficient connectivity while minimizing the need for on-site IT support.

Data Centers and Server Rooms

For data centers and server rooms, the Cisco MS390-24P-HW provides high bandwidth and reliability, supporting a wide range of server and device connections. With its cloud-based management and remote troubleshooting capabilities, it ensures that the network remains operational even in large-scale environments.
