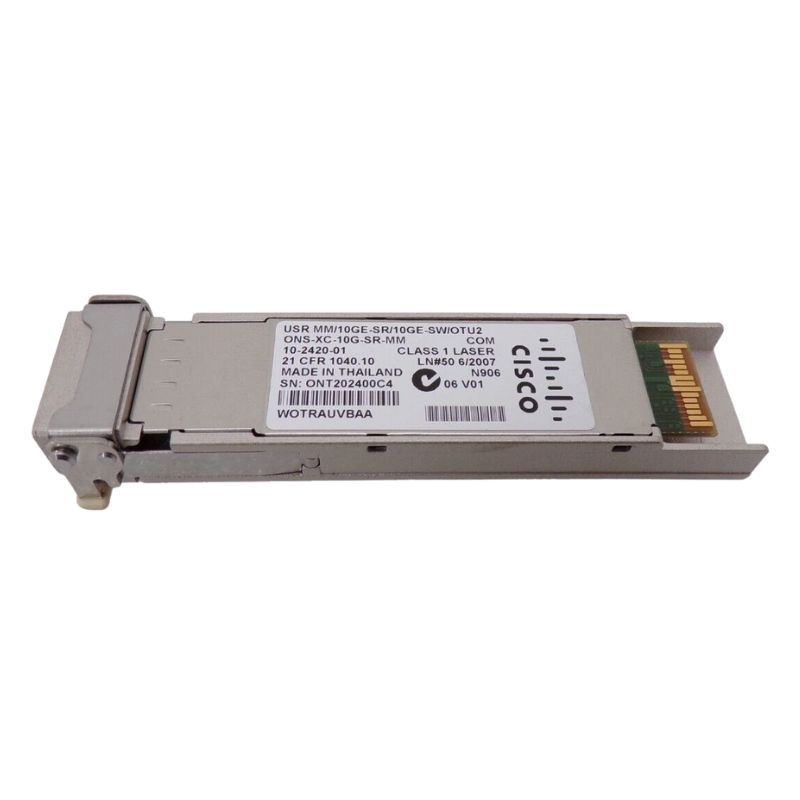

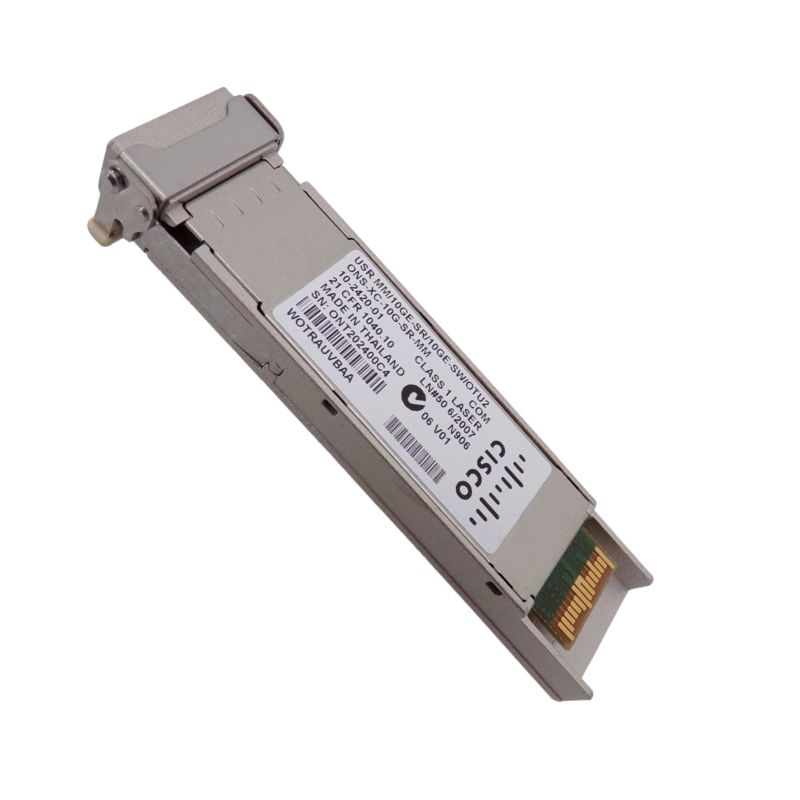

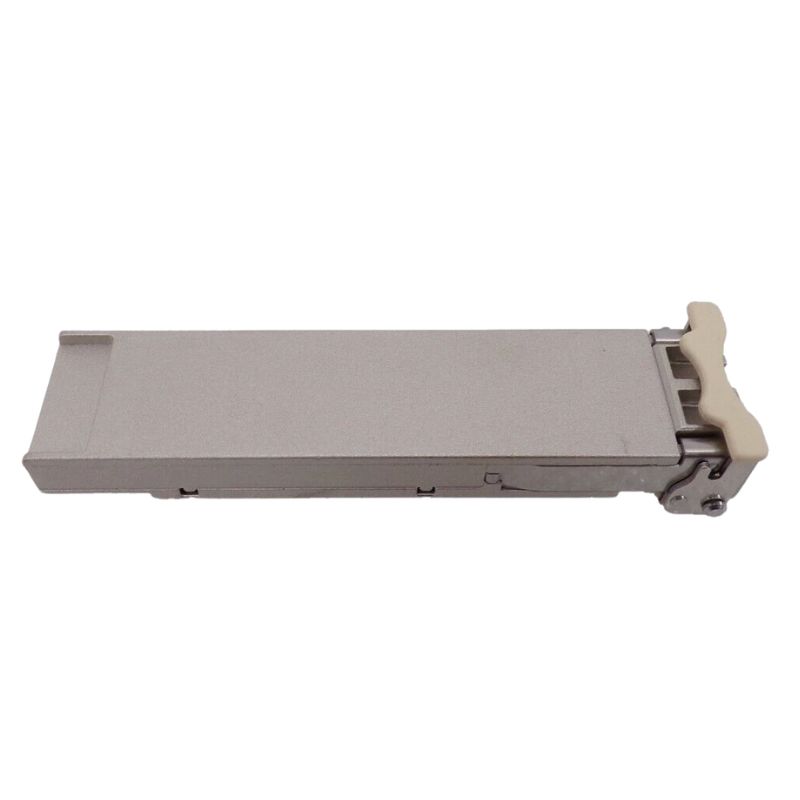

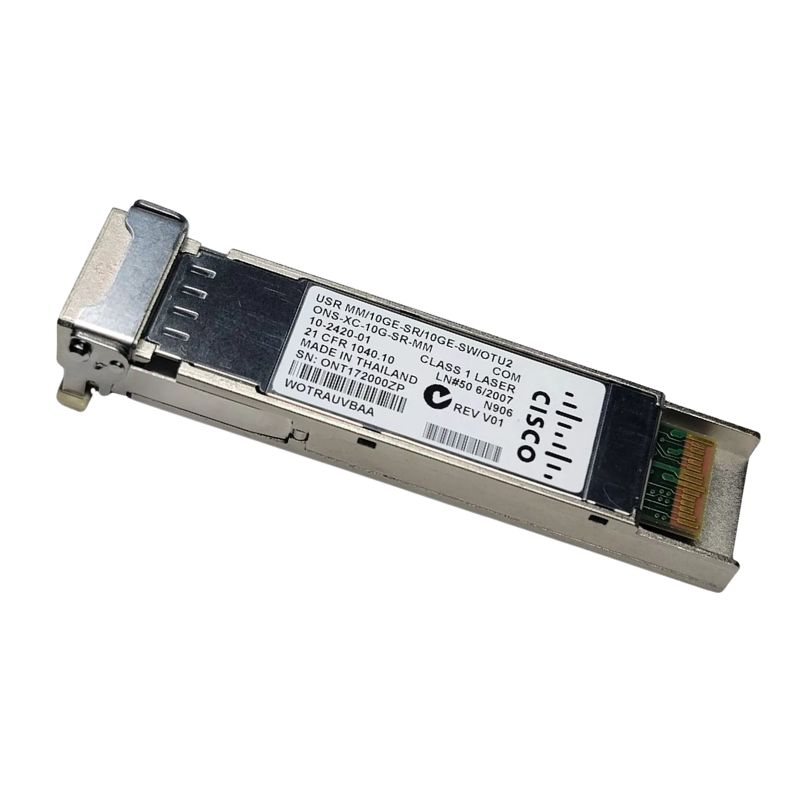

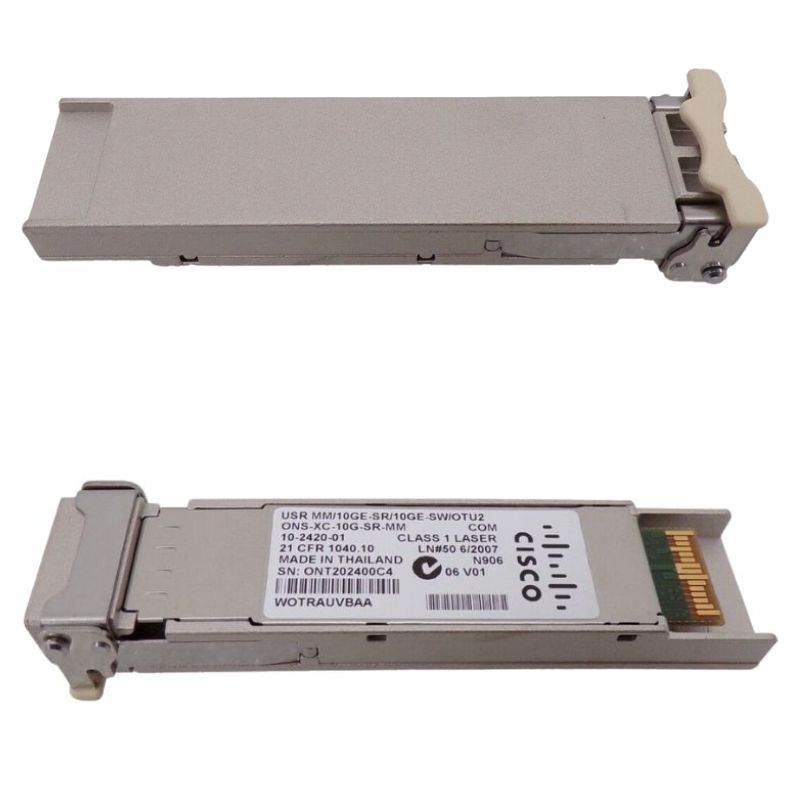

Cisco ONS-XC-10G-SR-MM 10GB 850nm MMF XFP Transceiver.

Overview of ONS-XC-10G-SR-MM Cisco 10Gbps 10GBase-SR

The ONS-XC-10G-SR-MM Cisco 10Gbps 10GBase-SR is a high-performance transceiver module specifically designed for short-range data transmission over multi-mode fiber. Operating at a wavelength of 850nm, this module is capable of reaching up to 300 meters using OM3 multi-mode fiber. Its duplex LC connector provides reliable, high-speed connectivity for data centers, enterprise networks, and telecom applications.

Key Features and Specifications

This transceiver module offers several advanced features that make it a reliable choice for modern network infrastructures. Below are some of the key features:

• Transmission speed of 10Gbps for high-performance data transfer
• Short-range (SR) transmission up to 300 meters on OM3 multi-mode fiber
• 850nm wavelength for optimized short-distance connectivity
• Hot-swappable XFP form factor for ease of deployment
• Compatible with Cisco switches and routers
• Duplex LC connector for reliable fiber connections

Applications of ONS-XC-10G-SR-MM

The ONS-XC-10G-SR-MM transceiver module is widely used in various networking environments. It supports high-speed data transfer and low-latency communication, making it ideal for multiple applications:

1. Data Center Connectivity

With its high-speed capabilities and multi-mode fiber compatibility, this module is perfect for connecting servers, switches, and storage devices within data centers. Its short-range reach provides a cost-effective solution for intra-rack and rack-to-rack connections.

2. Enterprise Network Upgrades

Organizations seeking to upgrade their network infrastructure to 10Gbps can rely on the ONS-XC-10G-SR-MM for seamless integration. This module is compatible with a wide range of Cisco networking equipment, ensuring smooth transitions from older systems to high-speed networks.

3. High-Performance Computing (HPC)

In high-performance computing environments, low-latency and high-bandwidth connectivity are crucial. This transceiver module provides the necessary speed and reliability to support HPC applications, enhancing data processing and communication between computing nodes.

Compatibility and Interoperability

The ONS-XC-10G-SR-MM is specifically designed for compatibility with Cisco switches and routers. It supports several Cisco platforms, making it a flexible solution for network upgrades. Additionally, the module follows the Multi-Source Agreement (MSA) standards, ensuring interoperability with other manufacturers' equipment that adheres to the same specifications.

Supported Cisco Devices

• Cisco Catalyst switches
• Cisco Nexus data center switches
• Cisco ASR and ISR routers
• Other Cisco devices that support 10GBase-SR XFP modules

Multi-Mode Fiber Compatibility

The ONS-XC-10G-SR-MM is optimized for use with multi-mode fiber, particularly OM3 and OM4 types. These fiber types offer enhanced performance for short-distance connections, making them ideal for applications requiring high-speed data transfer within confined environments such as data centers and enterprise networks.

Power and Environmental Considerations

The ONS-XC-10G-SR-MM is designed to operate within standard environmental conditions, ensuring reliable performance. Its power consumption is optimized for energy efficiency, helping to reduce overall operational costs in data centers and enterprise networks.

Power Consumption

The transceiver module consumes low power compared to older models, making it an energy-efficient option for high-density network environments. This reduction in power usage also helps manage heat dissipation more effectively.

Operating Conditions

The module is designed to perform reliably within a temperature range of 0°C to 70°C, ensuring stable operation in various environments.

Installation and Deployment

Installing the ONS-XC-10G-SR-MM transceiver module is a straightforward process, thanks to its hot-swappable XFP form factor. Follow these steps for a successful installation:

1. Power off the device before inserting the module.
2. Remove the protective dust cover from the module and the fiber connectors.
3. Align the module with the port and gently insert it until it clicks into place.
4. Connect the duplex LC fiber cable to the module.
5. Power on the device and verify that the module is recognized and functioning properly.

Always ensure that the fiber connectors are clean and free of dust or debris to maintain optimal performance.

Maintenance and Troubleshooting

Regular maintenance is essential to ensure the longevity and performance of the ONS-XC-10G-SR-MM module. Here are some maintenance tips:

• Inspect and clean fiber connectors regularly to prevent signal loss.
• Monitor the module's performance using network management tools.
• Replace damaged or worn-out fiber cables promptly.

Common Issues and Solutions

In the event of connectivity problems, follow these troubleshooting steps:

• Check the physical connections and ensure that the module is securely inserted.
• Verify that the fiber cable is compatible with the transceiver.
• Use diagnostic tools to identify and resolve network configuration issues.

Benefits of Choosing ONS-XC-10G-SR-MM

This transceiver module offers several advantages for network administrators and IT professionals. Some of the key benefits include:

• High-speed connectivity for improved network performance
• Cost-effective solution for short-range data transmission
• Easy installation and maintenance
• Compatibility with a wide range of Cisco devices
• Energy-efficient design for reduced operational costs
