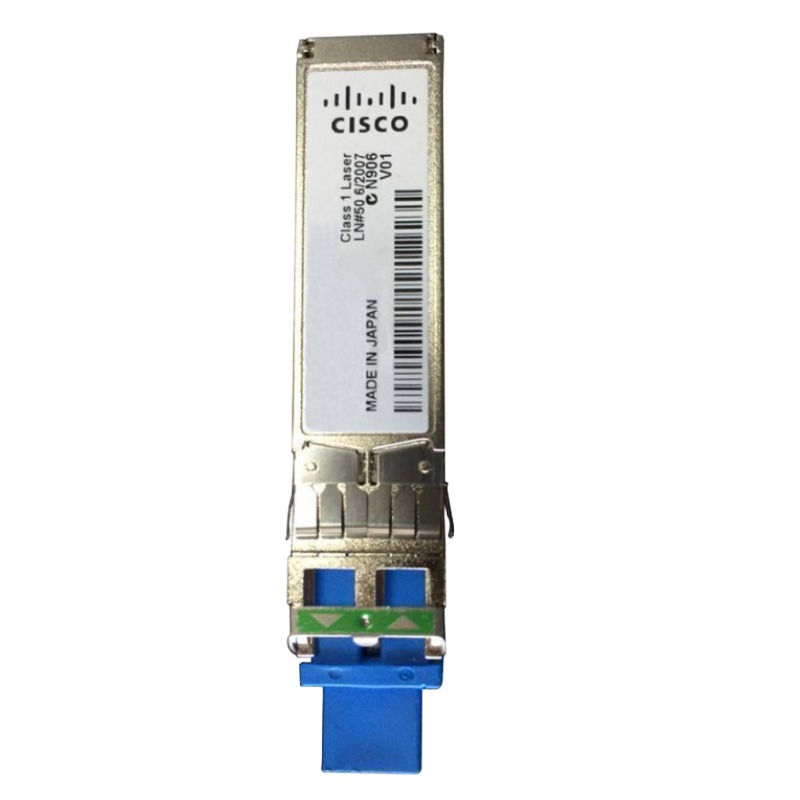

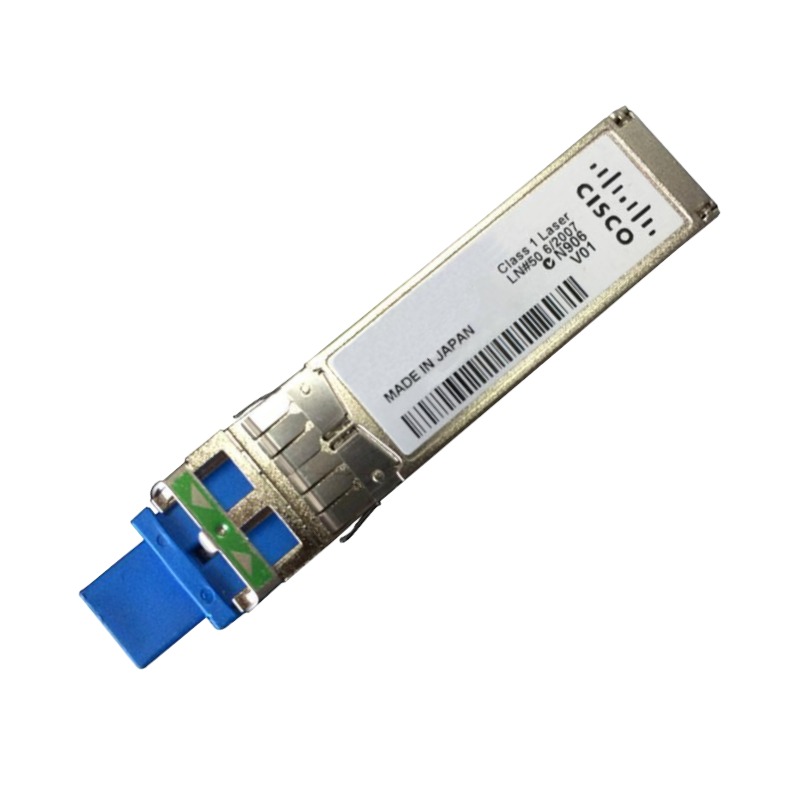

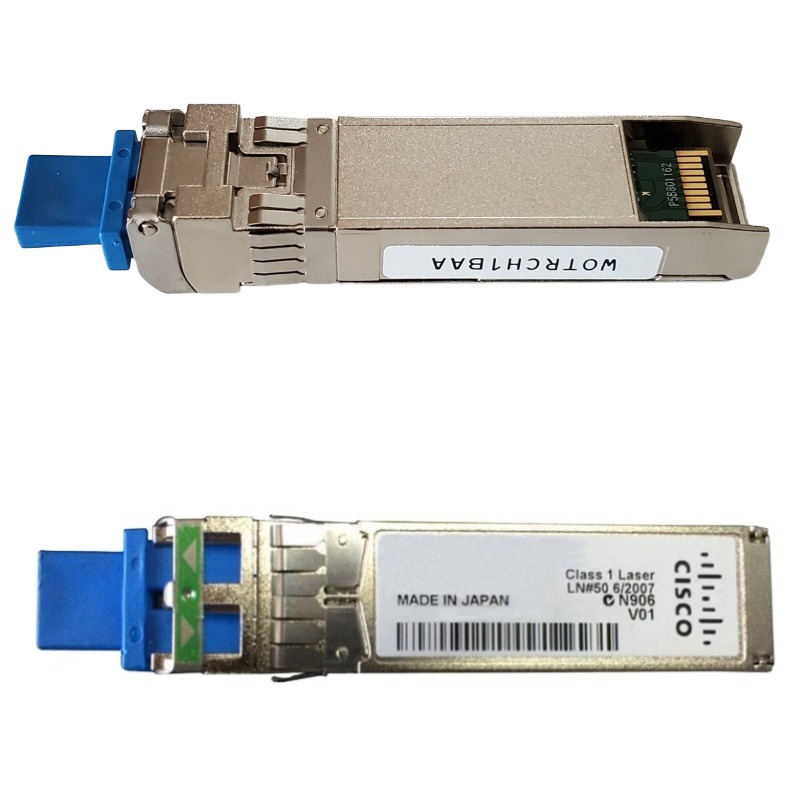

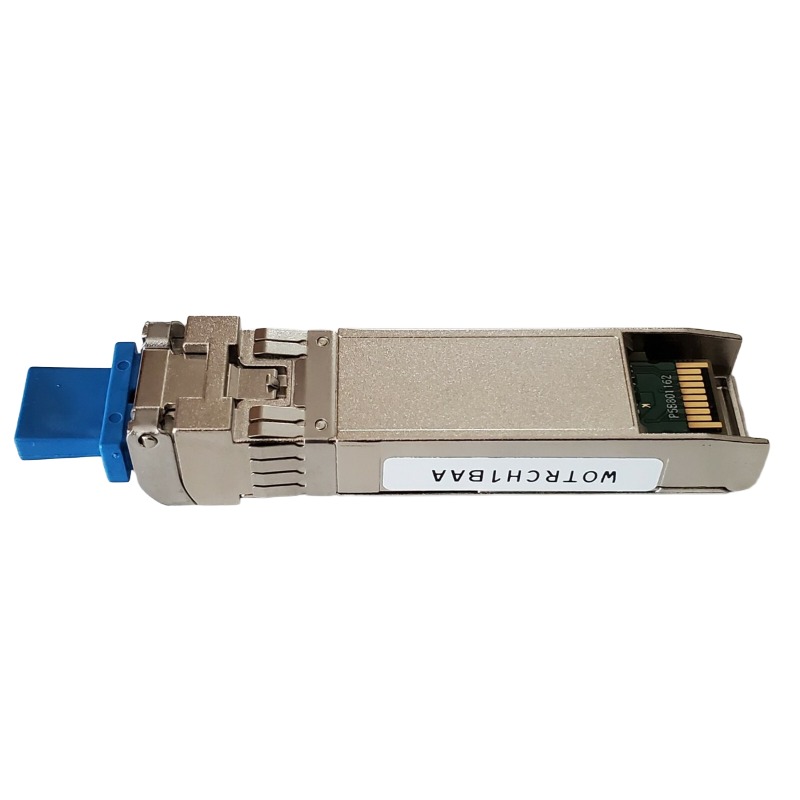

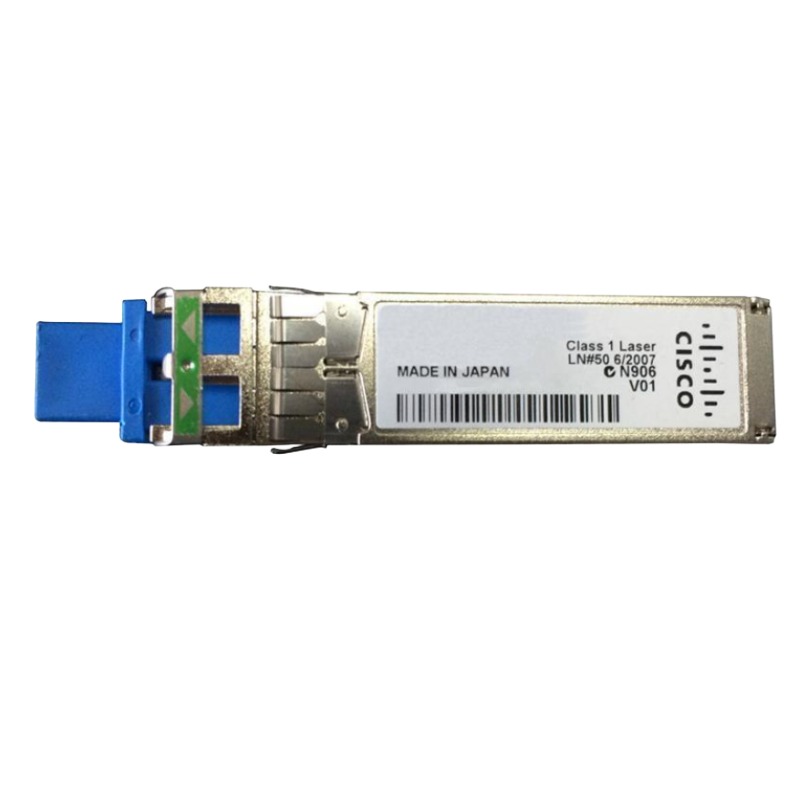

Cisco ONSSC+10GEP58.1 10Gbps 10GBase Transceiver Module

Comprehensive Product Details

Manufacturer and Model Information

• Brand: Cisco
• Part Number: ONSSC+10GEP58.1

Key Features of the ONSSC+10GEP58.1

• Transceiver Type: SFP+
• Data Transfer Speed: 10 Gigabits per second
• Fiber Mode: Single-mode Fiber (SMF)
• Maximum Transmission Distance: 80 kilometers
• Operating Wavelength: 1558.17 nanometers
• Connector Type: LC Duplex Connector

Performance and Capabilities

• High-Speed Data Transfer: Ensures seamless communication at 10 Gbps.
• Long-Range Connectivity: Supports data transmission up to 80 km.
• Precision Wavelength: Operates at 1558.17 nm for optimal signal clarity.

Technical Specifications

• Fiber Compatibility: Designed for single-mode fiber networks.
• Connector Design: LC connectors ensure reliable and secure connections.
• Efficient Data Handling: Ideal for high-bandwidth applications.

Applications and Use Cases

• Enterprise Networks: Perfect for large-scale business networks requiring high-speed data transfer.
• Telecommunications: Suitable for long-distance communication infrastructure.
• Data Centers: Enhances performance in high-density data environments.

Additional Features

• Durability: Built to withstand demanding network environments.
• Compatibility: Works seamlessly with Cisco networking equipment.
• Energy Efficiency: Designed to minimize power consumption.

Overview of the ONSSC+10GEP58.1-RF Cisco 10Gbps SFP+

The ONSSC+10GEP58.1-RF is a high-performance 10Gbps SFP+ transceiver module designed by Cisco for long-distance data transmission. This module supports 10GBase-DWDM (Dense Wavelength Division Multiplexing) applications, making it ideal for high-speed network infrastructures. With a wavelength of 1558.17nm and a reach of up to 80km, this transceiver is perfect for single-mode fiber networks requiring reliable and efficient data transfer over extended distances.

Key Features of the ONSSC+10GEP58.1-RF SFP+ Transceiver

The ONSSC+10GEP58.1-RF SFP+ transceiver module boasts several advanced features that make it a standout choice for network administrators and engineers. These features include:

High-Speed Data Transmission

This transceiver module supports data rates of up to 10Gbps, ensuring fast and efficient data transfer across your network. Whether you're handling large data files, streaming high-definition video, or managing complex cloud-based applications, the ONSSC+10GEP58.1-RF delivers the performance you need.

Long-Distance Reach

With a maximum reach of 80km, this SFP+ transceiver is designed for long-haul applications. It is particularly well-suited for metropolitan area networks (MANs) and wide area networks (WANs) where data needs to be transmitted over considerable distances without loss of signal integrity.

DWDM Technology

The use of Dense Wavelength Division Multiplexing (DWDM) technology allows multiple data channels to be transmitted simultaneously over a single optical fiber. This increases the capacity of your network and reduces the need for additional fiber infrastructure, making it a cost-effective solution for high-density data environments.

Single-Mode Fiber Compatibility

The ONSSC+10GEP58.1-RF is compatible with single-mode fiber (SMF), which is designed for long-distance communication. Single-mode fiber offers lower attenuation and higher bandwidth compared to multi-mode fiber, making it the preferred choice for high-speed, long-distance applications.

LC Connector

Equipped with an LC connector, this transceiver module ensures a secure and reliable connection to your network equipment. The LC connector is known for its compact size and excellent performance, making it a popular choice in high-density environments.

Hot-Swappable Design

The hot-swappable design of the ONSSC+10GEP58.1-RF allows for easy installation and replacement without the need to power down your network equipment. This feature minimizes downtime and ensures continuous network availability.

Applications of the ONSSC+10GEP58.1-RF SFP+ Transceiver

The ONSSC+10GEP58.1-RF SFP+ transceiver module is versatile and can be used in a variety of applications, including:

Telecommunications

In the telecommunications industry, the need for high-speed, long-distance data transmission is critical. The ONSSC+10GEP58.1-RF is ideal for use in telecommunications networks, where it can support the high bandwidth requirements of voice, video, and data services.

Data Centers

Data centers require reliable and high-performance networking equipment to handle the vast amounts of data they process daily. The ONSSC+10GEP58.1-RF is well-suited for data center applications, providing the speed and reliability needed to support cloud computing, big data analytics, and other data-intensive tasks.

Enterprise Networks

Enterprise networks often span multiple locations and require robust connectivity solutions. The ONSSC+10GEP58.1-RF can be used to connect different branches of an enterprise, ensuring seamless communication and data transfer across the organization.

Service Providers

Service providers need to deliver high-quality services to their customers, and the ONSSC+10GEP58.1-RF can help achieve this goal. By providing high-speed, long-distance connectivity, this transceiver module enables service providers to offer reliable internet, voice, and video services.

Technical Specifications of the ONSSC+10GEP58.1-RF SFP+ Transceiver

Understanding the technical specifications of the ONSSC+10GEP58.1-RF is essential for ensuring compatibility with your network infrastructure. Below are the key technical details of this transceiver module:

Form Factor

The ONSSC+10GEP58.1-RF is an SFP+ transceiver, which is a compact and hot-swappable form factor. SFP+ modules are widely used in networking equipment due to their small size and high performance.

Data Rate

This transceiver supports a data rate of 10Gbps, making it suitable for high-speed networking applications. It is compliant with the 10GBase-DWDM standard, ensuring compatibility with other DWDM equipment.

Wavelength

The ONSSC+10GEP58.1-RF operates at a wavelength of 1558.17nm. This wavelength is part of the C-band, which is commonly used in DWDM systems due to its low attenuation and high capacity.

Fiber Type

This transceiver is designed for use with single-mode fiber (SMF). Single-mode fiber is ideal for long-distance communication, as it allows for lower signal loss and higher bandwidth compared to multi-mode fiber.

Maximum Reach

The ONSSC+10GEP58.1-RF has a maximum reach of 80km, making it suitable for long-haul applications. This reach is achieved through the use of high-quality optics and advanced signal processing techniques.

Connector Type

The transceiver is equipped with an LC connector, which is a small form-factor connector known for its excellent performance and reliability. The LC connector is widely used in high-density networking environments.

Operating Temperature

The ONSSC+10GEP58.1-RF operates within a temperature range of 0°C to 70°C (32°F to 158°F). This wide operating temperature range ensures reliable performance in various environmental conditions.

Power Consumption

This transceiver module has a low power consumption, typically around 1.5W. Low power consumption is essential for reducing the overall energy usage of your network and minimizing operational costs.

Benefits of Using the ONSSC+10GEP58.1-RF SFP+ Transceiver

There are several benefits to using the ONSSC+10GEP58.1-RF SFP+ transceiver module in your network infrastructure:

Enhanced Network Performance

With support for 10Gbps data rates and long-distance reach, the ONSSC+10GEP58.1-RF enhances the overall performance of your network. It ensures fast and reliable data transfer, even over extended distances.

Cost-Effective Solution

By utilizing DWDM technology, the ONSSC+10GEP58.1-RF allows you to maximize the capacity of your existing fiber infrastructure. This reduces the need for additional fiber cables and lowers the overall cost of your network deployment.

Scalability

The ONSSC+10GEP58.1-RF is a scalable solution that can grow with your network. As your bandwidth requirements increase, you can easily add more DWDM channels to your existing fiber infrastructure without the need for significant upgrades.

Reliability

Cisco is known for producing high-quality networking equipment, and the ONSSC+10GEP58.1-RF is no exception. This transceiver module is built to withstand the demands of high-speed, long-distance communication, ensuring reliable performance in even the most challenging environments.

Easy Installation and Maintenance

The hot-swappable design of the ONSSC+10GEP58.1-RF makes it easy to install and replace without disrupting your network. This feature simplifies maintenance and reduces downtime, ensuring continuous network availability.

Compatibility and Interoperability

Ensuring compatibility and interoperability with your existing network equipment is crucial when selecting a transceiver module. The ONSSC+10GEP58.1-RF is designed to be compatible with a wide range of Cisco networking equipment, including switches, routers, and optical transport platforms. Additionally, it is compliant with industry standards, ensuring interoperability with other DWDM equipment from different manufacturers.

Cisco Equipment Compatibility

The ONSSC+10GEP58.1-RF is specifically designed for use with Cisco networking equipment. It is compatible with a variety of Cisco switches and routers, including the Cisco Nexus series, Cisco Catalyst series, and Cisco ASR series. This ensures seamless integration into your existing Cisco network infrastructure.

Industry Standards Compliance

This transceiver module complies with industry standards such as the SFP+ Multi-Source Agreement (MSA) and the 10GBase-DWDM standard. Compliance with these standards ensures that the ONSSC+10GEP58.1-RF can be used in multi-vendor environments, providing flexibility and interoperability.

Interoperability Testing

Cisco conducts rigorous interoperability testing to ensure that the ONSSC+10GEP58.1-RF works seamlessly with other networking equipment. This testing includes compatibility with different fiber types, connectors, and network configurations, ensuring reliable performance in various scenarios.

Installation and Configuration

Installing and configuring the ONSSC+10GEP58.1-RF SFP+ transceiver module is a straightforward process. Below are the steps to install and configure this transceiver in your network:

Verify Compatibility

Before installation, verify that the ONSSC+10GEP58.1-RF is compatible with your networking equipment. Check the datasheet and compatibility matrix provided by Cisco to ensure that this transceiver module is supported by your switch or router.

Power Down the Equipment

Although the ONSSC+10GEP58.1-RF is hot-swappable, it is recommended to power down the equipment before installation to avoid any potential issues. This step is particularly important if you are replacing an existing transceiver module.

Insert the Transceiver

Carefully insert the ONSSC+10GEP58.1-RF into the SFP+ slot on your networking equipment. Ensure that the transceiver is fully seated and securely connected. The LC connector should be properly aligned with the fiber optic cable.

Connect the Fiber Optic Cable

Connect the single-mode fiber optic cable to the LC connector on the ONSSC+10GEP58.1-RF. Ensure that the cable is securely connected and that there is no excessive bending or stress on the fiber.

Power On the Equipment

Power on your networking equipment and verify that the ONSSC+10GEP58.1-RF is recognized. Check the status LEDs on the transceiver and the equipment to ensure that the connection is established and functioning correctly.

Configure the Network

Configure your network settings as needed to support the ONSSC+10GEP58.1-RF. This may include setting the appropriate wavelength, data rate, and other parameters to ensure optimal performance.

Maintenance and Troubleshooting

Proper maintenance and troubleshooting are essential for ensuring the long-term performance and reliability of the ONSSC+10GEP58.1-RF SFP+ transceiver module. Below are some tips for maintaining and troubleshooting this transceiver:

Regular Inspection

Regularly inspect the ONSSC+10GEP58.1-RF and the fiber optic cable for any signs of damage or wear. Check the connectors for dirt or debris and clean them if necessary. Regular inspection helps prevent potential issues and ensures optimal performance.

Monitoring Performance

Monitor the performance of the ONSSC+10GEP58.1-RF using network management tools. Keep an eye on key performance metrics such as signal strength, error rates, and temperature. Any significant changes in these metrics may indicate a potential issue that needs to be addressed.

Troubleshooting Common Issues

If you encounter issues with the ONSSC+10GEP58.1-RF, start by checking the physical connections. Ensure that the transceiver is properly seated and that the fiber optic cable is securely connected. If the issue persists, try replacing the transceiver or the fiber optic cable to isolate the problem.

Firmware Updates

Keep the firmware of your networking equipment up to date to ensure compatibility with the ONSSC+10GEP58.1-RF. Firmware updates may include bug fixes, performance improvements, and new features that can enhance the performance of your network.

Consulting Technical Support

If you are unable to resolve an issue with the ONSSC+10GEP58.1-RF, consult Cisco's technical support team for assistance. They can provide guidance and troubleshooting steps to help you resolve the issue and ensure the continued performance of your network.
