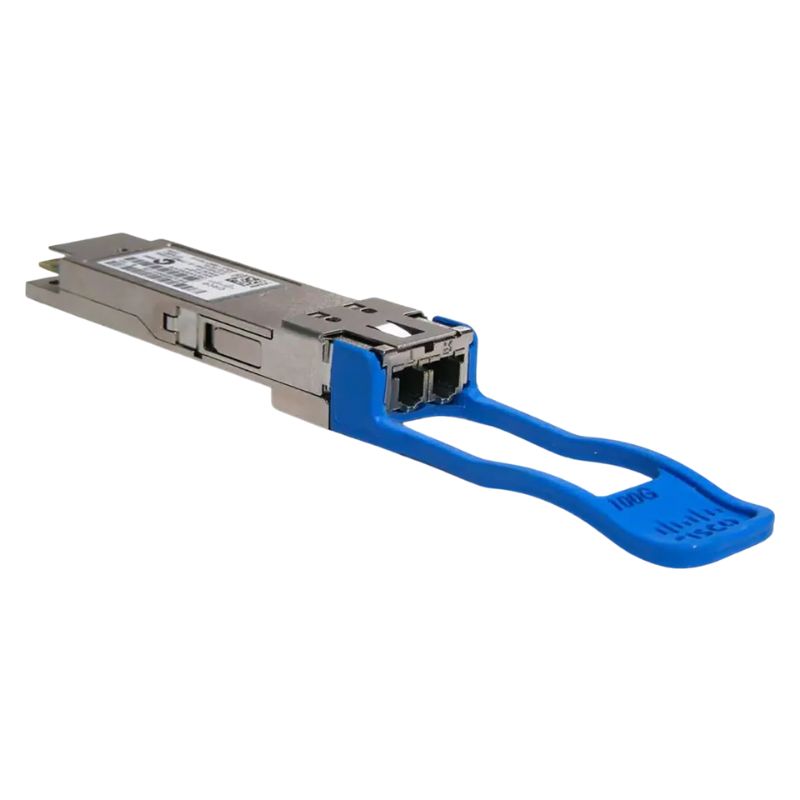

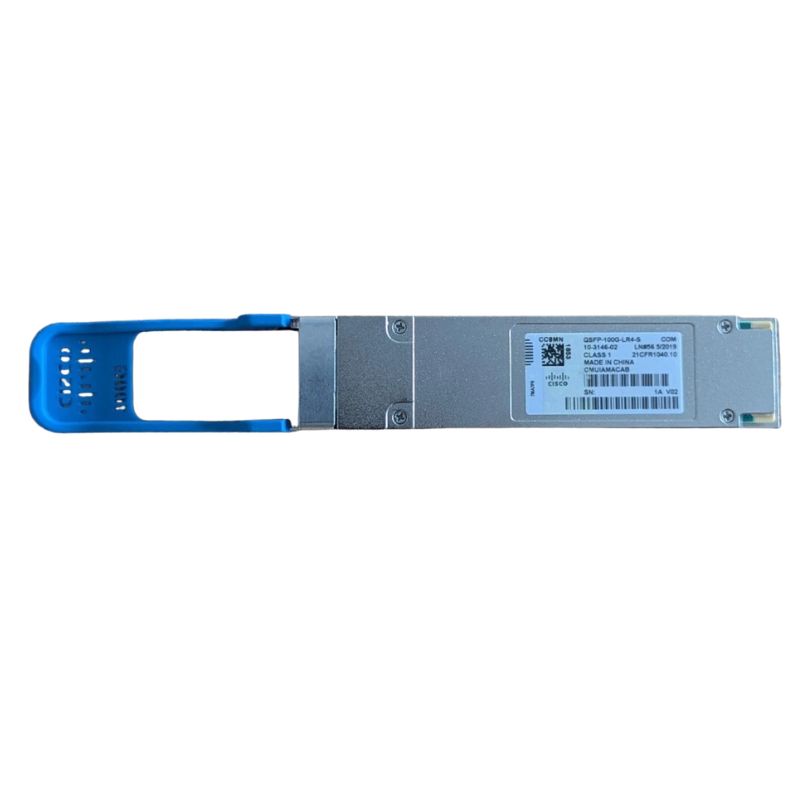

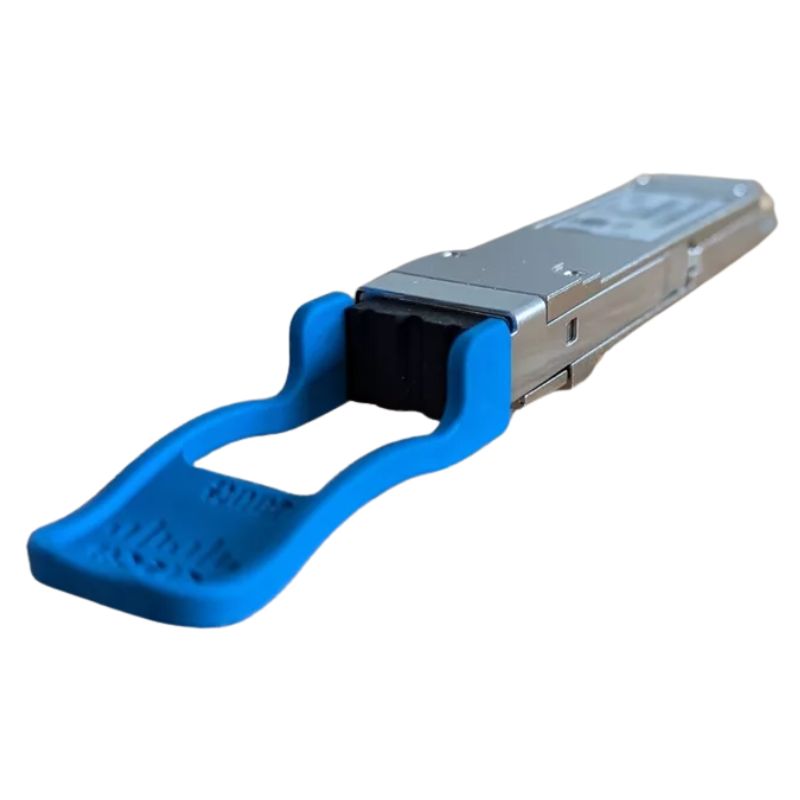

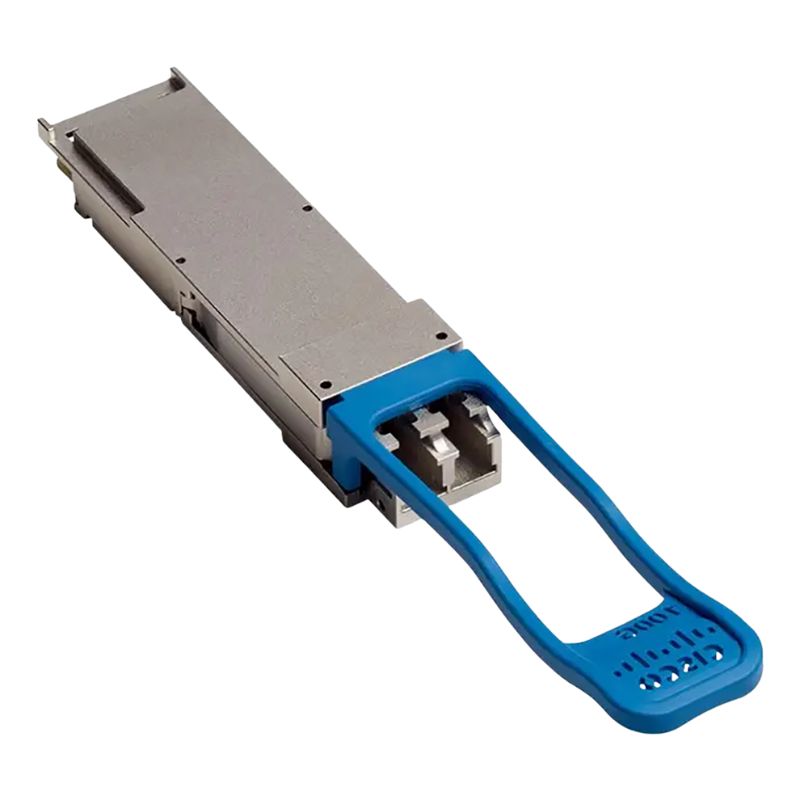

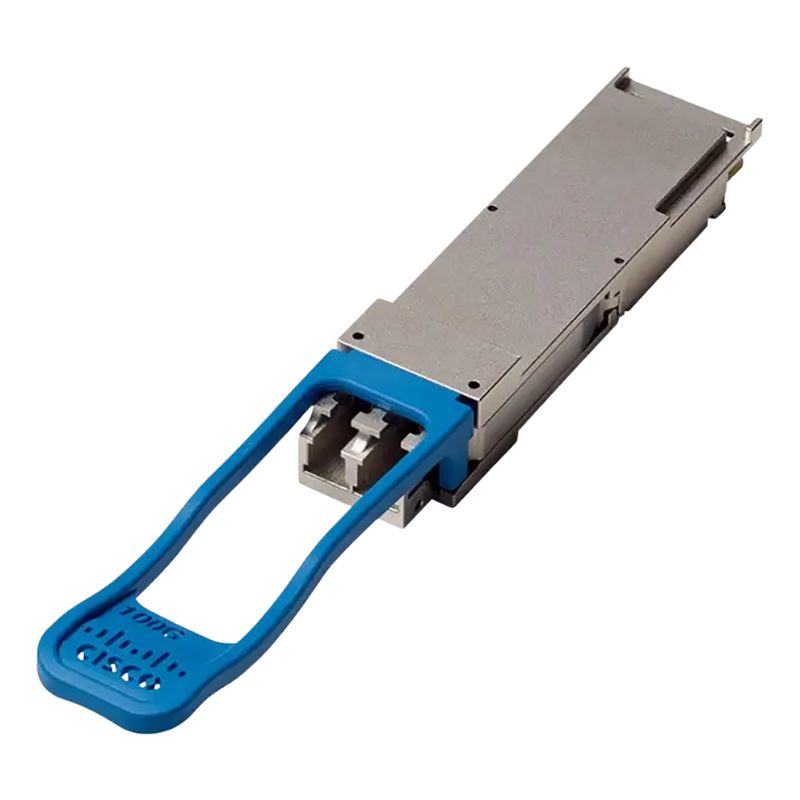

Cisco QSFP-100G-LR4-S= 100gbase Lr4 Qsfp Transceiver

Comprehensive Product Overview

Key Features of the Cisco QSFP-100G-LR4-S=

• High-speed data transfer with 100 Gigabit Ethernet technology.
• Compact QSFP form factor ensures easy integration into existing systems.
• Supports single-mode optical fiber for long-distance connectivity.
• Capable of spanning up to 10 kilometers over SMF (Single-Mode Fiber).
• Equipped with an LC duplex interface for reliable connections.

Manufacturer and Part Details

• Manufacturer: Cisco, a leader in network solutions.
• Part Number: QSFP-100G-LR4-S=
• Product Category: Network Devices
• Module Type: Transceiver Module

Technical Specifications

Media and Connectivity

• Supports optical fiber media for high-performance networking.
• Optimized for single-mode fiber, ensuring extended reach.

Networking Technology

• Powered by advanced 100GBASE-LR4 Ethernet technology.
• Delivers seamless and robust long-range data transmission.

Interface and Port Details

• Features a single LC duplex port for efficient data flow.
• Engineered for compatibility with a wide range of networking equipment.

Benefits of the Cisco QSFP-100G-LR4-S=

• Enhanced network performance with ultra-high-speed data transfer capabilities.
• Cost-effective solution for long-distance communication needs.
• Reliable and durable design suitable for various enterprise environments.
• Effortless integration into Cisco network ecosystems.

Applications

• Ideal for data centers requiring high-capacity connections.
• Perfect for enterprise-level networking solutions demanding long-range data transmission.
• Well-suited for ISPs and large-scale IT infrastructure deployments.

Overview of Cisco QSFP-100G-LR4-S= Transceiver

The Cisco QSFP-100G-LR4-S= transceiver is a high-performance, compact optical module designed for 100GBASE-LR4 Ethernet applications. Built to facilitate seamless connectivity in data centers, enterprises, and telecommunication networks, this transceiver supports LC duplex connectors and single-mode fiber (SMF) for a transmission range of up to 10 kilometers.

Key Features of Cisco QSFP-100G-LR4-S= Transceivers

High-Speed Connectivity

Designed to deliver data transfer speeds of up to 100 Gbps, the QSFP-100G-LR4-S= transceiver ensures reliable and fast communication across networks. This high-speed capability is ideal for modern data-intensive applications and cloud computing needs.

10 km Transmission Range

Equipped to operate over single-mode fiber, the module offers a transmission range of up to 10 kilometers, making it suitable for both short- and long-haul network deployments. This capability ensures flexibility in deploying the module in a wide range of environments.

LC Duplex Connector Compatibility

The transceiver utilizes an LC duplex connector, a standard in the industry for single-mode optical connections. This compatibility simplifies integration into existing infrastructures and ensures efficient utilization of resources.

Applications of Cisco QSFP-100G-LR4-S= Modules

Data Centers

In data centers, the QSFP-100G-LR4-S= module plays a critical role in achieving high-speed interconnections between servers, storage systems, and switches. Its ability to handle large amounts of data traffic ensures low latency and optimized performance for mission-critical applications.

Enterprise Networks

Enterprise environments benefit from the module's ability to provide reliable, high-bandwidth connectivity. It supports smooth communication and data exchange across multiple departments, ensuring seamless business operations.

Telecommunication Networks

The module is also a cornerstone for telecommunications networks, offering efficient long-distance data transmission. Its compatibility with single-mode fiber makes it an ideal choice for urban and inter-city networking requirements.

Technical Specifications of the Cisco QSFP-100G-LR4-S= Transceiver

Optical Specifications

The module operates over four wavelengths on a single-mode fiber, multiplexing and demultiplexing optical signals. Each wavelength supports a data rate of 25 Gbps, contributing to the overall 100 Gbps throughput.

Power Efficiency

With a power consumption of less than 3.5 W, the QSFP-100G-LR4-S= is energy-efficient, reducing operational costs and contributing to greener data center practices.

Temperature Range

The transceiver supports an operating temperature range of 0°C to 70°C, ensuring reliable performance under varying environmental conditions.

Compliance Standards

Fully compliant with IEEE 802.3ba standards for 100GBASE-LR4, the module ensures interoperability with other devices adhering to the same specifications. Additionally, it meets RoHS requirements, affirming its environmentally friendly design.

Advantages of Using Cisco QSFP-100G-LR4-S= Modules

Enhanced Network Scalability

The module supports seamless upgrades to higher bandwidths, enabling businesses to scale their networks as needed without extensive overhauls.

Cost-Effective Deployment

By leveraging existing single-mode fiber infrastructure, the transceiver minimizes the need for additional cabling or hardware investments, ensuring cost-effective network expansions.

Reliable Performance

The QSFP-100G-LR4-S= module's robust design and adherence to industry standards guarantee consistent performance, even in demanding operational scenarios.

Subcategories and Related Products

Cisco Compatible Transceivers

The QSFP-100G-LR4-S= belongs to Cisco's extensive lineup of compatible transceivers, including options for different speeds, fiber types, and connector configurations. These modules cater to diverse networking requirements.

Single-Mode Fiber Solutions

Single-mode fiber solutions, such as the QSFP-100G-LR4-S=, are ideal for long-distance communication. Other offerings in this category include modules supporting various distances and configurations.

Optical Multiplexing Modules

For networks requiring higher bandwidth utilization, Cisco's optical multiplexing modules complement transceivers like the QSFP-100G-LR4-S=, ensuring efficient data transmission.

Installation and Maintenance of QSFP-100G-LR4-S= Transceivers

Installation Guidelines

Proper handling and installation of the module are crucial for optimal performance. Always ensure the module is securely seated in the QSFP port and that the LC connectors are clean and properly aligned.

Maintenance Tips

Regular inspection of connectors and fibers helps maintain signal integrity. Additionally, using dust caps when the module is not in use prevents contamination and ensures longevity.

Troubleshooting Common Issues

For issues such as loss of signal or connectivity interruptions, verify the fiber connections and ensure the module is properly seated. Consulting Cisco’s support documentation can provide additional troubleshooting steps.

Industry Trends and Future Prospects

Growing Demand for High-Speed Networks

The increasing reliance on cloud services and IoT devices drives demand for high-speed, reliable networking solutions like the QSFP-100G-LR4-S=. This trend underscores the importance of advanced transceiver technology.

Emerging Technologies

Innovations in optical communication, such as silicon photonics, are likely to enhance the capabilities of transceivers in the coming years, providing even greater efficiency and scalability.

Sustainability Initiatives

As environmental concerns grow, the focus on energy-efficient networking components like the QSFP-100G-LR4-S= will continue to gain prominence, aligning with global sustainability goals.
