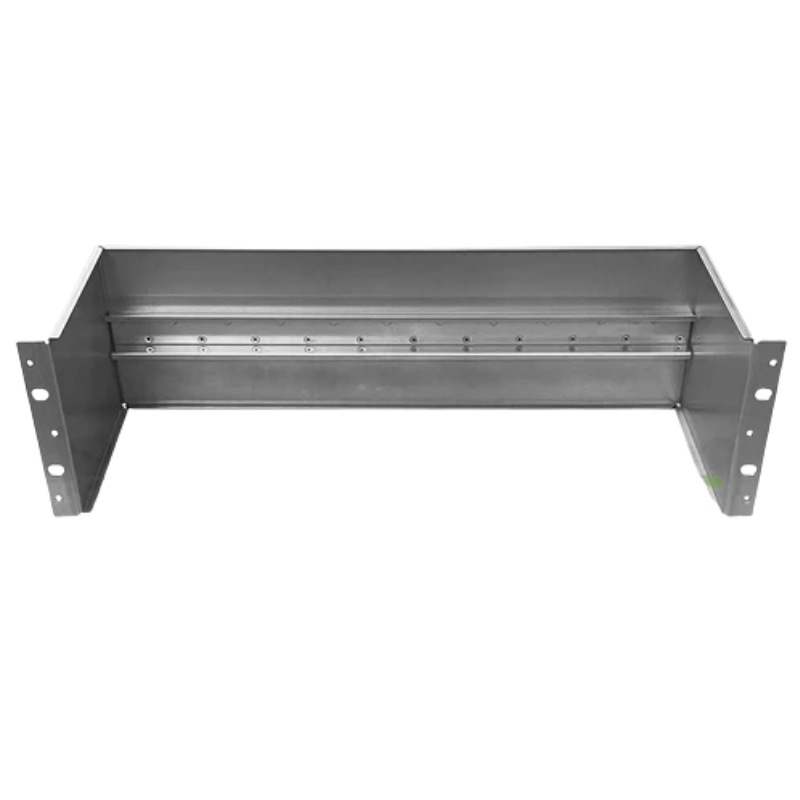

Cisco STK-RACK-DINRAIL 19 Inch DIN Rail.

Overview of Cisco STK-RACK-DINRAIL Industrial Ethernet

The Cisco STK-RACK-DINRAIL is a versatile and reliable solution for mounting industrial Ethernet switches on a 19-inch DIN rail. This mounting accessory is essential for industrial networking environments that require robust, secure, and space-efficient installations. Designed to meet the demands of industrial automation and networking applications, it ensures optimal organization and stability for Cisco Industrial Ethernet switches.

Features and Benefits of Cisco STK-RACK-DINRAIL

Robust Construction

The Cisco STK-RACK-DINRAIL is built with high-quality materials to withstand harsh industrial environments. Its durable metal frame provides reliable support for heavy-duty applications, ensuring longevity and minimal maintenance.

Compatibility with Cisco Industrial Ethernet Switches

This DIN rail adapter is specifically designed for use with Cisco Industrial Ethernet switches, such as the Cisco IE 2000, IE 3000, and IE 4000 series. It guarantees a secure fit and optimal alignment, allowing for seamless integration into existing network infrastructures.

Space-Efficient Design

With its compact and space-saving design, the Cisco STK-RACK-DINRAIL enables efficient use of rack space in industrial control cabinets. It simplifies cable management while maximizing operational efficiency.

Easy Installation

Installing the Cisco STK-RACK-DINRAIL is straightforward. The adapter includes pre-drilled holes and mounting hardware, making it easy for technicians to install and secure Cisco switches without special tools or training.

Applications of Cisco STK-RACK-DINRAIL

The Cisco STK-RACK-DINRAIL is ideal for various industrial and commercial applications. Its robust design and compatibility with Cisco Industrial Ethernet switches make it suitable for the following environments:

Manufacturing and Automation

In manufacturing environments, reliable networking is critical for automation and process control. The Cisco STK-RACK-DINRAIL ensures secure mounting of network devices, supporting seamless data communication between machines and control systems.

Energy and Utilities

Energy and utility sectors require resilient networking solutions for power distribution, smart grids, and monitoring systems. The Cisco STK-RACK-DINRAIL provides a stable mounting option for network devices in control rooms and substation environments.

Transportation and Smart Cities

For transportation systems and smart city infrastructures, the Cisco STK-RACK-DINRAIL supports secure and organized network installations for traffic control, surveillance, and public information systems.

Technical Specifications

The Cisco STK-RACK-DINRAIL offers several technical features that make it an ideal choice for industrial environments. Below are the key specifications:

Dimensions and Weight

• Height: 1.5 inches (38 mm)
• Width: 19 inches (482.6 mm)
• Depth: 6.5 inches (165 mm)
• Weight: 2.2 lbs (1 kg)

Material and Build Quality

The STK-RACK-DINRAIL is made from high-grade steel with a corrosion-resistant finish, ensuring durability and reliable performance in extreme conditions.

Environmental Specifications

• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 5% to 95% non-condensing

Compliance and Certifications

The Cisco STK-RACK-DINRAIL meets industry standards and certifications, including:

• UL 508
• CE Mark
• RoHS Compliance
• EN 61000-6-2: Industrial Immunity

How to Install Cisco STK-RACK-DINRAIL

Step-by-Step Installation Guide

Follow these steps to install the Cisco STK-RACK-DINRAIL and secure your Cisco Industrial Ethernet switches:

Step 1: Prepare the Mounting Surface

Ensure the 19-inch rack or DIN rail is clean and free of debris. Verify that the rack is properly secured to prevent movement during installation.

Step 2: Attach the DIN Rail Adapter

Align the Cisco STK-RACK-DINRAIL with the designated mounting holes on the rack. Use the included screws and washers to secure the adapter in place.

Step 3: Mount the Cisco Switch

Carefully align the Cisco Industrial Ethernet switch with the DIN rail adapter. Slide the switch into place and ensure it is firmly secured.

Step 4: Connect Cables

Connect the necessary Ethernet and power cables to the switch. Use cable management accessories to keep the installation neat and organized.

Best Practices for Using Cisco STK-RACK-DINRAIL

To ensure optimal performance and longevity of your Cisco STK-RACK-DINRAIL, follow these best practices:

Regular Maintenance and Inspection

Periodically inspect the mounting adapter for signs of wear, corrosion, or loose screws. Tighten any loose components and replace damaged parts as needed.

Proper Cable Management

Use cable ties and management accessories to organize cables and prevent interference. Proper cable management reduces stress on connectors and ensures a clean installation.

Adherence to Environmental Specifications

Operate the Cisco STK-RACK-DINRAIL within the specified temperature and humidity ranges. Avoid exposure to excessive moisture or corrosive substances.

Trusted Brand with Proven Reliability

Cisco is a global leader in networking solutions, known for its high-quality products and exceptional customer support. The STK-RACK-DINRAIL is no exception, offering reliable performance and long-lasting durability.

Seamless Integration with Cisco Products

Designed specifically for Cisco Industrial Ethernet switches, the STK-RACK-DINRAIL ensures compatibility and simplifies the installation process, reducing setup time and potential issues.

Enhanced Network Organization

By securely mounting network devices on a DIN rail, the Cisco STK-RACK-DINRAIL promotes efficient use of space and simplifies network management in industrial environments.

Frequently Asked Questions (FAQ)

What is the Cisco STK-RACK-DINRAIL used for?

The Cisco STK-RACK-DINRAIL is a mounting accessory for Cisco Industrial Ethernet switches, designed to securely attach the switches to a 19-inch DIN rail in industrial environments.

Which Cisco switches are compatible with the STK-RACK-DINRAIL?

The STK-RACK-DINRAIL is compatible with Cisco Industrial Ethernet switches such as the IE 2000, IE 3000, and IE 4000 series.

Can I use the Cisco STK-RACK-DINRAIL in outdoor environments?

The STK-RACK-DINRAIL is designed for indoor use in industrial environments. It should be protected from direct exposure to outdoor elements.

Is special training required to install the STK-RACK-DINRAIL?

No special training is required. The installation process is straightforward and can be completed by technicians familiar with rack-mount installations.
