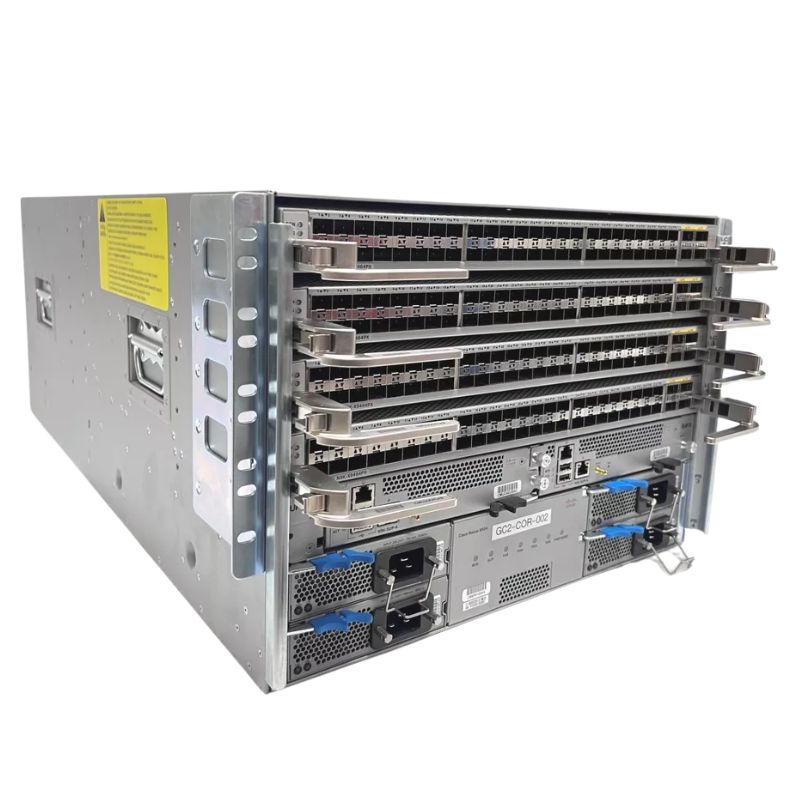

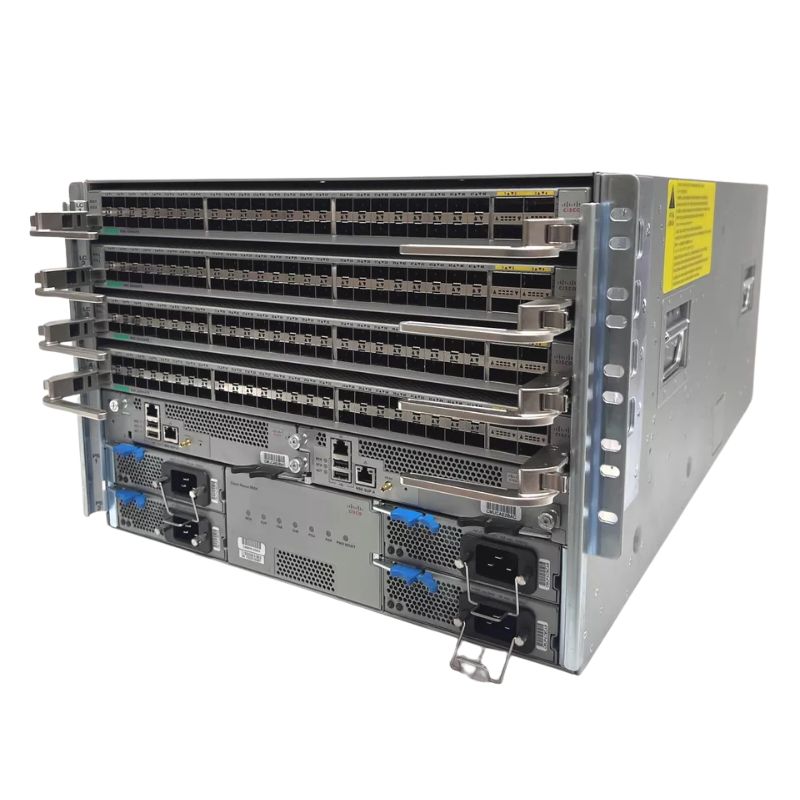

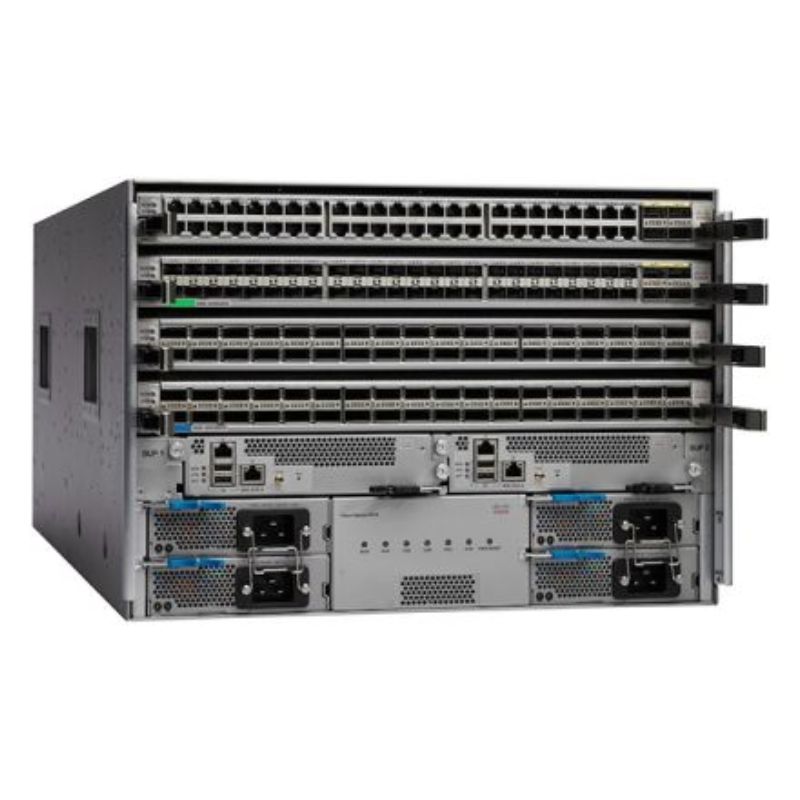

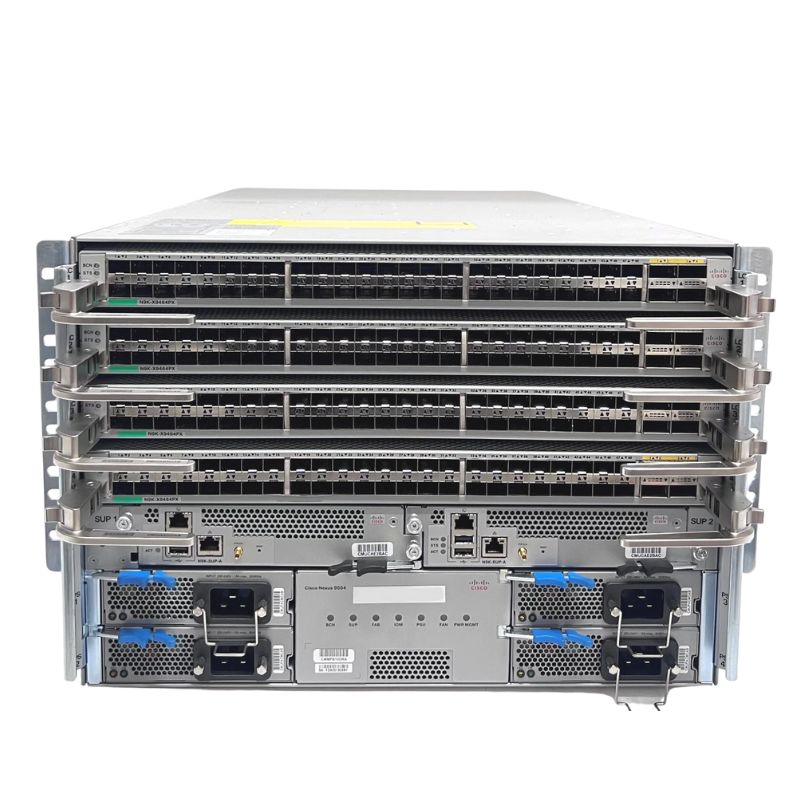

Cisco ONE Nexus 9504 Chassis C1-N9K-C9504-B3

Product Overview

General Information

• Manufacturer: Cisco
• Part Number: C1-N9K-C9504-B3
• Product Line: Nexus
• Product Series: 9000
• Model: 9504
• Product Name: Nexus 9504 Switch Chassis
• Product Type: Switch Chassis

Interfaces and Expansion Slots

Port and Slot Configuration

• Modular Design: Yes
• Port/Expansion Slot Details:
  • 4 x Expansion Slots

Expansion Capabilities

• Total Number of Expansion Slots: 4
• Types of Expansion Slots:
  • Supervisor Engine
  • Line Card
  • Switch Fabric

Network and Communication

Layer Support

• Supported Layer: Layer 3

Management and Protocols

Management Features

• Manageable: Yes

Power Specifications

Power Details

• Power Source: Power Supply
• Redundant Power Supply: Supported

Product Name: Cisco Nexus 9504 Chassis

The Cisco Nexus 9504 Chassis is a highly advanced and powerful networking solution designed to meet the ever-increasing demands of modern data centers. As part of the Cisco ONE Nexus family, this chassis offers a wide range of features and capabilities that make it an ideal choice for organizations looking to enhance their network infrastructure.

Unparalleled Performance

One of the key benefits of the Cisco Nexus 9504 Chassis is its exceptional performance. Equipped with high-density, line-rate 40 Gigabit Ethernet (GE) and 100 GE ports, this chassis provides unmatched throughput and bandwidth, enabling seamless data transmission even in the most demanding environments. With its advanced forwarding engine and intelligent buffering mechanisms, it ensures low latency and minimal packet loss, resulting in superior network performance.

Scalability

Scalability is a critical consideration for organizations as their network requirements continue to grow. The Cisco Nexus 9504 Chassis offers excellent scalability options, allowing businesses to easily expand their network infrastructure as needed. With support for up to four line cards and multiple fabric modules, this chassis can accommodate a large number of ports, providing the flexibility required to scale the network as demands increase.

Modular Design

The modular design of the Cisco Nexus 9504 Chassis offers significant advantages in terms of flexibility and ease of management. The chassis consists of a supervisor module, fabric modules, and line cards, which can be easily replaced or upgraded without disrupting network operations. This modularity enables organizations to adapt their infrastructure to evolving technologies and future-proof their investments.

High Availability

For mission-critical environments where network downtime is not an option, the Cisco Nexus 9504 Chassis ensures high availability through its robust design and redundant components. The chassis supports hot-swappable power supplies and fan modules, allowing for uninterrupted operation even during component failures. Additionally, the fabric modules utilize Cisco's Virtual Output Queuing (VOQ) technology, which eliminates head-of-line (HOL) blocking and ensures fair packet scheduling, enhancing overall system reliability.

Advanced Security

In today's cyber-threat landscape, network security is of paramount importance. The Cisco Nexus 9504 Chassis incorporates advanced security features to protect critical data and prevent unauthorized access. It supports comprehensive access control mechanisms, including role-based access control (RBAC) and Secure Shell (SSH), ensuring that only authorized personnel can manage and configure the system. With built-in hardware encryption capabilities, it safeguards sensitive information during transmission, providing an additional layer of security.

Sku: C1-N9K-C9504-B3

The Sku or Stock Keeping Unit is a unique identifier that distinguishes a specific product variant from others. In the case of the Cisco Nexus 9504 Chassis, the Sku code C1-N9K-C9504-B3 represents a particular configuration that offers distinctive benefits to users.

Optimized Performance

The C1-N9K-C9504-B3 Sku of the Cisco Nexus 9504 Chassis is specifically designed to deliver optimized performance in high-density environments. With its combination of line cards and fabric modules, this configuration enables organizations to achieve maximum throughput and scalability for their networking needs. Whether it's handling massive data transfers or supporting bandwidth-intensive applications, this Sku ensures that network performance remains consistently high, even under heavy workloads.

Enhanced Flexibility

Flexibility is a crucial aspect when designing a network infrastructure that can adapt to changing business requirements. The C1-N9K-C9504-B3 Sku provides enhanced flexibility through its modular design and support for a wide range of line cards and fabric modules. This allows organizations to customize their chassis configuration based on their specific needs, ensuring that they have the right mix of ports and capabilities to support various applications and services.

Simplified Management

Managing complex networks can be a daunting task, but the C1-N9K-C9504-B3 Sku simplifies this process through its advanced management capabilities. With Cisco's industry-leading software-defined networking (SDN) solution, organizations can centrally manage and automate network operations, reducing manual configuration and minimizing the risk of errors. The Sku also supports Cisco's Application Centric Infrastructure (ACI), which provides a policy-driven approach to network management, simplifying deployment and ensuring consistent network policies across the entire infrastructure.

Cost-Effectiveness

While performance and flexibility are crucial factors, cost-effectiveness is equally important for organizations. The C1-N9K-C9504-B3 Sku offers an excellent balance between performance and cost, making it an attractive choice for businesses looking to optimize their network investments. By providing the right set of features and capabilities at a competitive price point, this Sku allows organizations to achieve their networking goals without compromising their budget.

Future-Proofing

Investing in network infrastructure entails considering future requirements and technologies. The C1-N9K-C9504-B3 Sku helps organizations future-proof their networks by offering support for emerging technologies such as Software-Defined Networking (SDN) and Network Function Virtualization (NFV). By adopting this Sku, businesses can confidently embrace new advancements in networking without worrying about compatibility issues or the need for extensive hardware upgrades.

In conclusion, the Cisco Nexus 9504 Chassis, particularly with the Cisco ONE Nexus 9504 Chassis configuration (C1-N9K-C9504-B3 Sku), provides organizations with a highly performant, scalable, and secure networking solution. Its modular design, advanced management capabilities, and support for future technologies make it a valuable asset for businesses seeking to enhance their network infrastructure while ensuring long-term cost-effectiveness and adaptability.
