Product Overview

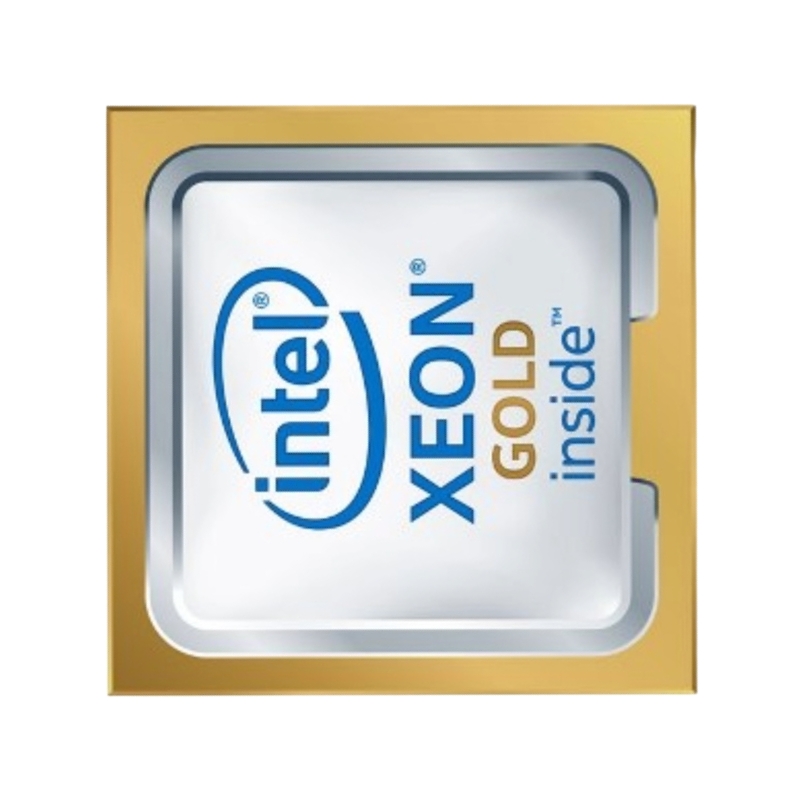

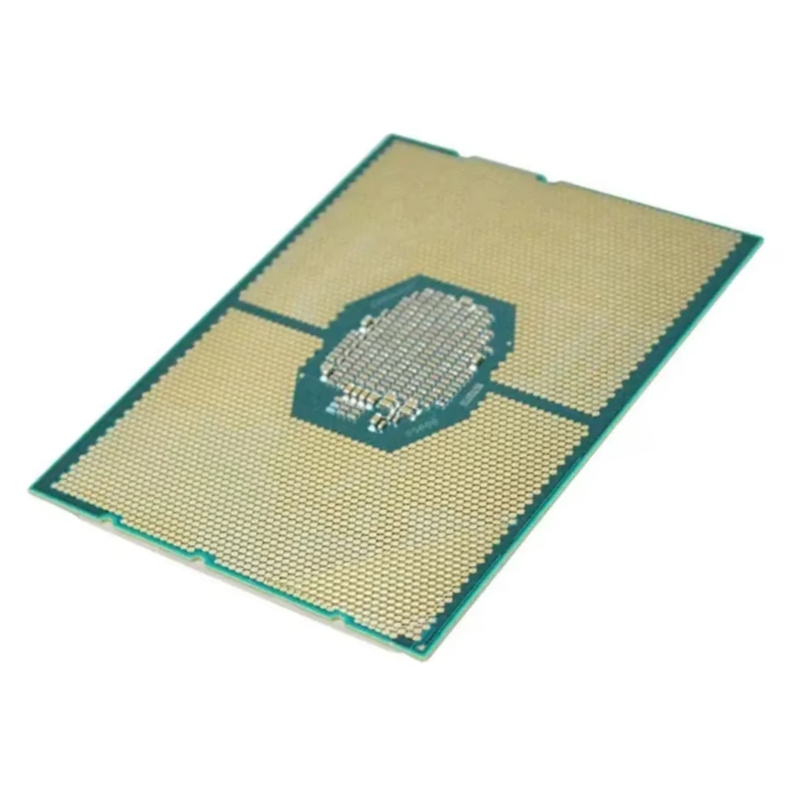

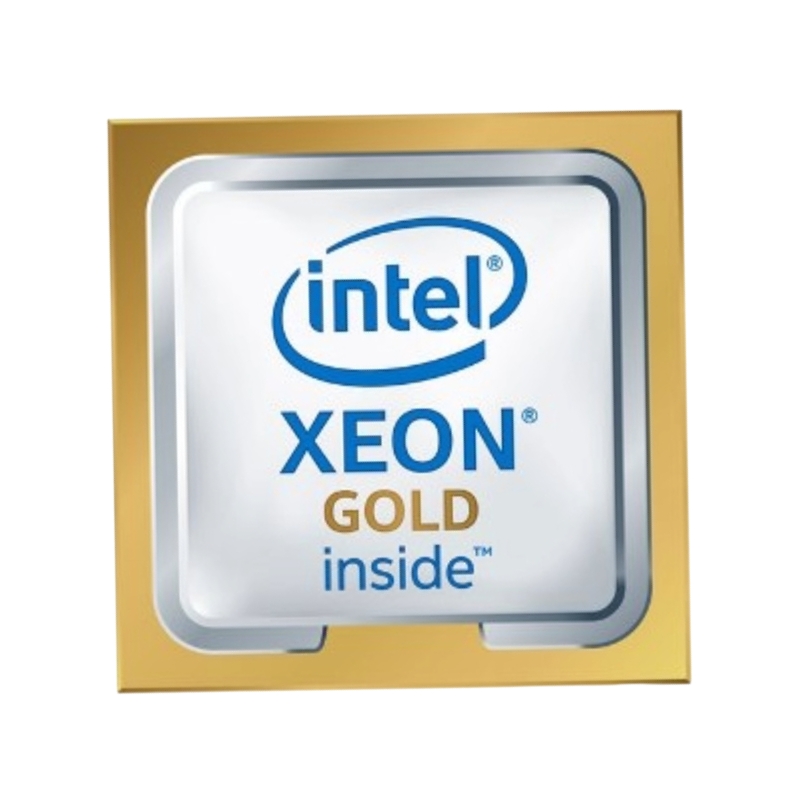

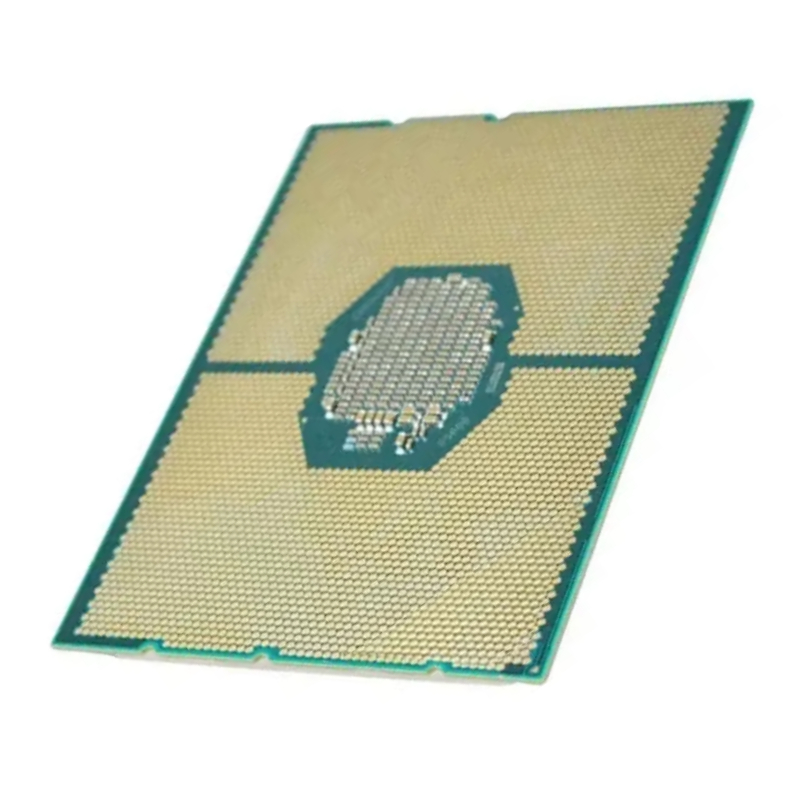

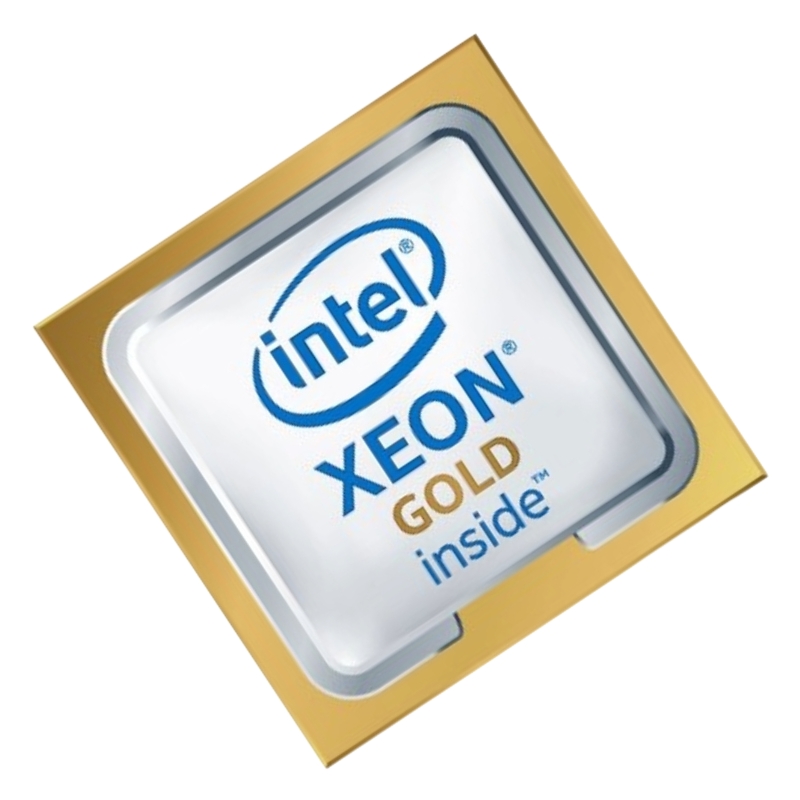

Cisco Xeon Gold 6146 Server Processor
The Cisco Xeon Gold 6146, a high-performance server processor, offers an ideal solution for data-intensive tasks in enterprise environments. Featuring advanced Intel® Xeon® Gold architecture, this processor is designed to support robust data center applications, hybrid-cloud workloads, network infrastructure, and storage solutions.
Key Specifications
General Product Information
- Manufacturer: Cisco Systems, Inc.
- Part Number: UCS-CPU-6146
- Brand: Cisco
- Product Line: Xeon Gold
- Model: 6146
- Processor Type: Server Processor Upgrade
Processor Specifications
- Processor Manufacturer: Intel
- Core Count: 12 Cores (Dodeca-core)
- Base Clock Speed: 3.20 GHz
- Maximum Turbo Frequency: 4.20 GHz
- L2 Cache: 12 MB
- L3 Cache: 24.75 MB
- Architecture: 64-bit
- Process Technology: 14 nm
- Socket Type: LGA 3647 (Socket P)
Power and Thermal Management
Energy Efficiency and Thermal Design
- Thermal Design Power (TDP): 165 W
- Maximum Operating Temperature: 168.8°F (76°C)
- Thermal Specification (TCASE): 76°C
Memory Specifications
Enhanced Memory Capabilities
The Xeon Gold 6146 processor supports up to 768 GB of DDR4 memory, delivering high performance for demanding applications and memory-intensive workloads.
Memory Compatibility
- Maximum Memory Capacity: 768 GB
- Memory Types Supported: DDR4-2666
- Memory Speed: 2666 MHz
- Memory Channels: Hexa-channel (6 channels)
- ECC Support: Yes
Performance Enhancements
Intel Advanced Technologies
This processor integrates Intel’s latest performance-enhancing features to support seamless operations in multi-cloud and virtualized environments.
Core Technologies
- Intel® Hyper-Threading Technology: Enabled, with 24 threads
- Intel® Turbo Boost Technology: 2.0
- Intel® Speed Shift Technology: Enhanced speed management
- Intel® AES New Instructions: Supported
- Intel® Trusted Execution Technology: Hardware-based security
Scalability and Expansion Options
With advanced scalability, the Xeon Gold 6146 is optimized for high-performance servers and workstations.
- Scalability: 4-socket support (S4S)
- PCI Express Version: 3.0
- Max Number of PCI Express Lanes: 48
Security and Reliability
Enhanced Security Features
This processor comes with integrated security features to safeguard critical data and improve workload reliability in sensitive applications.
- Intel® vPro™ Platform Eligibility: Supported
- Intel® Virtualization Technology (VT-x): Yes
- Intel® Virtualization Technology for Directed I/O (VT-d): Yes
- Execute Disable Bit: Yes
- Intel® Run Sure Technology: Ensures maximum reliability
- Mode-Based Execute Control (MBEC): Yes
Additional Information
Compatibility and Market Segment
- Market Segment: Server
- Processor Package Size: 76.0 x 56.5 mm
- Embedded Options: No
- End of Support Date: December 31, 2023
Intel® Xeon® Gold Processor Family
The Intel® Xeon® Gold 6146 belongs to Intel’s first-generation Xeon® Scalable processor family, optimized for compute-intensive workloads and compatible with data centers and multi-cloud platforms.
- Codename: Skylake
- Release Date: Q3’17
- Recommended Customer Price: $3,286.00
Cores
The CISCO Xeon Gold 6146 CPU & Processors is equipped with an impressive 12 cores, making it a powerful computing solution for various applications. The number of cores in a processor directly impacts its multitasking capabilities and overall performance. With 12 cores, users can expect enhanced productivity and seamless multitasking, even when running resource-intensive software or applications.
Improved Productivity
Having more cores allows the CISCO Xeon Gold 6146 CPU & Processors to handle multiple tasks simultaneously, resulting in improved productivity. Users can effortlessly run multiple applications, such as video editing software, graphic design tools, or virtual machines, without experiencing any lag or slowdown. This enables professionals to complete their tasks efficiently and meet deadlines without any performance bottlenecks.
Efficient Multitasking
The 12 cores of the CISCO Xeon Gold 6146 CPU & Processors enable efficient multitasking by distributing workloads across different cores. Each core can handle specific tasks independently, ensuring that no single application monopolizes the processor's resources. This prevents system freezes or crashes, providing users with a smooth computing experience even when juggling multiple demanding tasks simultaneously.
Parallel Processing
Parallel processing is another significant advantage of having 12 cores in the CISCO Xeon Gold 6146 CPU & Processors. It allows the processor to divide complex computational tasks into smaller sub-tasks and assign them to different cores for simultaneous execution. This results in faster processing times and improved overall performance for applications that support parallel processing, such as scientific simulations, data analysis, or rendering large video files.
In summary, the 12 cores of the CISCO Xeon Gold 6146 CPU & Processors offer improved productivity, efficient multitasking, and the ability to handle parallel processing tasks. Whether you are a professional working with resource-intensive software or a power user who demands top-notch performance, the 12 cores of this processor will ensure that your computing experience remains smooth and seamless.
Clock Speed
The CISCO Xeon Gold 6146 CPU & Processors boasts a clock speed of 3.2GHz, which plays a crucial role in determining the overall speed and responsiveness of a computer system. Clock speed refers to the number of cycles per second that a processor can execute. The higher the clock speed, the faster the processor can perform calculations and execute instructions.
Lightning-Fast Processing
The 3.2GHz clock speed of the CISCO Xeon Gold 6146 CPU & Processors ensures lightning-fast processing, allowing users to execute tasks swiftly. Whether it's launching applications, loading large files, or performing complex calculations, this processor's high clock speed ensures minimal waiting time and a smooth user experience.
Improved Responsiveness
A high clock speed translates into improved system responsiveness. The CISCO Xeon Gold 6146 CPU & Processors can quickly respond to user commands, resulting in snappy performance and reduced latency. Applications open almost instantly, and operations within software feel instantaneous, enabling users to work efficiently without any frustrating delays.
Seamless Multitasking
The 3.2GHz clock speed of the CISCO Xeon Gold 6146 CPU & Processors empowers seamless multitasking. Users can switch between applications effortlessly without experiencing any noticeable lag or slowdown. This is particularly beneficial for professionals who need to work with multiple software simultaneously or individuals who enjoy gaming while running resource-intensive background tasks.
In conclusion, the 3.2GHz clock speed of the CISCO Xeon Gold 6146 CPU & Processors delivers lightning-fast processing, improved system responsiveness, and seamless multitasking capabilities. Whether you are a professional seeking efficient workflow or a power user demanding exceptional performance, this processor's clock speed ensures that your computing experience remains smooth and lag-free.
Cache
The CISCO Xeon Gold 6146 CPU & Processors features a generous 24.75MB L3 cache, which significantly enhances its performance and efficiency. Cache is a small amount of high-speed memory integrated into the processor, closer to the cores, that stores frequently accessed data. A larger cache size enables the processor to quickly retrieve and process data, resulting in improved performance for various computing tasks.
Accelerated Data Access
The 24.75MB L3 cache of the CISCO Xeon Gold 6146 CPU & Processors accelerates data access, reducing the time it takes for the processor to retrieve information from memory. This results in faster execution of instructions and improved overall system performance. Whether you are running complex software or browsing the web, the larger cache size ensures that data retrieval is swift and efficient.
Efficient Data Handling
The generous cache size allows the CISCO Xeon Gold 6146 CPU & Processors to efficiently handle data-intensive tasks. Frequently accessed data is stored in the cache, reducing the need to retrieve it from slower memory sources such as RAM or storage drives. This minimizes data bottlenecks and enables the processor to process information more efficiently, resulting in improved application performance and reduced latency.
Seamless Multi-Threaded Performance
The 24.75MB L3 cache also contributes to seamless multi-threaded performance. Multi-threading is a technique that allows applications to divide tasks into smaller threads for simultaneous execution. With a larger cache, each thread can access data quickly, reducing contention and ensuring smooth execution. This is particularly beneficial for applications that heavily rely on multi-threading, such as video editing software, 3D rendering, or scientific simulations.
In summary, the 24.75MB L3 cache of the CISCO Xeon Gold 6146 CPU & Processors accelerates data access, enables efficient data handling, and contributes to seamless multi-threaded performance. Whether you are a professional working with data-intensive applications or a power user who demands optimal performance, this processor's cache size ensures that your computing experience remains fast and efficient.
