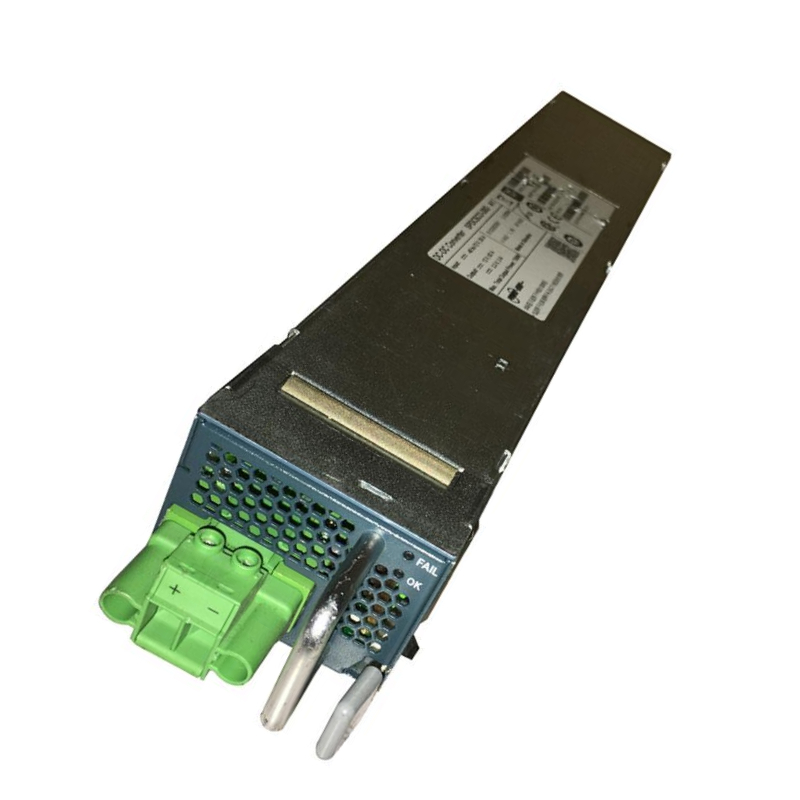

Cisco UCS-PSU6248UPDC 48VDC Power Supply

Comprehensive Product Details

Explore the essential features and functionalities of the UCS-PSU6248UPDC, a high-performance power supply unit designed to meet demanding operational requirements.

Key Attributes of the UCS-PSU6248UPDC

• Brand: Cisco
• Part Number: UCS-PSU6248UPDC
• Type: Power Supply Unit

Technical Specifications

Delve into the technical aspects that make the UCS-PSU6248UPDC a reliable choice for various applications.

Performance Metrics

Understand the performance benchmarks that set this power supply unit apart from its competitors.

Efficiency and Output

• Efficiency Rating: High
• Power Output: Optimized for maximum performance

Design and Build

Learn about the design elements and construction quality that ensure durability and reliability.

Physical Dimensions

• Size: Compact and space-saving
• Weight: Lightweight for easy installation

Material Composition

• Build Material: High-grade components
• Durability: Engineered for long-term use

Operational Benefits

Discover the advantages of integrating the UCS-PSU6248UPDC into your system infrastructure.

Reliability and Consistency

• Stable Power Delivery: Ensures uninterrupted operations
• Consistent Performance: Maintains optimal functionality

Compatibility and Integration

Find out how seamlessly this unit integrates with various systems and setups.

System Compatibility

• Compatible Devices: Wide range of Cisco products
• Integration Ease: Simple and straightforward

Maintenance and Support

Gain insights into the maintenance requirements and support options available for this unit.

Service and Upkeep

• Maintenance Needs: Minimal and user-friendly
• Support Availability: Comprehensive customer service

Warranty and Assurance

• Warranty Period: Extensive coverage
• Quality Assurance: Rigorous testing and validation

Overview of the UCS-PSU6248UPDC Cisco 48VDC

The UCS-PSU6248UPDC Cisco 48VDC Power Supply is a critical component designed for the Cisco UCS 6248UP Fabric Interconnect. This power supply unit (PSU) ensures reliable and efficient power delivery, supporting the high-performance demands of data center environments. With its 48VDC input, this PSU is engineered to provide consistent power, making it an ideal choice for organizations seeking to optimize their network infrastructure.

Key Features of the UCS-PSU6248UPDC

The UCS-PSU6248UPDC boasts several features that make it a standout choice for data center power management:

• High Efficiency: Designed to deliver maximum efficiency, reducing power consumption and operational costs.
• Redundancy Support: Supports N+1 redundancy, ensuring uninterrupted power supply even in the event of a PSU failure.
• Hot-Swappable: Allows for easy replacement without shutting down the system, minimizing downtime.
• Compact Design: Space-saving form factor that fits seamlessly into the Cisco UCS 6248UP chassis.
• Compliance: Meets industry standards for safety and performance, ensuring reliable operation.

Benefits of Using the UCS-PSU6248UPDC

Implementing the UCS-PSU6248UPDC in your data center offers numerous advantages:

• Enhanced Reliability: Ensures continuous operation of critical network infrastructure.
• Cost Savings: High efficiency translates to lower energy bills and reduced total cost of ownership.
• Scalability: Supports growing power demands as your network expands.
• Ease of Maintenance: Hot-swappable design simplifies maintenance and upgrades.
• Improved Uptime: Redundancy support minimizes the risk of power-related outages.

Technical Specifications of the UCS-PSU6248UPDC

Understanding the technical specifications of the UCS-PSU6248UPDC is essential for making an informed decision. Below are the detailed specifications:

Power Specifications

• Input Voltage: 48VDC
• Output Power: 1200W
• Efficiency: Up to 92%
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C

Physical Specifications

• Dimensions: 1.72 x 9.25 x 10.5 inches (H x W x D)
• Weight: 4.85 lbs
• Form Factor: Hot-swappable, modular

Compliance and Certifications

• Safety: UL 60950-1, EN 60950-1, IEC 60950-1
• EMC: FCC Part 15 Class A, EN 55022 Class A, CISPR 22 Class A
• Environmental: RoHS compliant

Installation and Configuration

Proper installation and configuration of the UCS-PSU6248UPDC are crucial for optimal performance. Follow these steps to ensure a smooth setup:

Step-by-Step Installation Guide

1. Prepare the Chassis: Ensure the Cisco UCS 6248UP chassis is powered off and unplugged.
2. Insert the PSU: Align the UCS-PSU6248UPDC with the PSU slot and gently slide it into place.
3. Secure the PSU: Use the provided screws to secure the PSU in the chassis.
4. Connect Power Cables: Attach the 48VDC power cables to the PSU and the power source.
5. Power On: Turn on the chassis and verify that the PSU is functioning correctly.

Configuration Tips

• Redundancy Setup: Configure N+1 redundancy in the UCS Manager for enhanced reliability.
• Monitoring: Use Cisco UCS Manager to monitor the PSU's status and performance.
• Firmware Updates: Regularly update the PSU firmware to ensure compatibility and security.

Compatibility and Integration

The UCS-PSU6248UPDC is designed to integrate seamlessly with various Cisco UCS components. Below are the compatibility details:

Compatible Cisco UCS Models

• Cisco UCS 6248UP Fabric Interconnect: Primary compatibility with this model.
• Cisco UCS 6296UP Fabric Interconnect: Also compatible, offering flexibility for different setups.

Integration with Cisco UCS Manager

The UCS-PSU6248UPDC can be managed and monitored through the Cisco UCS Manager, providing a unified interface for all UCS components. This integration allows for:

• Centralized Management: Manage all PSUs and other components from a single interface.
• Real-Time Monitoring: Track power usage, temperature, and status in real-time.
• Automated Alerts: Receive notifications for any issues or failures.

Maintenance and Troubleshooting

Regular maintenance and effective troubleshooting are essential for the longevity and reliability of the UCS-PSU6248UPDC Here are some tips:

Routine Maintenance

• Inspect Regularly: Check for dust accumulation and clean the PSU as needed.
• Firmware Updates: Keep the firmware up to date to ensure optimal performance.
• Monitor Performance: Use Cisco UCS Manager to monitor the PSU's health and performance.

Common Issues and Troubleshooting

• Power Failure: Verify the power source and cables. Replace if necessary.
• Overheating: Ensure proper ventilation and check for obstructions.
• LED Indicators: Refer to the LED status indicators for troubleshooting guidance.

Applications and Use Cases

The UCS-PSU6248UPDC is versatile and can be used in various scenarios. Below are some common applications:

Data Center Power Management

In data centers, the UCS-PSU6248UPDC ensures reliable power delivery to critical network infrastructure, supporting high availability and performance.

Enterprise Networks

For enterprise networks, this PSU provides the necessary power redundancy and efficiency to support complex and demanding environments.

Cloud Computing

In cloud computing setups, the UCS-PSU6248UPDC offers scalable and efficient power solutions, ensuring seamless operation of cloud services.
