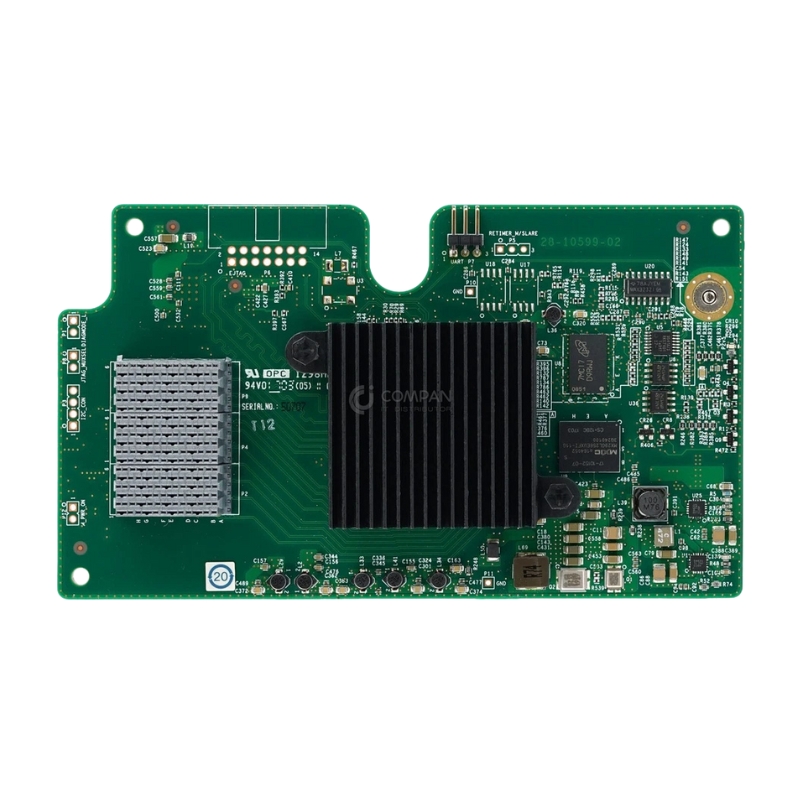

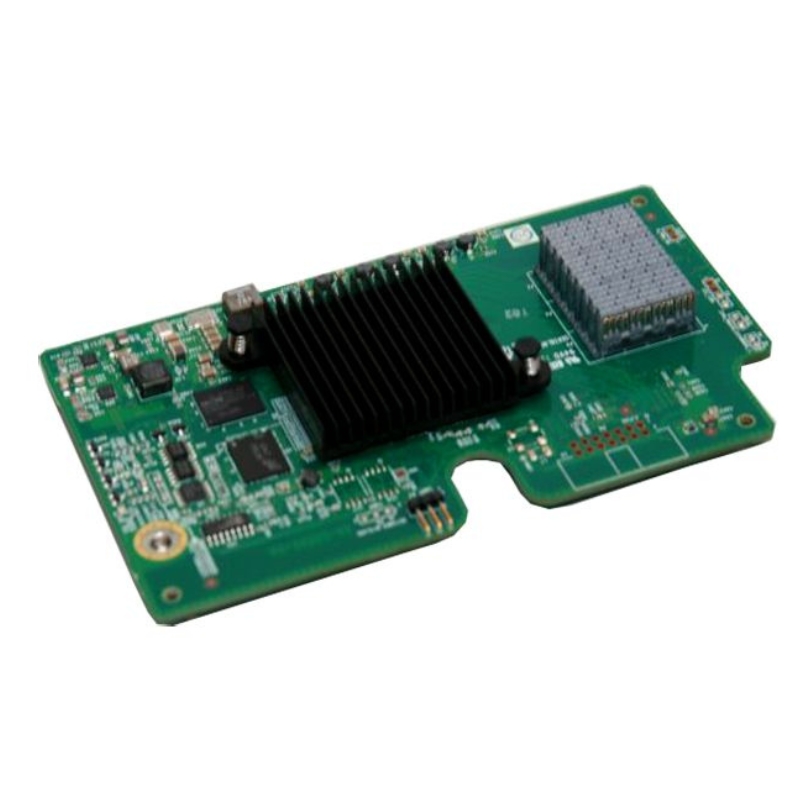

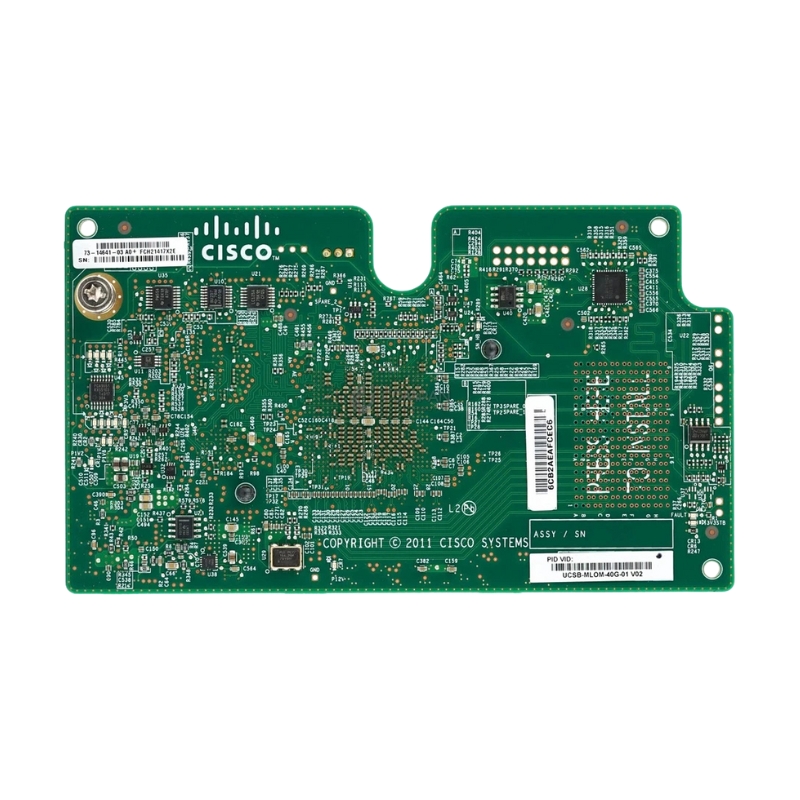

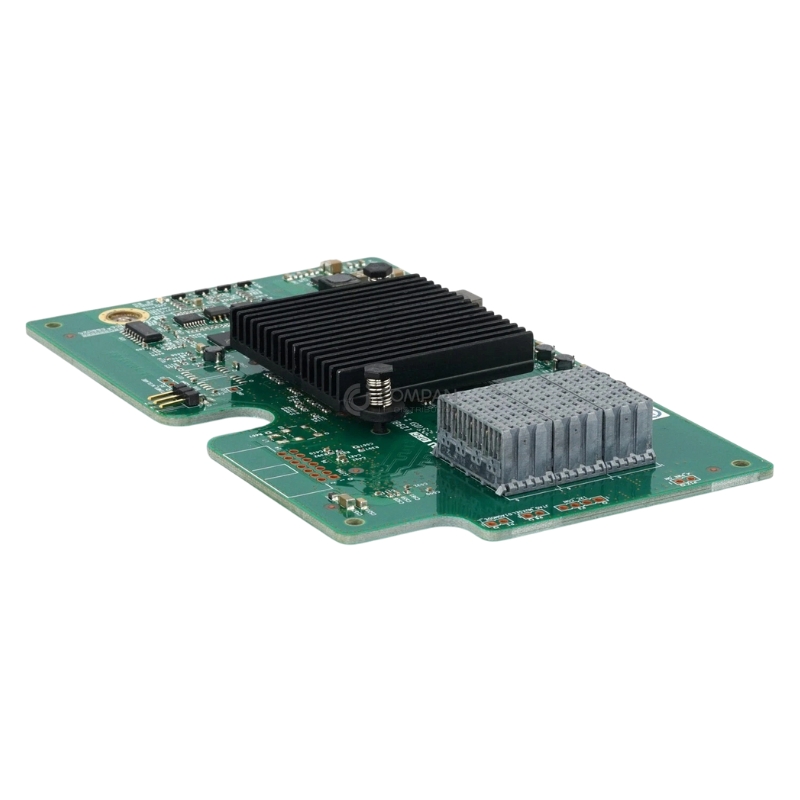

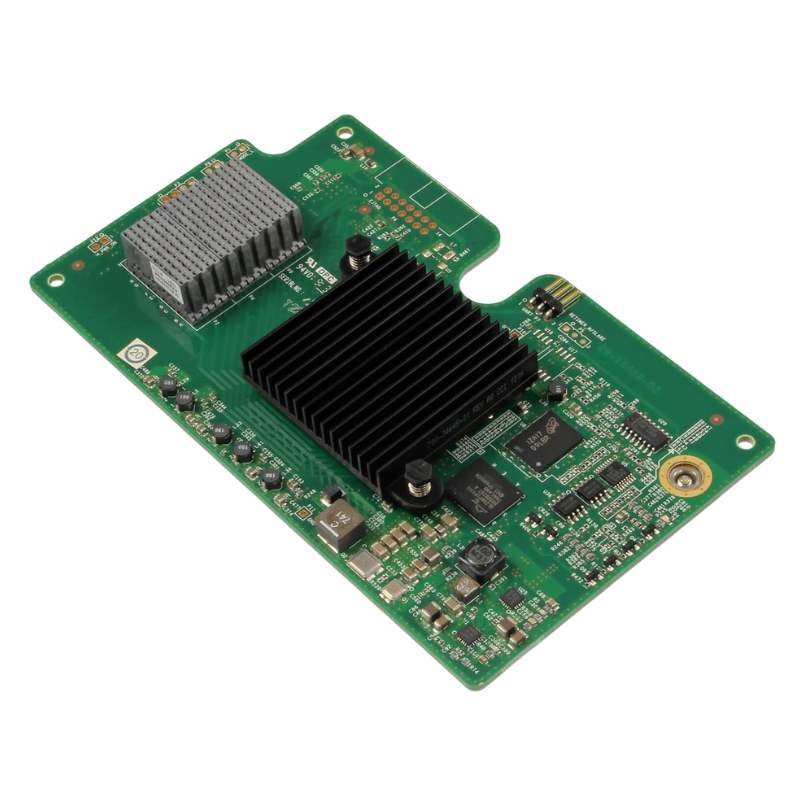

Cisco UCSB-MLOM-40G03-UCS VIC 1340 PCI Express x16 2 Ports Network Adapter

Cisco UCSB-MLOM-40G03 UCS Virtual Interface Card 1340: A Comprehensive Overview

The Cisco UCSB-MLOM-40G03 UCS Virtual Interface Card (VIC) 1340 is an advanced, high-performance network adapter designed for use in Cisco Unified Computing System (UCS) environments. Featuring 40Gb Ethernet and FCoE (Fibre Channel over Ethernet) QSFP X 2Ports, this VIC card is an essential component for modern data centers and virtualized environments. With its dual-purpose functionality, it plays a critical role in ensuring seamless network connectivity and data management in both Ethernet and Fibre Channel environments. Below, we delve deeper into its features, benefits, and applications.

Key Features of the Cisco UCSB-MLOM-40G03 UCS VIC 1340

The Cisco UCSB-MLOM-40G03 UCS Virtual Interface Card 1340 is equipped with cutting-edge technology that enhances network throughput and reliability. Below are some of the key features that set this card apart from others:

• 40Gb Ethernet Support: The 40Gb Ethernet functionality enables blazing-fast data transfer speeds, reducing network latency and improving overall system efficiency.
• FCoE Capabilities: It supports Fibre Channel over Ethernet (FCoE), which consolidates Ethernet and Fibre Channel traffic over a single physical network, enhancing scalability and reducing hardware costs.
• Dual Ports (QSFP x 2): With two QSFP ports, the UCSB-MLOM-40G03 provides flexibility and redundancy, allowing users to connect multiple devices or systems for increased reliability and bandwidth.
• Virtualization Optimization: The UCS VIC 1340 is designed to work optimally with virtualized environments, providing the ability to dynamically allocate network resources as needed, improving both performance and flexibility.
• Low Latency: Cisco’s advanced network algorithms ensure minimal latency, making this VIC ideal for high-demand applications in modern data centers.

Advantages of the Cisco UCSB-MLOM-40G03 UCS VIC 1340

Choosing the right network interface card is crucial for businesses and organizations looking to streamline their data management and network operations. The Cisco UCSB-MLOM-40G03 UCS VIC 1340 delivers several significant advantages, especially when used in high-performance computing environments:

• Enhanced Performance: The dual-port 40Gb Ethernet and FCoE capabilities offer high throughput, making it ideal for applications requiring large data transfers such as virtualized workloads, high-performance computing, and big data analytics.
• Cost Savings: By consolidating Ethernet and Fibre Channel traffic over the same physical infrastructure, the UCS VIC 1340 reduces the need for separate networks, leading to lower operational and hardware costs.
• Scalability: The card's support for high-speed connections ensures that as your organization grows and requires more bandwidth, the UCS VIC 1340 can scale to meet the demand without compromising performance.
• Flexibility: The card is fully compatible with Cisco's UCS Manager and can be easily integrated into a UCS system to create a unified, efficient, and high-performing computing environment.
• Easy Management: Cisco UCS Manager provides simplified management of the UCS VIC 1340, making it easy to monitor and configure the network adapter to suit your specific operational needs.

Applications of Cisco UCSB-MLOM-40G03 UCS VIC 1340

The Cisco UCSB-MLOM-40G03 UCS VIC 1340 is suitable for a wide range of applications, particularly in environments where high bandwidth and low latency are critical. Below are some common use cases for this versatile network adapter:

Virtualization and Cloud Computing

As more organizations move to virtualized infrastructures and cloud-based solutions, having the right network interface card is vital for ensuring seamless data flow and application performance. The UCS VIC 1340 is optimized for virtualized environments, enabling efficient resource allocation and providing the required network performance for virtual machines (VMs) and cloud applications.

Storage Area Networks (SAN)

In storage area network (SAN) environments, the UCS VIC 1340 plays a pivotal role in consolidating Ethernet and Fibre Channel traffic. The FCoE support enables seamless integration between Ethernet and Fibre Channel storage systems, improving data transfer speeds and reducing the complexity of managing separate networks.

Big Data Analytics and High-Performance Computing (HPC)

The need for high-throughput network interfaces is critical in big data analytics and high-performance computing (HPC) applications. The 40Gb Ethernet and FCoE capabilities of the Cisco UCS VIC 1340 make it ideal for these demanding applications, providing the necessary bandwidth and low-latency connectivity required for complex data analysis and computational tasks.

Data Center Networking

In modern data centers, network performance and efficiency are paramount. The UCS VIC 1340 enables high-speed connectivity between servers, storage devices, and other networked components, ensuring that data can flow smoothly across the entire infrastructure. Its dual-port architecture further ensures reliability and redundancy, which is essential in mission-critical data center environments.

Technical Specifications of the Cisco UCSB-MLOM-40G03 UCS VIC 1340

Understanding the technical specifications of the Cisco UCSB-MLOM-40G03 UCS VIC 1340 is essential for evaluating whether this network interface card is suitable for your network and infrastructure needs. Below is a detailed breakdown of its technical features:

• Form Factor: MLOM (Mezzanine Card) – Designed to be installed directly into a Cisco UCS server blade, ensuring easy integration and efficient space utilization within the chassis.
• Network Ports: 2 x QSFP (Quad Small Form-factor Pluggable) ports, supporting both 40Gb Ethernet and FCoE.
• Supported Protocols: 40Gb Ethernet, Fibre Channel over Ethernet (FCoE), and iSCSI (Internet Small Computer System Interface).
• Supported Speeds: 40Gbps (for both Ethernet and FCoE traffic).
• Compatibility: Fully compatible with Cisco UCS servers and UCS Manager, ensuring seamless integration and management within a Cisco UCS environment.
• Maximum Bandwidth: 40Gbps per port, providing ample bandwidth for even the most demanding workloads and applications.
• Operating Temperature: 0°C to 55°C (32°F to 131°F), ensuring reliable operation in a wide range of data center environments.
• Power Consumption: Power-efficient, designed to optimize energy consumption while maintaining high performance and reliability.

Installation and Configuration

Installing and configuring the Cisco UCSB-MLOM-40G03 UCS VIC 1340 is a straightforward process, thanks to its compatibility with Cisco UCS Manager. The UCS VIC 1340 can be easily installed into compatible Cisco UCS server blades by following these simple steps:

1. Ensure the Cisco UCS server blade is powered down before installing the VIC card.
2. Locate the appropriate mezzanine slot on the server blade for the UCS VIC 1340.
3. Insert the VIC card into the slot and ensure it is securely seated.
4. Power on the server and use Cisco UCS Manager to detect the new VIC card and configure it according to your network requirements.
5. Test the network connection to verify the performance and ensure that the card is operating optimally.

Integration with Cisco UCS Manager

Cisco UCS Manager is a centralized management platform that simplifies the deployment and management of Cisco UCS infrastructure. The UCS VIC 1340 is fully supported by UCS Manager, which provides the following benefits:

• Centralized Management: UCS Manager enables administrators to manage the UCS VIC 1340 alongside other network components from a single interface, simplifying day-to-day operations.
• Automated Configuration: The UCS VIC 1340 can be automatically configured and provisioned through UCS Manager, reducing manual intervention and minimizing the risk of configuration errors.
• Monitoring and Troubleshooting: UCS Manager allows administrators to monitor the performance of the UCS VIC 1340 in real-time, ensuring that any issues are quickly identified and addressed.

Conclusion

The Cisco UCSB-MLOM-40G03 UCS Virtual Interface Card 1340 is a robust and high-performing network adapter, designed to meet the needs of modern data centers, virtualized environments, and high-performance computing applications. With its dual 40Gb Ethernet and FCoE ports, flexibility, and seamless integration with Cisco UCS systems, it offers significant performance and cost advantages for organizations looking to optimize their network infrastructure. Whether for storage consolidation, big data analytics, or high-bandwidth applications, the UCS VIC 1340 ensures that your network performs at its best.
