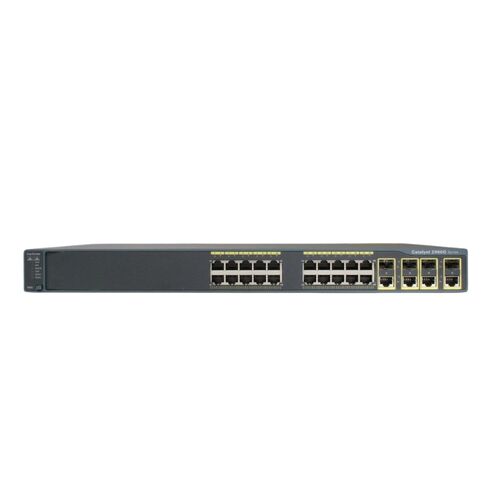

WS-C2960G-24TC-L Cisco Catalyst 24 Ports Gigabit Ethernet Layer 2 Switch

Cisco WS-C2960G-24TC-L 24-Port Gigabit Ethernet L2 Switch

The Cisco WS-C2960G-24TC-L switch is designed to deliver dependable Layer 2 networking for enterprise environments, branch offices, and campus infrastructures. Built by Cisco, this Catalyst switch model offers robust switching performance, flexible connectivity options, and reliable management capabilities that support modern network demands.

Product Identification and Manufacturer Details

• Manufacturer: Cisco
• Model Number: WS-C2960G-24TC-L
• Product Category: Network Switch
• Switch Type: Layer 2 Managed Switch
• Port Configuration: 24 Ports
• Series: Catalyst 2960G

Hardware Architecture and Physical Design

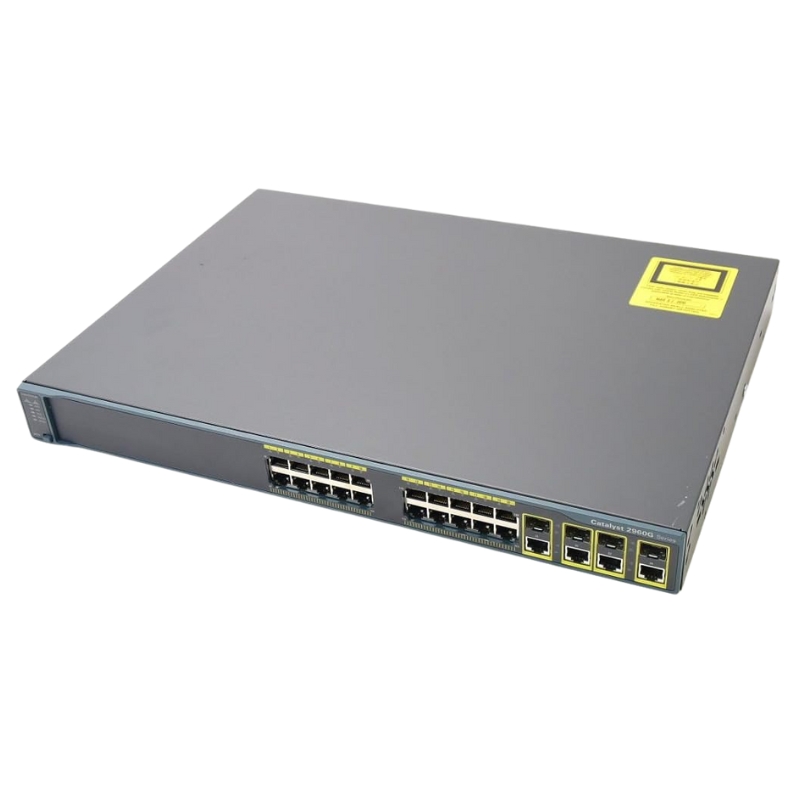

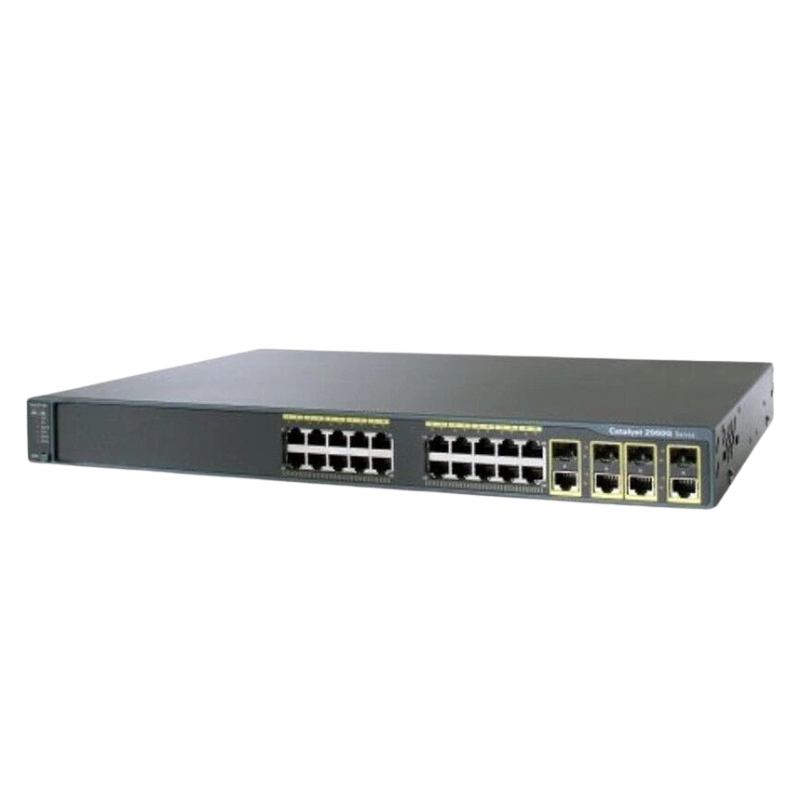

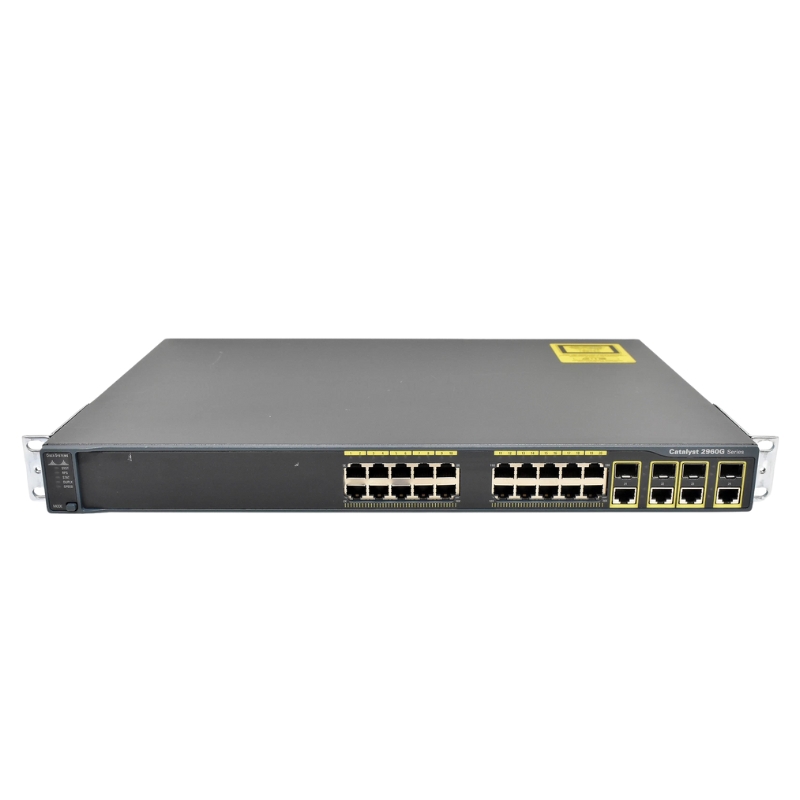

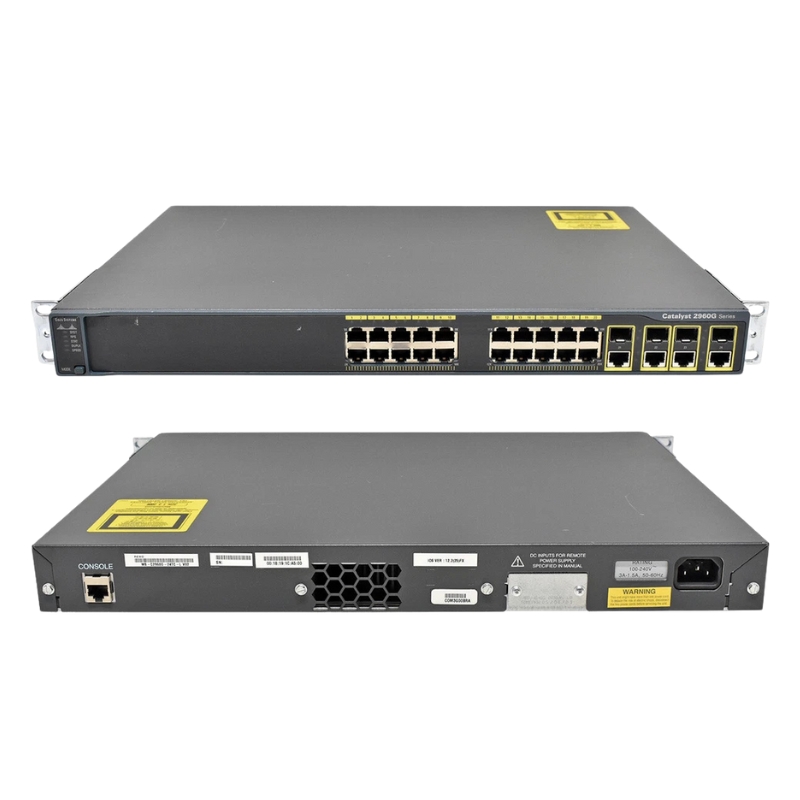

The Cisco Catalyst 2960G-24TC-L switch features a compact 1U rack-mountable chassis engineered for easy integration into standard network cabinets. Its durable construction and optimized airflow design ensure efficient operation within high-density server rooms and networking closets.

Physical Dimensions and Build

• Width: 17.5 inches
• Depth: 12.9 inches
• Height: 1.7 inches
• Form Factor: External 1U Rack-Mountable
• Efficient thermal management for stable operation

Memory and Processing Resources

• 64 MB RAM for smooth switching operations
• 32 MB Flash memory for firmware storage
• Optimized internal architecture for Layer 2 packet handling

Network Ports and Interface Configuration

This Catalyst switch provides multiple Ethernet connectivity options that enable seamless integration into existing infrastructure. Its flexible interface layout supports both standard Ethernet access ports and high-speed uplink connections.

Access Port Configuration

• 20 x Ethernet ports supporting 10Base-T
• 20 x Fast Ethernet interfaces (100Base-TX)
• 20 x Gigabit Ethernet ports (1000Base-T)
• Automatic speed detection for connected devices

Uplink Connectivity

• 4 x Combo uplink ports
• Support for 10/100/1000Base-T
• SFP (Mini-GBIC) compatibility for fiber connections
• Flexible backbone integration for aggregation switches

Supported Networking Standards

The Cisco WS-C2960G-24TC-L supports multiple industry-standard networking protocols, enabling compatibility with a wide variety of networking devices and infrastructure deployments.

Data Link Protocol Compatibility

• Ethernet (IEEE 802.3)
• Fast Ethernet (IEEE 802.3u)
• Gigabit Ethernet (IEEE 802.3ab)

Communication Modes

• Half-duplex communication support
• Full-duplex transmission capability
• Auto-negotiation for optimized performance

Advanced Switching Features

The Catalyst 2960G switch integrates intelligent networking functions that improve network efficiency, manageability, and performance in business environments.

Traffic Management Capabilities

• Auto-sensing per connected device
• VLAN segmentation for traffic isolation
• IGMP Snooping to optimize multicast traffic
• Dynamic network configuration support

Network Configuration Features

• Automatic negotiation of port speeds
• DHCP support for simplified device configuration
• Improved broadcast management
• Enhanced network reliability and stability

Remote Management and Monitoring Protocols

Network administrators can easily monitor and control the Cisco 2960G switch through several remote management protocols, allowing centralized management of network infrastructure.

Supported Management Protocols

• SNMP v1 for network monitoring
• SNMP v2c for enhanced device management
• SNMP v3 with improved security features
• RMON support for advanced traffic analysis
• Telnet remote configuration access

Performance and Data Transfer Capabilities

The switch is designed to maintain stable data flow across the network while delivering efficient packet forwarding across connected devices.

Network Performance Metrics

• Data transfer rate up to 100 Mbps per Fast Ethernet port
• Gigabit Ethernet support for high-speed data exchange
• Reliable switching performance for enterprise networks
• Efficient packet processing for consistent connectivity

Power Specifications

The Cisco WS-C2960G-24TC-L operates using a standard AC power supply, making it suitable for most enterprise and office network environments.

Electrical Requirements

• Input Voltage: AC 120 / 230 V
• Frequency: 50 / 60 Hz
• Energy-efficient operation
• Designed for continuous network uptime

Cisco WS-C2960G-24TC-L Catalyst 24 Ports Gigabit Ethernet Layer 2 Switch

The Cisco WS-C2960G-24TC-L Catalyst 24 Ports Switch Gigabit Ethernet Layer 2 is a widely recognized enterprise networking device designed to deliver reliable, secure, and scalable connectivity for modern networks. As part of the Cisco Catalyst 2960 Series, this switch offers advanced Layer 2 switching capabilities combined with powerful management features and consistent performance. Organizations across industries depend on Catalyst switches to support essential networking tasks such as connecting workstations, servers, IP phones, wireless access points, and other infrastructure devices.

This enterprise-grade Gigabit Ethernet switch provides twenty-four high-speed Ethernet ports along with additional uplink connectivity designed for seamless network expansion. The architecture focuses on delivering dependable network performance while ensuring that administrators maintain full control over traffic management, security enforcement, and device configuration. The WS-C2960G-24TC-L model is especially popular in business environments that require a cost-effective solution for building stable access-layer networks without compromising performance or reliability.

Modern organizations rely on secure and efficient switching solutions to maintain consistent communication between devices, applications, and services. The Cisco Catalyst WS-C2960G-24TC-L supports enterprise-level networking features that allow network administrators to manage traffic, enforce security policies, and optimize performance across connected devices. Its integration with Cisco’s robust software ecosystem ensures seamless network operations while maintaining compatibility with a wide range of infrastructure technologies.

Enterprise Layer 2 Switching Capabilities

Layer 2 switching forms the backbone of local area networks by enabling efficient data transmission between devices within the same network segment. The Cisco WS-C2960G-24TC-L switch provides high-performance Layer 2 switching functionality designed to handle large volumes of network traffic while maintaining low latency and high throughput. This capability is essential for organizations that depend on uninterrupted communication between systems and users.

The switch uses advanced switching algorithms and hardware-based packet forwarding to ensure optimal data delivery. Frames entering the switch are processed efficiently, allowing devices connected to different ports to communicate seamlessly without network congestion or bottlenecks. This efficiency is particularly important in business environments where multiple applications operate simultaneously across the network.

MAC Address Table Management

The Cisco Catalyst WS-C2960G-24TC-L maintains a dynamic MAC address table that maps devices connected to specific switch ports. This intelligent addressing system allows the switch to direct traffic only to the intended destination, reducing unnecessary broadcast traffic and improving overall network efficiency. By maintaining accurate device mappings, the switch ensures that network communication remains organized and predictable.

Efficient MAC address management also enhances network performance in environments with many connected endpoints such as office workstations, printers, VoIP phones, and wireless access points. The switch learns device addresses automatically and continuously updates its forwarding tables as network conditions change.

VLAN Support for Network Segmentation

Virtual Local Area Network technology allows administrators to divide a physical network into multiple logical networks. The Cisco WS-C2960G-24TC-L supports VLAN segmentation, enabling organizations to separate departments, user groups, or application environments within the same switching infrastructure.

VLAN segmentation improves both security and performance. Sensitive data can be isolated within specific VLANs, preventing unauthorized access from other network segments. At the same time, broadcast traffic is contained within each VLAN, reducing unnecessary traffic across the network and improving overall efficiency.

High-Speed Gigabit Ethernet Connectivity

Network performance depends heavily on the speed and reliability of data transmission between connected devices. The Cisco WS-C2960G-24TC-L switch offers twenty-four Gigabit Ethernet ports designed to deliver high-bandwidth connectivity for demanding network environments. Each port supports 10/100/1000 Mbps speeds, allowing organizations to connect a wide range of devices without compatibility concerns.

Gigabit Ethernet technology enables significantly faster data transfer compared to traditional Fast Ethernet networks. This improvement is particularly important for businesses that rely on data-intensive applications such as cloud computing, video conferencing, large file transfers, and virtualization workloads.

Flexible Uplink Connectivity

In addition to its twenty-four Gigabit Ethernet access ports, the Cisco WS-C2960G-24TC-L includes dedicated uplink interfaces designed to connect the switch to upstream network infrastructure. These uplinks allow the switch to integrate seamlessly with core switches, routers, and distribution layer devices.

High-speed uplink connectivity ensures that data moving between network segments flows efficiently without becoming constrained by bandwidth limitations. Organizations can scale their networks by connecting multiple switches together while maintaining consistent performance across the entire infrastructure.

Optimized Network Traffic Flow

The switch architecture is designed to manage traffic intelligently, ensuring that data moves efficiently between connected devices. Through hardware-based forwarding and advanced buffering mechanisms, the Cisco WS-C2960G-24TC-L can handle bursts of network activity without experiencing significant performance degradation.

This capability is particularly valuable in environments where multiple users access shared resources simultaneously. Efficient traffic flow ensures that applications remain responsive and that users experience consistent network performance.

Security Features for Network Protection

Network security is a critical component of modern IT infrastructure. The Cisco WS-C2960G-24TC-L Catalyst switch incorporates a range of security features designed to protect network resources from unauthorized access and malicious activity. These security mechanisms operate at multiple levels within the switching environment to ensure comprehensive protection.

Organizations benefit from integrated security controls that allow administrators to define policies governing device access, traffic filtering, and network authentication. By implementing these controls at the access layer, businesses can prevent potential threats from spreading throughout the network.

Port Security Mechanisms

Port security allows administrators to control which devices are permitted to connect to specific switch ports. The Cisco WS-C2960G-24TC-L enables network managers to define limits on the number of MAC addresses allowed per port and to specify which devices are authorized to access the network.

If unauthorized devices attempt to connect to a protected port, the switch can automatically restrict or disable that port. This feature helps prevent rogue devices from gaining access to the network infrastructure and protects sensitive organizational data.

Access Control and Authentication

The switch supports advanced access control mechanisms that help ensure only authorized users and devices can communicate across the network. Authentication protocols and access control lists can be implemented to regulate traffic flows between different network segments.

By enforcing authentication policies at the switching layer, organizations can strengthen their overall security posture while maintaining efficient network operations. These capabilities are essential for businesses handling confidential information or operating within regulated industries.

Quality of Service and Traffic Prioritization

Quality of Service functionality allows network administrators to prioritize specific types of traffic to ensure critical applications receive the bandwidth and responsiveness they require. The Cisco WS-C2960G-24TC-L switch supports advanced QoS features that help maintain consistent performance across diverse network workloads.

Real-time applications such as voice communications, video conferencing, and streaming services rely heavily on low-latency data transmission. QoS policies allow administrators to identify and prioritize these traffic types, ensuring that time-sensitive data receives preferential treatment during periods of network congestion.

Voice and Video Optimization

Voice over IP systems and video communication platforms depend on reliable network performance to deliver clear audio and smooth video streams. The Cisco Catalyst WS-C2960G-24TC-L includes traffic classification and prioritization mechanisms that support these communication technologies.

By identifying voice and video traffic and assigning higher priority levels, the switch ensures that communication services remain stable even when the network experiences heavy data usage. This capability is particularly valuable for businesses relying on unified communications systems.

Bandwidth Management

Effective bandwidth management allows organizations to maintain control over network resource allocation. Administrators can implement traffic shaping and rate-limiting policies that regulate how bandwidth is distributed among users, devices, and applications.

The Cisco WS-C2960G-24TC-L provides the tools needed to balance network workloads while preventing specific devices or services from consuming excessive bandwidth. This balanced approach helps maintain consistent network performance for all users.

Network Management and Administration

Efficient network management is essential for maintaining reliable infrastructure operations. The Cisco WS-C2960G-24TC-L switch includes comprehensive management capabilities that allow administrators to monitor performance, configure settings, and troubleshoot issues across the network environment.

These management features support both command-line and graphical interfaces, providing flexibility for network professionals with different administrative preferences. Centralized configuration and monitoring help reduce operational complexity while improving overall network visibility.

Command Line Interface Management

The command-line interface provides a powerful method for configuring and managing the switch. Experienced network administrators often prefer CLI-based management because it allows precise control over configuration settings and enables advanced troubleshooting capabilities.

Through the CLI, administrators can configure VLANs, implement security policies, monitor interface performance, and manage system resources with detailed command sets. This level of control is particularly beneficial for enterprise networks requiring customized configurations.

Remote Monitoring and Management

Remote management capabilities allow network administrators to monitor switch performance from centralized locations. This feature enables IT teams to maintain oversight of distributed network infrastructure without requiring physical access to each device.

Remote monitoring tools provide insights into traffic patterns, interface utilization, and potential network issues. By identifying performance anomalies early, administrators can address problems before they impact users or business operations.

Energy Efficiency and Operational Reliability

Energy efficiency has become an important consideration for organizations seeking to reduce operational costs and environmental impact. The Cisco WS-C2960G-24TC-L switch incorporates energy-efficient design principles that help minimize power consumption while maintaining reliable performance.

Advanced power management features allow the switch to optimize energy usage based on network activity levels. When ports are inactive or operating at reduced capacity, the device can adjust power consumption accordingly, contributing to more sustainable network operations.

Reliable Hardware Architecture

The hardware design of the Cisco Catalyst WS-C2960G-24TC-L emphasizes durability and long-term reliability. Enterprise networking environments require equipment capable of operating continuously without performance degradation or hardware failure.

The switch utilizes high-quality components and advanced thermal management systems to ensure stable operation even under demanding workloads. This reliability makes it a trusted solution for organizations that depend on consistent network connectivity.

Continuous Network Availability

Maintaining uninterrupted network access is essential for business productivity. The Cisco WS-C2960G-24TC-L is engineered to support continuous operation with minimal downtime. Features such as intelligent buffering, robust switching fabrics, and efficient cooling systems contribute to long-term network stability.

Organizations implementing this switch benefit from dependable connectivity that supports day-to-day operations while minimizing maintenance requirements. Its proven performance in enterprise environments makes it a reliable component of modern network infrastructures.

Deployment Scenarios and Use Cases

The Cisco WS-C2960G-24TC-L Catalyst switch is suitable for a wide range of deployment scenarios across various industries. Its combination of performance, security, and manageability makes it an ideal choice for organizations seeking to establish reliable access-layer networking infrastructure.

In corporate office environments, the switch connects employee workstations, printers, and IP phones while providing secure segmentation through VLAN technology. Educational institutions deploy these switches to support classroom networks, administrative systems, and campus-wide connectivity. Retail businesses utilize them to connect point-of-sale systems, inventory devices, and surveillance infrastructure.

Small and Medium Business Networks

Small and medium-sized businesses benefit from the simplicity and reliability of the Cisco WS-C2960G-24TC-L. The switch offers enterprise-level features that allow growing organizations to build scalable network environments without requiring overly complex infrastructure.

With support for VLAN segmentation, QoS policies, and advanced security controls, businesses can implement professional-grade networking solutions that support modern applications and services.

Enterprise Access Layer Deployments

Within large enterprise networks, the Cisco WS-C2960G-24TC-L typically operates as an access-layer switch connecting end-user devices to the broader network infrastructure. Its Gigabit Ethernet ports provide high-speed connectivity for desktop systems and collaboration technologies.

By integrating seamlessly with distribution and core switching layers, the device contributes to a hierarchical network architecture that improves scalability, performance, and operational efficiency.
