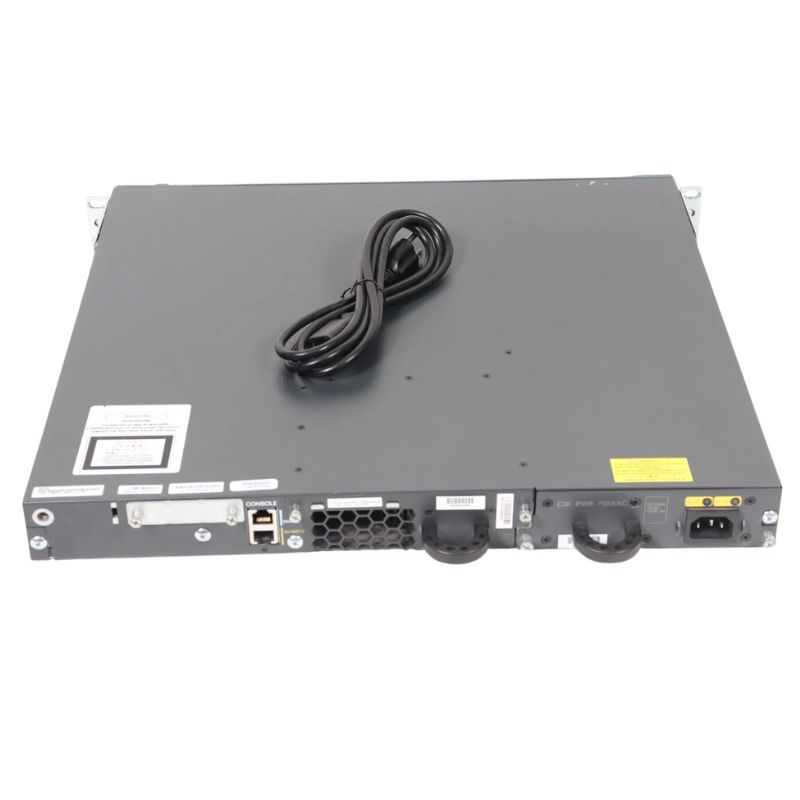

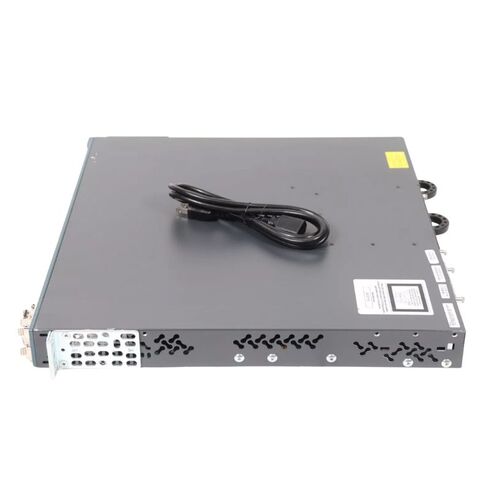

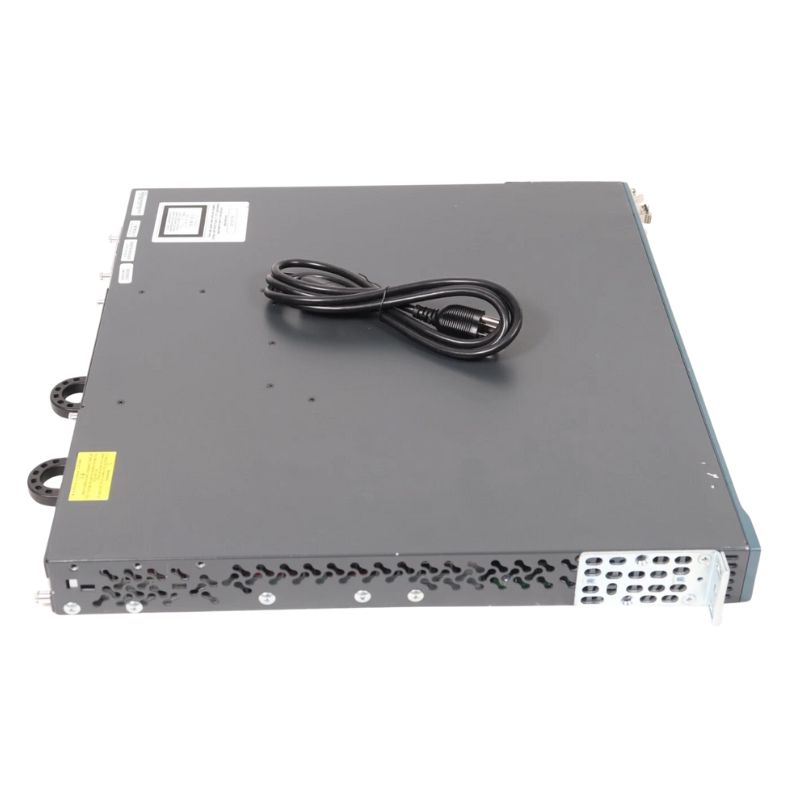

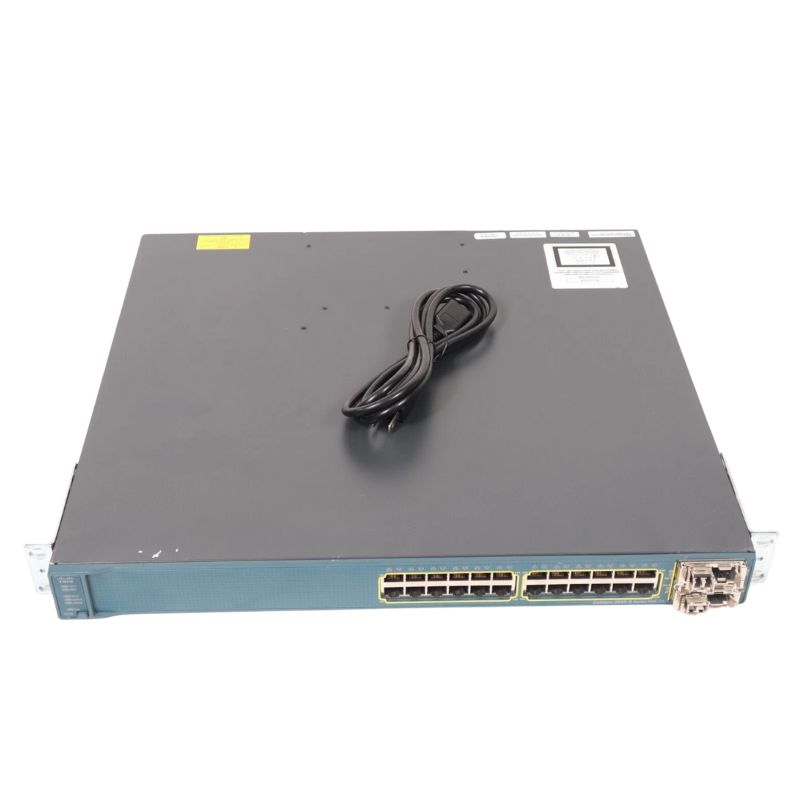

WS-C3560E-24PD-E Cisco Catalyst Ethernet Switch (24 Ports)

Cisco WS-C3560E-24PD-E Catalyst Ethernet Switch

The Cisco WS-C3560E-24PD-E is a high-performance Layer 3 Ethernet switch designed for enterprise networks, offering advanced connectivity, robust performance, and scalable expansion options. Part of the reliable Cisco 3560-E series, this 24-port switch is ideal for organizations seeking flexible and secure network solutions.

General Specifications

• Manufacturer: Cisco
• Model Number: WS-C3560E-24PD-E
• Series: 3560-E
• Switch Type: Layer 3 Managed Ethernet Switch

Connectivity Features

• Total Network Ports: 24
• RJ-45 Ports: 24
• Port Configuration: 24 x Gigabit Ethernet connections

High-Speed Ethernet Technology

• Supports Gigabit Ethernet for high-bandwidth requirements
• Compatible with 10/100/1000Base-T network standards
• Optimized for both voice and data transmission

Performance and Reliability

• Layer 3 switching capability with Layer 4 support for advanced traffic management
• Enhanced throughput to handle large-scale network traffic efficiently
• Supports Quality of Service (QoS) for critical applications

Advanced Networking Standards

• IEEE 802.3 Ethernet compliance
• 10/100/1000Base-T network compatibility
• Supports VLAN, multicast, and routing protocols for enterprise networks

Expansion and Scalability

• Available Slots: 2
• Slot Type: X2 expansion modules
• Supports additional uplink modules for extended connectivity

Power over Ethernet (PoE) Capabilities

• Delivers consistent power across all supported ports
• Reduces the need for separate power sources for connected devices

Layer 3 Switching and Advanced Traffic Management

• Operates at Layer 3 and Layer 4 for comprehensive routing and QoS control
• Supports static routing, RIP, OSPF, and EIGRP for enterprise routing
• Improves network efficiency with optimized traffic flow and reduced latency

Security and Network Protection

• 802.1X authentication for secure network access
• Access Control Lists (ACLs) to filter and manage traffic
• Advanced threat detection to prevent network breaches

Management and Monitoring

• Web-based GUI and Cisco IOS CLI for intuitive control
• Supports SNMP for centralized monitoring and alerts
• Provides real-time statistics and traffic analysis for network optimization

Energy Efficiency and Environmental Considerations

• Compliant with Energy Efficient Ethernet (EEE) standards
• Reduces power usage during low-traffic periods
• Supports environmentally responsible networking practices

Cisco WS-C3560E-24PD-E Catalyst 24 Ports Ethernet Switch

The Cisco WS-C3560E-24PD-E Catalyst series represents an advanced, high-performance Ethernet switching solution designed for modern enterprise networks. This switch offers 24 Ethernet ports with comprehensive Power over Ethernet (PoE) support, allowing for seamless connectivity and reliable power delivery to devices such as IP phones, wireless access points, and security cameras. Built with the renowned Cisco Catalyst architecture, the WS-C3560E-24PD-E combines high availability, flexibility, and security features, making it ideal for both campus and branch office environments.

High-Performance Switching and Network Efficiency

The Catalyst 3560E series is engineered to provide exceptional switching performance. It features non-blocking architecture and advanced hardware-based forwarding capabilities, ensuring that all 24 Ethernet ports deliver consistent, high-speed data transfer. Network administrators benefit from enhanced traffic management with Cisco’s Intelligent Services Engine, which supports enhanced Quality of Service (QoS) for latency-sensitive applications such as VoIP and video conferencing. The switch also includes support for Layer 2 and Layer 3 functionalities, enabling robust routing capabilities within a single device and reducing the need for additional routing hardware.

Advanced Power over Ethernet Capabilities

The WS-C3560E-24PD-E model provides full IEEE 802.3af and 802.3at PoE+ support across its 24 ports. This capability allows network devices to be powered directly through the Ethernet cabling, eliminating the need for separate power sources. The PoE functionality is particularly beneficial for environments with numerous IP-based devices, including wireless access points, IP surveillance cameras, and VoIP phones. Administrators can manage power allocation dynamically to optimize efficiency and prevent overload, ensuring uninterrupted network performance even during peak usage periods.

Enhanced Network Security and Reliability

Security is a critical aspect of the WS-C3560E-24PD-E design. The switch incorporates Cisco TrustSec technology, offering advanced identity-based access control to protect sensitive information and prevent unauthorized network access. In addition, features such as dynamic ARP inspection, IP source guard, and DHCP snooping help safeguard the network from common attacks and misconfigurations. The Catalyst 3560E series also ensures high reliability with redundant power options, resilient hardware components, and Cisco StackWise technology, which enables multiple switches to operate as a single logical unit for simplified management and failover support.

Scalability and Stackable Architecture

The Cisco WS-C3560E-24PD-E is designed for scalability, supporting Cisco StackWise technology that allows up to nine switches to be interconnected into a single, manageable entity. This stacking capability provides greater flexibility, simplified configuration, and improved fault tolerance. By stacking switches, enterprises can expand their network seamlessly without the need for additional management overhead, ensuring that network growth does not compromise performance or reliability. StackWise also ensures rapid recovery in case of a failure, maintaining uninterrupted connectivity for critical applications.

Flexible Layer 3 Routing Features

Beyond its Layer 2 switching capabilities, the WS-C3560E-24PD-E provides robust Layer 3 routing support, including static routing, enhanced interior gateway protocols such as OSPF, and advanced routing features suitable for enterprise networks. The integrated routing functionality allows administrators to efficiently segment and manage traffic within the LAN, reducing congestion and improving overall network performance. Additionally, the switch supports policy-based routing and multicast routing, making it ideal for modern data centers and high-demand network environments.

Energy-Efficient Design and Environmental Sustainability

Cisco’s EnergyWise technology ensures that the WS-C3560E-24PD-E delivers energy-efficient operation without compromising performance. The switch includes intelligent power management that adjusts energy consumption based on network usage, including automatic adjustment of PoE power allocation. This approach helps reduce operational costs and supports environmentally responsible IT practices. Moreover, the Catalyst 3560E’s fan and thermal design contribute to quieter operation and extended hardware lifespan, making it suitable for deployment in office spaces and noise-sensitive environments.

Compatibility and Integration with Cisco Ecosystem

This Catalyst 3560E switch is fully compatible with other Cisco devices, enabling seamless integration into existing networks. The device supports a wide range of Cisco modules and SFP transceivers, allowing enterprises to optimize network architecture according to specific connectivity requirements. Its compatibility with Cisco’s wireless controllers, security appliances, and software-defined networking solutions ensures that organizations can build a unified and scalable network infrastructure without vendor conflicts or integration challenges.

Optimized for Enterprise Applications

The Cisco WS-C3560E-24PD-E is particularly suited for enterprise environments that demand high reliability and low-latency performance. It supports advanced features like VLAN segmentation, multicast optimization, and application-aware traffic management to handle complex networking tasks. With PoE support, Layer 3 routing, and stackable architecture, the switch delivers both operational efficiency and scalability for growing organizations. Enterprises can rely on this switch for unified communications, cloud connectivity, video streaming, and other bandwidth-intensive applications without compromising speed or network stability.

Deployment Flexibility and Form Factor Advantages

Designed for standard 19-inch rack deployment, the WS-C3560E-24PD-E offers flexibility in installation while minimizing physical footprint. Its compact design is suitable for wiring closets, small data centers, or distributed branch offices. The switch includes front-to-back airflow, which allows for versatile placement in diverse environmental conditions and ensures proper cooling in high-density deployments. This form factor, combined with modular stacking and PoE capabilities, makes the Catalyst 3560E an ideal choice for organizations seeking a balance between performance, scalability, and deployment flexibility.

Long-Term Investment and Support Options

Cisco provides extensive technical support and software updates for the Catalyst 3560E series, ensuring long-term operational reliability. Organizations can leverage Cisco SMARTnet services for 24/7 technical assistance, proactive diagnostics, and hardware replacement options. The availability of extended software maintenance and warranty programs safeguards the network investment, allowing enterprises to maintain consistent performance, security, and feature upgrades over the lifecycle of the switch.

Key Performance Metrics and Specifications

The WS-C3560E-24PD-E is designed to deliver high throughput with minimal latency, supporting up to 32 Gbps of switching capacity and up to 24 PoE-enabled ports. It features 10/100/1000 Mbps Ethernet connections, Layer 3 routing with static and dynamic protocols, and up to 64,000 MAC address entries. Additionally, the switch supports jumbo frames, enhanced QoS policies, and robust multicast performance, ensuring optimal data handling for diverse enterprise applications. The combination of advanced hardware and software capabilities makes this switch a reliable backbone for critical business operations.
